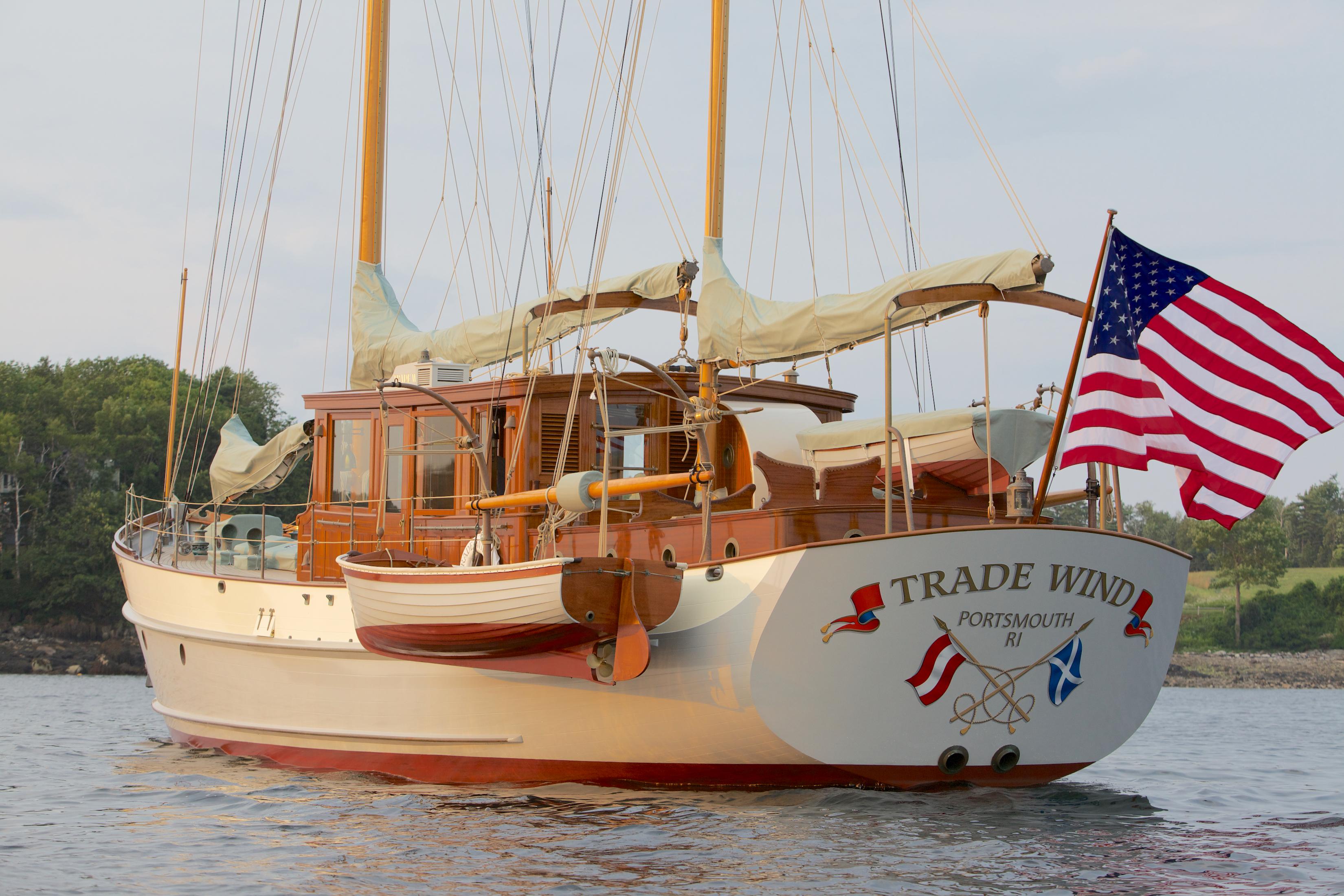

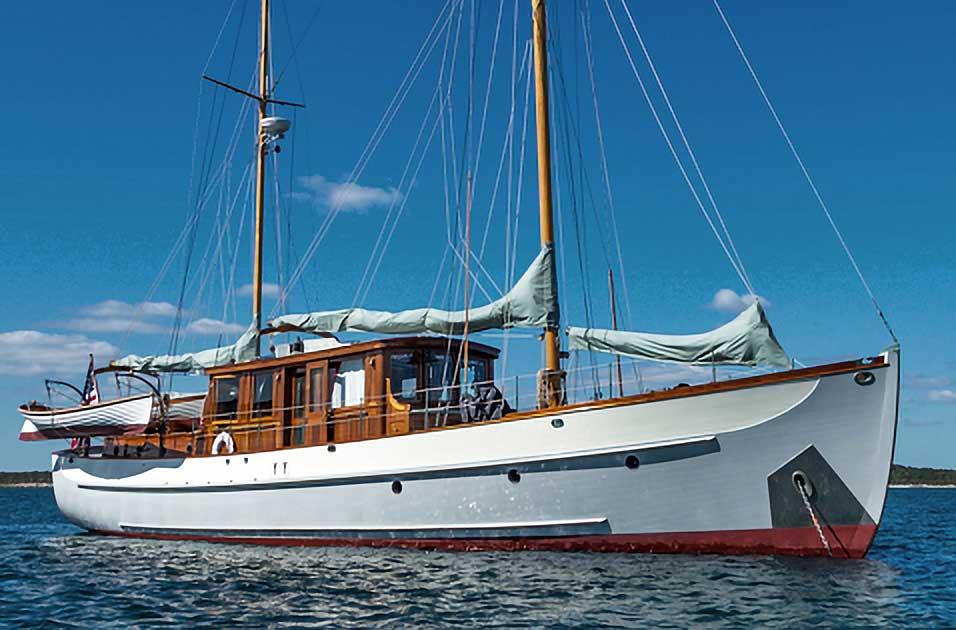

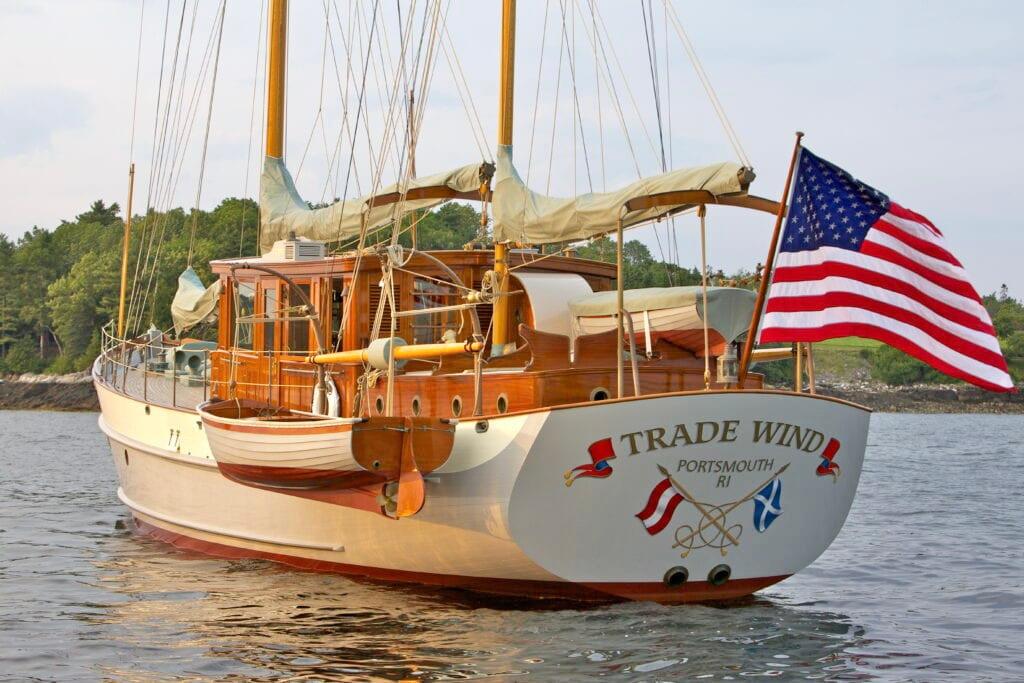

Trade Wind

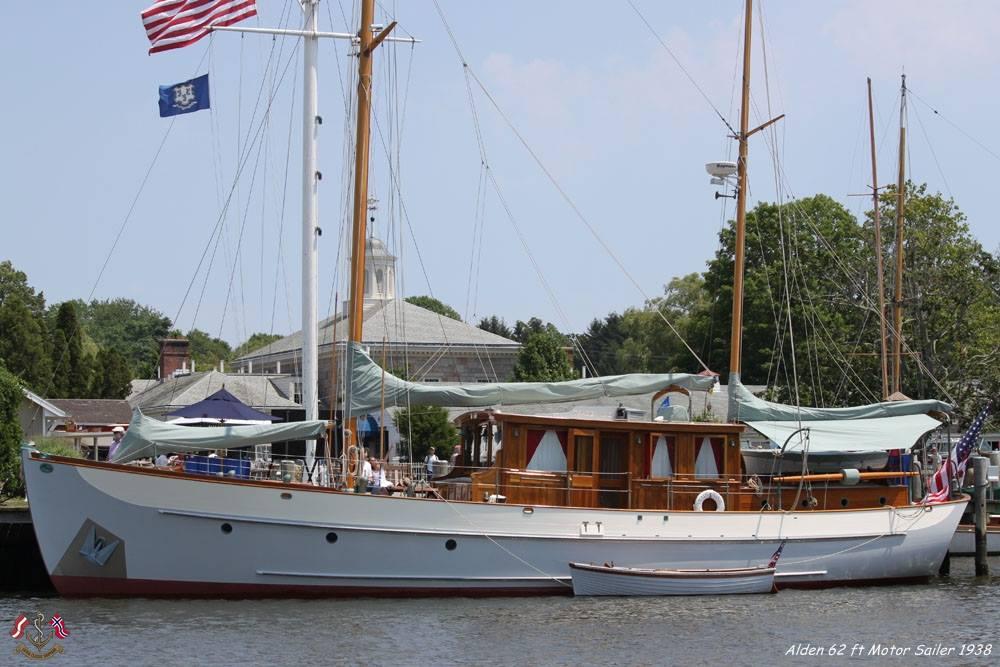

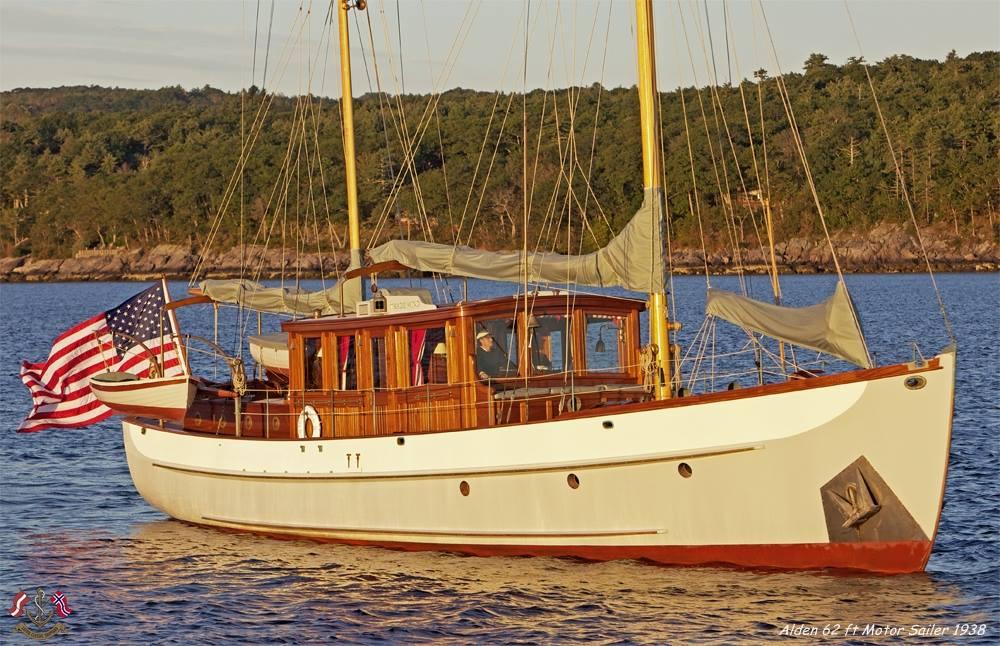

62 ft' Alden Custom Design & 2008-2011 by Rockport Marine 1938

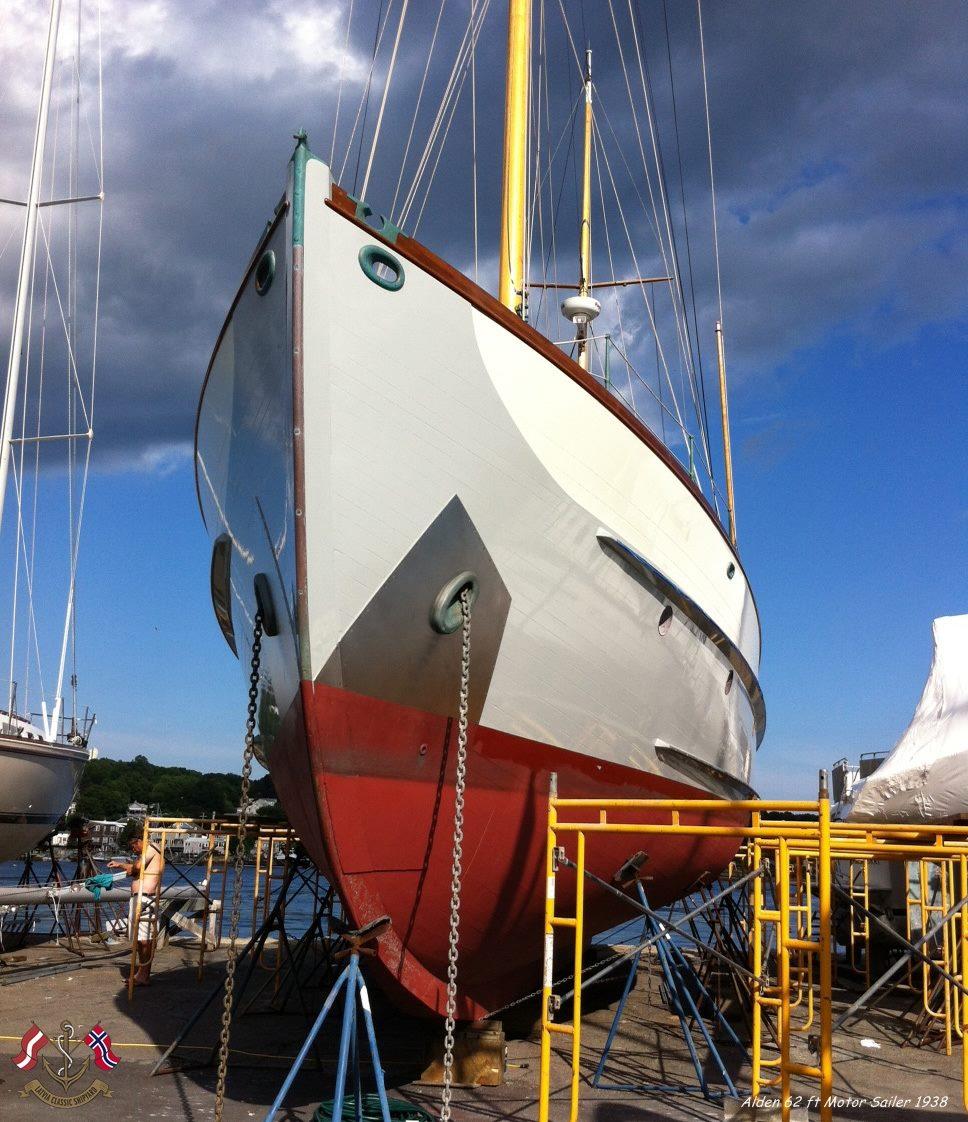

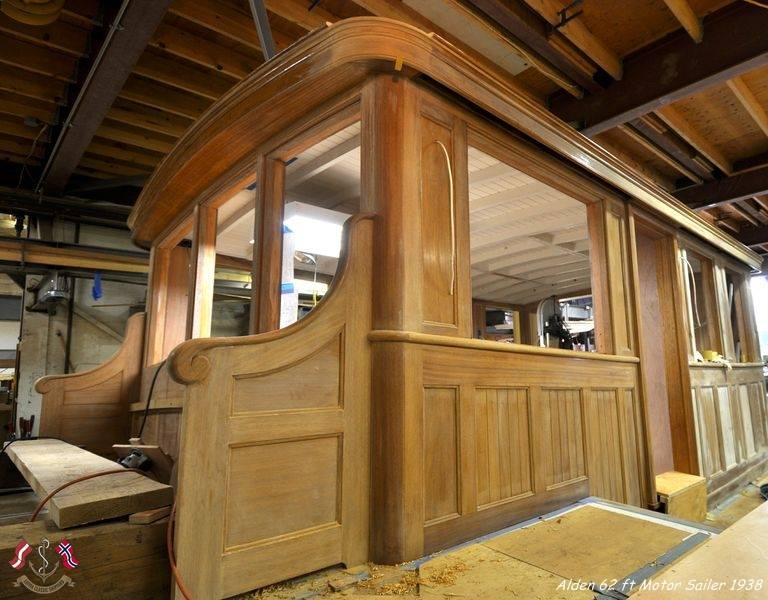

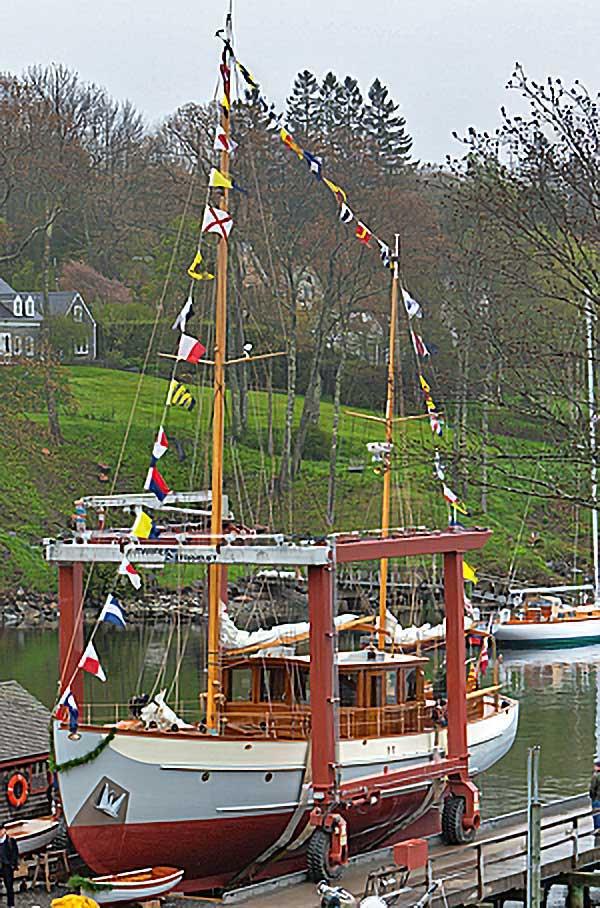

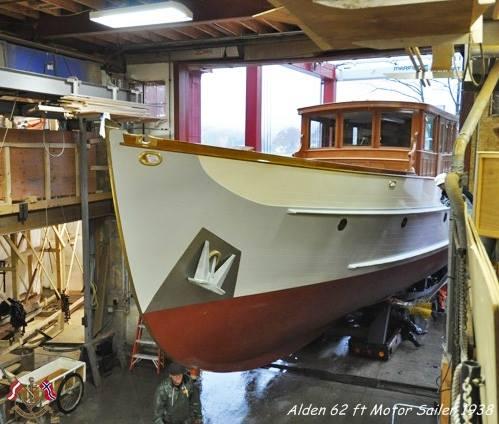

Perhaps the word "Re-built" would be more accurate than "Re-fit" to describe the work Rockport Marine performed on S/V Trade Wind between 2008-2011.  This was not just the installation of new electronics, or a re-powering or replacing a few planks or teak decks.... this project was essentially a dismantling of the old Trade Wind and re-construction or fabrication of nearly 80% of the vessel.  To say that Trade Wind is a 1938 model year vessel would not be accurate, but to say Trade Wind is now more like a "brand new old boat" might do the trick.  If you have not already done so, treat yourself to a look at the video footage of her restoration at Rockport Marine.

Here are a few carpentry highlights of her impressive and elaborate 2008-2011 restoration:

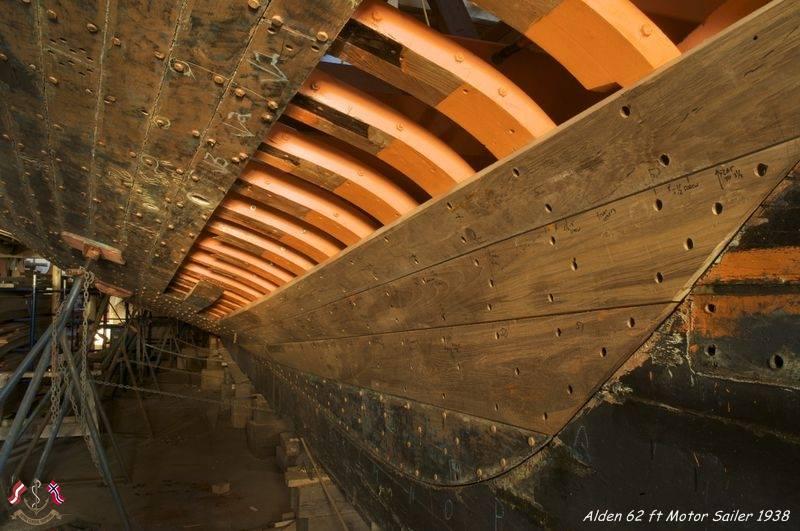

• Totally re-built traditional heavy plank on frames
• New white oak back bone, stem and horn timber
• Steam bent and replaced many white oak frames and scarfed or sistered other frames as necessary
• New white oak and bronze floors
• Removed cast iron ballast keel, epoxied and re-hung keel with new bronze bolts
• Re-fastened original Burma teak planking (1 7/8" thick) w/ silicon bronze screws
• Fabricated and installed new rubbing strakes of Purple Heart wood with bronze 1/2 round cap

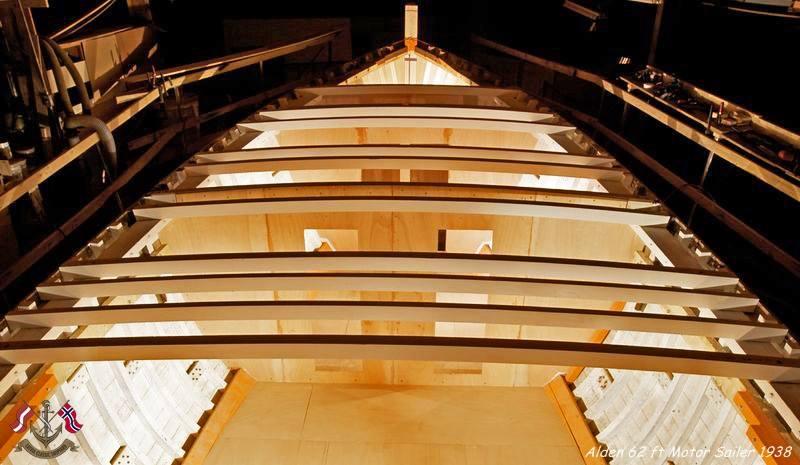

• Fabricated, painted and installed new laminated Douglas fir deck beams
• Fabricated and installed new marine ply sub-deck and new 1/2" teak (buttless) deck
• New Iroko covering board, bulwarks and cap rail
• New white oak transom framing and Iroko double-planking

General:

The interior is a very elegant blend of varnished raised panels and bead board, offset with white enamel and grey Corian countertops & built to the highest standard of joinery.  Hardware is namely custom high caliber polished bronze or brass with polished nickel hardware in wet rooms.

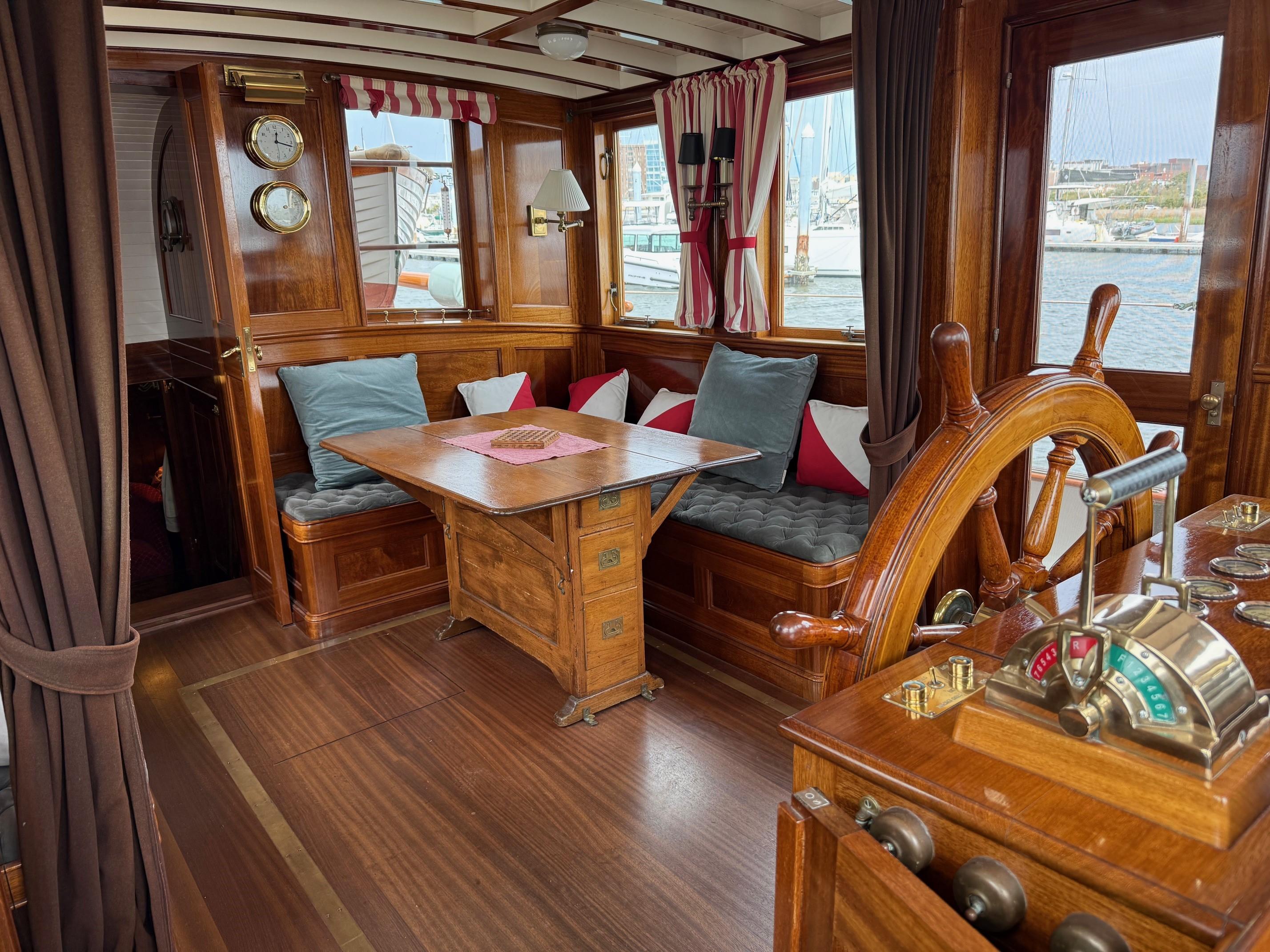

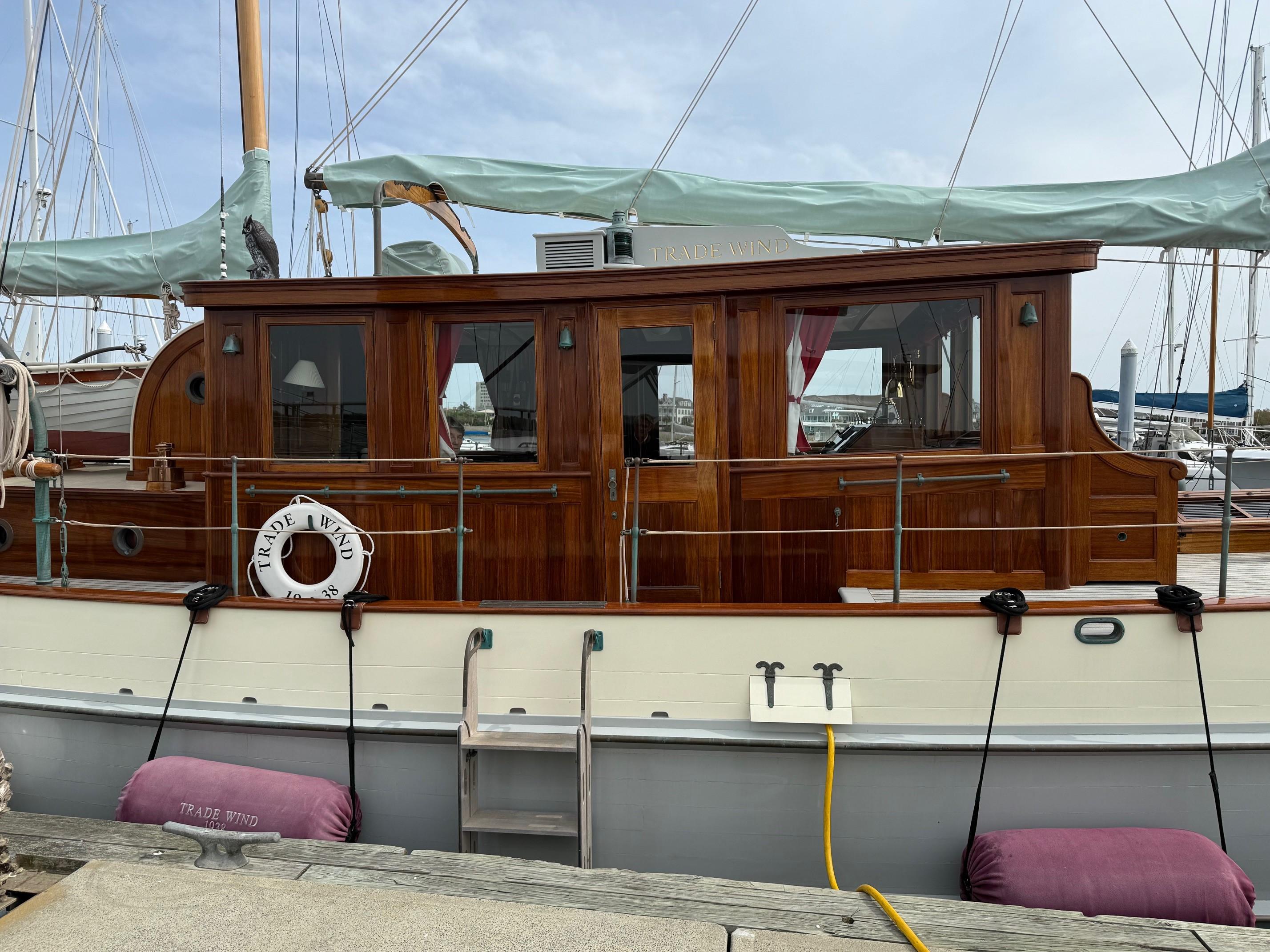

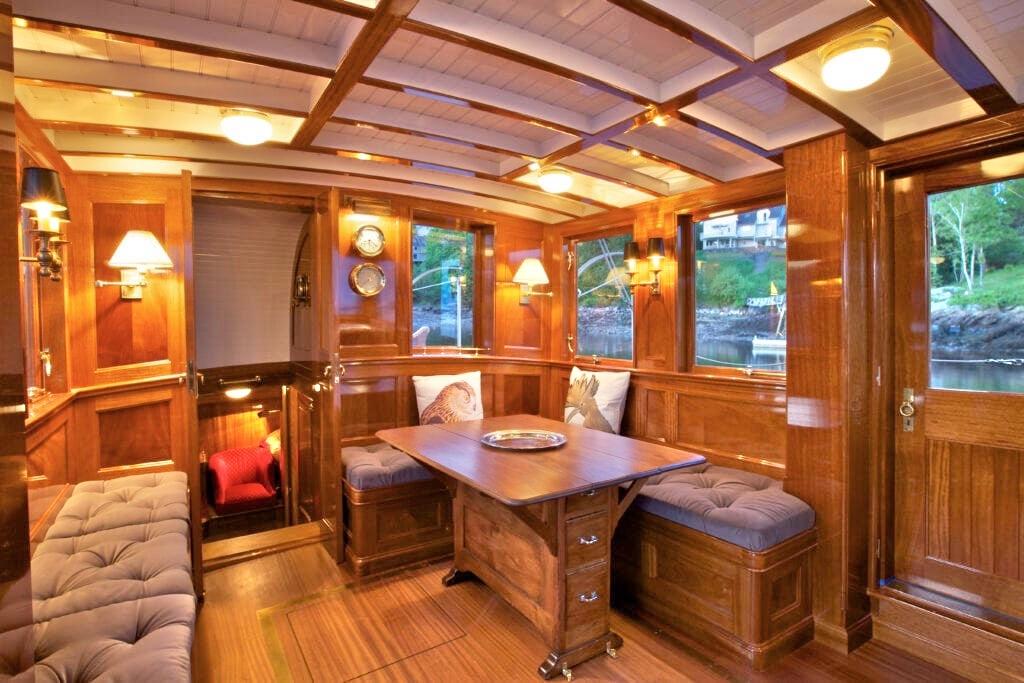

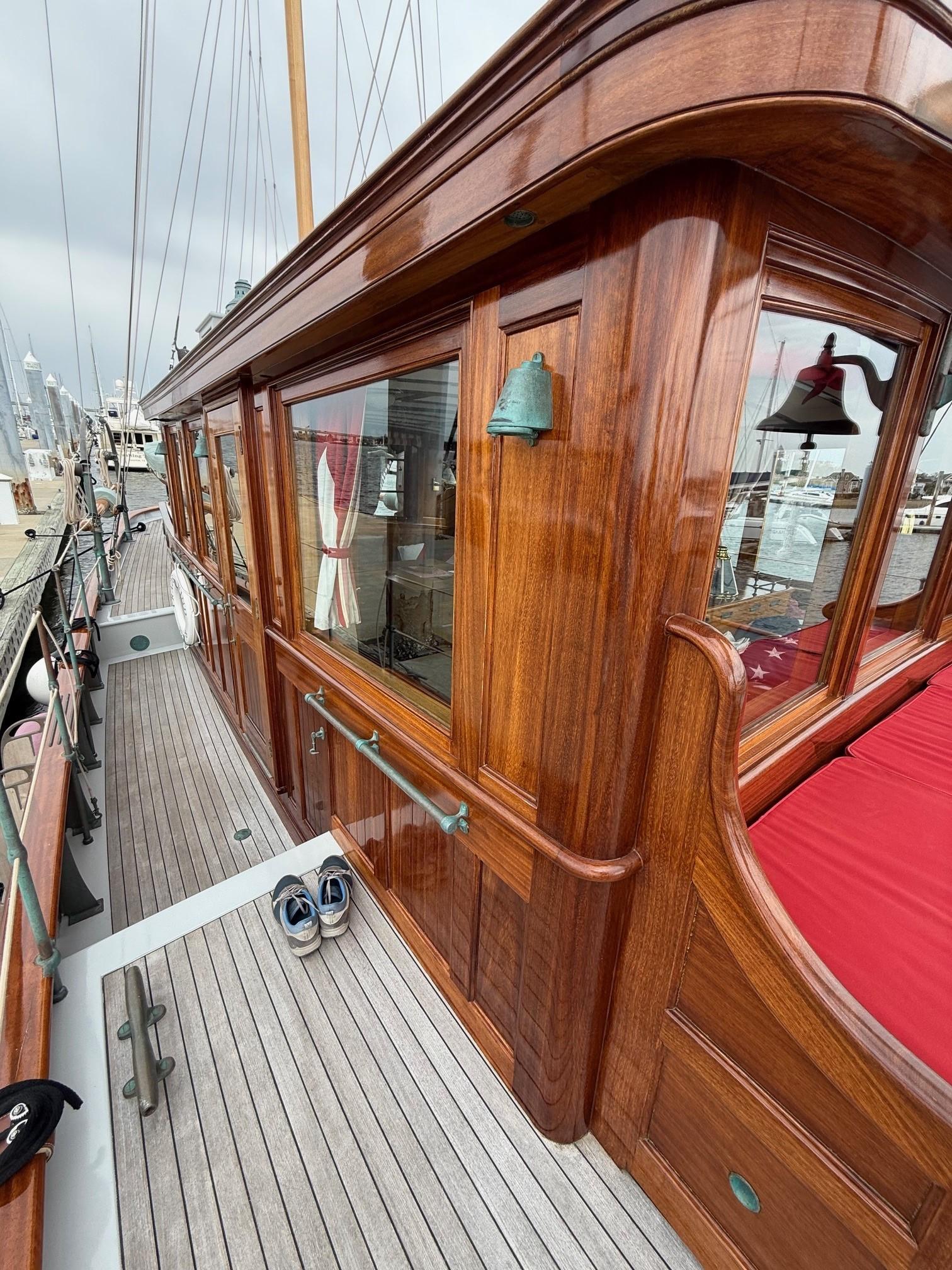

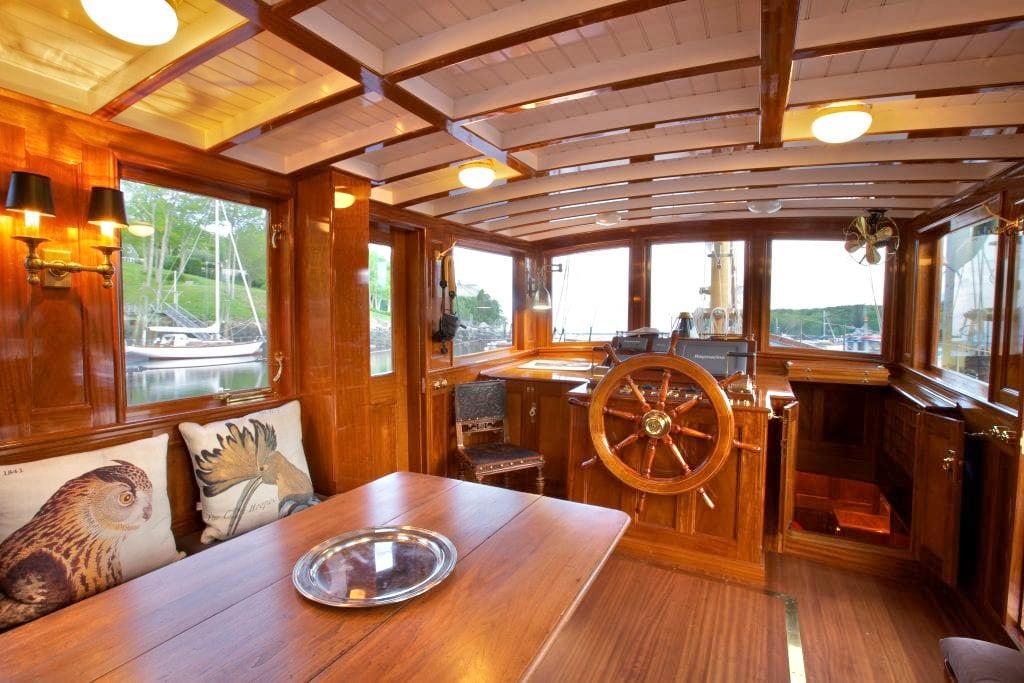

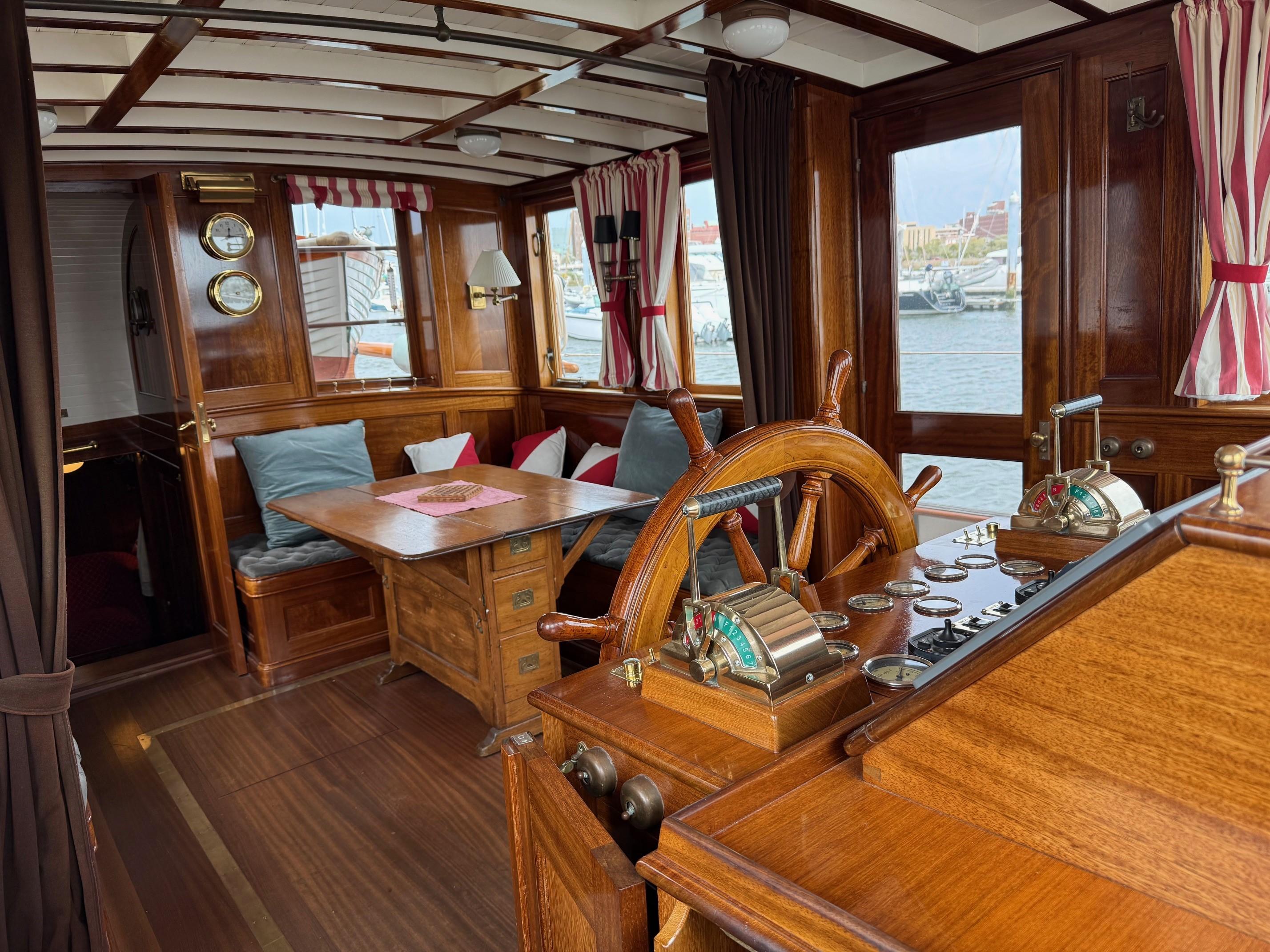

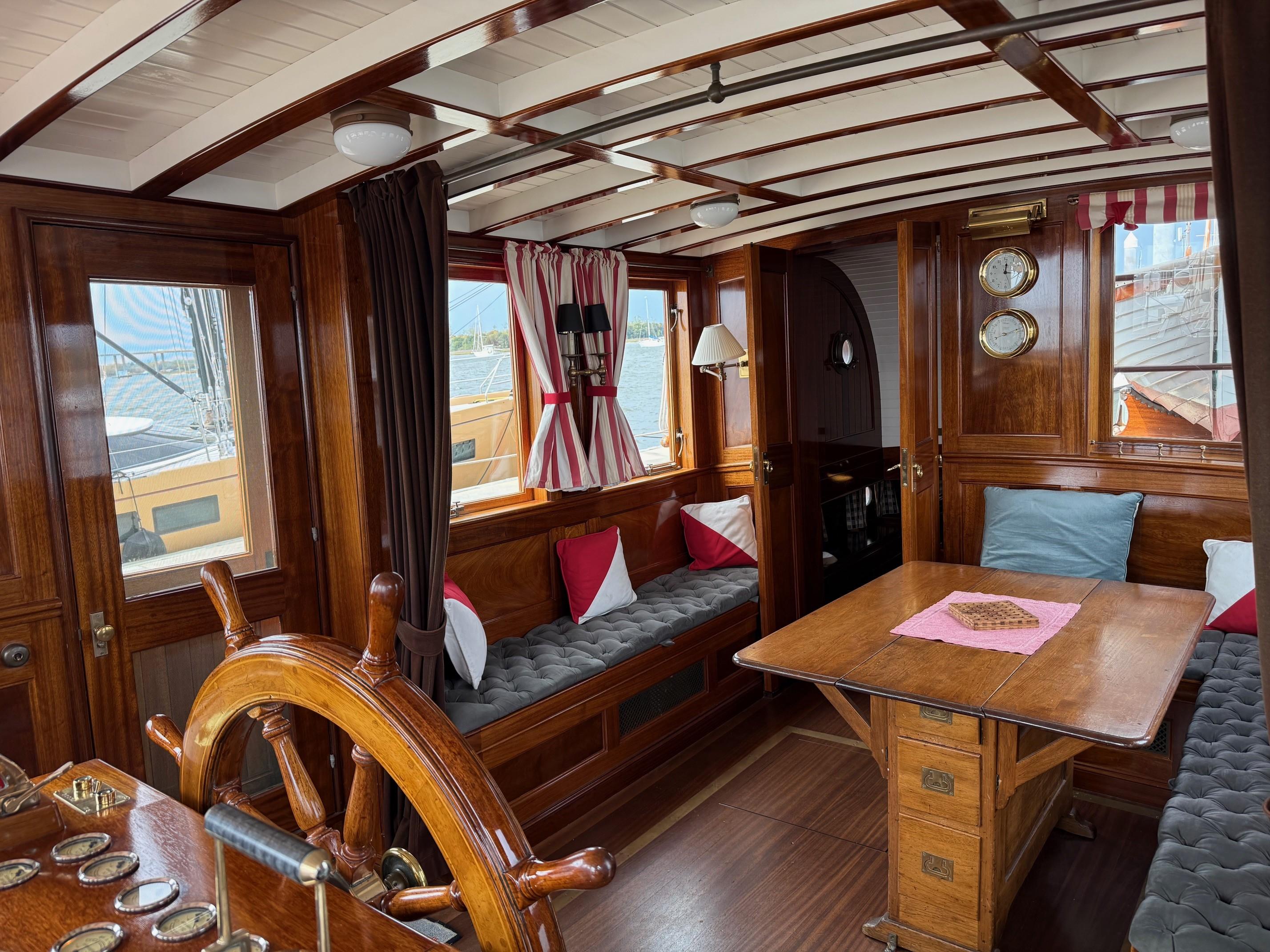

Pilothouse and deck salon:

• 15' x 9' pilothouse w/ 6' 8" headroom

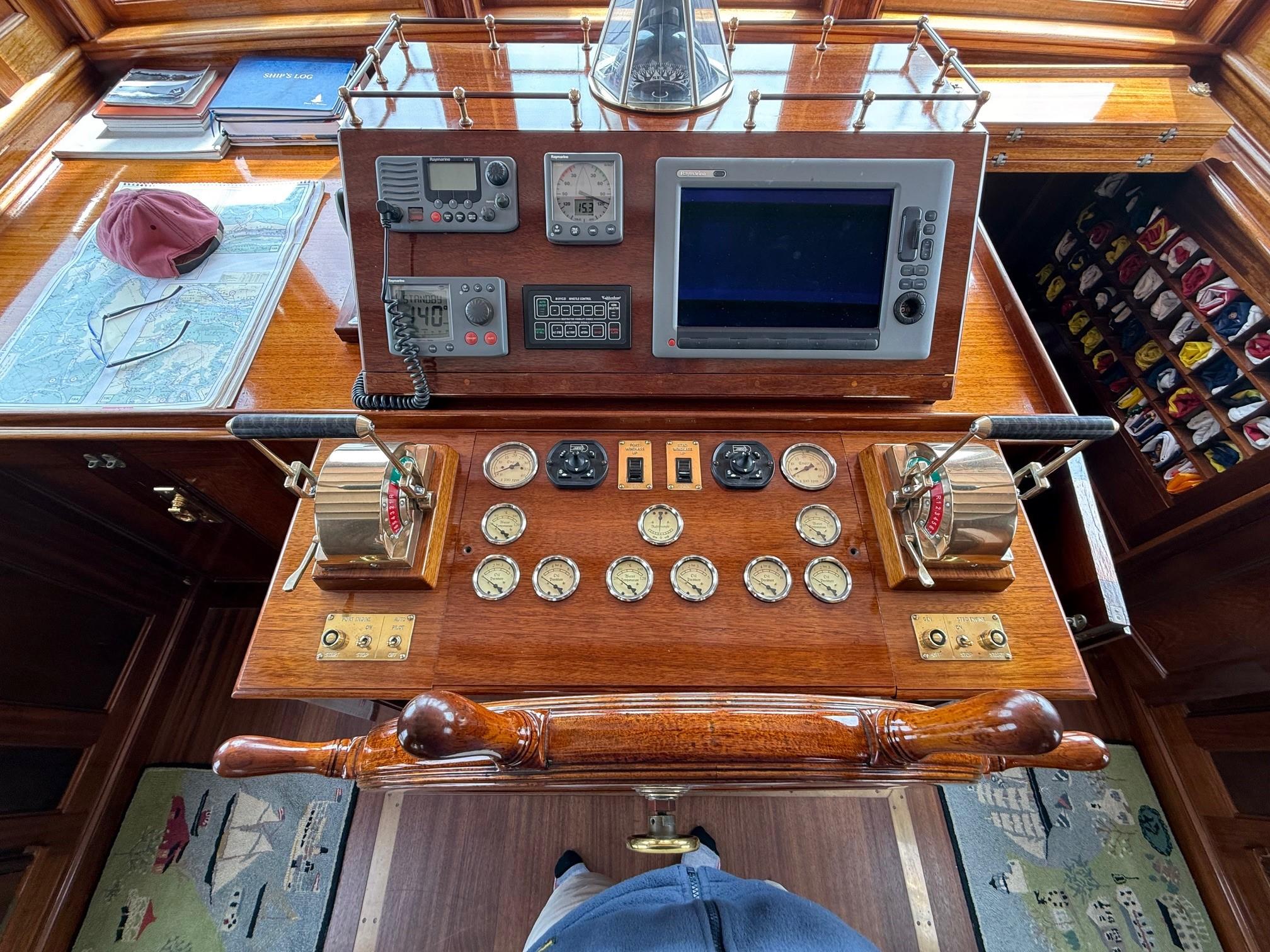

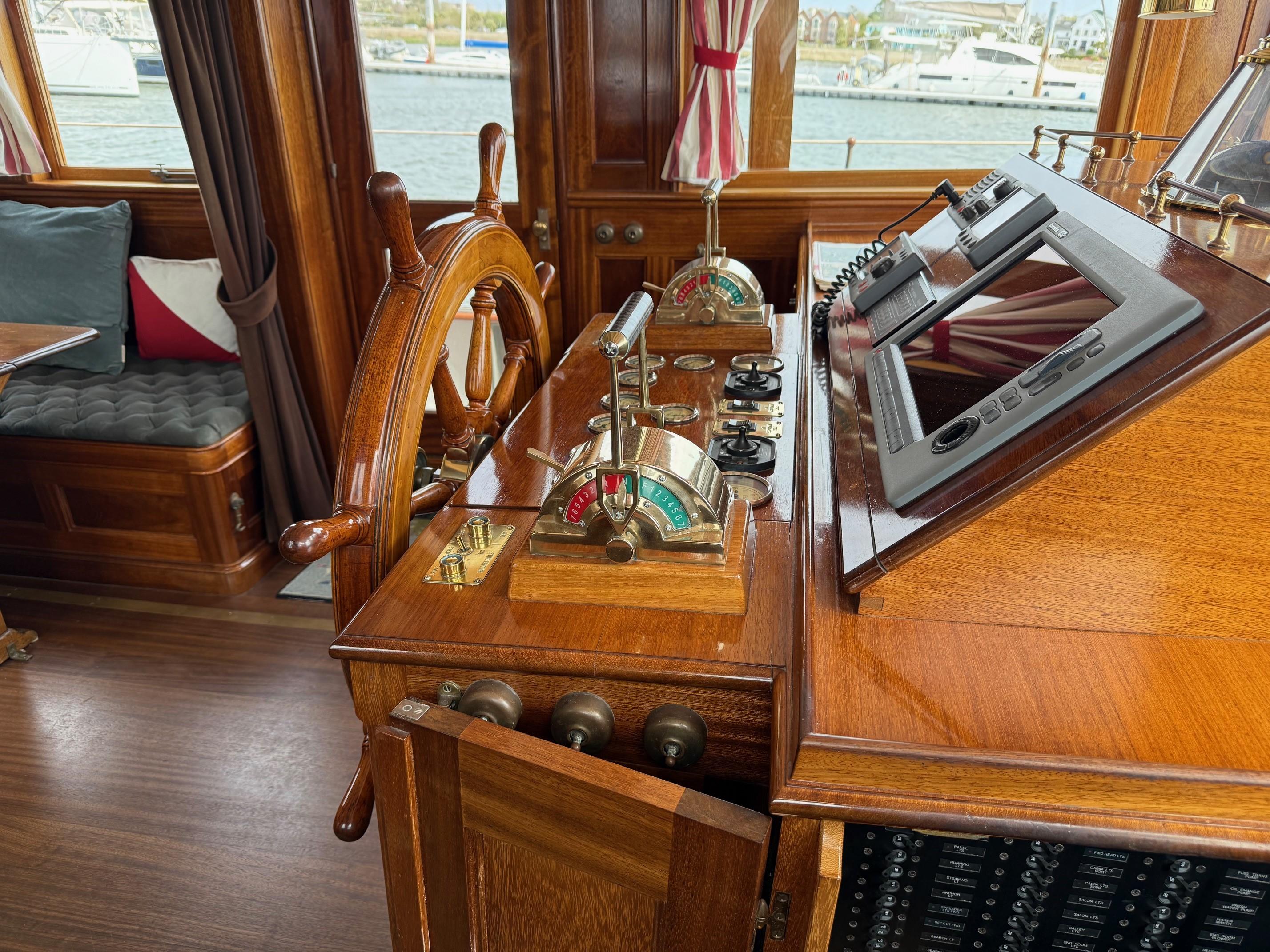

• Helm is on centerline fwd of Pilothouse salon

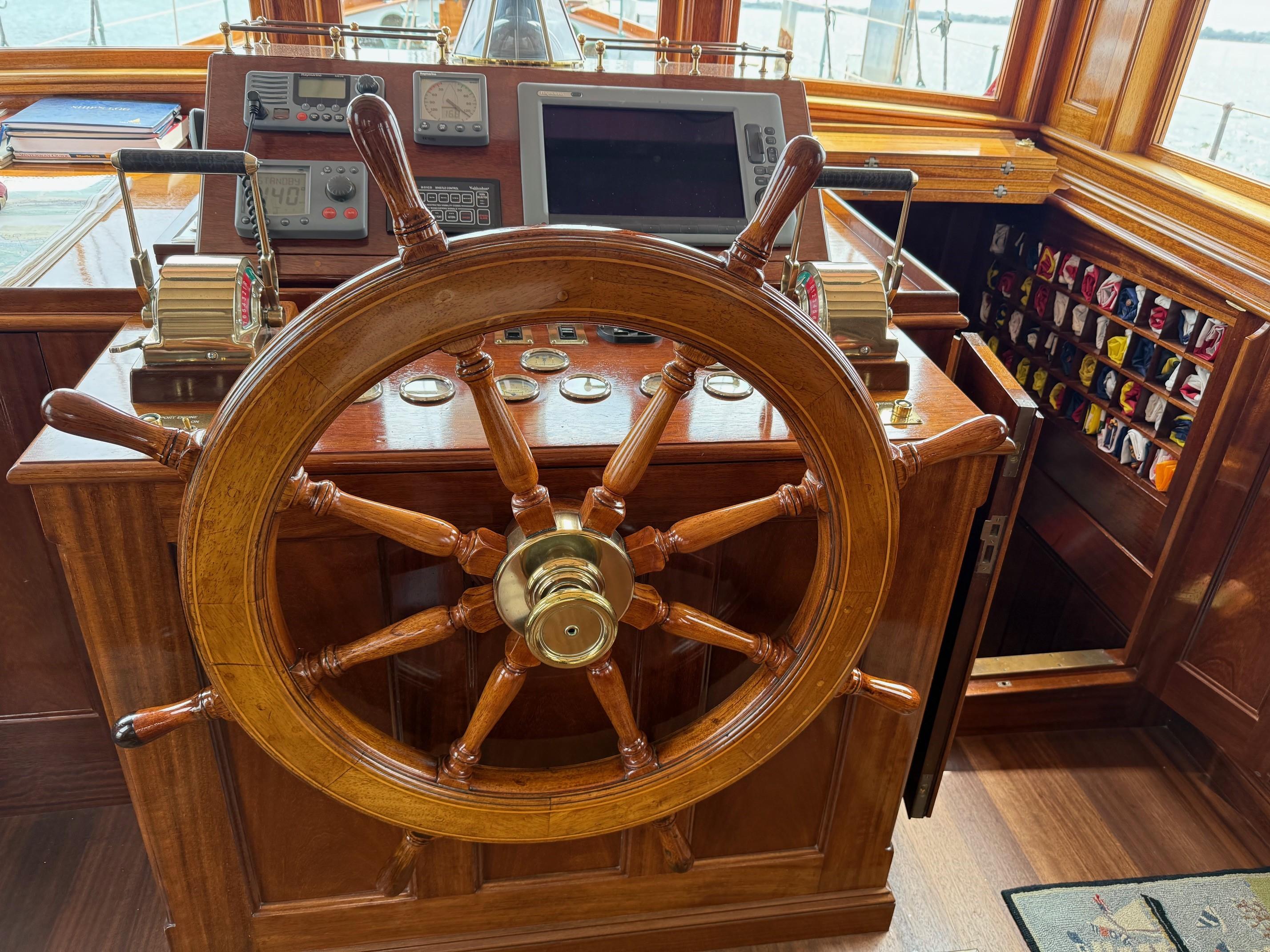

• 40" original (1938) 8-spoke helm wheel

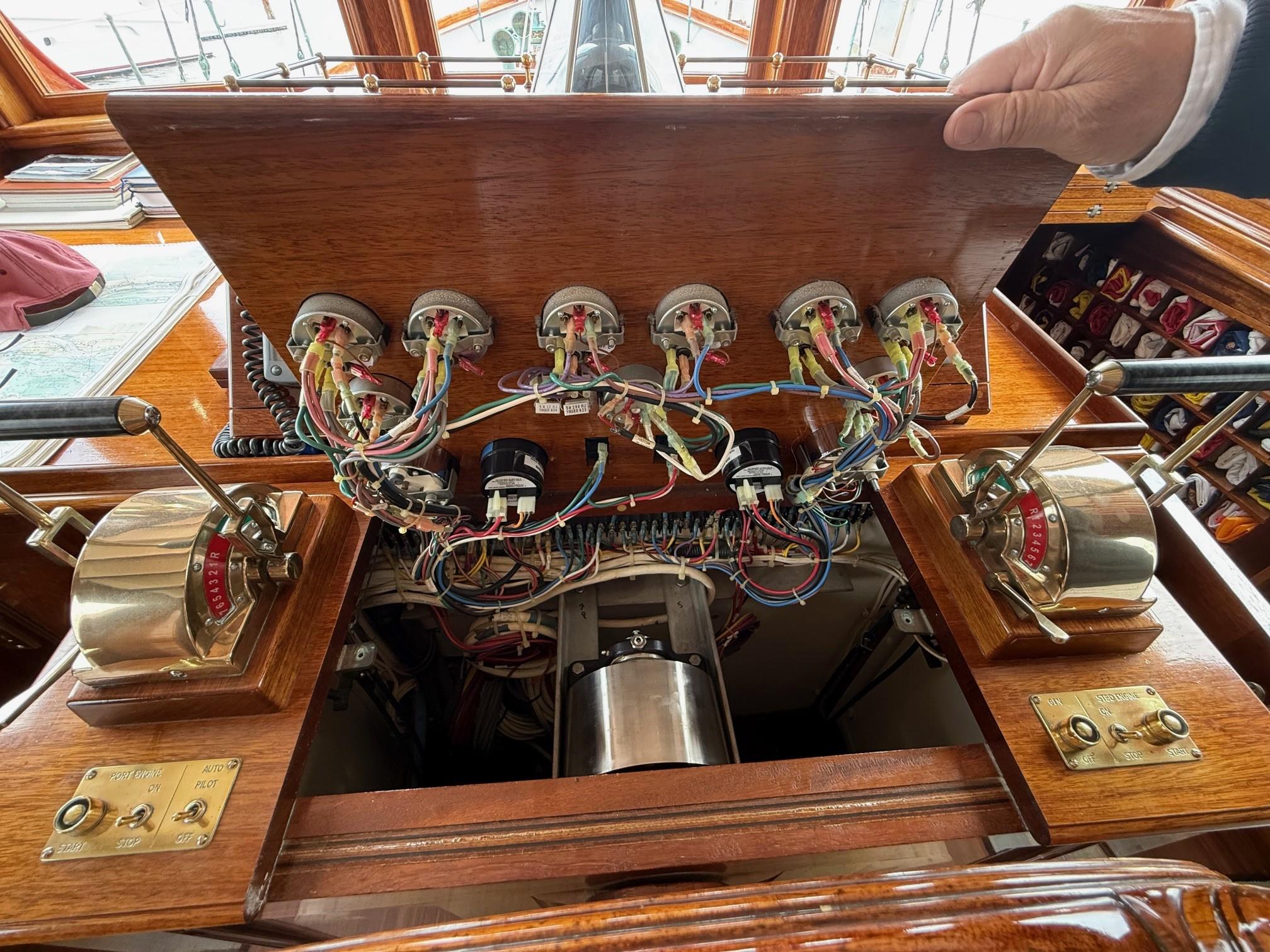

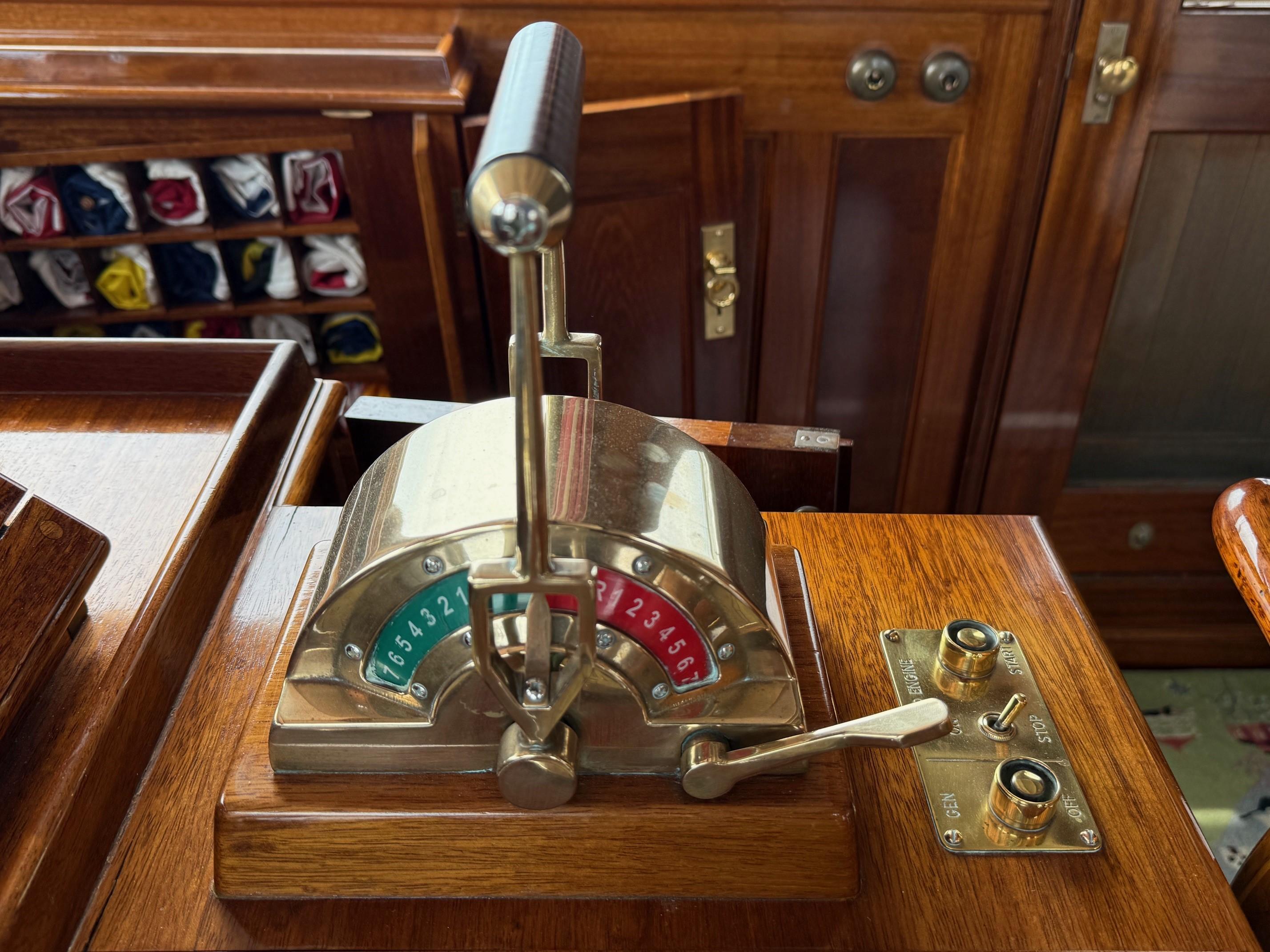

• Duel vintage-style engine controls (bronze)
• Vintage-style instrument gauges with modern Raymarine GPS plotter
• Chart table to port of helm with swing-arm chart light

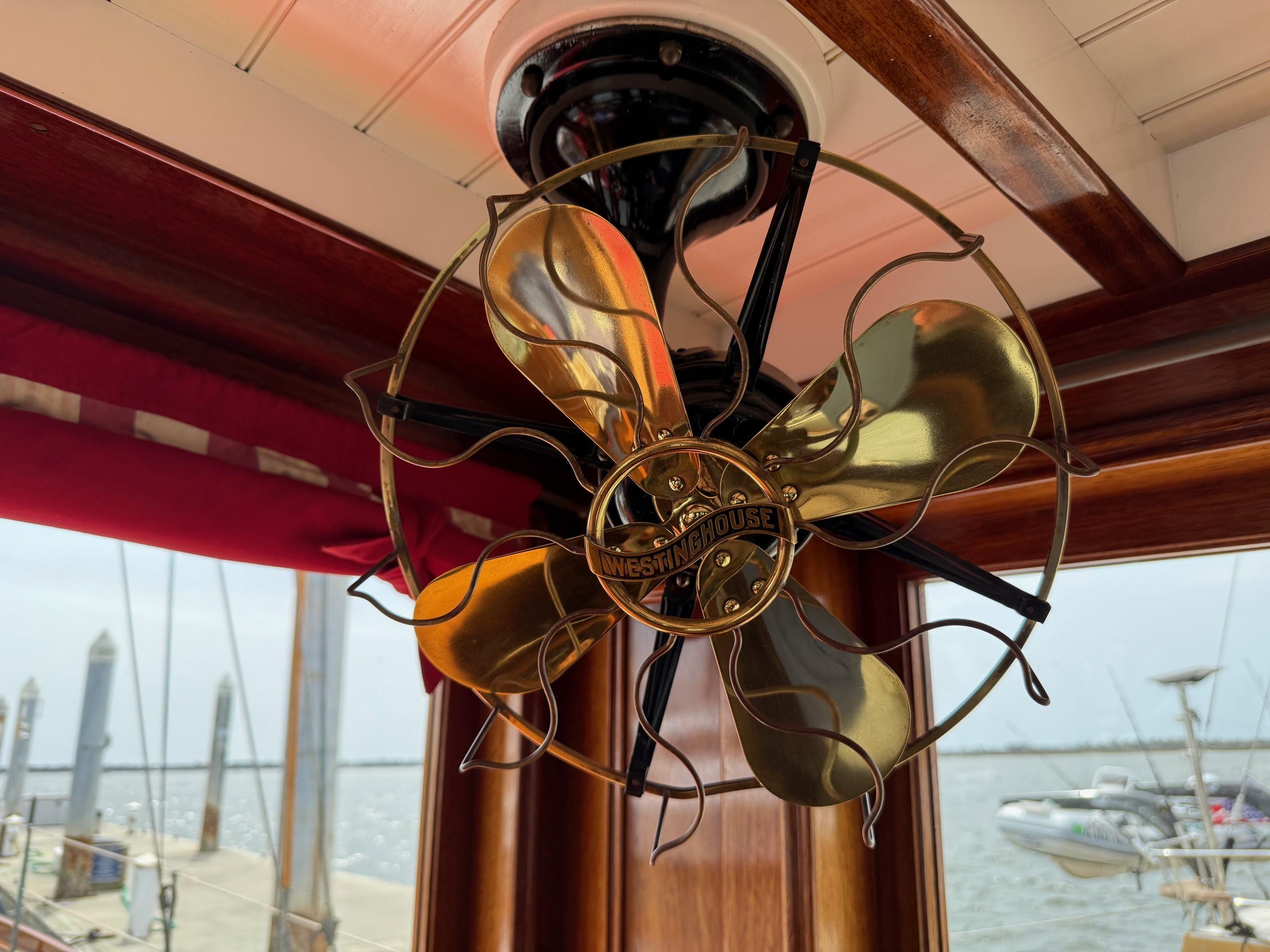

• Brass vintage Westinghouse comfort fan mounted in overhead
• Red/white dome light over chart table

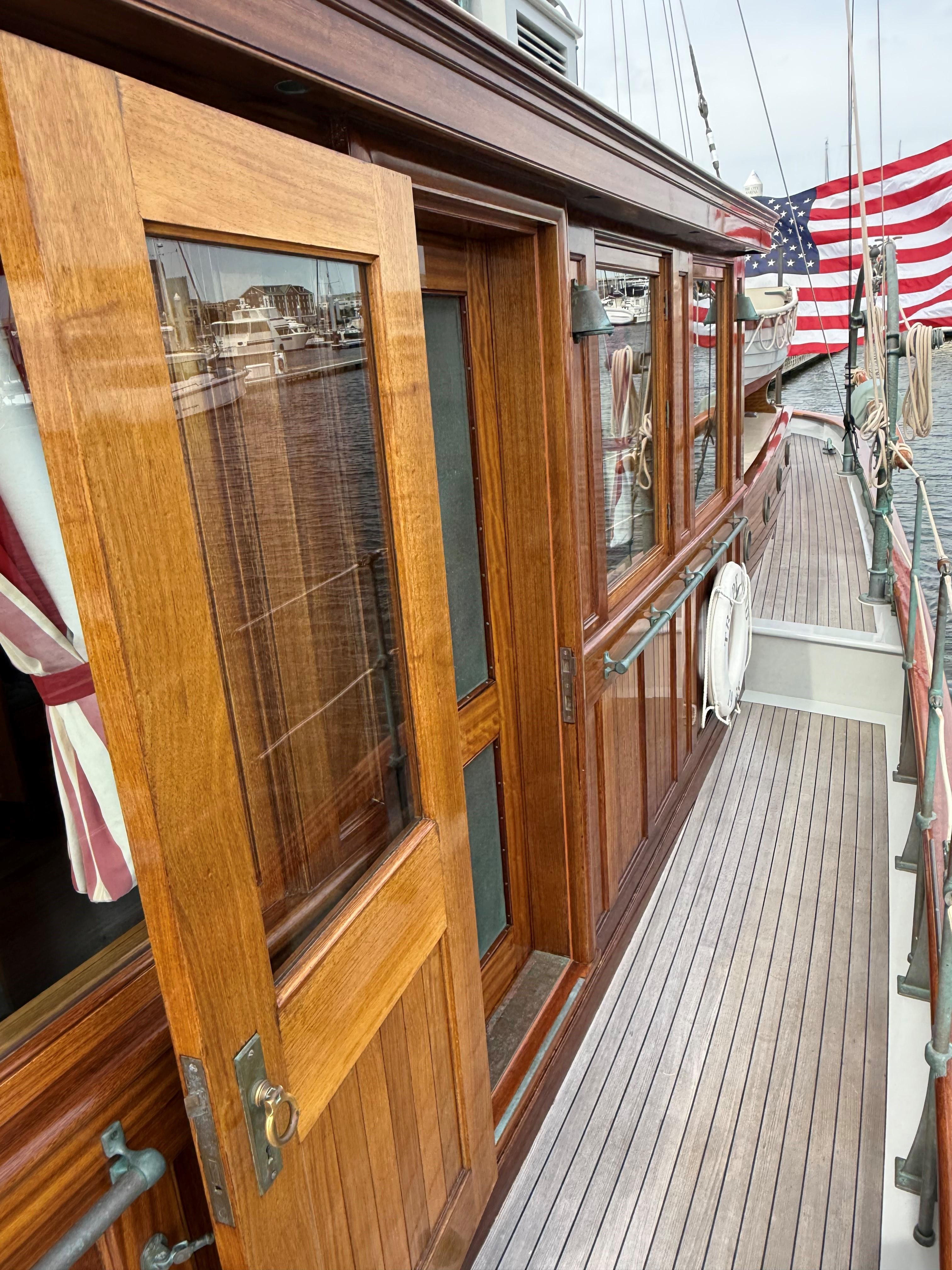

• Pilothouse entry/exit doors with additional full length screened doors to port and stbd
• Blackout curtains between helm and dining area
• Main seating with original Butternut wood dining drop leaf table (1938) with integral drawers
• L-shaped settee seats 4-6 with additional chairs
• 6'3" Additional settee seating to stbd of dining table
• Excellent visibility through ten large windows and doors
• 4 Pilothouse windows swing open (some fwd and some aft) to maximize natural airflow
• 6 dome lights and 2 light sconces
• 2 swing-arm reading lights and picture/spot light over Clock and Barometer
• 2 Air heating registers under settees plus powerful defroster for windshield
• Oiled Iroko wood cabin sole w/bronze lined access hatch over engine room
• Additional engine room hatch aft in sole for emergency exit of engine space
• Varnished raised panel finish with white overhead and varnished beam caps
• All fittings polished bronze or brass

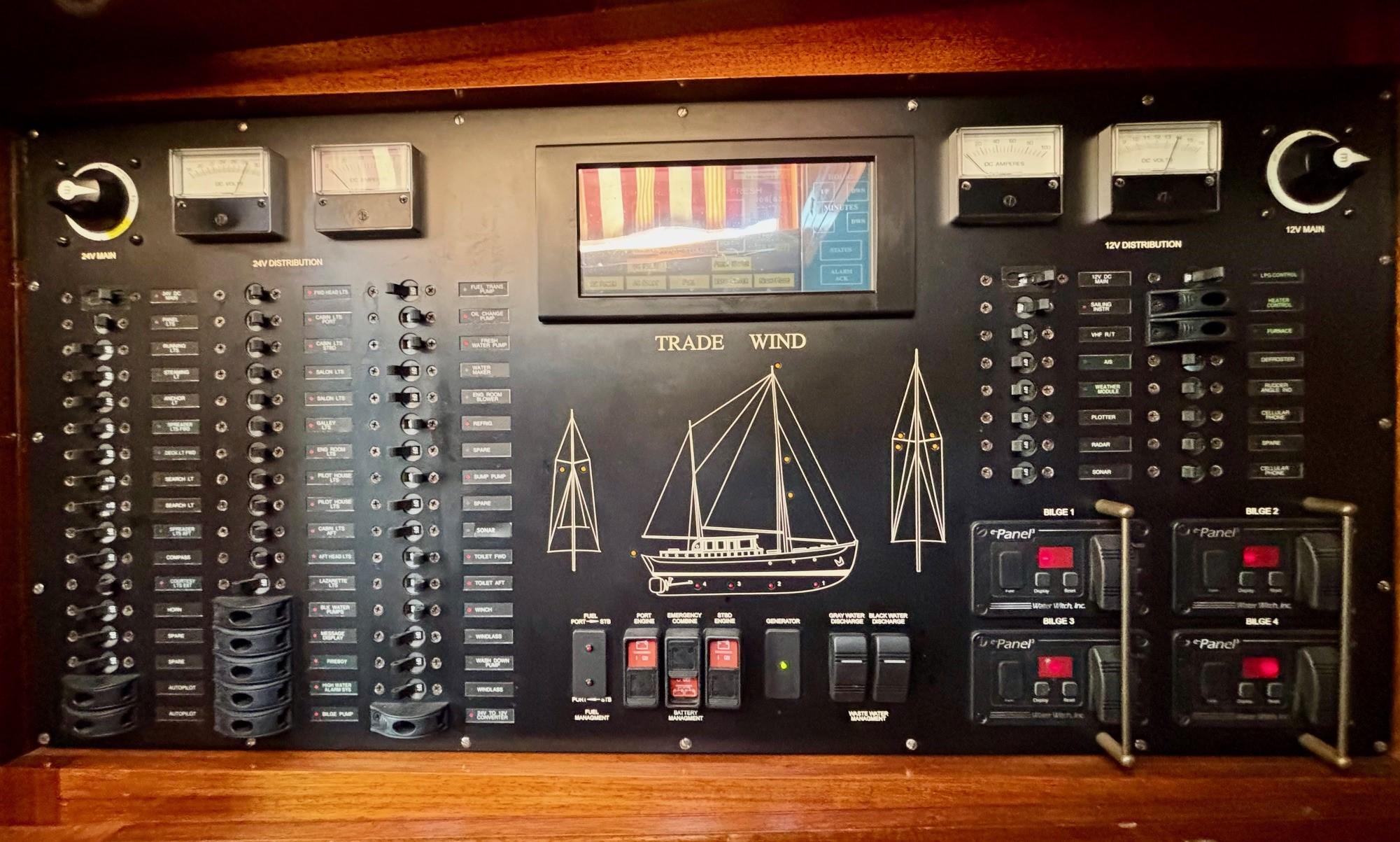

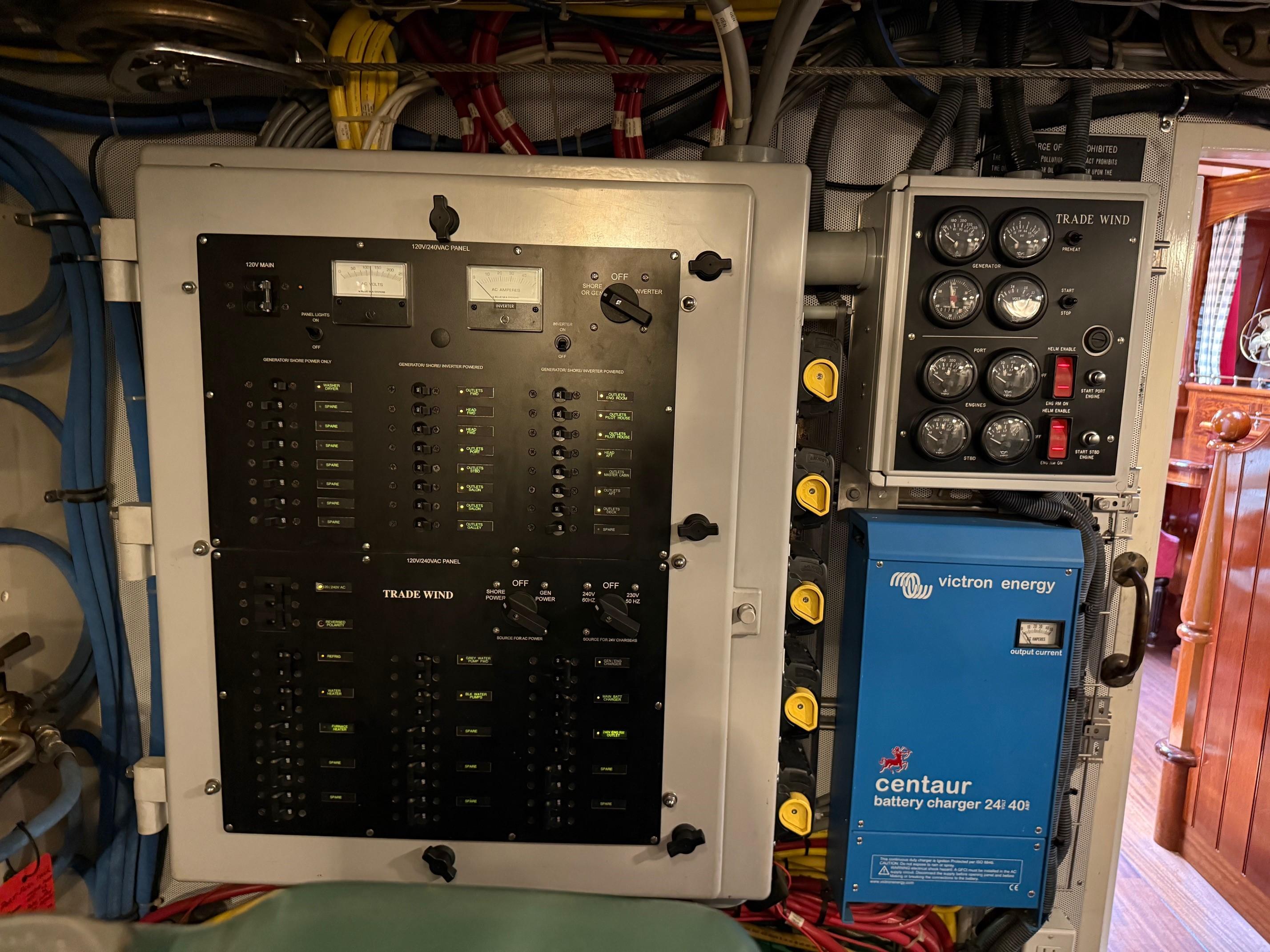

• Large breaker panels to stbd of helm very accessible 12v/24v and 220v etc
• Custom signal flag storage cubbies outboard of breaker panel
• Companionway/stairs lead from pilothouse to lower main salon

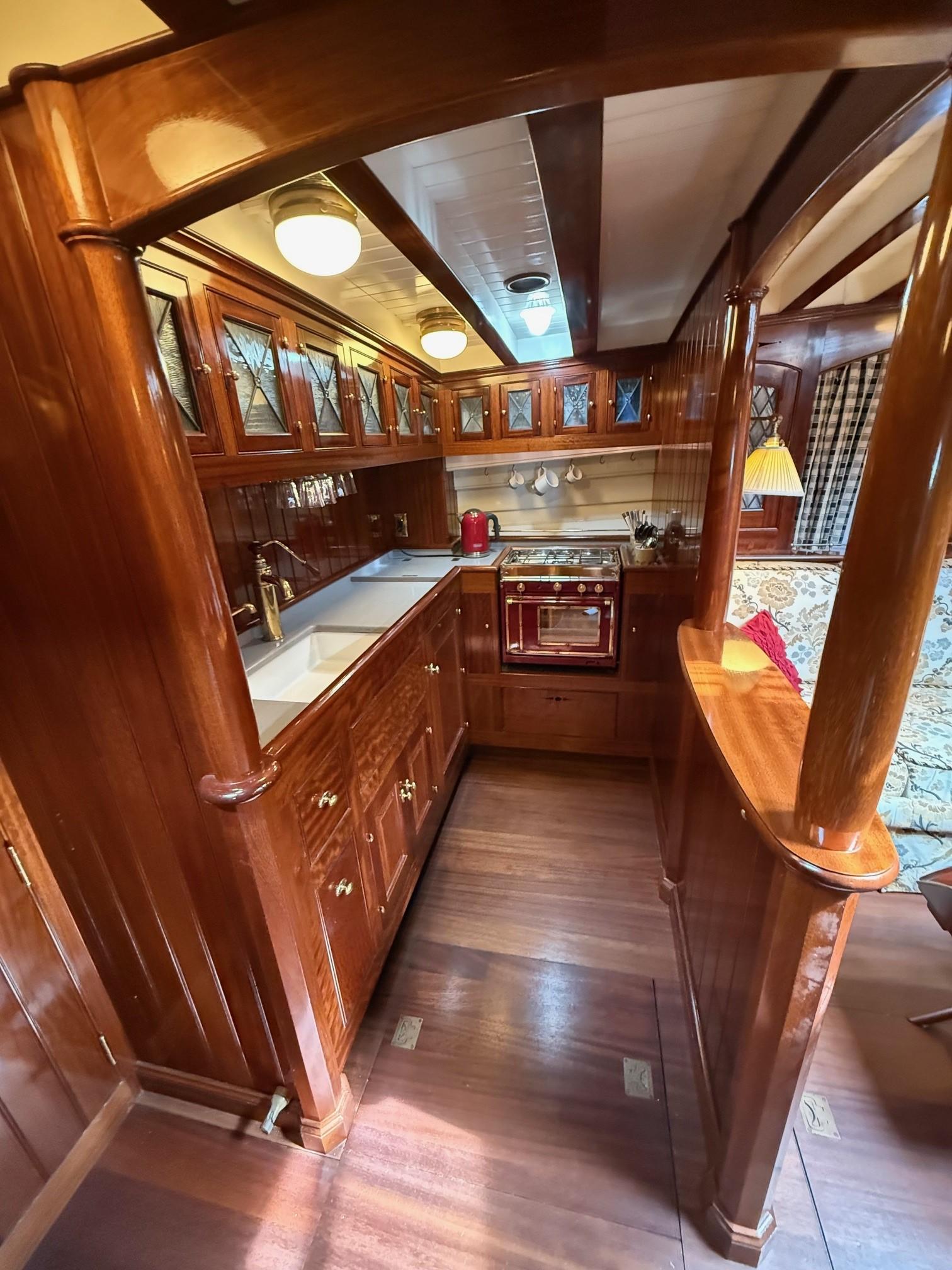

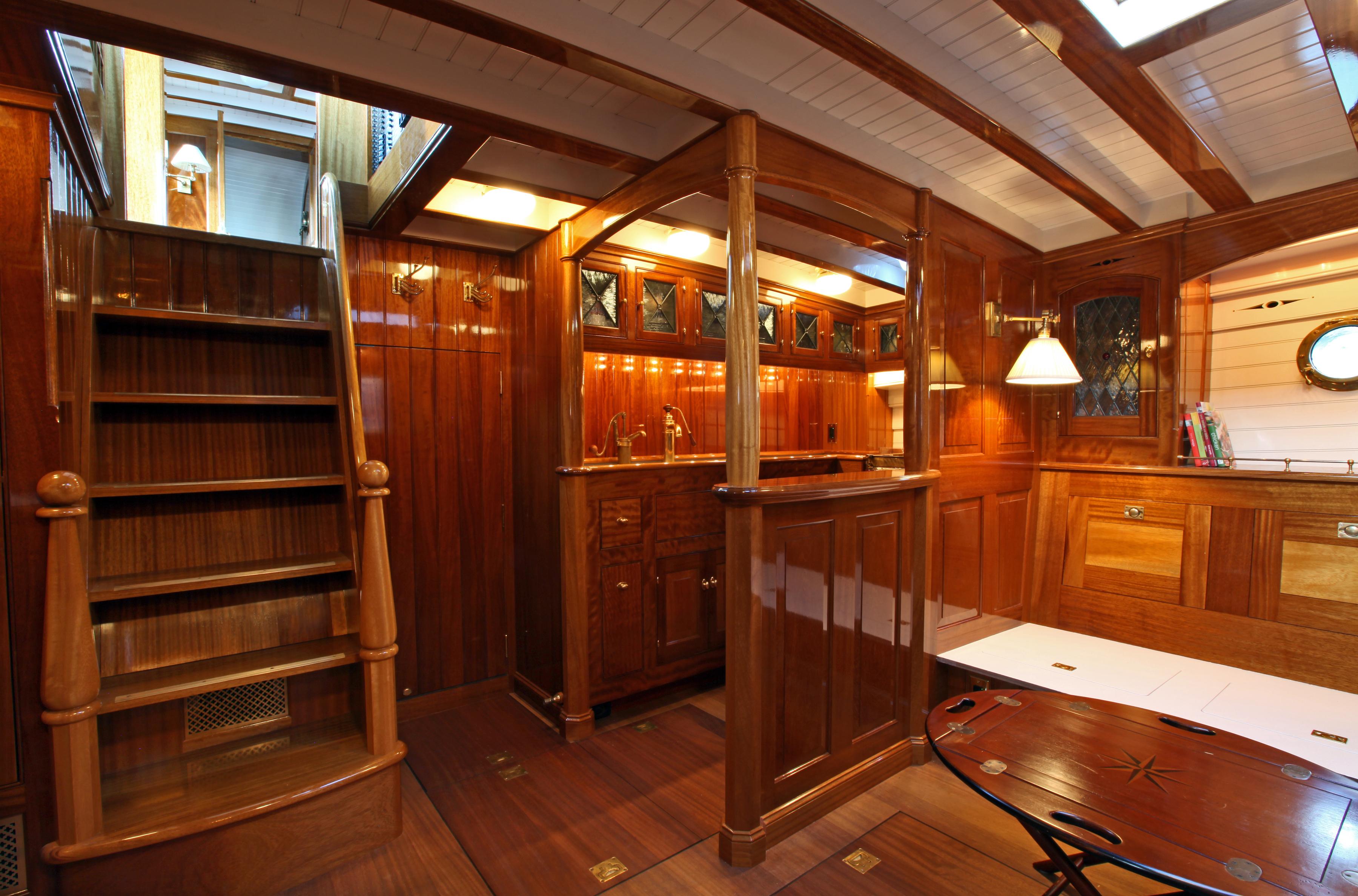

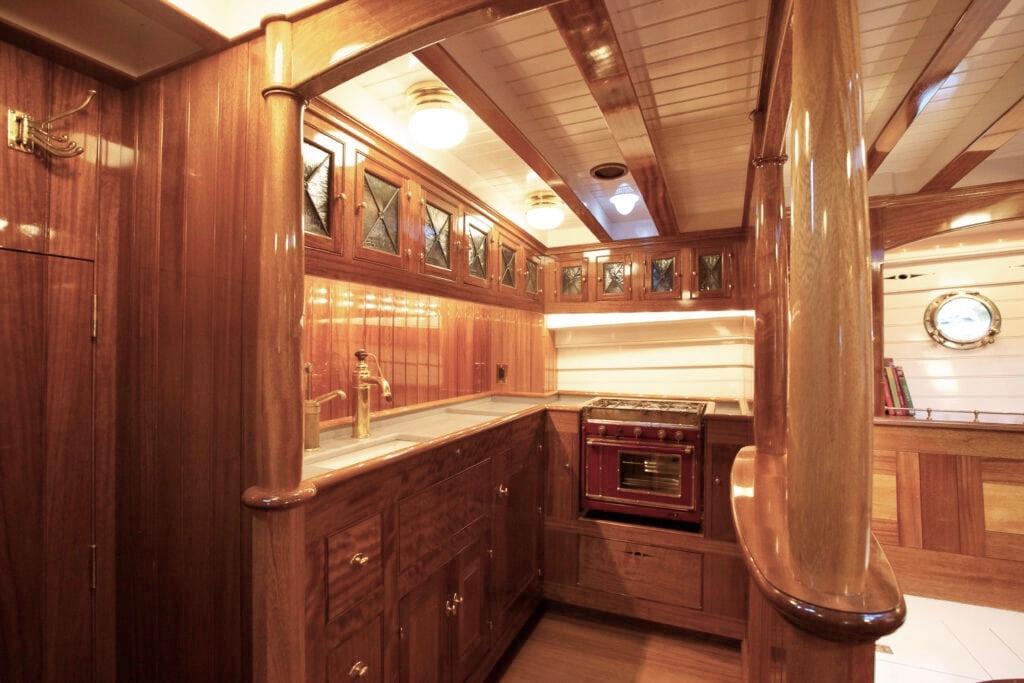

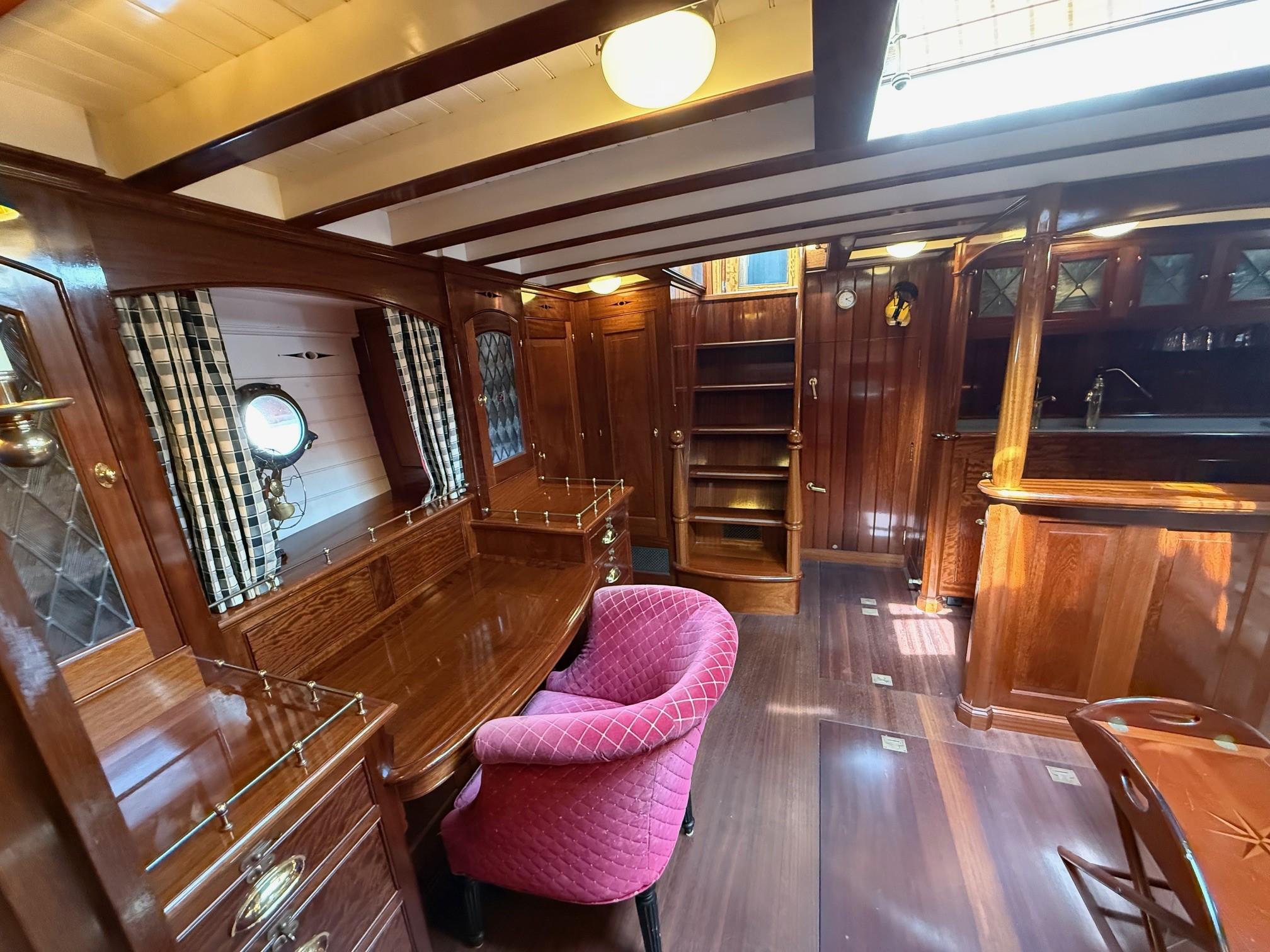

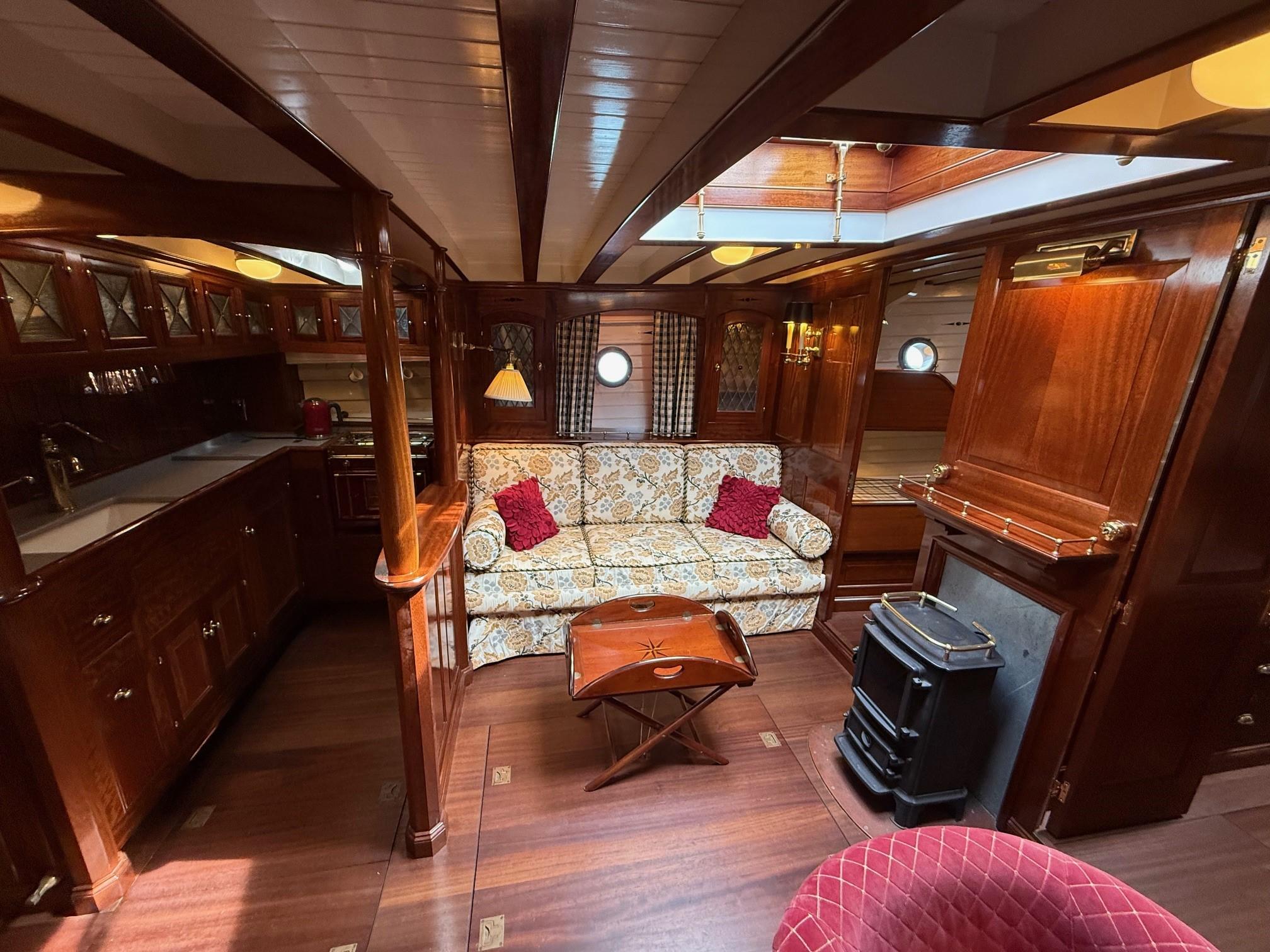

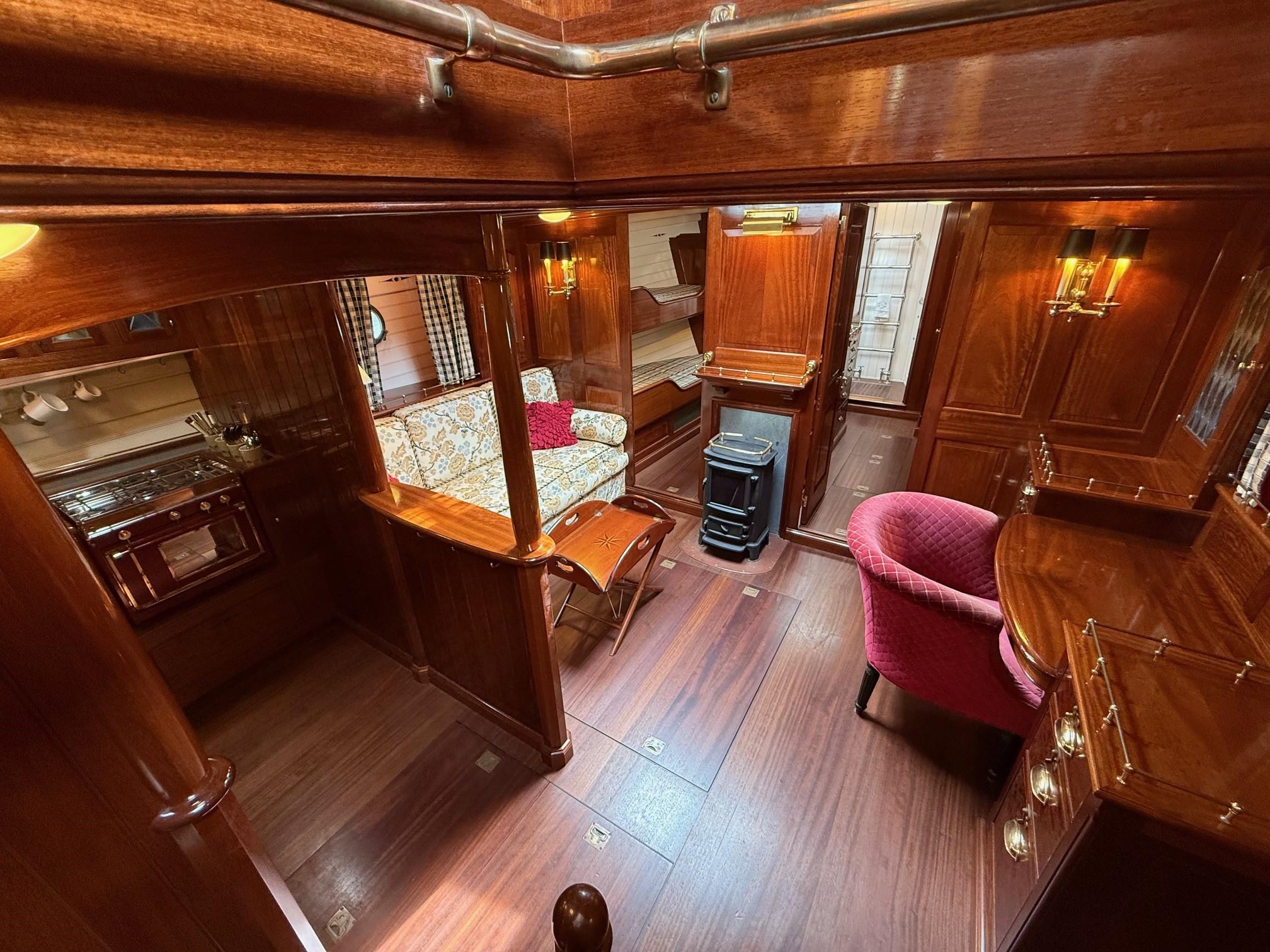

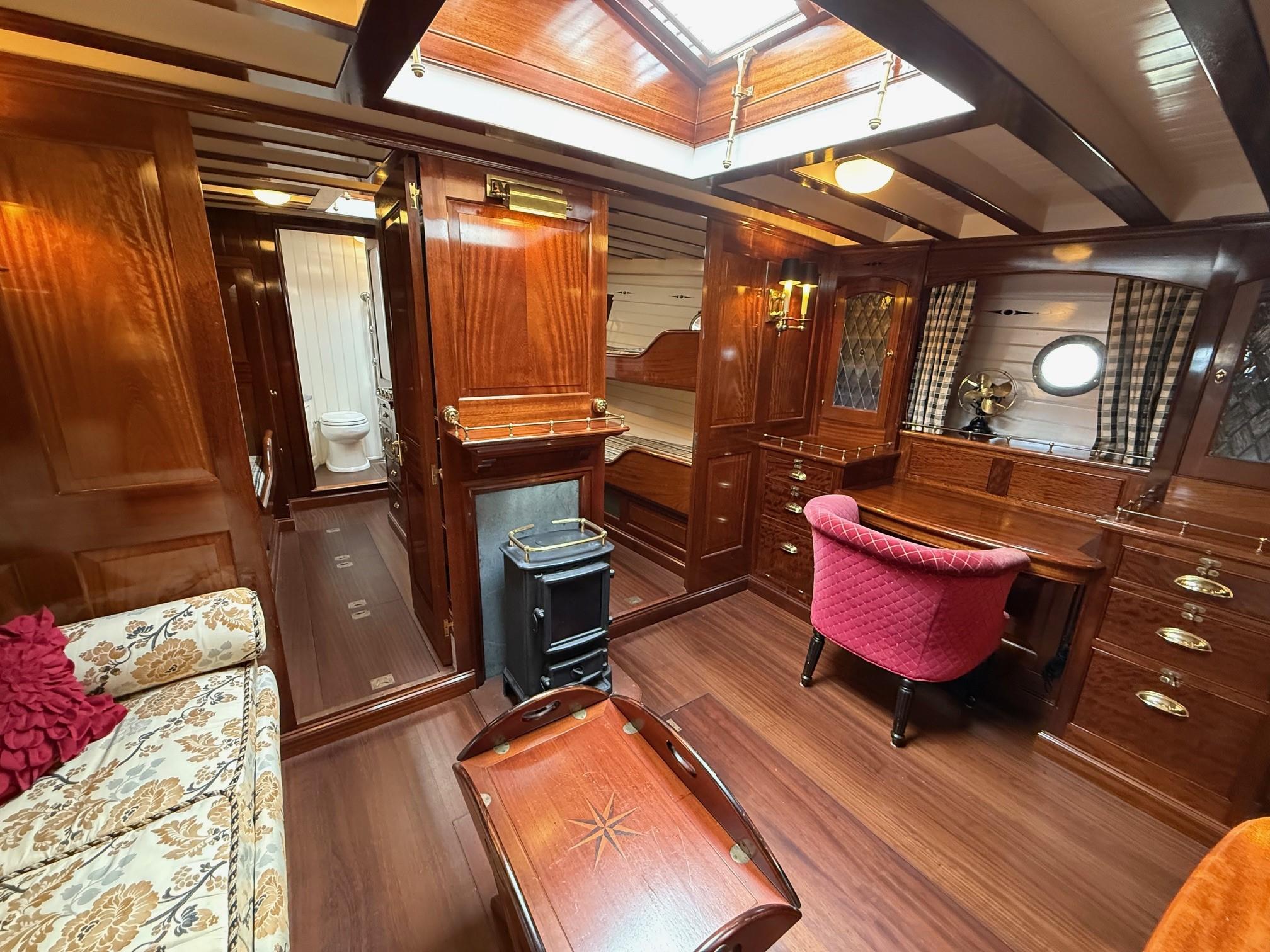

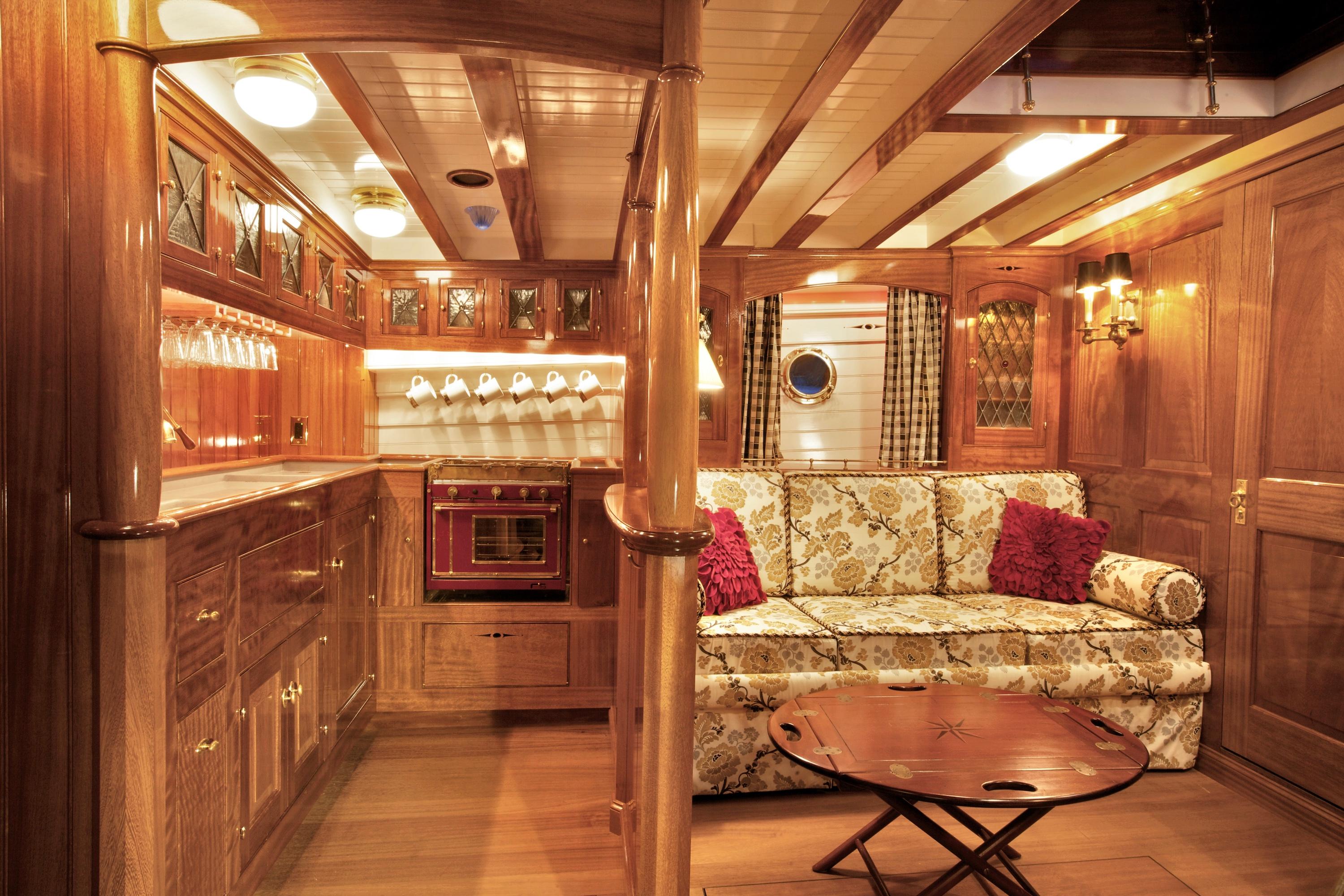

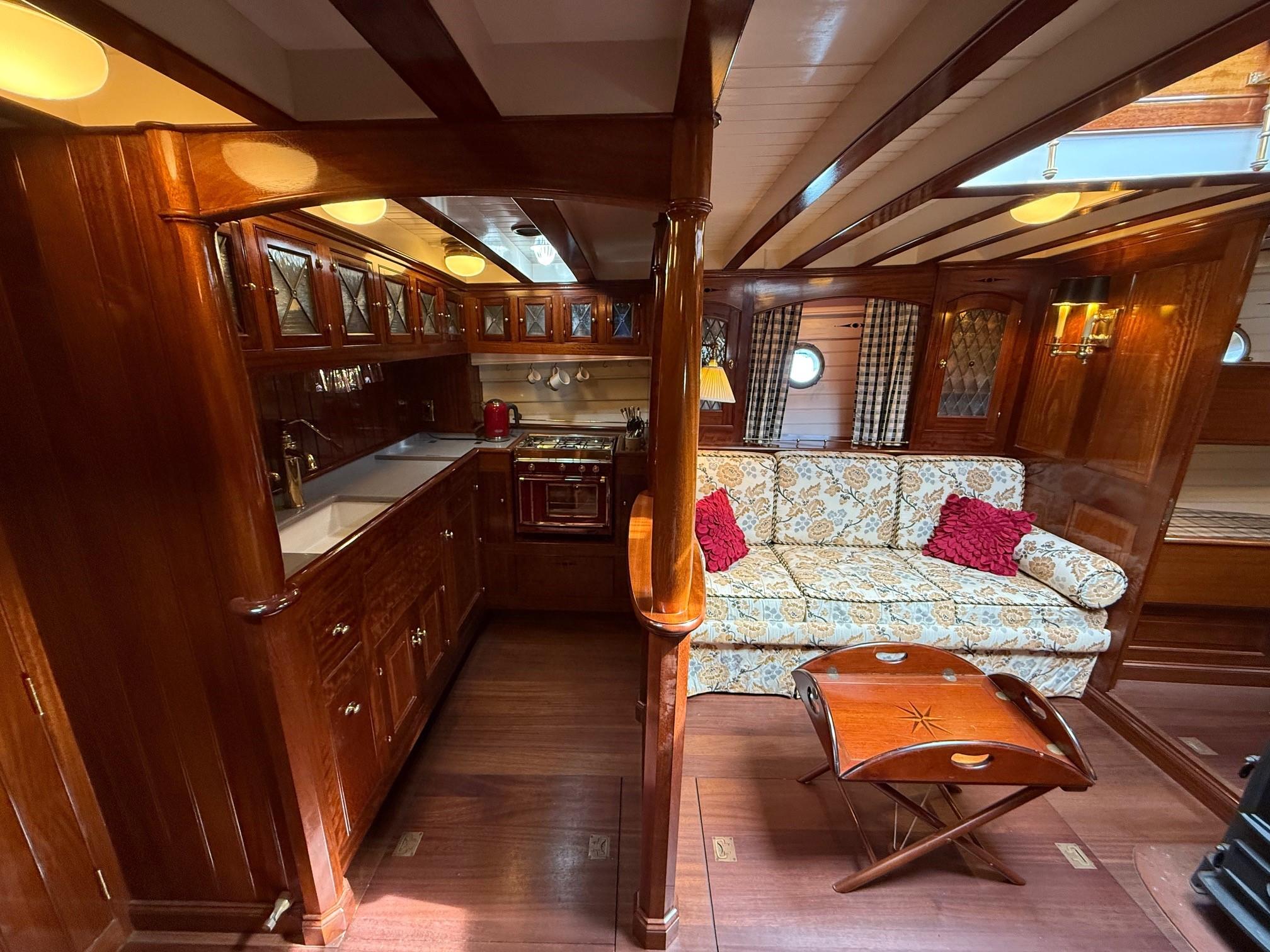

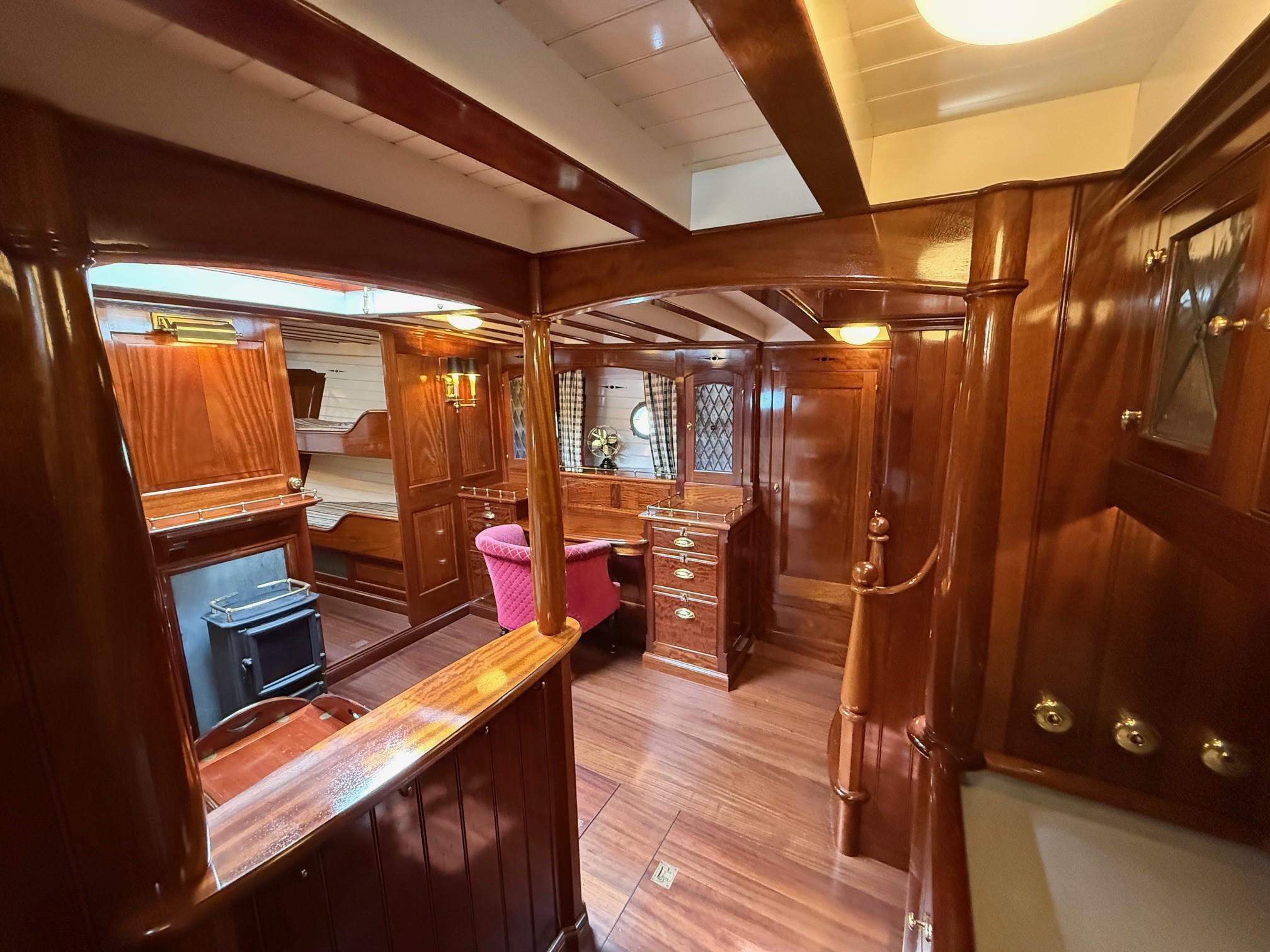

Galley & Main salon and guest cabin area:

• Companionway/steps lead down to main salon, galley and engine room door.
• Galley to port and athwartships.  Very secure for underway use.
• L-shaped countertop in marbled grey Corian
• White earthenware sink
• Manual hand pump for freshwater backup in galley along with pressurized Herbeau tap
• Red enamel "French country" gimballed 3-burner propane stove and oven.  Galley exhaust fan.
• Galley cabinets with leaded glass
• Drawer refrigeration unit
• Large top-opening refrigerator/freezer

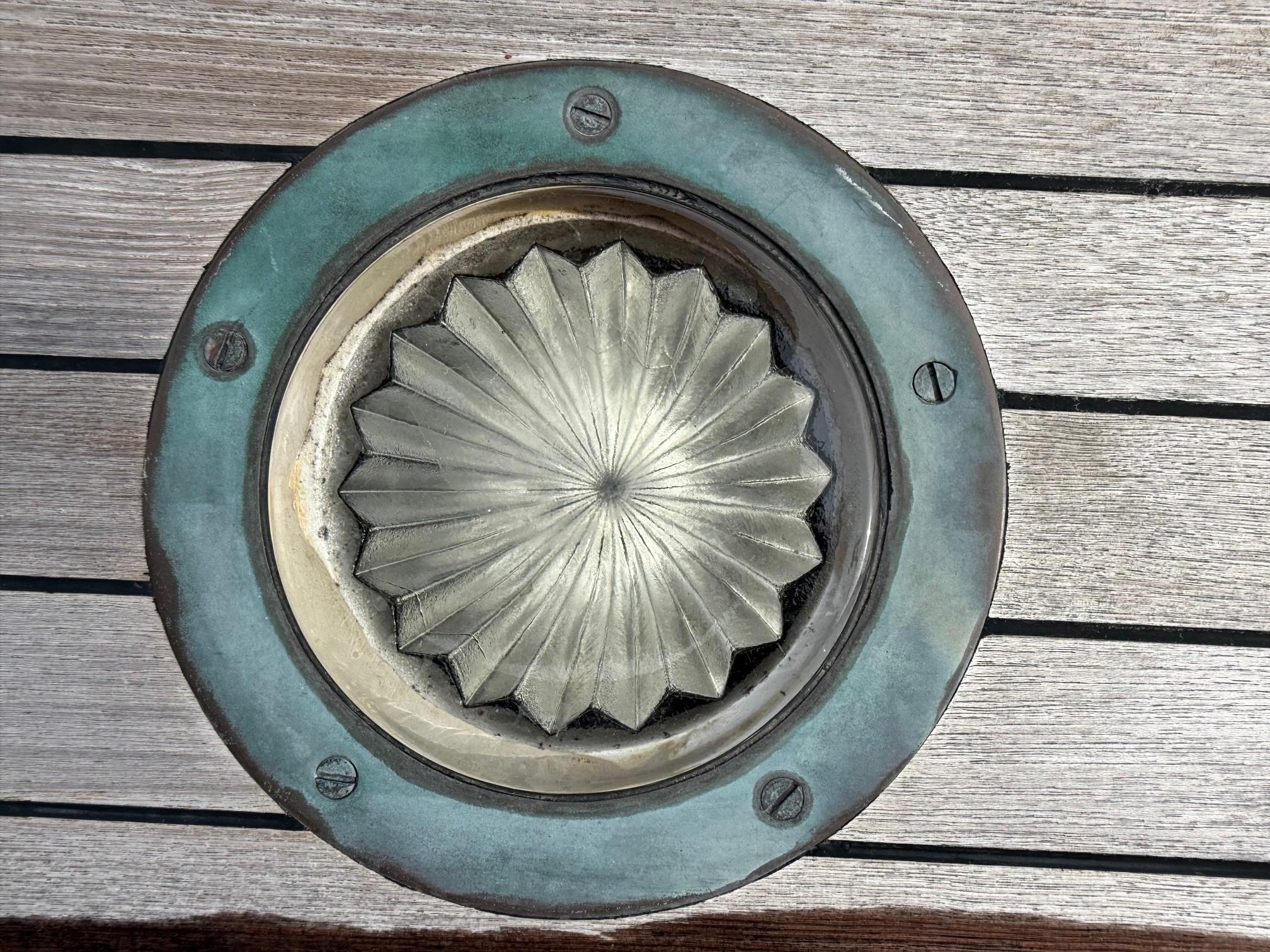

• Deck prism provides natural light to galley
• 2 dome lights and rope lighting under wall cabinets
• Upholstered Sofa chair to stbd
• Custom instrument locker for Viola da Gamba to starboard of steps to Pilothouse
• Large Butterfly hatch
• 2 port lights and 2 dorade vents
• 2 light sconces, picture light and reading swing-arm light over settee berth to port
• 4 dome lights and "mood" lights in alcoves outboard
• Hot air heating through bronze heat registers under companionway steps
• Oiled Iroko wood cabin sole with lift-outs for access to tanks and bilge on centerline

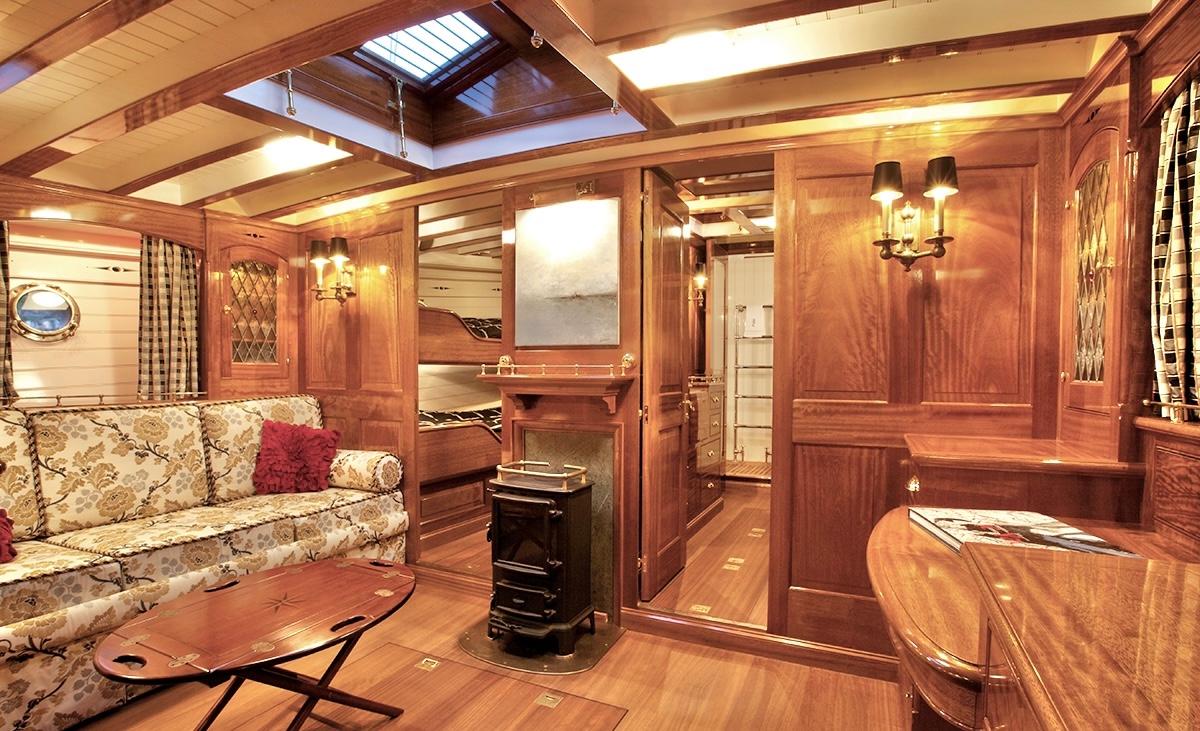

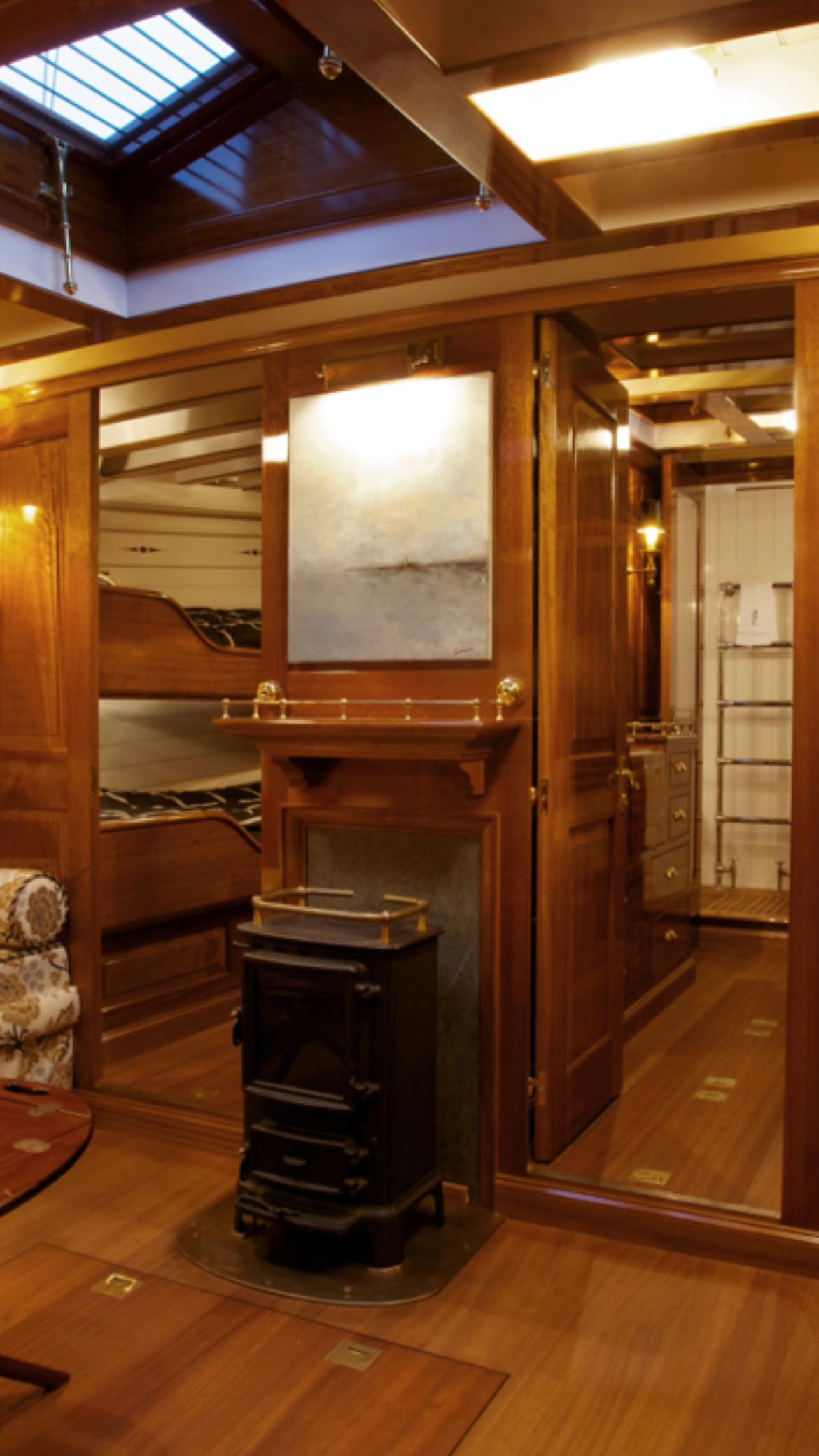

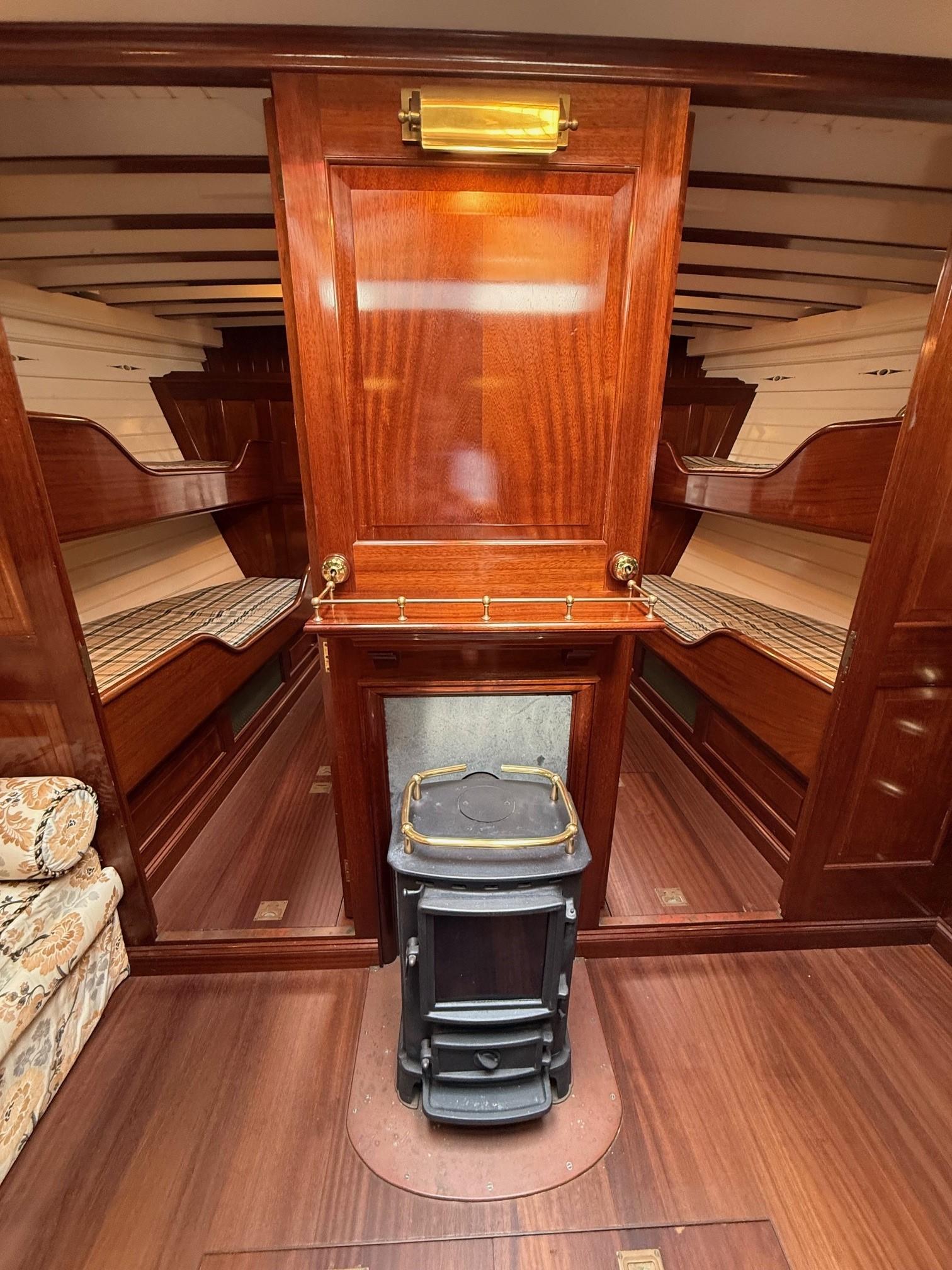

• Beautiful wood burning stove with mantel on centerline

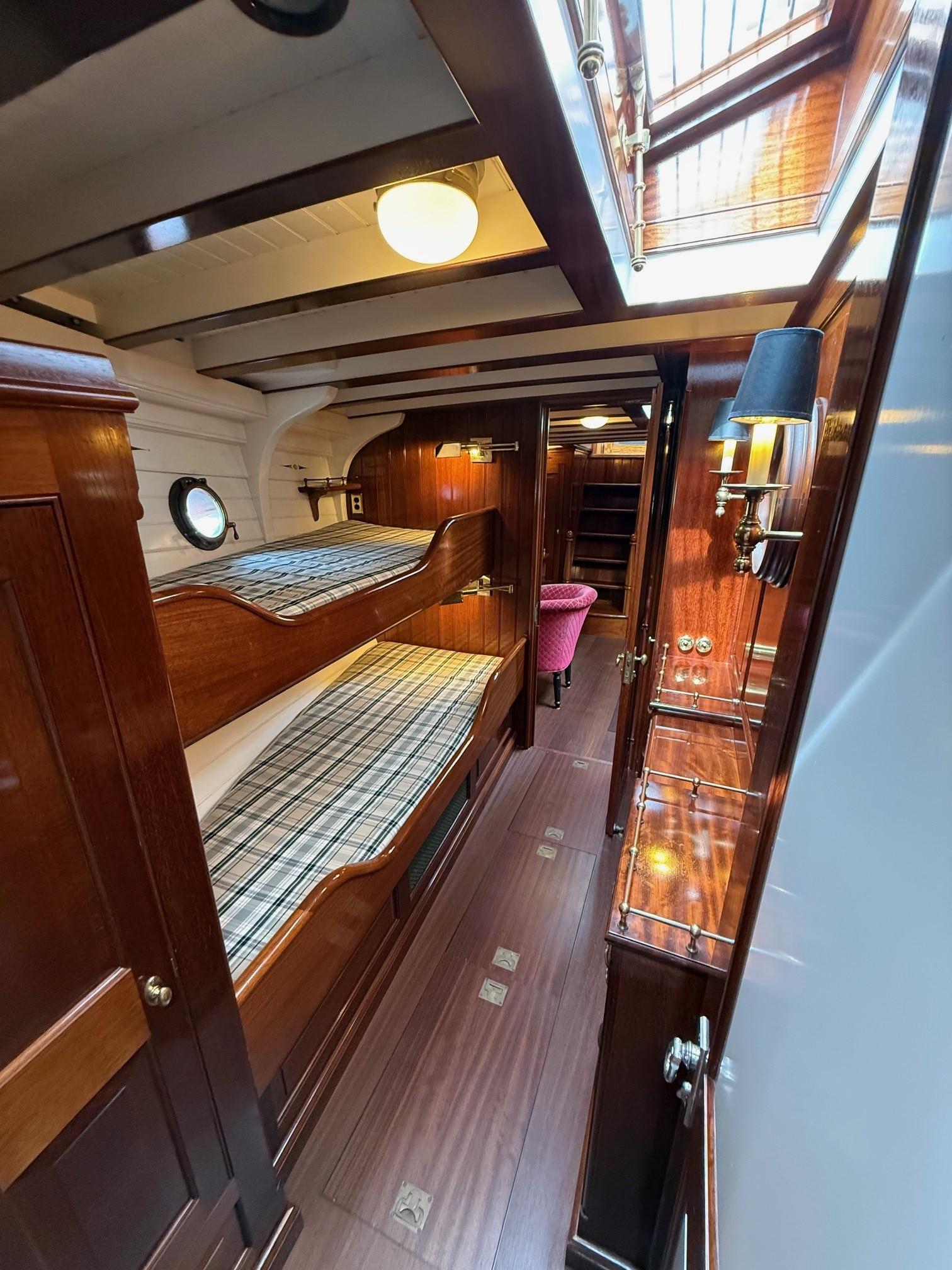

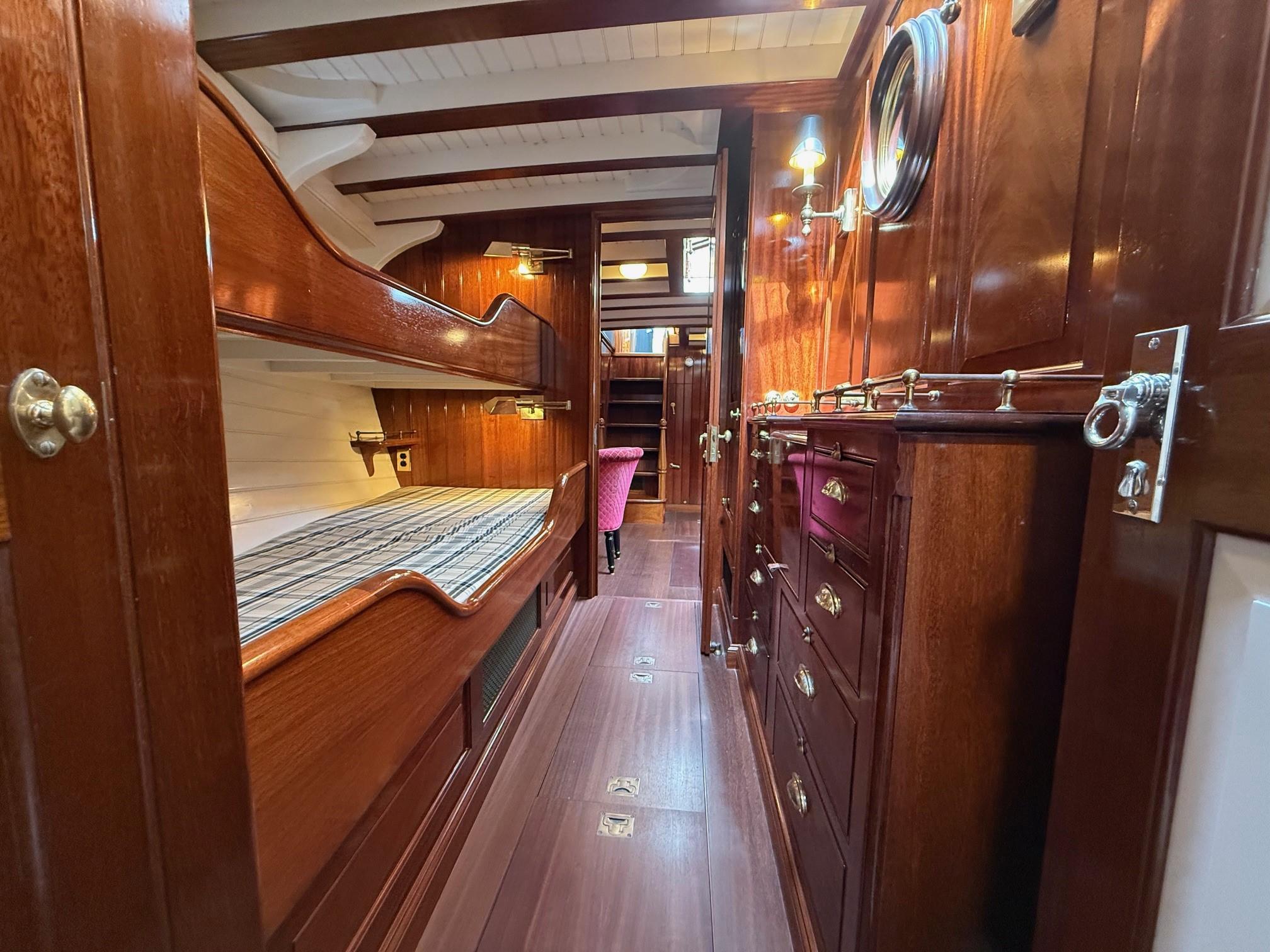

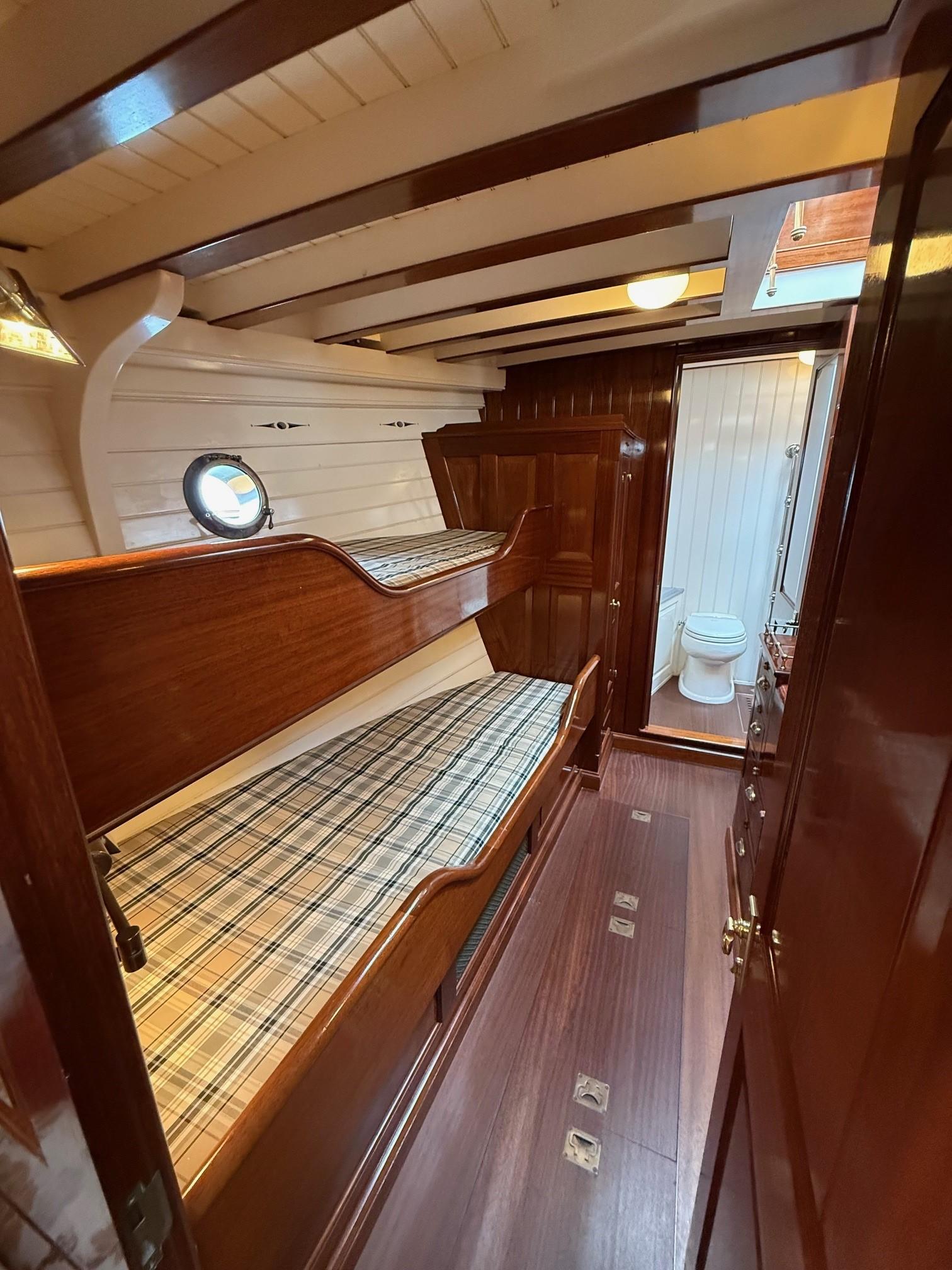

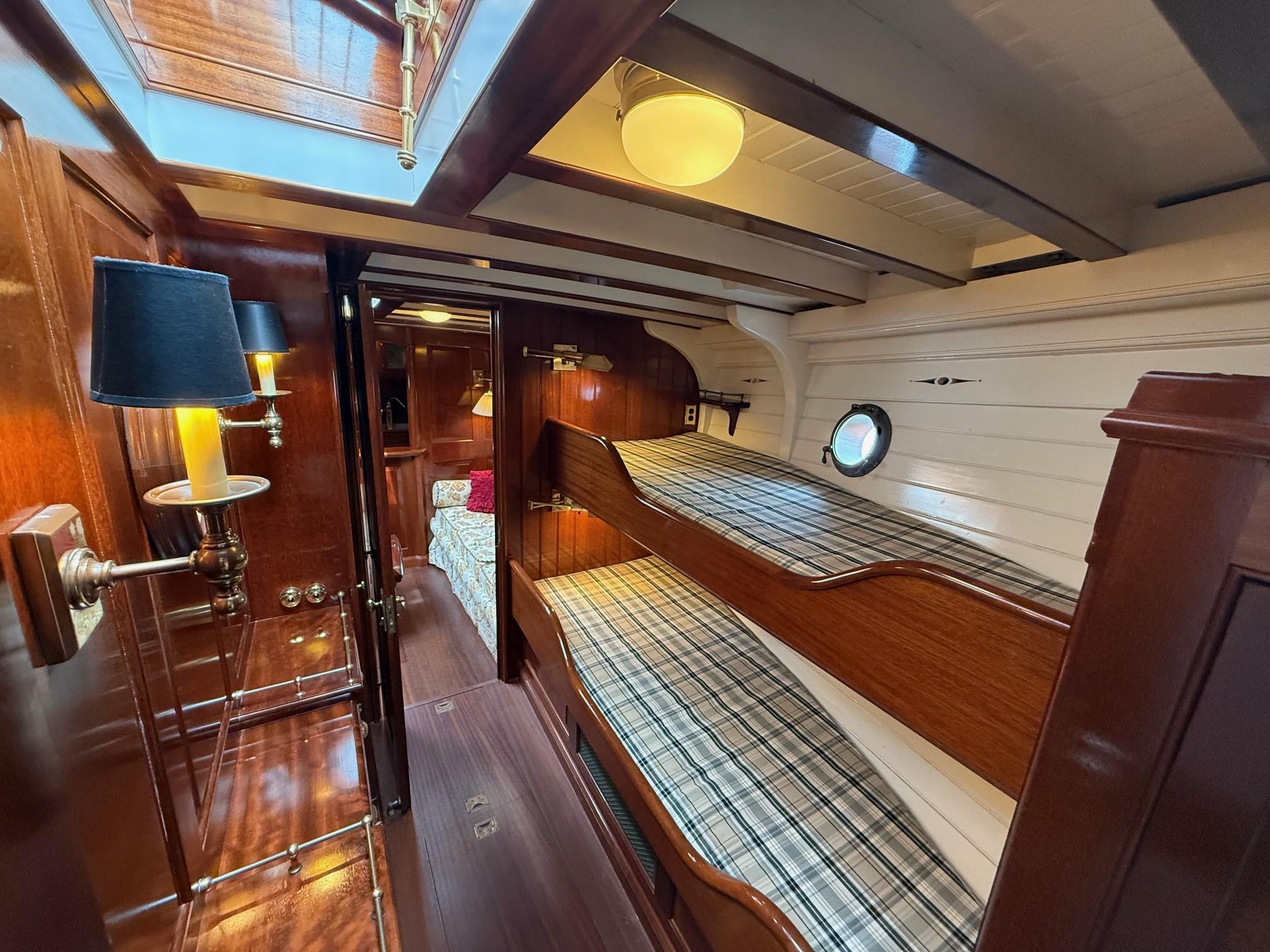

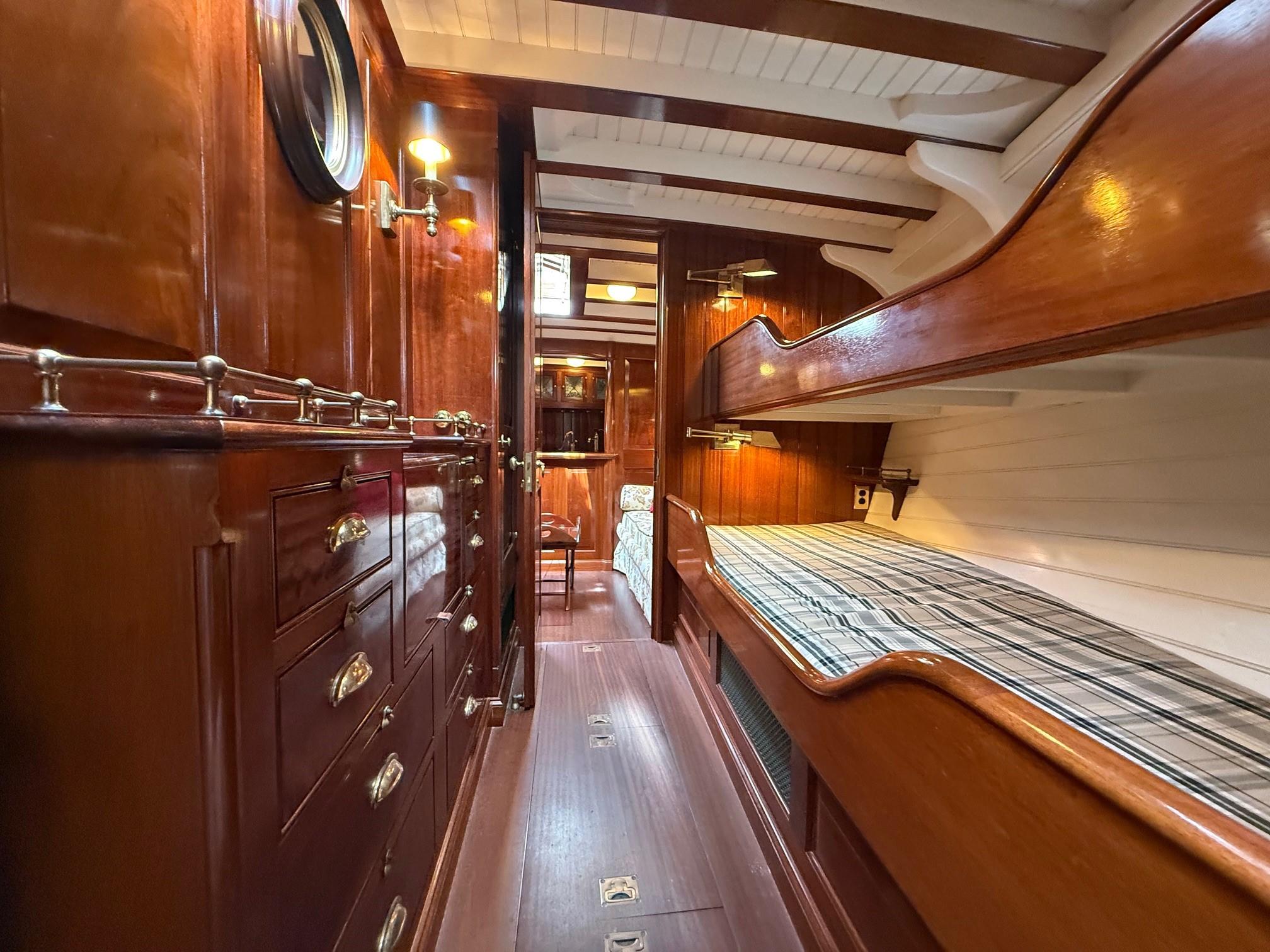

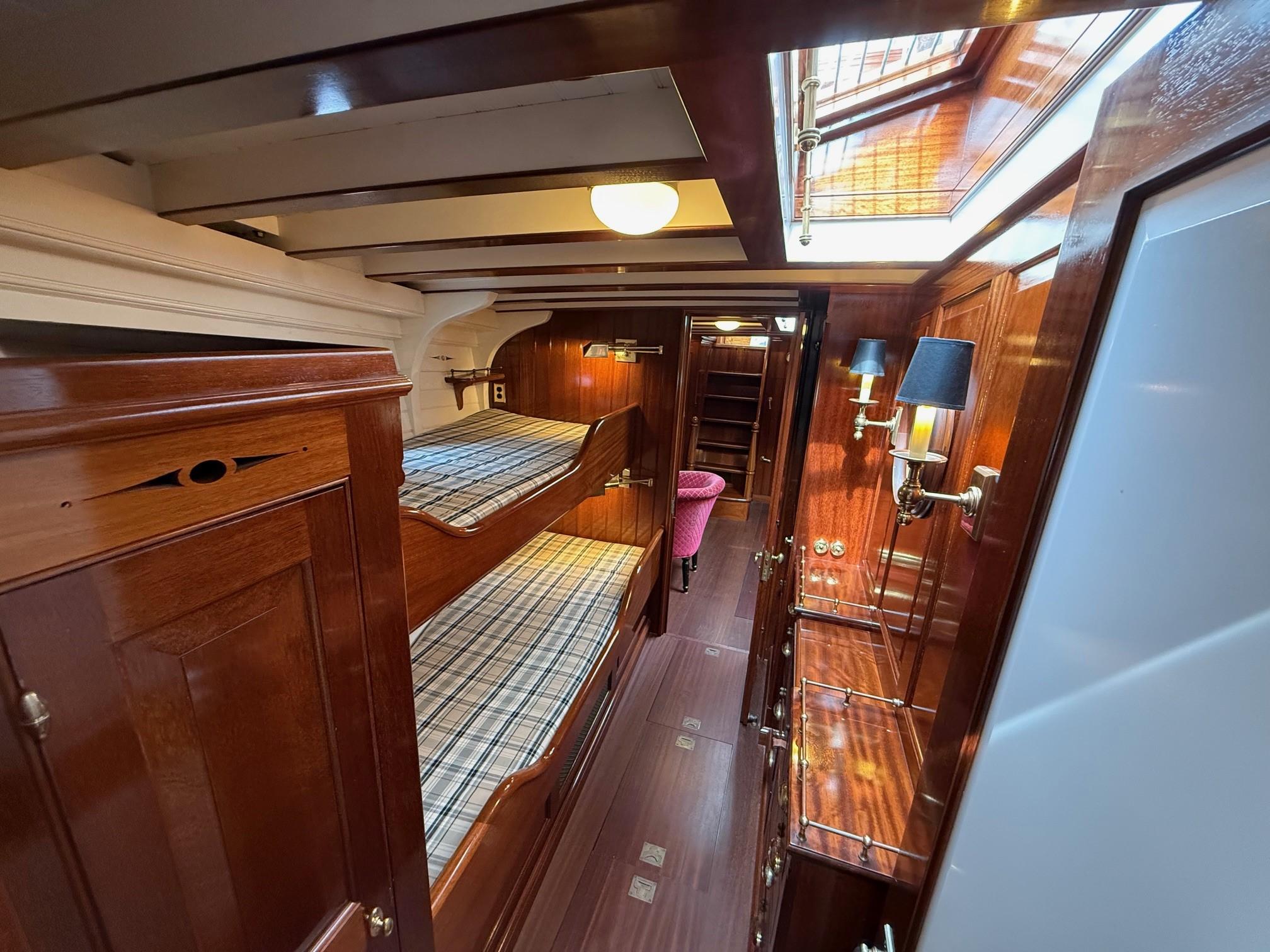

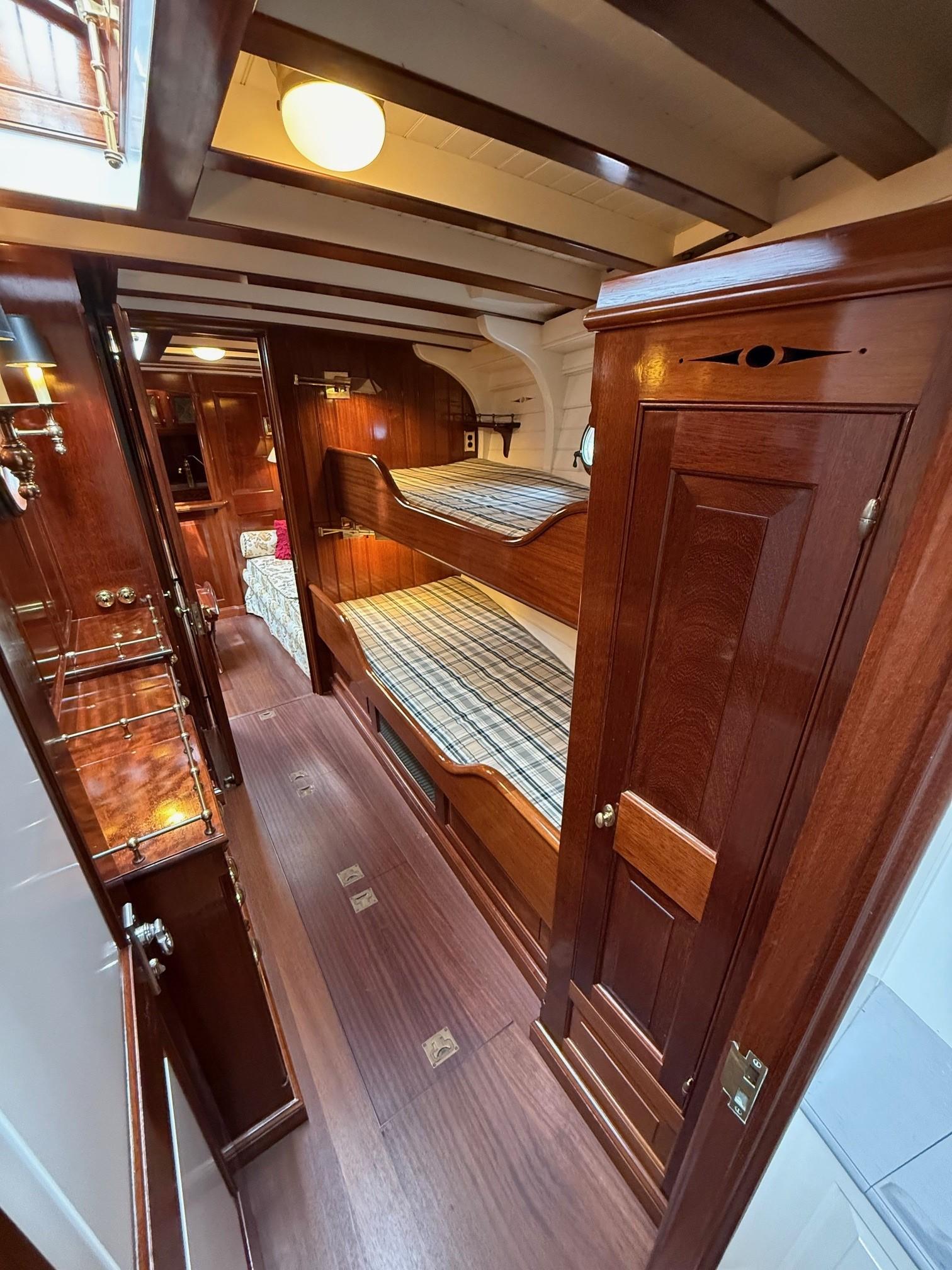

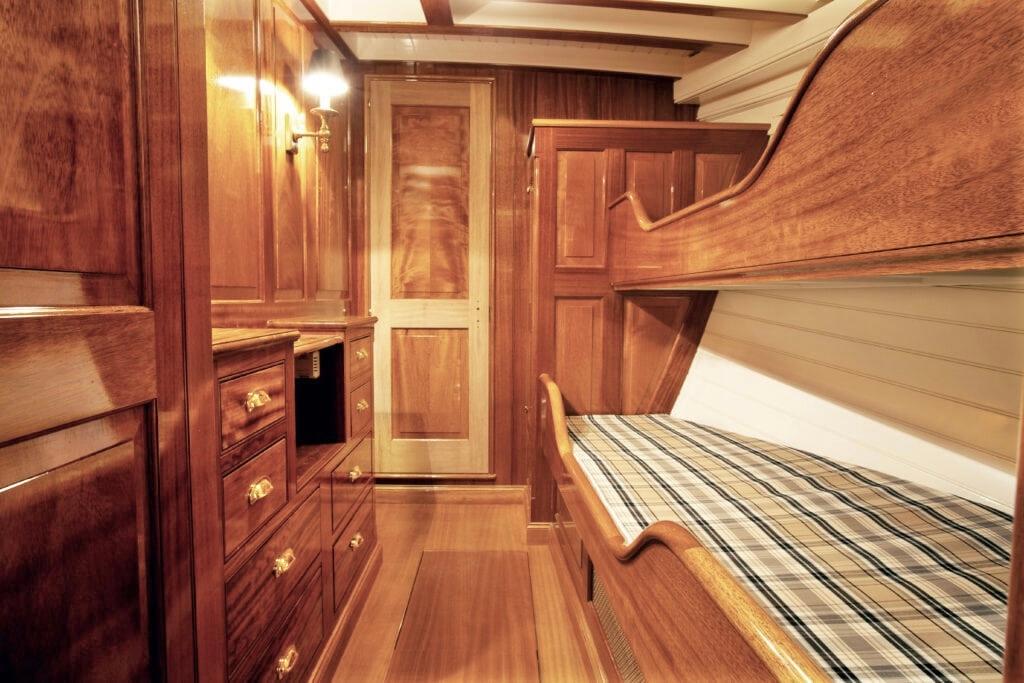

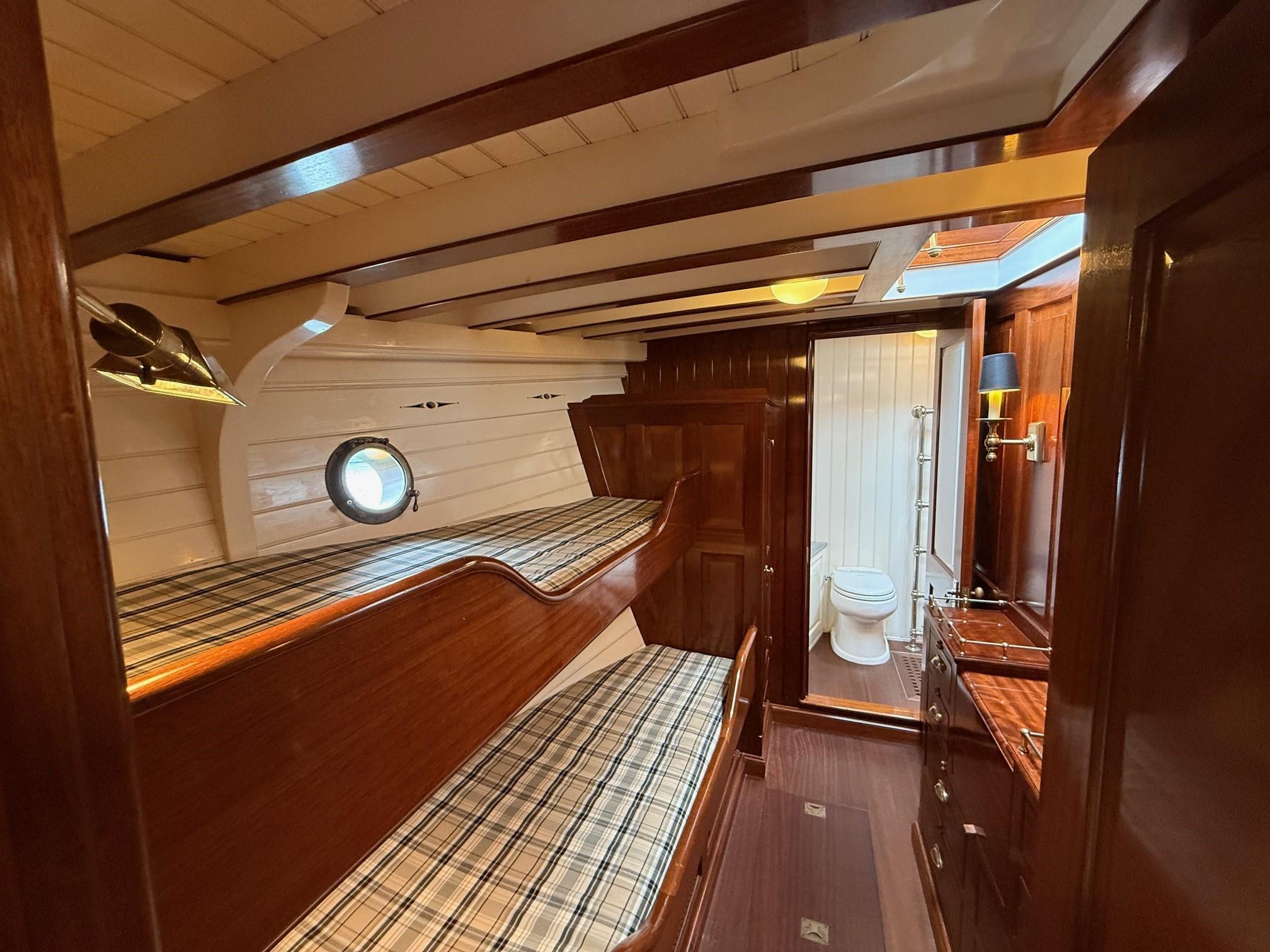

Symmetrical twin guest cabins:

• Upper and lower single berth configuration for both cabins.
• Clothes locker and dresser with fold-up writing table
• Head is painted bright white
• Overhead skylight in head/shower are that doubles as escape hatch
• Portlight and Dorade on each side
• Additional Dorade vent circulates air to sole level via registers in mast box
• 2 light sconces, one dome light, two swing-arm reading lights for bunks
• Each bunk has access to power outlet and one under small writing table
• Hot air heating via bronze registers under lower bunk
• Oiled Iroko wood cabin sole with three lift-outs to access large storage bins
• Headroom in guest cabins and head ranges 6'3"-6'8"

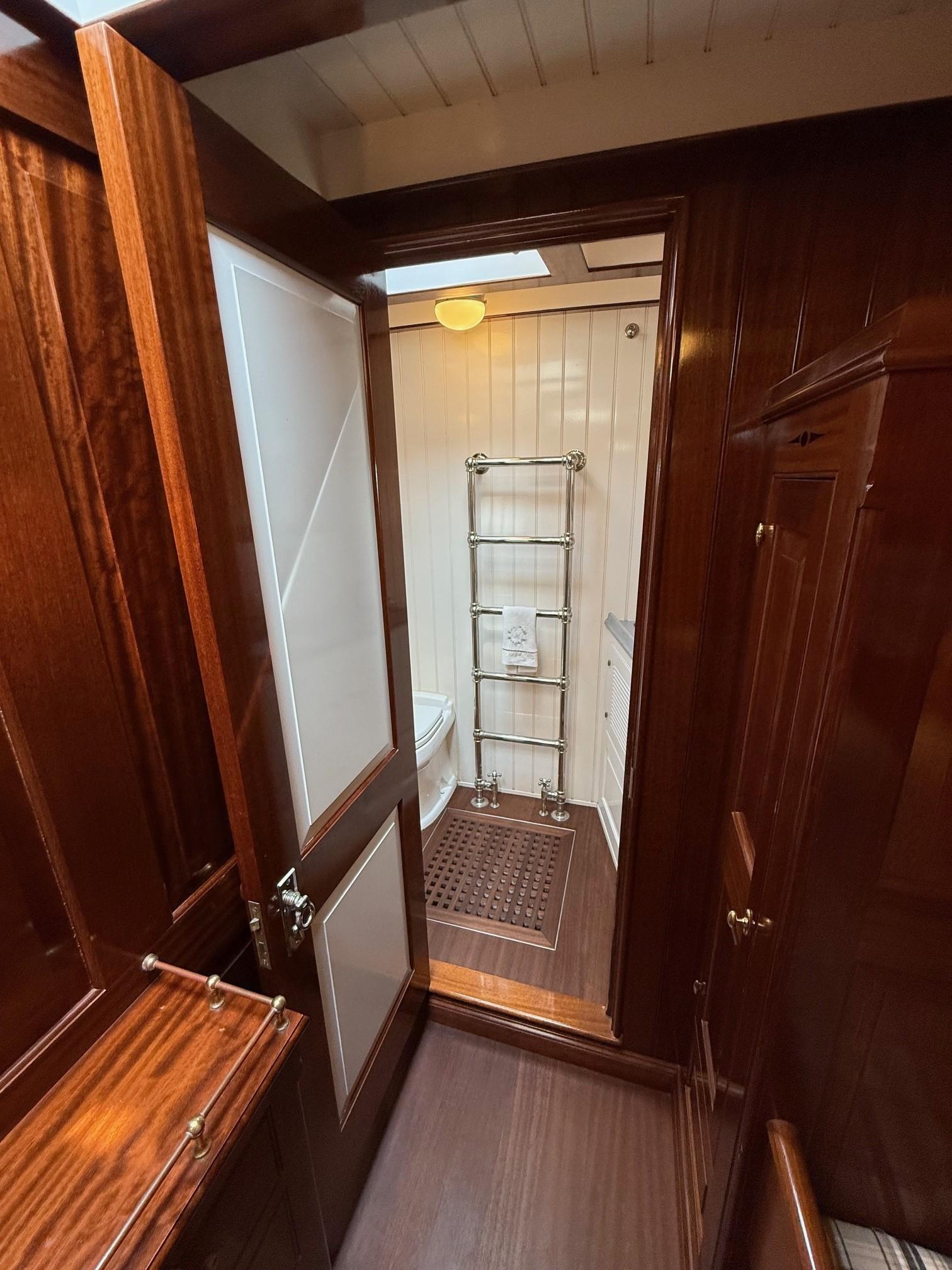

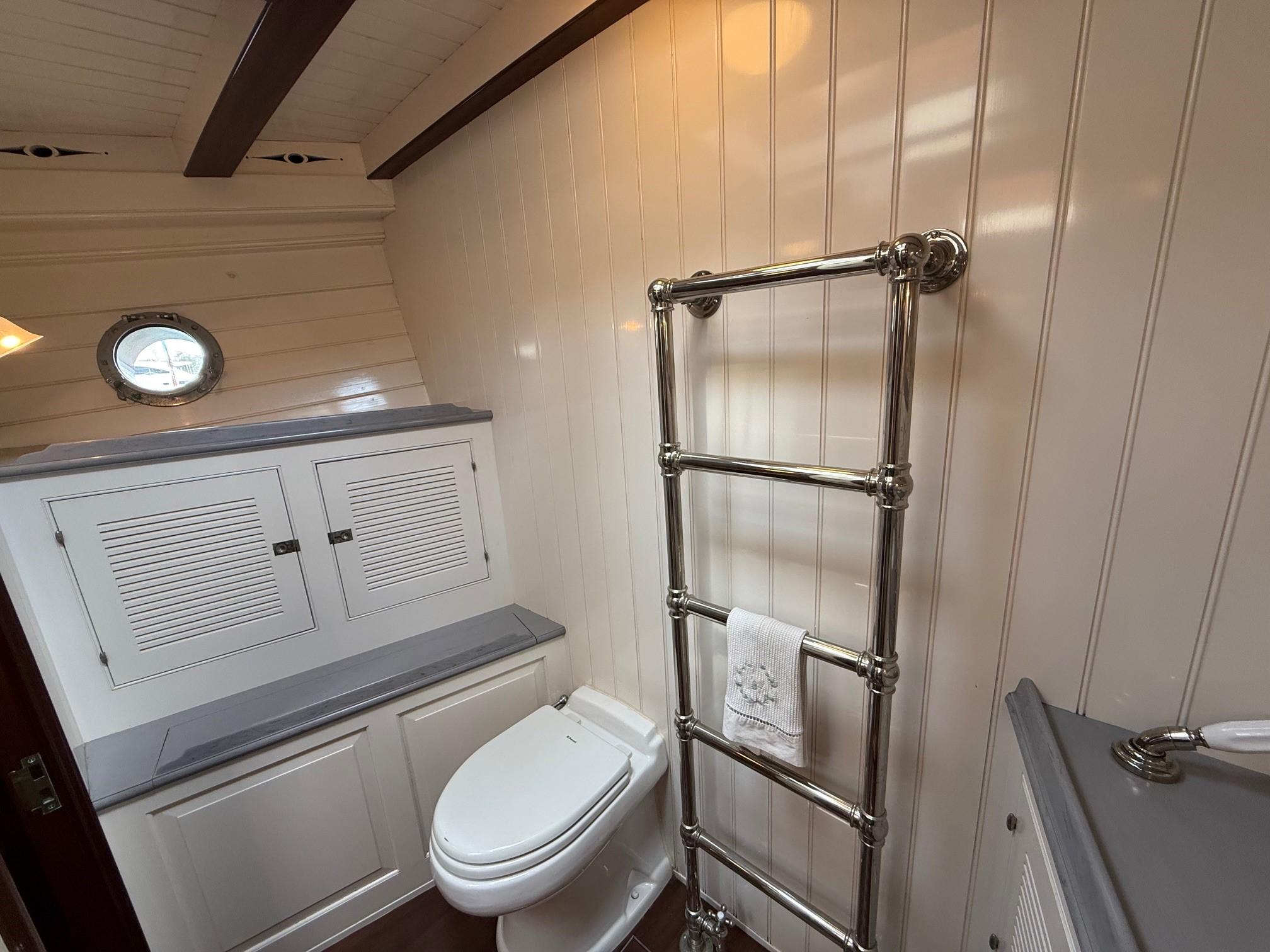

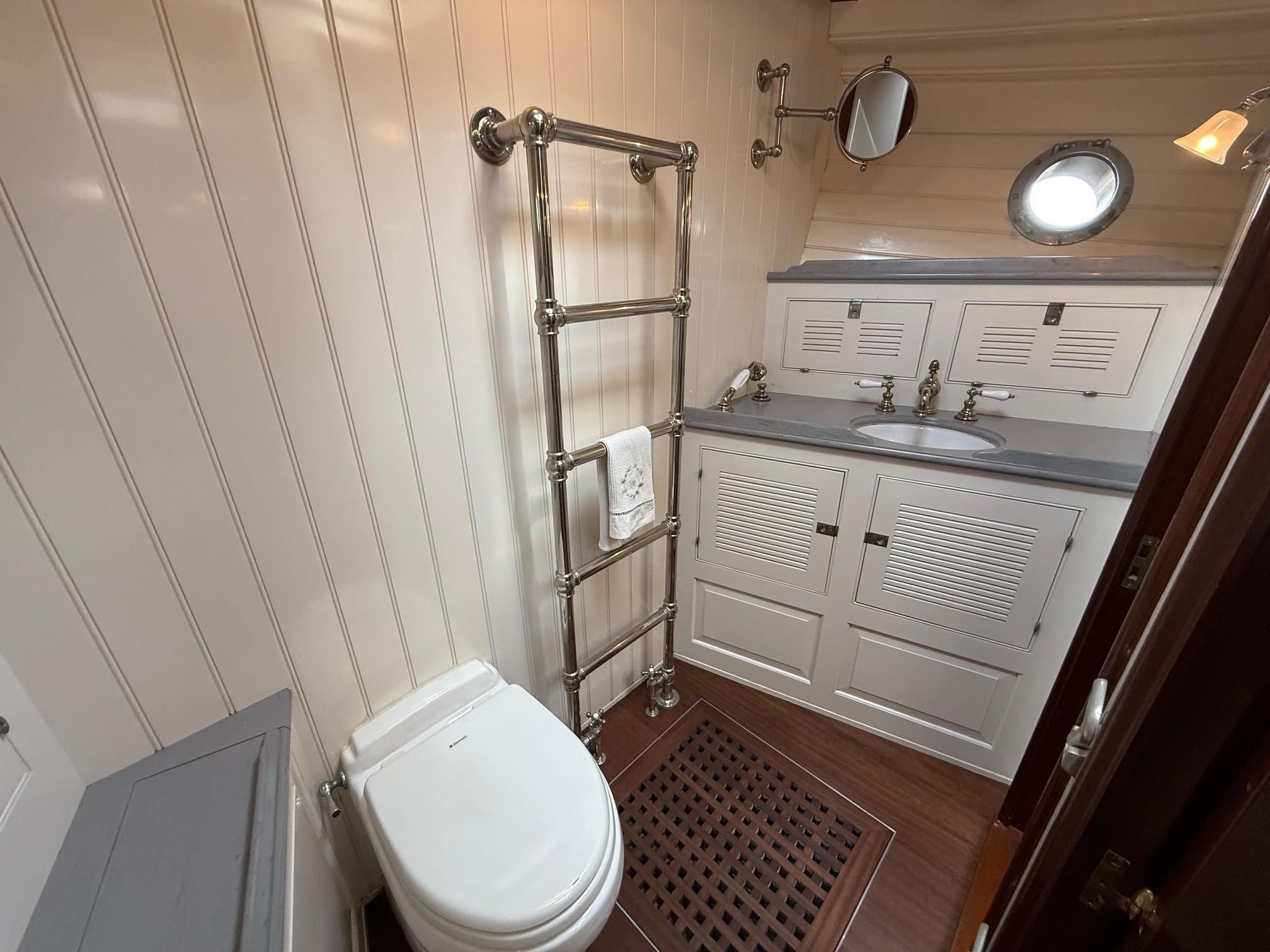

Guest head/shower:

• White raised panels and bead board with varnished overhead beam caps
• Countertops are marbled grey Corian
• All head fittings and hardware and lamps are nickel-plated bronze and brass
• Overhead skylight/butterfly hatch floods area with natural light and serves as emergency exit as well
• Head as two port lights and two dorade vents
• Dome light and two sconces
• Head includes very attractive heated towel rack
• Oiled Iroko cabin sole and grating in shower/head area

Forepeak:

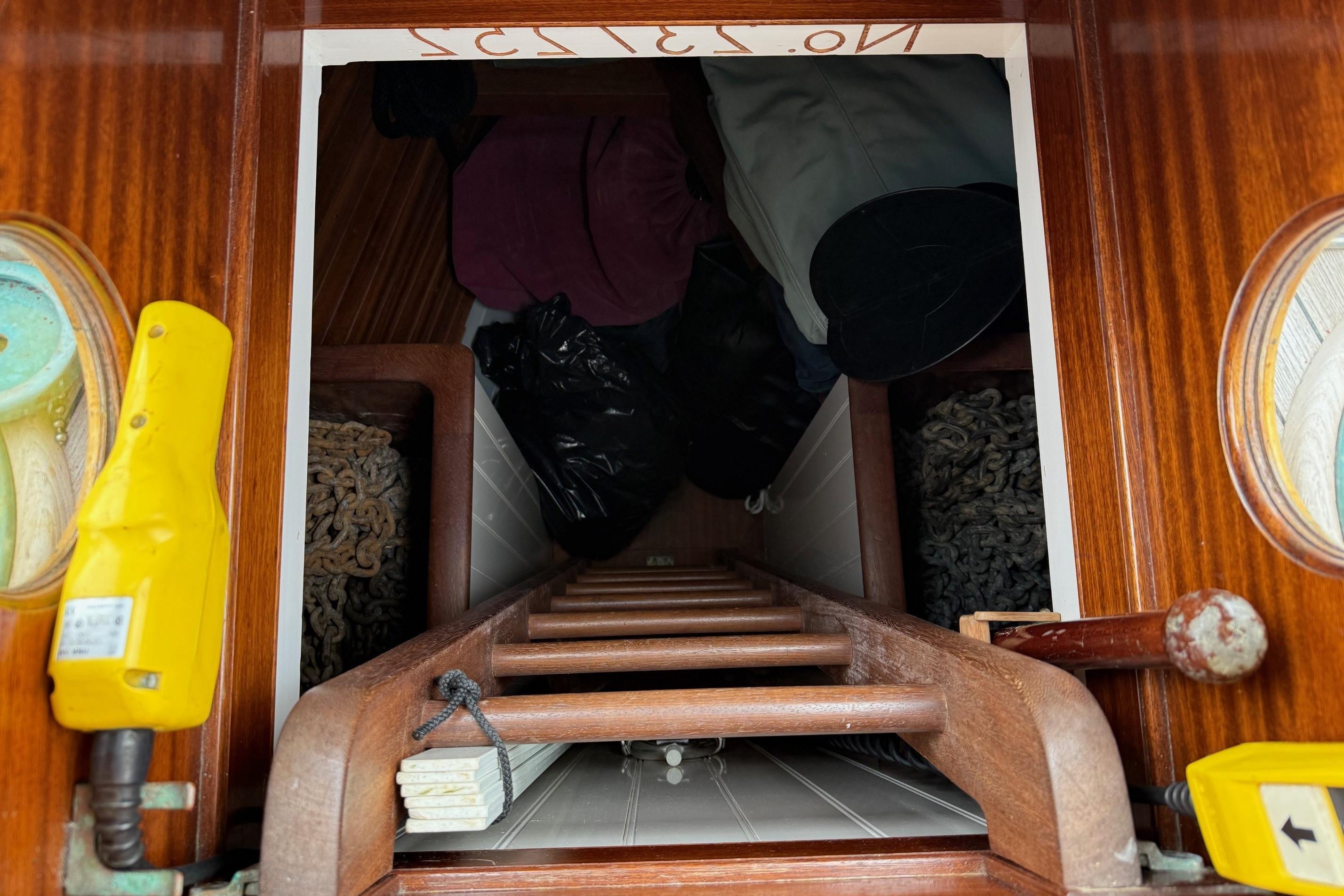

• Accessible via booby hatch on deck
• Anchor chain holds, workbench, fender and line storage
• Forepeak bulkhead is a collision bulkhead

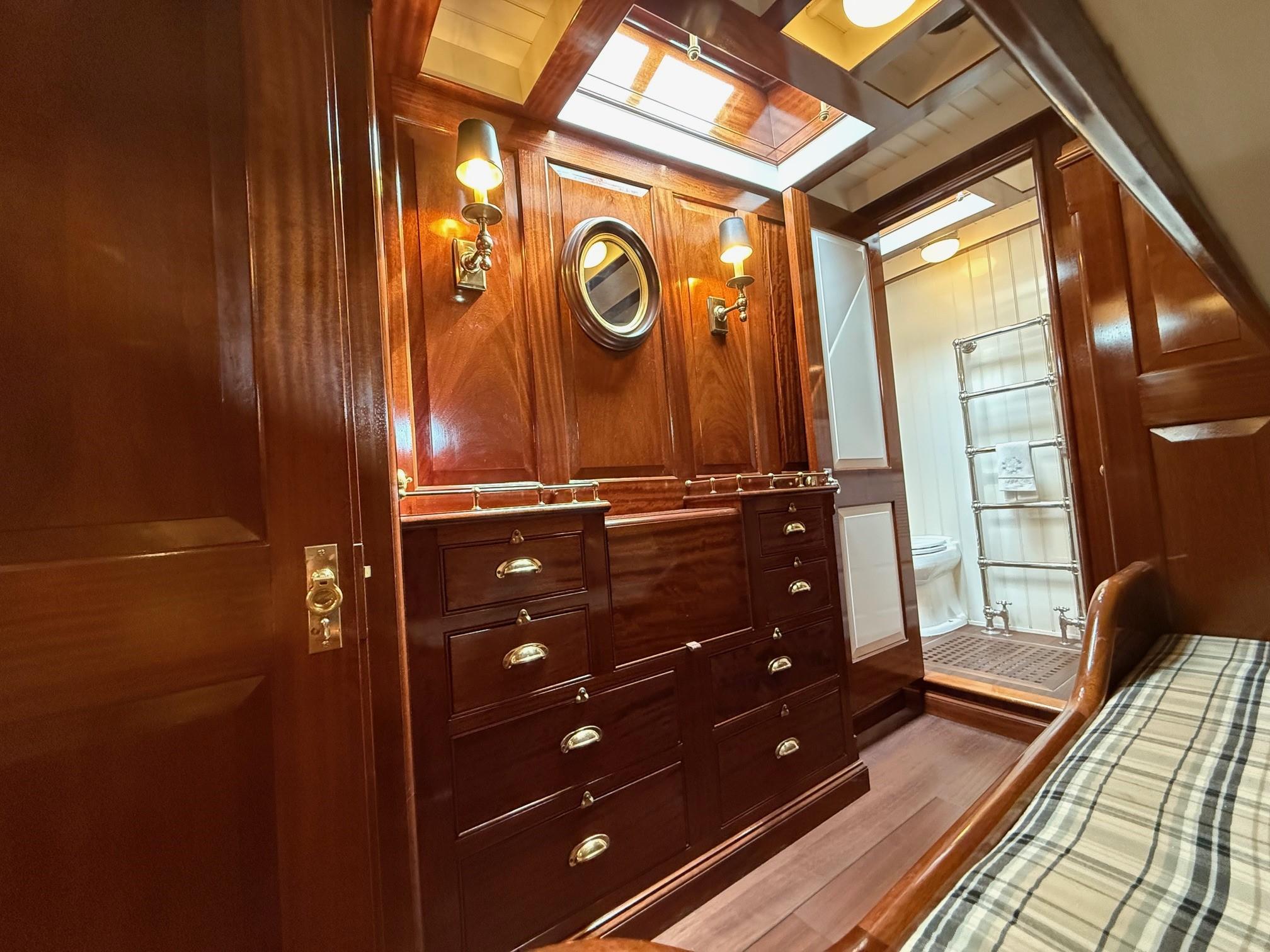

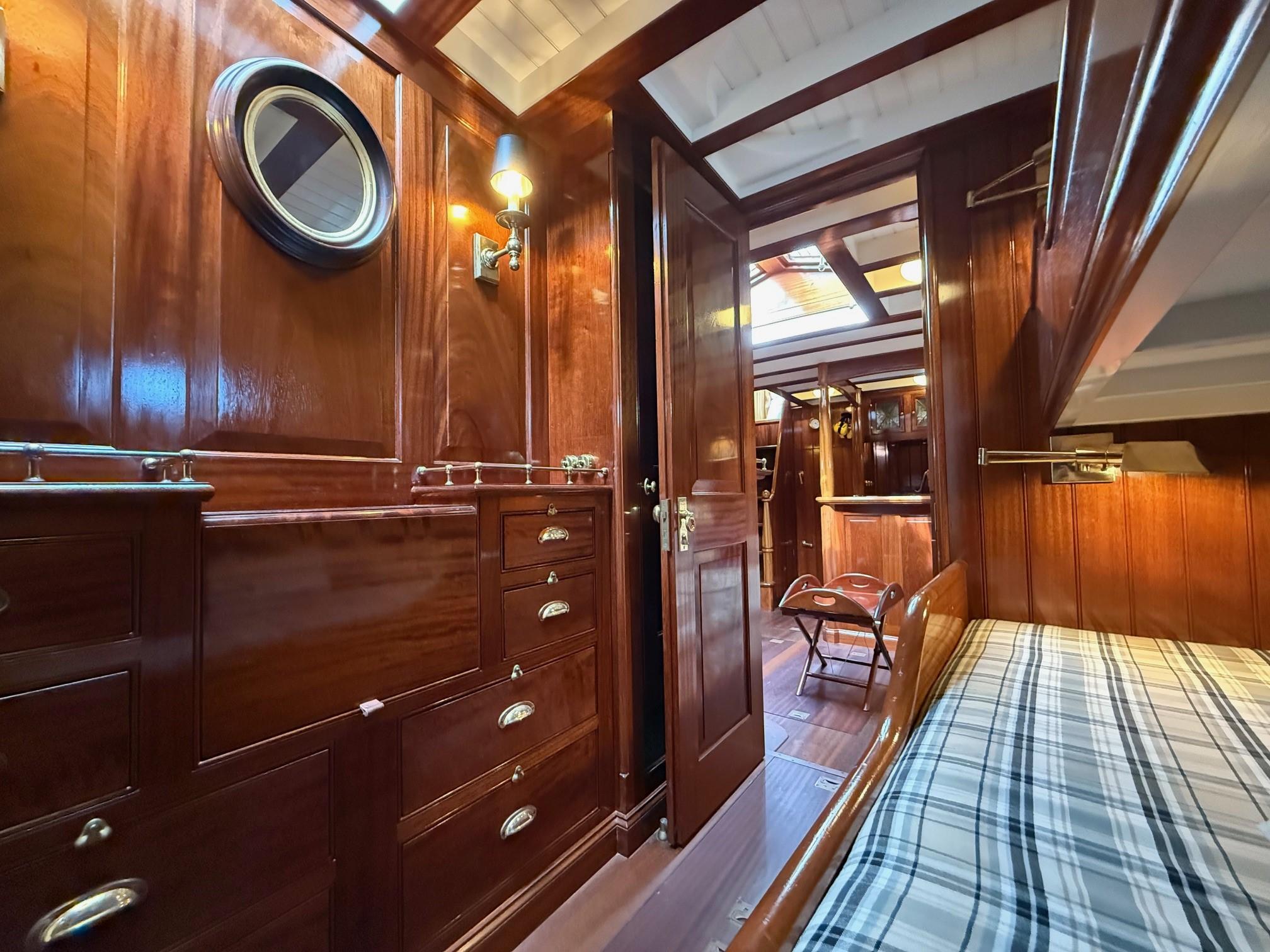

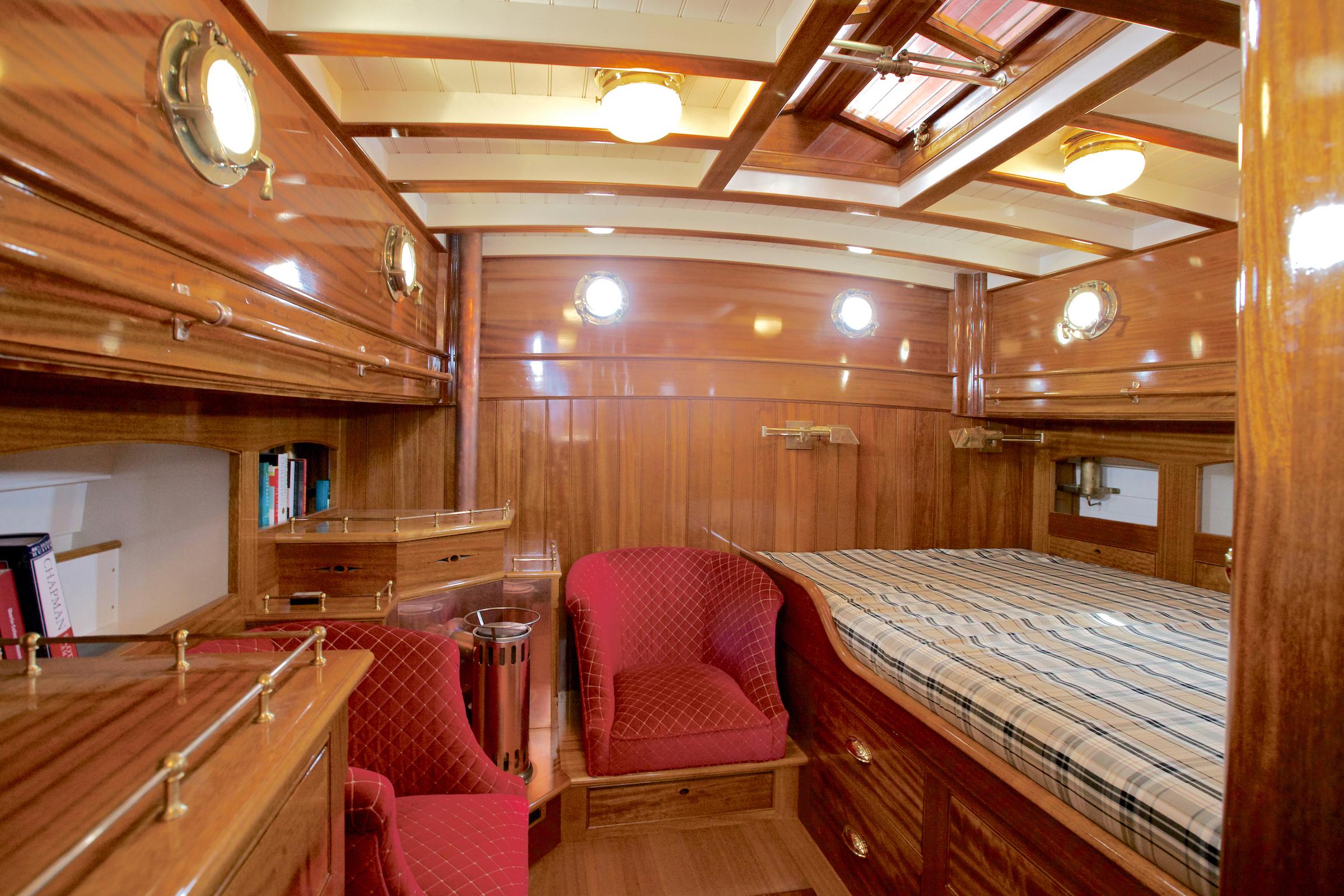

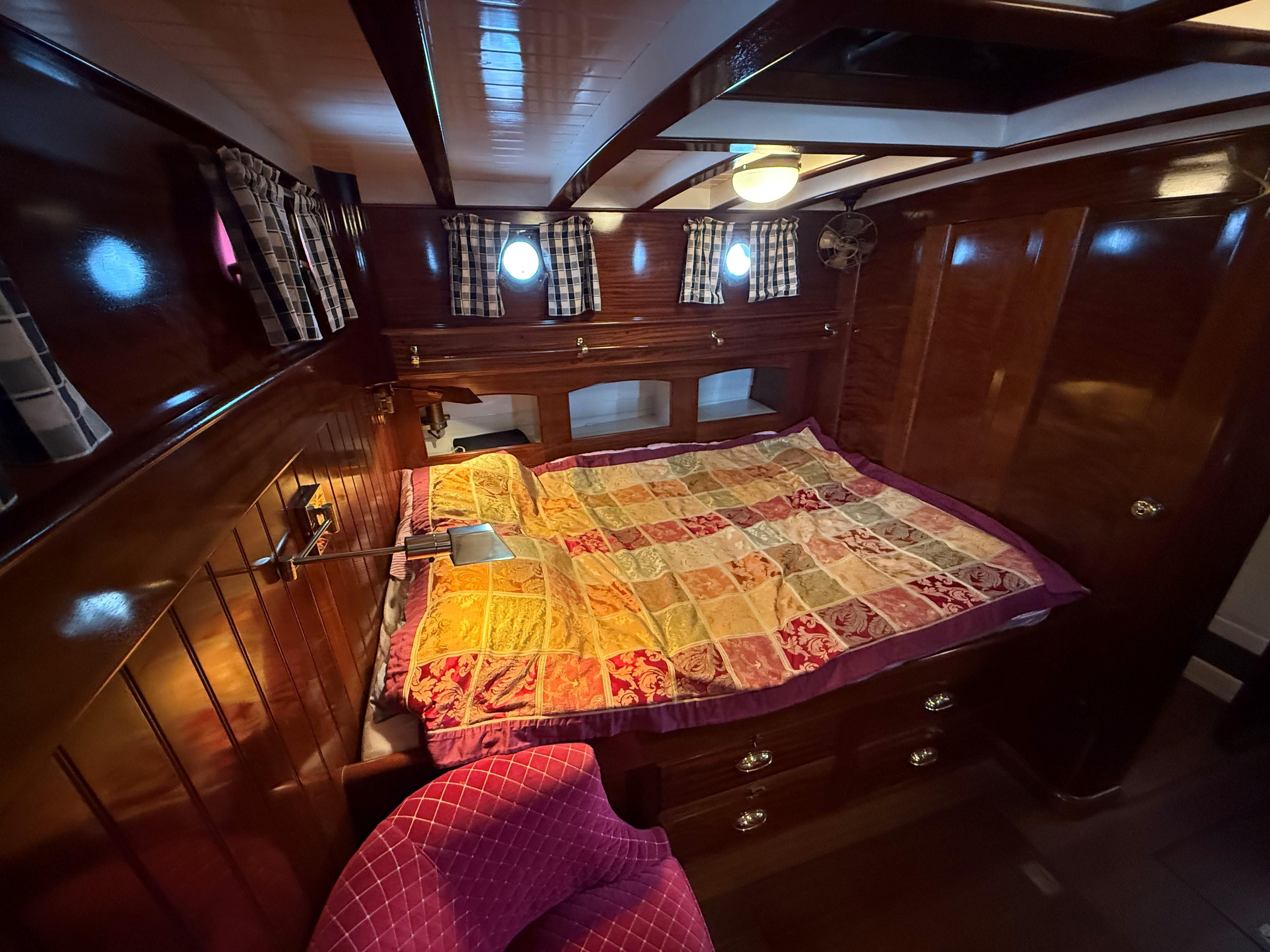

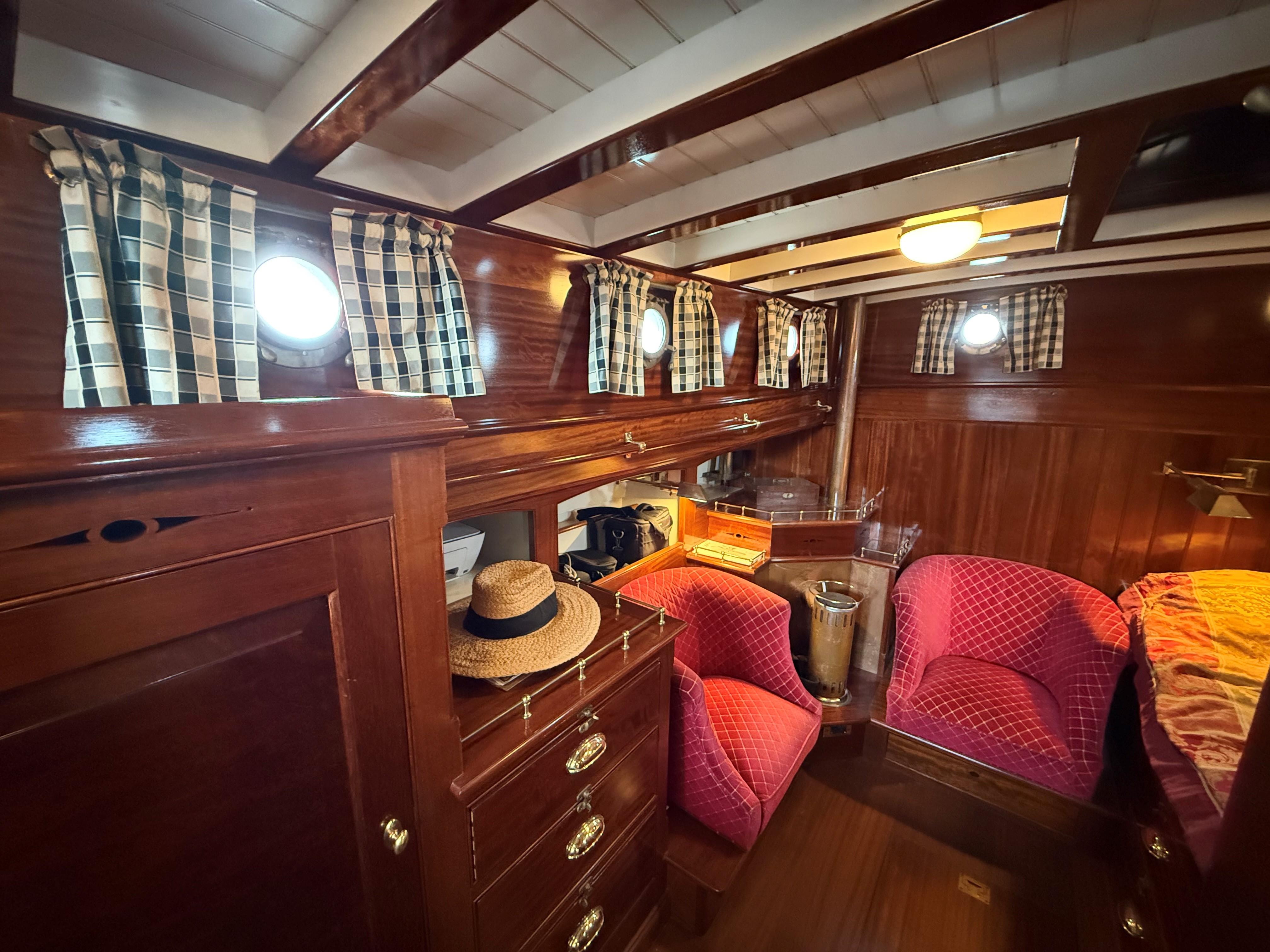

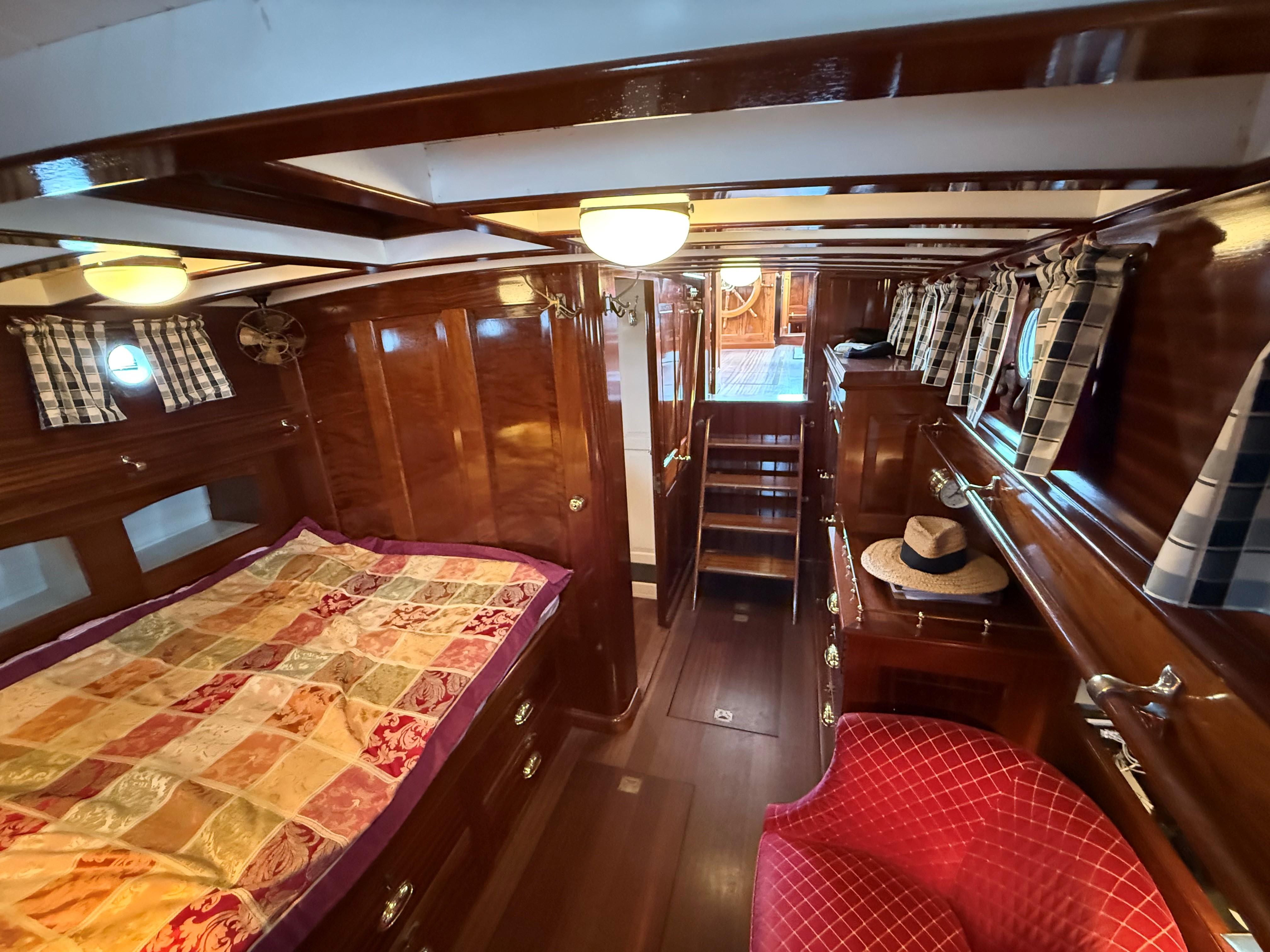

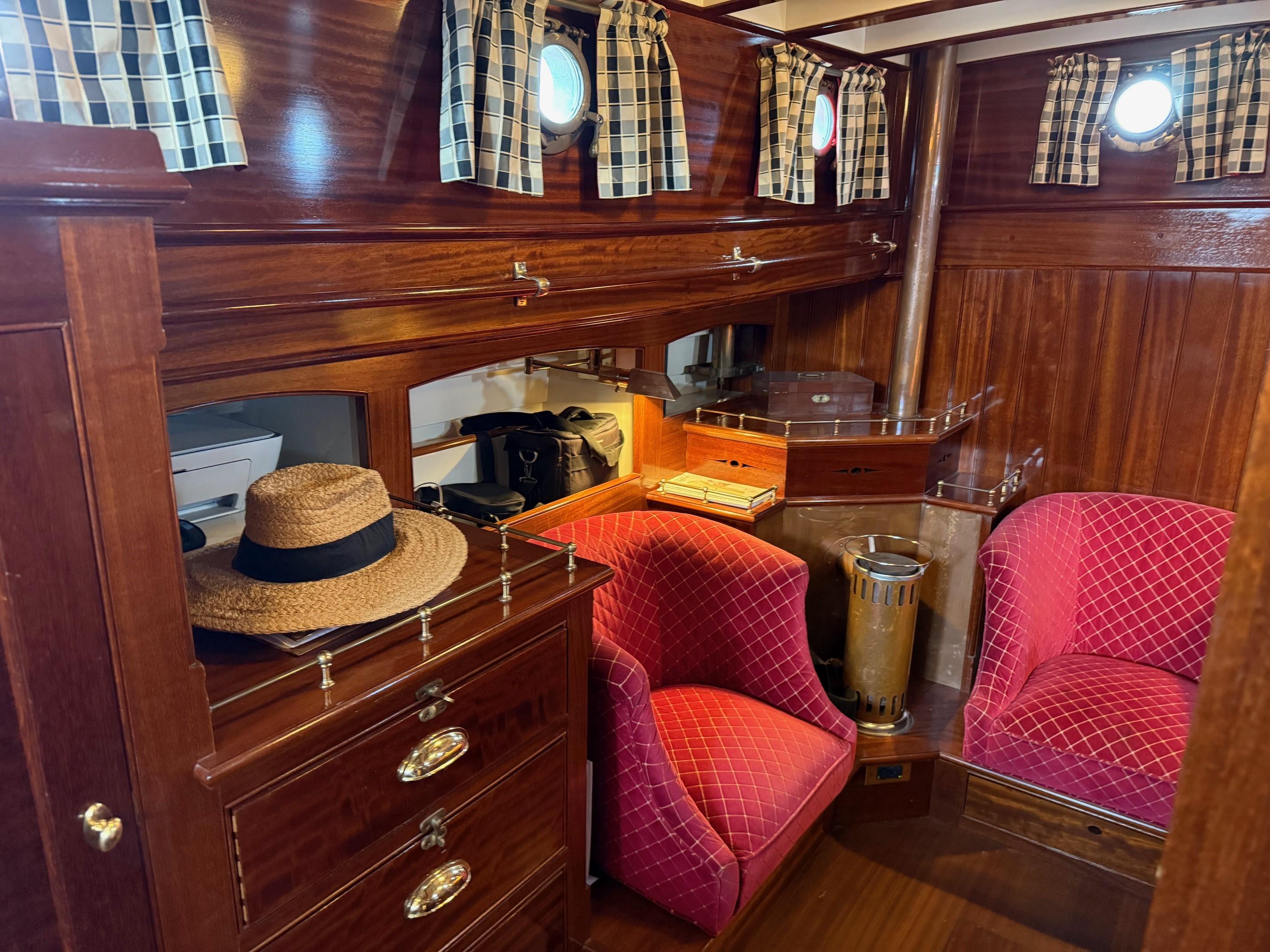

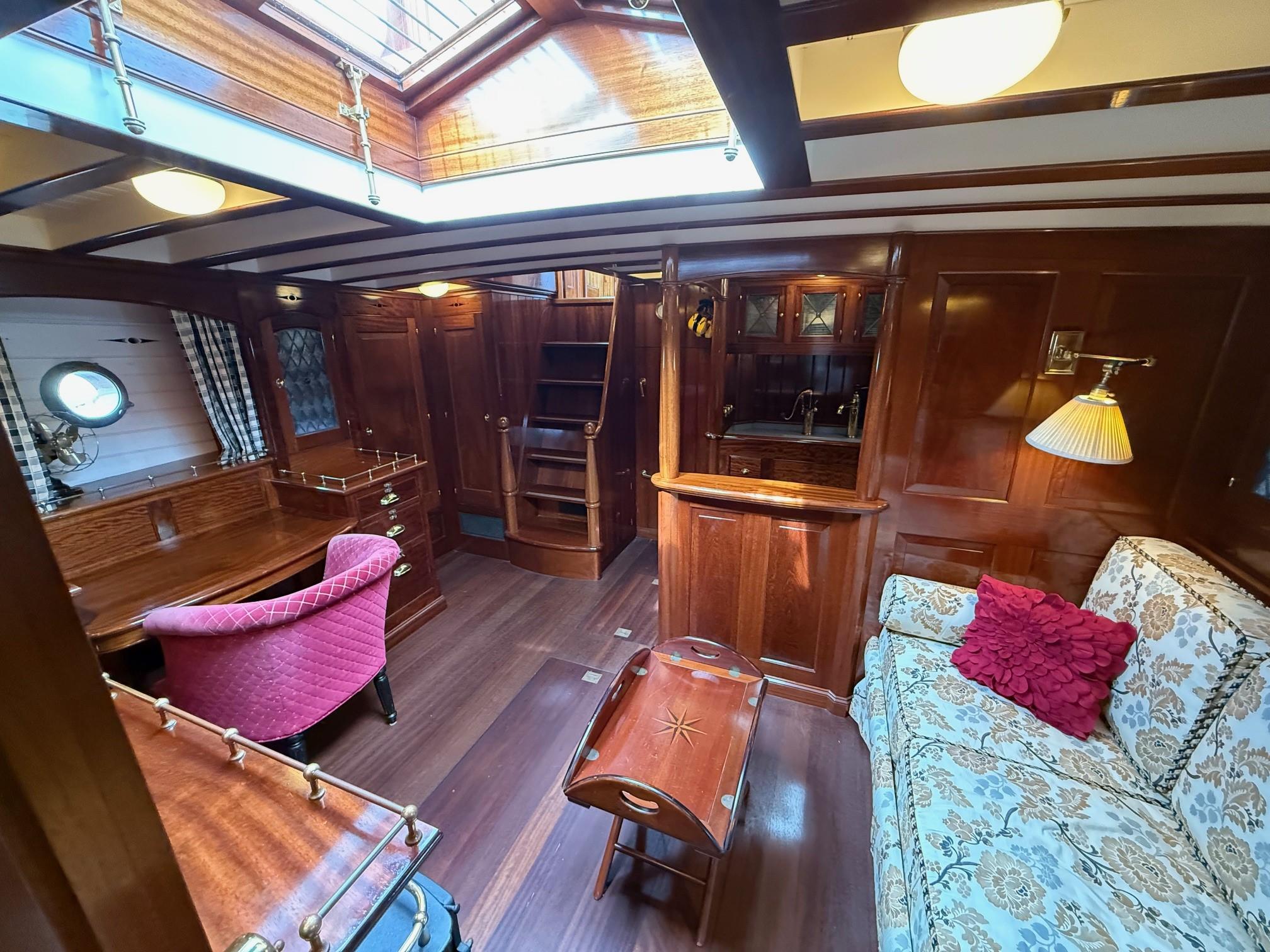

Aft Master cabin:

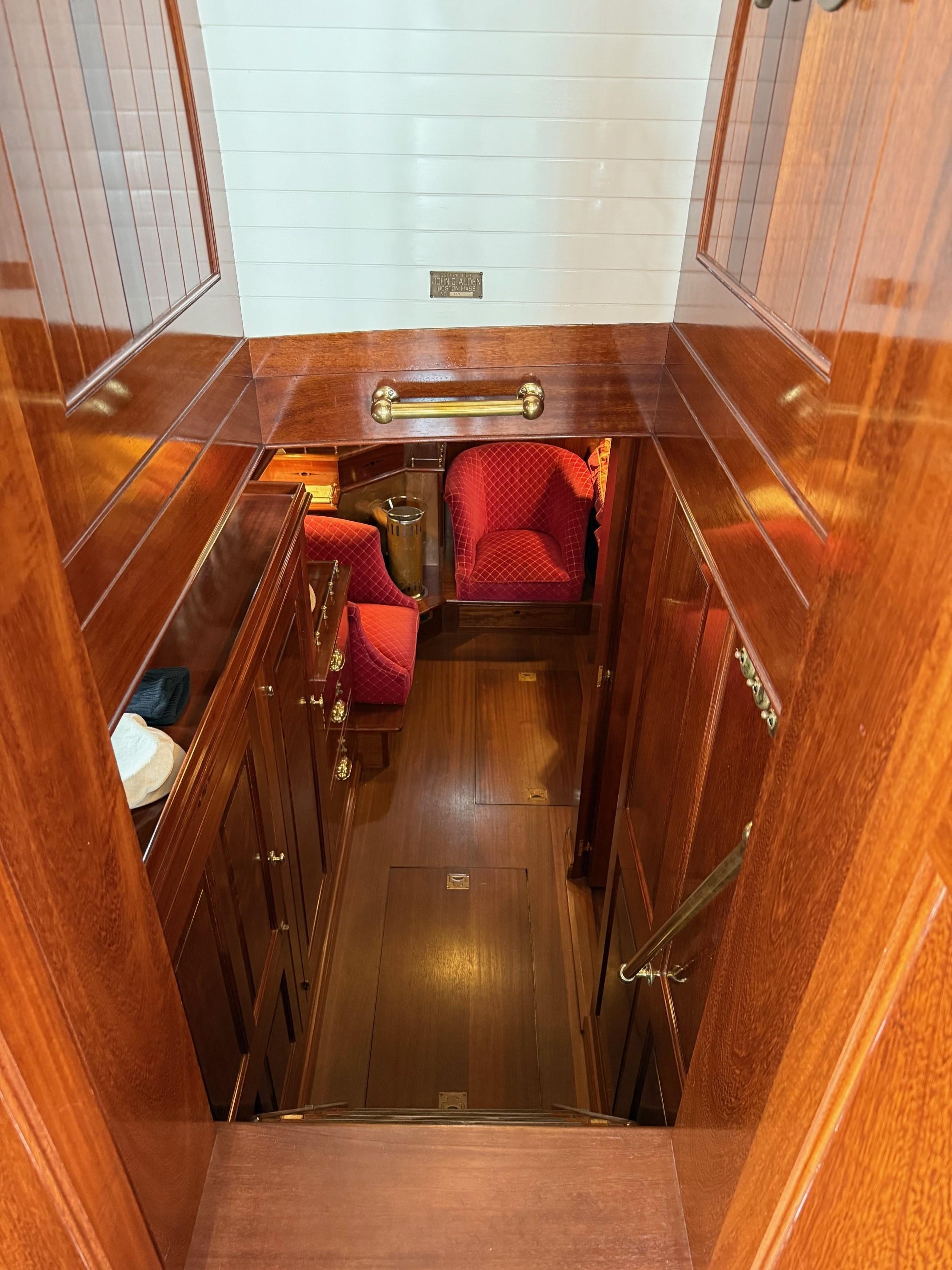

• Main owner cabin is accessed via aft companionway in Pilothouse.
• Includes portlights (2) in stairwell
• 6'3" headroom throughout aft cabin

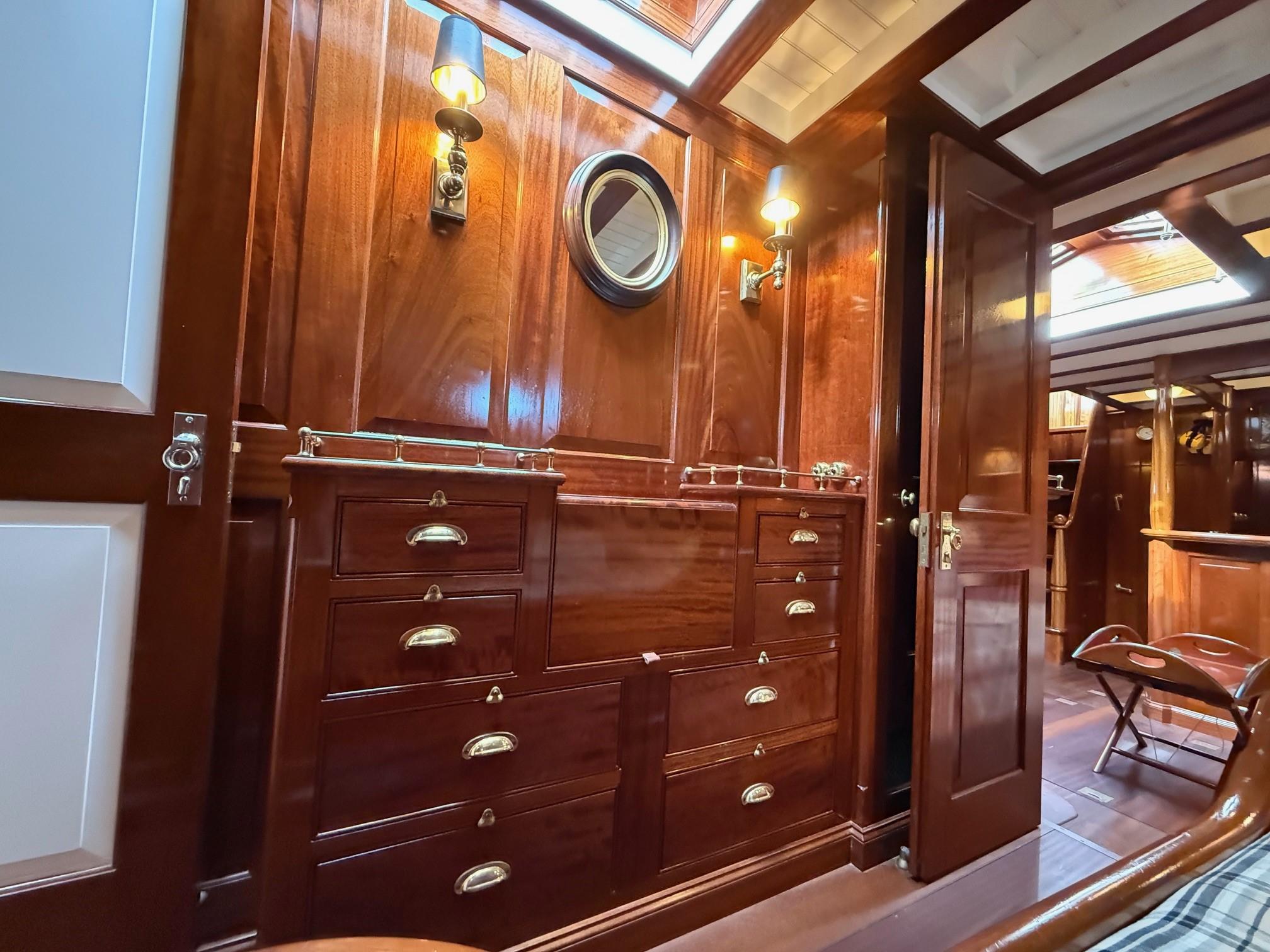

• Hanging locker and 3-drawer dresser to stbd of steps and head
• Vented washer/dryer (low noise output) behind raised panel door and outboard of steps
• Queen size berth with 4 large drawers beneath and more storage outboard
• 2 upholstered Sofa chairs to stbd of bunk

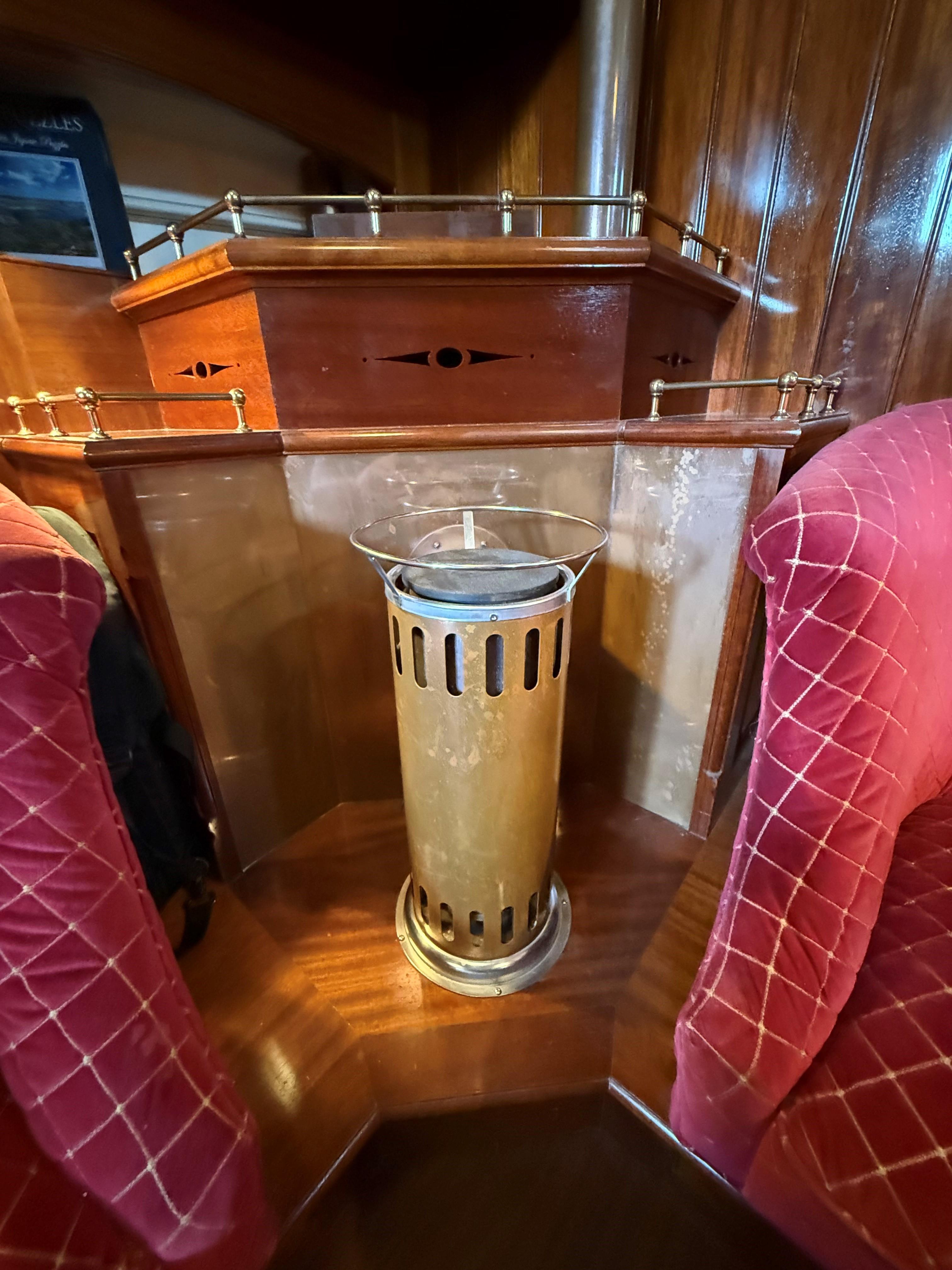

• Reflex diesel stove that can operate while underway
• Arched bookshelves on port and stbd of cabin sidedecks
• Great natural light and ventilation through skylight & portlights
• Vintage Westinghouse comfort fan (bronze)

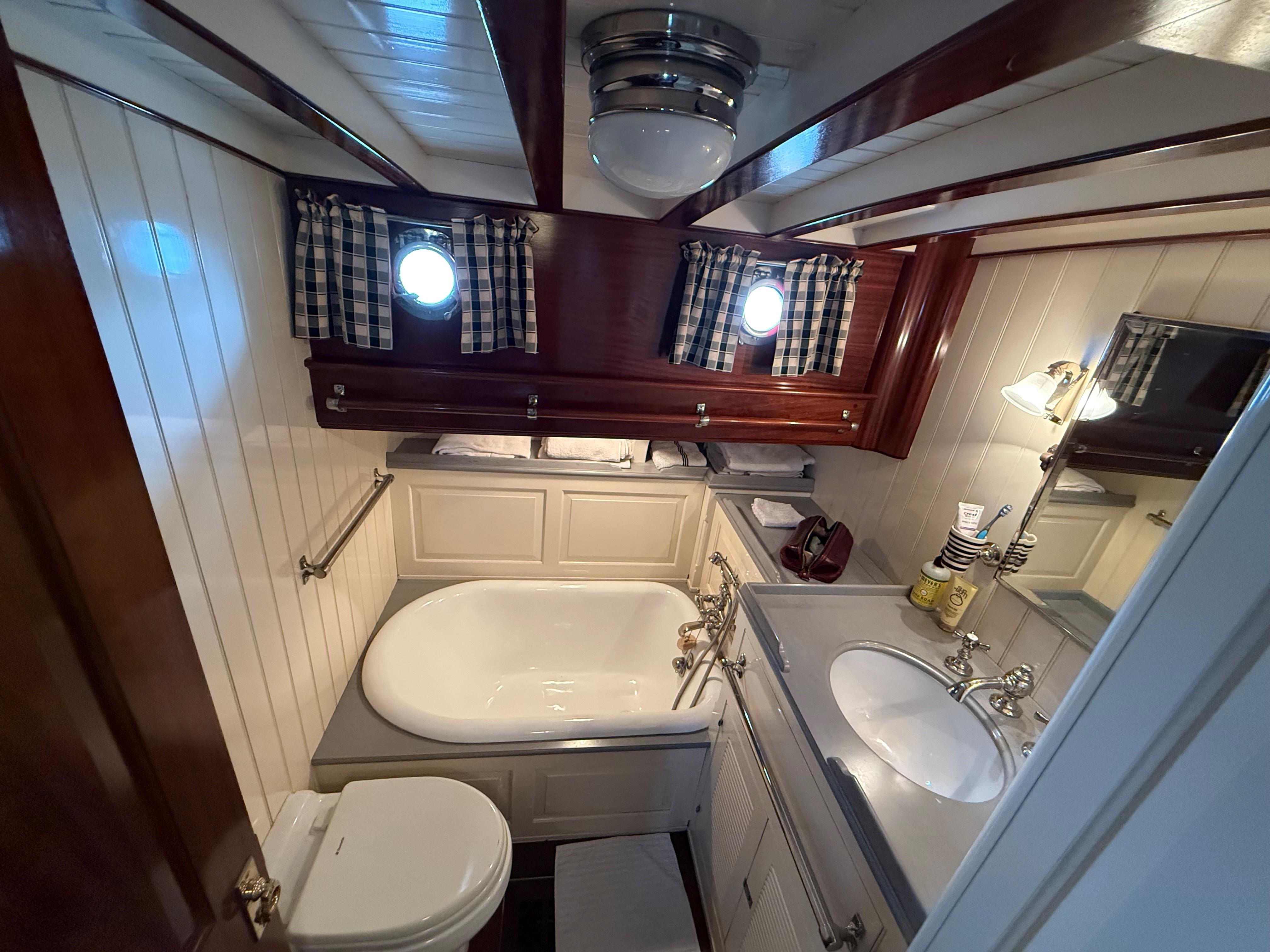

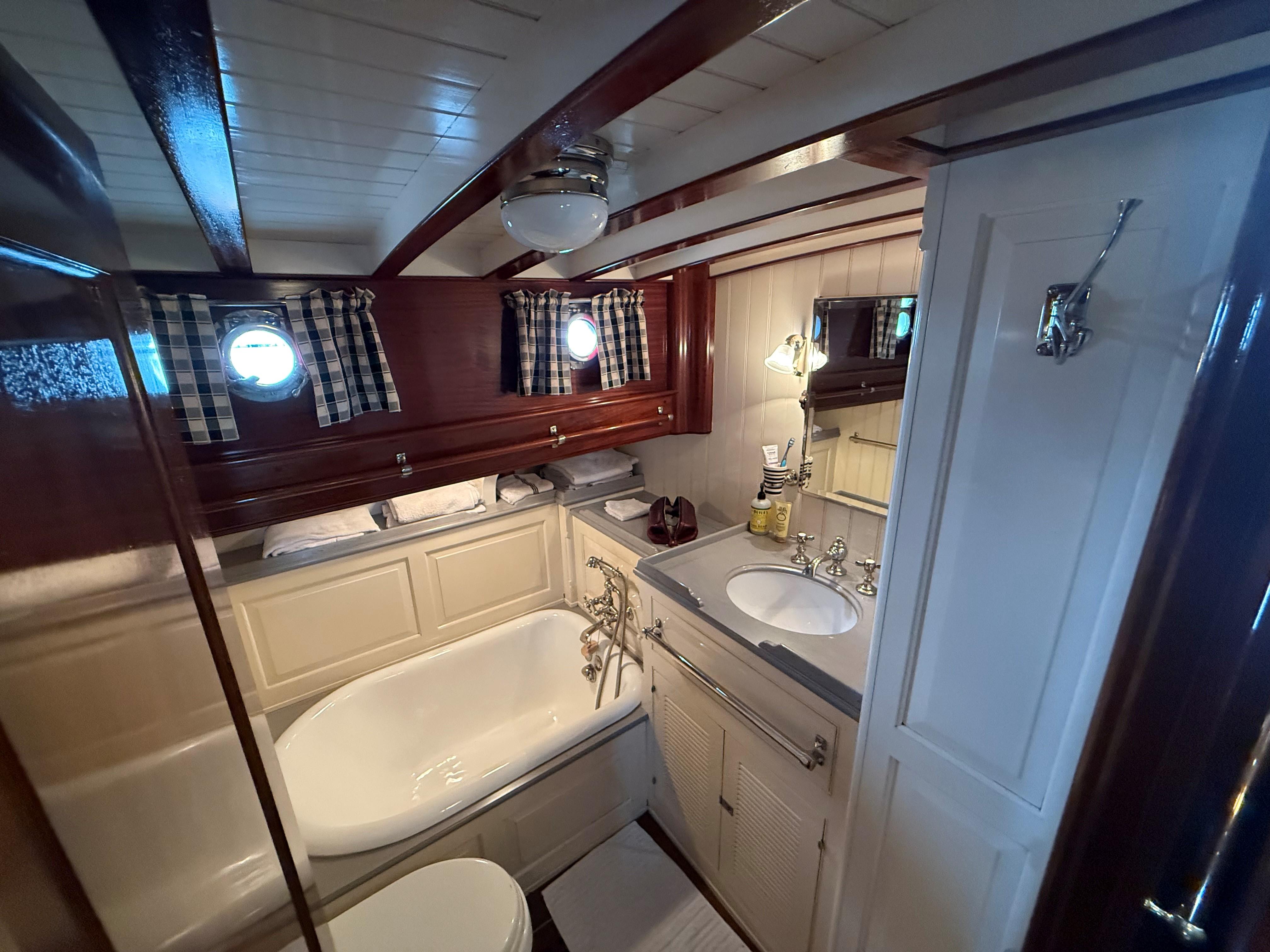

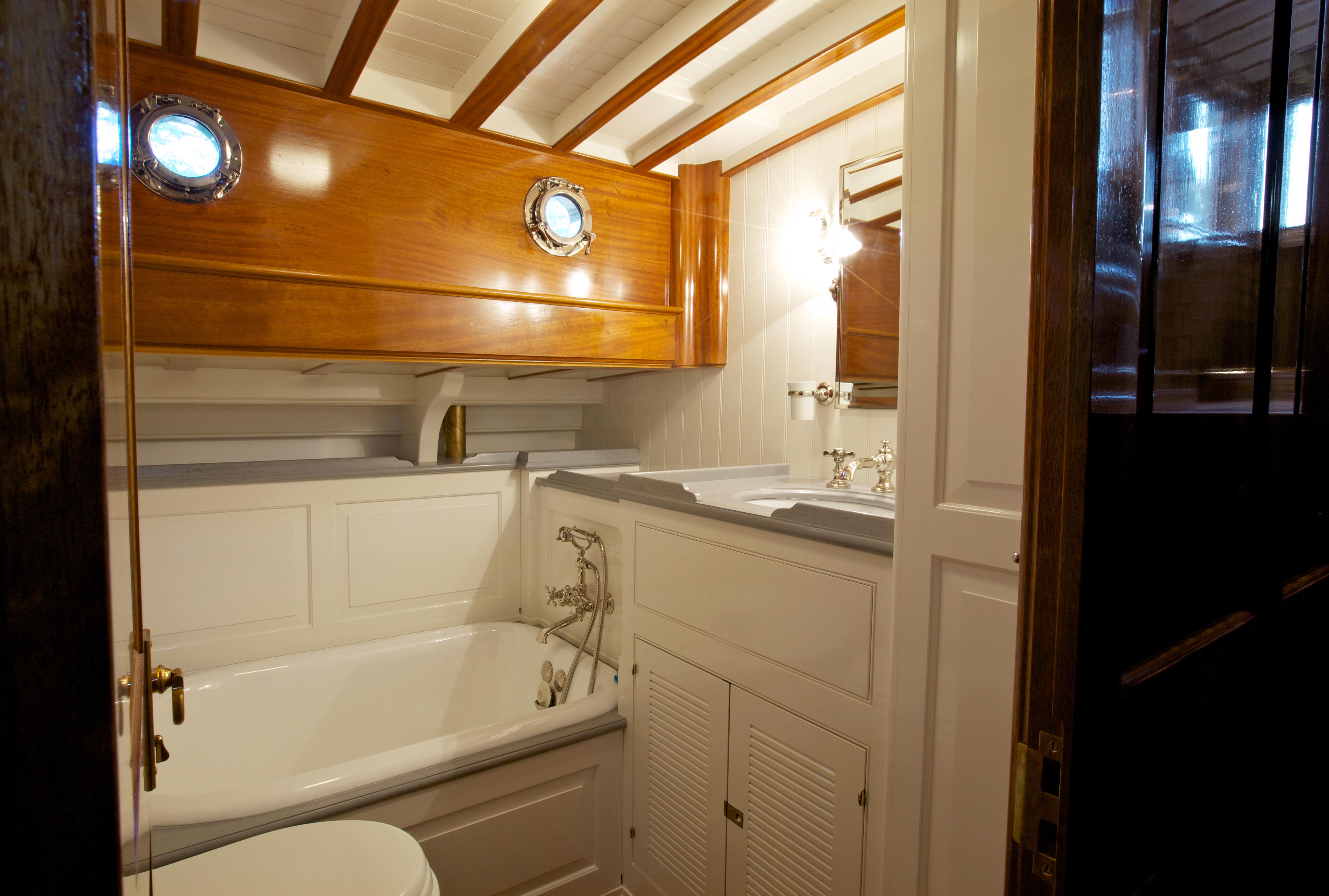

• Head includes unique "soaking tub" as well as ample storage, Corian counter and sink.
• White raised panel and bead board finish, with marbled grey Corian countertops and nickel-plated fittings
• Dorade vent circulates air through a pipe in the mast box down to the sole and out a register
• Dome light, two light sconces and one light over bathtub .
• Heated towel rack
•  Oiled Iroko sole and shower grating
• Cabin sole has lift-outs to access large storage bins and bilge

Domestic equipment:

• Techimpex red enamel French Country Stove
• Isotherm DR49 drawer fridge/freezer
• Isotherm B129 top-loading freezer/fridge
• Vented Splendide Washer/Dryer
• Dometic Masterflush freshwater toilets

Deck hatch access to:

• Steering quadrant
• Hydraulic autopilot
• Diesel tank for Reflex aft cabin heater
• Shore power cords, water hoses, spares etc

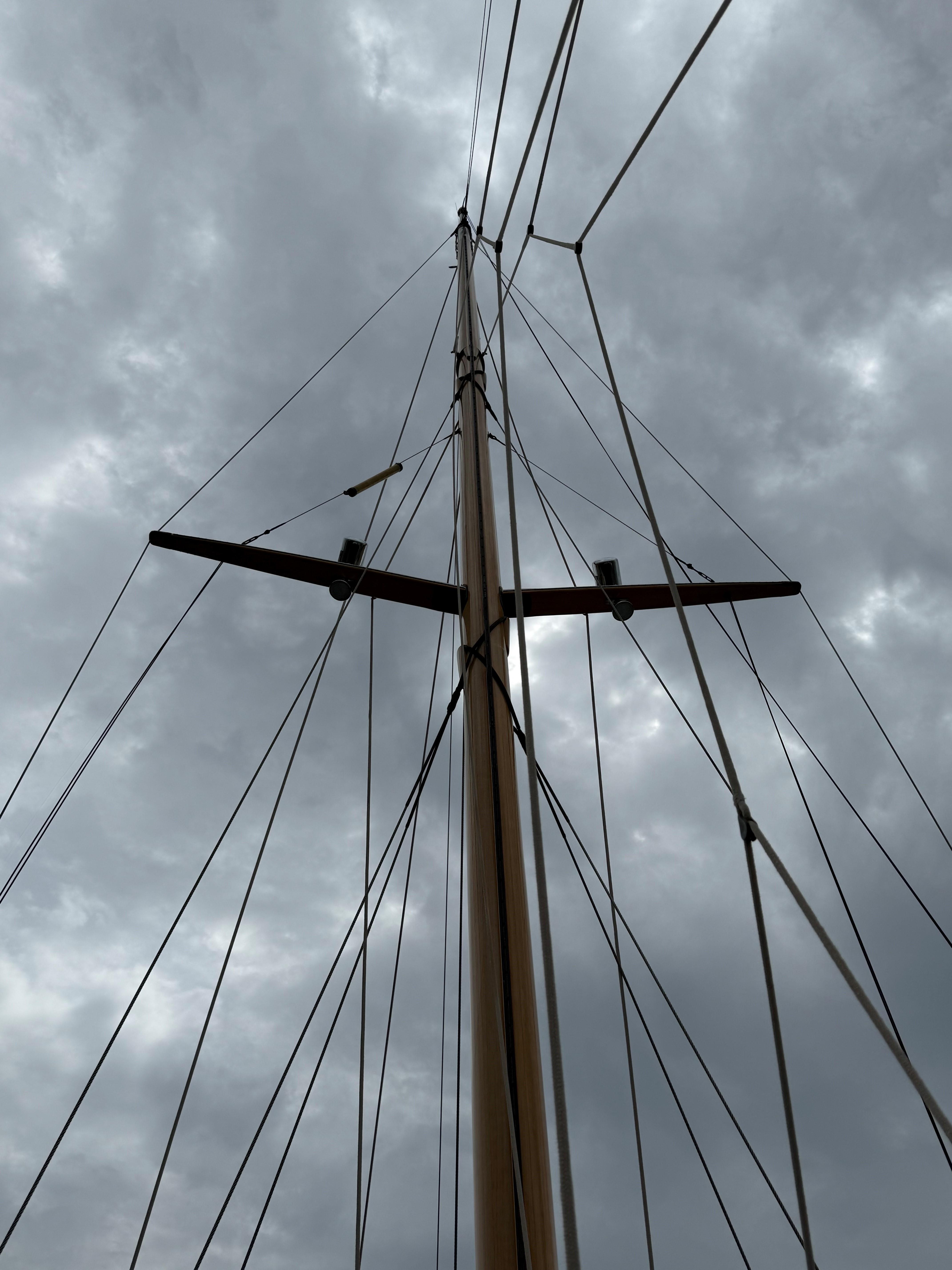

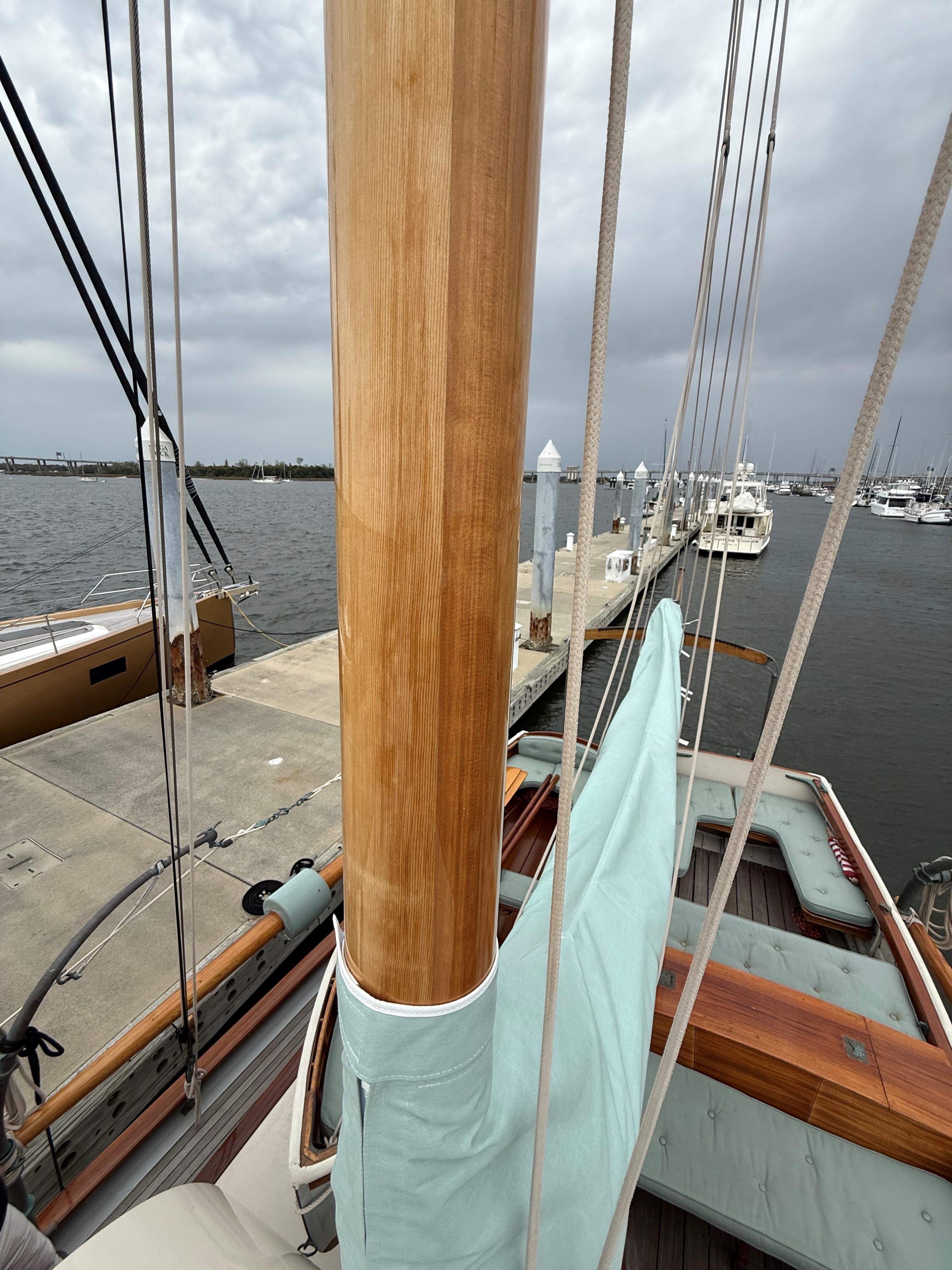

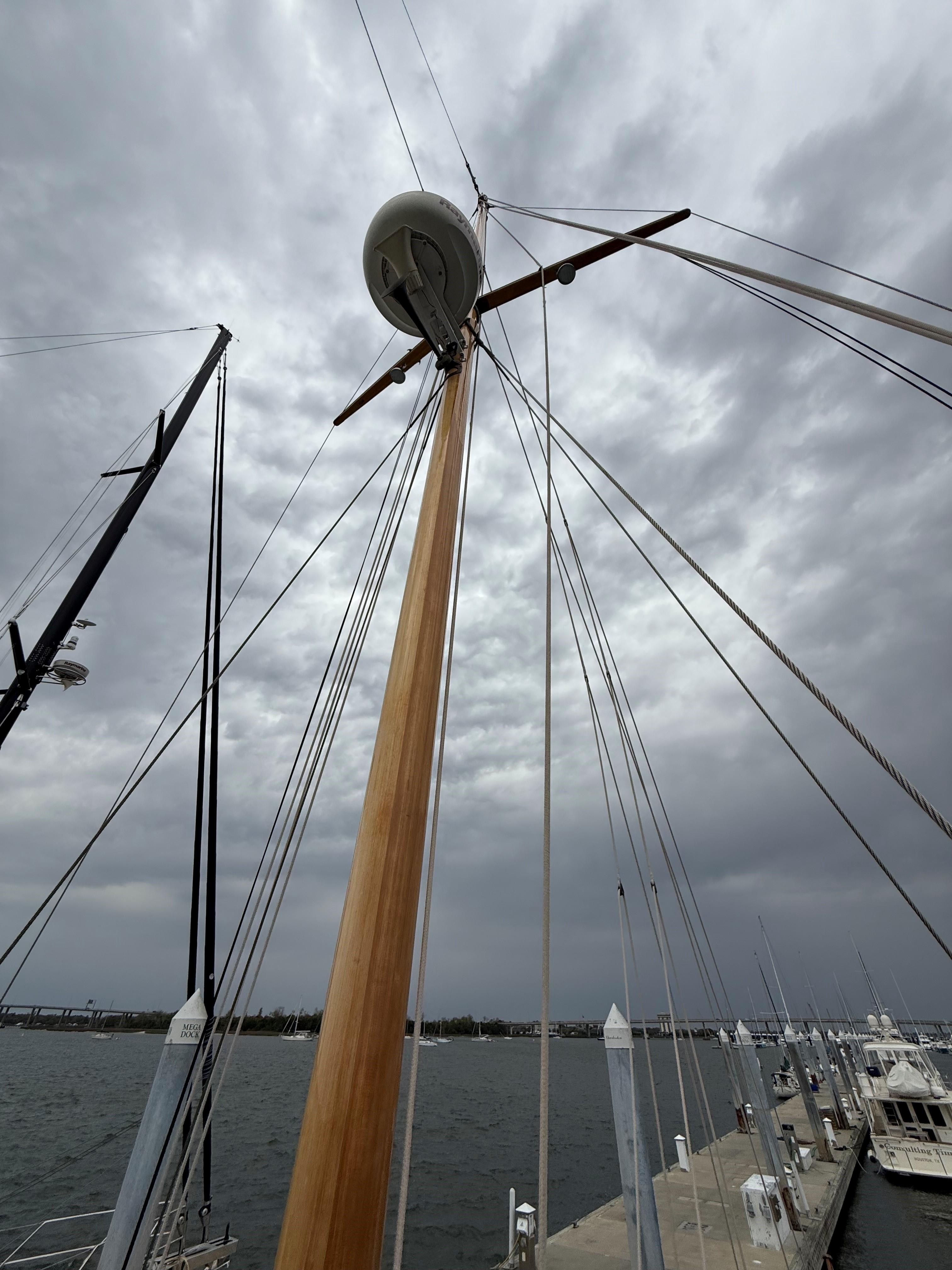

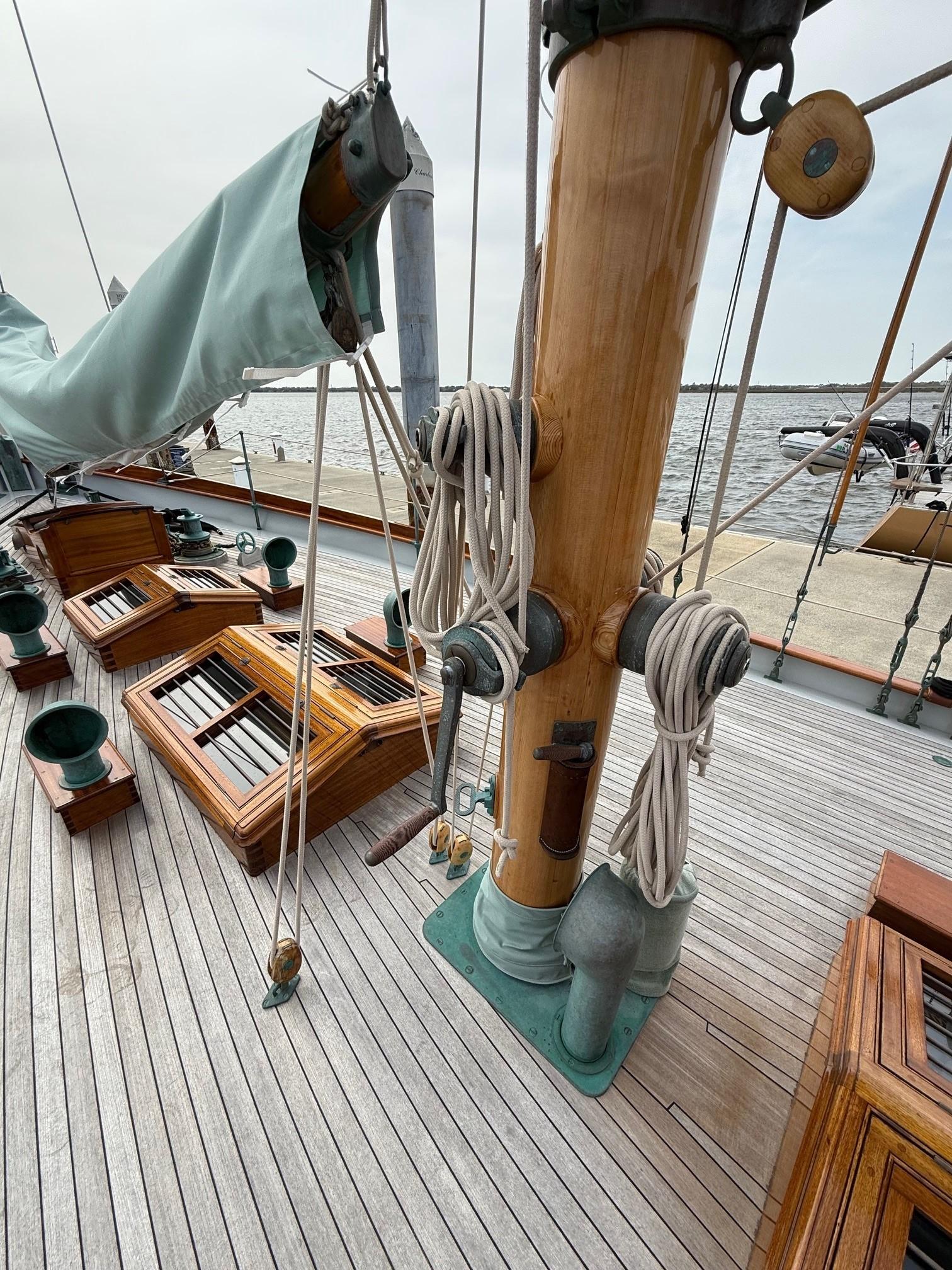

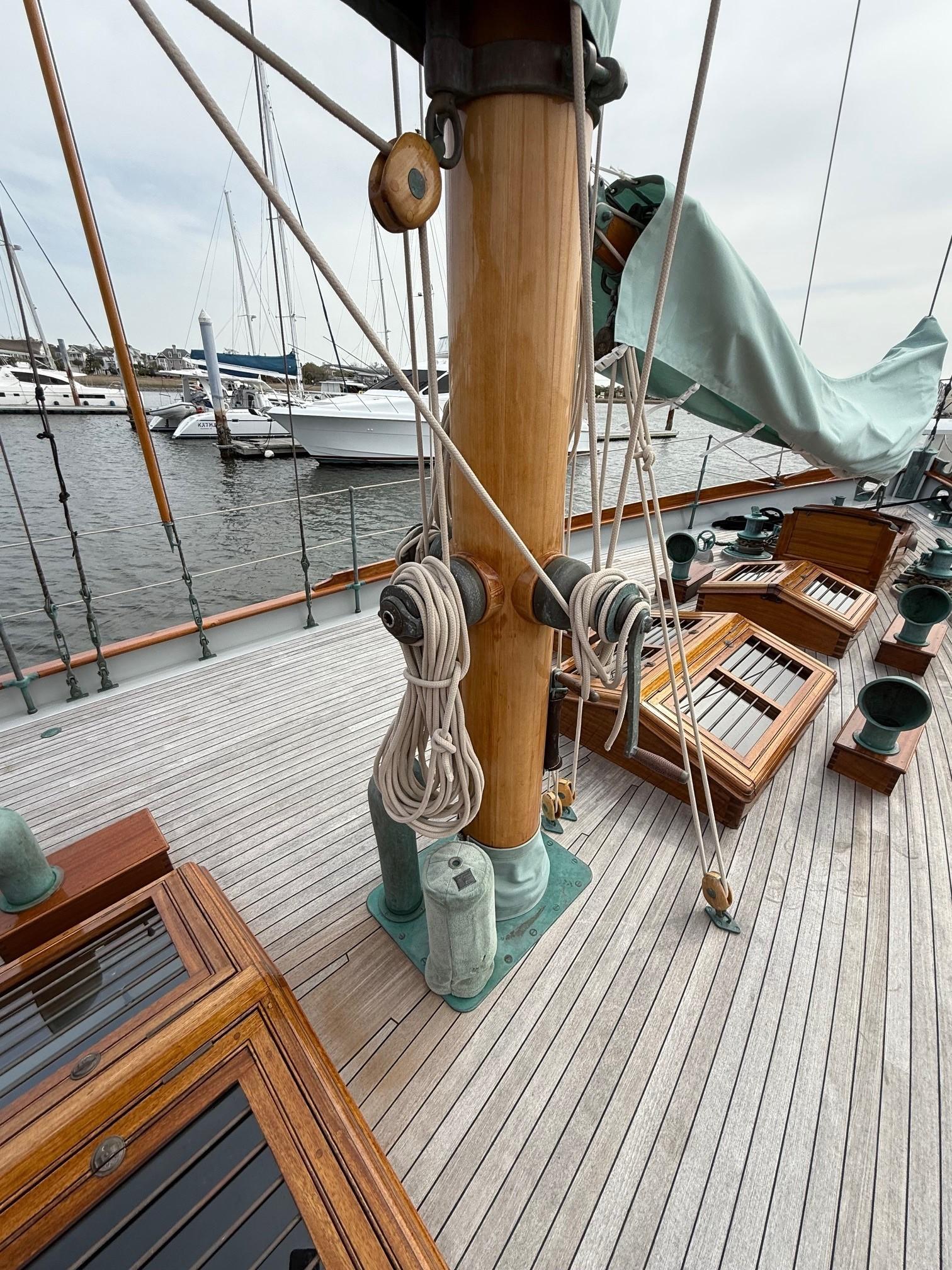

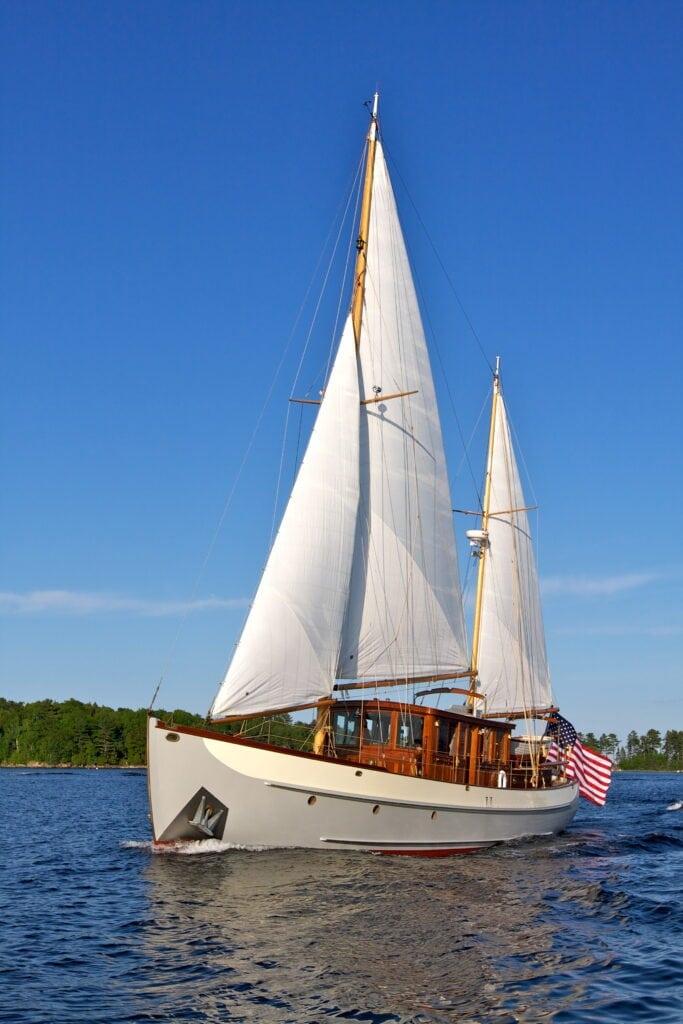

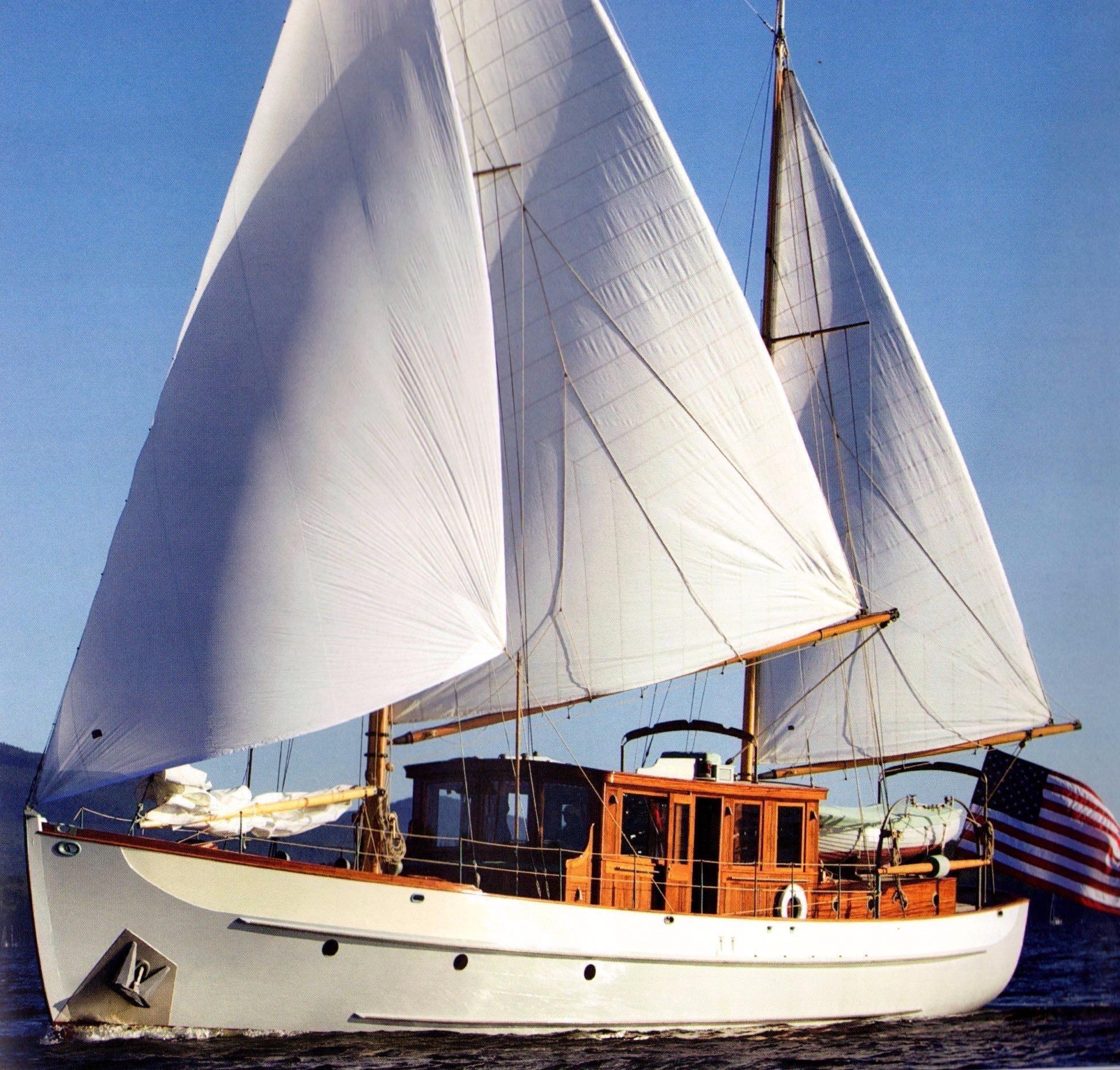

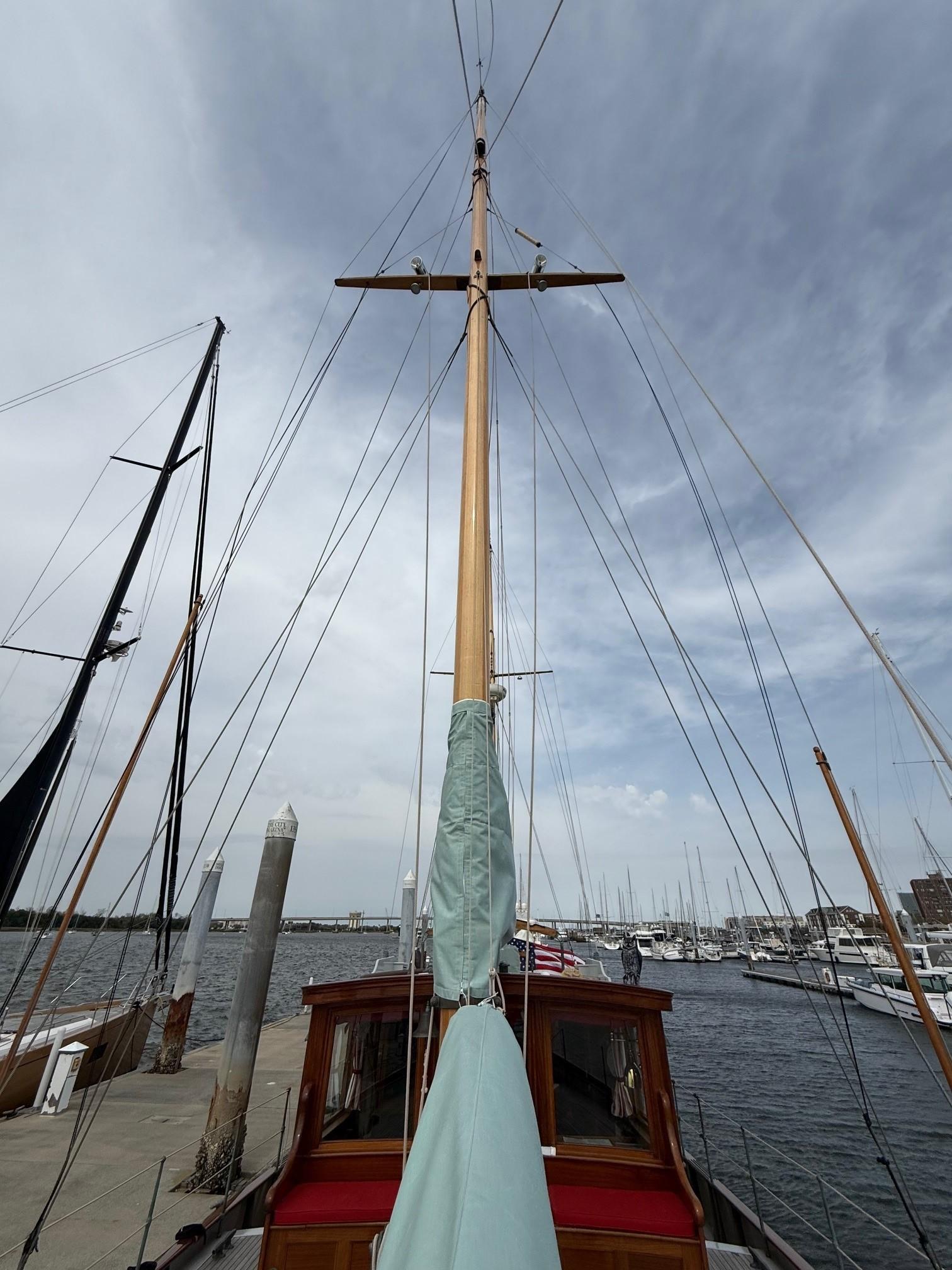

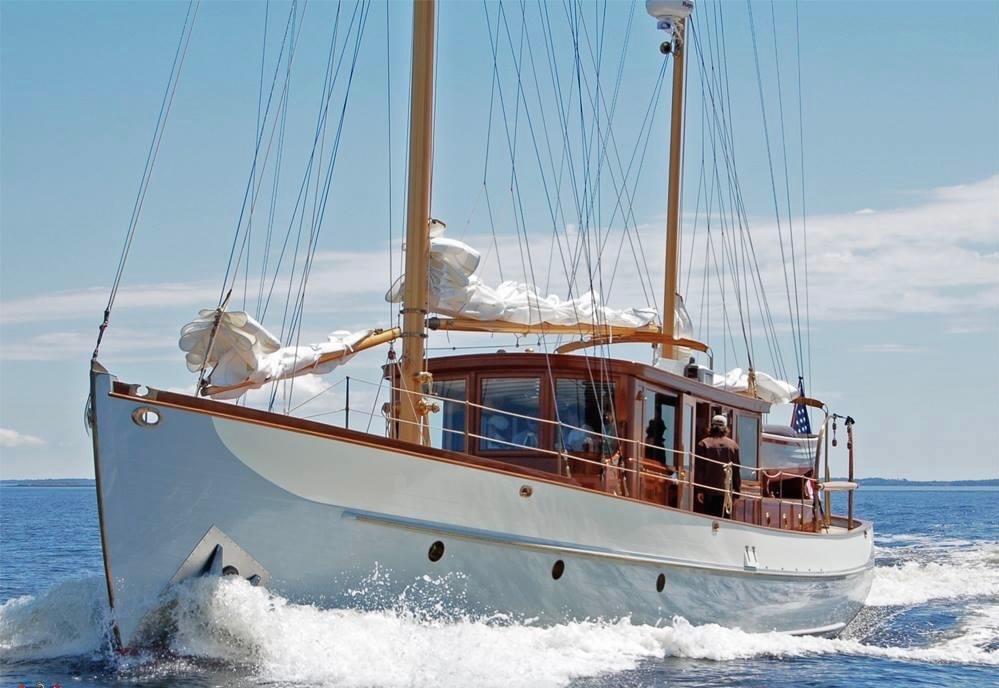

• Ketch rig redesigned by Alden office in 2008 with a new air draft of 63' (ICW-friendly)
• Red Elm blocks custom made by Dryade, France, w/ship's name embossed in center coin
• Main and Mizzen booms rest in rugged bronze gallows; one on pilothouse and one on aft deck
• Classic shock absorber main and mizzen sheet horses
• Sail Inventory: Main, Mizzen, boomed staysail & large reacher

• All bronze deck & rig hardware, except two bronze-plated stainless electric Anderson utility winches

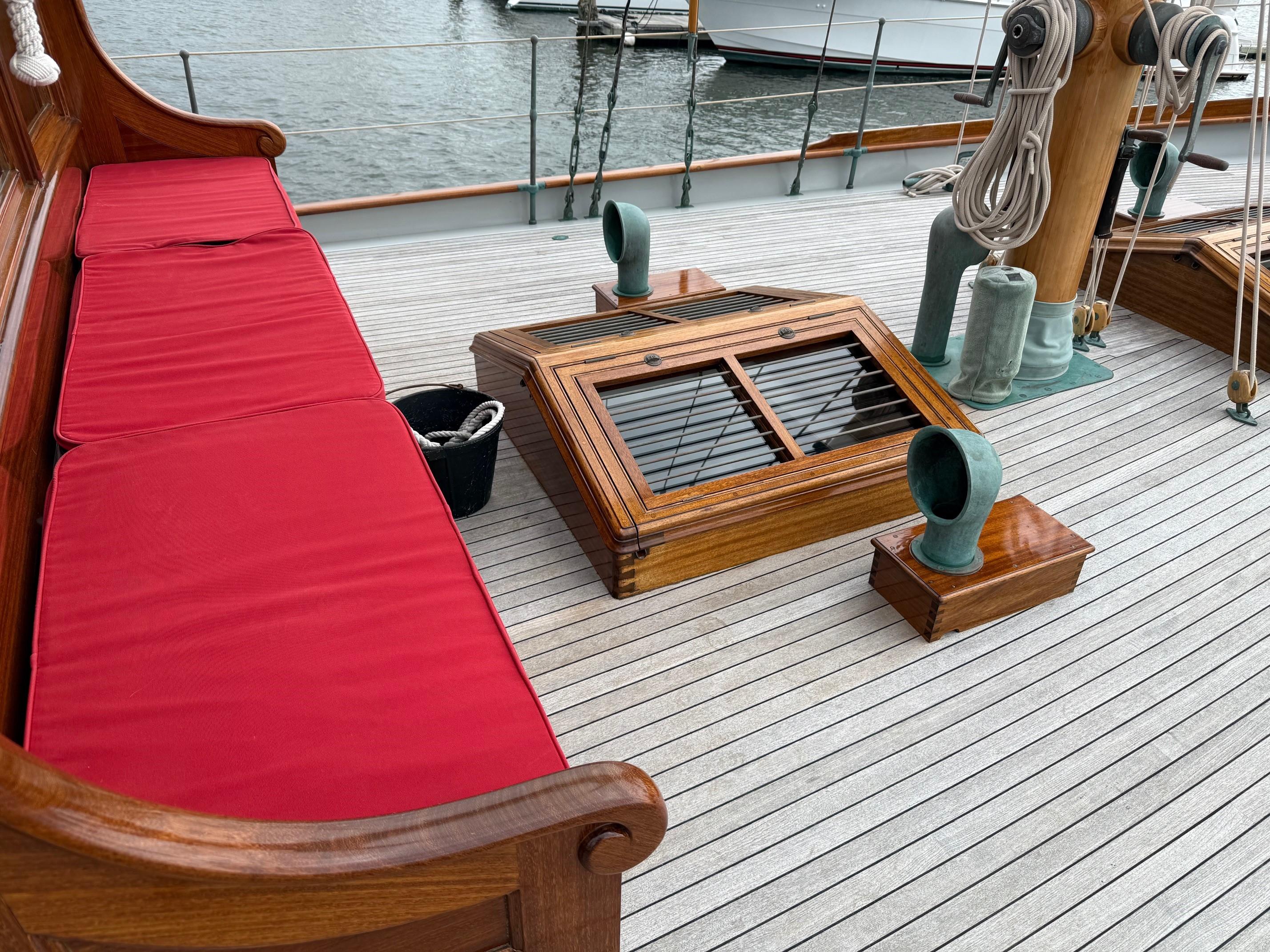

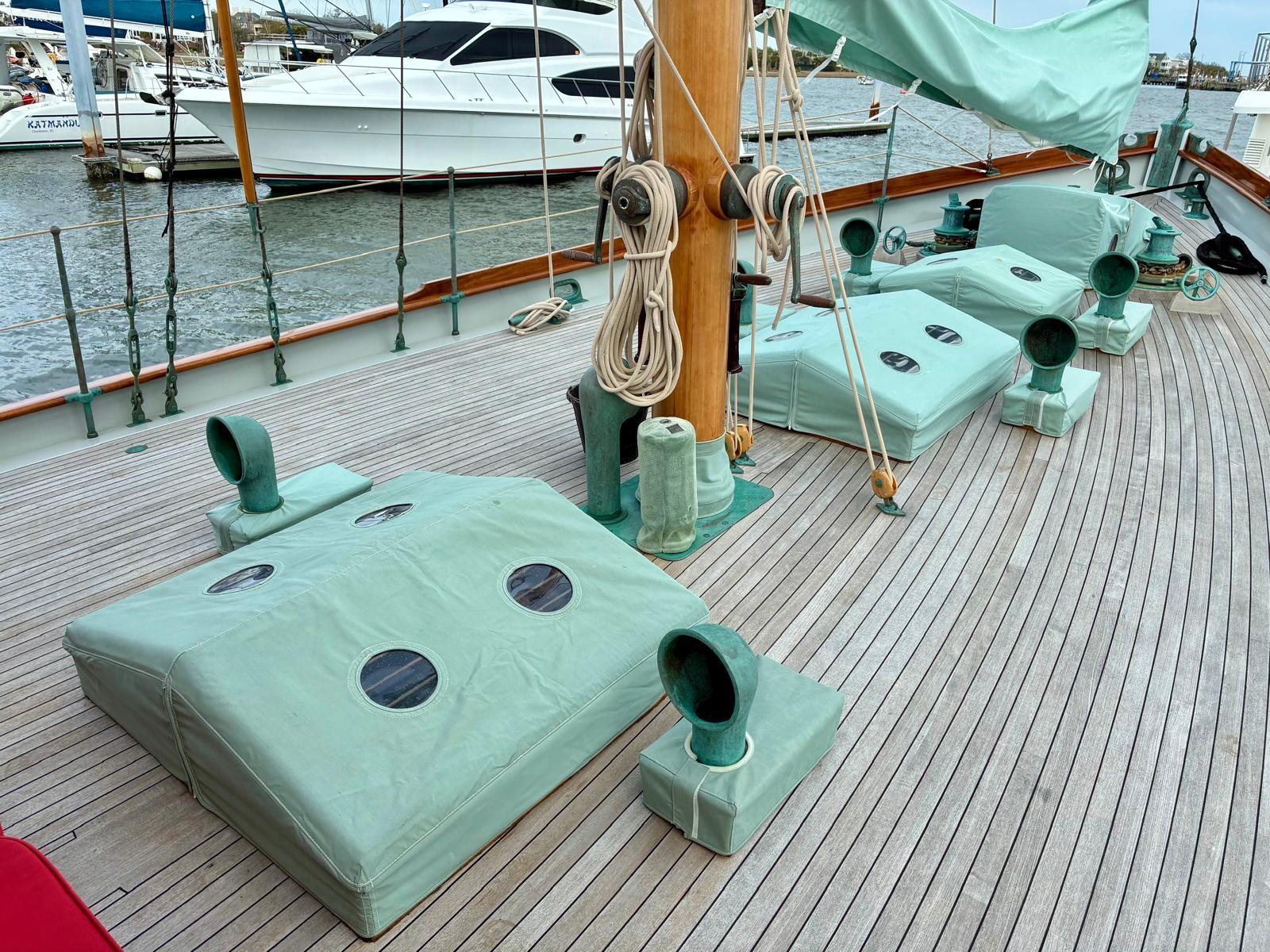

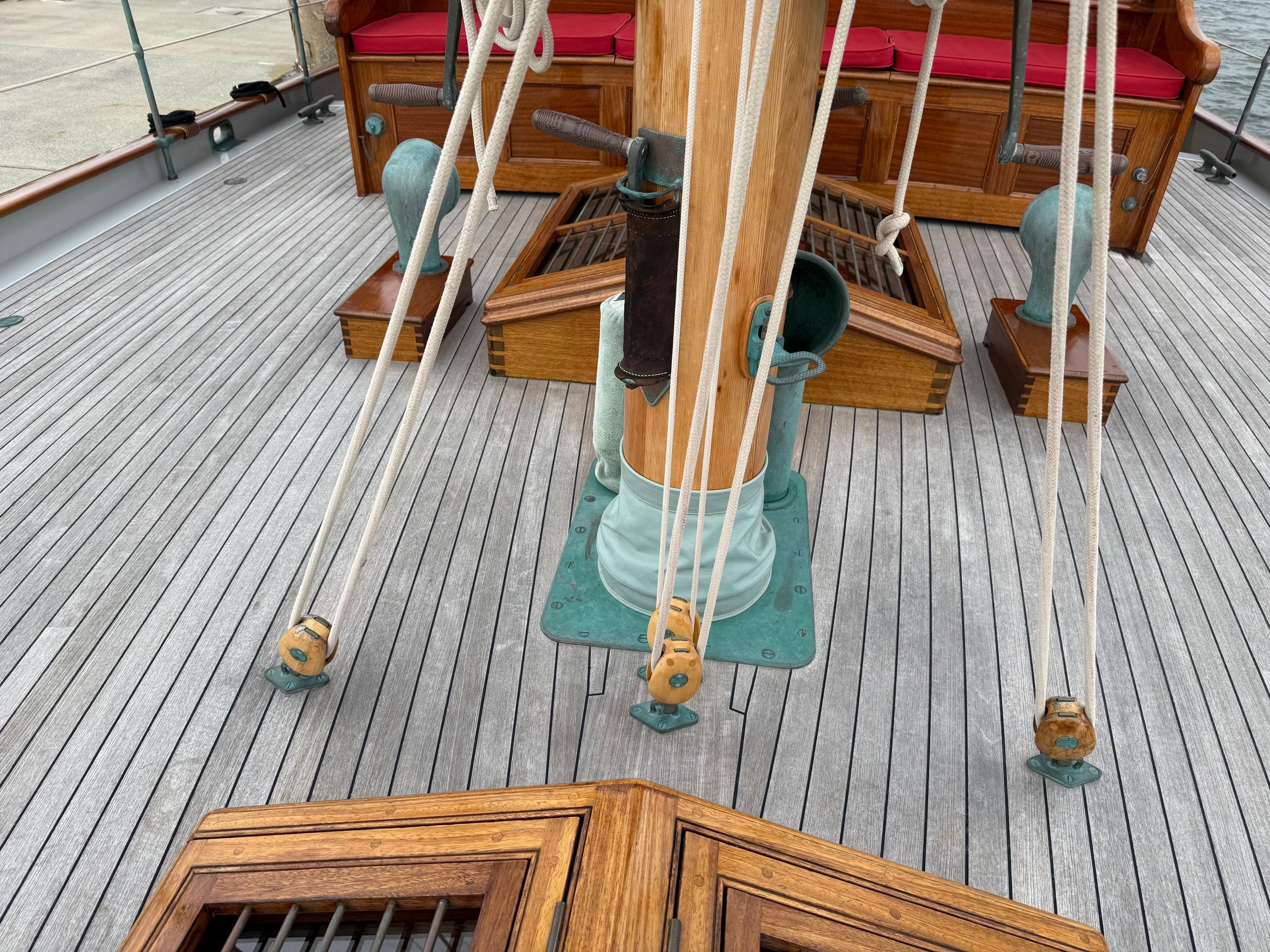

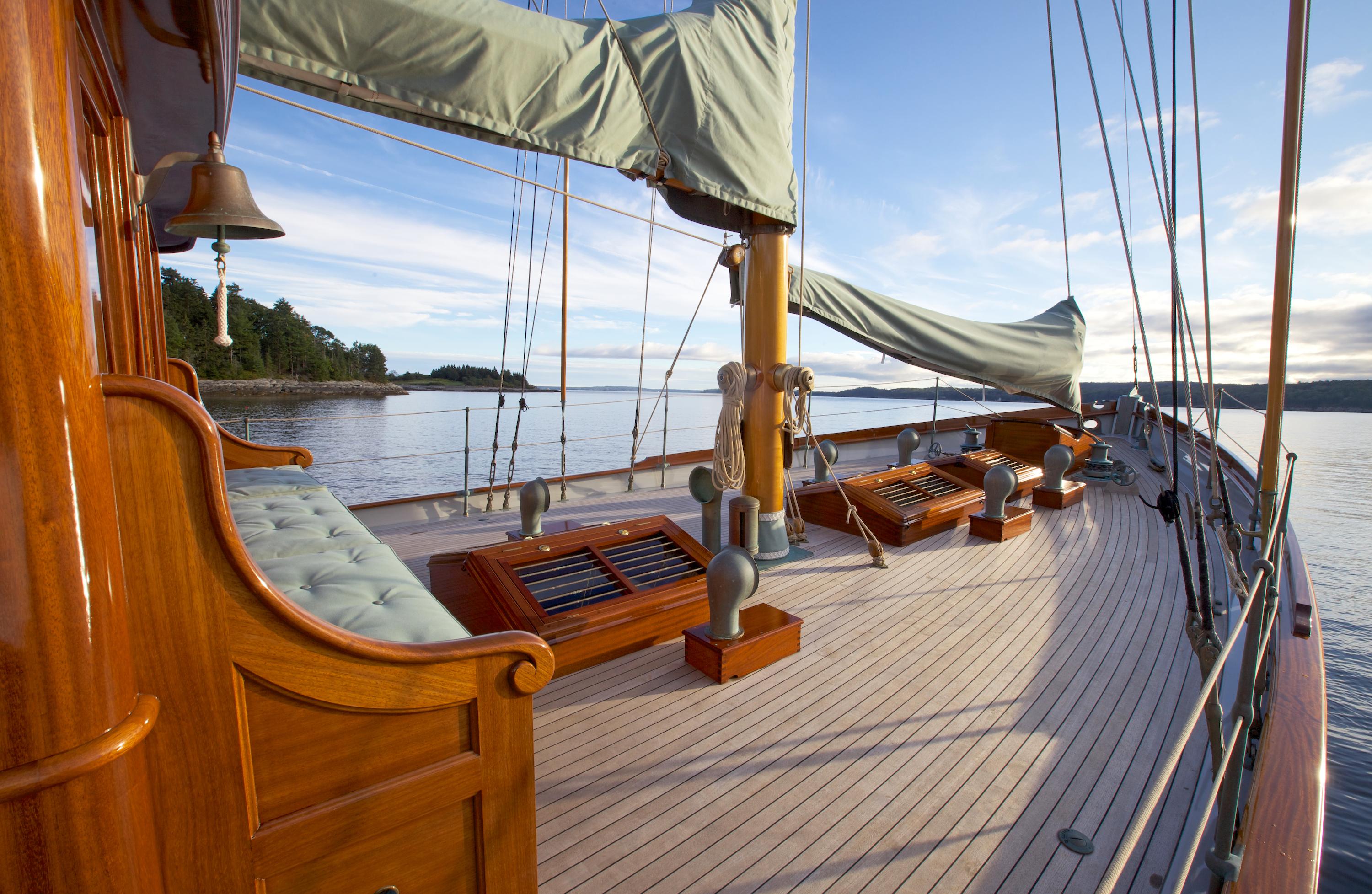

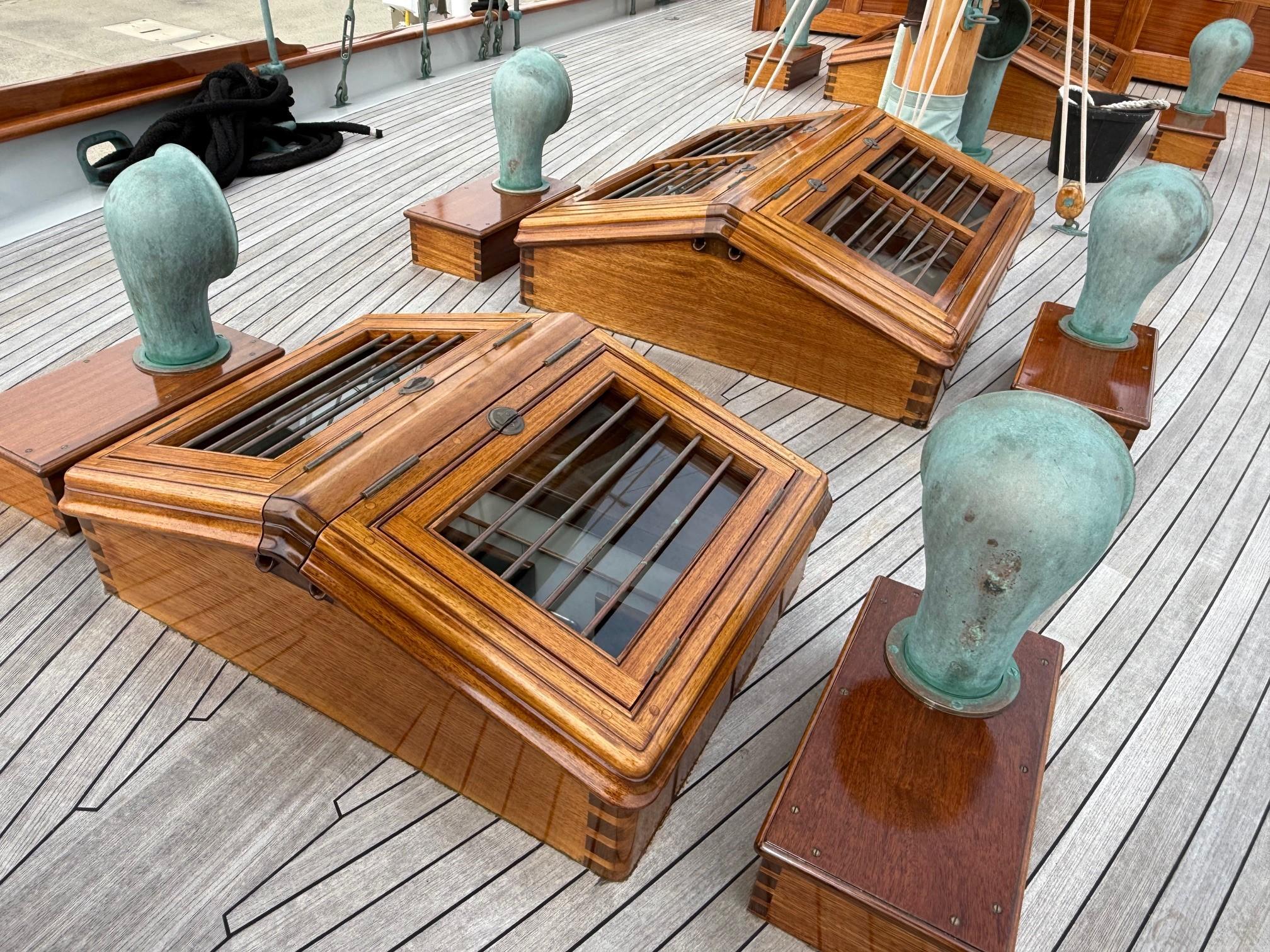

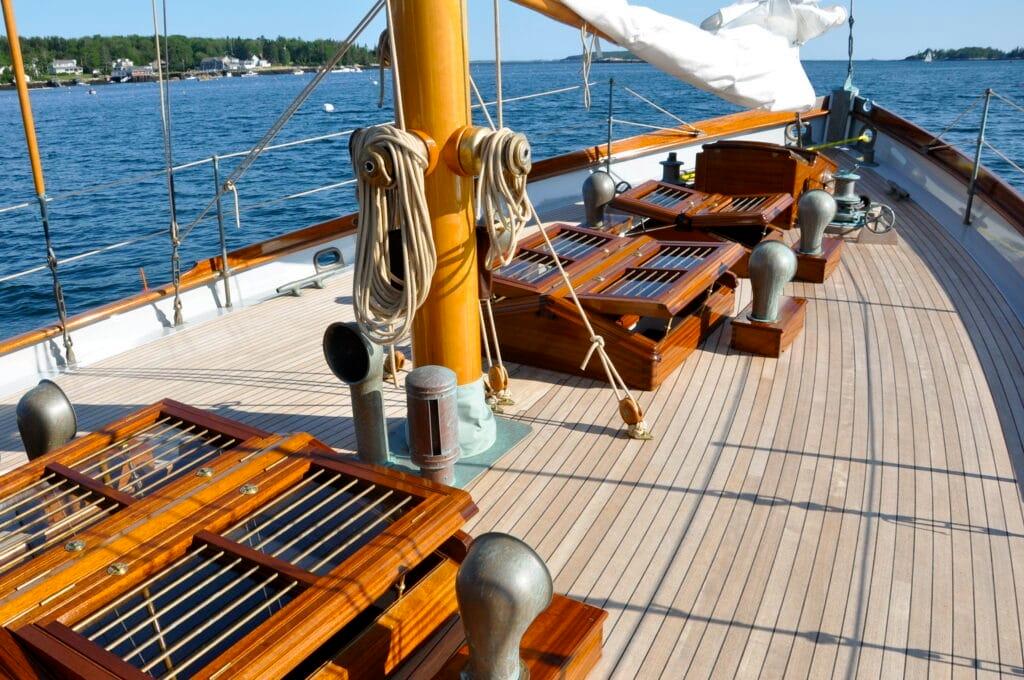

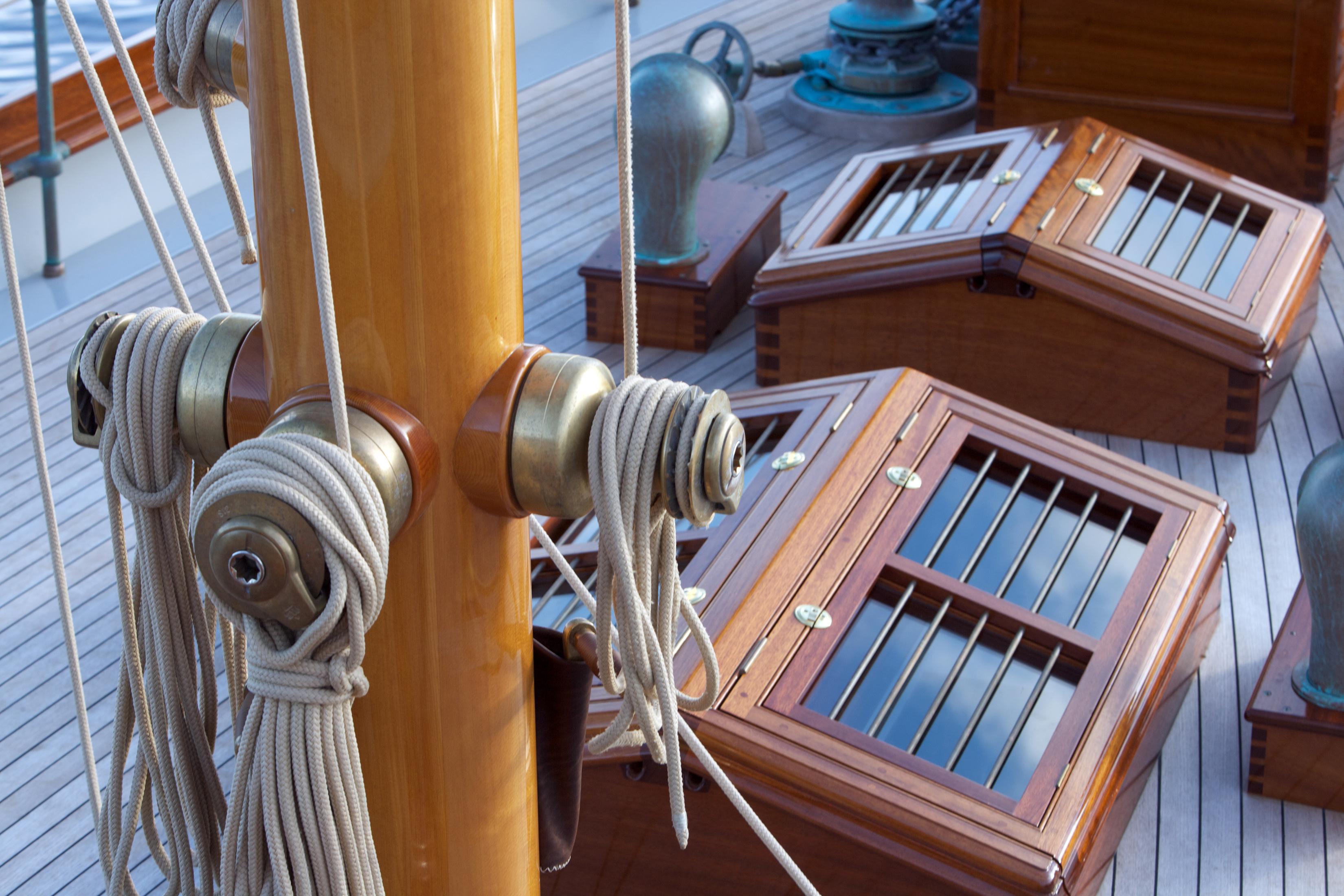

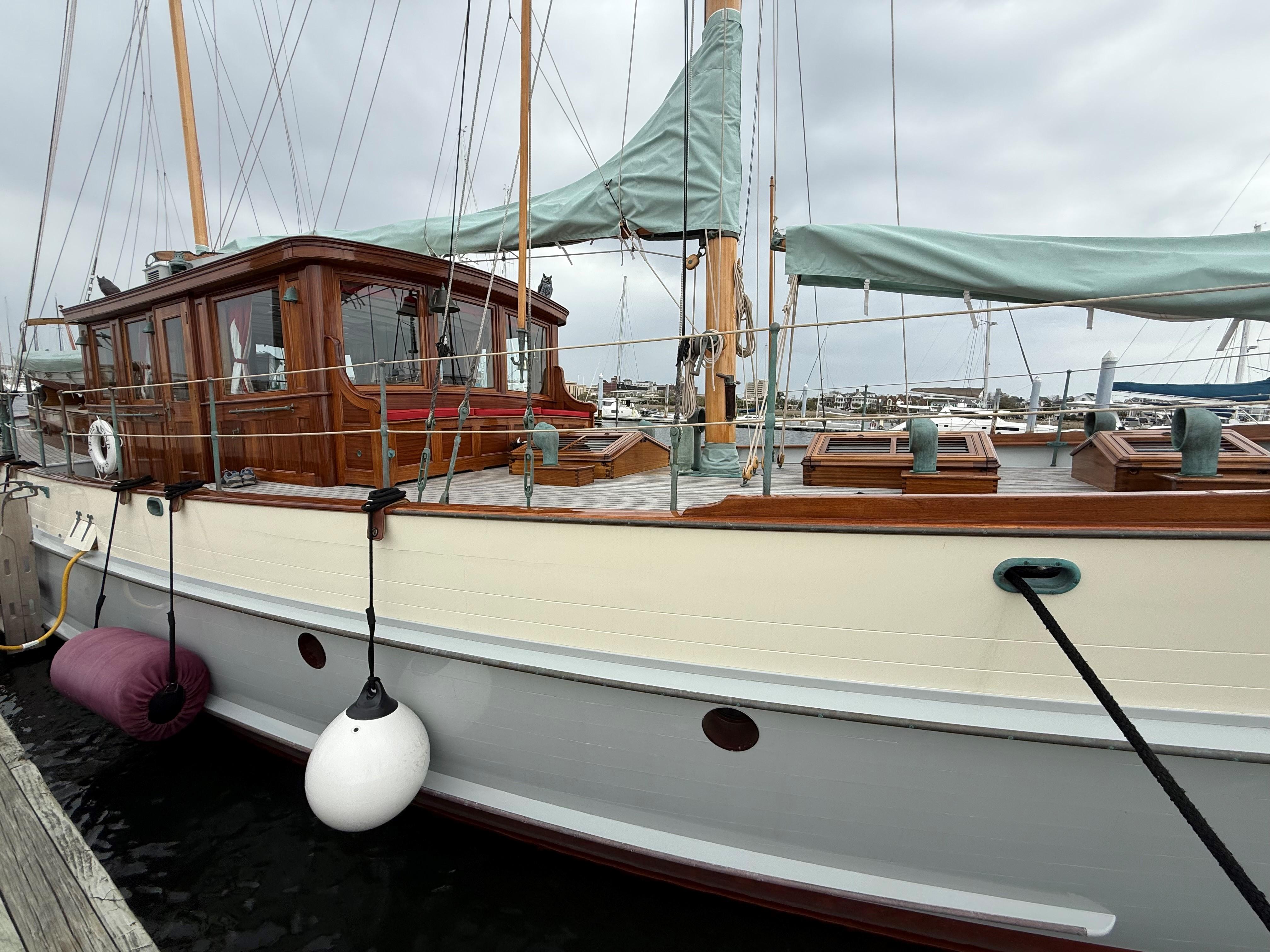

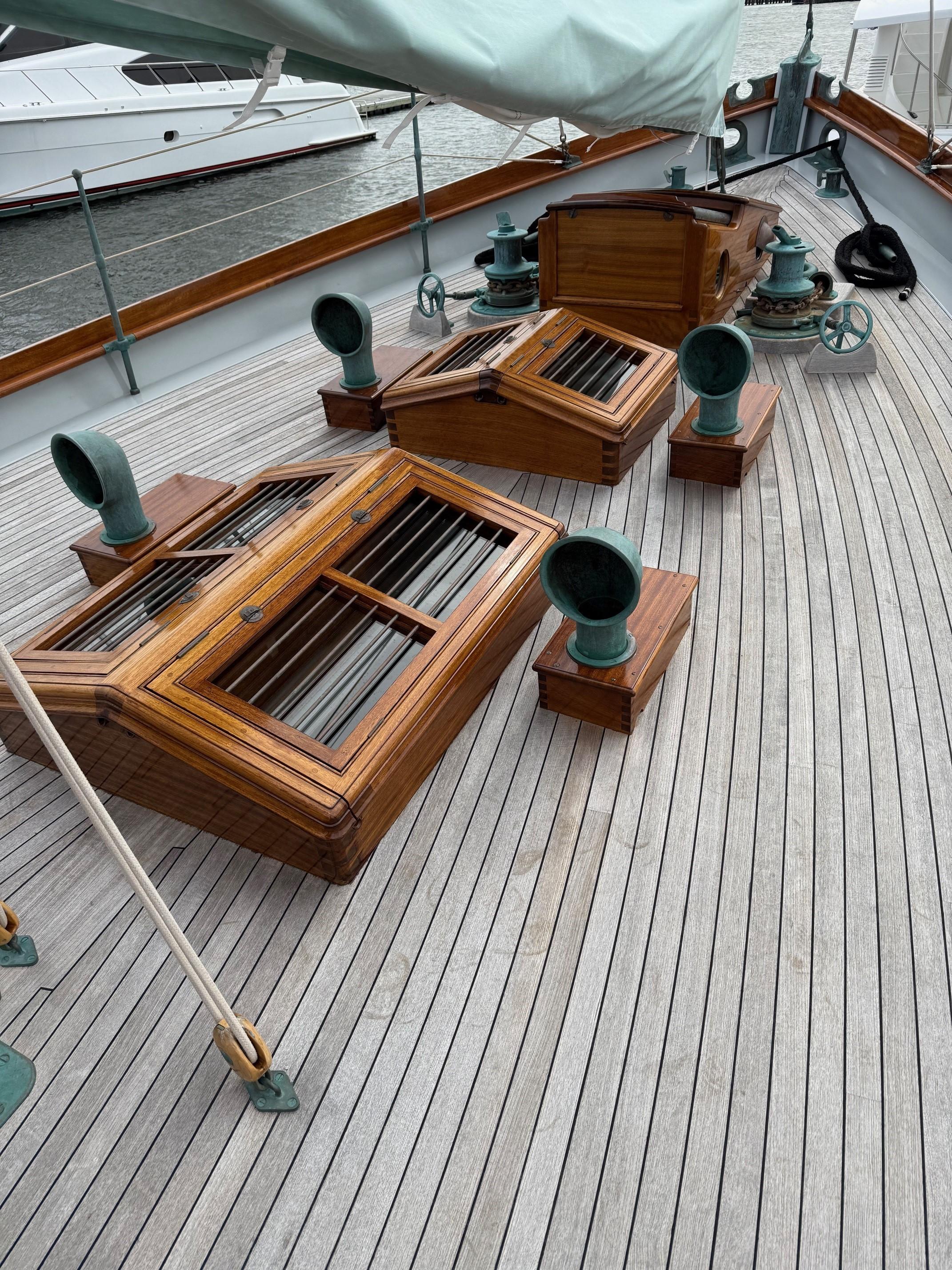

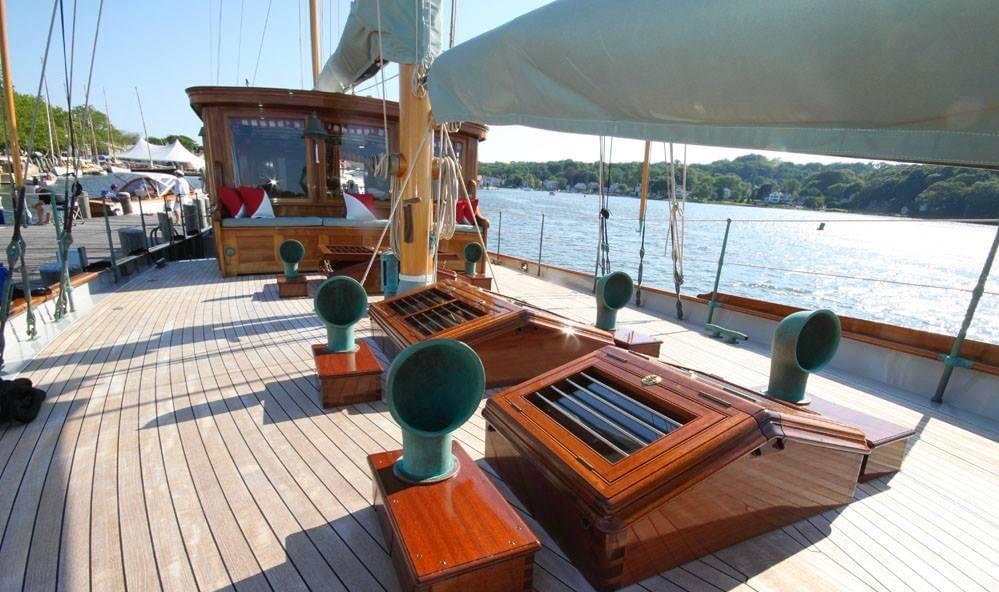

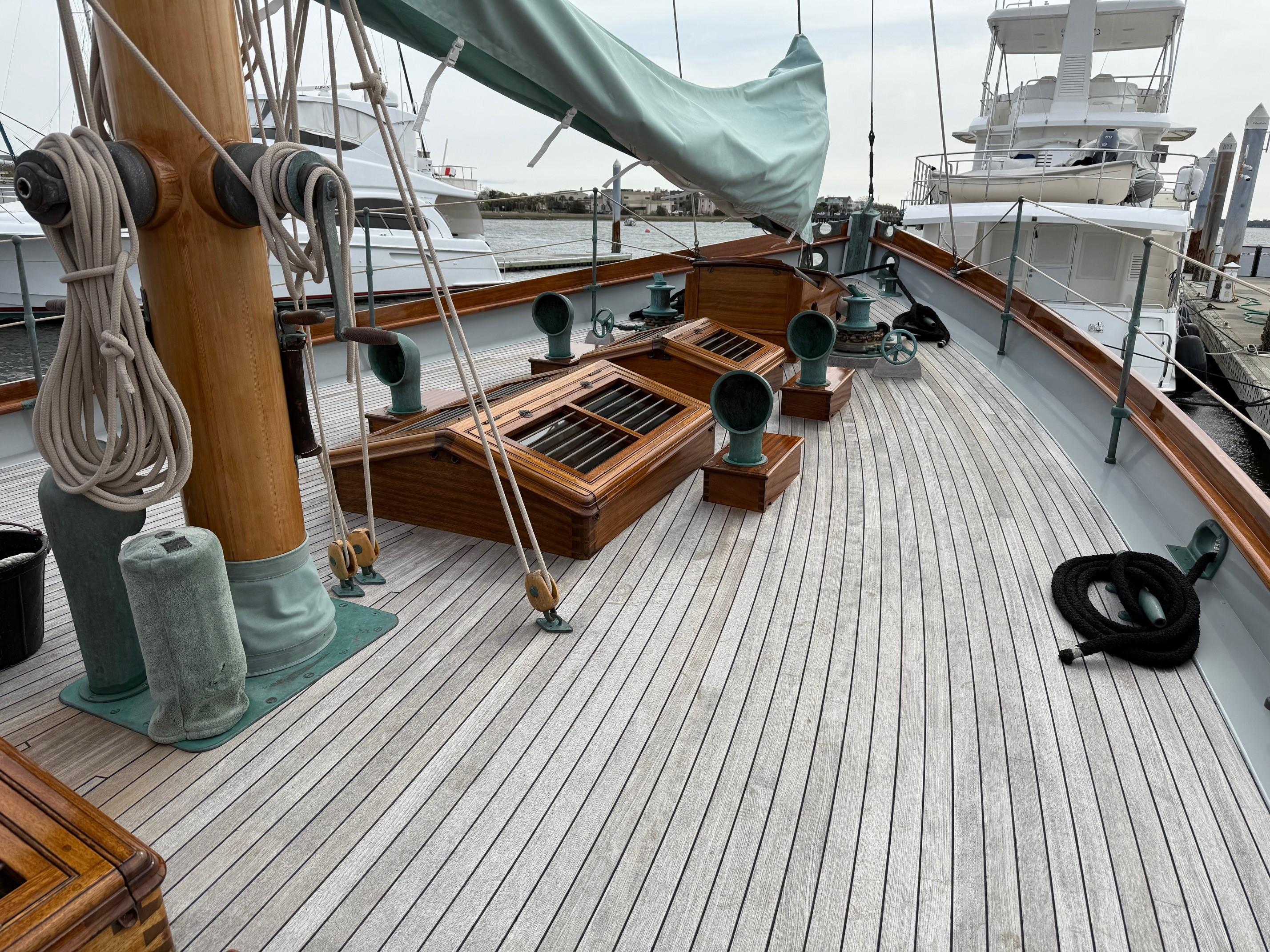

• Raised flush foredeck w/three skylights/butterfly hatches and a scuttle on centerline

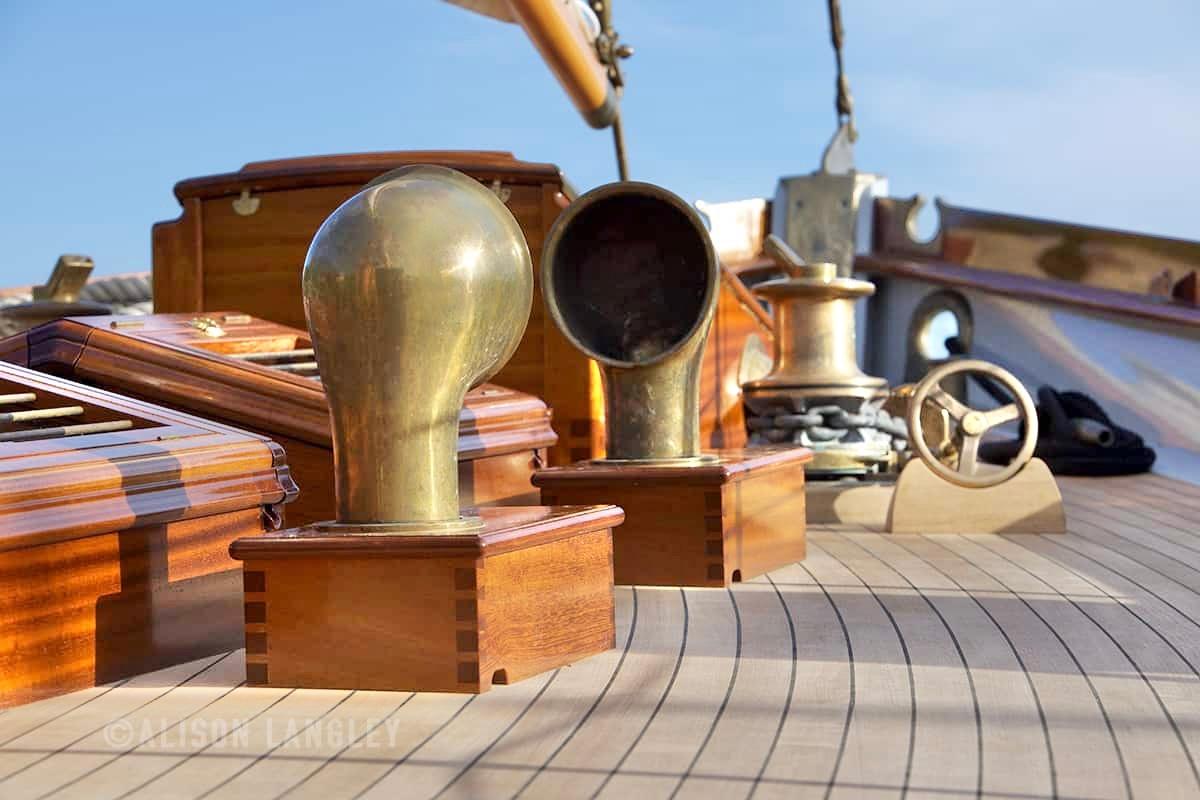

• Each skylight flanked by two dorade vents w/ heavy cast bronze 8" cowls

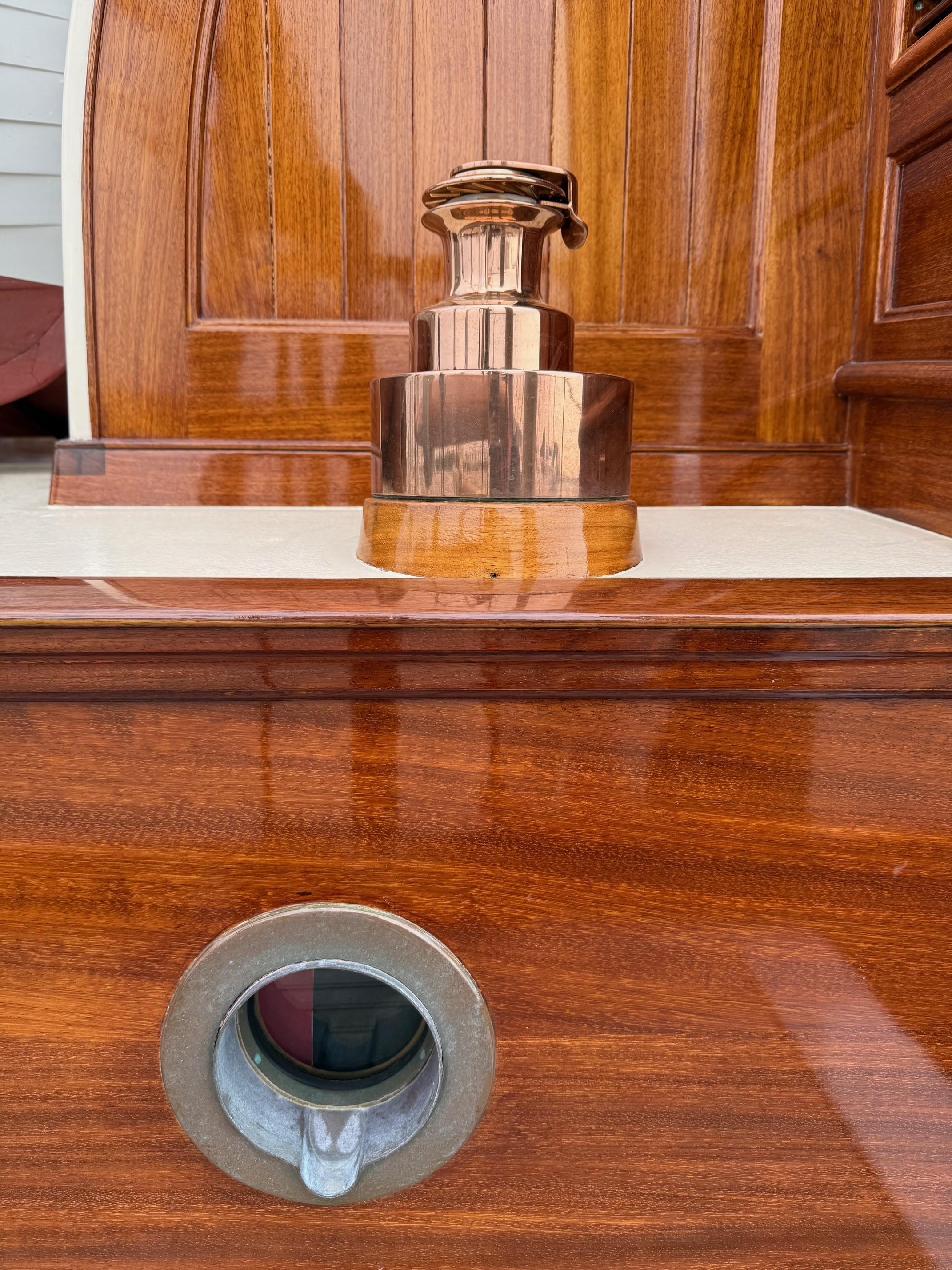

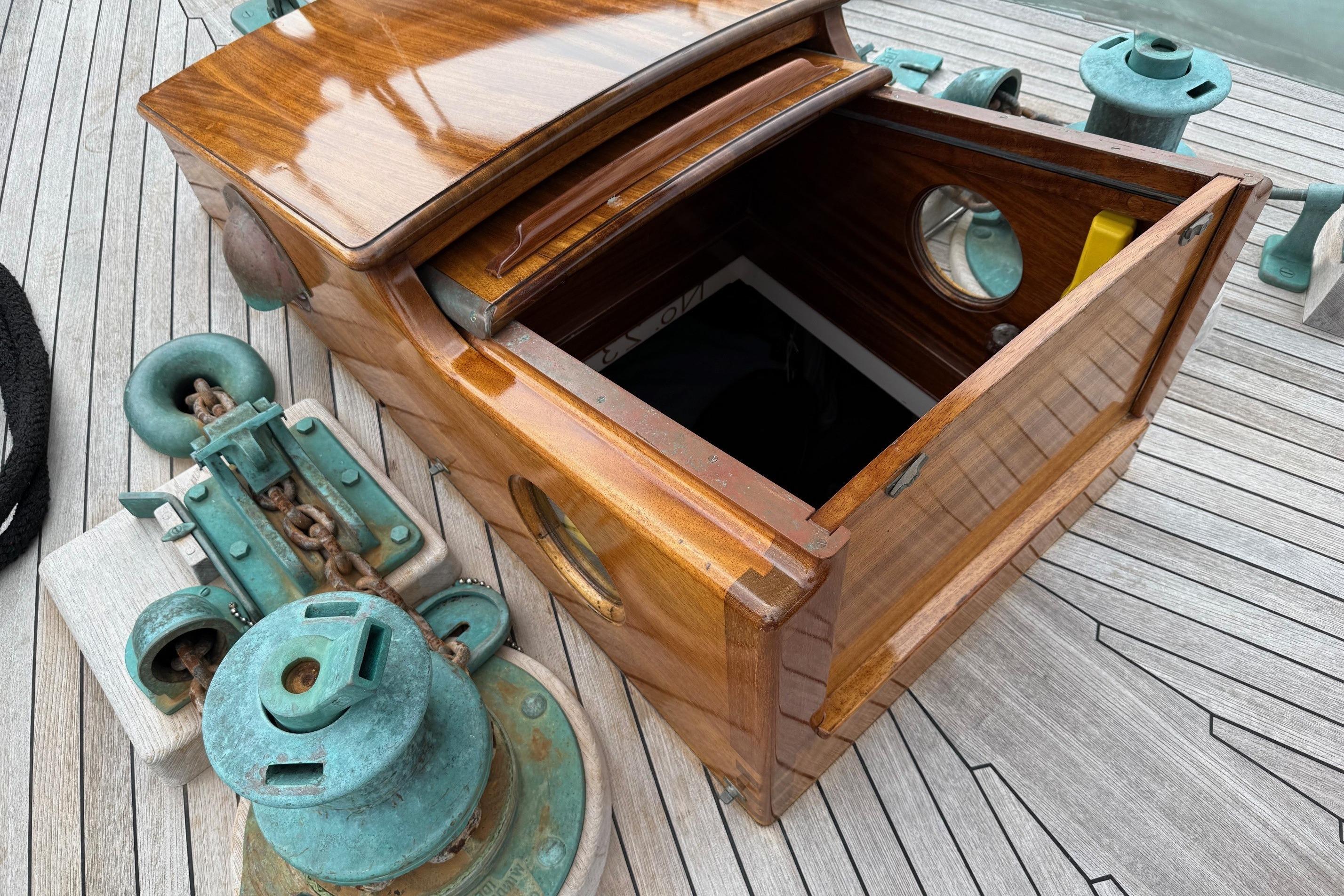

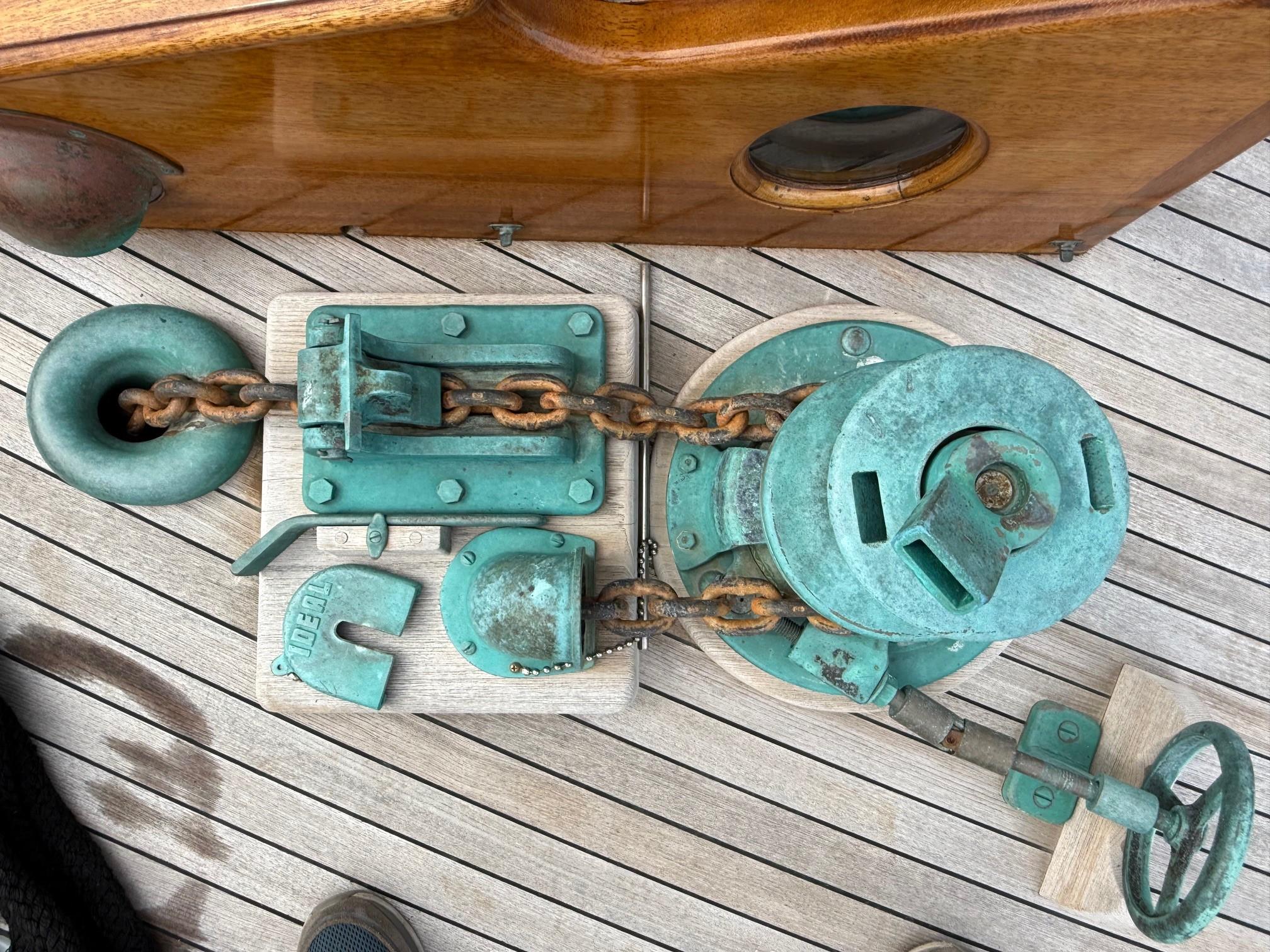

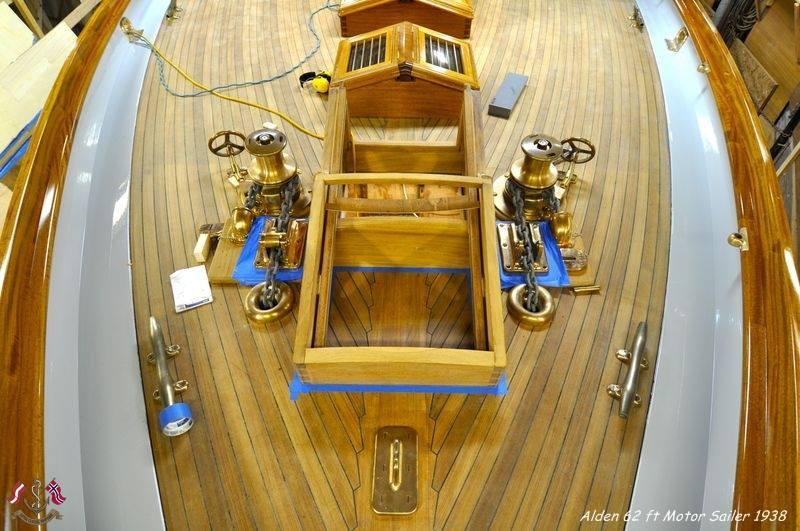

• Scuttle flanked by 2 custom bronze Ideal Windlass electric capstans (new 2010)

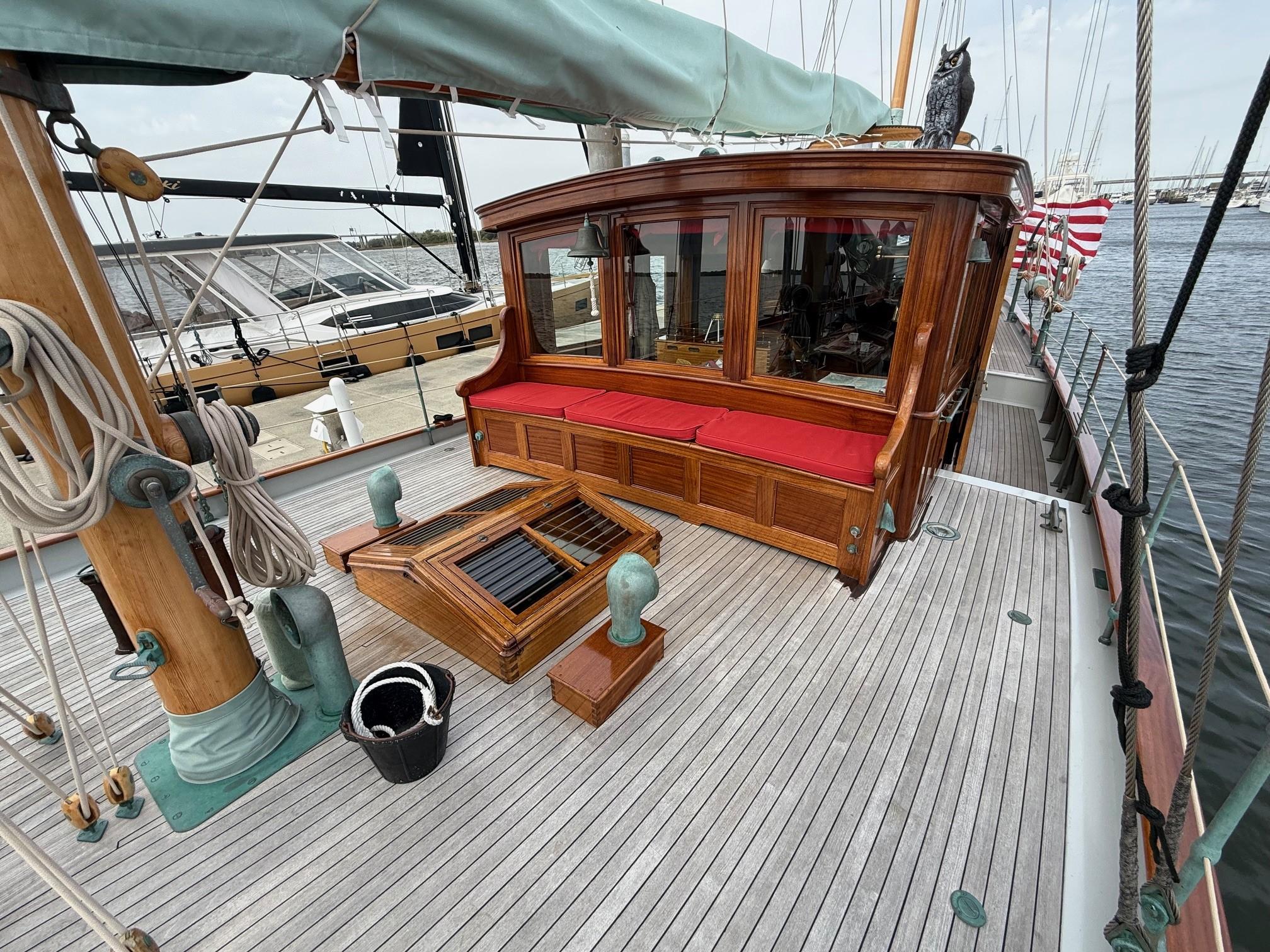

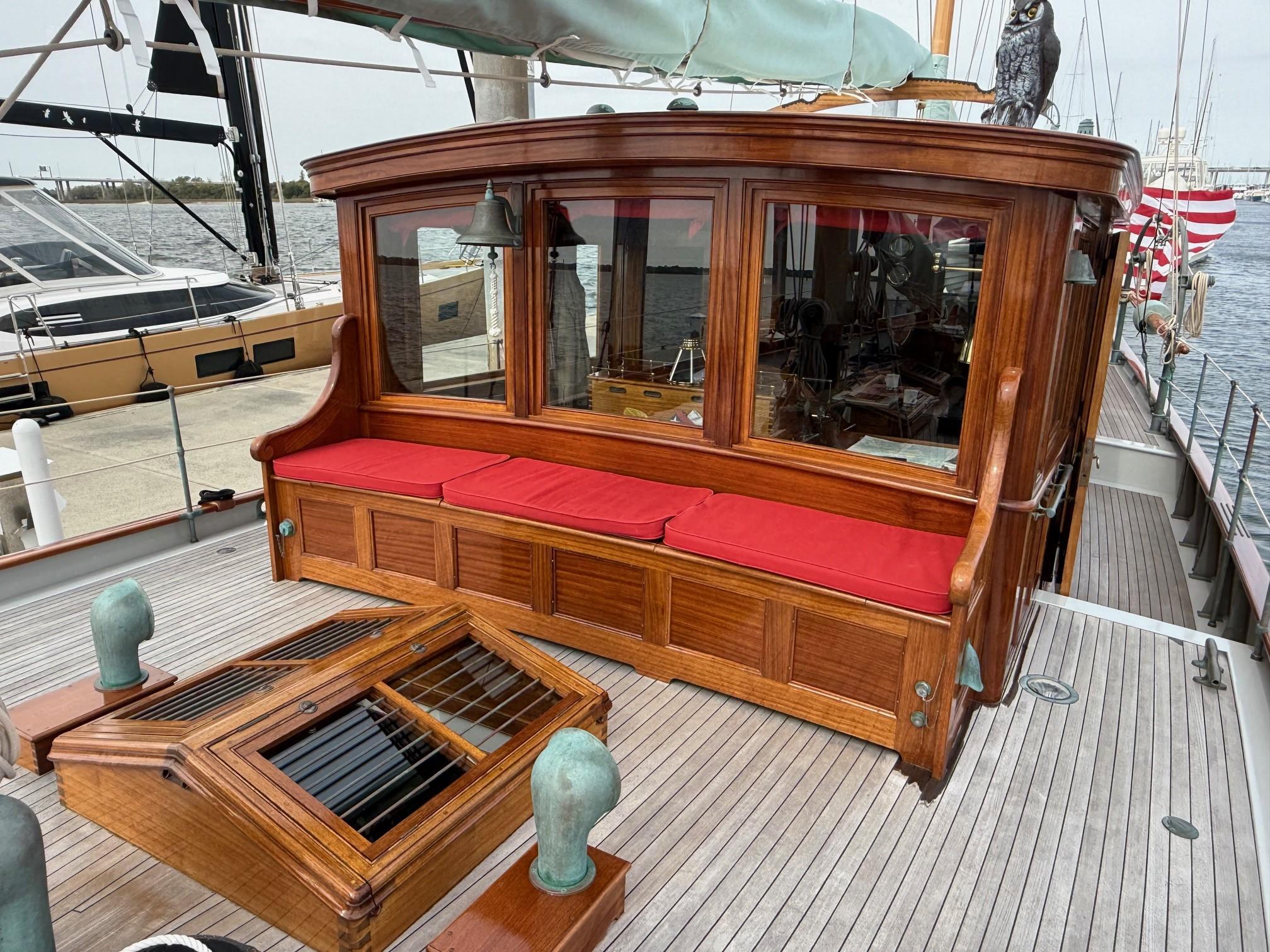

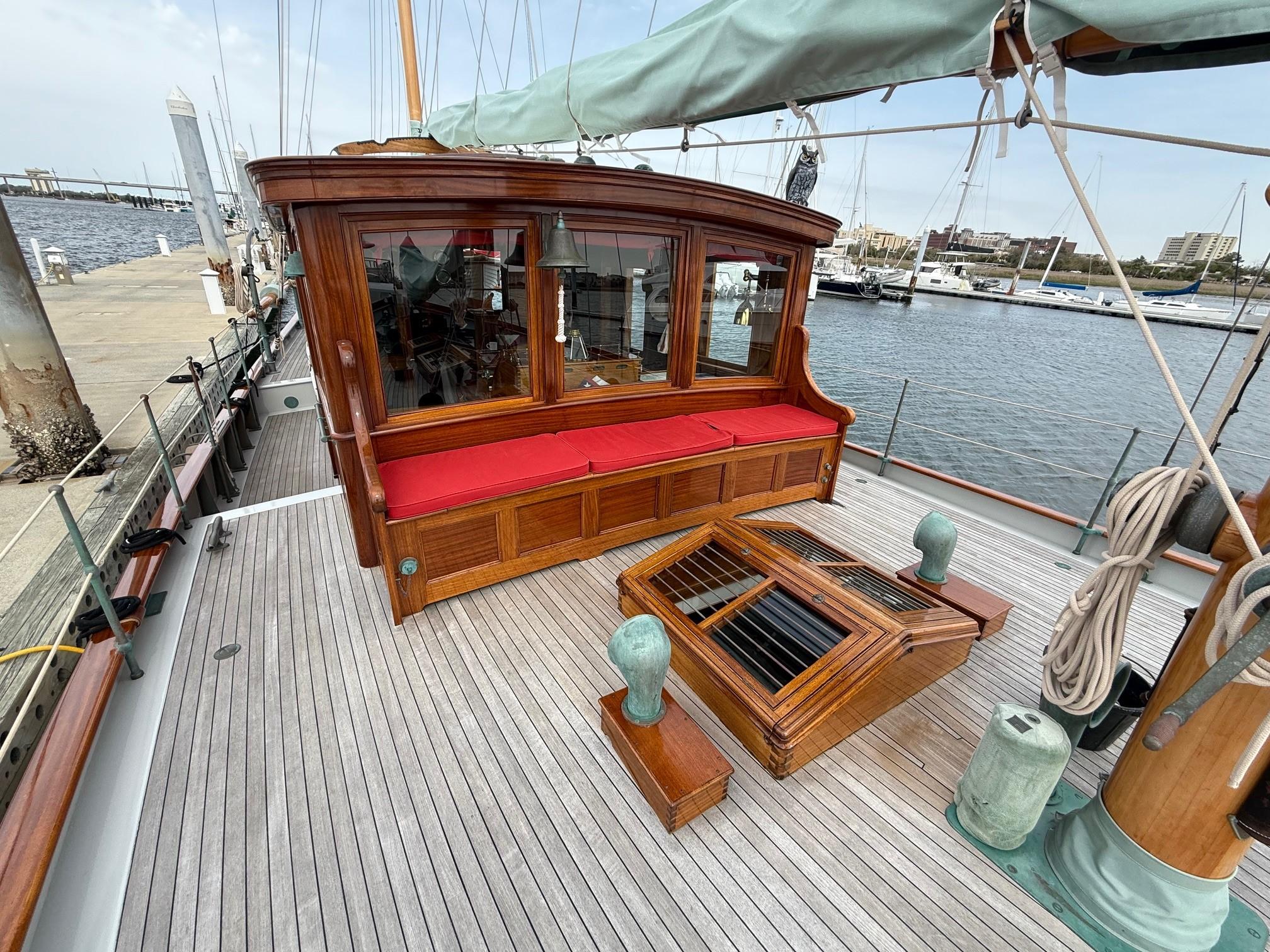

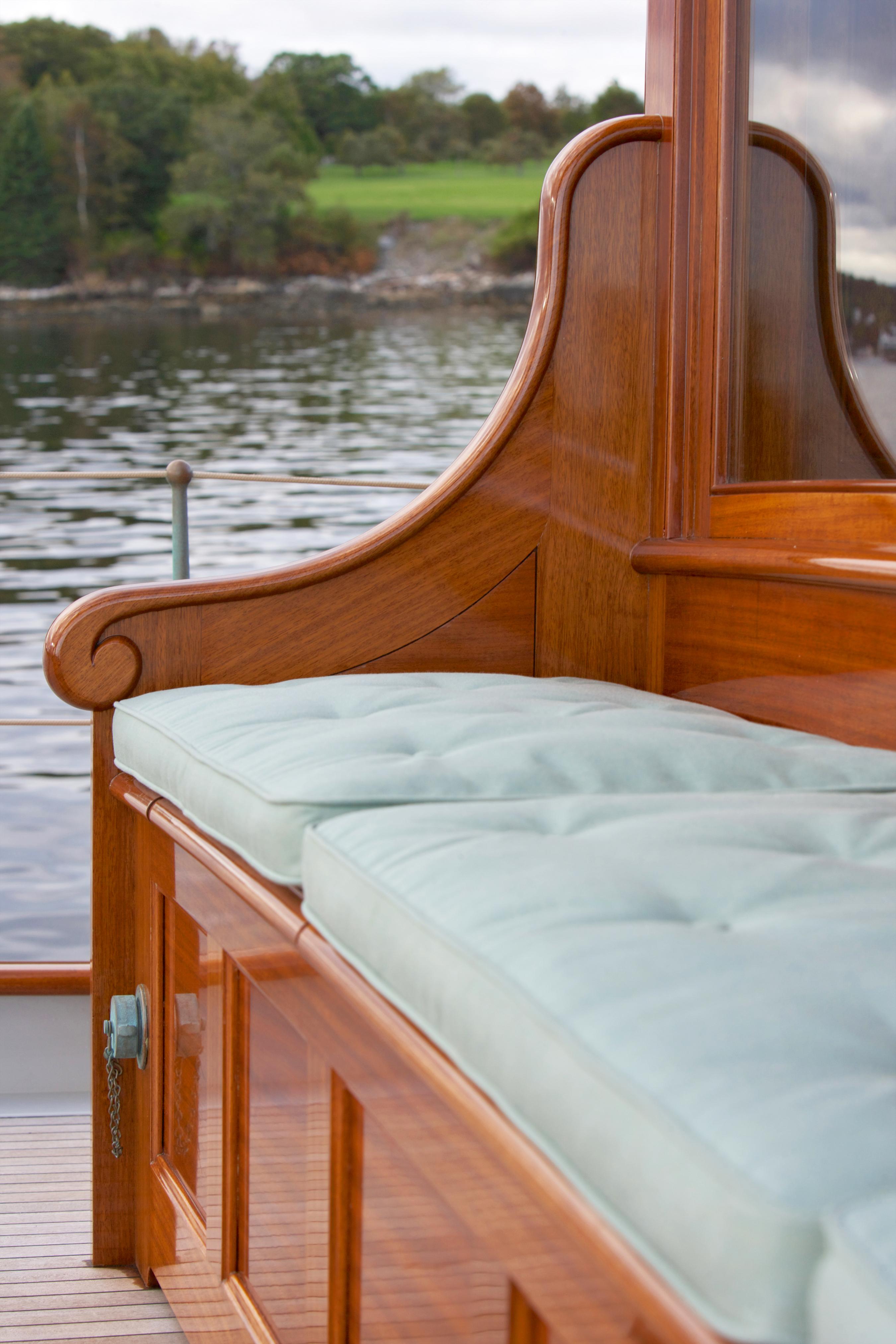

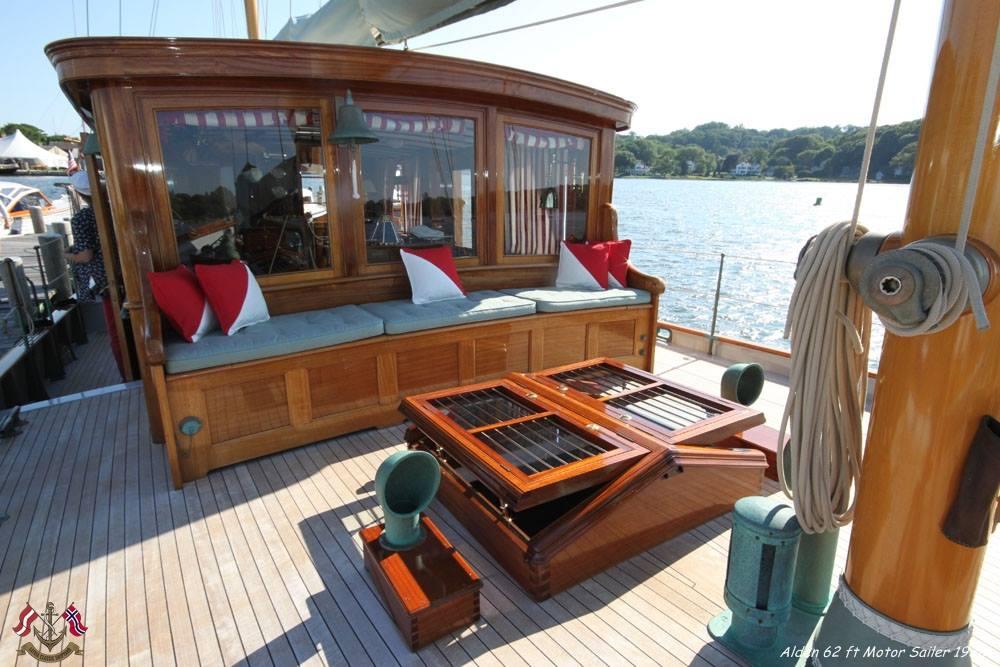

• Wide Custom bench seat forward of pilothouse with 3 lockers below seat
• Bench seat Port locker section houses pressurized fresh and salt water spigots
• Bench seat Center locker houses propane
• Bench seat stbd locker houses high pressure Fire hose spigot
• Custom bronze stanchions through-bolted w/backing plates on lower deck
• Robust Bulwarks with spilling ports and gutters to drain water quickly
• Cabin-top storage for bronze anchor davit and 6-person life raft

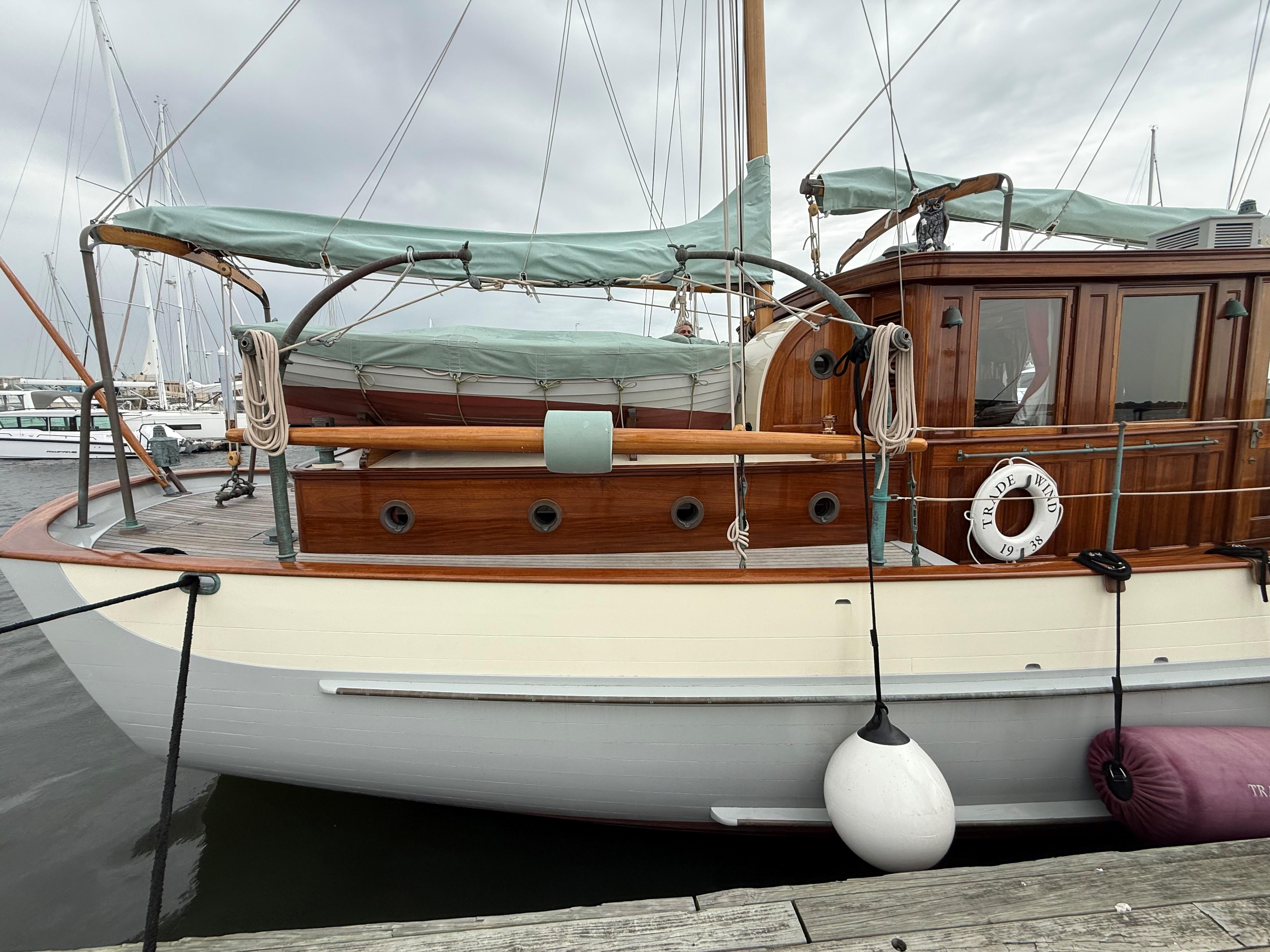

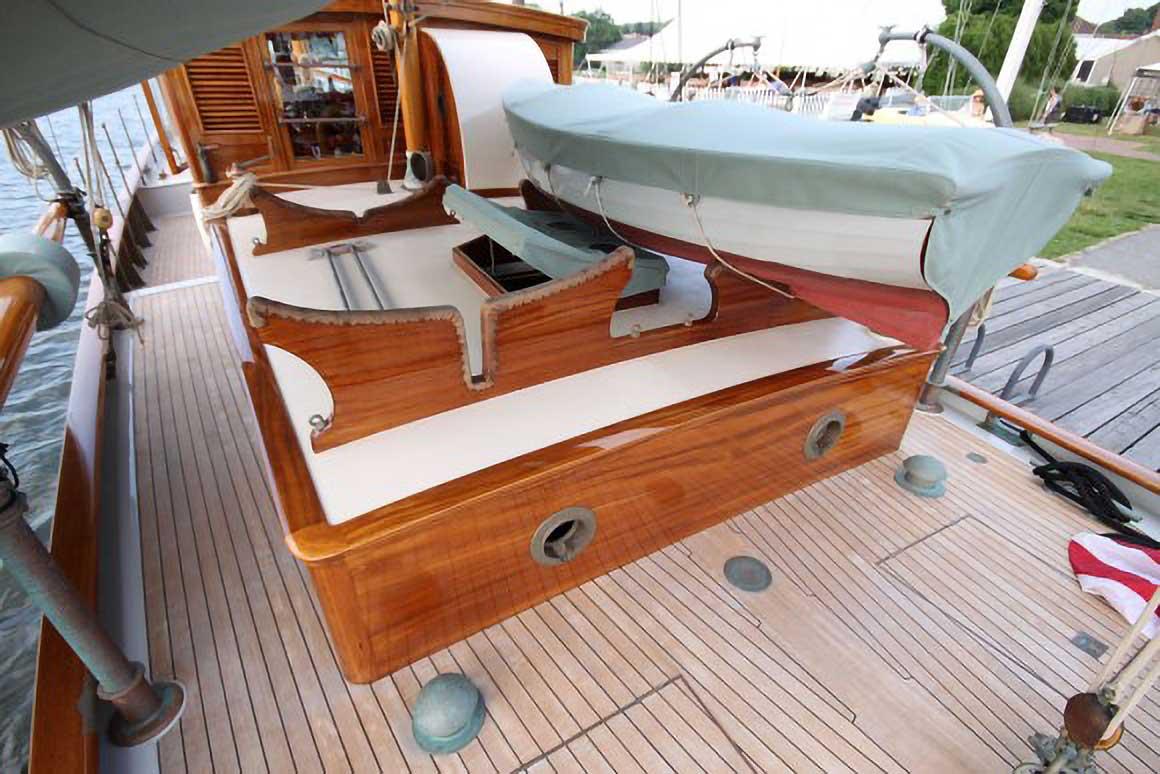

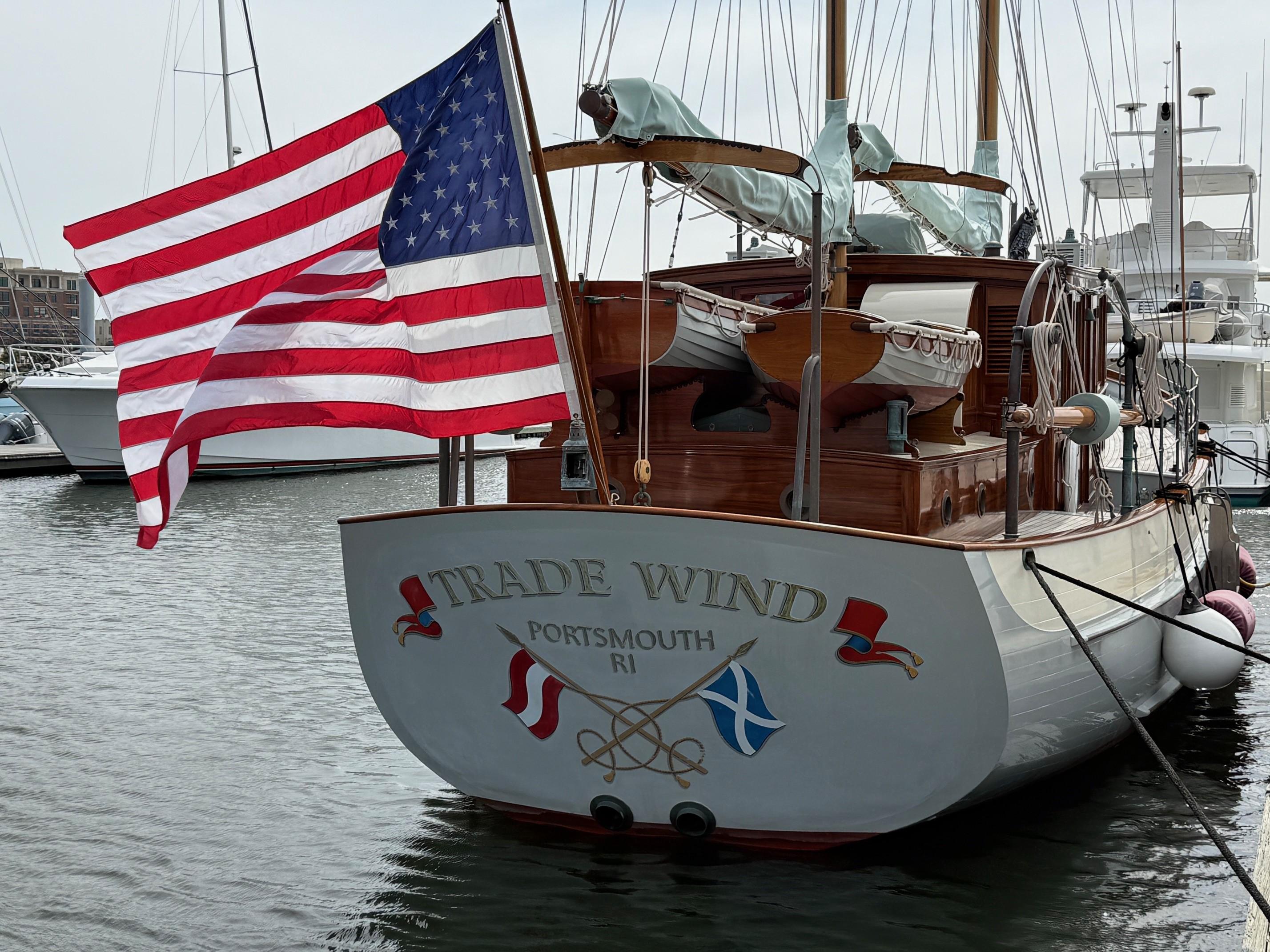

• Raised aft deck with trunk cabin with chocks for two custom tenders

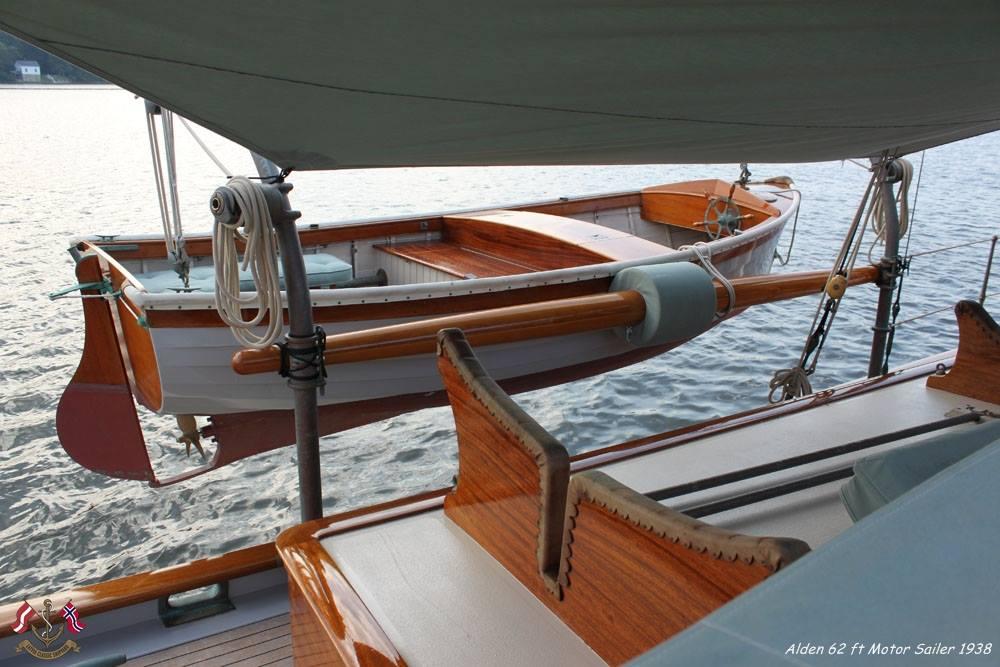

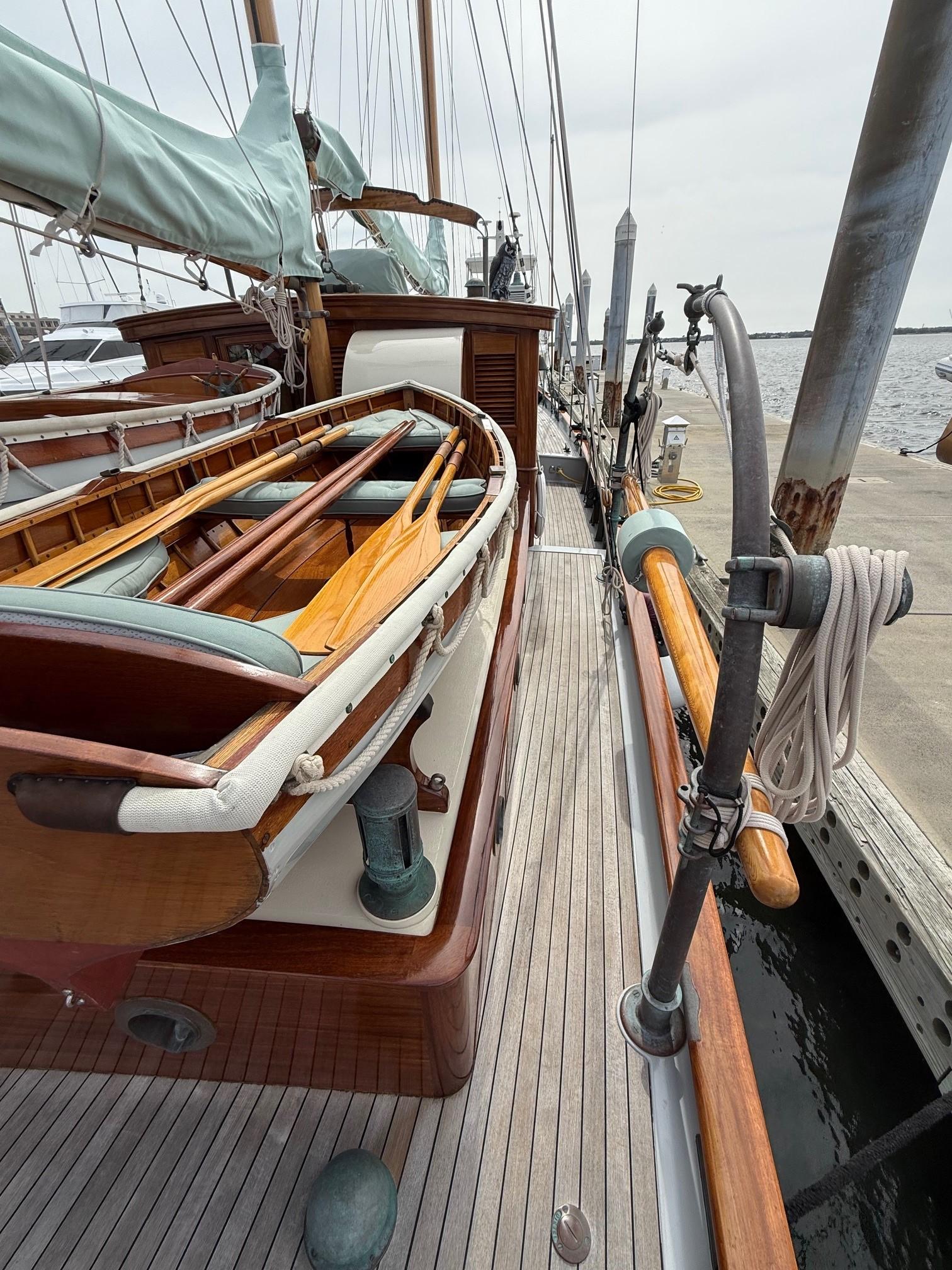

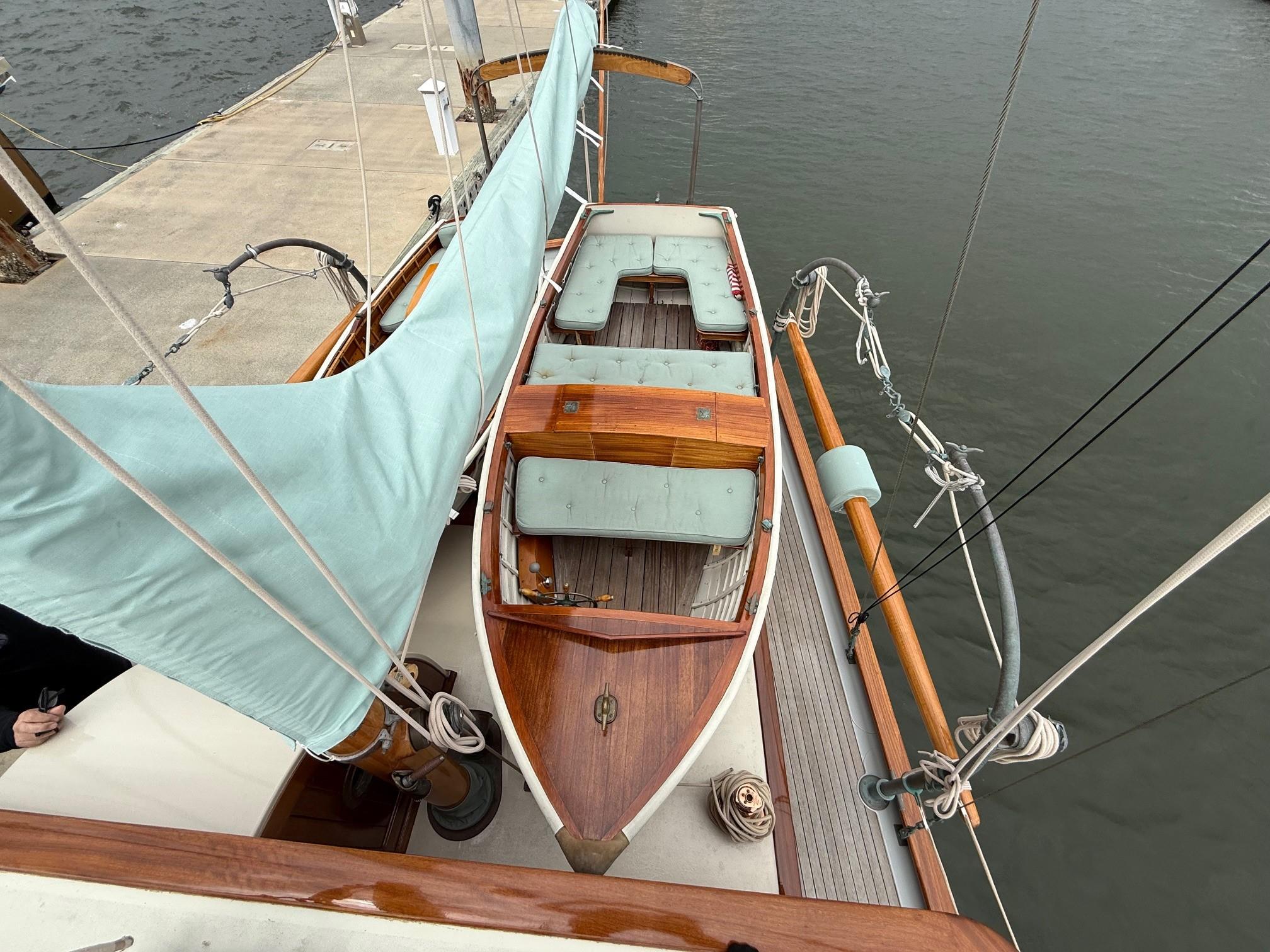

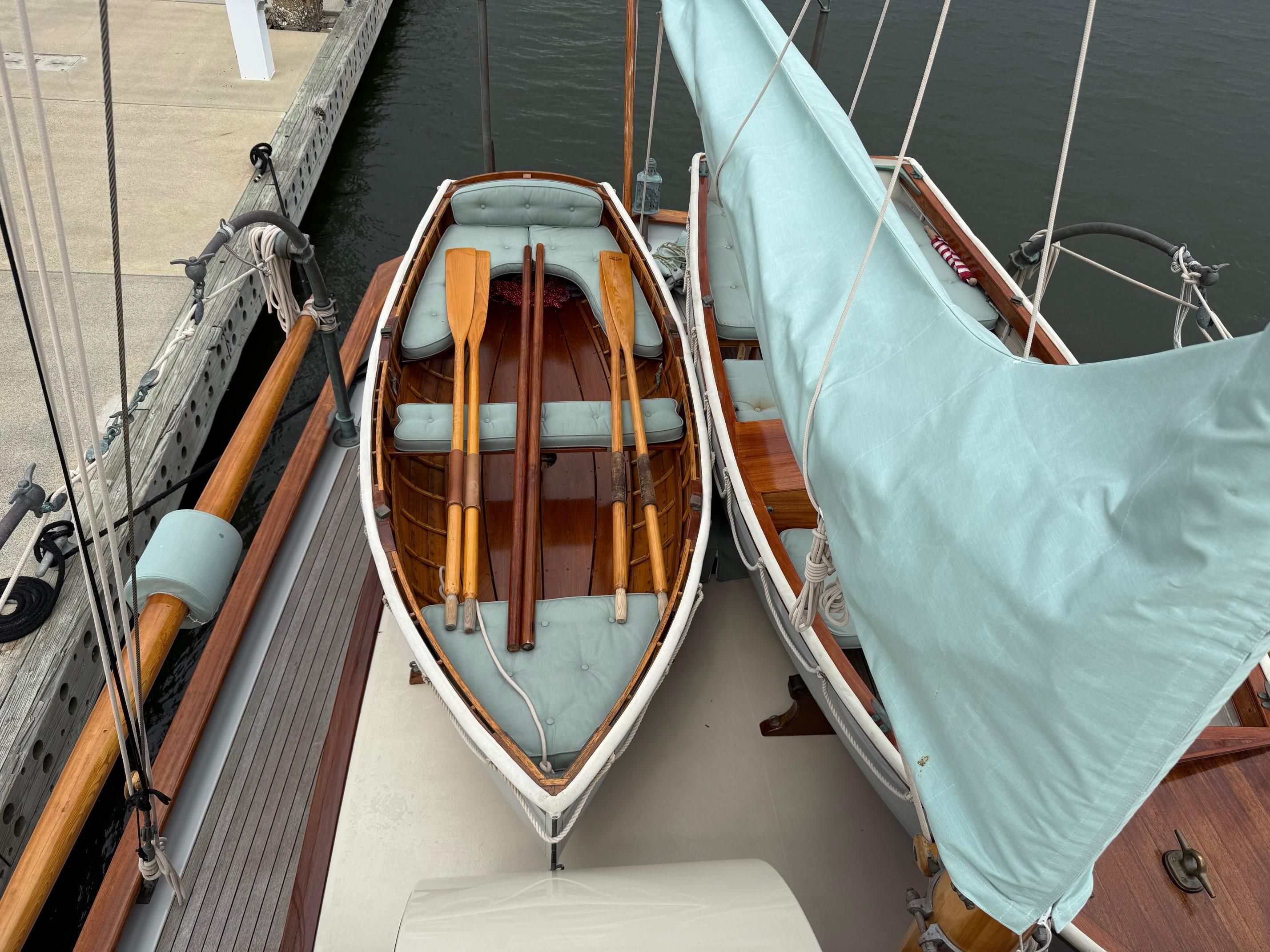

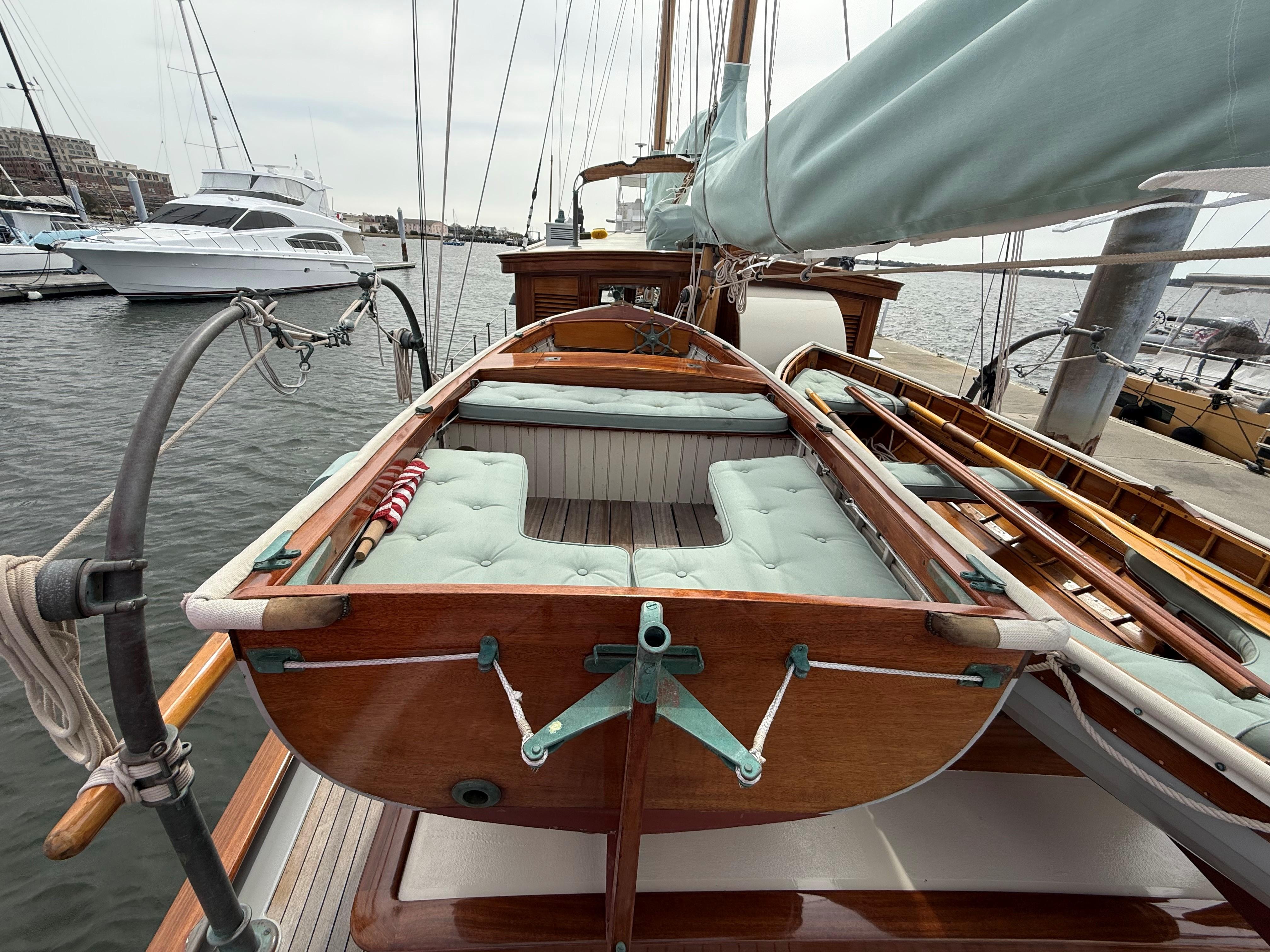

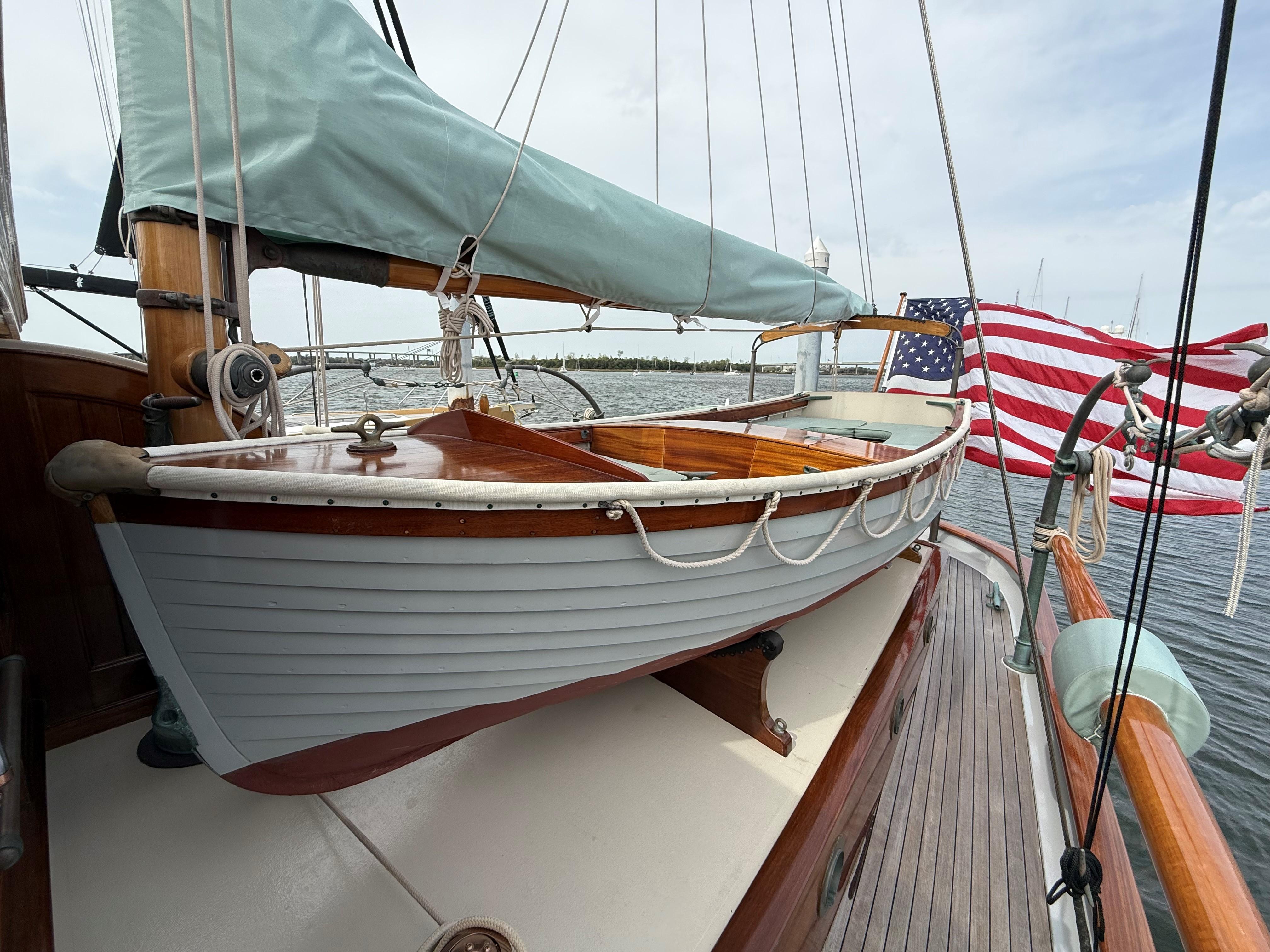

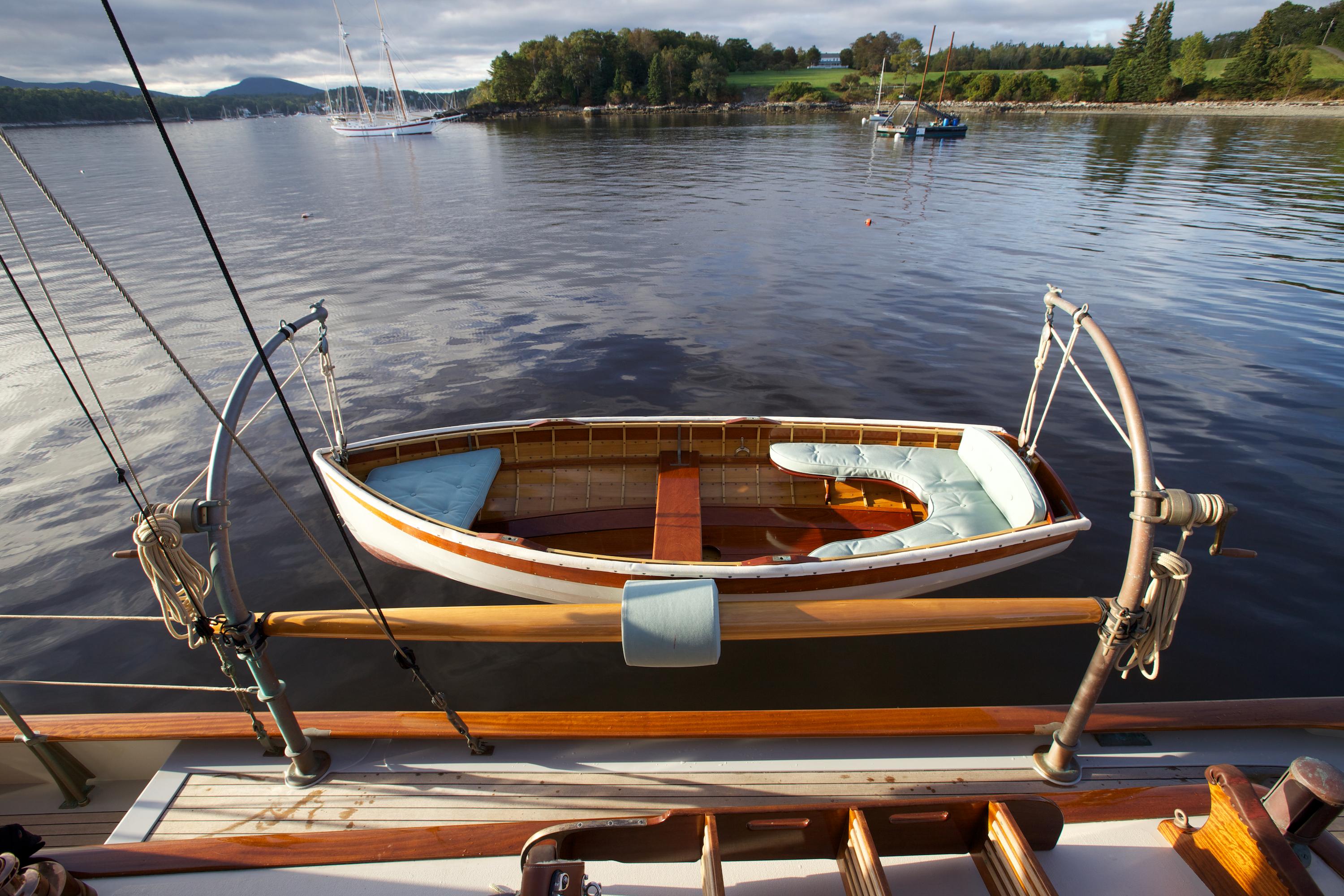

• Custom lapstrake tenders built to 1930 circa plans in 2011 (one rowing tender & one motorized diesel launch)
• Tenders stow on aft cabin-top in custom bronze chocks and are hoisted by electric Anderson utility winches (bronze-plated) and use of the mizzen boom.  Easily hoisted or launched by 2 people.
• Tenders can also be partially hoisted and stowed alongside with bronze davits.
• Two flush hatches are aft of trunk cabin for access to lazerette, with 2 mushroom vents.

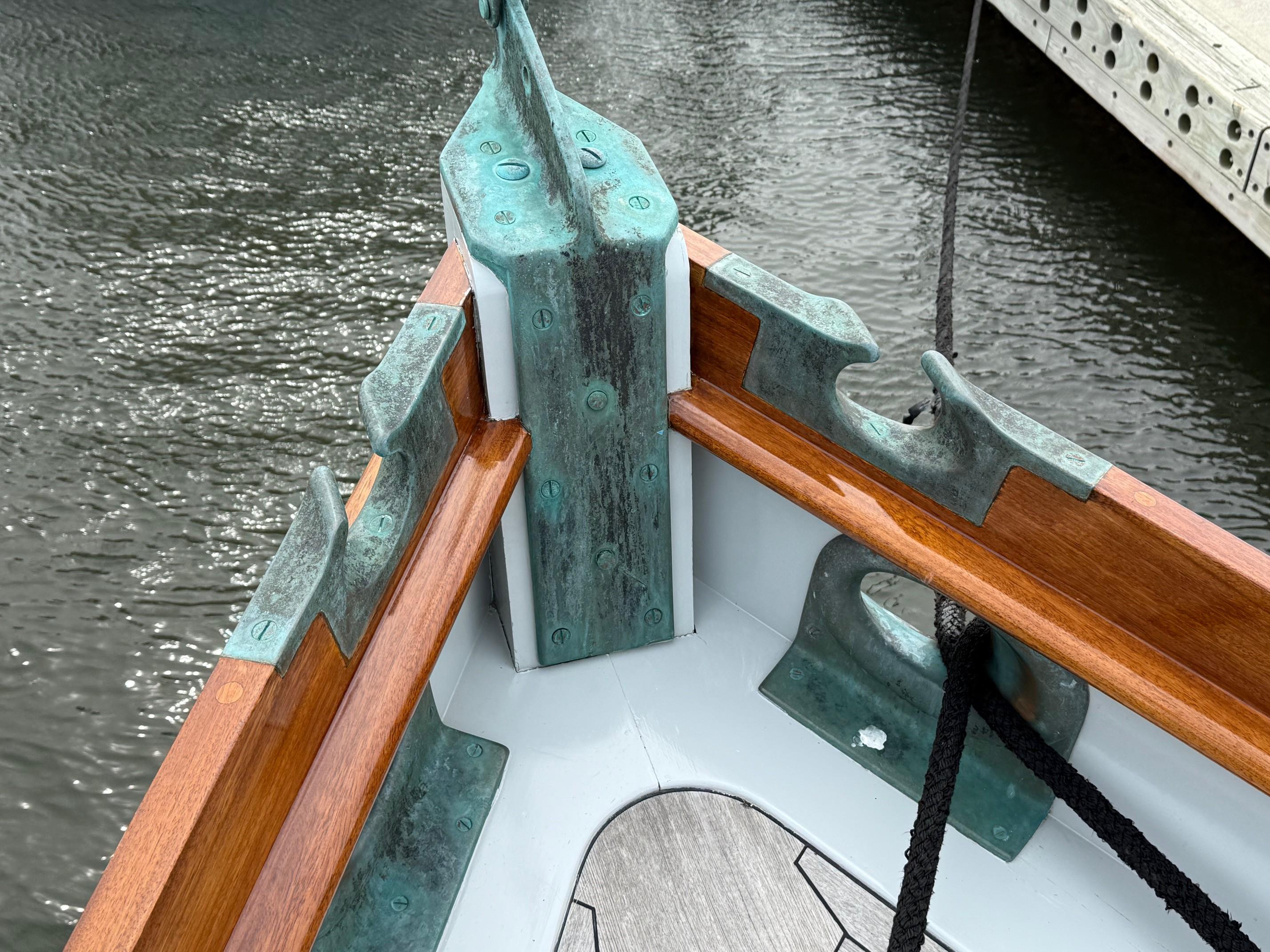

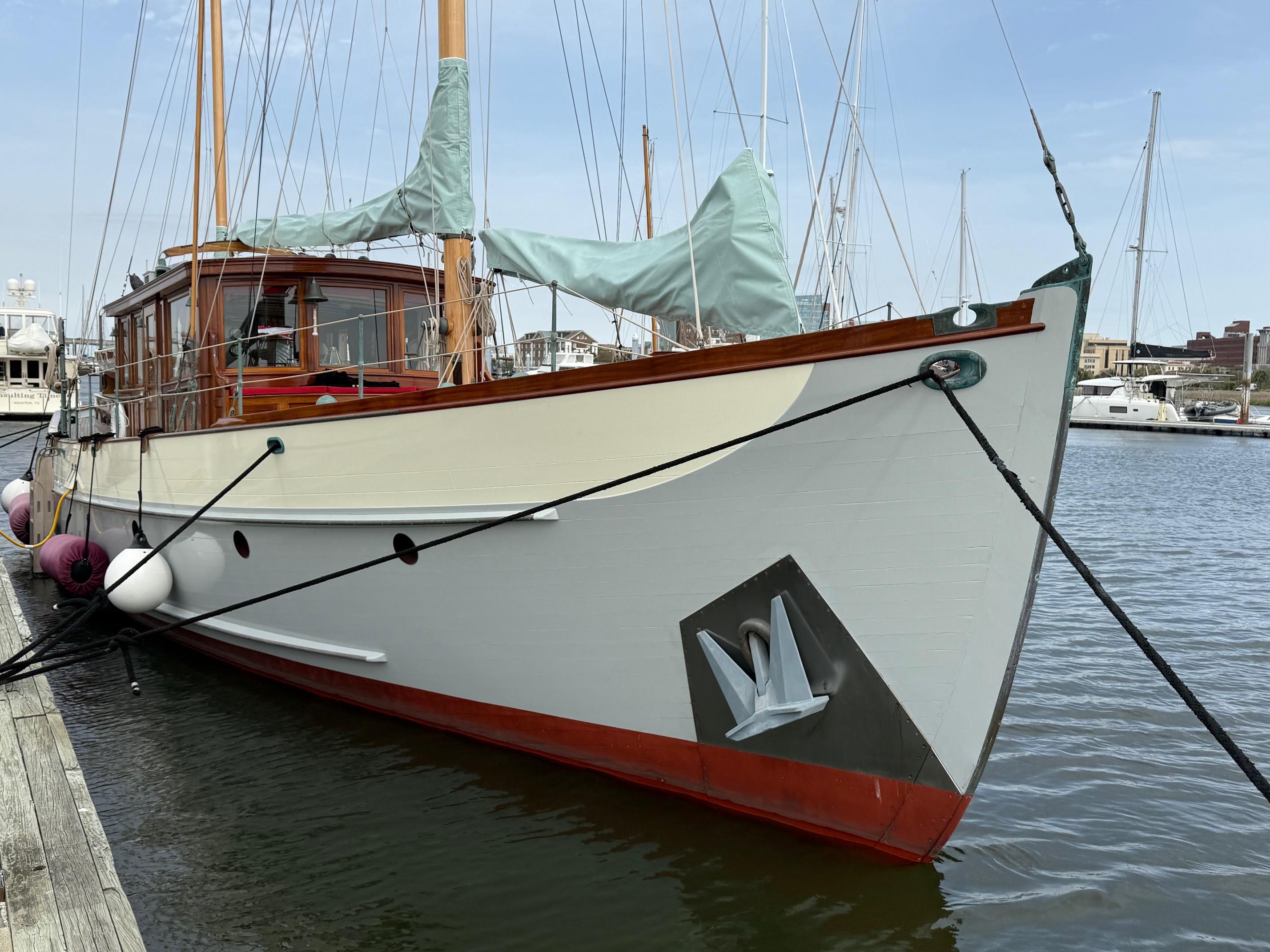

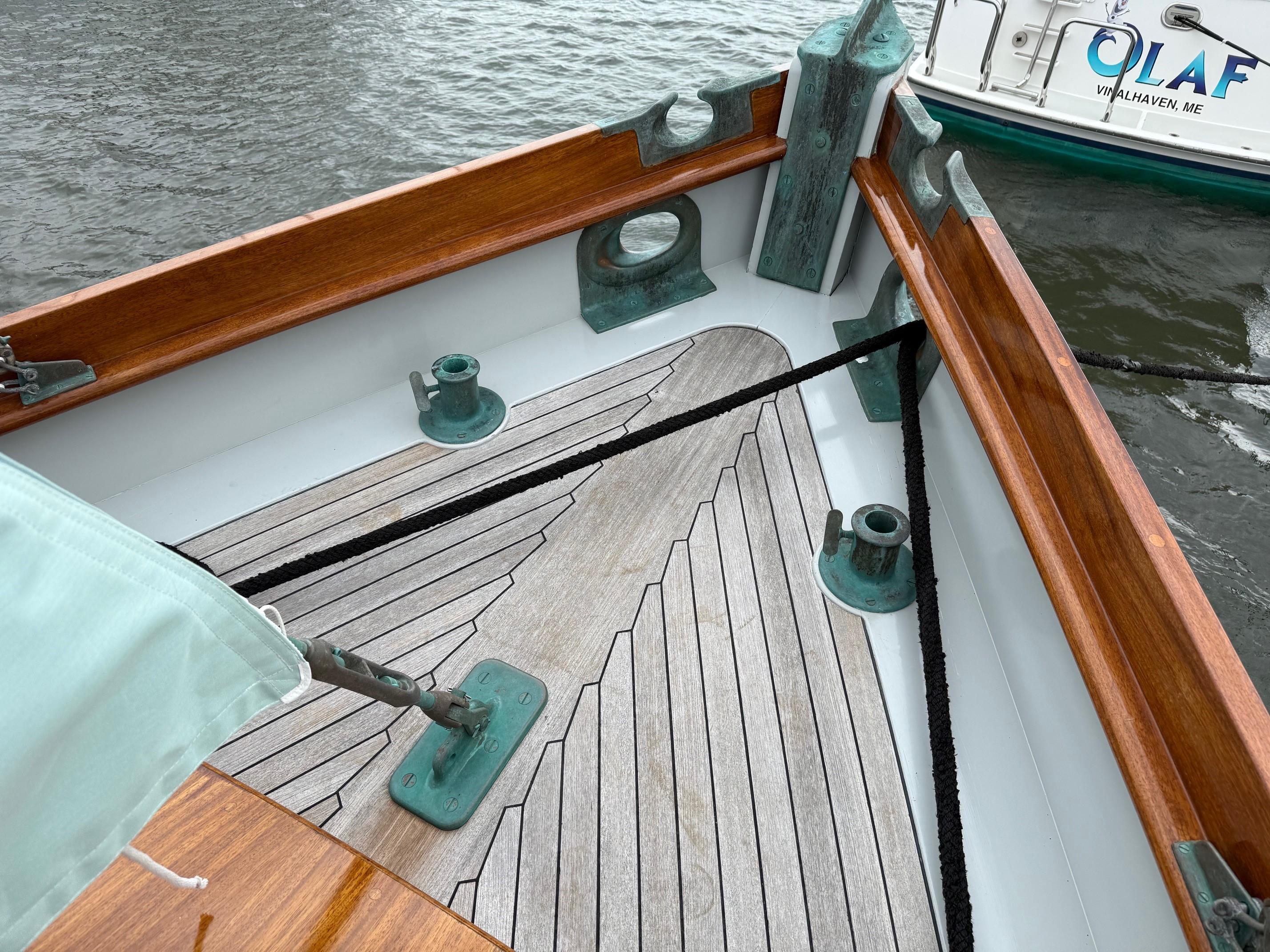

• 2 Mason heavy ships anchors in thru-hull pipes at bow, port and stbd.  All chain.
• 2 independent electric capstans, each attached to 400' of 1/2" chain
• Chain boxes directly below deck fitting for ease of dropping chain into chain-hold without flaking.  Push button control with remote at bow and rocker switch at helm.

• Entire mechanical and electrical systems replaced with new equipment during restoration.
• All tanks replaced during restoration.

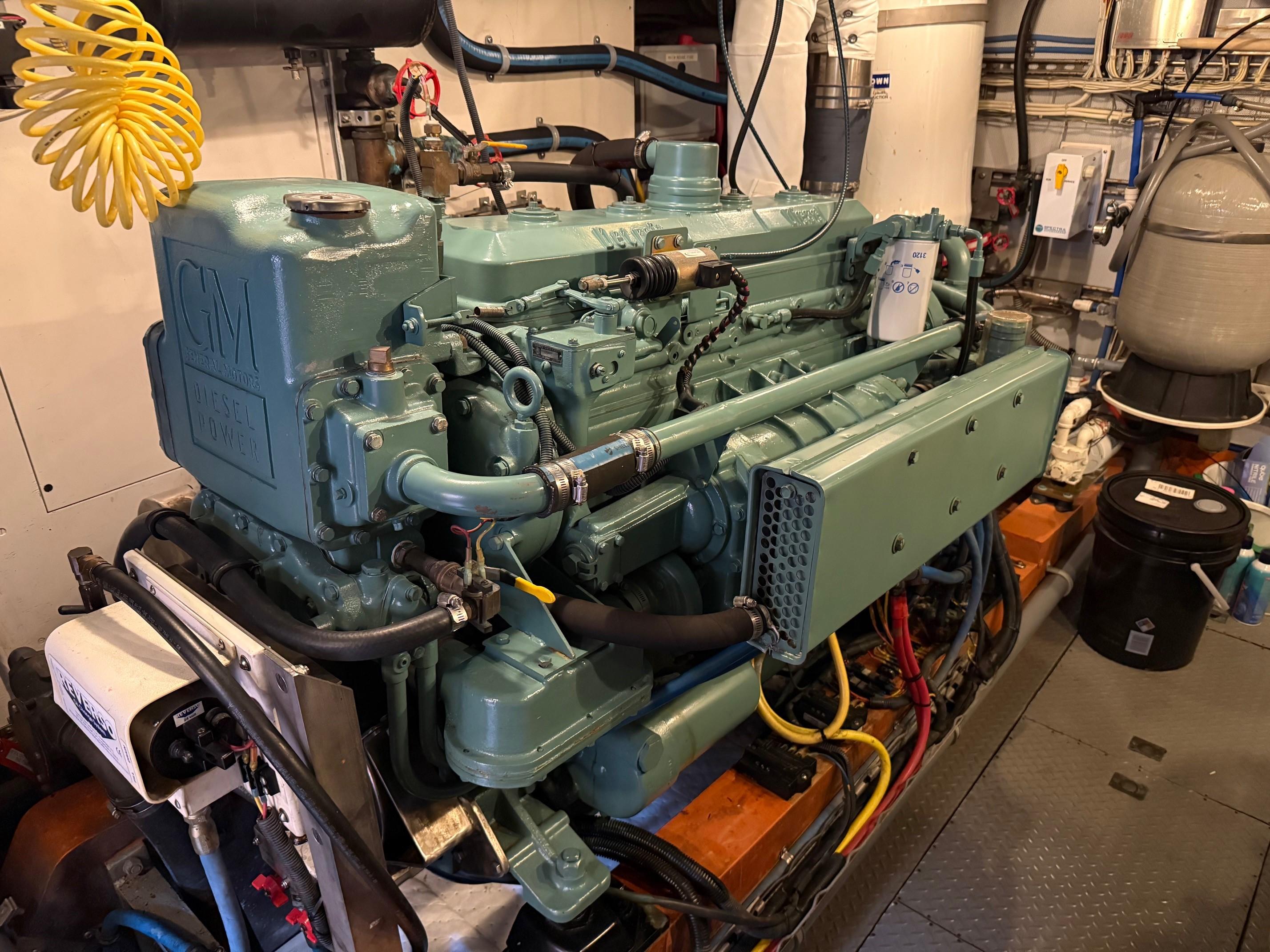

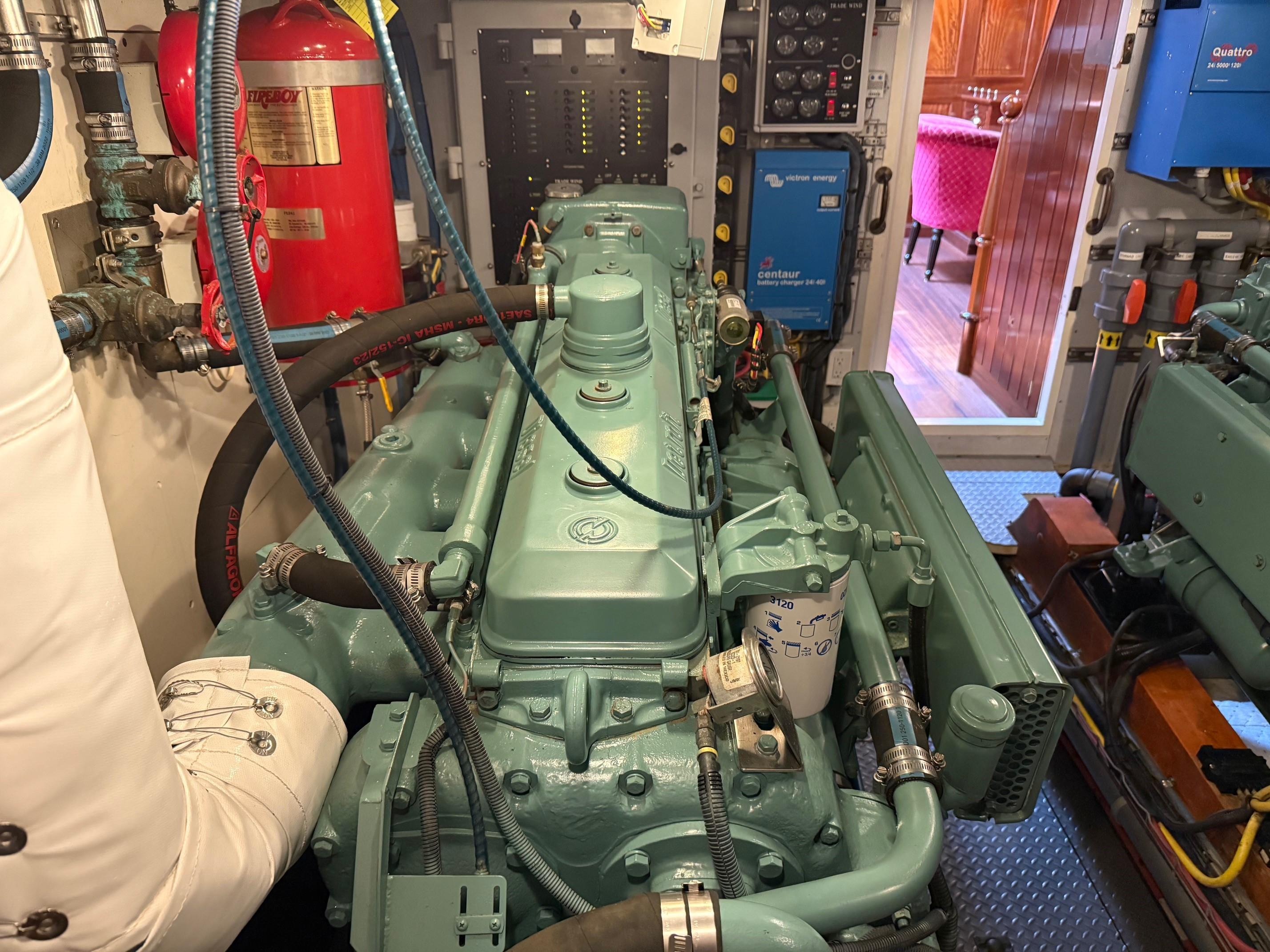

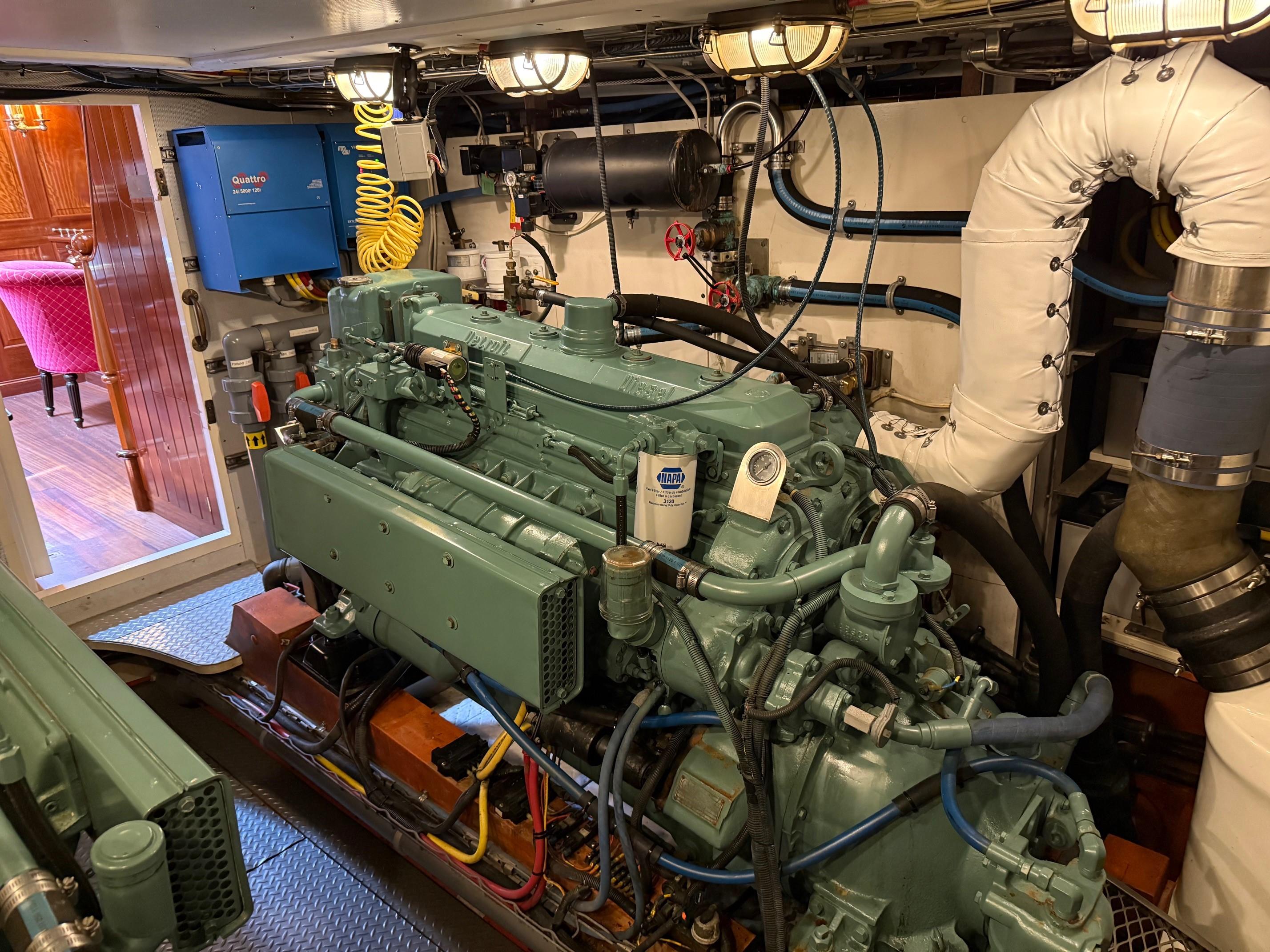

• Twin Detroit 6-71's diesel engines (1956) entirely rebuilt and nulled during restoration 2010.
• Allison 3:1 reduction gear
• 2" stainless steel prop shafts thru Duramax dripless shaft seal and 4 bronze struts outside hull
• Original 5 blade bronze 36" propeller - extremely efficient design

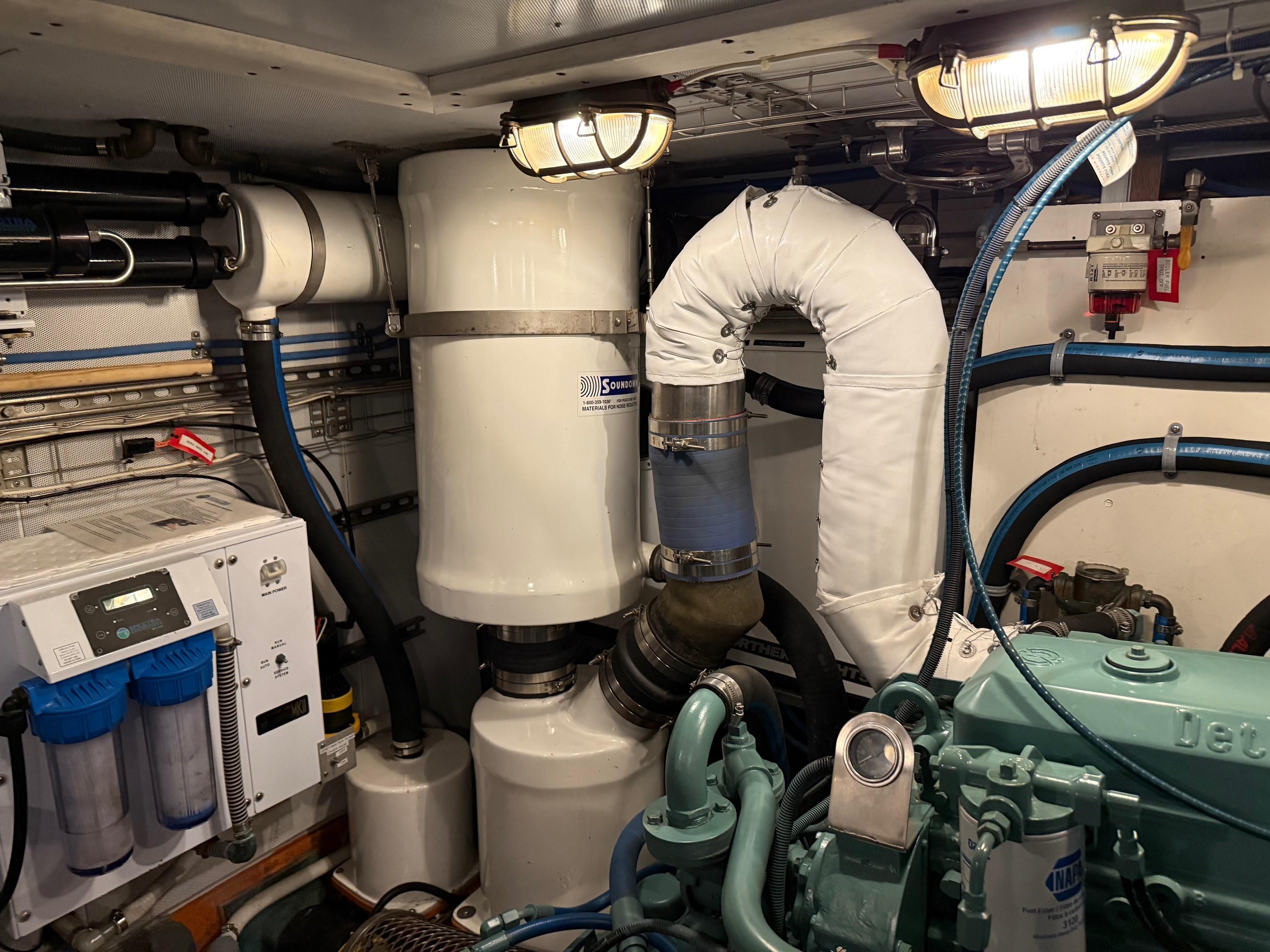

• Water-drop mufflers minimize noise at exhaust exits aft
• Steering is smooth manual chain to cable with new Edson bronze shivs and new bronze quadrant 2010.
• Accusteer Autopilot with 3" steering hydraulic cylinder

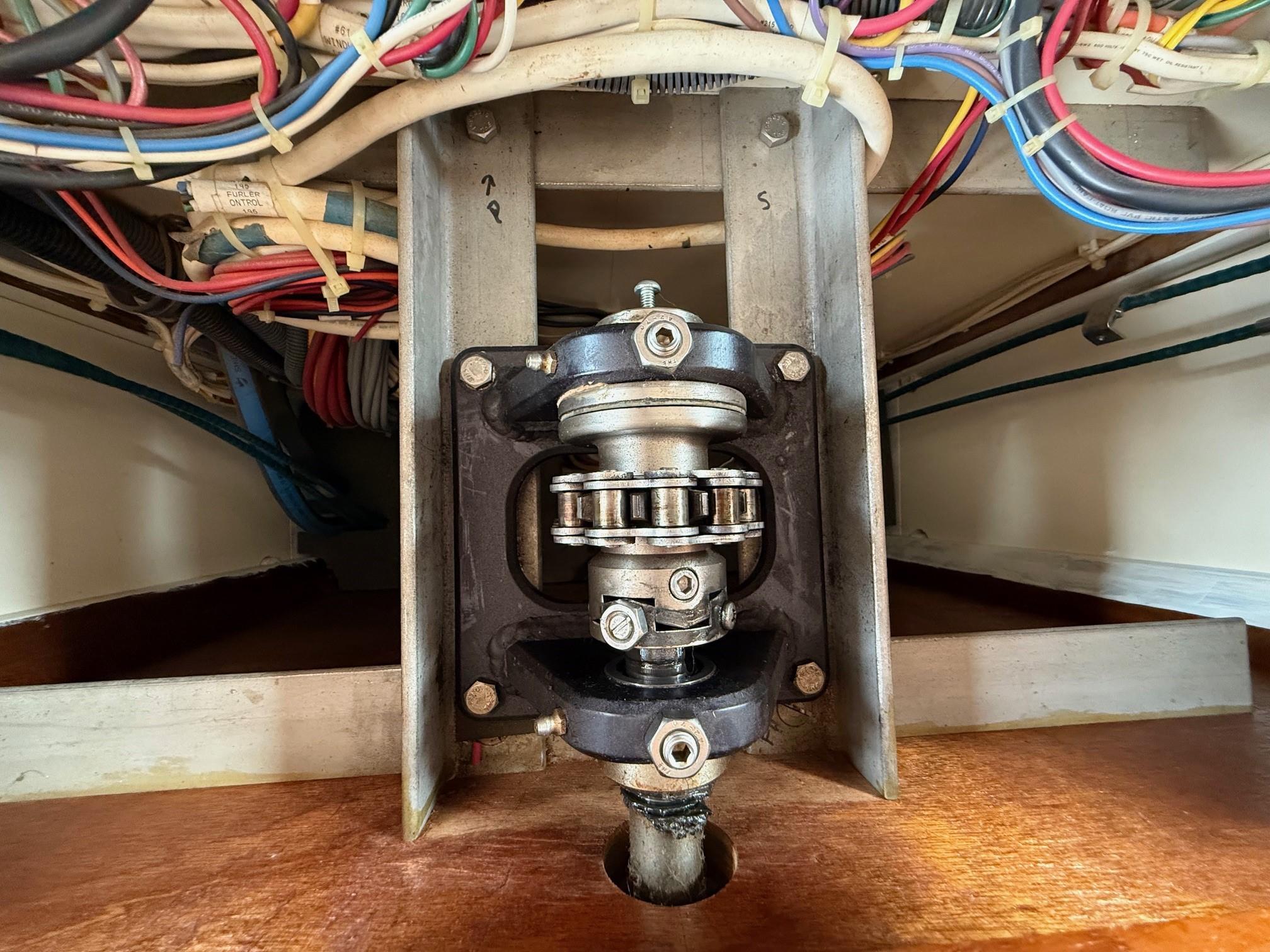

• Edson gear allows disengaging of wheel in pilothouse during use of autopilot
• Original cast bronze rudder w/bronze plating - renovated in 2008
• Engine room includes watertight bulkhead and state of the art soundproofing by SoundDown.
• Access to insulated engine room is via walk-in insulated door aft of lower main salon; between galley and steps.
• Emergency exit hatch is located under pilothouse cabin sole near salon table.
• Air intake control by Delta-T Systems w/remote electro pneumatic damper actuator

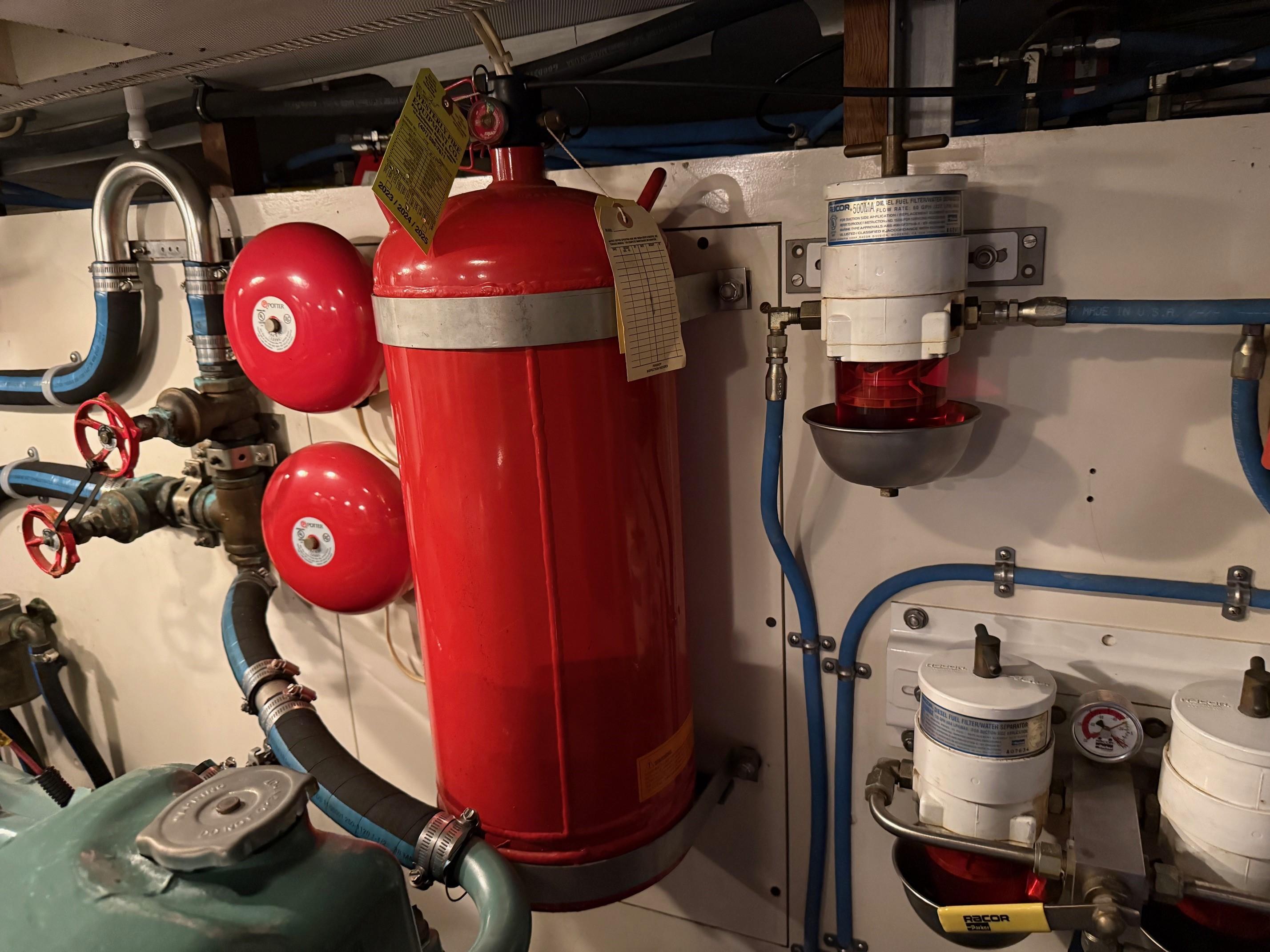

• Fireboy MA2 fire suppression system with FE-241 clean agent & Xintex engine shutdown control
• 12KW Northern Lights Generator

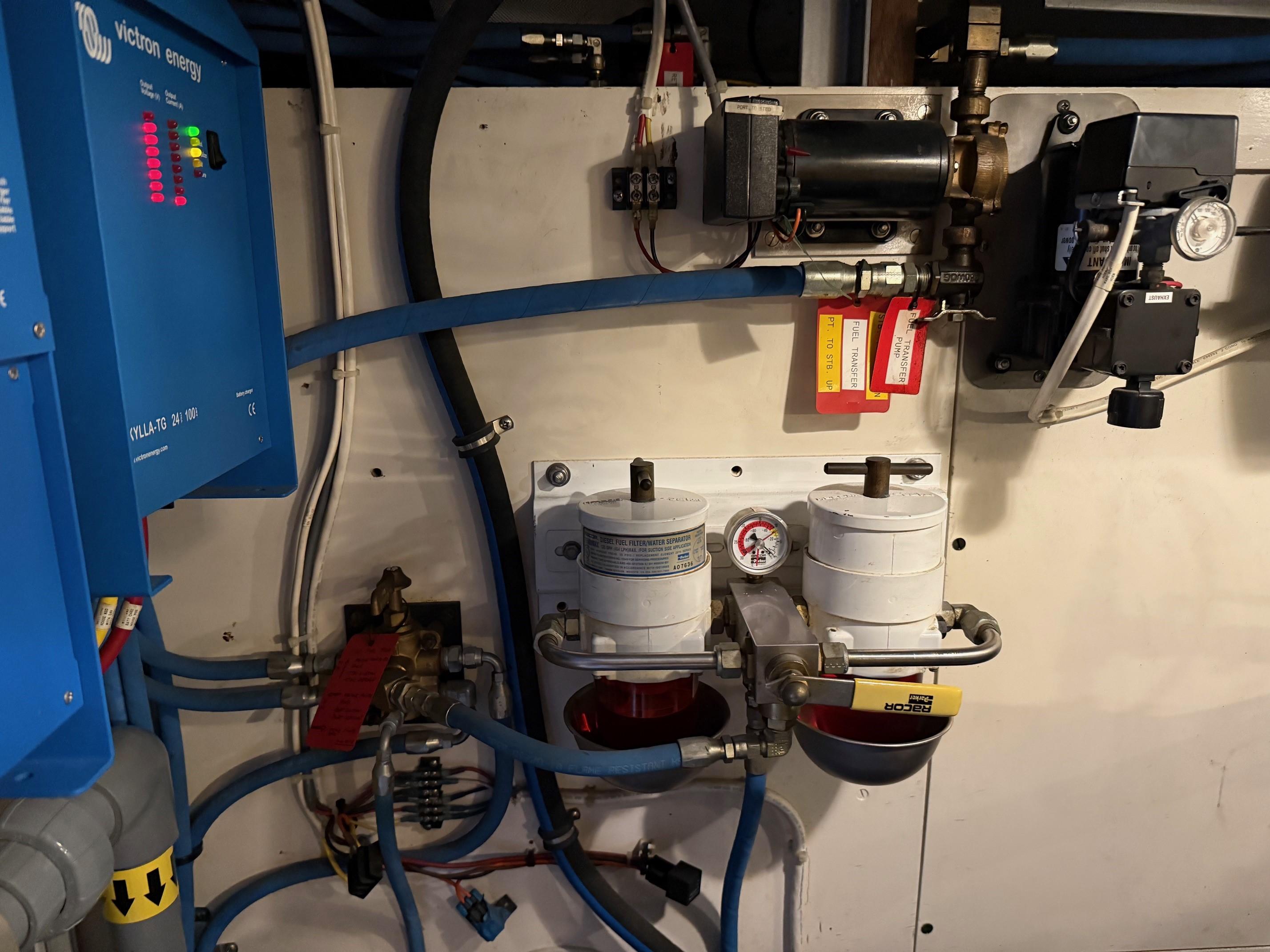

• Victron 24v 40amp charger
• Victron 24v 100amp charger
• Victron 24v/ 120amp inverter

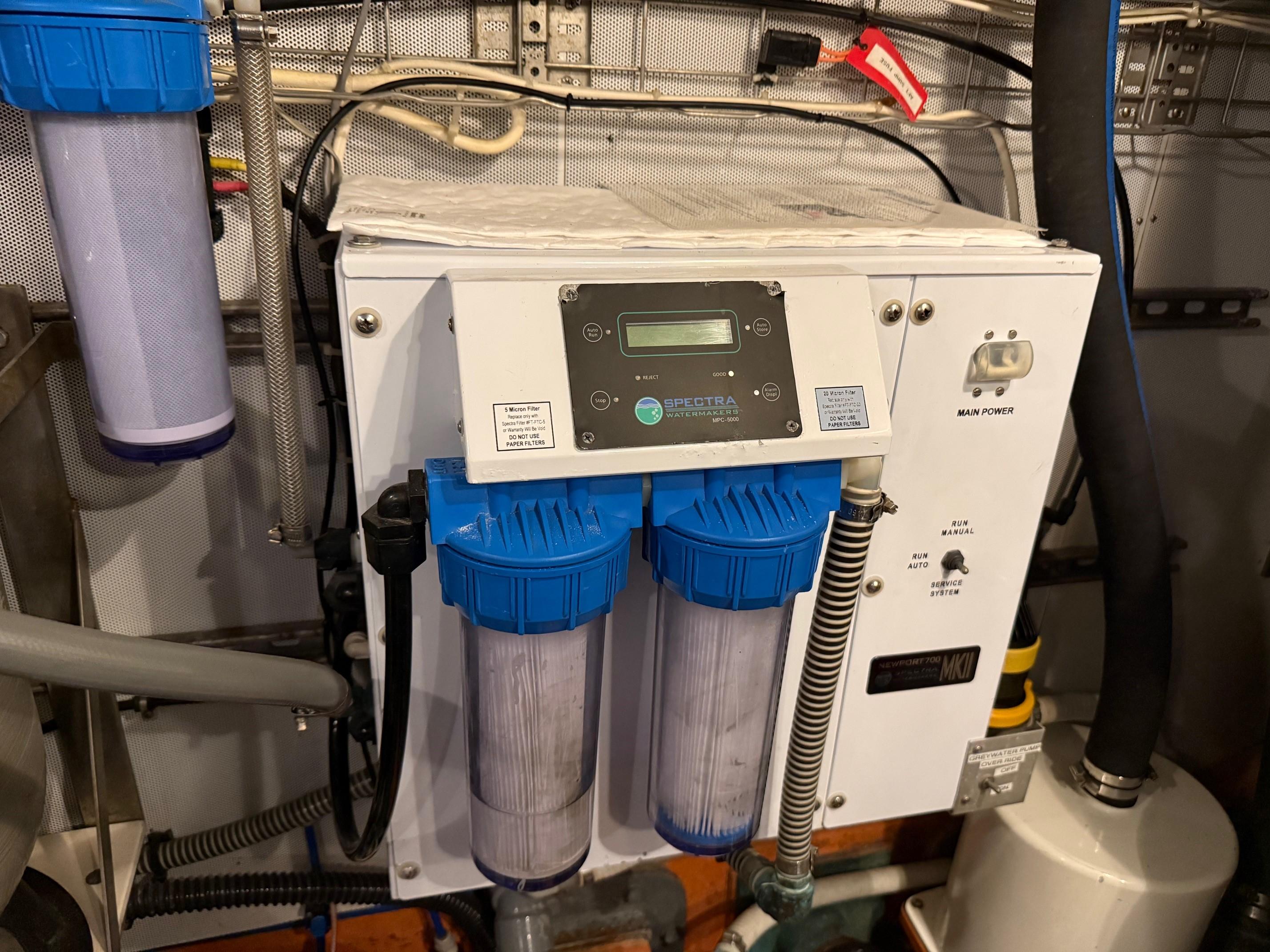

• Spectra Newport 75 Watermaker 35GPH
• Isotemp 20 gal water heater (via main engines, genset or shore power)
• Air compressor (air horn and general air pressure needs)
• Electric hot air heater (Hurricane H2L) 50,000 BTU

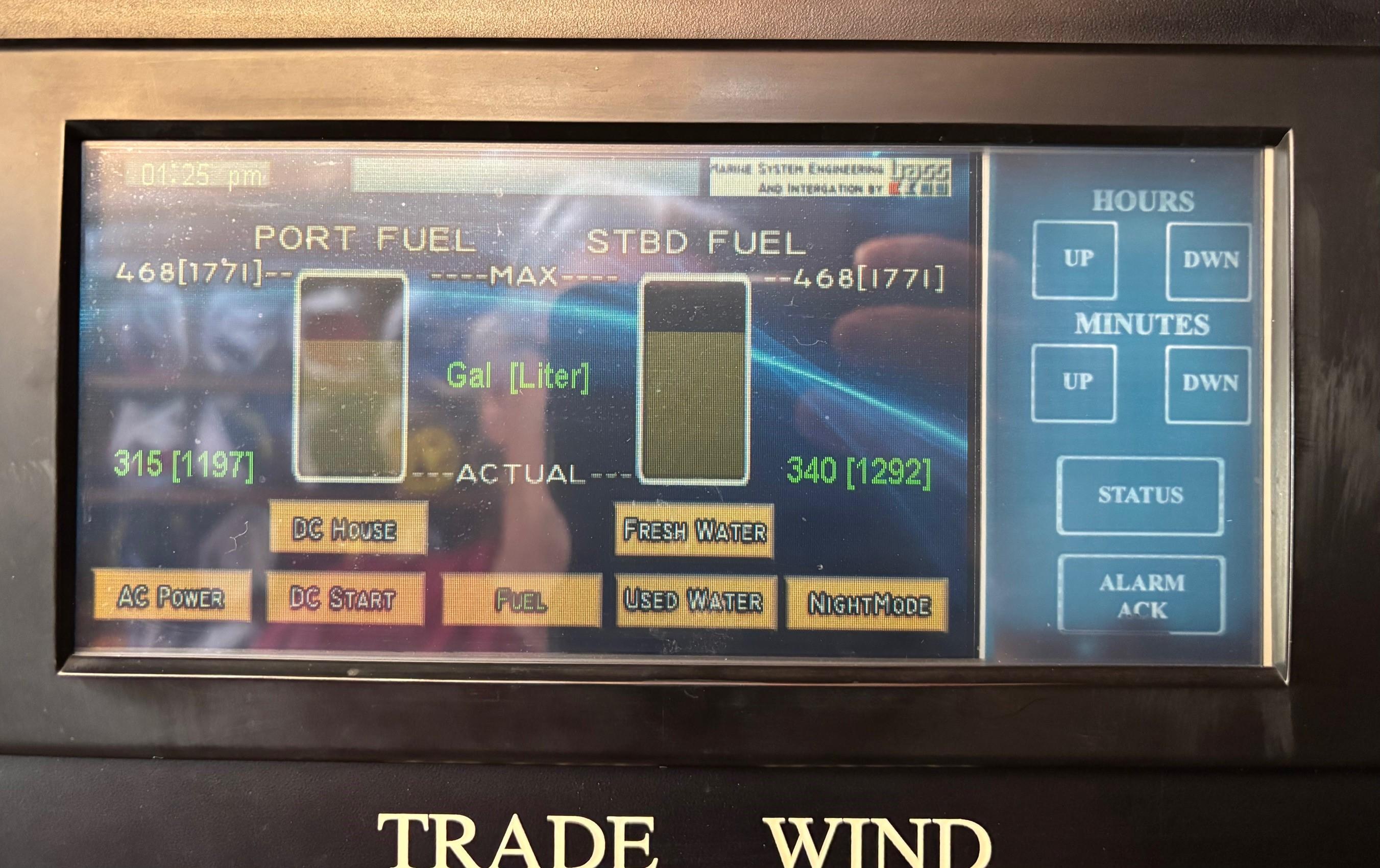

• Fuel capacity - 1000 gallons in two steel wing tanks (1200 nm range under power alone)
• Fuel manifold for transfer & suction/return control
• 2 five gallon propane bottles
• Water tank capacity - 330 gallons (Monel tanks new 2010)
• Grey & Black water tank capacity - 330 gallons in stainless tanks new 2010
• Holding tanks can be emptied via deck fitting and shoreside pump-out or overboard discharge y-valve and diaphragm pumps

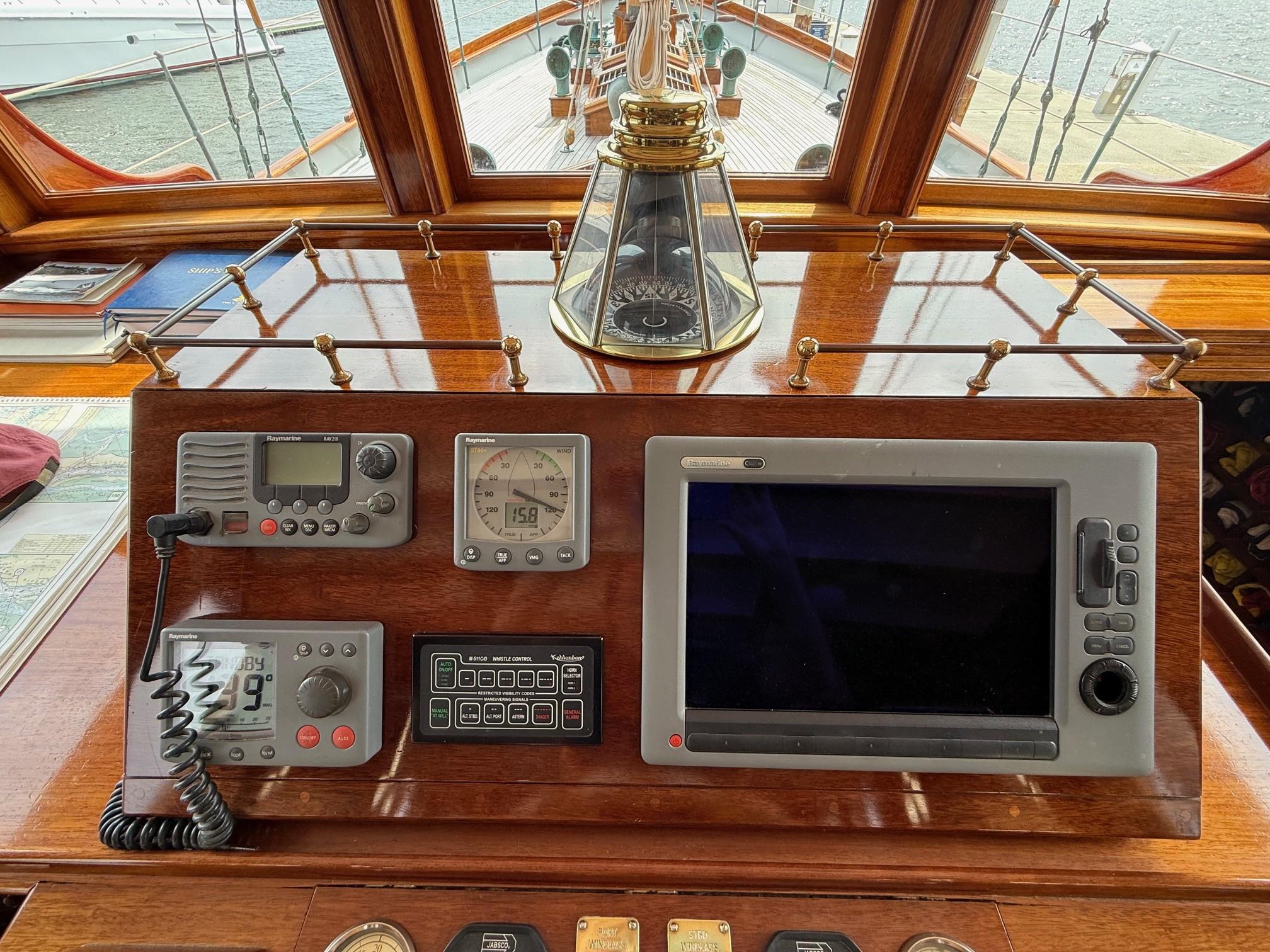

Navigation/electronics:

• Raymarine C140 GPS Plotter w/ Radar and XM weather
• VHF
• Wind, speed, depth trip log instruments
• Autopilot with gear to disengage helm wheel
• Airhorn with fog signal output
• remote sweeping search lights on main mast spreaders w/ controls at helm
