DROP OUT

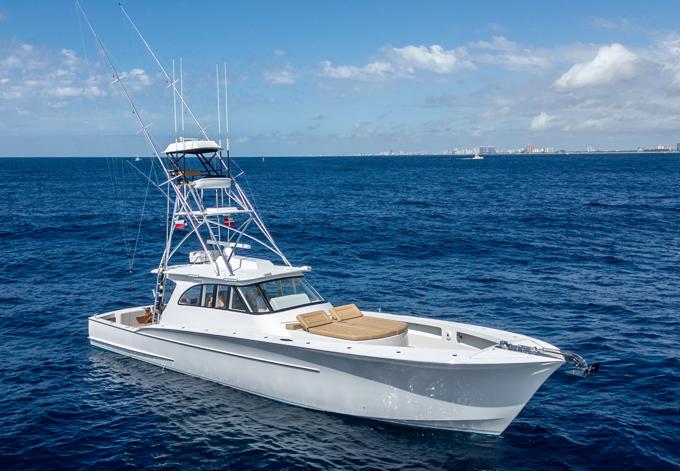

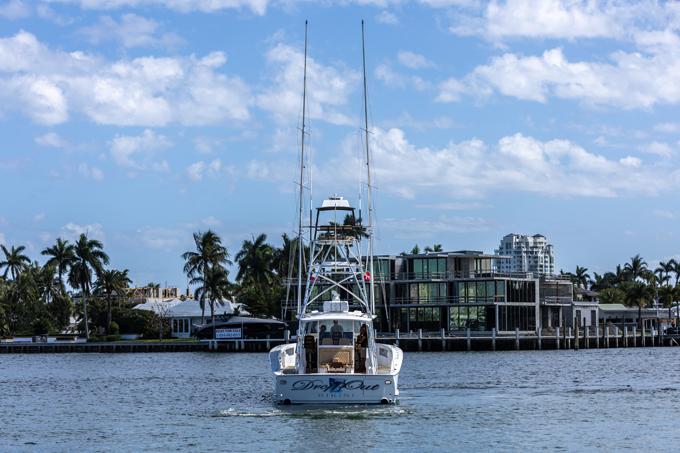

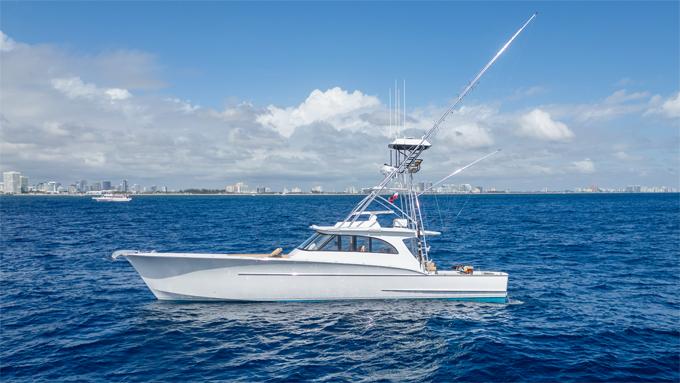

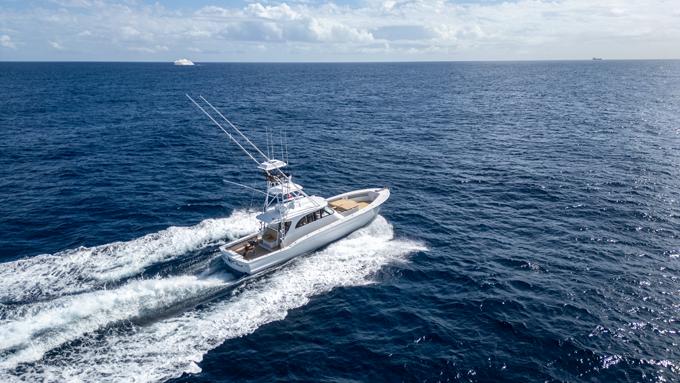

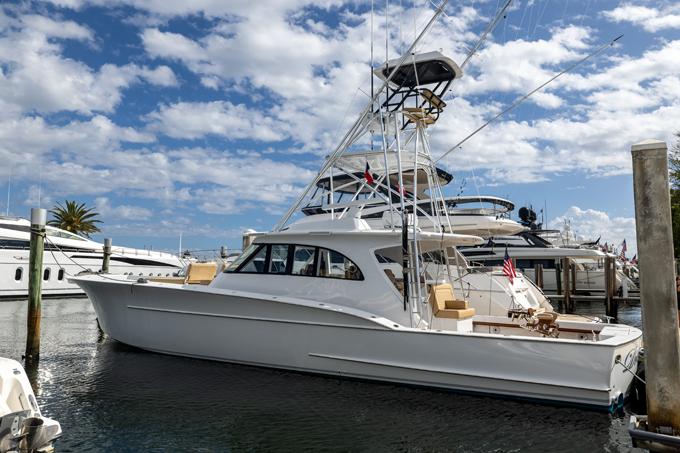

57 ft' Blackwell Custom Walkaround Sportfish 2014

Boarding DROP OUT is either through the walkthrough transom door or over the port or starboard gunwale.  The large cockpit has as offset fighting chair and fresh teak decking.

Port or starboard side lead to a raised sun lounge with an adjustable backrest and abundant storage below.

Open deck space forward allows for all around fishing with an abundance of rod holders.

The forward hold has unique storage for an arsenal of fishing gear, a chest type fridge freezer and the yacht’s Seakeeper.

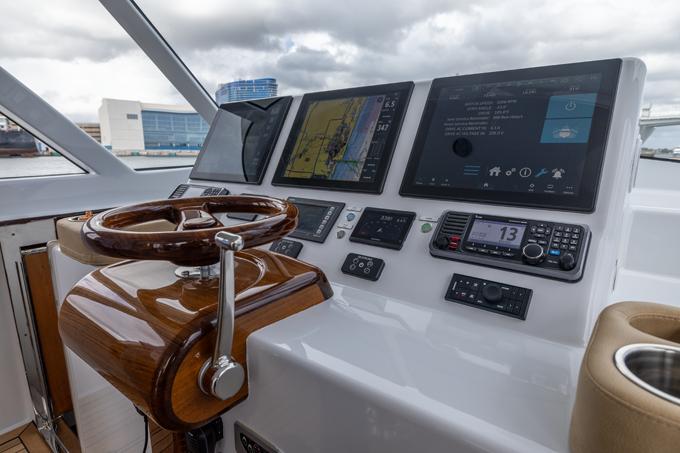

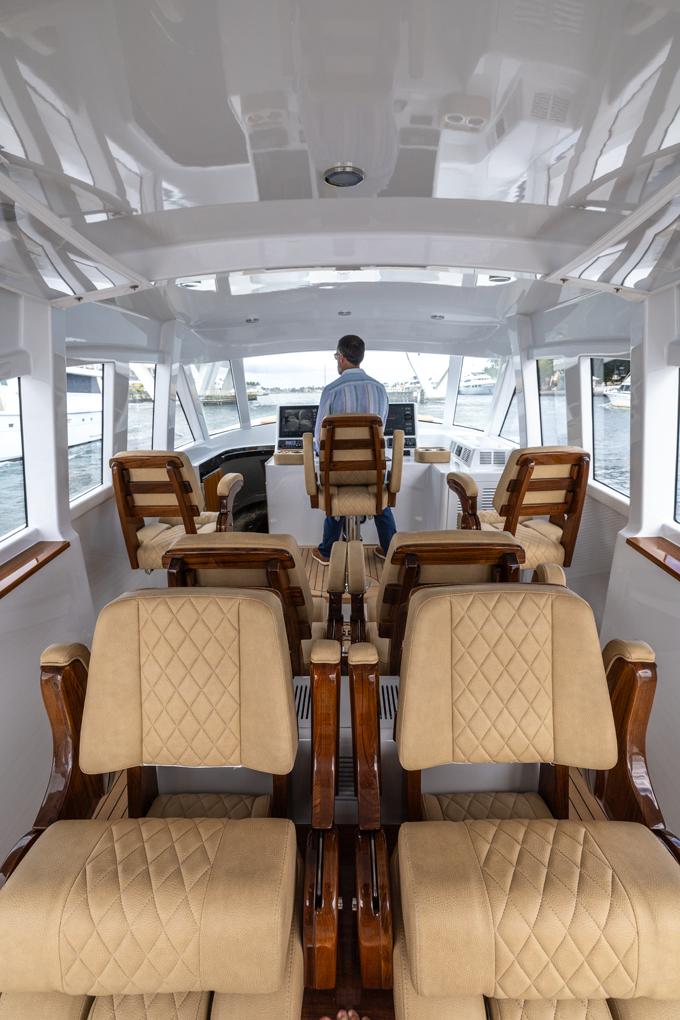

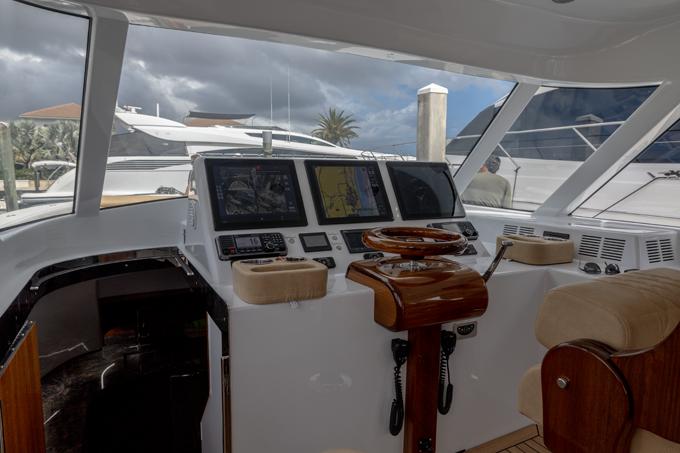

The helm deck is enclosed and air conditioned with two rows of seating and an above deck ice chipper bin.  The helm has been redesigned offering the latest in black box electronics with comfortable helm and companion chairs.  A hatch in the sole leads to the antiseptically clean engine room.  A three part hatch to port leads below to a galley, single captions berth and a private head with a shower.

The tower is one of the latest creations from Pipewelders with just about every convenience one can think of.

DROP OUT is truly one of a kind.  The owner hired a perfectionist career yachting professional to create an extraordinary fishing machine that turns heads whoever it cruises.

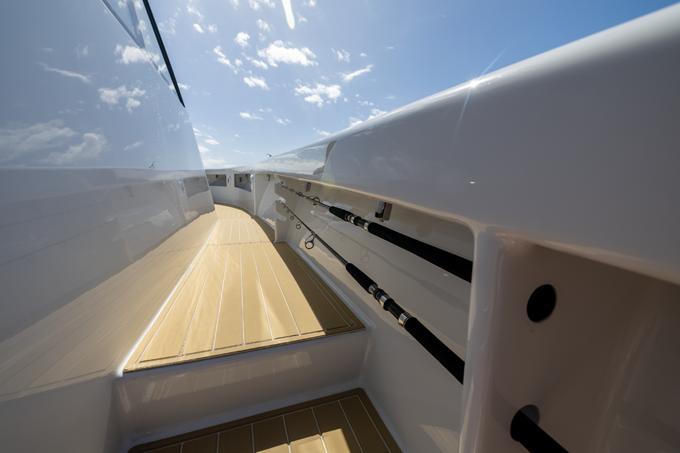

• Fiberglass non-skid decking on gunwales
• Stainless steel anchor chute
• Max Set 40 stainless steel plow anchor

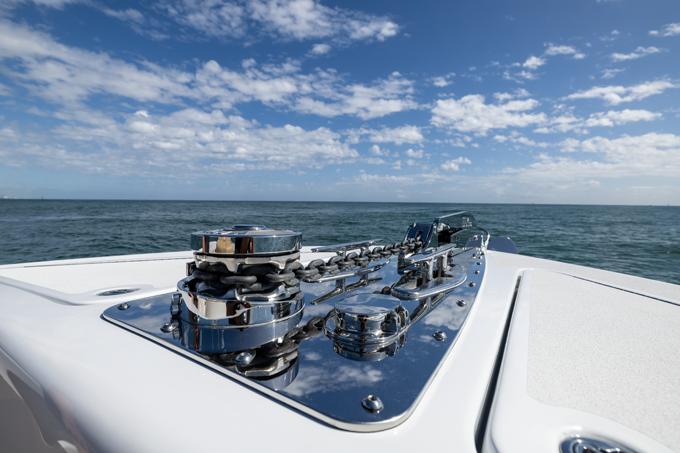

• Hydraulic Maxwell vertical all chain windlass
• Stainless steel chain lock
• (2) stainless steel bow cleats
• All items above mounted on a stainless steel plate
• (2) hinged anchor locker hatches on gas shocks – port for chain, starboard for storage
• JC 10” subwoofer mounted in anchor locker facing aft
• 10 port and 10 starboard rod holders in gunnel with deck drains
• (2) port, (2) starboard cut outs for line storage
• (2) 24 volt electric reel outlets
• Starboard side shore water inlet with pressure regulator
• Yeti teak top cooler at bow
• (2) pop-up stainless steel spring line cleats
• (2) JL Audio 8” speakers

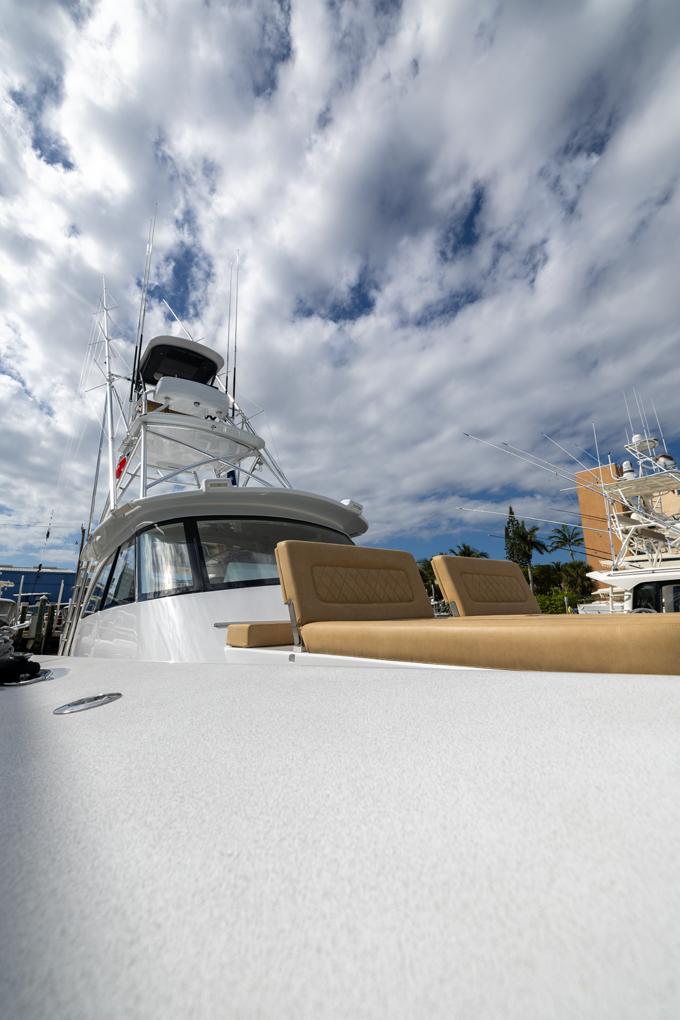

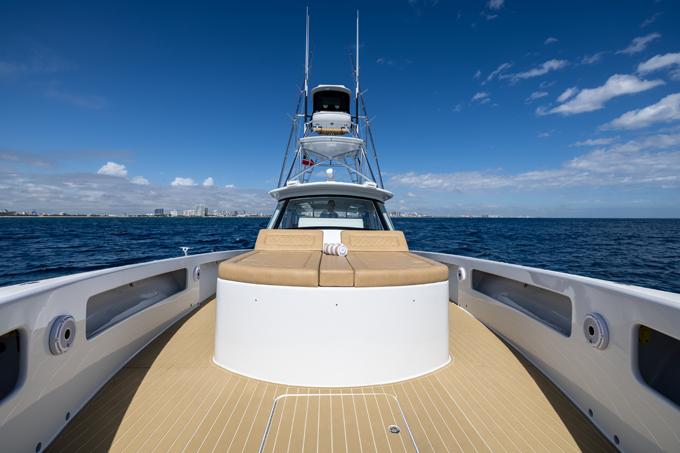

• 36” high forward sunlounge with gas shock storage below, two sunlounge cushions with tilt up backrests and a full cover
• SeaDek composite decking

• Accessed by a 30” x 48” gas shock hatch
• This area is ventilated well lit and has nearly 5’ of headroom.  The hatch is well guttered to keep area dry.
• Equipment includes:
• Removable 4-step aluminum ladder
• High gloss Awlgripped surfaces
• (7) LED overhead lights
• (2) shelves forward
• Seakeeper 9 gyro on centerline
• FRP Frigbar refrigerator/freezer to starboard
• Clear coated overboard deck drains
• Work shelf over Seakeeper
• Removable non-skid deck plates

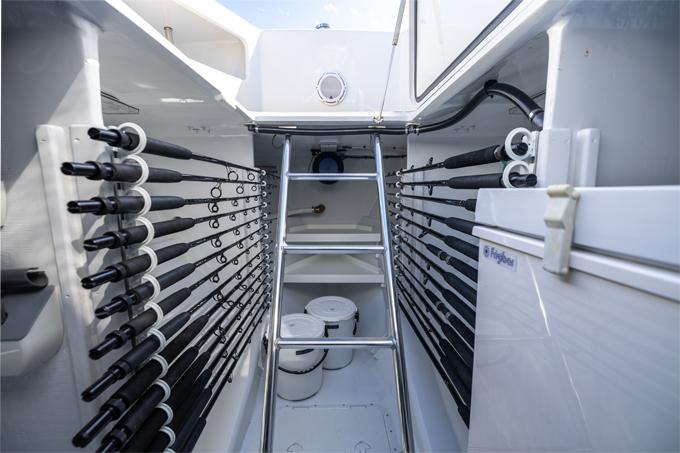

• Storage for 28 rods, 14 port and 14 starboard

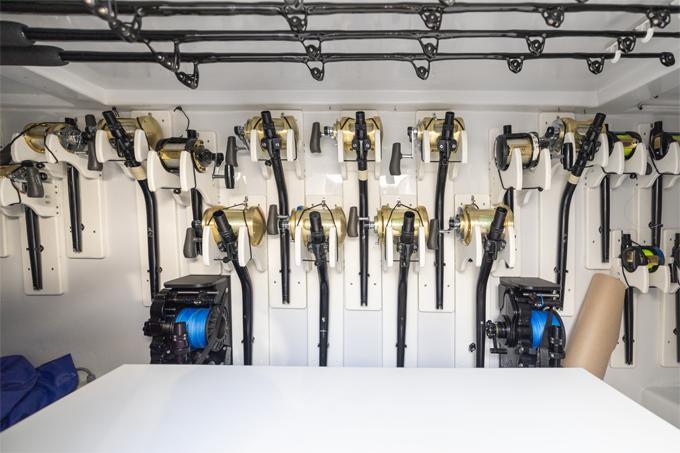

• Wall mount storage for 26 reels of various sizes
• Wall mount storage for (2) Lindgreen Pittman electric reels on aft bulkhead
• (2) collapsible bladder tanks
• High capacity circulation fan forward facing aft
• Bulkhead mounted washdown gear receptacles

• (3) port, (3) starboard under gunwale gaff/rod racks
• Frameless one piece curved windshield and house side windows
• (2) port, (2) starboard hardtop mounted LED light bars
• Water tank fill
• SeaDek deck composite decking
• Engine room air intakes in house sides
• 2 steps down to accommodate hull shear natural teak from steps aft
• (2) JL Audio 8” speakers
• Port and starboard fuel fills at shear rise
• Port side water tank fill

• Natural teak decking over fiberglass, one step down from side decks
• (10) Flush mounted rod holders – (5) are swivel rod holders for electric reels
• (4) JL Audio 8” speakers

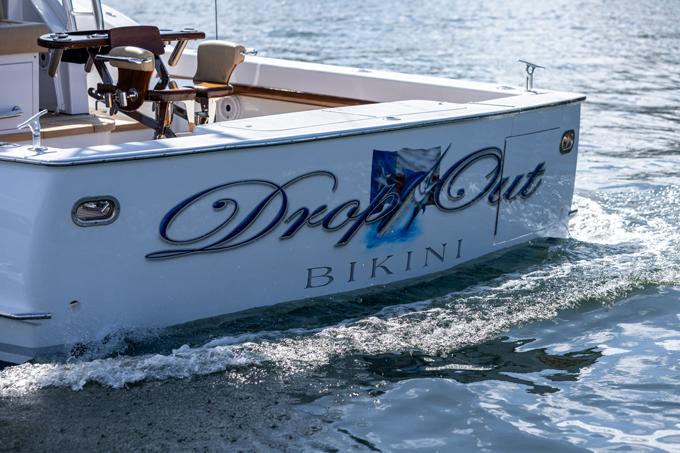

• Walkthrough transom door with gate
• Transom mount livewell / fishwell with hinged cover
• Varnished teak trim at interior cockpit gunwale
• Under gunwale stern cleats with transom hawse holes
• Freshwater washdown
• Salt water washdown
• Hooker Electric 3 pump livewell pump system with deck plate for above deck livewell
• Sea Star dual ram hydraulic steering

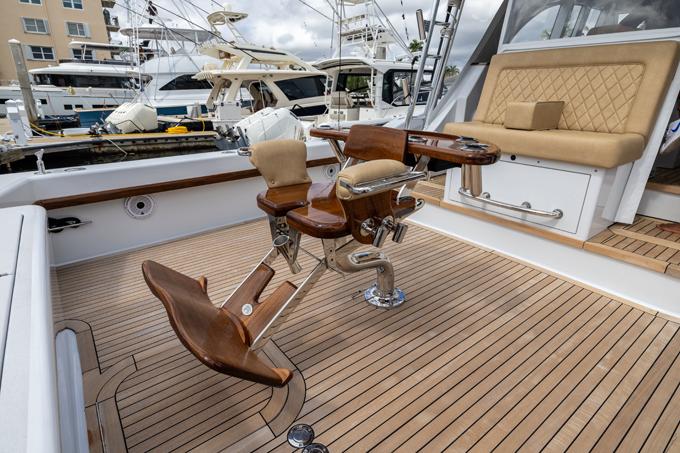

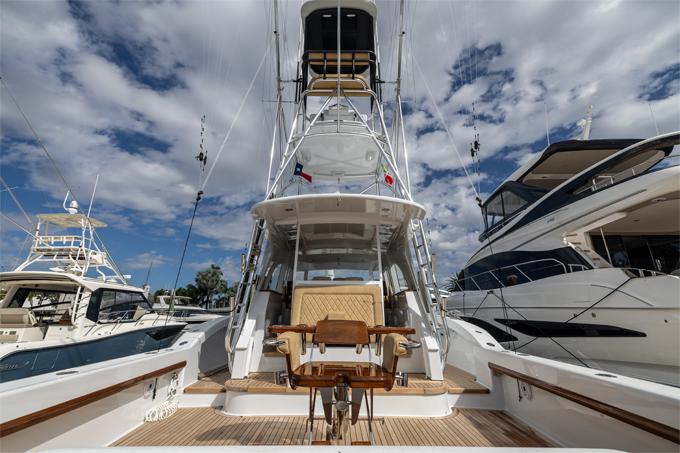

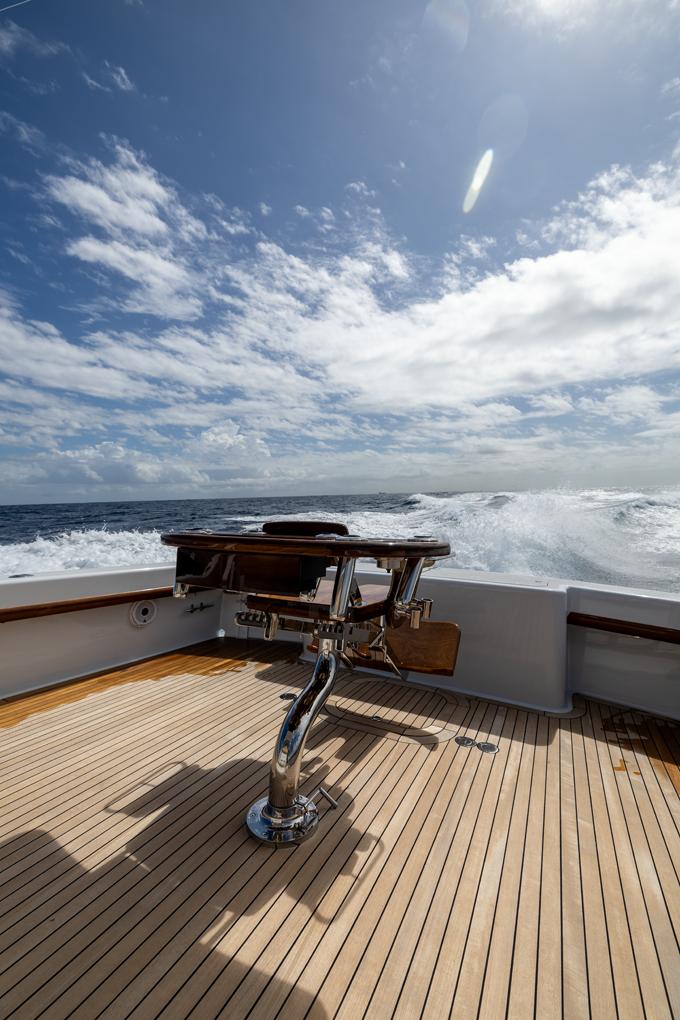

• Bluewater offset fighting chair with rocket launcher backrest, drink holder, drawer and cover
• Heavy Duty rudder stock
• Hinged teak hatch to rudder/pump space
• LED compartment light in rudder/pump space
• 50 amp shore cord inlet starboard side

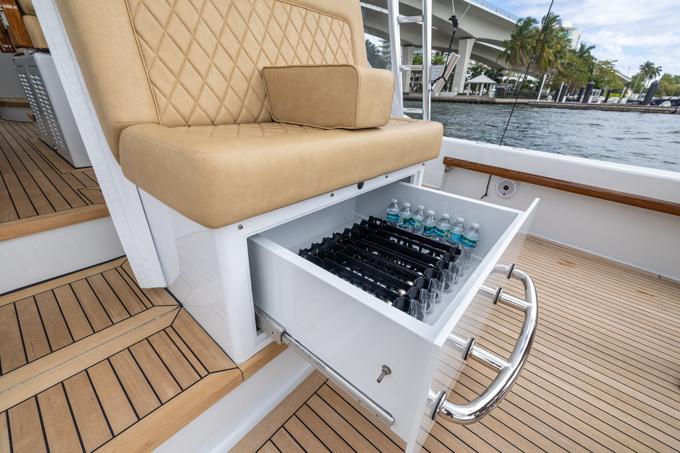

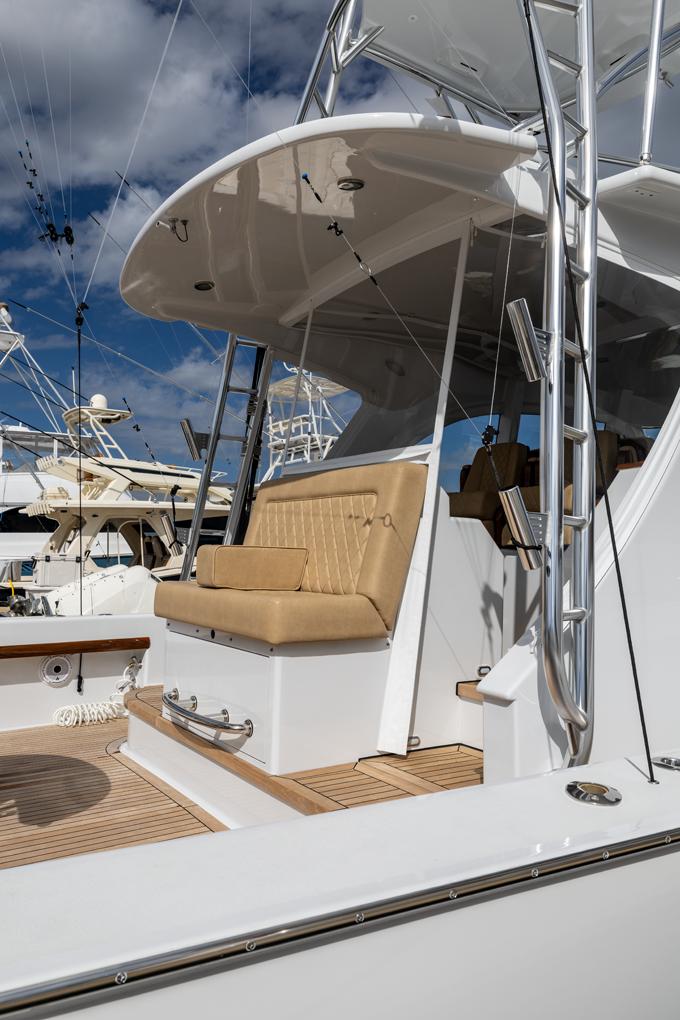

• Aft facing 2 person mezzanine seat with drink drawer below with footrest and cover
• Port and starboard teak steps to helm deck with hinged storage below
• (2) overhead LED lights
• Hooker pumps tuna tubes

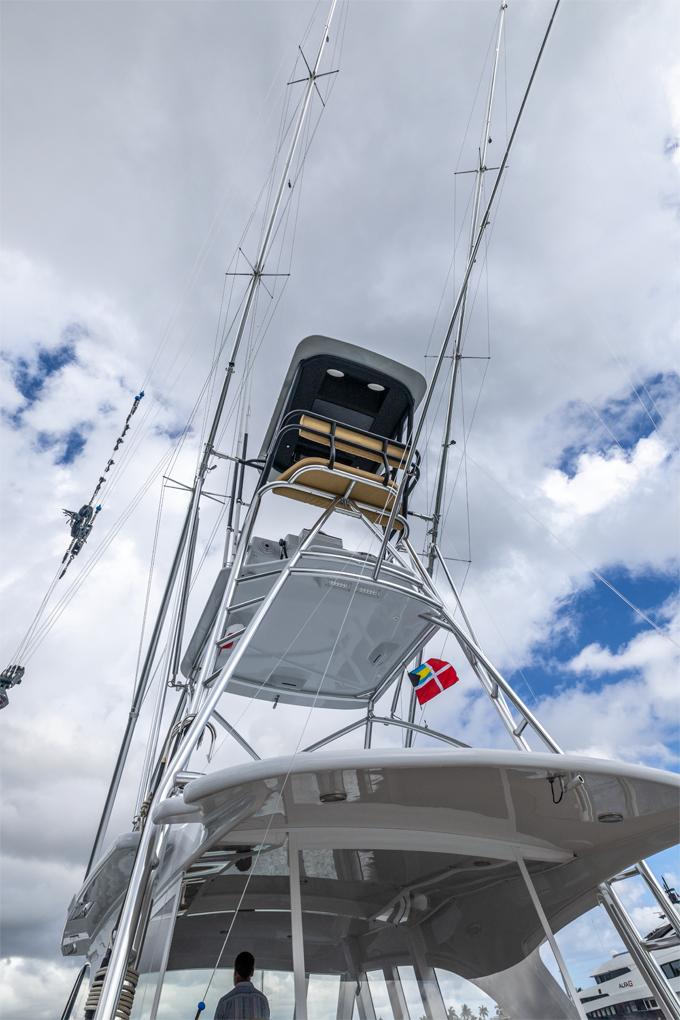

• 12 step Pipewelders tuna tower
• (4) rod holders on aft tower legs
• All 4 tower legs attached above deck level
• Zodiac Survitec 4 person life raft on hardtop
• Double LED lights facing aft from tower helm deck
• Single LED lights facing port, starboard, forward from tower helm deck
• LED downlights under tower deck
• 6” open array Garmin radar, Awlgripped
• Forward facing CCTV camera, Seatronx SurfVision MB-8000
• Aft facing CCTV camera, Seatronx SurfVision MB-8000
• Pipewelders hydraulicly actuated triple spreader riggers
• Pipewelders center rigger
• (2) hydraulic rigger controls
• 3 person seat with backrest with cover
• Garmin 10” MFD facing aft in tower buggy top
• (2) polyplaner VHF speakers in tower buggy top
• Black anodized buggy top piping
• (2) ICOM M605 VHFs with remote mics
• (4) Comrod 16’ VHF antennas
• 14” stainless steel helm wheel
• Wesmar bow thruster joystick
• Glendinning single lever engine control
• (2) 12” MFD’s
• Furuno sonar control under hinged cover
• Lopolight navigation lights
• Fusion stereo
• (2) JL Audio stereo speakers
• Freshwater washdown hose under hinged cover
• Helm cover
• (2) drink holders
• Starlink Wi-Fi/internet system
• (2) Miya Epoch teaser reels, hidden overhead
• (2) outrigger cameras

• One step up from cockpit
• Teak over fiberglass decking

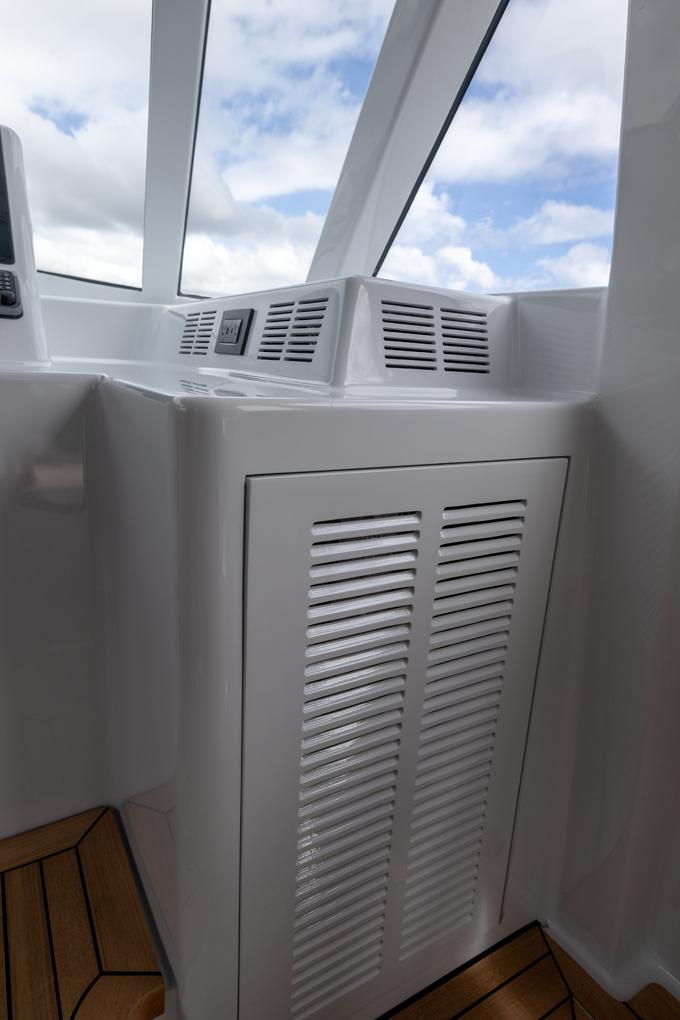

• Aft FRP cabinet with large cavity for chipped icemaker delivery, Simrad 9” color MFD display, 4 USB charge ports and two drink holders

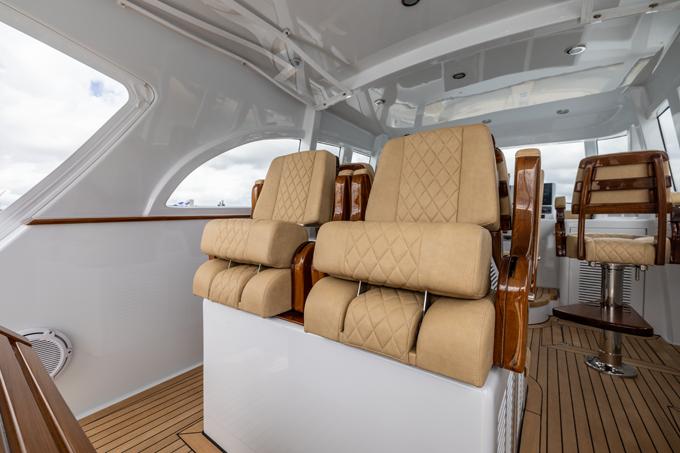

• (2) aft facing ladderback chairs with varnished hinged arm rests, flip up bolsters and cool air delivery behind
• (2) forward facing ladderback chairs with varnished hinged arm rests, raised teak articulating footrests and drink holders and cool air delivery behind
• (2) 1200 BTU Dometic Turbo-GTX air conditioning units under forward seating group
• (2) hinged cabinets with 2 drawers each under aft seating group
• Varnished sills port and starboard
• PR canvas fixed polycarbonate center enclosure with port and starboard doors that snap to the overhead
• Port and starboard triangular side wings for a full enclosure
• Fixed glass side windows
• (2) 10” JL Audio subwoofers
• (2) 6” JL Audio speakers
• (2) 8” JL Audio speakers
• FRP overhead with (8) LED overhead lights
• (2) companion chairs on stainless steel pedestals with hinged varnished arm rests, flip up bolsters and teak footrests
• Starboard side hinged deck hatch to engine room
• Low level courtesy lights

• Raised teak helm step with hinged access below
• Matching helm chair with flip up bolster and hinged varnished arm rests
• Custom foot switch for the Wesmar bow thruster
• Varnished helm pod
• Varnished helm wheel
• (3) 16” Seatronx MFD screens with remote panels
• Digital recorder for all cameras, also plays live on Seatronx screens
• (2) Icom M605 VHFs with remote mics
• Bonning MAN engine monitor MMDS CLC 6.5”
• Garmin AIS 800
• Garmin Reactor autopilot
• Garmin GHC 50 mounted remote
• Windlass up switch
• Windlass down switch
• Engine start switch
• Engine stop switch
• 5” PLC panel for ship’s systems
• Glendinning single lever pod style engine control
• Fusion stereo, Apollo MS-RA770
• USB charge ports
• Red LED overhead night navigation light
• white LED overhead lights
• Multiple A/C outlets for cool air
• Dometic Turbo GTX air conditioner at helm

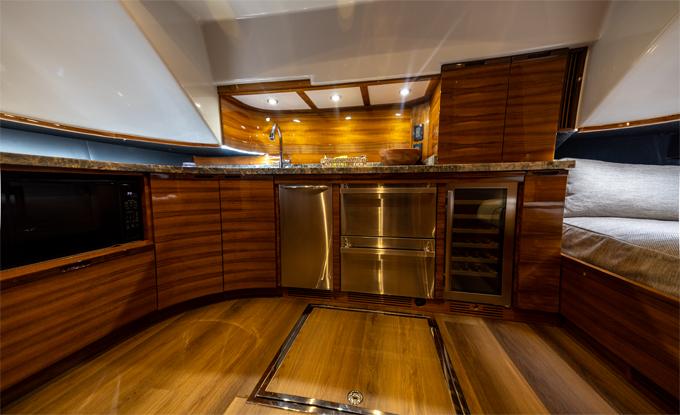

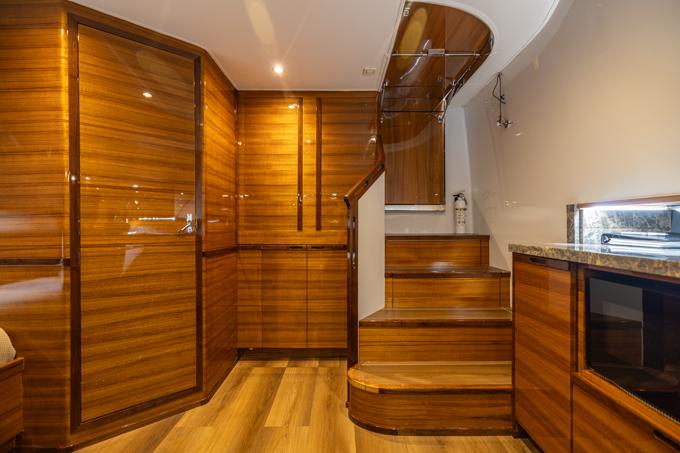

Entered via a 3 piece high gloss varnished door and four steps down is the yacht’s cabin area.

There is a large storage area under the top 3 steps and a smaller area in the lower step.  This area consists of a galley, a single berth outboard to starboard and an enclosed head aft to port.

The finishes are ultra-high quality befitting of any Mega Yacht.

Features include:

• Wide planked laminate sole
• GE microwave/convection oven
• Polished marble countertops
• Undermount stainless steel sink
• Removable spray faucet
• Under counter lights
• High gloss teak cabinetry and bulkhead
• Avallon glass front wine fridge
• Ice-O-Matic stainless steel “clear ice” ice maker
• JennAir drawer style stainless steel fridge/freezer
• Pull out trash bin
• (5) high gloss storage cabinets
• (1) large high gloss drawer
• (7) overhead LED lights

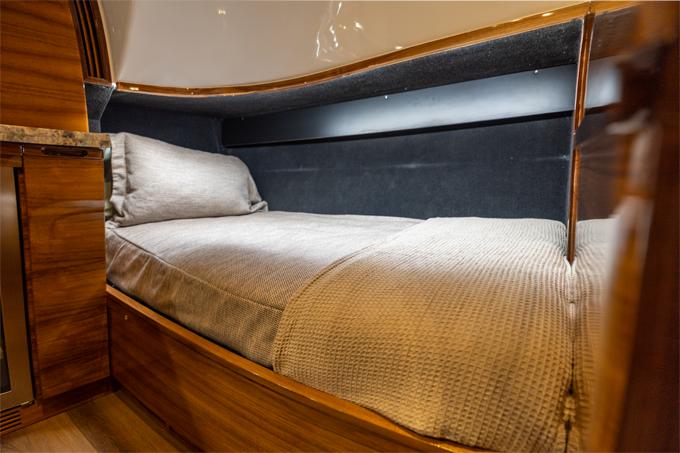

• Single berth with storage below
• (4) cabinet doors for electrical compartments and ship’s main breaker panel

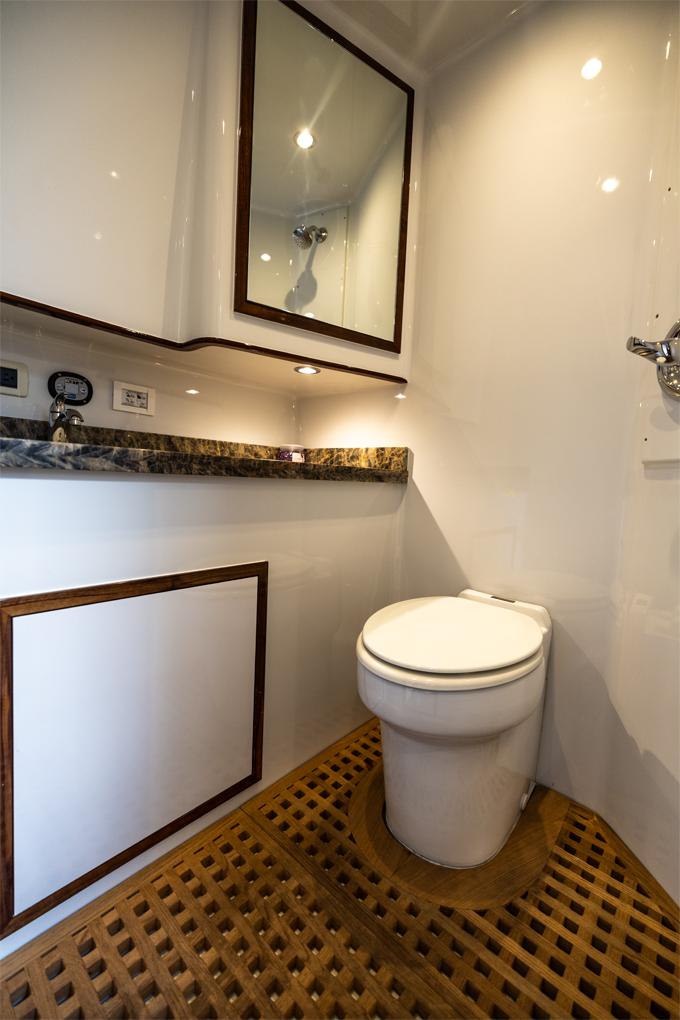

• Teak grate sole
• Polished marble counter tops/undermount China sink
• Raritan Marine Elegance toilet
• Mirrored medicine cabinet
• Storage cabinet below vanity
• Shower fixture
• (3) LED lights

• Guttered hatch to starboard at helm deck

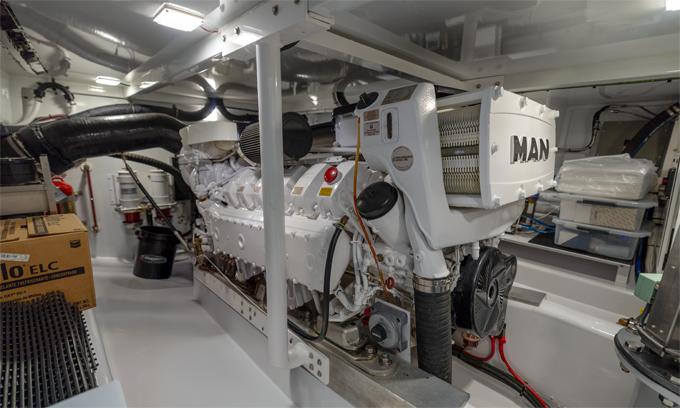

• MAN D2862LE433 1800 hp engine
• Fresh or salt water supplied Ice Sea chipped ice machine
• Rule bilge sump for Ice Sea condensate
• 40lb. Fireboy HFC227 fire system
• Dual Racor 75/1000 Max fuel filter with vacuum gauge
• (5) Delta T engine room fans
• Danfoss hydraulic pump off transmission
• Dripless shaft seal
• MAN remote mount fuel filters
• (3) Engine room cameras, Seatronx
• Headhunter Mach 5 230 volt water pump
• Headhunter Stingray 230 volt water pump
• Furuno 400 min travel sonar tube with 3600 Omni scanner, mounted centerline forward
• SeaXchange ___GPD watermaker
• Glendinning EEC-3 control processor for engine controls
• MAN electronic engine computer
• Garmin autopilot pump, SmartPump
• Hard coat dual exhaust
• Bennett trim tab hydraulic power pack
• (8) overhead LED lights
• High gloss painted bilge and engine room bulkheads
• Clear coated bronze thru hulls

• 12/24 Volt DC system
• 120/240 Volt AC system
• ASEA power system AC12 - 12 KVA, 50 amp, 40-70Hz frequency converter/power supply (New 2024)
• Victron Energy Centaur 12V 30 amp battery charger
• Victron Energy Centaur 12V 100 amp battery charger
• Victron Energy Centaur 24V 60 amp battery charger
• Victron Energy Skylla-i 24V 100 amp battery charger
• 18 place 24V breaker panel in engine room
• 15 place 120/240 V breaker panel in engine room
• 15 Boss MRCB knife breakers in engine room
• Guest battery parallel switch in engine room
• Kohler 21kW generator in sound shield
• Generator battery on/off switch
• Fully enclosed battery boxes
• 4, 8D Rolls batteries for start and house systems
• Parallel capabilities between engine and generator start
• 5000-watt 12-volt bank for stereo subwoofer and amps

Main electrical panel in cabin with:

• Shore generator selector
• Digital AC voltmeter line 1 / line 2
• Digital DC voltmeter – four positions
• 120/240 Volt panel with 24 breaker protected circuits
• 12/24 Volt panel with 40 breaker protected circuits
• (7) bilge pump switches
• High water alarm
• (4) Dometic A/C digital controls
