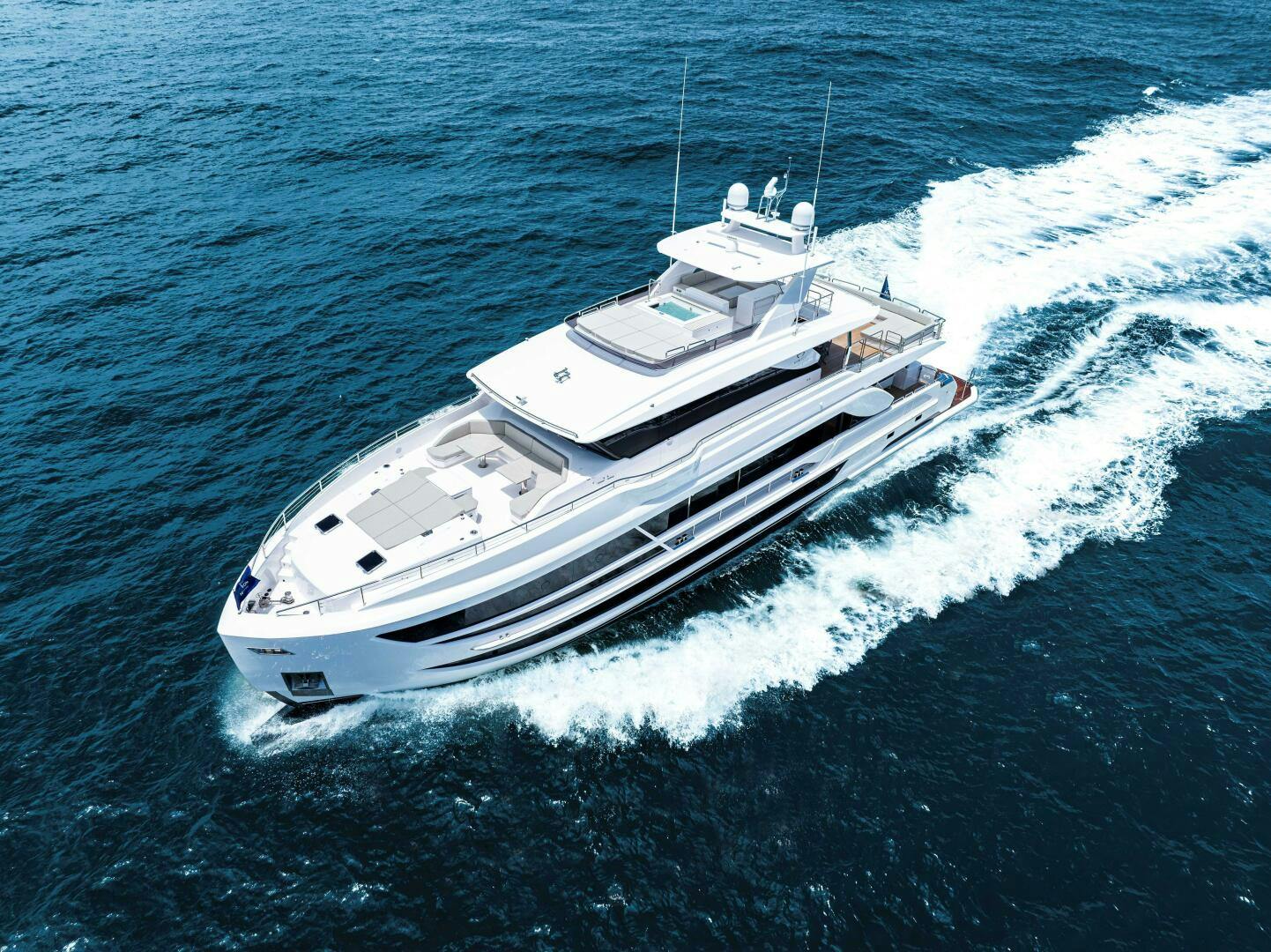

Horizon FD100-914 100' Horizon FD100 2025

• White gel coat finish
• One-piece hull and superstructure utilizing SCRIMP™ technology with Horizons patented 6D infusion, incl. longitudinal and transverse stringers
• Hull, deck & superstructure built with licensed process SCRIMP™ for improved strength and less weight
• Hybrid design hull bottom with sandwich construction and solid fiberglass
• High-density Divinycell or equivalent foam cored hull sides, decks & superstructure
• Stringers with high-density foam coring
• Interior structural components all properly bonded to hull
• Strong collision bulkhead for extra safety International brand anti-fouling bottom paint w/ anti-osmosis treatment
• PropSpeed/PropGold metal paint for underwater appendages
• Tunnels for reduced draft
• High Performance Piercing Bow (HPPB) with S/S protection plates
• Upper deck with bump-out design at PORT and STBD side
• Asymmetrical skylounge design for wider beam to STBD side

• Teak floor w/ wet storage & wet head
• Hydraulic door w/ a rain shower underside of the door & a pantograph door in the middle
• Teak steps to the swim platform
• Hydraulic Hi-Lo swim platform (1,500lbs lifting capacity) w/ custom transformer (440lb lifting capacity)
• (2) Removable corner rails w/ extra sockets
• Wet Storage
• Refrigerator/Freezer
• Dayhead

• Enclosed skylounge w/ separated pilothouse forward
• Pilothouse w/sofa, (2) helm chairs, and leaning post (incl. pre-engineer for 3rd helm chair
• for future installation)
• Custom-designed helm w/ full set of engine gauges, monitoring system for important equipment,
• fuel & water gauges, Ritchie Supersport magnetic compass, surveillance camera system, bilge pump panel & navigational lights
• Skylounge w/ L-shaped sofa, wet bar, sink, (2) SubZero under-counter refrigerator/freezer, and two glass lockers
• Day head
• Walk-around bridge design—PORT side leads forward to bow deck
• Teak boat deck w/ folding dining table & chairs for 10)
• STBD wet bar w/ sink, refrigerator, Scotsman ice maker, 24” propane BBQ, and 43” electrical fold-up TV
• (2) "L" shaped sofa seats w/ side tables, as per layout on boat deck
• Pre-engineer for future Davit installation (2,500lb capacity) at STBD rear corner
• Handheld remote plug-in station
• Sunshade for boat deck area, per layout

• Non-skid deck
• Jacuzzi w/ 55” Hi-Lo TV aft and sunpad w/ fold-up backrest & safety rails forward
• Wet bar with sink, fridge, ice maker
• Aft FRP seat w/ a table
• Radar arch with antenna bracket
• Windshield with S/S frame

• Twin CAT C32A 1,900HP (no SCR)
• Side Power SPS96B/VF1950 stabilizers
• Side Power SH770 bow thruster + SH550 stern thruster
• Zipwake interceptor system
• Engine load distributed through flexible mountings on S/S engine bed bonded to FRP hull girder
• Engine alarm system as per engine standard
• High-performance S-class 5-blade propellers
• Bronze struts w/ backing plates
• Shaft and Rudder packing glands w/ Tides Marine dripless seals
• Tethered remote handheld controller w/ 4 plugs (location: tri-deck, aft deck, pilothouse & boat deck)
• Seastar Optimus Steering System
• Underwater exhaust system for engines w/ bypass mufflers
• Engine room clean design with lightweight honeycomb floor
• Heavy-duty Insulated engine room door
• S/S overhead grab rail on each side of the engine
• Anti-noise treatment to exhaust system
• Delta-T engine room demisters
• Air compressor

• 4,000 US gals (15,140 ltrs) fuel tanks w/ sight & electrical gauges
• (2) Racor 500 MA fuel filters, one on each generator
• (2) Electric fuel transfer pumps
• Fuel polishing system (210GPH)
• 400 US gals (1,500 ltrs) FRP water tank
• (2) 30-gal water heaters
• High-volume AC freshwater pressure pump & back up DC pump
• Spot Zero SeaXchange XTC II 1200 & Spot Zero ZTC II 2000 watermakers
• Charcoal filters are plumbed into the freshwater line: shore water inlet and galley
• Hot water circulation pump
• Marine Air VFD air conditioning system
• Headhunter toilet system
• 200 gals holding tank & deck fitting for dockside pump-out
• Sump pump system for greywater
• Electric level indicators for holding tank
• Headhunter sanitary treatment system
• Electric Rule bilge pump
• High water level bilge alarm
• Bilge exhaust ventilation fans
• Fire insulation in the engine room
• Fire-resistant treatment for pipe penetrations
• Automatic fire damper system
• (5) Portable fire extinguishers
• Integrated fire alarm system in pilothouse, with a heat or smoke detector in each cabin
• Prewire for diving compressor
• (5) Honeywell dehumidifiers

• GFI protection for all AC outlets in exterior, heads, galley, and engine room
• Electrolysis bonding system
• Cathodic protection with zinc anodes for shafts, struts, etc.
• LED lighting system throughout interior & exterior
• (8) Underwater light
• (2) Onan Generators 40kW (60Hz) with sound shield
• Pre-wired for wireless yacht controller
• Maretron monitoring and control system
• Single phases 100A Auto-boost shore power transformer (x2) &100A Cable master (x2) & shore power inlet (male) 100A (x2)
• (2) LED searchlight
• Pre-wired for LED boat name on the stern, PORT, & STBD skylounge sides
• Prewire for future FLIR M364C night vision
• Sonos stereo system
• AV system w/ Control4 system (for tri-deck, foredeck, Skylounge, boat deck, aft deck, Saloon, and Master stateroom)

• Guest accommodations include an on-deck master stateroom, fwd. VIP stateroom, STBD & PORT VIP stateroom, PORT guest stateroom, all ensuite; low deck enclosed laundry w/ washer & dryer
• Aft crew w/ 3 crew cabins (2 ensuite) w/ access to port aft deck
• Customized interior package for interior décor & lighting
• Full set of Wedgwood (GIO) tableware for 10, including dish holders, pot/pans, dishes, plates, knives, forks, glasses, etc.
• Miele washer/dryer (x2, stacked unit at forward cabin & Crew quarter)
• Extra set of bed sheets for all guest cabins, including crews

• 4-panel S/S electric sliding entrance door & manual sliding door to each side of the main salon
• Dayhead in main salon aft
• L-shaped sofa w/table, armchair, and ottomans
• (2) Armchairs & side table to STBD
• Custom area rug
• Formal dining table & chairs for 10
• Free-standing custom storage cabinet
• Breakfast bar design
• Electric curtains
• 65" TV

• Enclosed galley w/ Hi-Lo screen & kitchen island
• Professional galley + extensive storage per layout
• Subzero 48" refrigerator/freezer PRO4850
• 24" drawer type under-counter fridge ID 24-R
• 24" drawer type under-counter freezer ID-24F
• Miele cooktop, oven & dishwasher, GE range hood, and WOLF microwave oven
• U-line wine cooler
• (1) Opening porthole to PORT

• King bed w/ storage drawers & nightstands
• Owners safe
• His and Hers head w/sinks & rain shower
• Electric Roman Shades
• (2) Opening portholes to each side
• 50" TV
• Escape hatch in the Master with ladder

• Queen bed w/ nightstands & drawer storage
• Large hanging lockers STBD
• Ensuite head w/ sink, shower & toilet
• 43" TV

Mirrored staterooms w/ Queen bed, storage drawers & nightstand

Large hanging lockers

Ensuite head w/ sink, shower & toilet

Escape hatch in port stateroom

43” LED TV

Twin beds, one fixed + one sliding

Hanging locker

Ensuite head w/ sink, shower & toilet

32” LED TV

PORT captain cabin w/ queen bed, ensuite

(2) STBD Bunk crew room

Shared head w/ sink, shower & toilet

Crew mess w/ burner, Miele washer/dryer, refrigerator/freezer, storage

43” TV

• SAT TV antenna with a symmetric dummy dome & prewire for SAT phone
• Starlink maritime flat high performance
• Satellite internet kit
• 4G/5G Cellular router system with WiFi on board
• Exterior connector for shore phone and cable TV

• Full Garmin navigational system includes
• (1) Garmin GMR™ 1236 xHD3 Open Array Radar
• plus (1) GMR Fantom 54
• (4-foot/50W/72nm) radar
• (1) Garmin Fish Finder
• (4) Garmin GPSMAP 9224 - 24"
• multifunction displays
• Garmin GPS
• Garmin Autopilot system
• Garmin Wind / Speed / Temp / Depth transducer
• (2) Garmin VHF with built-in loudhailer
• Garmin AIS
• Garmin GRID 20 remote input device
• Garmin Reactor AP Remote Control
