NARWHAL56' Cherubini 48 Staysail Schooner 1986

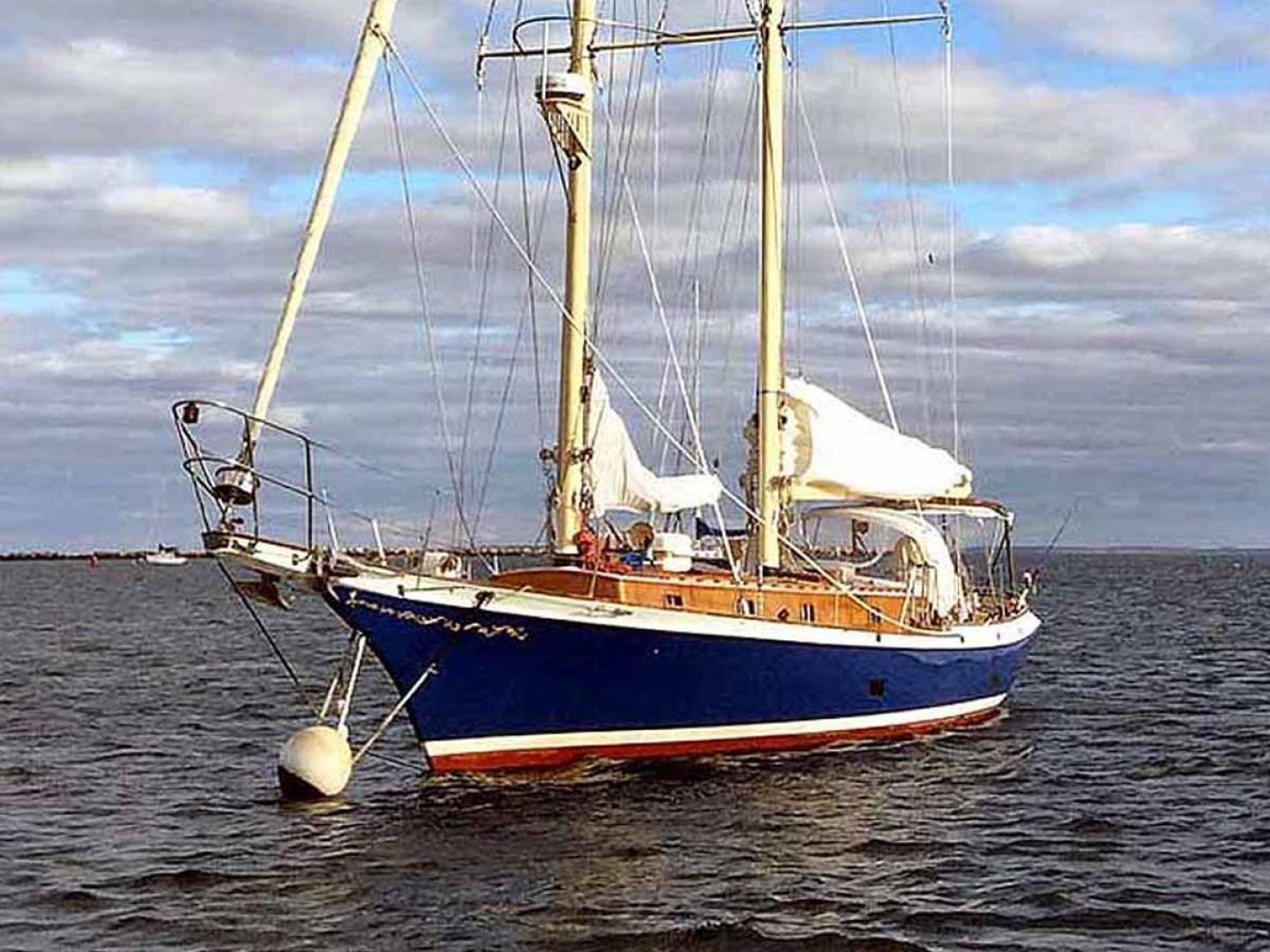

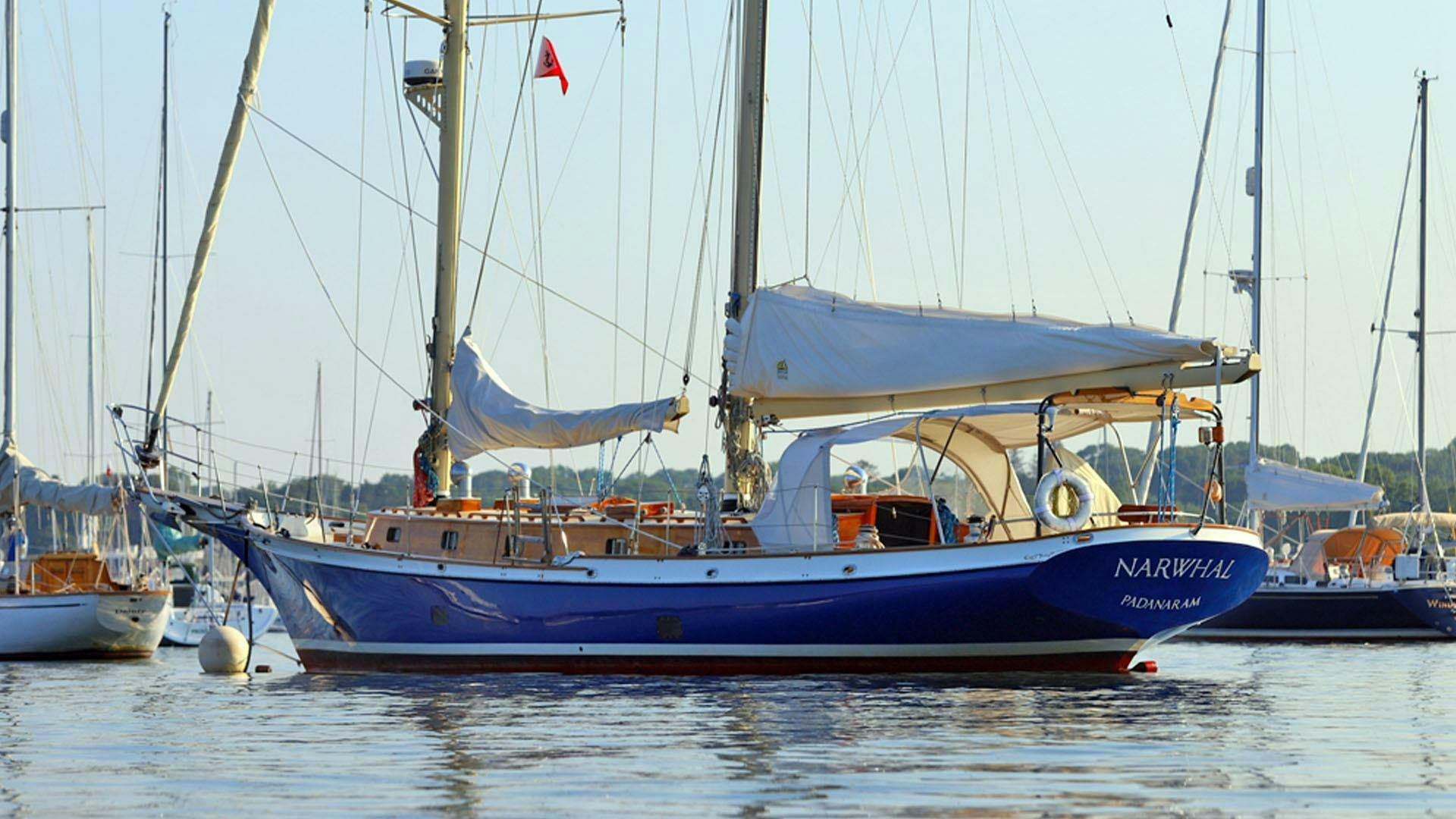

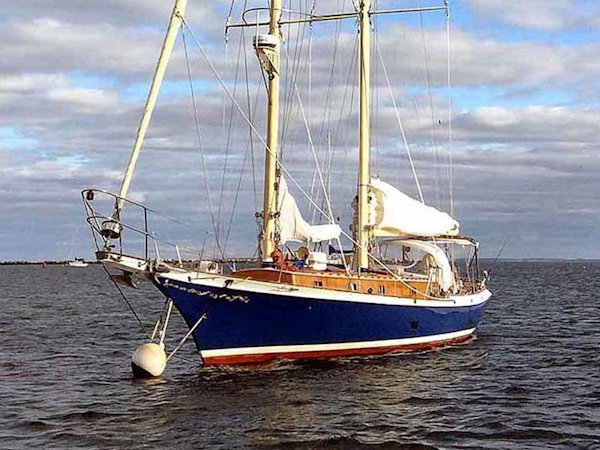

NARWHAL is an iconic 48’ Cherubini Staysail Schooner. Her clipper bow with bowsprit, schooner rig, low freeboard and raised bulwarks aft, along with varnished teak cabin trunk sides, are reminiscent of L. Francis Herreshoff’s TICONDEROGA as ably interpreted by John Cherubini. She is a proven performer in near coastal waters, on the racecourse and crossing oceans. Her combination of shoal draft, spirited performance, a well-balanced helm and easy sail handling, along with drop-dead gorgeous lines, make her a true standout.

NARWHAL has a beautiful Aristo Blue hull with a wide white shear stripe, matching single white boot stripe and red bottom. Her cabin top and decks are painted Moondust non-skid with gloss white waterways; cabin house sides with teak eyebrows, trim, handrails, toe rails and cockpit helm seating are in varnished bright teak. Her spars are painted to match the non-skid decks, and her canvas is off-white.

Below decks is a world unto itself: Comfortable, traditional and seaman-like with plenty of light and ventilation, and storage befitting a proper cruising yacht. Mahogany joinery with raised-panel bulkheads and hull ceilings painted white in the Herreshoff style frame her living quarters beautifully.

NARWHAL has cruised both the Atlantic and Pacific oceans, but in recent times has been U.S. east coast-based. In the last seven years, she has seen only seasonal use in New England, with indoor heated storage the norm, and professional service by Niemec Marine of New Bedford and The Concordia Company of South Dartmouth, Massachusetts.

NARWHAL has benefited from extensive refitting during her present ownership -- primarily in 2013/2014 -- with details to be found in the listing below, including a new Yanmar diesel, refrigeration, A/C and a completely new electrical system with all new wiring, chargers etc. She is a well-found yacht and a must-see for anyone seriously considering a Cherubini Schooner. There is good reason why this builder and design were included in Ferenc Mate’s seminal work “The World’s Greatest Sailboats.” Come see for yourself! We invite your inspection.

Professional Video available.

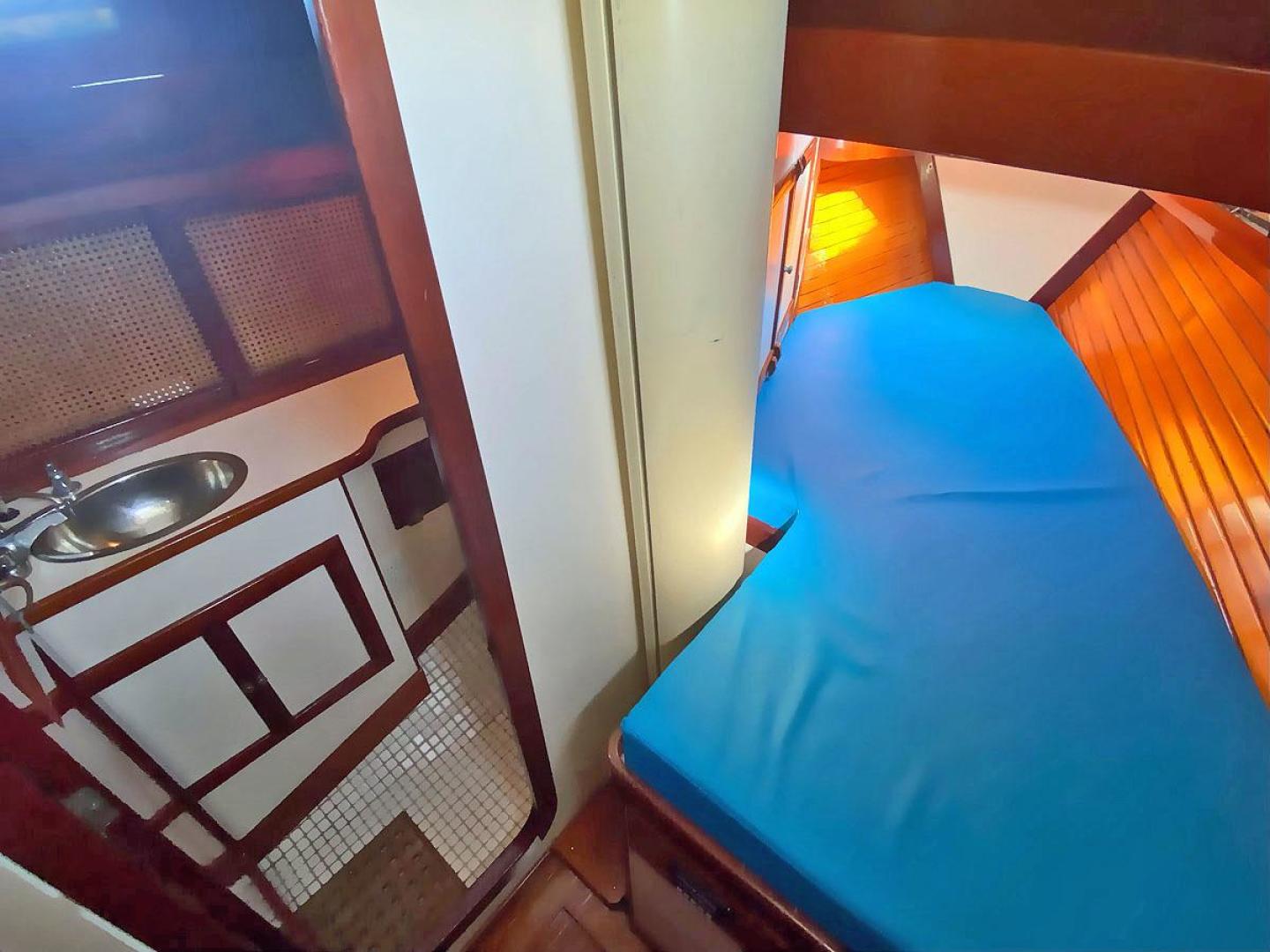

FORWARD STATEROOM

• Oversized single berth
• Hanging locker with shelf above, drawer and pull-down stowage with shelf above, with fiddle
• Large storage locker to port; big enough for sails
• Shelf across front and starboard hull side; reading lamp and (2) overhead lights
• Hella 12v fan; AC control; opening port; large overhead hatch
• 110v outlets

FORWARD HEAD

• Opening port
• Tile sole and tile backsplash
• Teak shower drain, and sump with electric pump-out
• Bronze towel racks
• Pressure water hot and cold with fitting for deck shower; spigot for manual pump as backup; soap spigot
• Ample lockers and storage
• Skipper manual head plumbed with fresh water; Y-valve; custom holding tank; Sealand vent filter

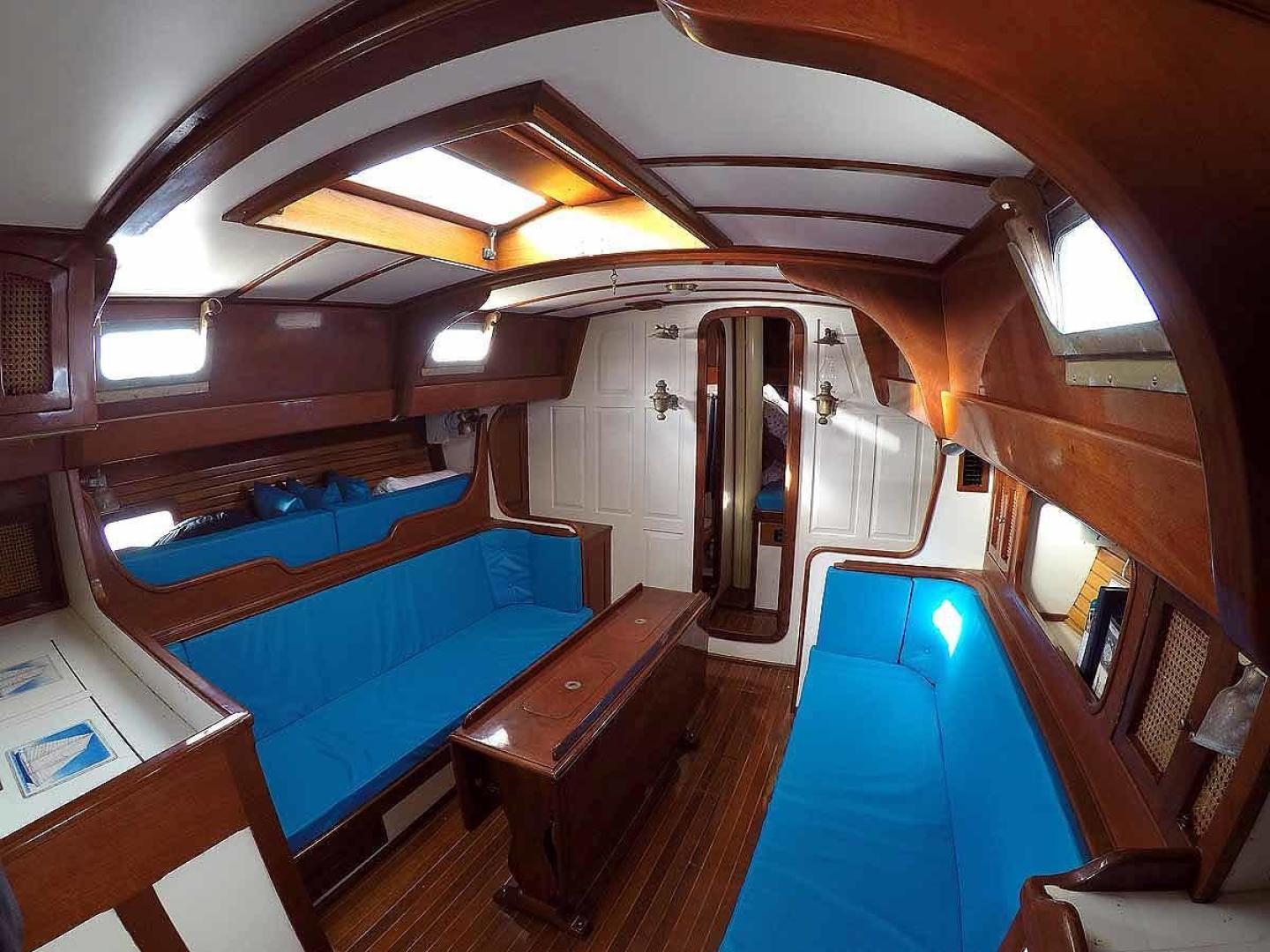

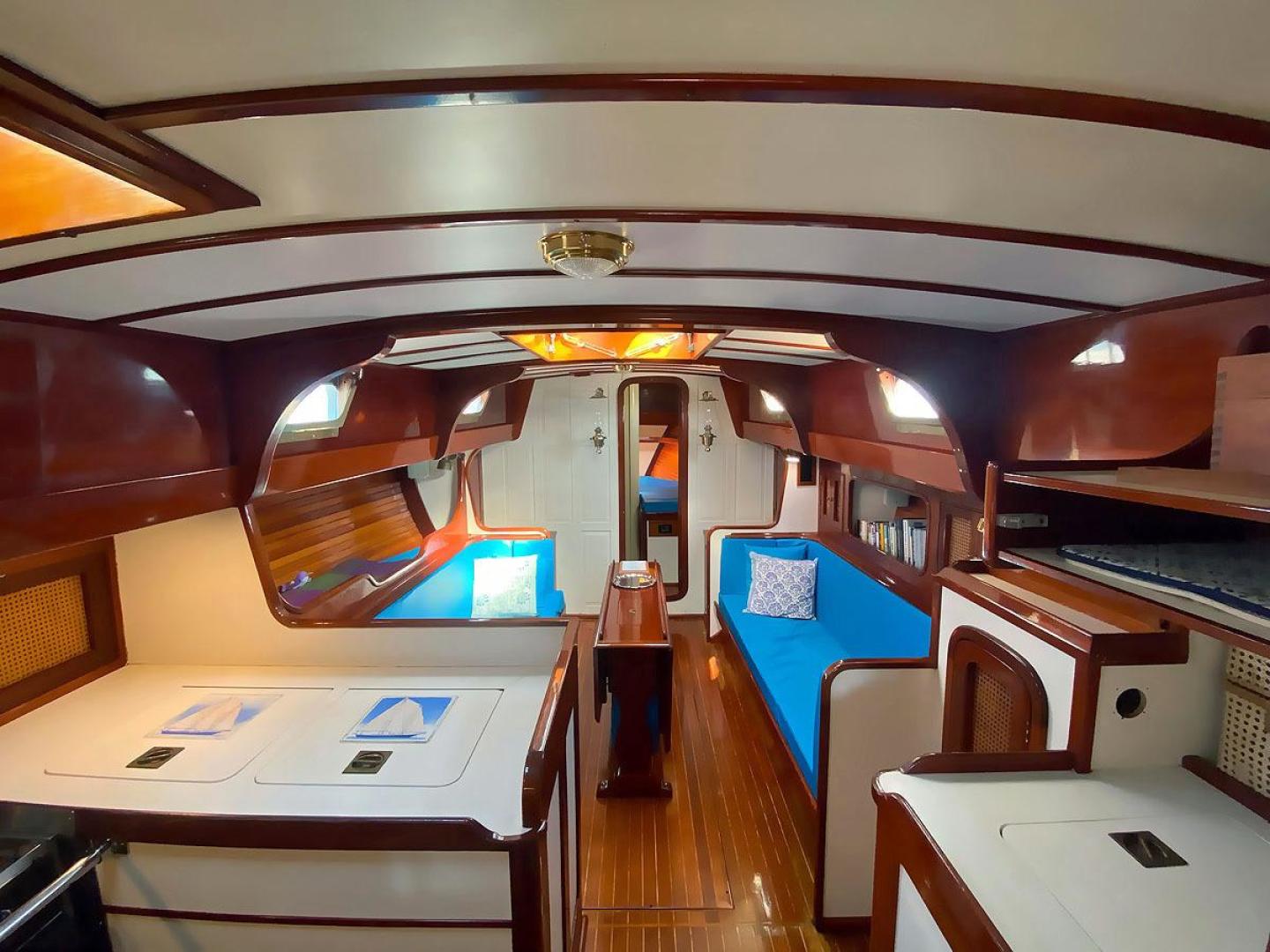

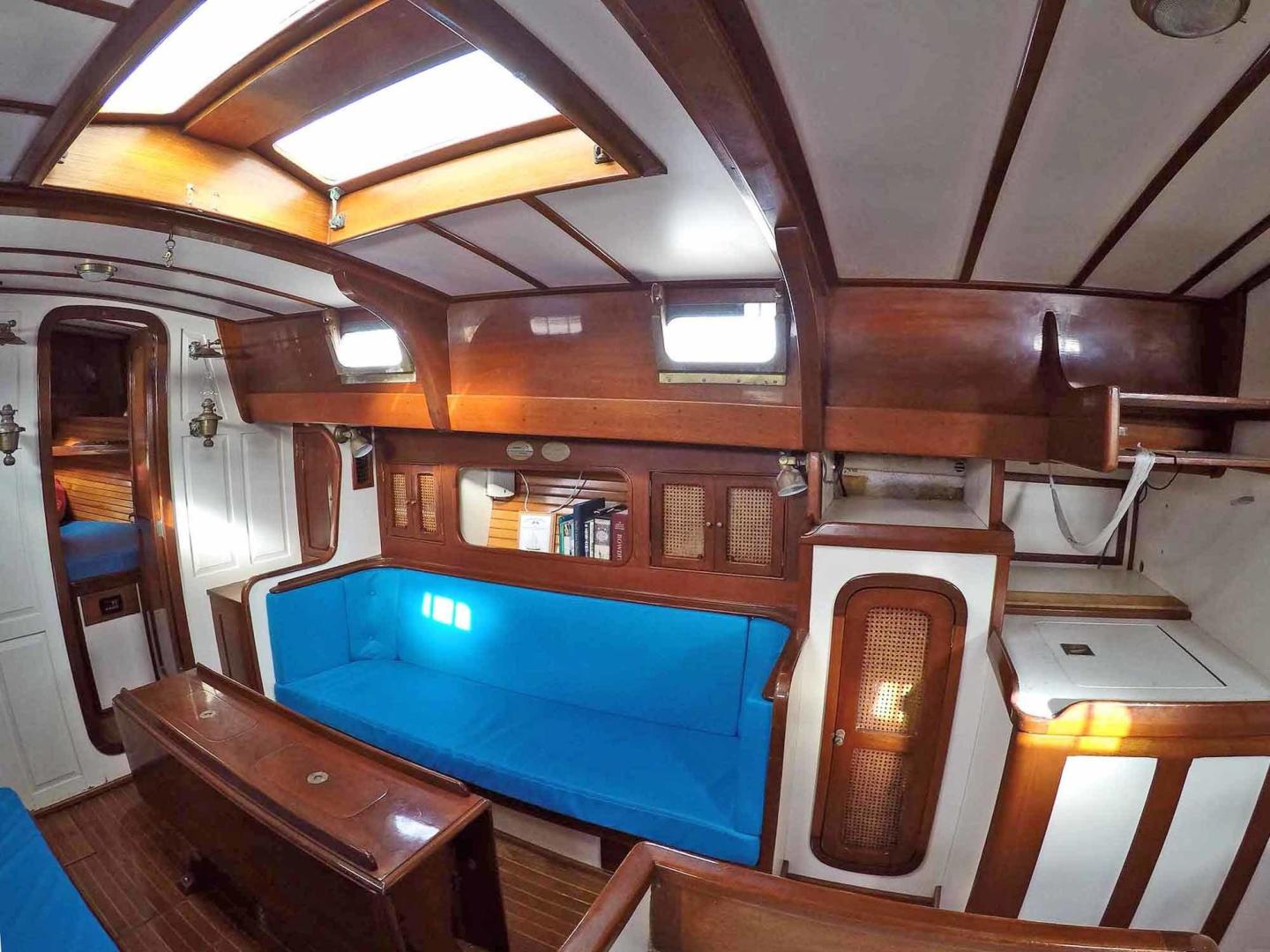

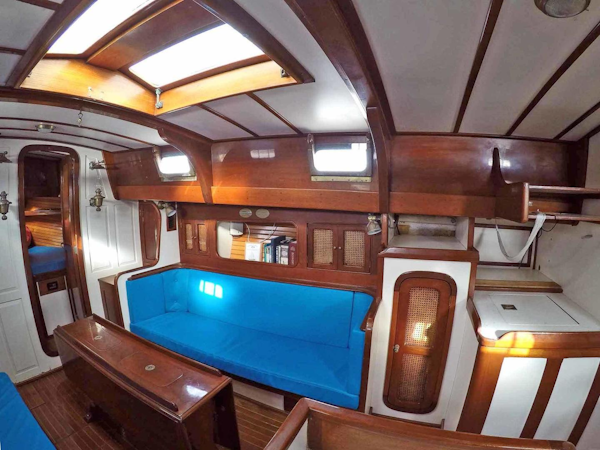

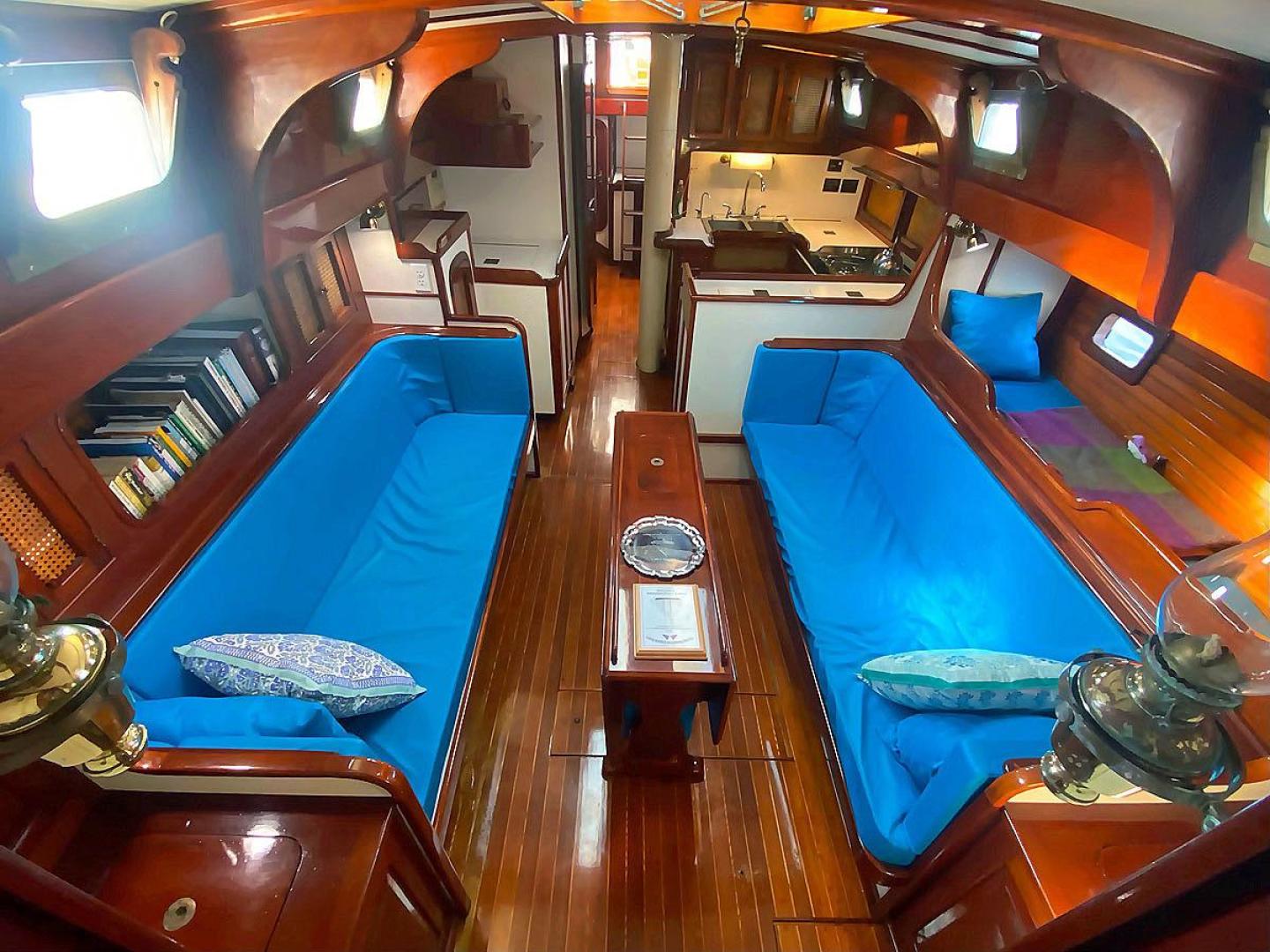

SALON

• Large butterfly hatch
• Royal blue synthetic leather cushions with matching pillows
• Table with folding leaves to seat six with center storage lockers
• Port and Starboard settees with storage beneath and outboard
• Port and Starboard Mahogany lockers with shelf tops; caned lockers outboard and above
• Brass decorative mounts for (2) gimballed lanterns on forward bulkhead
• Bulkhead-mounted stereo speakers
• Wood staving on hull sides
• Hanging wet locker starboard aft of settee

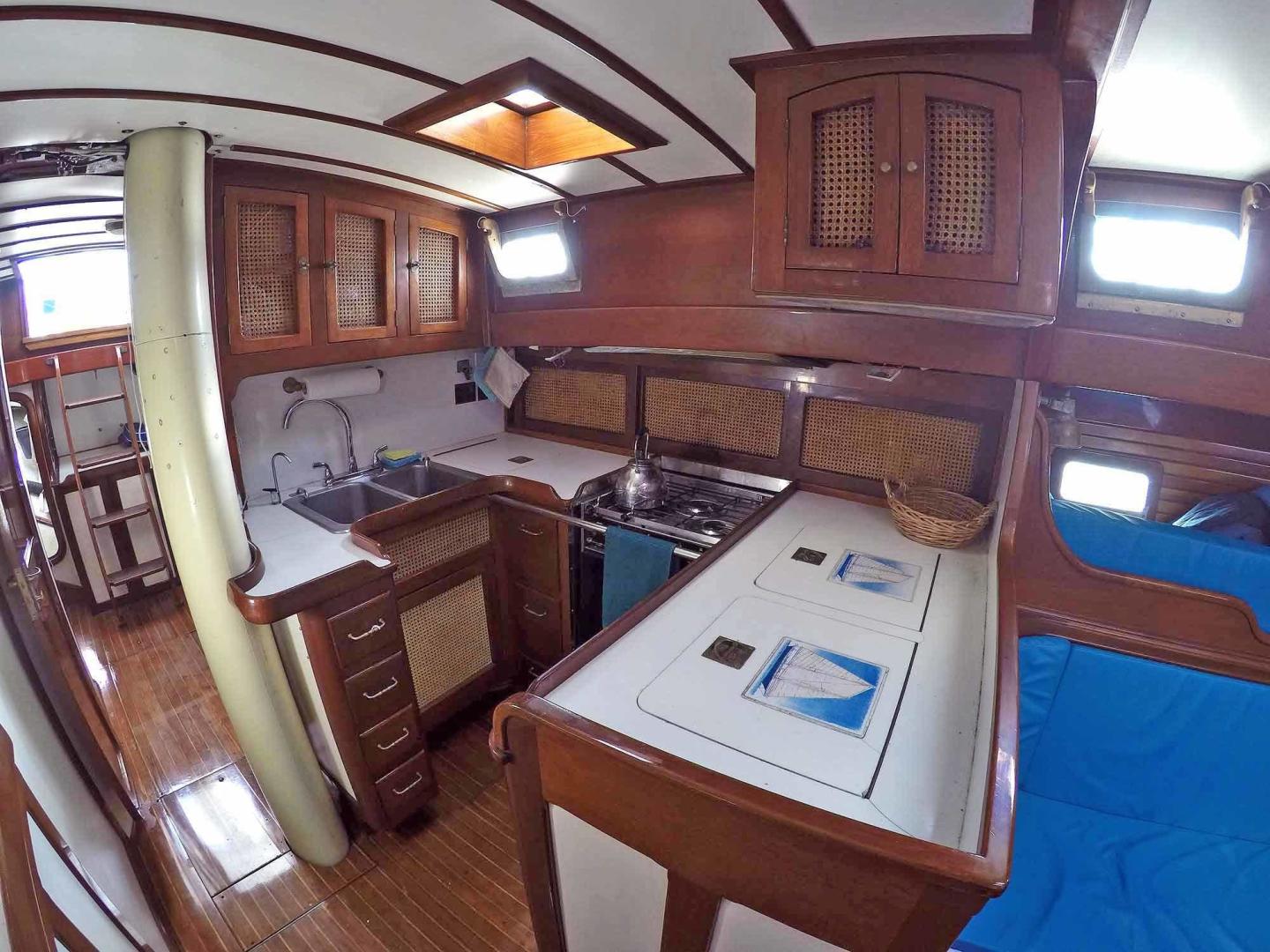

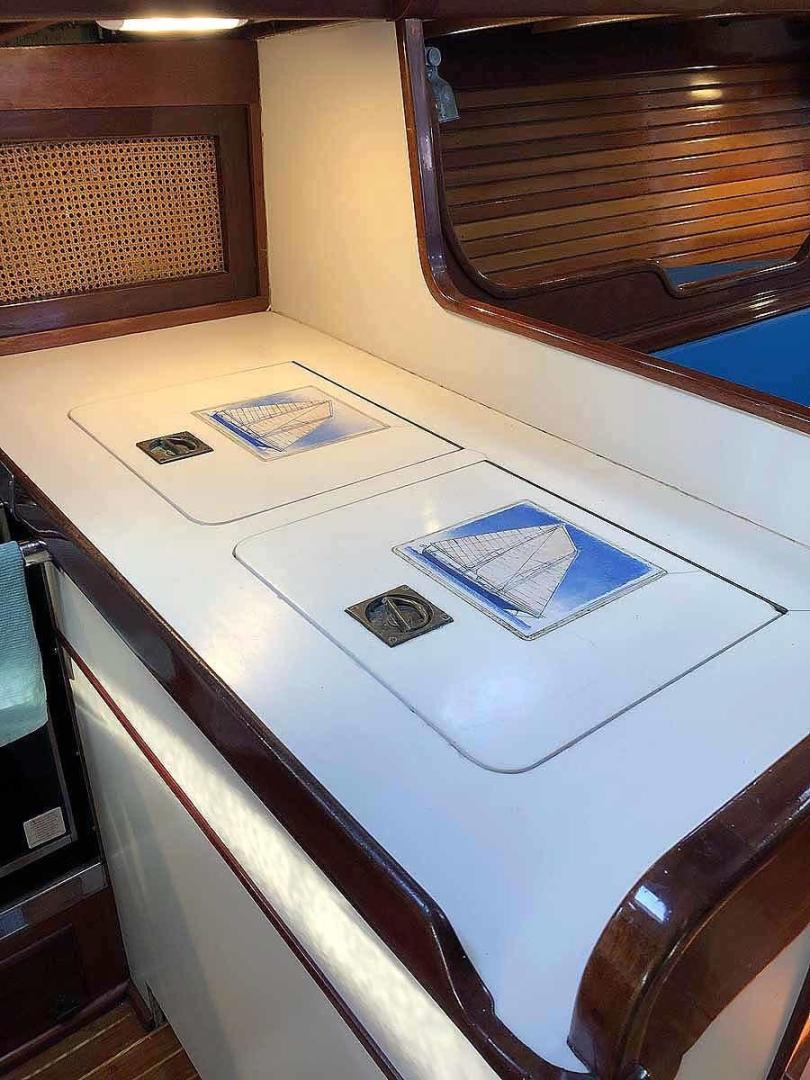

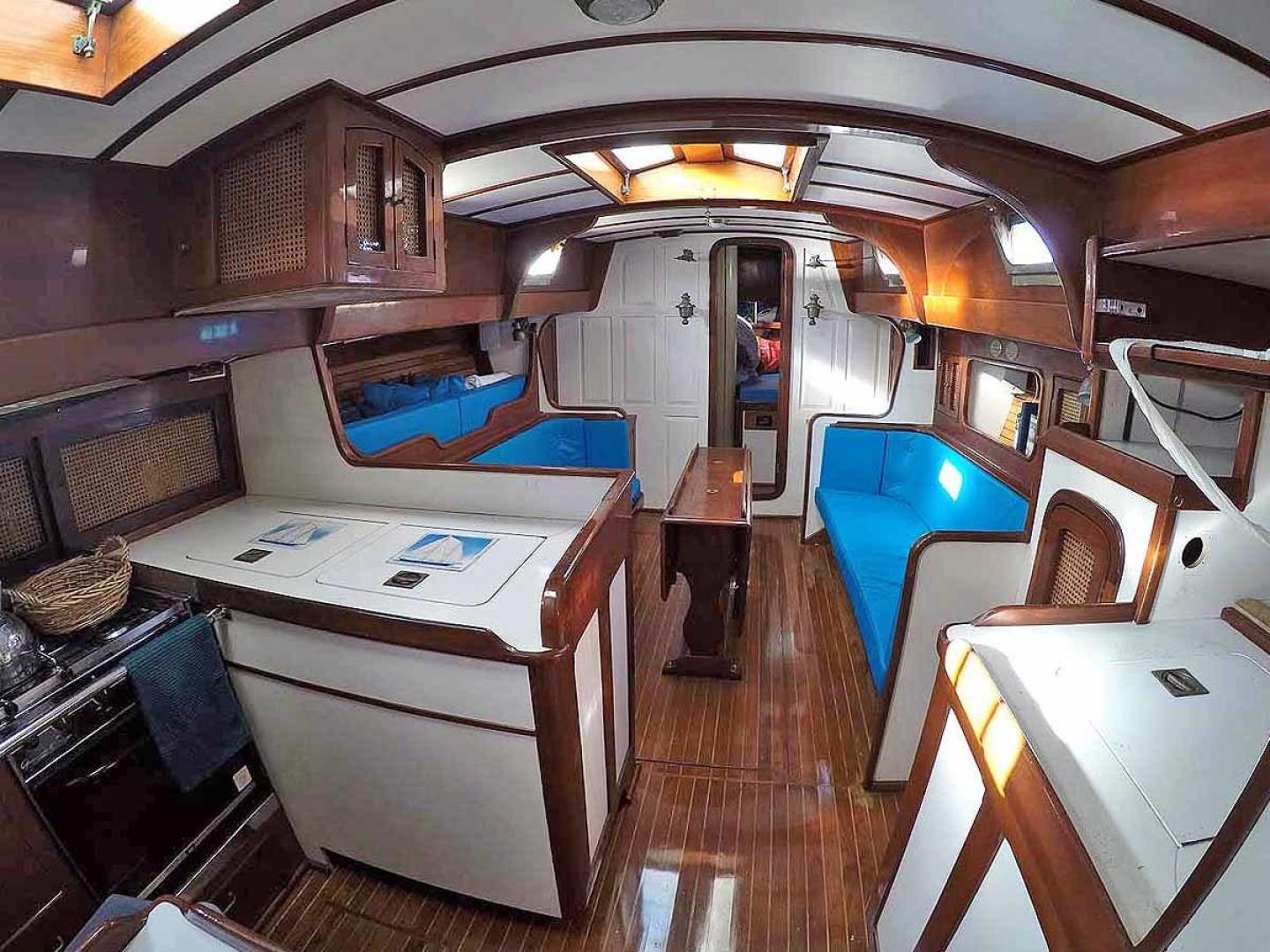

GALLEY

• Specially-designed pull-out spice cabinet
• Undercounter refrigerated ice boxes; freezer outboard with (2) cold plates; reefer inboard with single stainless cold plate and additional insulated ice box across to starboard
• Princess Gourmet II 3-burner propane stove with oven
• Bronze protective sheet under cabinetry above stove
• Trash bin under counter, with lid
• Twin deep stainless sinks
• Opening hatch and opening port
• LED undercabinet lighting for countertops (new, fall 2019)
• Ample drawers and lockers
• Seagull Pure Water tap for filtered drinking water
• Freshwater tap with foot pump
• Jabsco 82500 5 gpm house fresh water pump
• Jabsco 82500 5 gpm salt water pump for washdown on bow
• Rule sink drain pump
• Horizontal (wine) bottle storage in cabinet hung from overhead
• Locker doors: mahogany joinery with cane panels and wood dowel catches

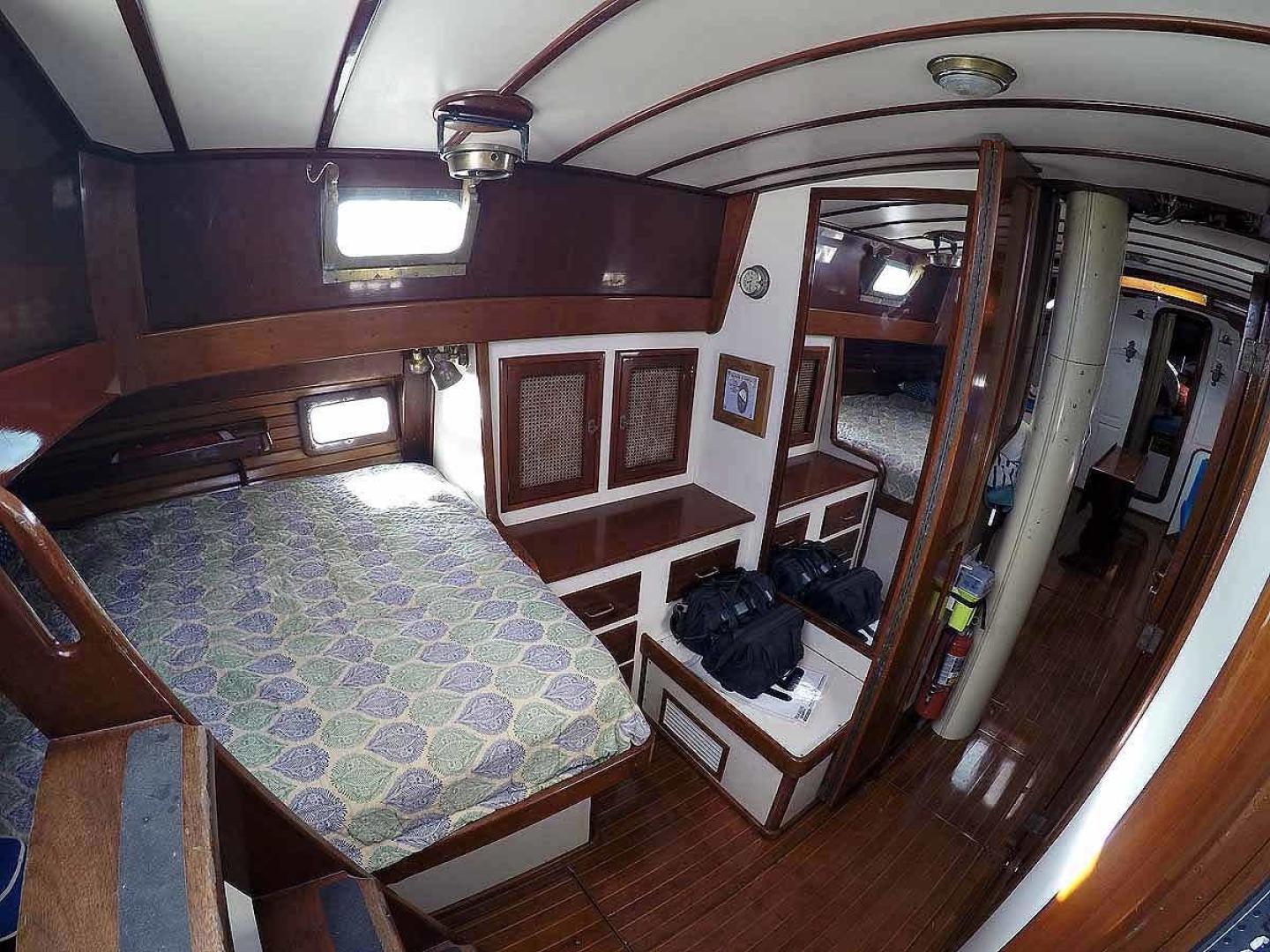

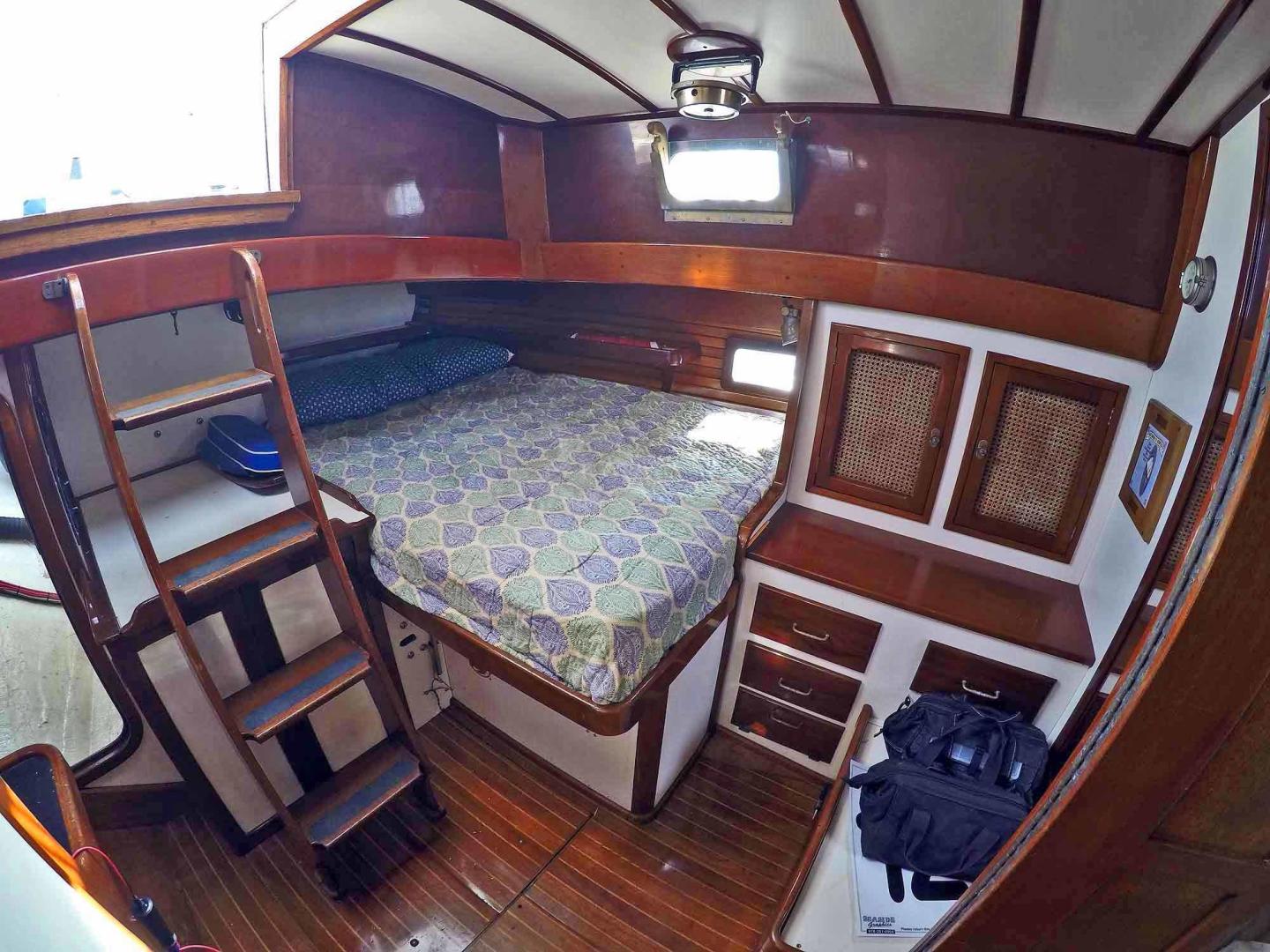

MASTER STATEROOM

• (2) Hanging wardrobes
• Set of drawers
• Settee
• Henderson manual bilge pump
• Custom mattress (new, 2014)
• AC vent
• Rotary battery switches side of berth; emergency parallel
• Chart light on long arm; swivel reading lamp; 110v outlets
• Hella 12v 2-speed fan
• AC control
• Wempe chronometer
• Danforth gimbaled compass, mounted on overhead above foot of berth

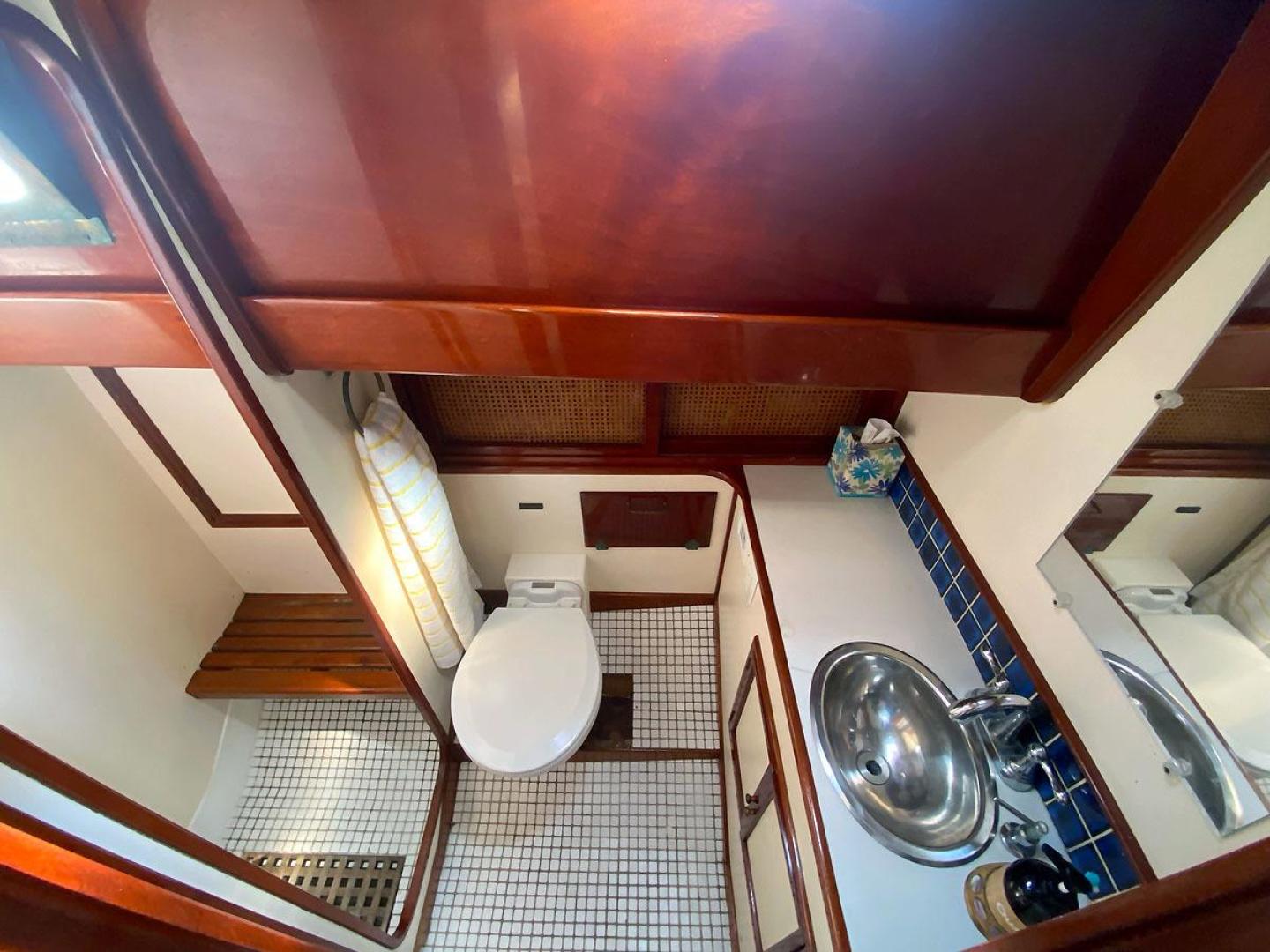

MASTER HEAD

• White tile soles
• Separate shower with teak bench seat; opening port; teak drain grate and sump pump; storage cabinet outboard
• Stainless sink with hot and cold taps; soap dispenser and blue tile backsplash
• Overhead hatch
• Raritan Elegance electric head with push button controls; salt or fresh water
• Ample lockers beneath sink and outboard
• 110v GFCI outlets

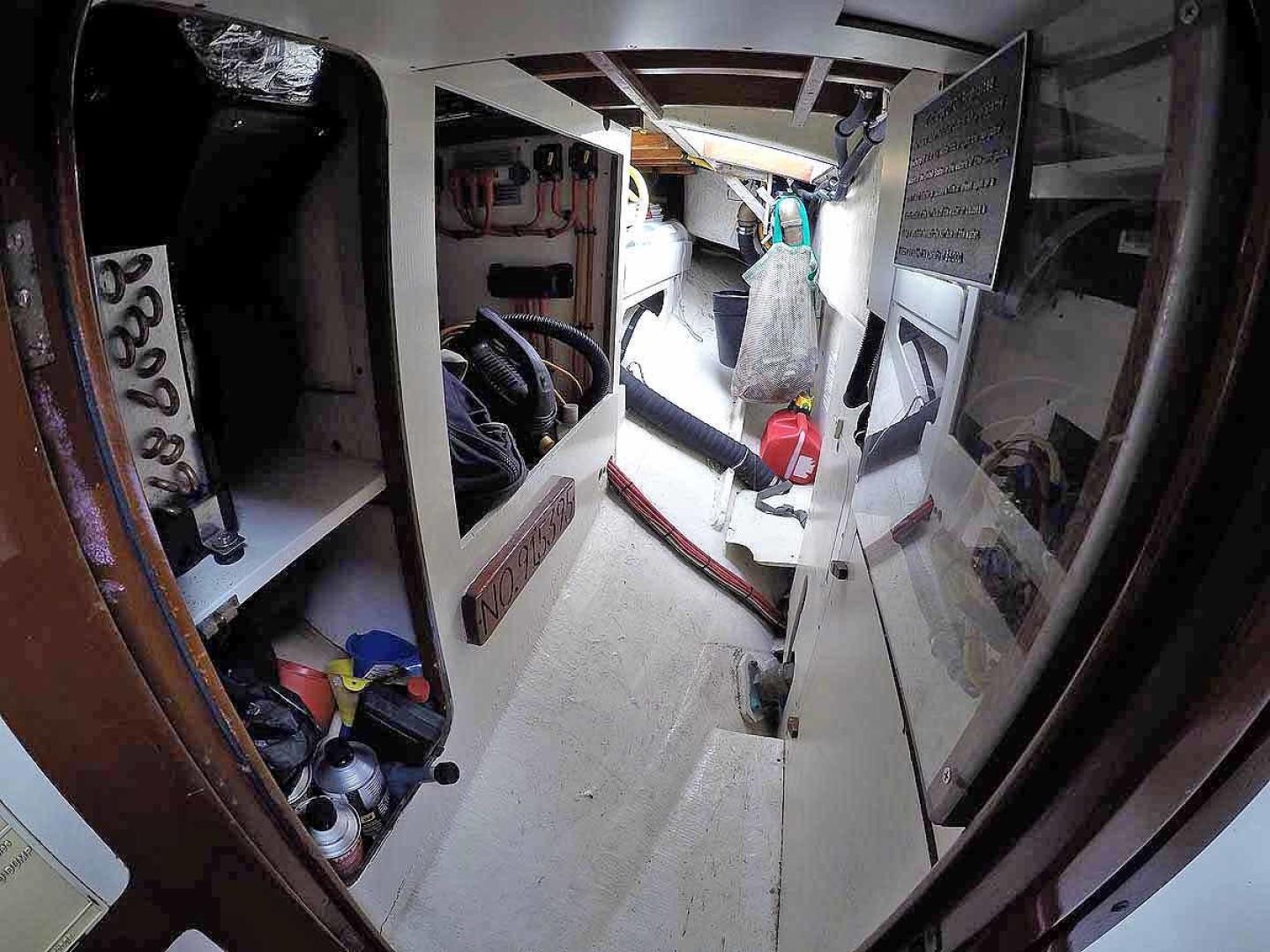

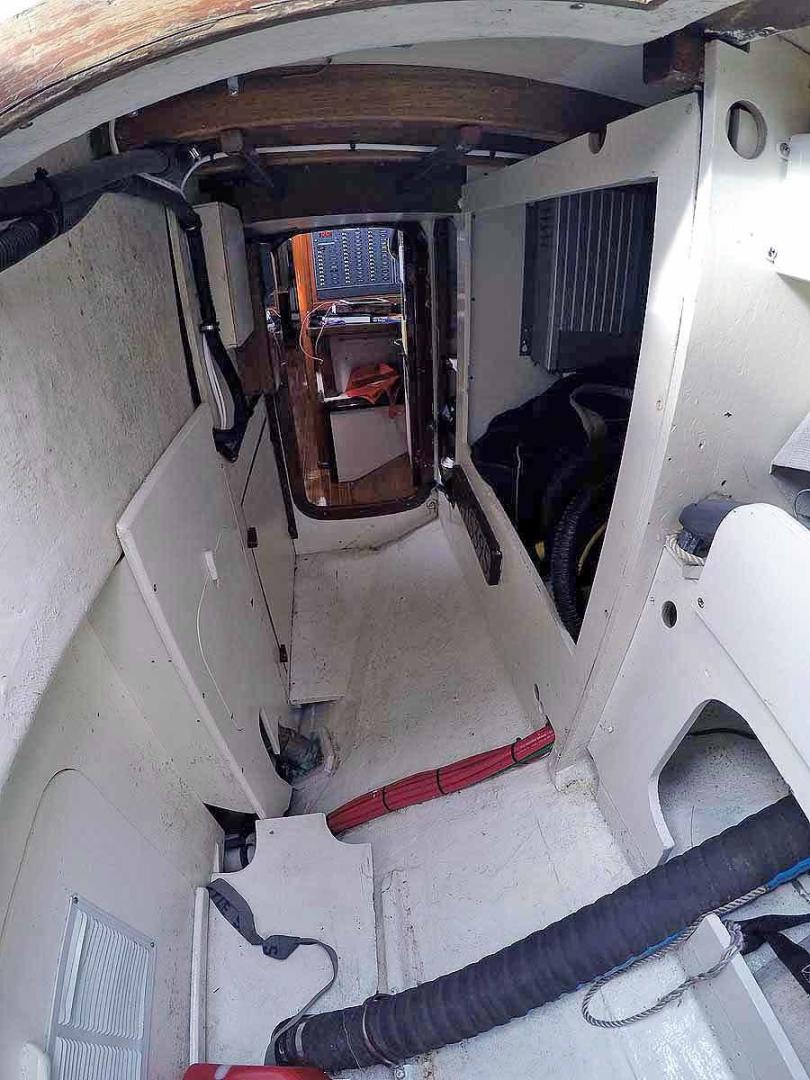

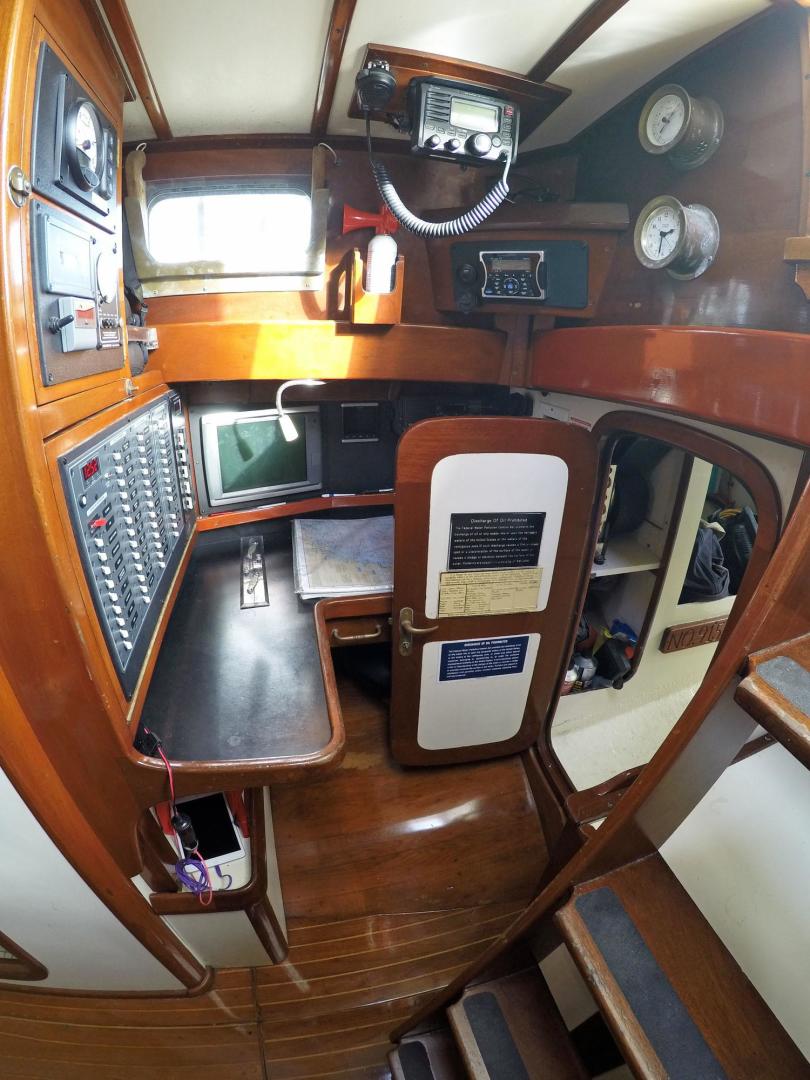

NAVIGATION STATION AND MACHINERY ROOM

• Built-in navigation station with L-shaped table and pull-out drawer
• Built-in shelf with fiddle below
• Swing-out seat

As referenced earlier in the listing, NARWHAL underwent an extensive $300,000 refit in 2013/14 with particular emphasis on all mechanical and electrical systems, which were removed from the vessel. Virtually all of the mechanical and electrical systems, including all new electronics (excluding the generator which was replaced in 2019), were replaced new at that time. The handful of items that were not replaced new, such as the bow thruster, were rebuilt or refurbished as needed. Follows is a partial list of highlights:

• Masts re-wired with new: radar mount, lights, windex, wind instruments, lighting protection and complete check of all fittings, stainless mast steps reconditioned
• Watermaker: entire system replaced new in 2013 (currently not in service)
• Refrigeration/freezer: all new Sea Frost system, including modifications to ice boxes and addition of divider; plumbing, dryers etc.
• Electrical complete re-design: all new wiring both 12v/24v; new electrical panels, breakers, switches, batteries and battery boxes, grounding and bonding, copper strapping, DynaPlate, bow thruster panel, chargers, inverter, outlets, battery monitor
• All pumps replaced new: shower drain, bilge (manual and electric), AC, house water, watermaker, washdown, macerator, sink drain etc.
• Many new light fixtures, some LED
• Mechanical new items: engine, engine beds, cutlass bearing, CV shaft, thrust bearing, Aqua Drive, FRP exhaust tube, custom exhaust riser, upgraded exhaust hose to 3”, vented loops, modified muffler design, engine and Gen thru hull strainers, sea strainers, max prop rebuilt, tank monitors, water heater, Accumulator tank, oil change system, washdown pump, Soundown insulation
• Engine room painted
• All new thru-hulls and seacocks
• Black water re-design included new custom poly holding tank (approx. 80 gallons) amidships to service both heads, all new plumbing, new macerator pump, new salt water pump for aft head
• Raritan Elegance electric head aft
• (2) Air conditioners, ducting, plumbing
• Bow thruster rebuilt; new motors, batteries, 24v charger, Lexan cover
• New Worley custom mattress aft; all new interior cushions and upholstery
• New Princess LPG stove/oven
• Electronics refit including GPS, HD radar, autopilot, sailing instruments, stereo

• All batteries new 2013: house bank of (6) 8D 12v AGM batteries under aft berth, 105 Ah each for total of 630 amp hours
• (2) 8D 24v AGM 90 Ah bow thruster batteries, forward under V-berth
• 12-volt /95 Ah engine start battery (new, 2013)
• 12-volt /95 Ah generator start battery (new, 2013)
• Mastervolt 24/30-3; 24 v bow thruster battery charger (120 Ah at 24-volt) (new, 2013)
• Mastervolt MASS 12/2000 sine wave inverter with remote control
• Mastervolt Chargemaster 12/70-3 automatic battery charger
• Mastervolt battery isolator
• Mastervolt BTM-III battery monitor
• (2) Hubbell 30amp shore power plugs; Quicksilver 50amp galvanic isolator;
• Blue Sea Systems 12v DC and 120 v AC panels
• Blue Seas 24v meter for bow thruster batteries (toggle switch for on/off)

• (2) Bronze gimballed lanterns, mounted on forward bulkheads in salon
• Ocean Frigast reading lights
• Spreader deck lights; both masts (new, 2014)
• Steaming light
• Mast head/tricolor light
• (2) Chart lights at nav station
• LED under-counter lights in galley (new, fall 2019)
• LED lighting above engine and in machinery spaces (new, fall 2013)

• Garmin GPS map 7212 GPS/radar plotter at nav station
• Icom IC-M504 VHF marine radio at nav station
• Icom IC M700 SSB marine radio with Icom AT-140 automatic antenna tuner (inoperable)
• Fusion MS-NRX300 stereo control
• USB plug with waterproof cover
• Weems and Plath bronze clock and barometer
• (2) Teak handheld VHF holders
• Teak corner shelf, teak shelf/cubby forward and outboard

At Helm:

• Garmin GPS map 721, mounted in a NavPod above wheel
• Garmin autopilot interface port pedestal (new, 2018/19)
• Garmin sailing instrument, starboard pedestal (new, 2018/19)

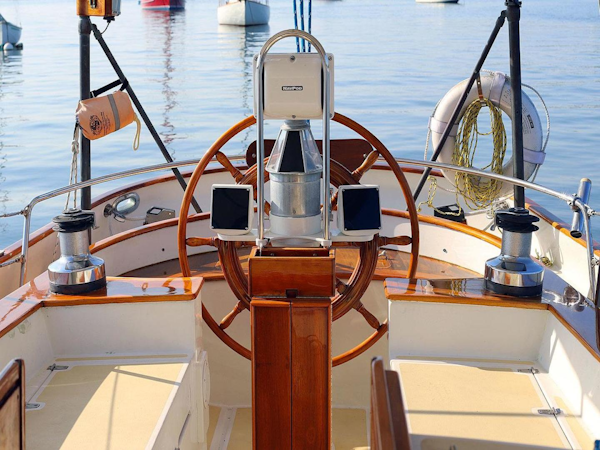

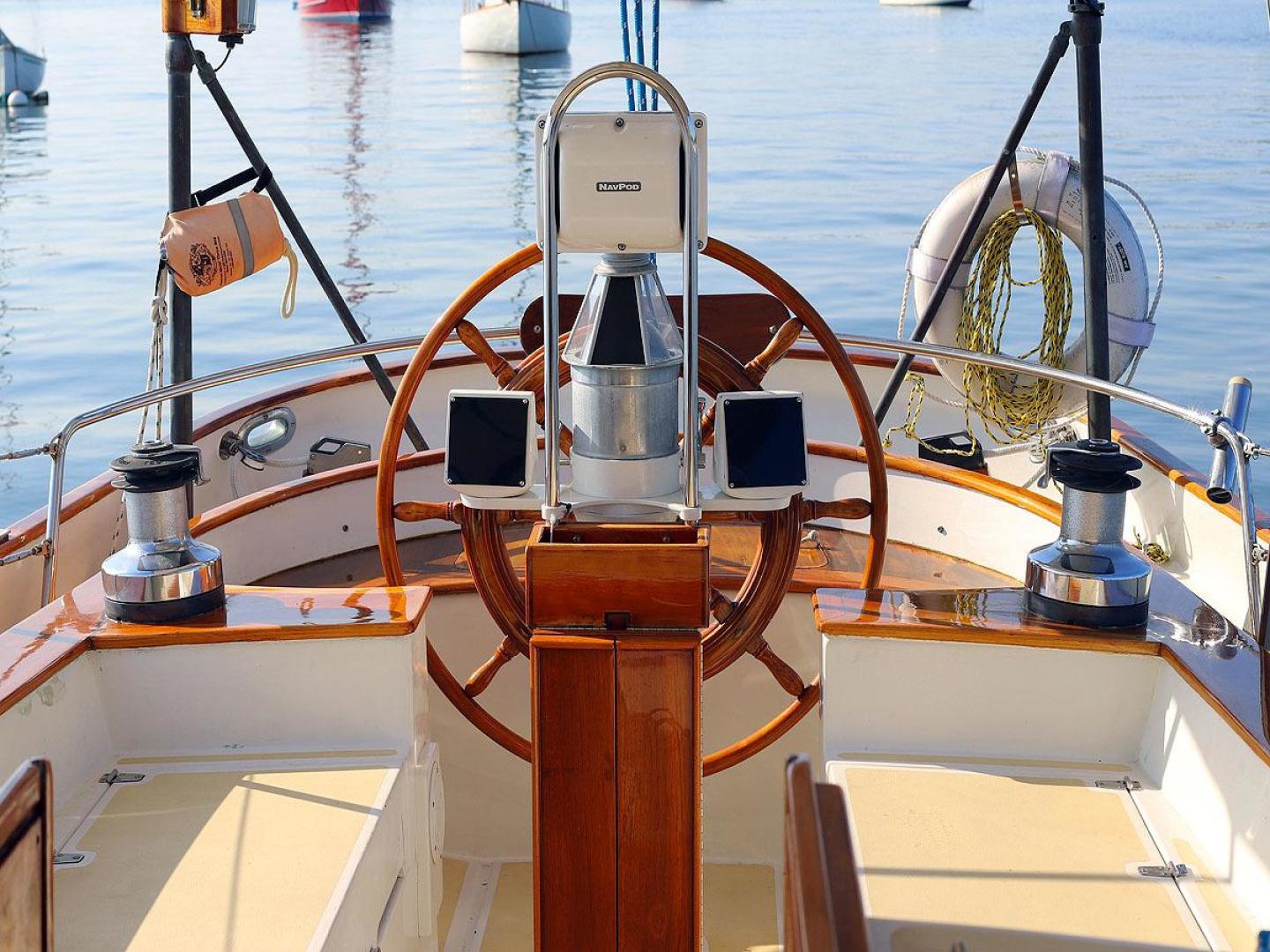

• Edson pedestal, painted white, with wheel lock
• Garmin autopilot hydraulic ram (new, 2018/19)
• Garmin HD closed-array antennae, mounted on foremast
• Danforth Constellation compass on pedestal
• 8-pin plug (inoperable)
• Icom Command MIC II remote VHF at port helm
• Toggle switch (inoperable)
• Airmar thru-hull Smart Sensor
• Bronze thru-hull with removable paddlewheel
• Garmin GPS antennae on boom gallows

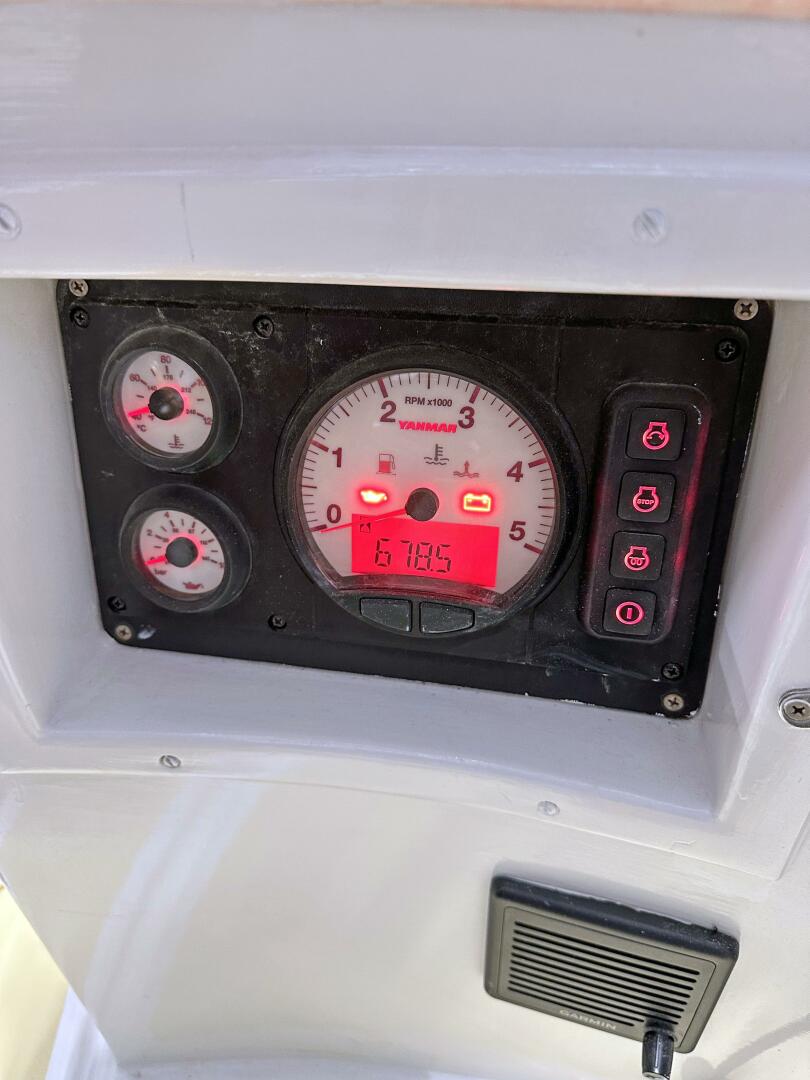

• Yanmar 4JH4-HTE1 4-cylinder turbo diesel engine, 112hp. Full start panel at helm and remote panel at nav station
• Tank tender gauge
• Prop shaft aperture (rebuilt, 2018/19)
• Cutlass bearing (new, 2018/19)
• Standard Yanmar alternator; 55 amp
• Phasor 8kW generator (new, 2014) with Kubota diesel (replaced new, 2018) (57 hours, Dec. 2019)
• Vetus bow thruster; joystick below helm with stainless guard
• Racor model 75-500 dual fuel filters with crossover valve and vacuum gauge
• Fuel tank (165 gallon) FRP integral beneath main engine
• Three-blade Max Prop
• Flexible prop shaft link to absorb vibration
• Dometic Marine Air AC/reverse-cycle heat aft (8,000 BTU) with “Smartstarter”, vented to nav station and aft cabin
• AC forward (16,000 BTU), vented to starboard salon and forward cabin
• Watermaker: Newport 400 MKII 17-gph (new, 2013/14) (currently not in service)
• Force 10 stainless water heater (16 gallon), 110v element plus engine heating
• Automatic fire extinguisher in engine room: Fireboy, with display at helm
• Reverso oil change system: engine and generator

The hull and cockpit hand laid fiberglass with Vinylester Resin. The decks and cabin house are wood and fiberglass; painted nonskid on top, solid teak sides and eyebrow; teak handrails; teak companionway hatch hood. Painted non-skid decks with high-gloss painted waterways in white. All bulkheads are glassed into the hull and deck on both sides for maximum strength.

• Fiberglass fuel tank on centerline aft beneath engine and cockpit (167 gallons)
• (2) Water tanks; aluminum (80 gallons apiece)
• Custom holding tank amidships (approx. 80 gallons)
• (2) Propane, aluminum (TW 10; WC 23.8; DT 4.0)

• CQR 60# plow anchor on roller with all-chain rode on teak and bronze bow sprit with stainless bow pulpit. 40# plow on port roller with approx. 30’ chain to braided rope rode
• Dual capstan upright windlass
• Anchor lockers with flush foredeck hatches each side of windlass
• Fisherman storm anchor; stowed securely on foredeck in sections along bulwarks

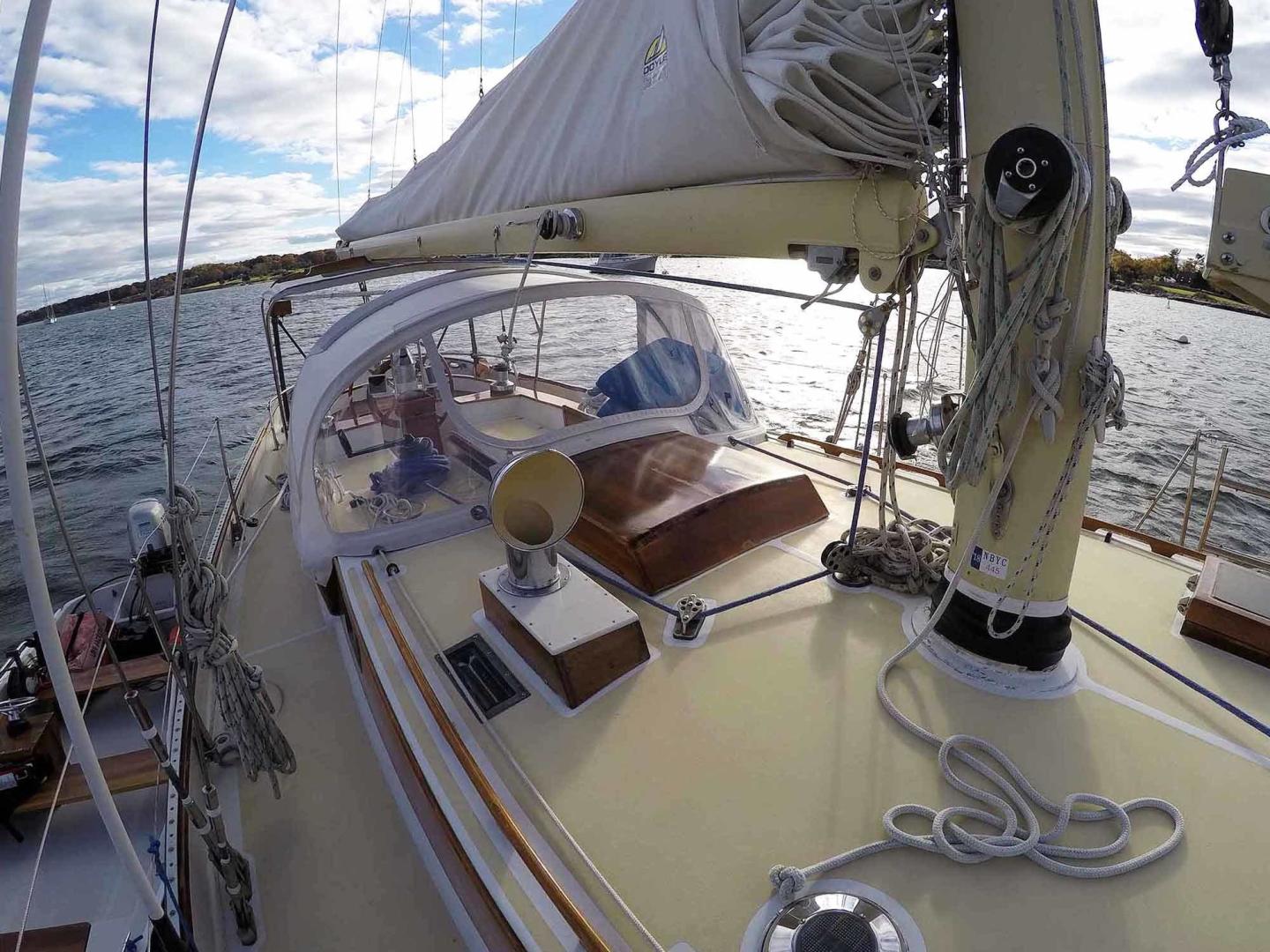

• Dorade vent and deck prism for aft head

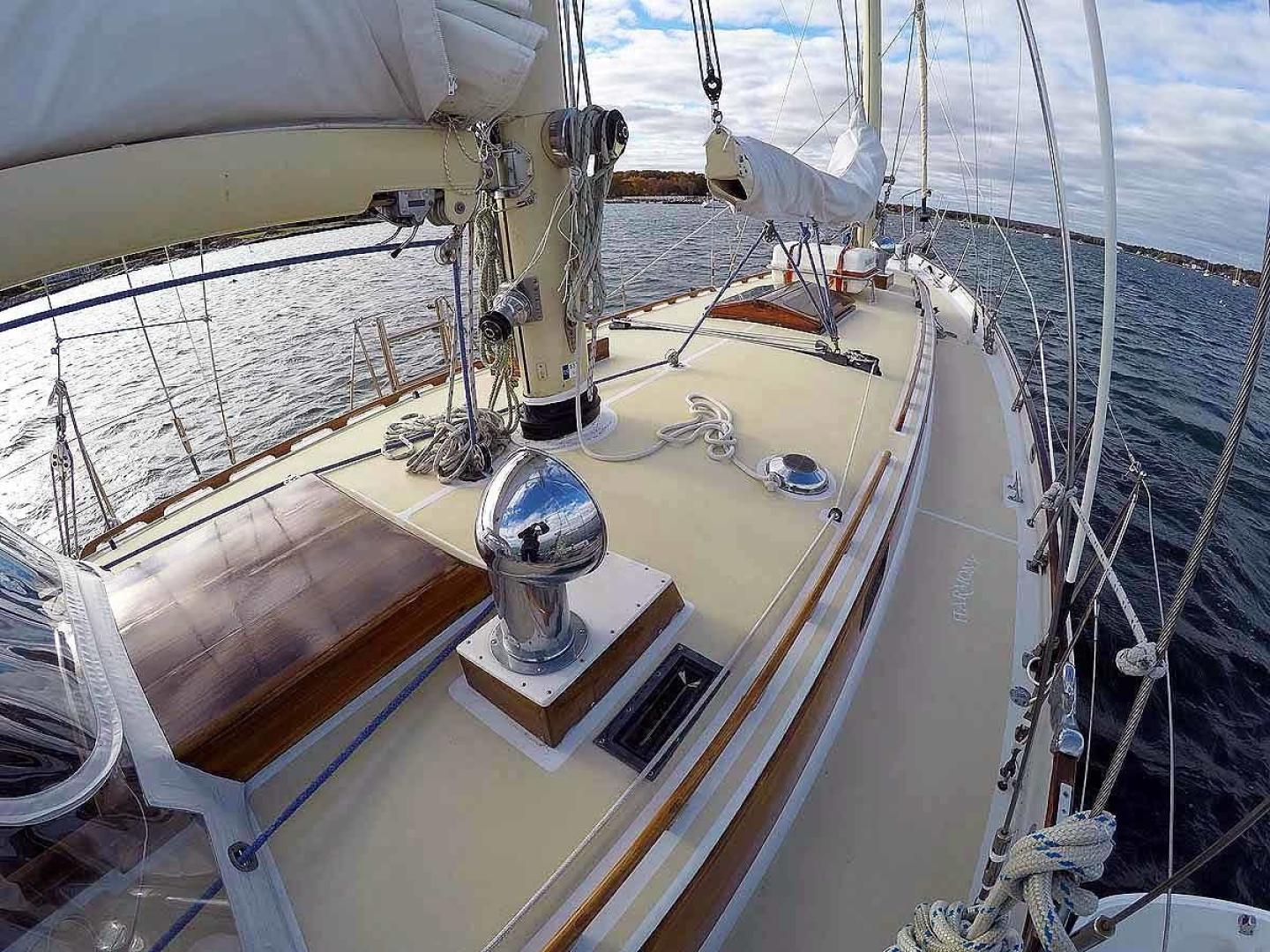

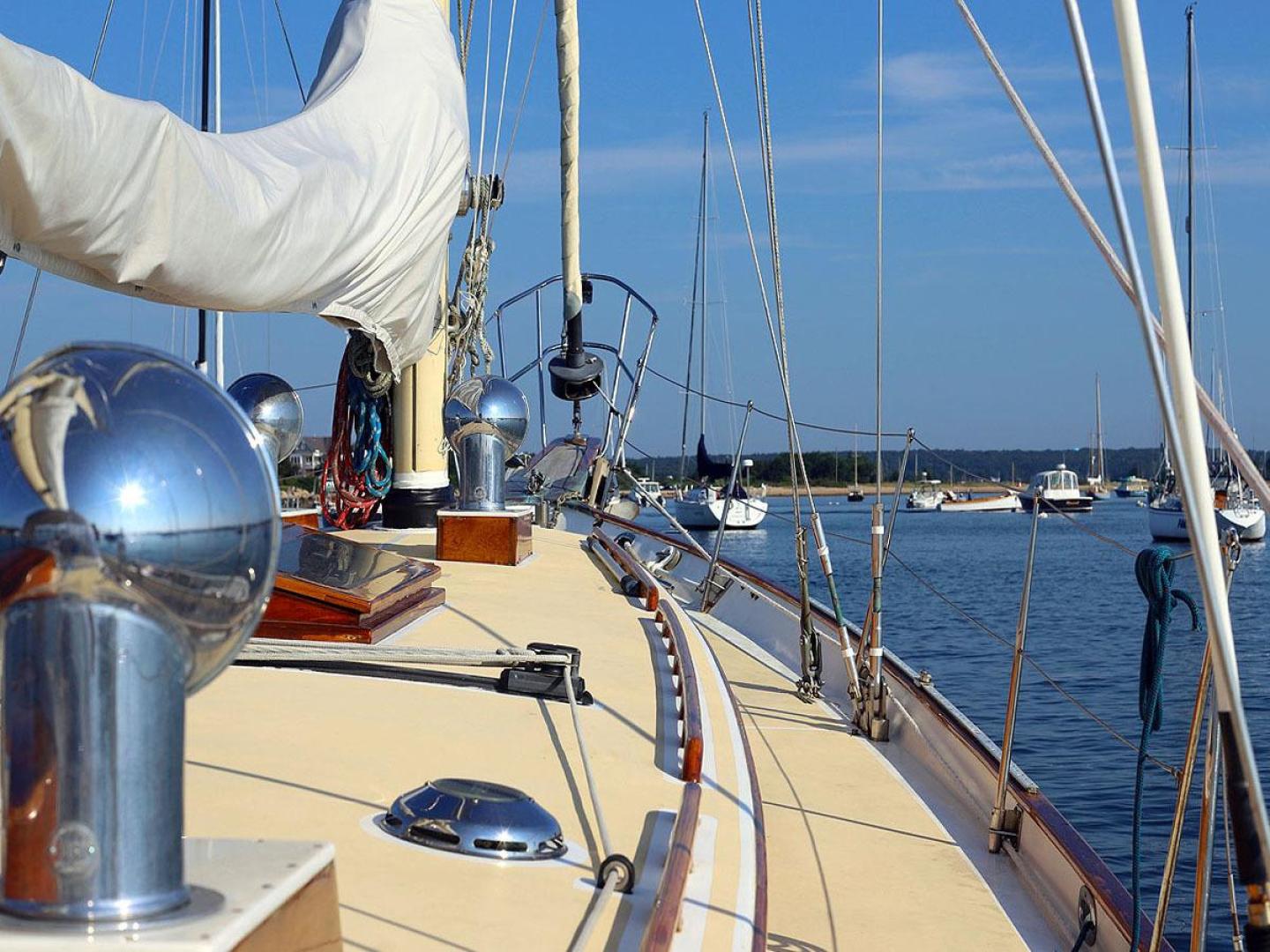

• Matching dorade vents with removable round stainless cowls just aft of foremast (1) for forward cabin, (1) for salon
• Nicro Fico solar vent for aft shower

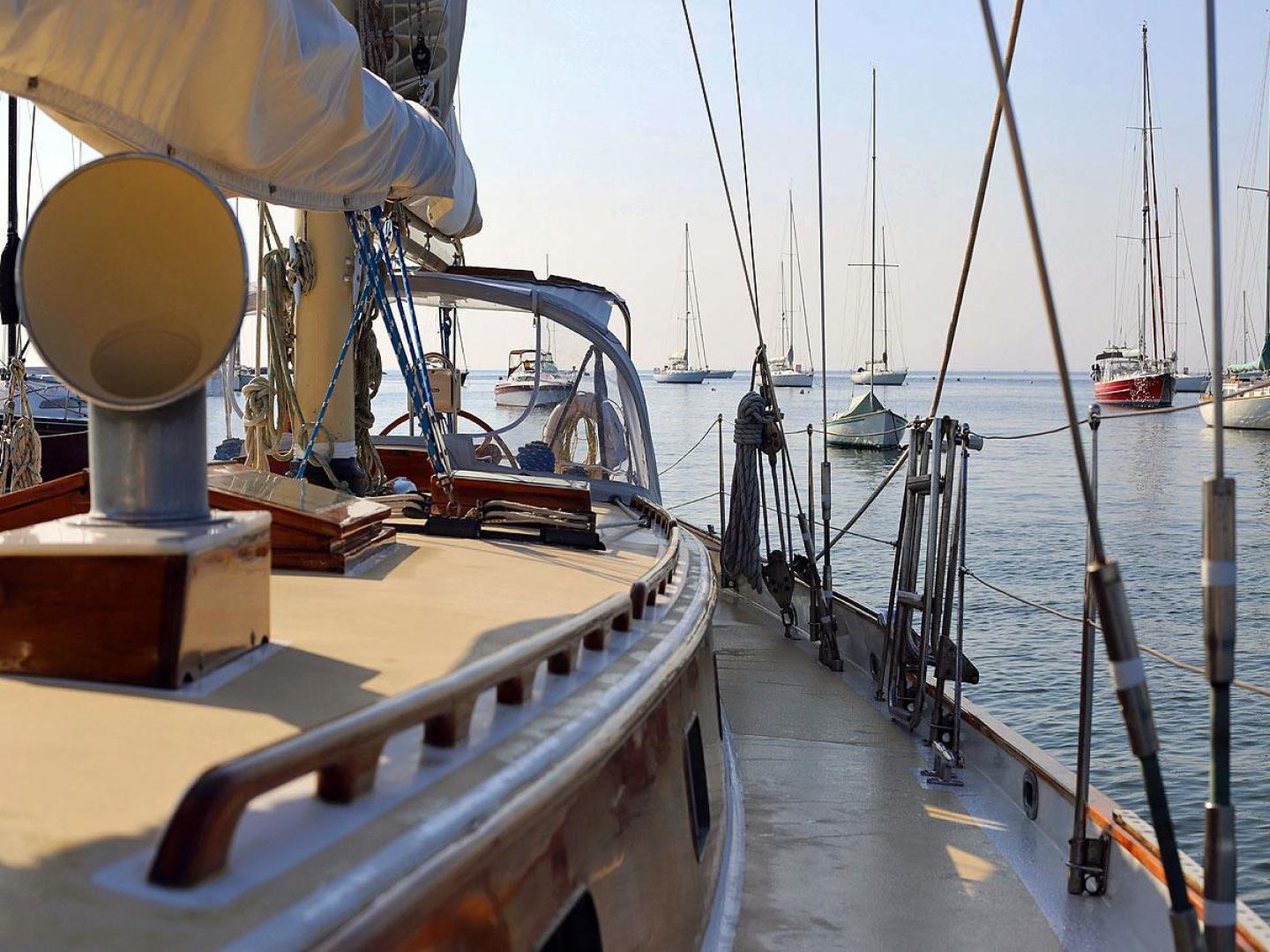

• Teak hand rails on cabin top
• Mooring lines
• Fenders
• (2) Decorative dolphins on bulwarks

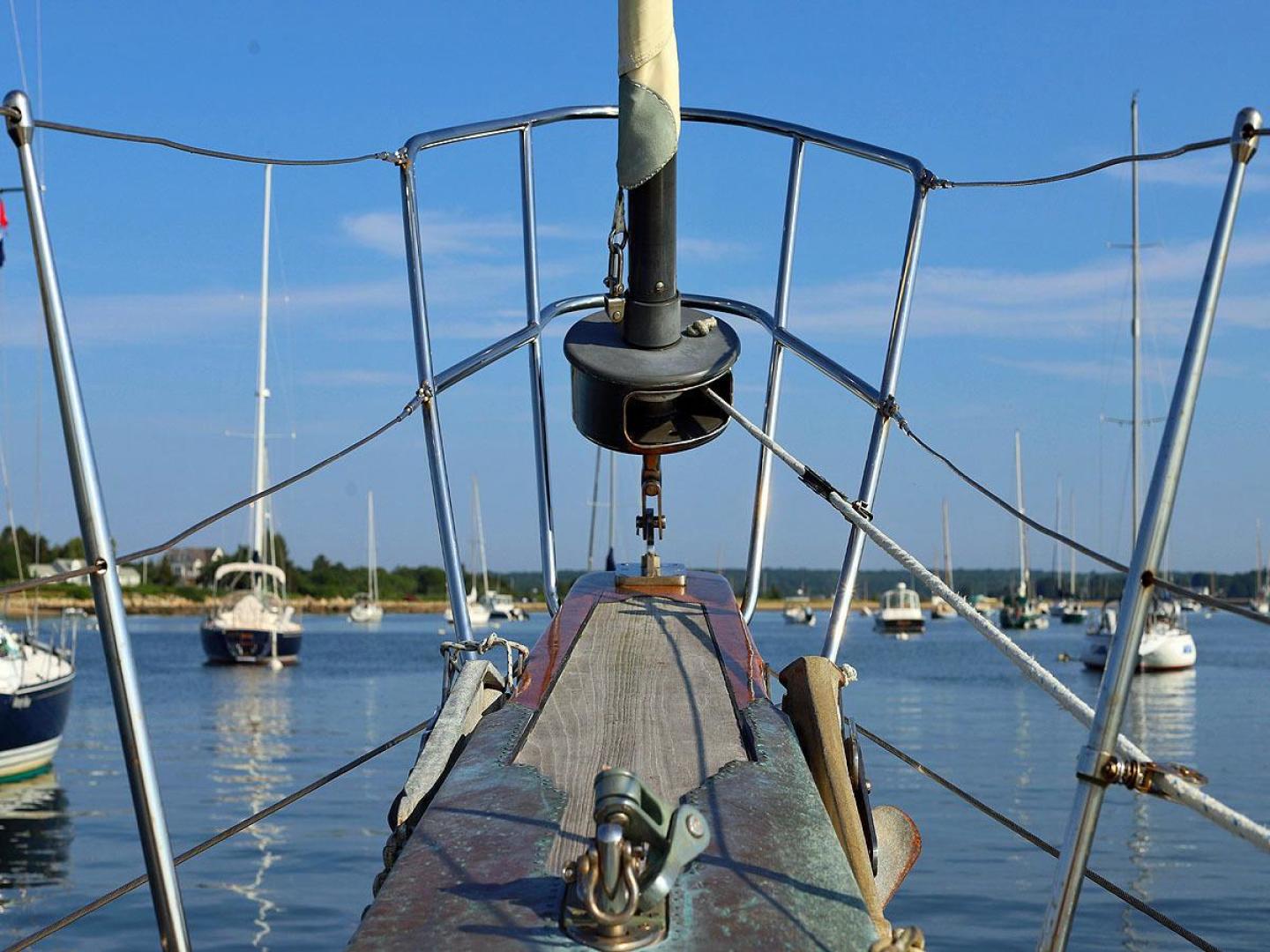

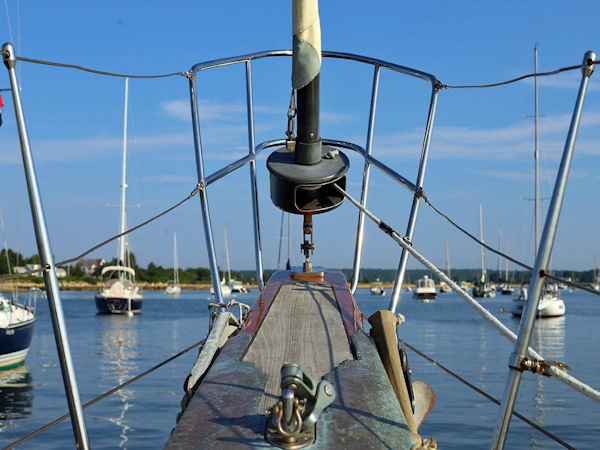

• Stanchions and lifelines: Stainless tube bow pulpit on bowsprit; solid stainless stanchions. Dyform stainless double life lines
• Hatches: Custom main salon teak butterfly hatch; galley, head and foredeck opening hatches
• Opening Ports: Cherubini custom solid bronze opening ports
• (6) Cleats: cast stainless steel, Herreshoff style
• (10) Chocks: cast “closed” in bulwarks
• Custom bronze and teak main boom gallows
• Swim ladder: stainless with teak steps at port stanchion gate

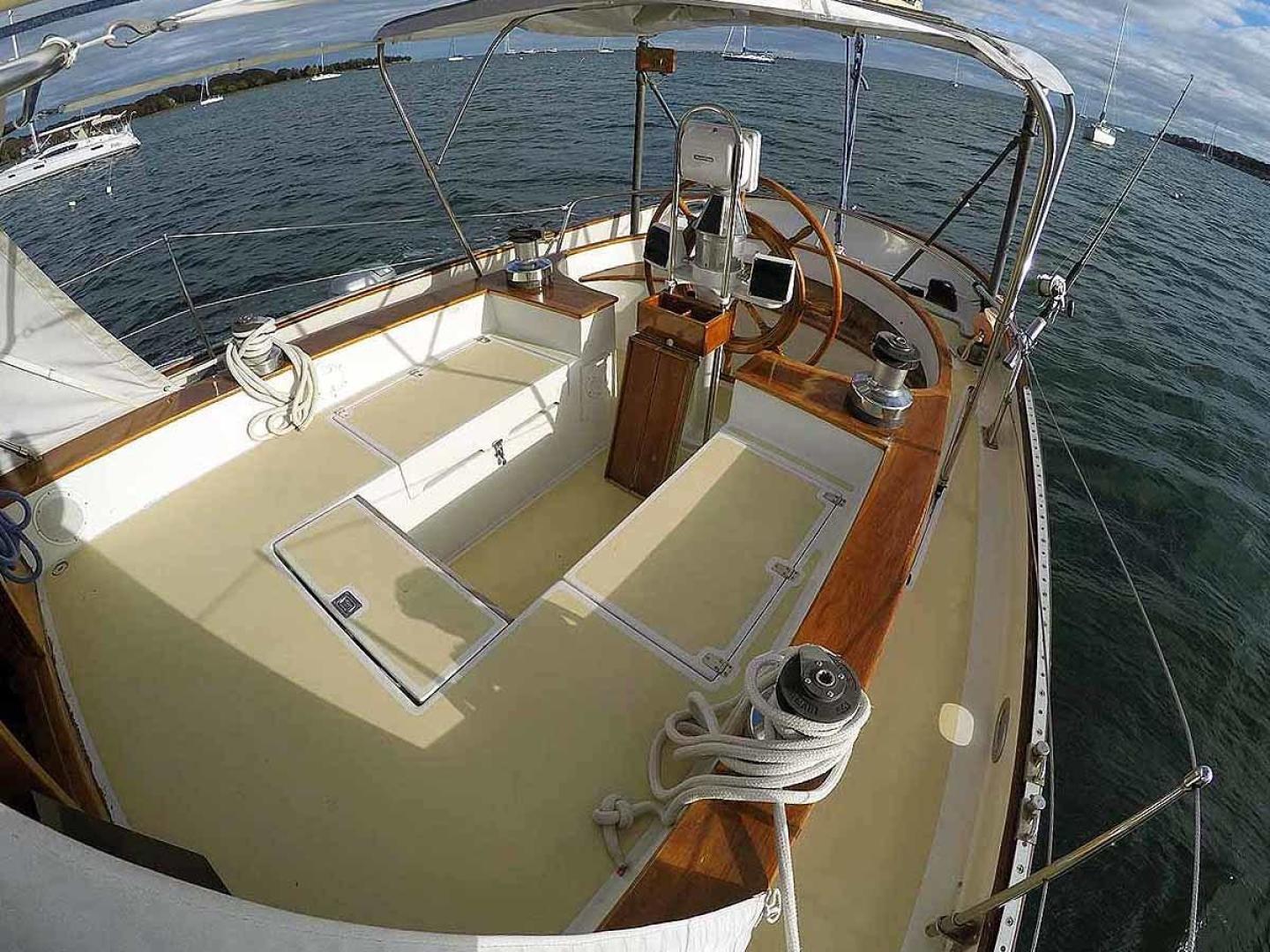

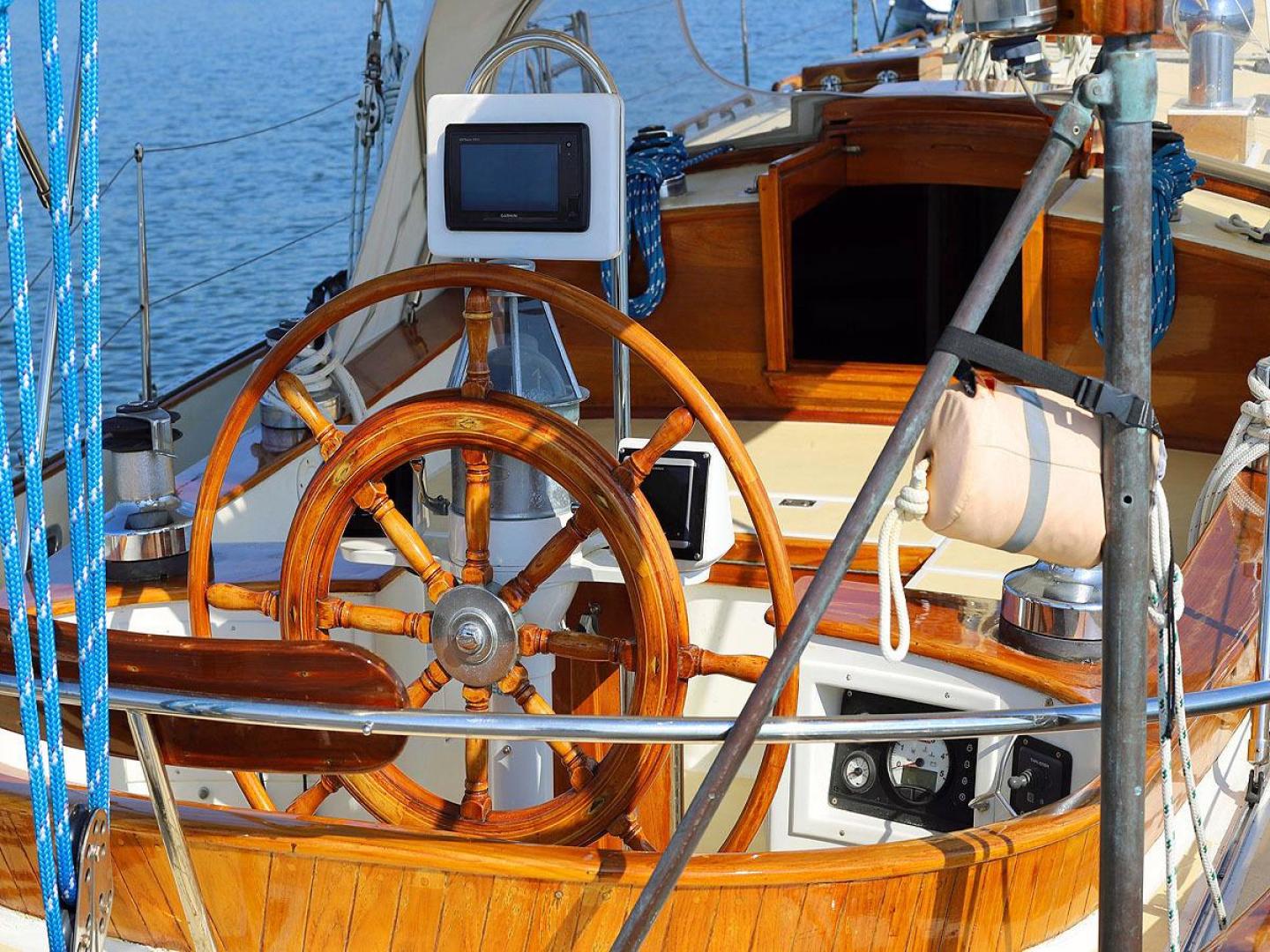

Steering area is separated by partial dividers with wide teak coaming boards on top, with Lewmar 52 self-tailing winches, one each, port and stbd., within easy reach of the helm. Access is excellent under helm seat to quadrant (rudder stops were re-glassed in 2017) and autopilot ram. Dual-lever engine controls on pedestal. Large cockpit forward with wide and long seats, good for lying down. Wide, raised bridge deck across the front of the cockpit. Teak companionway is offset to starboard, with smoked Lexan hatch board.

Fold-down table, cockpit coamings, traditional spoked wheel, pedestal storage cubbies and helm bench seating (raised on center) are all varnished teak.

• Stainless pedestal guard/handrail with NavPod attached
• Chromed binnacle with six-sided glass cover for Danforth compass
• Stainless safety rail, aft cockpit above coaming
• Engine panel (primary)
• Fireboy engine room extinguisher indicator below thruster control
• Vetus bow thruster joystick control below wheel to starboard, with stainless guard
• Secondary VHF port helm
• Rod holder for trolling
• Aluminum pedestal supports for sailing instrument and autopilot
• Port cockpit storage locker
• Propane locker forward cockpit on centerline
• Stereo speakers
• Large lazarette for storage

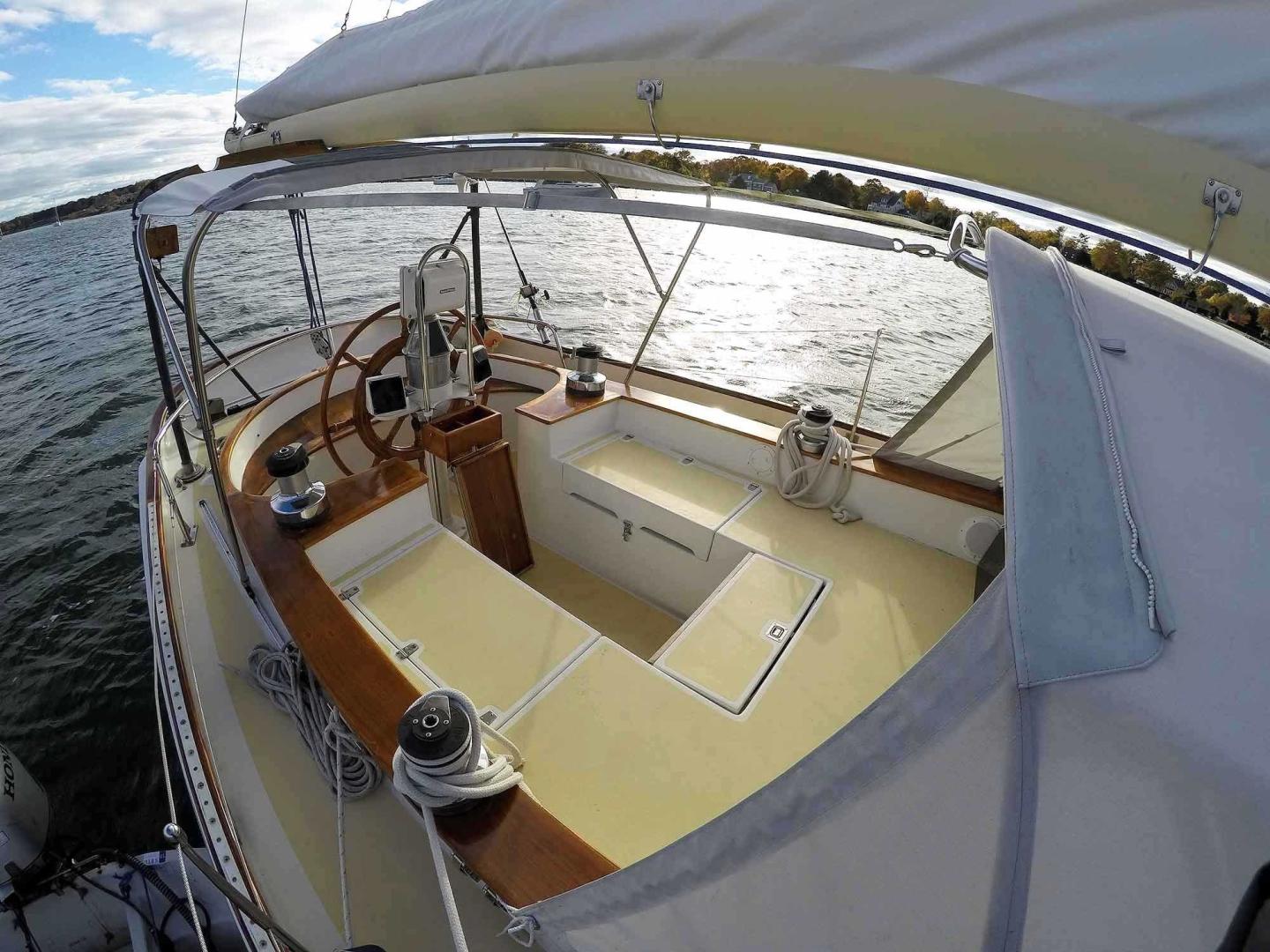

• Dodger with stainless grab bar and large center-opening panel
• Bimini above helm: (2) clear plastic windows with roll-up covers
• Filler piece connects bimini to dodger
• Starboard cockpit access to engine room
• Bronze and teak gallows for boom, with grab handles built-in each corner
• Cockpit cushions are Royal Blue Sunbrella

• Aluminum double-spreader masts and booms, Awlgrip painted
• Mainsail and foresail sheets both lead aft under dodger to winches in the cockpit
• Foresail is self-tacking, with traveler control lines leading aft
• Harken furling headstay reef line led aft to cockpit starboard winch
• Navtec stainless discontinuous rod rigging, stainless closed-barrel turnbuckles, Navtec fittings, removable 1x19 stainless wire inner forestay
• Braided polyester sheets and halyards, 1x19 stainless wire running backstays to braided line purchase system
• Mast steps, stainless, mounted on keel
• Harken main and foresail travelers; Schaeffer mainsheet and deck blocks; Merriman jib lead cars; Lewmar Spinlock line clutches; Antal line clutches on booms
• Stainless tracks on toe rails: pair forward and second pair start amidship and extend all the way to the stern. Short track on deck inside shrouds
• Chainplates: Stainless U-bolts bolted through deck to fabricated stainless angle irons bolted through hull to deck flange with overlapping inverted F.R.P. hanging knees glassed into hull sides

• Mainsail (new, 2017): Doyle Stackpack with lazyjacks. Fully-battened with Tides Marine batten stainless slides
• 140% genoa; 100% yankee jib; fisherman staysail; fore staysail; storm jib; storm trysail; cruising spinnaker
• Sunbrella canvas: dodger, bimini, filler piece between, sail covers, helm cover, hatch covers, life raft cover (all new 2017/2018)

WINCHES:

• (2) Lewmar 52 ST
• Lewmar Mainmast 46ST, 40ST, (1)16ST
• (2) Foremast 40ST
• Lewmar 48 ST mainsheet winch, starboard companionway
• Lewmar 40 ST foresail winch, port companionway
• (2) Lewmar 46 ST Primary genoa sheet winches cockpit

• EPIRB, ACR, mounted near base of mainmast
• Ring buoy
• Fireboy automatic fire extinguisher in engine room
• (2) Portable fire extinguishers
• (2) Manual bilge pumps; Large Edson pump in cockpit; Henderson pump below, next to companionway and aft berth
• Rule 2000 electric bilge pump under companionway
• Offshore covers for all opening ports
• Wood plugs for thru-hulls attached in bilge
• Stainless padeye in port companionway for harness tether hookup
• Jacklines
• Drogue
• Emergency tiller, stainless, starboard lazarette

The owner’s personal effects are excluded from the sale.

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
