Willow42' Cabo Rico 42 Pilothouse 2005

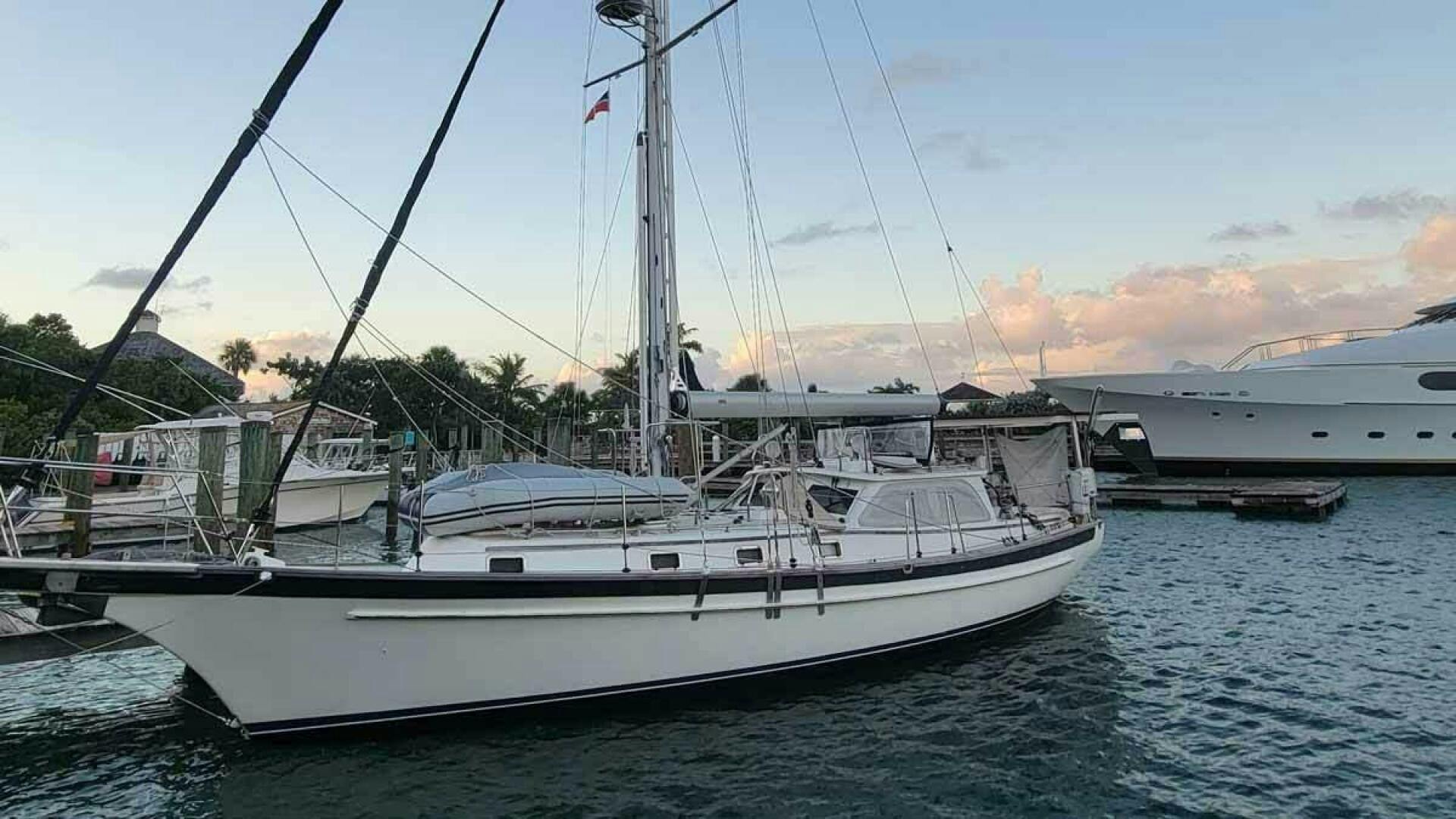

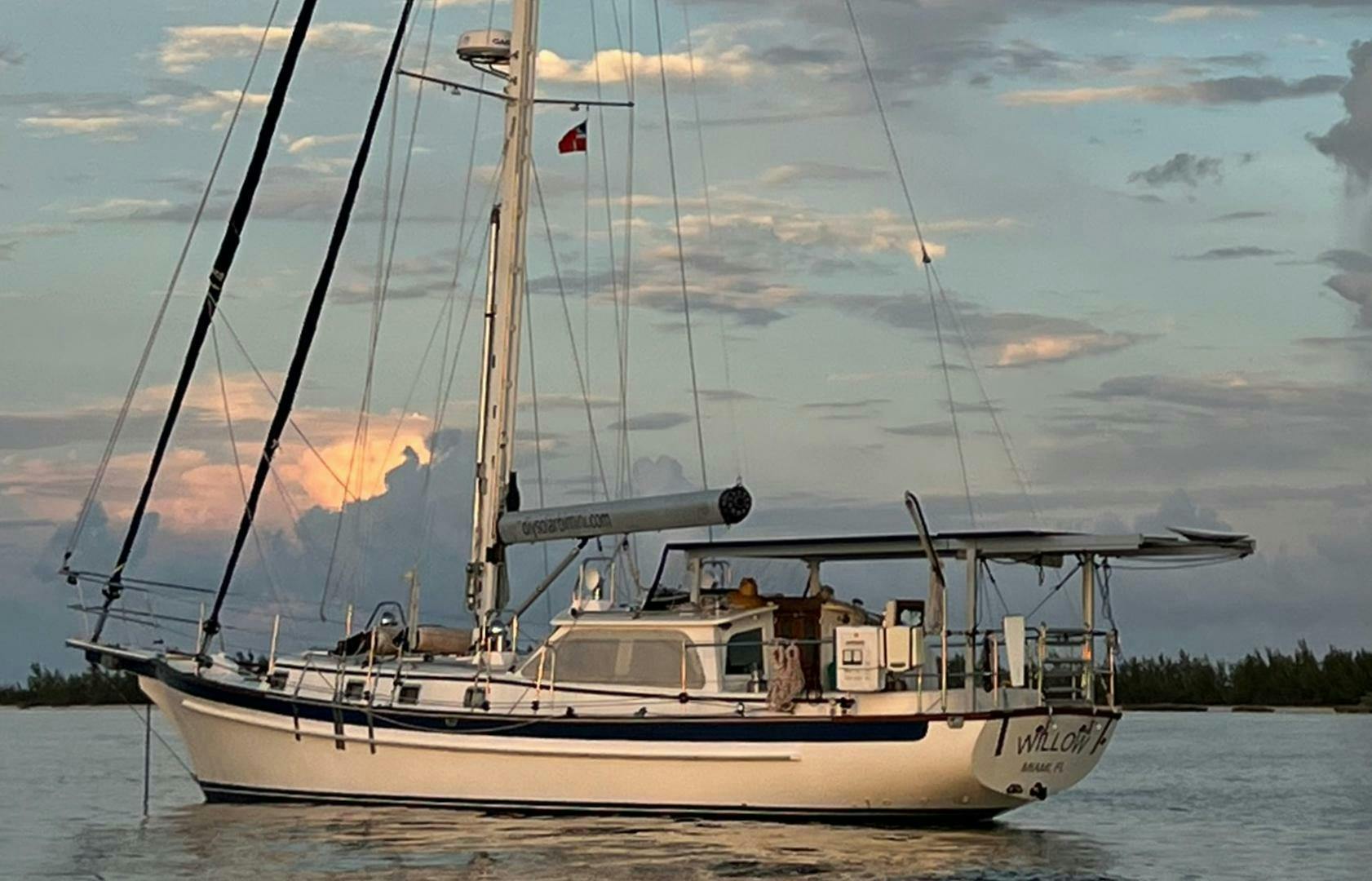

Willow – 2005 Cabo Rico Pilot House



S/V Willow is a rare 42 pilothouse Cabo Rico boasting a Yanmar 56 hp main engine, Westerbeke 5.5 KW genset, Vetus bow thruster, powerful double head rig furling head sail, Scheafer boom furling, and world class construction. It features a centerline master forward with an ensuite head and large stall shower. There is also an over/under cabin to port and an aft double to starboard. YES that's three cabins in a 42' boat! The pilothouse has a full inner helm that provides great 360 degree visibility. Hidden under the raised seating is a very functional work room with vice mounted along with an additional freezer and plenty of storage for spare parts! This vessel has an equipment list too long to mention here and has been very well maintained by a knowledgeable owner. This is a very capable world cruising vessel with great sailing performance, not to be confused as a motorsailor. This Cabo Rico 42 should be at the top of the list for anyone seeking this class of vessel.

EXTENSIVELY AND CONTINUOUSLY REFIT 2021-2025

Total Value of Equipment Upgrades - $256,842

Rig: East Coast Rigging on delivery 11/2021 – Total $55,995

• All standing and running rigging removed and replaced, including but not limited to: 1 X 19 SS, Sta-Loc fittings, turnbuckles, spreader ends, remove and replace isolating all mast fittings and fasteners, halyard exit plates, new steps at masthead, 316 SS lifeline, added 316 aft safety bars, new Harken Ocean MKIV 2 genoa roller furling, new Harken Ocean MKIV 1 staysail / storm jib roller furling, lead blocks, running rigging.
• Engineered and installed custom mast foot bearing plate machined from aluminum billet, custom masthead extension for spinnaker, Code Zero, etc.
• Replaced and secured all in-mast wiring and antenna leads, Shakespeare VHF/AIS antenna and spare high gain, Davis wind indicator, Garmin gWind wired transducer.
• Replaced all navigation lights with Lopolight lights: Running, Masthead sailing with strobe, Steaming. Replaced Foredeck light and Spreader lights.
• Replaced Schaffer Gamma Boom main sail articulating mast track and all components, serviced boom.

Rigging Additional:

• Standing Rigging re-tuned and survey: 4/2024 by Nance Underwood after 3,800-mile shake down.
• Spinlock XTS rope clutch and cleats - Replaced several mast-mounted ones 4/2024
• Spinnaker pole: Replaced Forespar 13-30 aluminum 4/2024.
• Installed new laser-welded American aircraft-grade 316 SS stem fitting for dolphin striker 4/2023.
• Genoa Carts: Added new Harken 32mm High-Load Pinstop Cars HGT326S.
• Mainsheet traveler replaced with 32mm High-Load Mainsheet Traveler Car and control ends. Added various Harken Big Boat 75mm Blocks and added 2.3-ton Snatch Blocks for preventers.
• Lewmar Ocean 40 winch: Added at starboard side cockpit, 4/2024. Rebuilt all winches, complete spare part kits, continual service.
• EWincher 2 battery-powered winch handle. $2177

Lines: All running rigging replaced 2021, new spares, control lines, furling lines, soft shackles, and dock lines as needed.  4 X 130’ 3-braid hurricane / Panama Canal lines, in addition to 300’ ¾” drogue line and 350’ 3/8” 19,000 ABS Amsteel Blue retrieval line.

Inflatable Fenders: Taylor Made Super Duty 18” X 29” Super Yacht Inflatable Fenders.

Compressor and Hookah: California Air Tools Ultra-Quiet Oil-Free Air Compressor, Horizontal, 2.0 HP, 4.6-Galllon Twin Air Tanks with 100’ hookah set-up, inflator tips for fenders.

Deck Hatches: 8/2022 Replaced all Bomar deck hatches with SS Bomar Hatches, except small one over the head and companionway sliding hatch. $4,200

Ground Tackle:

• 77 # S160 model galvanized spade anchor, 2021.
• 400' Domestic ACCO 3/8” G43 galvanized chain, 5,400lb SWL, Titan 5720 SWL anchor shackle, new chain wheel for Muir Cheetah HR2500 electric windlass, 2022.
• Imtra watertight dual solenoid controller behind chain shield, 4/2024. Stocked new spare, R&R foot-switch cabling, new hand controller, painted anchor locker.
• Twin anchor snubber lines with Chafe-Pro guards, also for multiple dock lines, anchor ball, 2022 – 2024.
• Fortress Stern Anchor / Kedge on 30’ chain and 3-strand rode, Existing.

External Fittings and Fasteners: Replaced all deck hatch, deck fittings, and locker 18-8 (304) fasteners with 316 SS. Replaced most hinges and deck wash fittings.

Rub Strake: Dented SS replaced with custom machined Dolphin Grey HDPE and replaced fasteners with 316 SS.

Dorades: New SS, 316 SS rings and winch handle closing plates 4/2024.

“Granny Bars" removed, but retained.

Bottom Paint: Sanded to fiberglass, Petit barrier coat, 3 coats Odessey Triton ablative bottom paint 2022, fresh coats 2023, 2024, 2025

Propeller: New ZF fixed pitch propeller with Propspeed 9/2024, stern tube inspected, shaft alignment verified. New hull and thruster zincs as required. $3,800

Hoses: 2021 / 2022 / 2023 replaced through-hull hoses as required by survey and inspection.

Bimini Spray / Sun Shields: Replaced with Solar Bimini with removable dodger, slide-in sun and spray side curtains, all clear is 40ml Strata Glass, Sunbrella cockpit steering station cover. Retained original bimini.

Pilothouse Windows: New Soltis 86-2051 sun and opaque block out covers for 2023-24, frames painted, wipers removed.

Stern Ladder: Replaced wood steps with no-maintenance Dove Grey HDPE.

Bow Thruster: Vetus solenoid, 8/2024, added spare and prop shear pins.

Interior Lights / 12v Fans: Replaced most interior lights with LED and replaced most fans, spares.

Head: Rebuilt 2024 Vacuflush head and pump unit, complete spares kit.

Document Safe: Replaced battery and code, 2024

Air Conditioning, Refrigeration, Water Pumps, Plumbing:

• Replaced forward AC with Mabru 7K BTU, customized stainless condensate pan with drains on all 4 sides for cooling on any tack, added March Pump, quick-bleed hose, 4/2022.
• Replaced main AC with Mabru 17K BTU, customized stainless condensate pan with drains on all 4 sides for cooling on any tack, added March Pump, quick-bleed hose, 4/2022.  2 ACs - $11,992
• Replaced Galley refrigerator unit with Isotherm 2507 Magnum U400X133P1241AA water-cooled, using new March pump and maximum size full-box evaporator freezer plate, 4/2022. $2,775
• Shureflo Blaster II WD 3GPH pump spare, 3/2024.
• Shureflo Aqua King Ii 4GPH freshwater pump spare, 3/2024.
• Whale Gusher galley sink foot pump, spare, 3/2024.
• Manual blackwater tank Whale Gusher, replaced 2022, added spare, same as pilothouse and cockpit manual pumps, 2022.
• Replaced indoor and outdoor Scanvdik shower controls, hoses, head, etc. with original, 2023.

Propane System: New Trident Marine Brass tank solenoid and gauge assembly, 2/2024, added a spare, added a Xintex gas sensor to spares.

Gimbled convection cooking for offshore

Hydraulic hold opens for fridge lid, serviced 2023.

Mirrors, replaced 2023.

Galley wing table for extra galley workspace, added 3/2025 $2,100

Replaced all tank volume senders except black water, 2022.

Upholstery: recovered all in Pilothouse with Sunbrella Depth Indigo 16007-002. $17,195 including Cockpit Sun Shields and Hatch covers (above and below)

Handcraft Mattress: 100% natural Talalay latex 40 ILD mattresses and covers. $4,938

Engine: Last owner’s estimate of hours: 2,760; Current estimate: 4,260

• A&R Marine Diesel at purchase, 2021: exhaust elbow, cleaned heat exchanger and replaced ends. Changed impeller.
• SunPower Marine authorized Yanmar service work, 2023: New water pump and spare, new motor mounts, main and several seals, new hoses and piping, valve adjustment, check compression, added a new starter to spares. Exhaust elbow, replaced clutch and KM35A-2 transmission with new, align shaft.
• Alternator: Balmar XT1700 with serpentine belt, anodized aluminum pully and guides, wiring harness to W5500 programable regulator, spare belt.
• Generator: A&R Marine Diesel on purchase at 1620 hours. Rebuilt heat exchanger, replacing ends, clean core. Replaced fuel boost pump, 2023, spare added to inventory.  Spare water pump kit, hoses, gaskets, O-rings, belt, heat exchanger end caps, zincs, etc. 2/2024. Current generator hours: 2039.

Custom Anodized Aluminum Solar Bimini / Hardtop

$9,000, not including dodger, curtains included above with upholstery

• More than 16,000 rugged sea miles with winds to 80kts across the Atlantic Ocean including the Greenland Sea, North Sea, English Channel, Bay of Biscay, nonstop Portugal to Trinidad with no issues whatsoever.
• Massive increase in cockpit volume and access to winches and cockpit.
• Holds slide-on-slide-off 1760 W solar array, internal channels to protect wiring.
• Dodger of 40ml Strata Glass.
• Slide-in side curtains: Strata Glass, Soltis 86-2051 sun mesh, opaque.
• Mount for Starlink Antenna.
• Dingy lift for safe overnight storage at anchor.

Electrical and Electronics: Total $90,167

All electrical work and electronics done by the Ft. Lauderdale operating partner Jonathan Allison at Maz Ocean.

Solar Panels: 4 X Aptos DNA-144-MF26-440W-35 commercial Miami-Dade Wind Code approved for 180 MPH wired in 2 banks.

Victron Lithium Electrical System

• Smart Solar Charge Controller MPPT 150/70 X 2
• Charge Controller Breakers
• MultiPlus Inverter Charger
• 3 Lynx 1000 distributors
• Orion Tr Smart 12/12-30 DC to DC chargers with Bluetooth X 2
• Breakers for Starter and Thruster, disconnect switch for Thruster battery
• Battery X 4: BAT512132410 330Ahy 1.8VDC Smart LiFePO4
• Battery Thruster 100AH 1370CCA 11/23
• Cerbo GX
• GX Touch 50 color control
• BMV-712 Battery Monitor
• BMS VE. Bus BMS
• Lynx Shunts
• Galvanic Isolator VDI-64 64A
• ELCI Shore Power 100A breaker
• Schneider Multi9 circuit breaker
• Merlin Gerlin 125A circuit breaker

Garmin NEMA 2000 Instruments, Spring, 2022

• Chartplotters
• GPSMAP 8616xsv Pilot House, replaced Faroes 6/2024
• GPSMAP 8616 Cockpit
• Reactor 40, ECU 12 Autopilot NAC-3 Corpac
• GHC 20 pilothouse
• and Reactor remote
• GMI 20 multi display at helm and in cockpit.
• Radar: GMR Fantom 24 50W Doppler with MotionScope
• Sonar: Airmar B744V 50/200kHz Triducer: speed, depth, temp to GND10
• Wind gWind wired with GND10 to NEMA 2000
• 3 GPS Antennas including 24XD

Other Instruments & Electronics

• Simrad / BG Ap44 Pilot Control NAC-3 Corpac
• Airmar DST810 Smart Transducer: speed, depth, temp, heel/trim, pitch/roll
• Peplink Max BR1 Pro5G Mobile Router
• provides cellular, integrates Starlink
• Arankis 510 Series Wireless access point
• MokerLink 8-Port Ethernet Switch
• PredictWind Data Hub adds over the horizon AIS, GPS Tracking, Auto Sail Polars

Radios and Antena:

Starlink Ocean antenna and service.

Cortex V1 Hub VHF Class B AIS Radio for vessel avoidance and remote vessel monitoring, with separate GPS antenna.

Shakespeare 5215 VHF/AIS antenna, mounted.

Morad 159 MHz VHF/AIS long range backup antenna.

ICOM M94D with GPS, DSC, AIS, Navigation, VHF handheld.

Autopilots :

• New 2022: Garmin controller and feedback / BG hydraulic pump, wired into NEMA instrument backbone for route following and wind settings, new hydraulic manifold, handheld remote control. Existing Hynautics linear ram, rebuilt 2023.
• New 9/2023: Octopus hydraulic ram with integrated pump and reservoir for vessels to 33,000 lbs., controlled by separate, stand-alone Simrad AP/BG AP44 control, NAC-3 AP computer system once you have disengaged vessel’s hydraulic system with helm switch. NOT tied into Garmin NEMA, handheld remote control. Low-power usage, extremely dependable for heavy weather and rolling downwind sailing, you NEVER have to hand steer, NEVER overpowered. $1,945

Water maker: Spectra Cape Horn Extreme, 11/8/2023, 2-year warranty $13,577

Airtronic Eberspacher heater: 4KW 40 W 12V, removed and rebuilt by experts in Iceland, 6/2024.

Racor Fuel Filter System:

Rebuilt 2023, double system for engine, single for Generator, replaced glass, turbine, check ball, seals, updating and simplifying drainage, reoriented as necessary for easier service.New Racor Multipass Pump and Filter Fuel Polishing and Tank-to-Tank Transfer System.

Bronze through-hull water strainers: Perko and Groco, rebuilt 2023, stripped to bronze, replaced glass, lids, seals, reoriented as necessary for easier service. Serviced Marlon through-hulls.

Portlight seals: replaced all New Found Metal seals with 316 SS screens.

Outboard and dingy: New 11/2021 Yamaha 4-stroke 2.5 outboard, now with 4 hours. $1,145

Used Zodiac 310 dinghy with air floor.

Sails: All Sail Technologies sails purchased by the H2O-era owner in 2014. All inspected by Mac Sails in 2022, in excellent shape. Mac Sails converted an earlier period hank-on staysail for roller furling. Genoa sun covers replaced with Sunbrella; also added sun cover to the now furling staysail.

Willow sailed with:

• Sail Technologies Mainsail constructed with Contender Bluewater low-aspect crosscut woven cloth for in-boom furling, tightening leech as reefed, eliminating need for vang adjustment.
• Sail Technologies Roller Furling 130% 659 sq. ft. Genoa constructed with Contender low-aspect cloth.
• The Sail Technologies Tech3 tri-radial Radial RF Contender Radial Genoa, an unused hank on storm jib and storm main trysail were unused on Willow.



Safety Equipment – Total $32,000, including items priced below

Masthead lightning arrester with thick cable to copper grounding plates. Vessel has never reported a lightning strike.

EPIRB Vessel: Renewed registration of in-date, inspected Global FX 406 EPIRB, good until 10/2025

PLB: Qty 2 - ACR ResQlink AIS lifejacket 406 EPIRB AIS and 121.5 with NFC PLB450, 5-year warranty and battery, 11/2023.

PLB:  Qty 2 - Ocean Signal MOB1 406 EPIRB AIS DSC, 5-year warranty, 7-year battery, 10/2021.

Fire Extinguishers / Blanket: Qty 3 new CO2 and 1 halotron class BC, 2022.

Drogue: GaleRider 30 with harness, ¾” X 300’ double-braid main tow line, sinker shackles, 350” 3/8” Amsteel Blue retrieval line, 10/2021. $1,421

Liferaft: New Revere Offshore Regatta 4-man valise life raft, 12-year warranty, 3-year service interval, kept in shade of cockpit in additional cover, 4/2024. $1,817

MOB Recovery Module: Jonbouy, serviced 2024, Inflatable Services Ft. Lauderdale.

Lifesling 2, 2/2024.

Jack Lines, 3/2024.

Smoke / CO2 detector alarm.

Temperature Sensors: Ruuvi Bluetooth temp / humidity / motion sensors on Victron Lithium battery compartment, battery compartment, starter battery, thruster battery, engine compartment, generator compartment, cockpit freezer, reefer. Alarm on phone app.

Thermal Imaging Monocular: FLIR Ocean Scout lll - 640 $2,780

Sonar hand held: Vexilar

Underwater Flashlight: Light in Motion Sola Dive 2500

Waterproof GoPro with Shurehold pole to camera adapter

Flares / Bungs:  Restocked with new 3/2024.

Emergency Pump: 4400GPH up to 30’ vertical, Superior ½-hp, 120v SS, continuous duty passing 3/8” solids, 1 ¼” discharge and hose.

Lifejackets: Spinlock Vito Hammar Ocean Lifejacket / Harness with release 1L 1M

Large first aid kit.

Ditch Bag and 5-gallon water jug with spout.

Emergency Boarding Ladders: Stanchion mounted, removable, port and starboard

Cockpit Door and Window Covers - $1,605

Headsets: Hollyland Solidcom C1 - $534

Backup Running Lights: Navisafe battery-powered.

Survival Suit: Mustang $1,148

USCG Rules of the Road, Chart #1

Almost every tool, electrical connector, wire, filter, belt, fastener, fluid used on the vessel. Special tools to make rudder and shaft bearing repacking easy. $11,810
