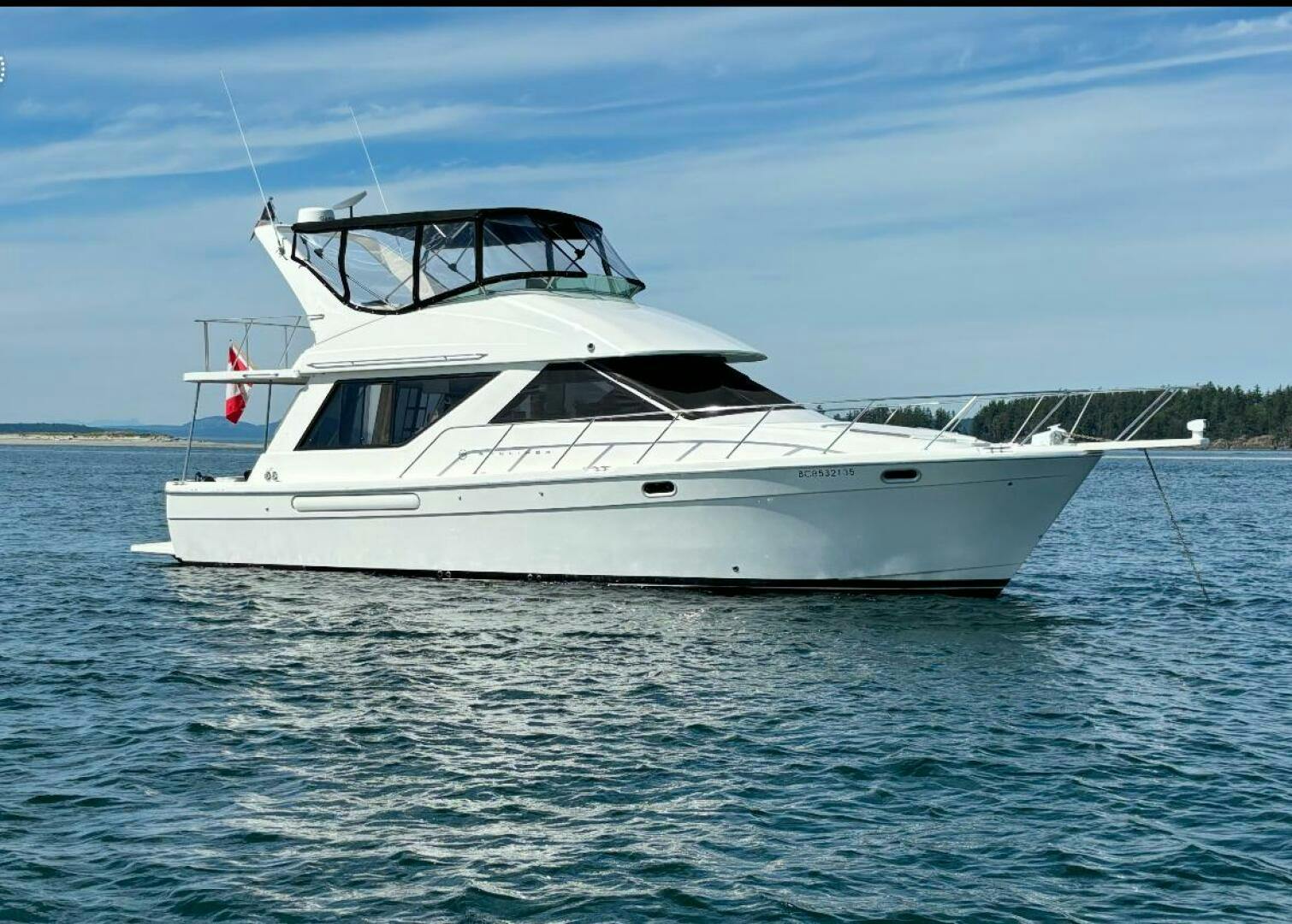

UNO MAS39' Bayliner 3988 1996

Comfortable accommodation for a family or couples. Lots of room to spread out and enjoy being afloat.

The forward stateroom offers a centerline queen berth, hanging lockers and en-suite tub/shower alcove with vacuflush head. Next aft and to port is the guest head with integral shower and beside that is access to the mid state room.

Up to the split level salon. The well equipped helm to starboard followed by the galley. The galley features an electric range with oven, microwave, dual refrigerators, double sinks with pressurized hot/cold water and lots of drawers and lockers for storage. Opposite the helm to port is the upper convertible settee. The center location of the galley is also convenient to the lower salon which has a L-shaped lounge to port and easy chairs to starboard.

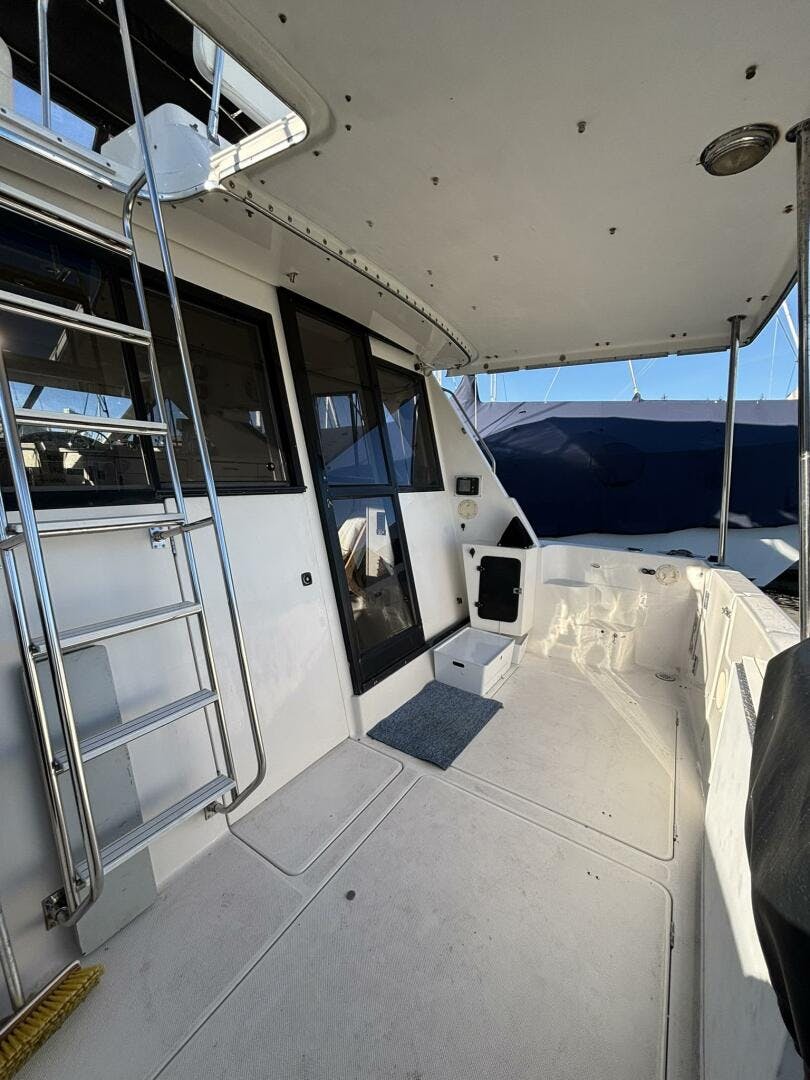

Through the sliding door to the covered cockpit, up to the enclosed fly bridge or through the transom door to the swim grid for easy boarding access to the dock or the tender. A very functional arrangement for extended season cruising.

Fuel: 300 gallons in two welded aluminum tanks outboard of each main engine. System includes shut off valves at fuel manifold, correctly rated fuel delivery hoses and fuel/water filters.

Fresh Water: 100 gallons in plastic tank. Pressure hot/cold water via 12 volt DC pump and accumulator tank. 10.5 gallon hot water tank (new 2023) operates on 120 volt AC or engine cooling system coil. Potable water tank level monitor. (New water pump, accumulator tank, galley sink, galley faucet - 2023)

Waste: 36 gallons in plastic tank. Vacuflush toilets pump directly to holding tank which can be emptied via deck fitting at dockside pump-out facility or via macerator pump overboard where permitted. Tankwatch Holding tank alert system.

12 volt DC ship service electrical system with battery selector switches and distribution panels with master breakers and resettable breaker style branch switches.

• 4 X L16 AGM batteries for house service mounted in battery boxes with lids - new 2020.
• 2 X group 27 AGM batteries for engine starting - new 2020.
• 1 X group 24 AGM battery for generator starting - new 2020.

2 X 30 Amp X 120 volt AC dockside power connections including shore cord, inlet fitting and distribution panel with master breaker and resettable breaker style branch switches.

• Magnum Energy Inverter/charger.

Westerbeke 8.0 kw generator, FWC, with 800 hours on meter. New exhaust separator system installed 2023.

• Garmin 1242xsv touch screen display GPS/chartplotter, radar, depthsounder with closed array radar antenna (2019).
• Humminbird 718 depth sounder/fishfinder.
• SEA 156 VHF radio with DSC.
• Autohelm ST6000 autopilot. New wireless remote added - 2023.
• AM/FM/CD stereo with speakers.
• Ritchie PowerDamp compass.
• Raytheon Ray430 Loud Hailer.
• Potable water tank level monitor.
• Tankwatch holding tank alert system.
• Remote controlled spotlight.
• Brass clock.

• Twin Cummins 6BTA5.9-M2 diesel engines, 315 hp @ 2800 rpm, Stbd engine 370 hrs on meter since Cummins long block replacement in 2020; Port engine 2878 hrs.
• Aftercoolers serviced 2024. All service items are up to date.
• New turbos on both engines 2020. New head gasket (preventative maintenance recommended by Cummins) on port engine.
• Hurth HSW 800 A2 transmissions - 1.57:1 gear reduction.
• Raw water intake strainers.
• Fuel filters.
• Full gauges at helm and audible alarms on oil pressure, engine temperature.
• 2" stainless steel propeller shafts.
• PSS dripless shaft seals - new 2023.
• Rubber cutlass bearings in cast bronze struts.
• 22" X 22" X 2" X 4 blade bronze propellers.

• 33 lb Bruce anchor in anchor roller with 260' chain rode.
• Muir Cougar electric anchor windlass with foot switches on forward deck.
• Stainless steel perimeter safety rails and handholds.
• 3 X windscreen wipers with window washer system.
• Windscreen shades.
• Custom extended hardtop over cockpit.
• Fiberglass radar arch.
• Command bridge bimini with front, side and aft panels to make full enclosure.
• Bow deck cushions.
• Full transom swim grid with transom door and swim ladder.
• Nick Jackson dinghy davits.
• 10' Achilles RIB with Tohatsu 9.8 hp 4 stroke outboard.

Safety Gear -

• Life jackets, life ring with heaving line, flares, radar reflector, fire extinguishers (2).

6 X bilge pumps - three automatic/electric pumps and three manual electric pumps.

Webasto Air Top EVO 40 diesel furnace with heat ducting to cabin spaces - new 2020.

Bulkhead mounted 120 volt AC heater.

Three station hynautic hydraulic steering - Command bridge helm, Lower station helm and cockpit helm.

Glendinning wireless electronic engine controls at all stations. (Back up manual over-ride at lower helm)

Trim tabs with controls at upper and lower helms.

Helm cover.

Storage under seats. Storage covers for command bridge seats.

All below waterline through hulls are equipped with bronze ball valves.

All interior light bezels replaced and lights upgraded to LED - 2023.

New domestic water pump, accumulator tank, hot water heater, galley sink and galley faucet - 2023.

Interior cushions in excellent shape with new foam in 2021.

New interior cabinet hardware throughout. Boat shows very well.

New carpet through master and guest staterooms and main salon - 2019.

L-shaped sofa in salon converts to double berth.

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
