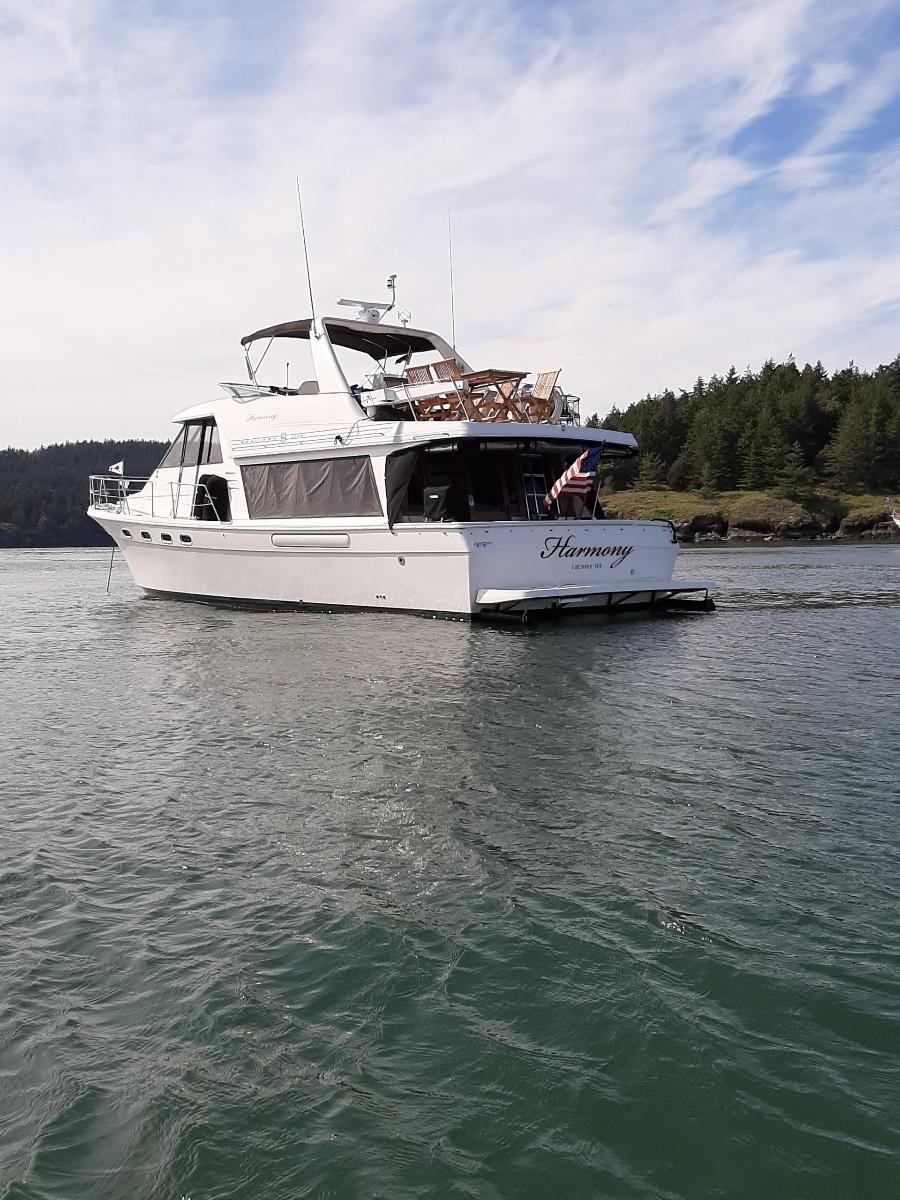

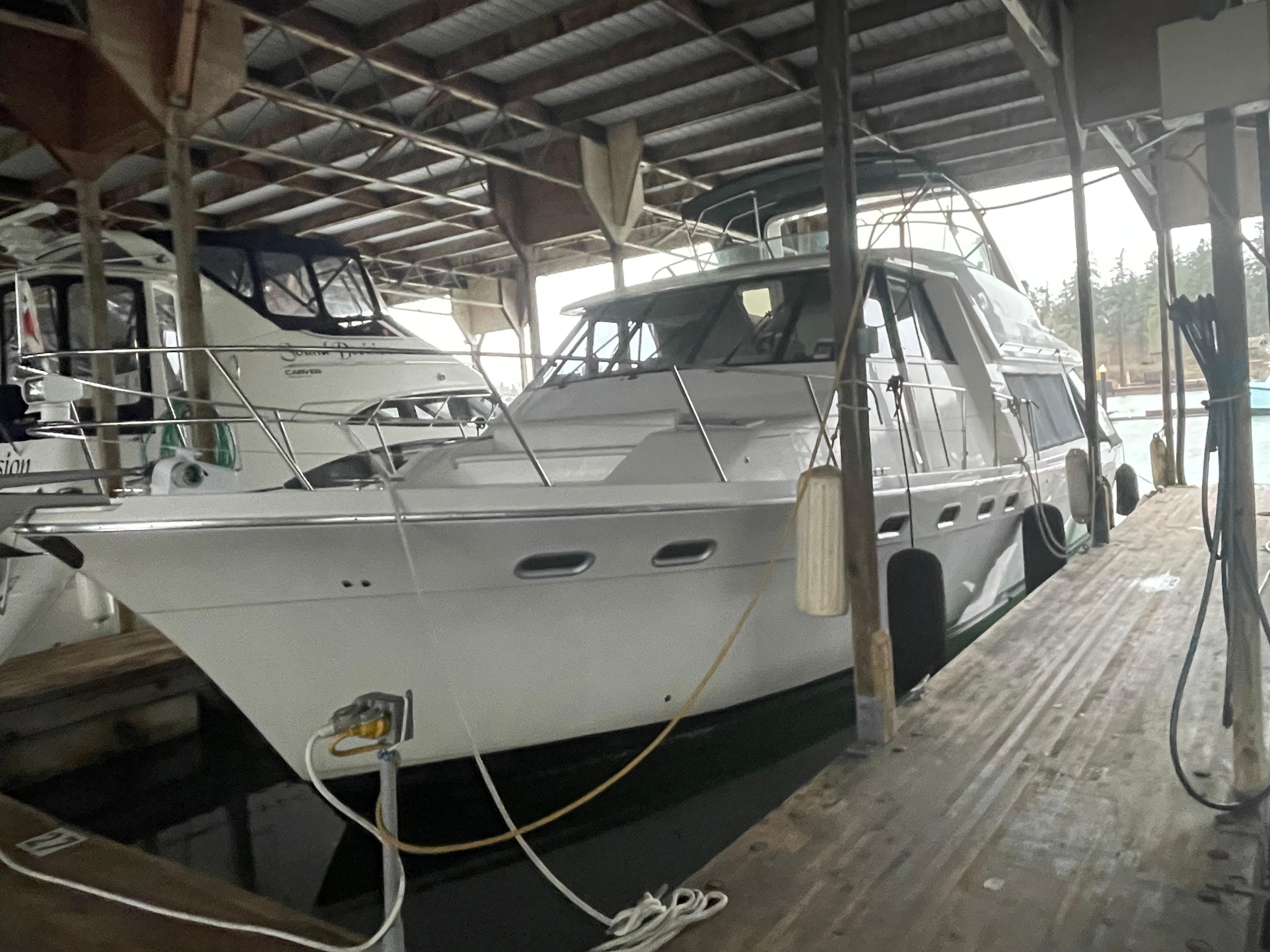

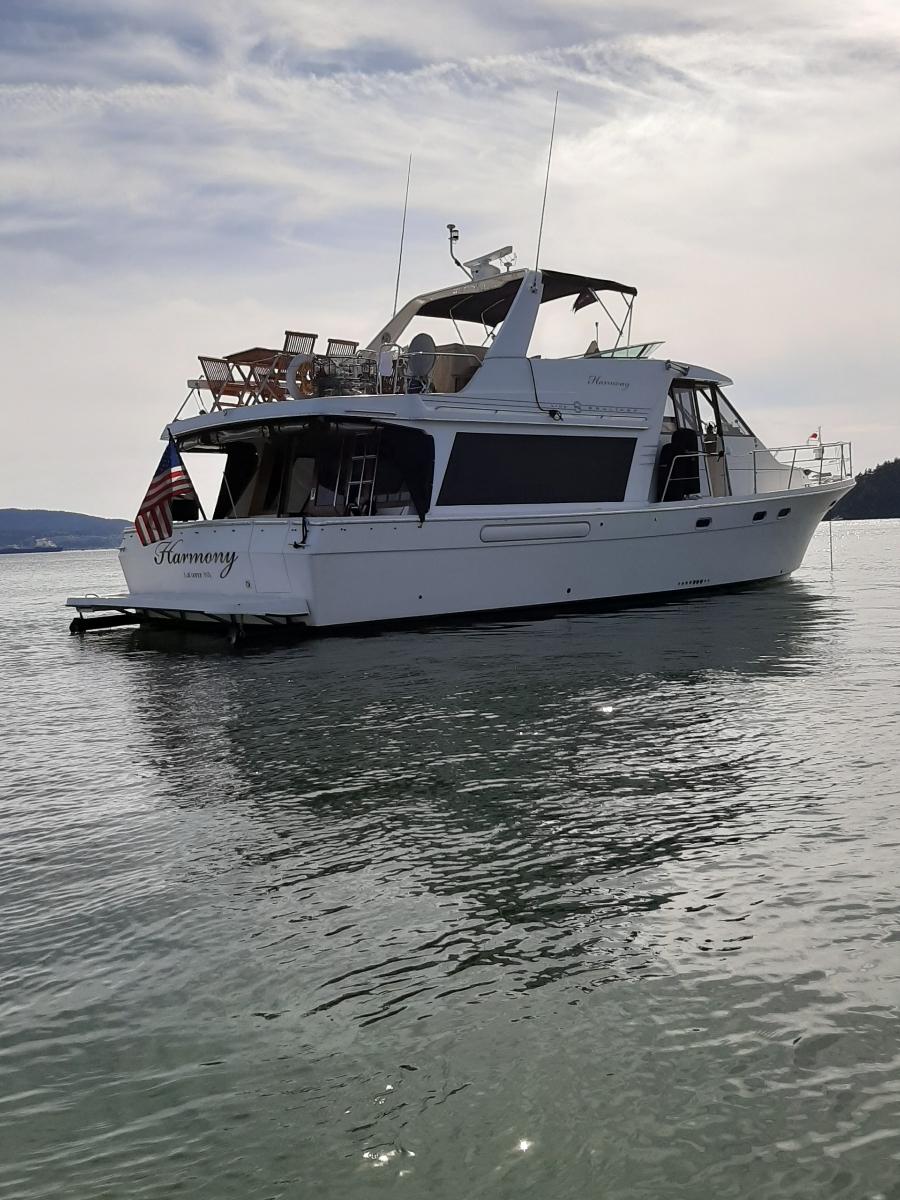

"HARMONY"

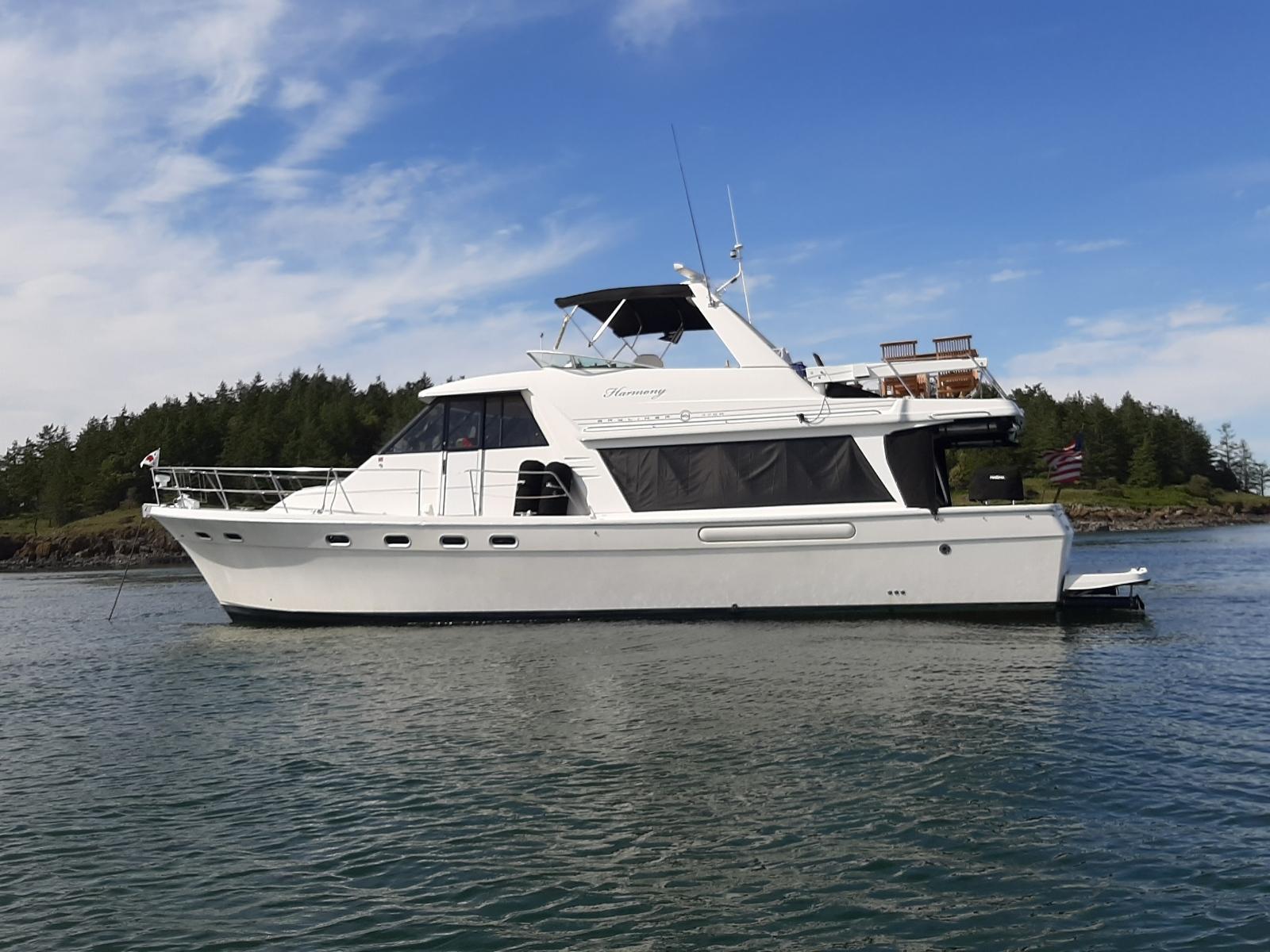

50 ft' Bayliner 4788 Pilothouse Motoryacht 1995

$ 245,000

NEW ARRIVAL!!!

BY APPOINTMENT ONLY

If you're shopping for a Pilothouse Motor Yacht The Bayliner 4788 are enormously popular here in the Pacific Northwest.  With 3 staterooms, pilothouse visibility that's excellent, cockpit that's sheltered from the sun, bow pulpit removed for 50' moorage, the side decks are wide enough for safe and secure foredeck passage and Hino Diesels that have proved to be powerful, reliable, inexpensive to maintain and will cruise an efficient 18 knots.

This actual Bayliner 4788 "Harmony" has probably every feature you could image both factory installed plus the current owner's desired features.  Read through the specifications for "Harmony" to better understand how special this vessel is to its current owners and how it will more than fulfill your wants and needs.  PLUS These engines are "Hino Ceramic Diesel Marine Engines" refers to specific engine internal components incorporate ceramic coatings for enhanced durability and performance in marine applications.  See Mechanical Specs for specific ceramic coated components.

If you're looking for a Pilothouse Motor Yacht you owe to yourself to preview "Harmony" in person.   You will not be disappointed and this vessel will go to the top of your short list.  That's right this vessel is that nice!!!

Specifications

  • Price USD:$ 245,000
  • Builder:

    Bayliner
  • Model:

    4788 Pilothouse Motoryacht
  • Location:

    WA, US
  • Type: Power
  • LOA: 50 ft
  • Beam: 15.08 ft'
  • Category:

    Pilothouse
  • Water Capacity: --
  • Fuel Capacity: --
  • Engine Details: Hino WO6 CTI
  • Engine 1: 2018 HRS 310 horsepower
  • Engine 2: 3017 HRS 310 horsepower
  • Engine Fuel: diesel
  • Days on Market:

SPECIFICATIONS:

  • LOA - 50' with Bow Pulpit Removed & Bow Railing Modified / Modernized
  • LOD - 47'
  • Beam - 15' 1"
  • Draft  - 3' 4"
  • Keel - Skeg
  • Displacement - 30,000lbs.
  • Weight - 29,990lbs.
  • Construction - Fiberglass
  • Hull Bottom - Modified-V Power Hull
  • Desrise Aft 6 Degrees
  • Deck - Fiberglass with Cored Construction
  • Hull to Deck Joint  - Vertical Overlap Bonded & Covered by Rub Rail
  • Ceiling / Molded Liner - Molded Fiberglass, Carpet & Hardwood Joinery
  • Fastenings - Stainless Steel
  • Sheer Line - Straight
  • Designer - Bayliner
  • Builder - Bayliner

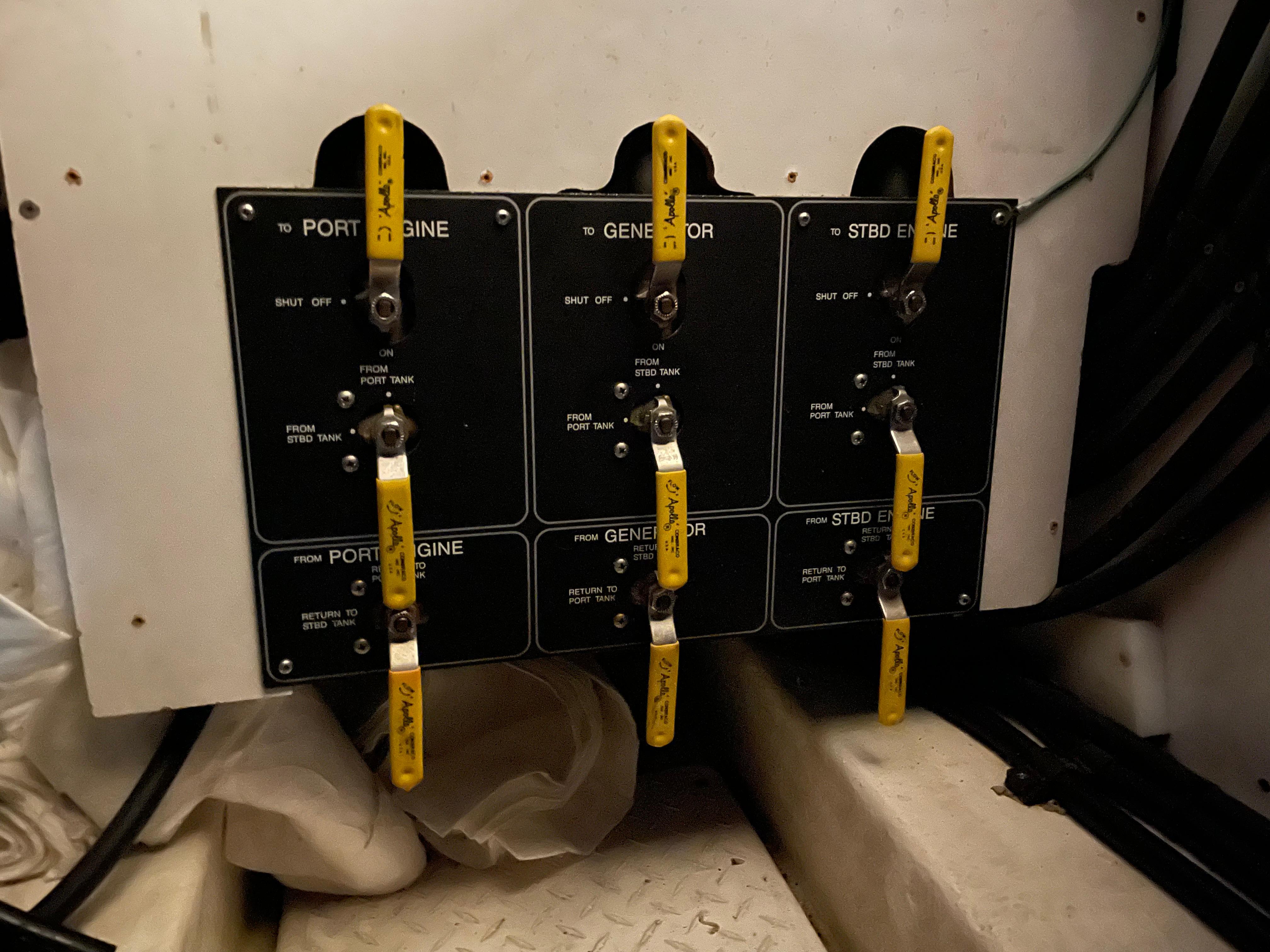

TANKAGE:

  • FUEL - 444 Gallons in (2) Aluminum Tanks Located Port & Starboard Forward of Engines
  • WATER - 200 Gallons in 2 Plastic Tanks Located Beneath Forward Berth
  • HOT WATER TANK - Seaward 11 Gallons -
  • WASTE - 48 Gallons in (1) Plastic Tank with "Y" Valve, Deck Pump-Out & Overboard Discharge
  •                 Waste Hoses Easy to Replace with Brass Ball Fittings to Close Off Each End of Hose & Replace

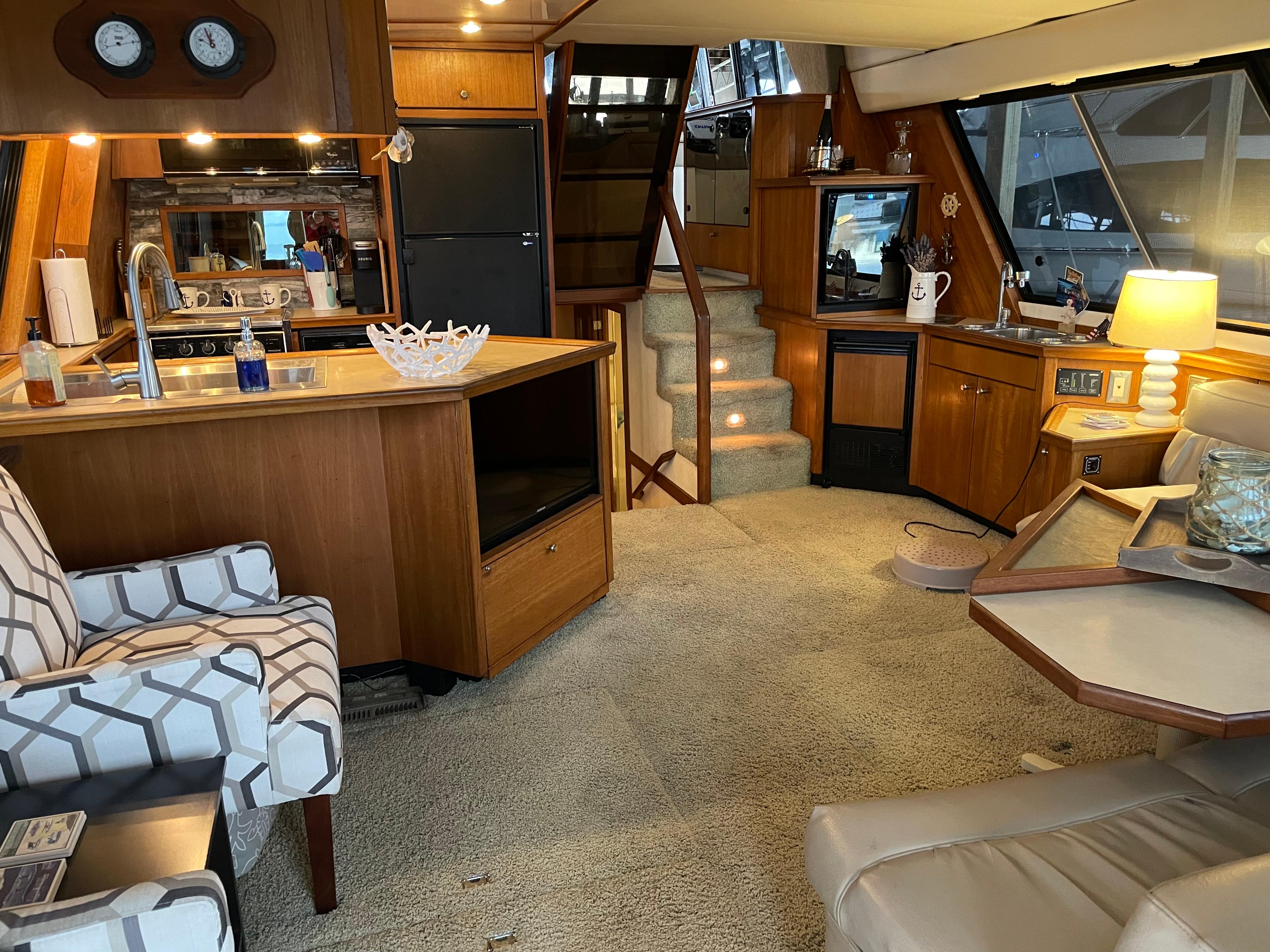

INTERIOR:

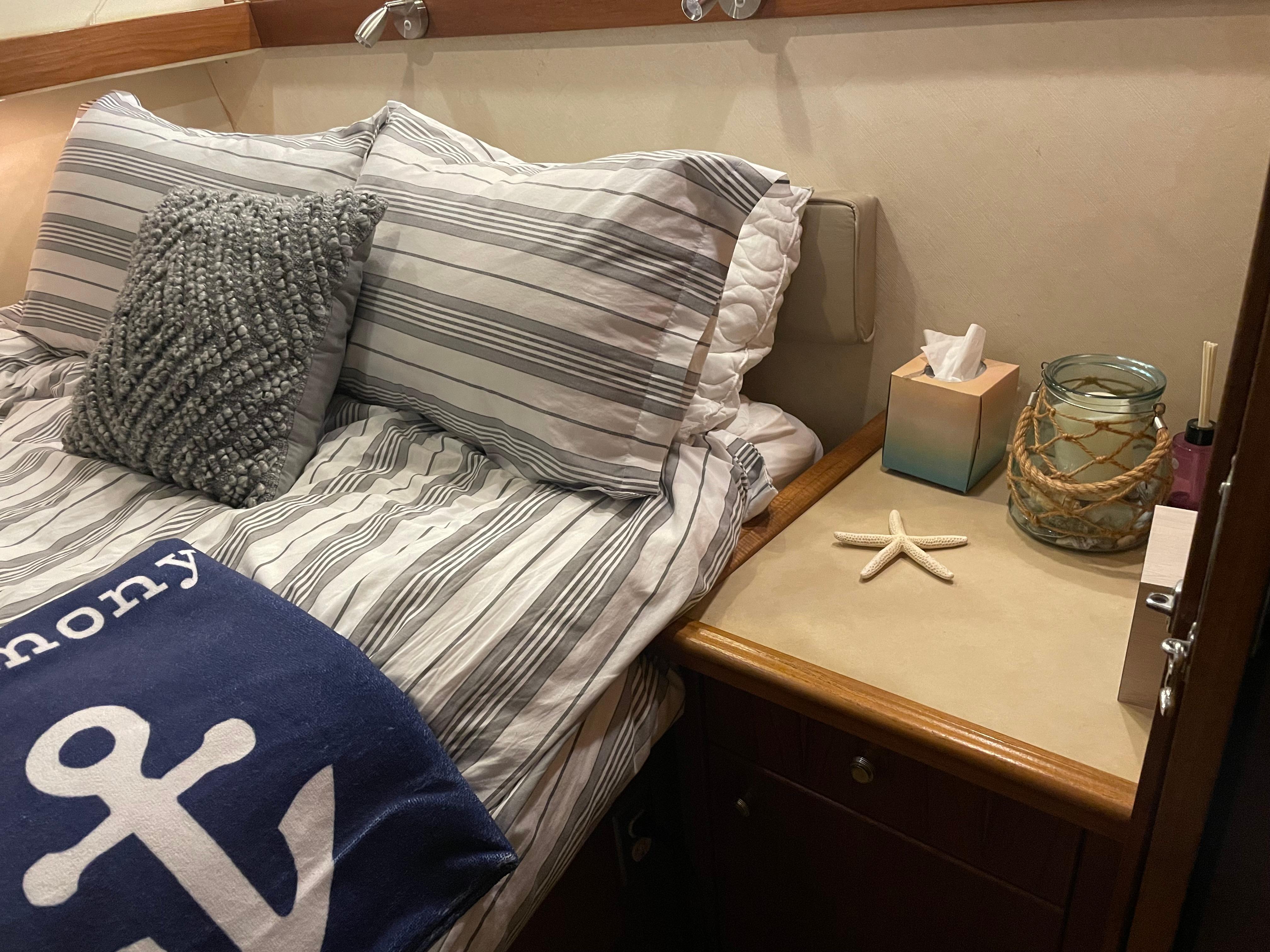

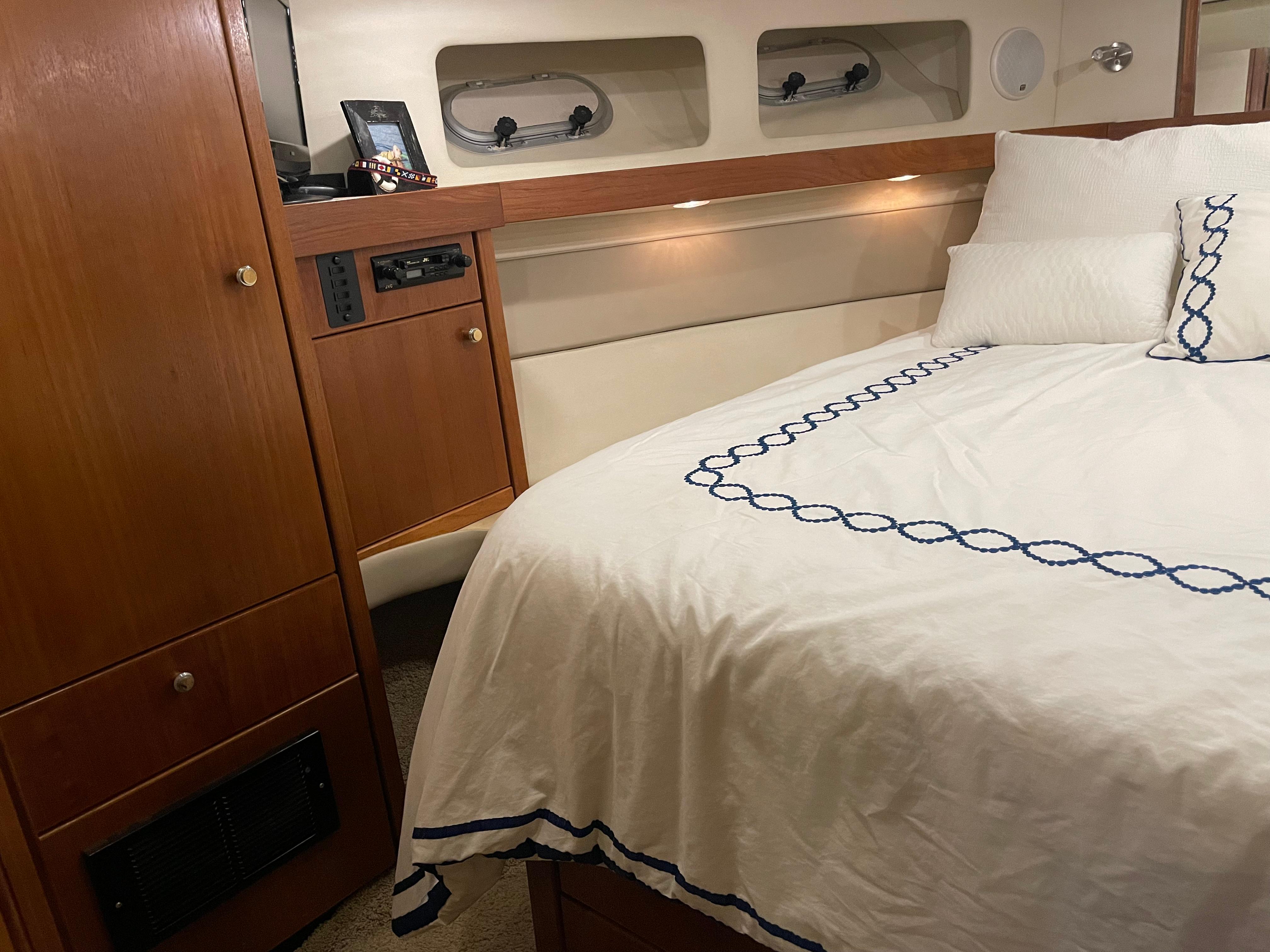

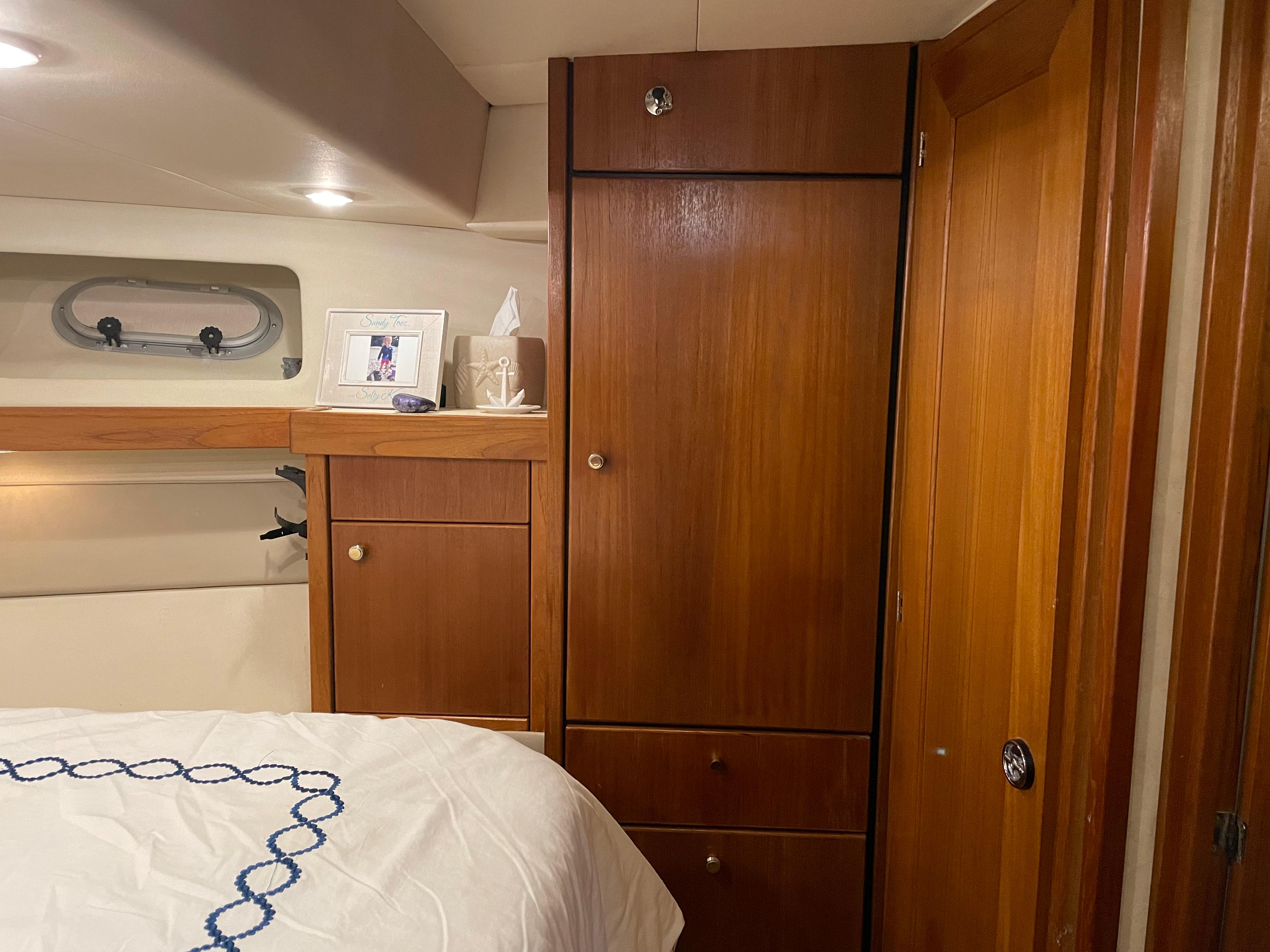

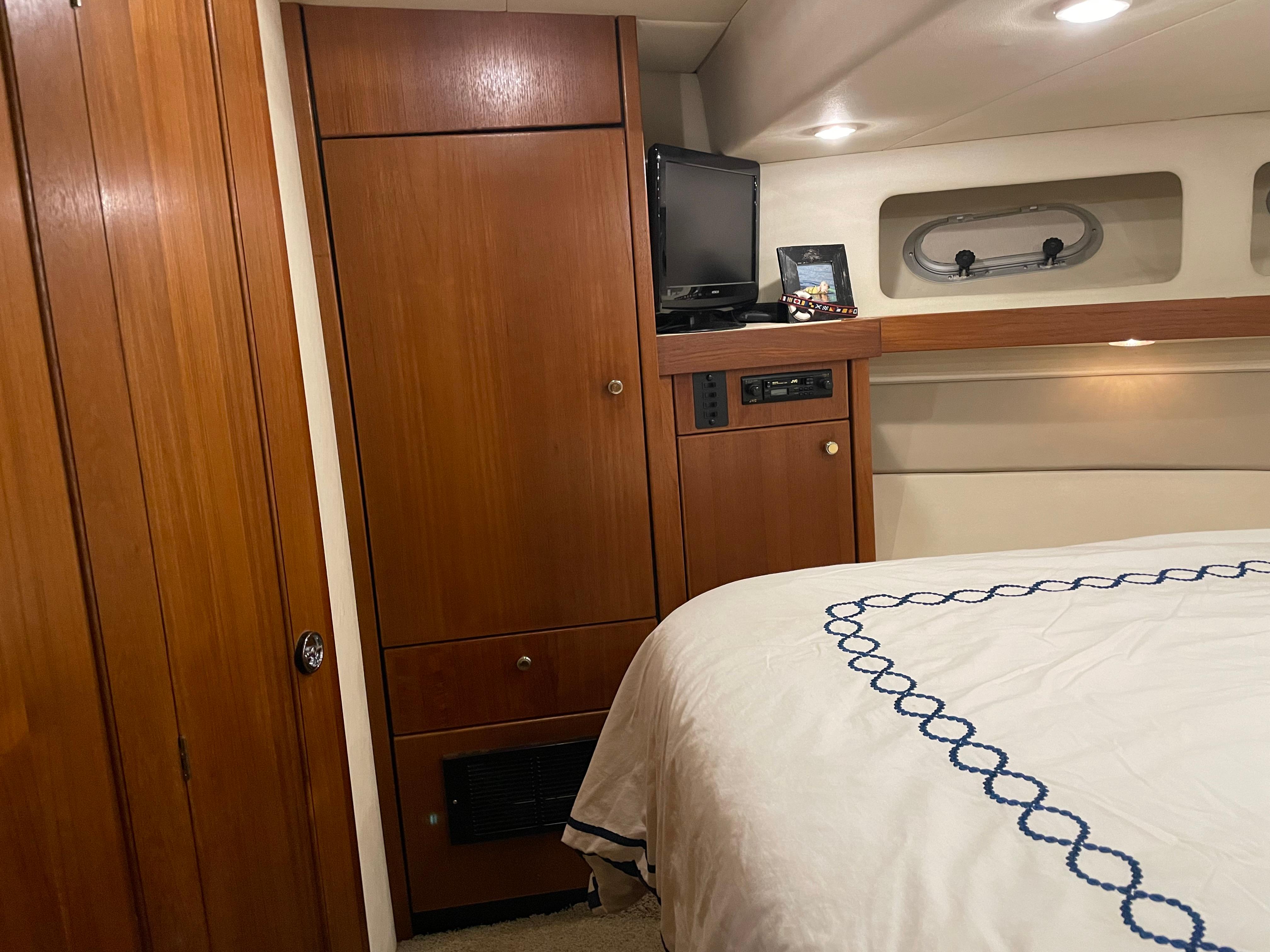

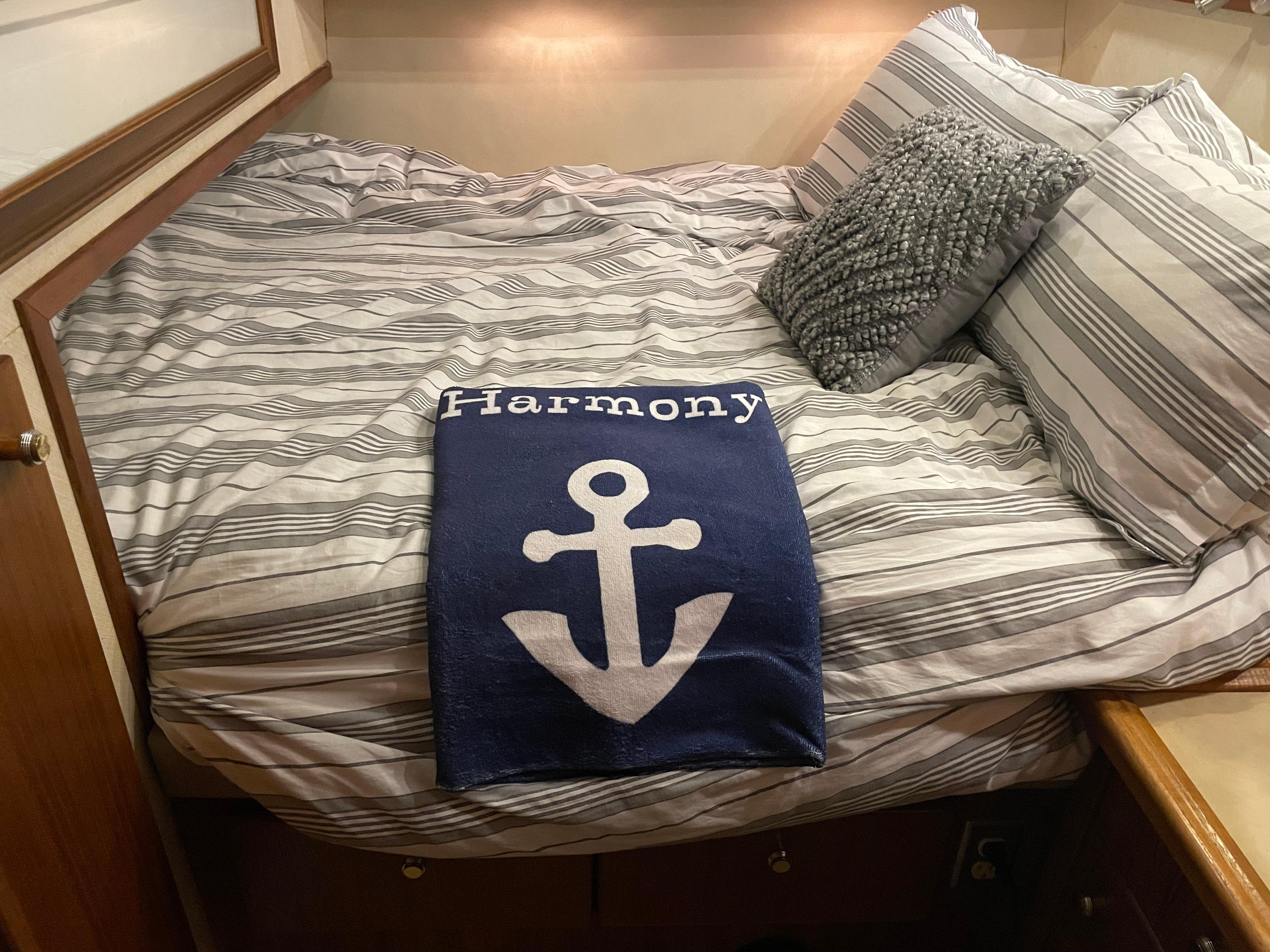

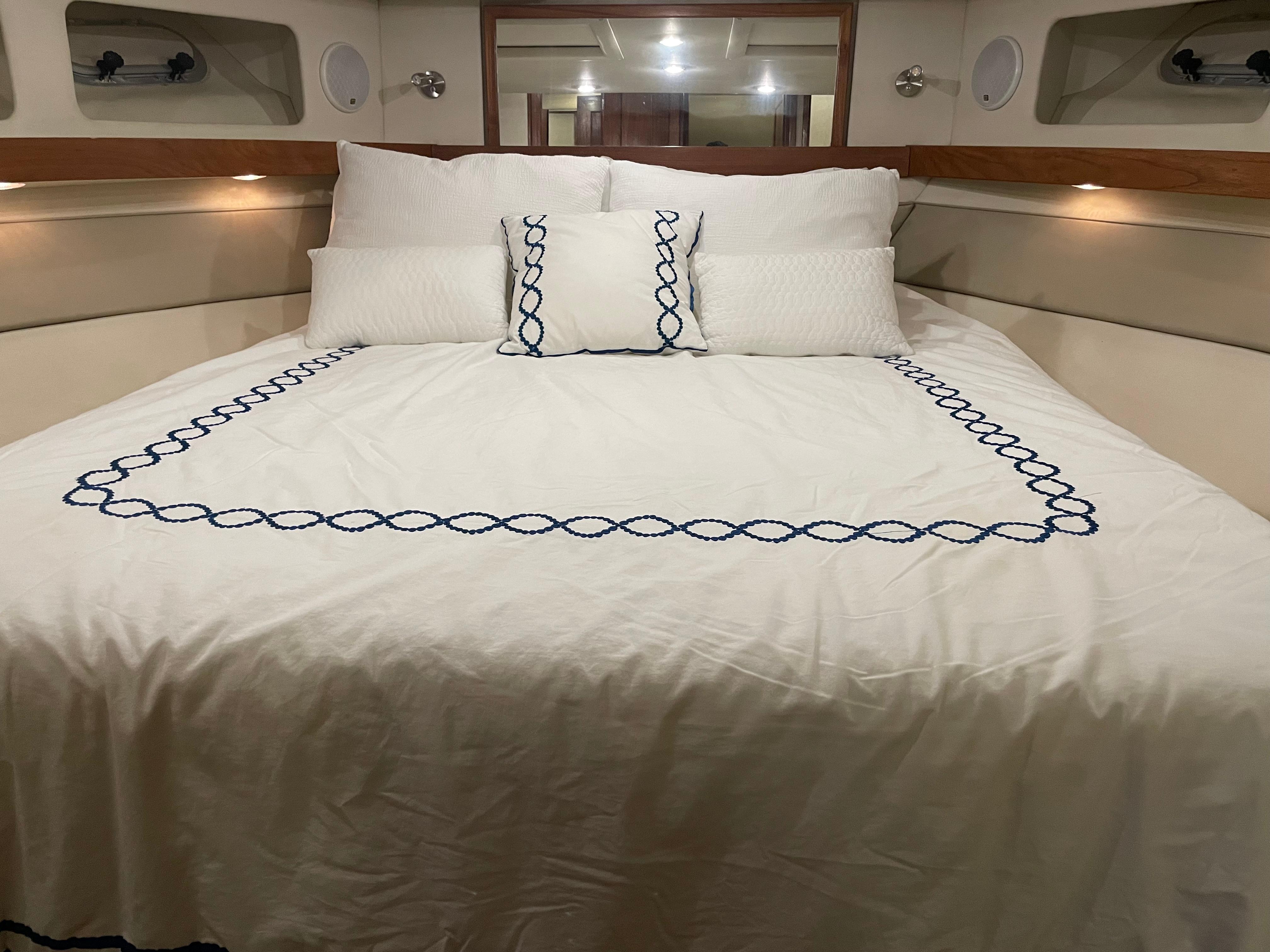

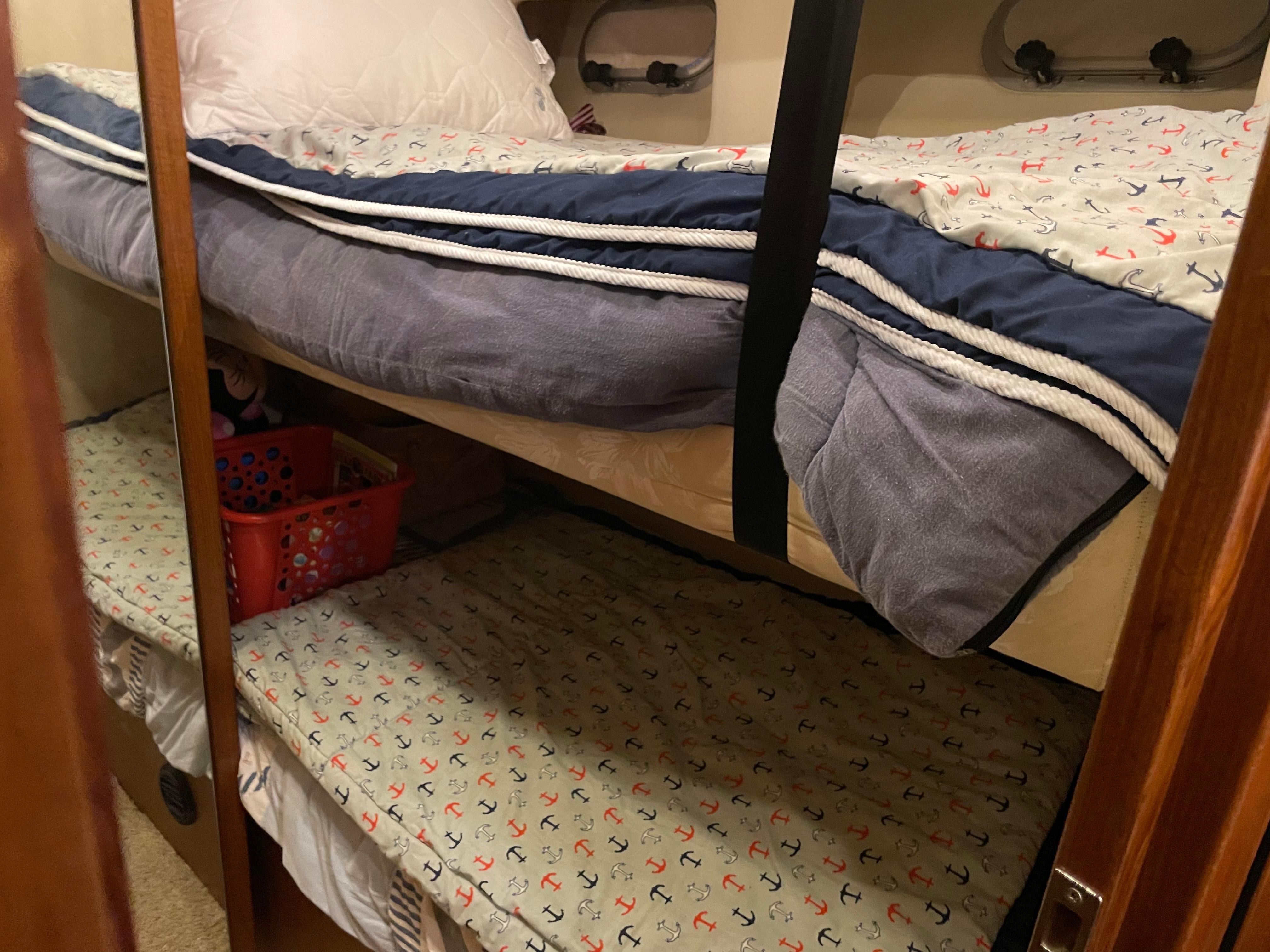

  • Sleeps 6 - 2 in Forward Master Stateroom with On-Suite Head & Shower Tub
  •                  2 in Forward Portside Stateroom Adjacent & Aft of the Master Stateroom
  •                  2 in Portside Guest Stateroom

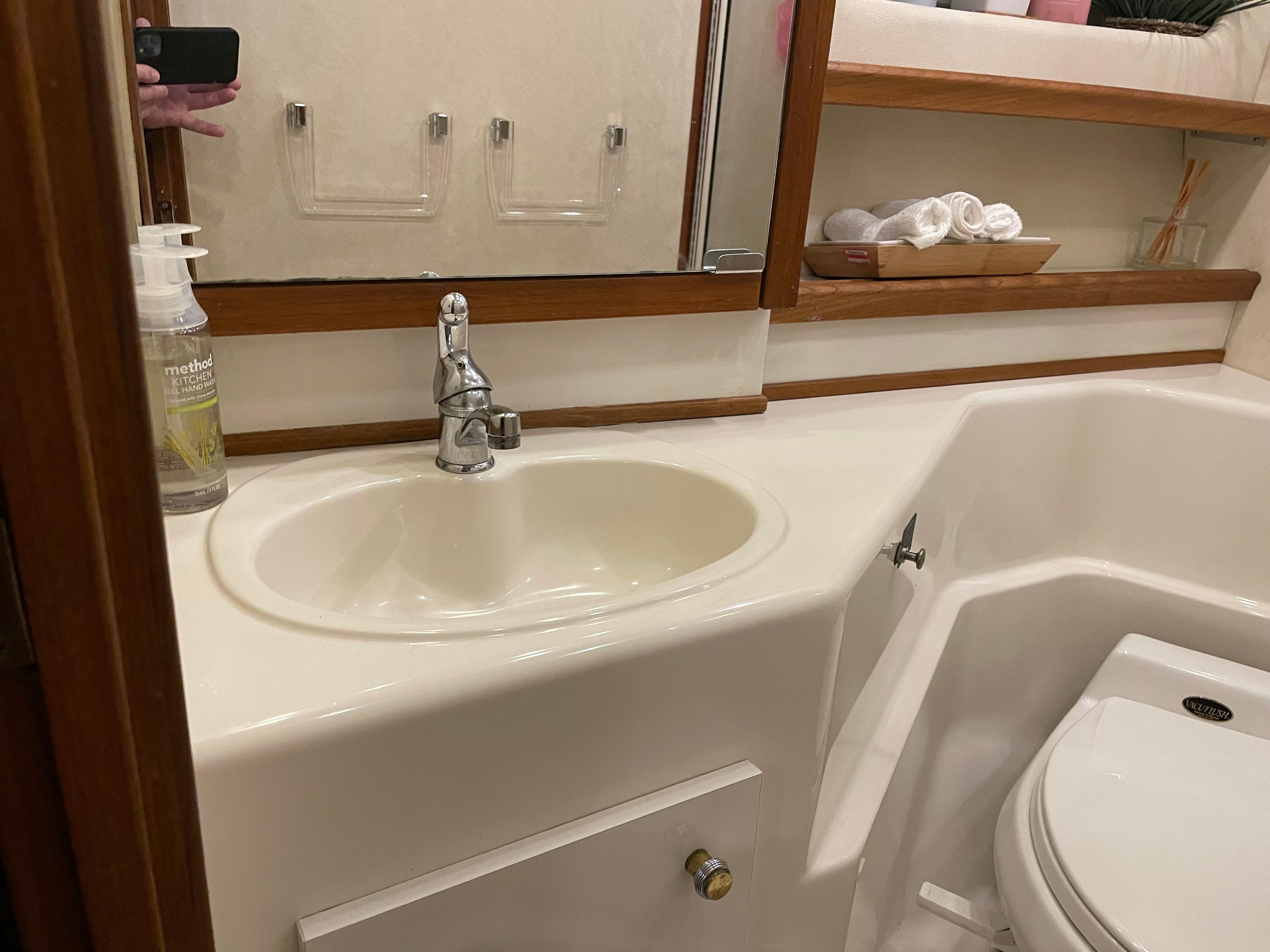

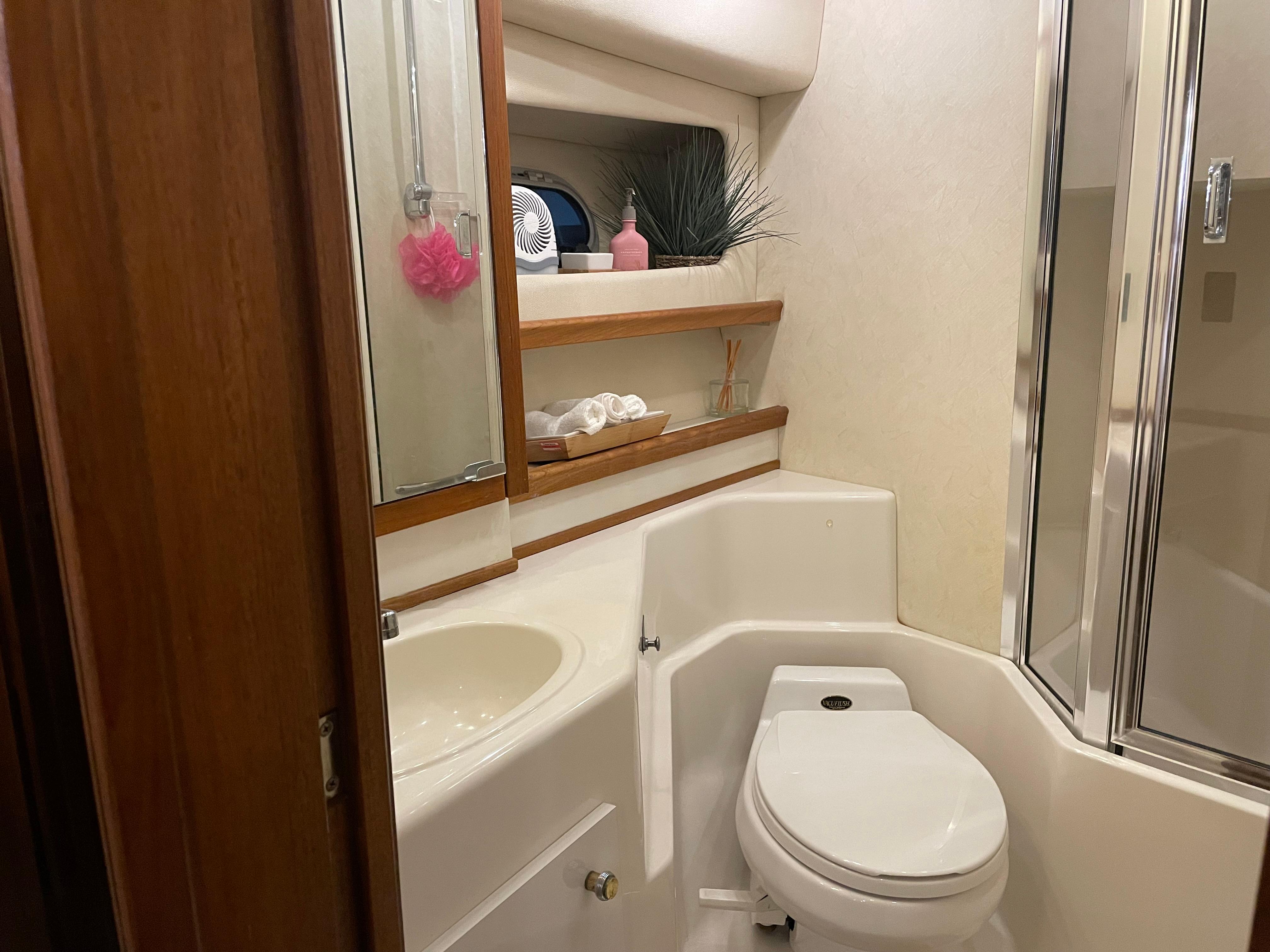

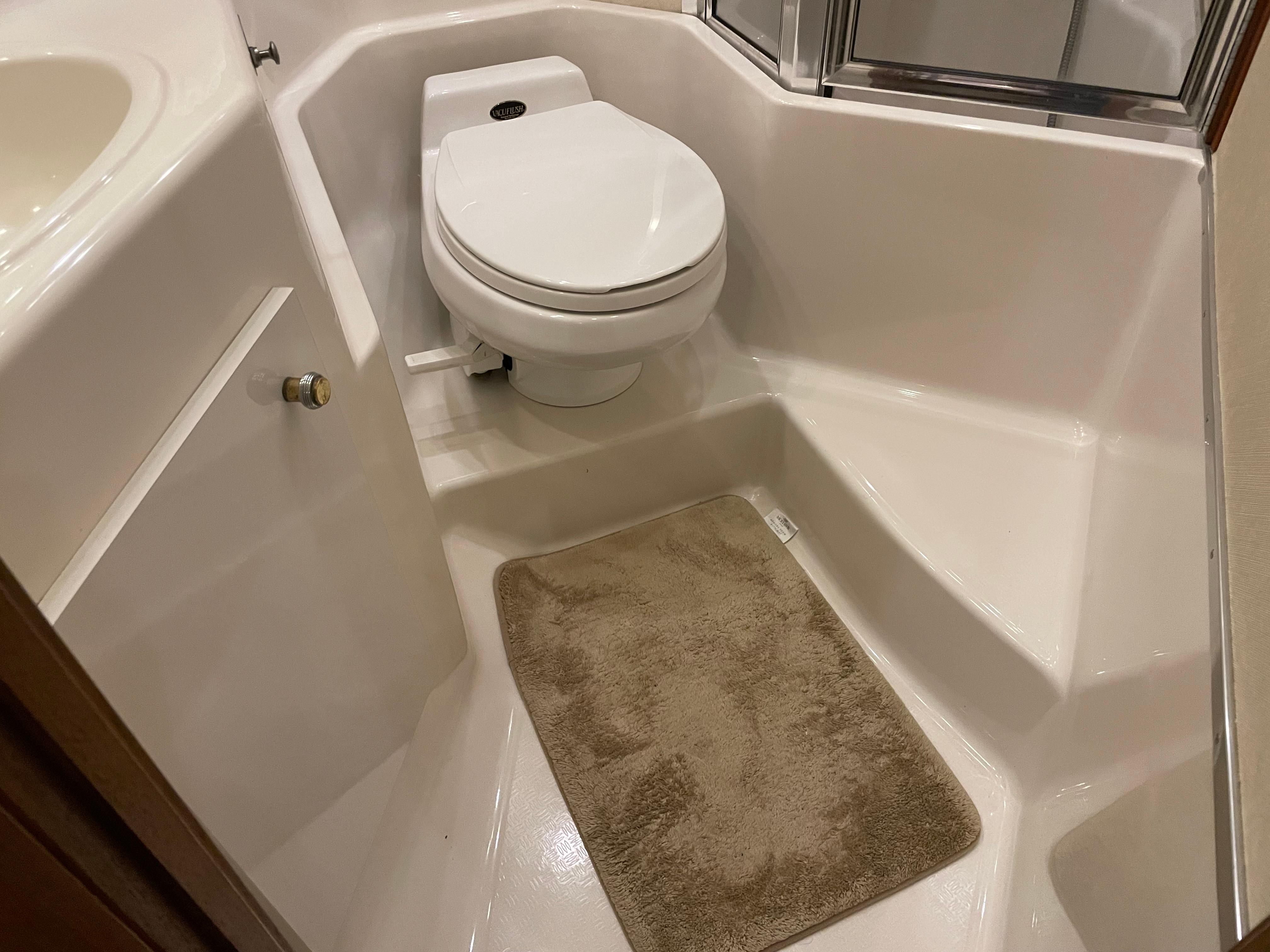

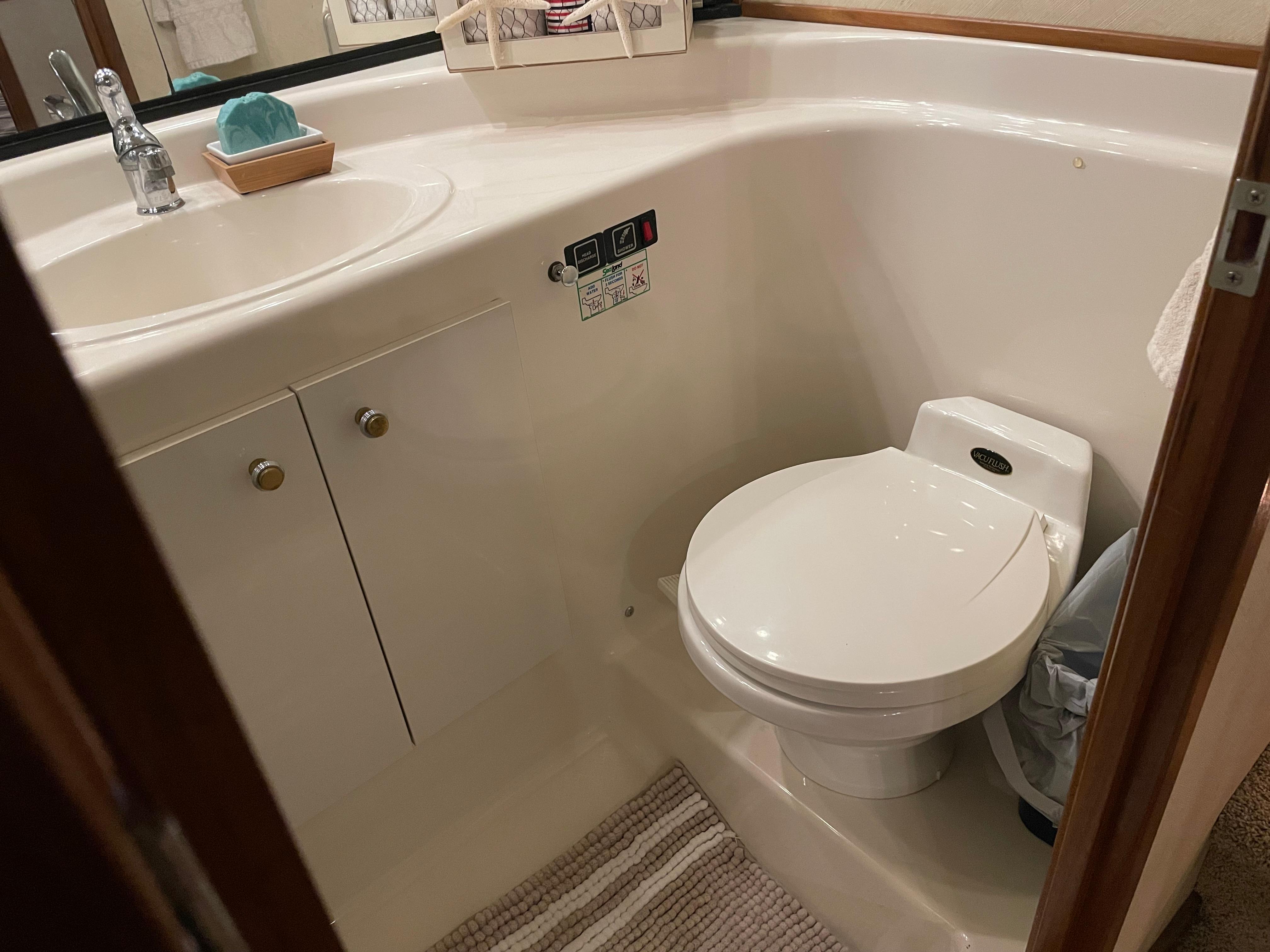

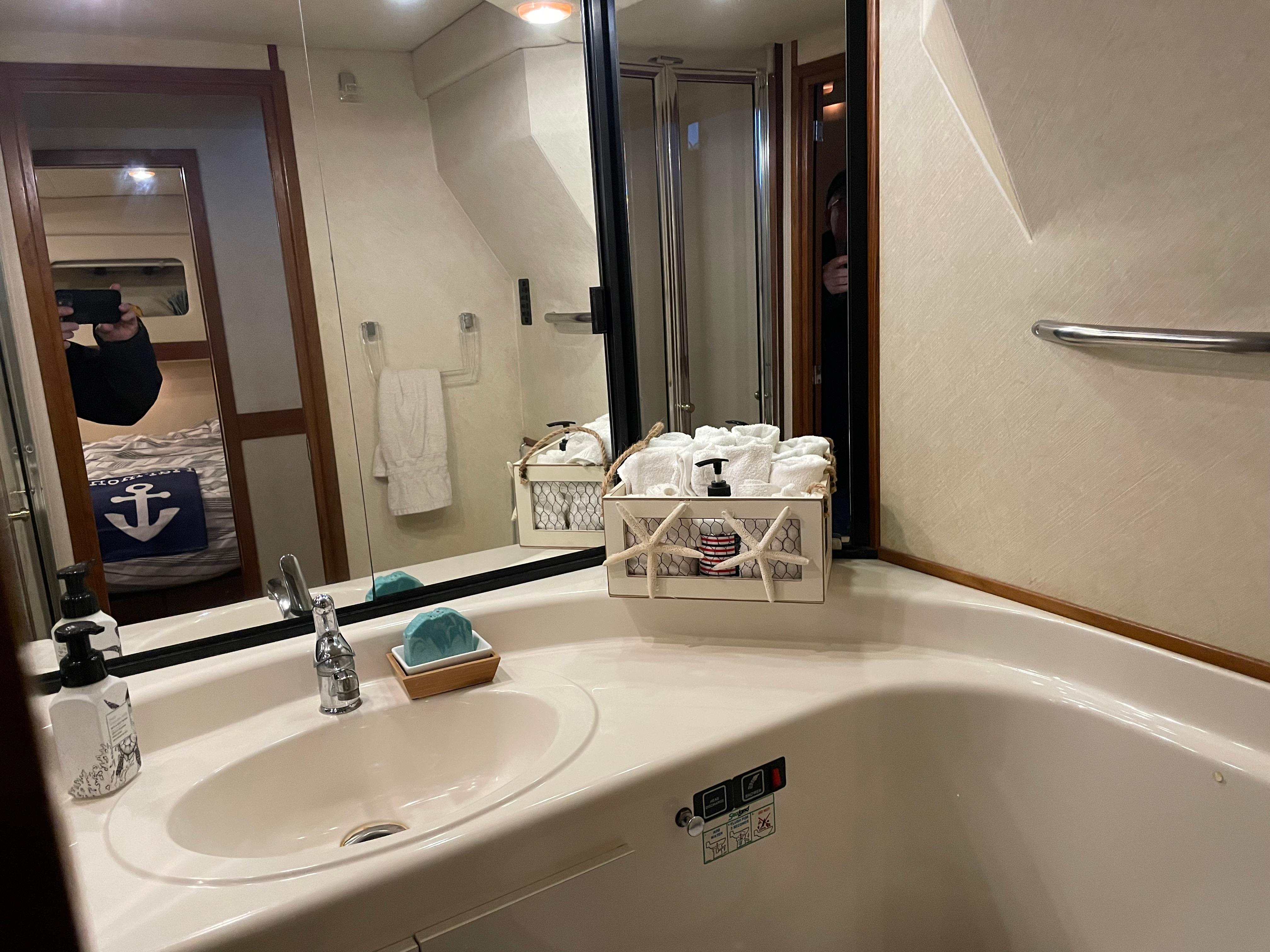

  • Heads - (2) Private Enclosed Heads with Freshwater Vacuflush Marine Toilets

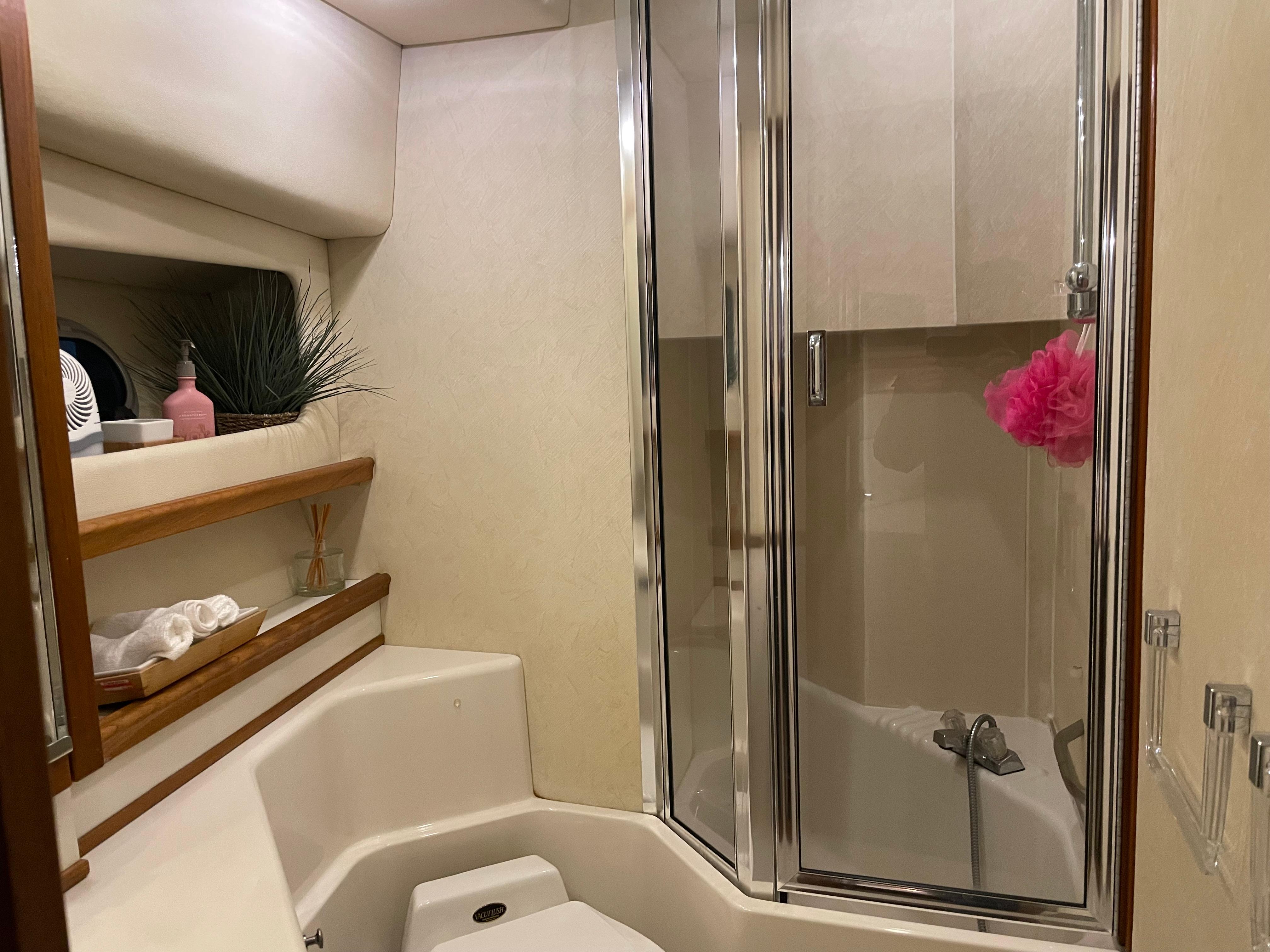

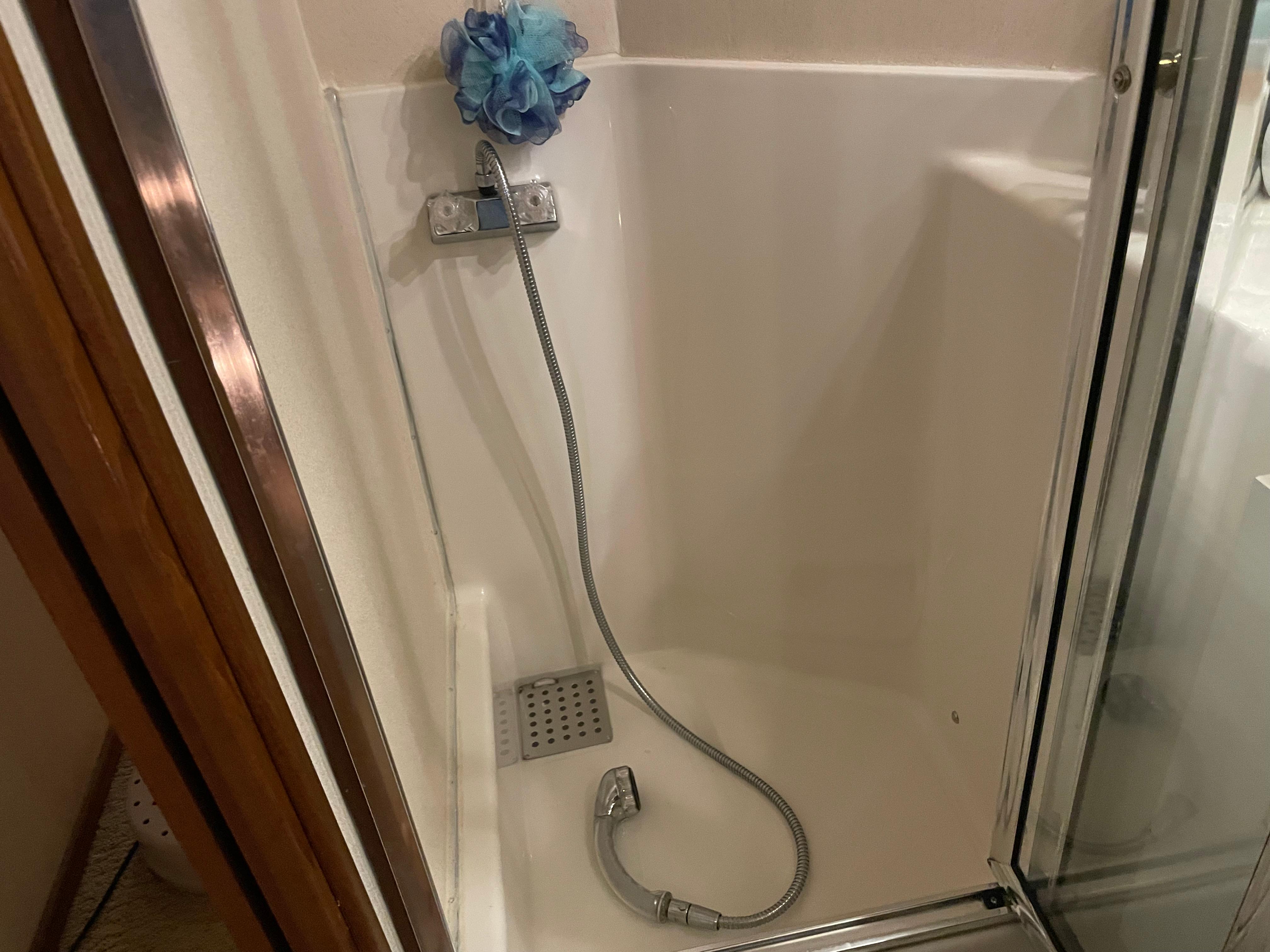

  •              (1) Shower/Tub & (1) Separate Shower Stall Both with Sump Pumps
  • Beautiful & Warm Teak Interior
  • Hot & Cold Pressure Water System - Flowjet Freshwater Pump

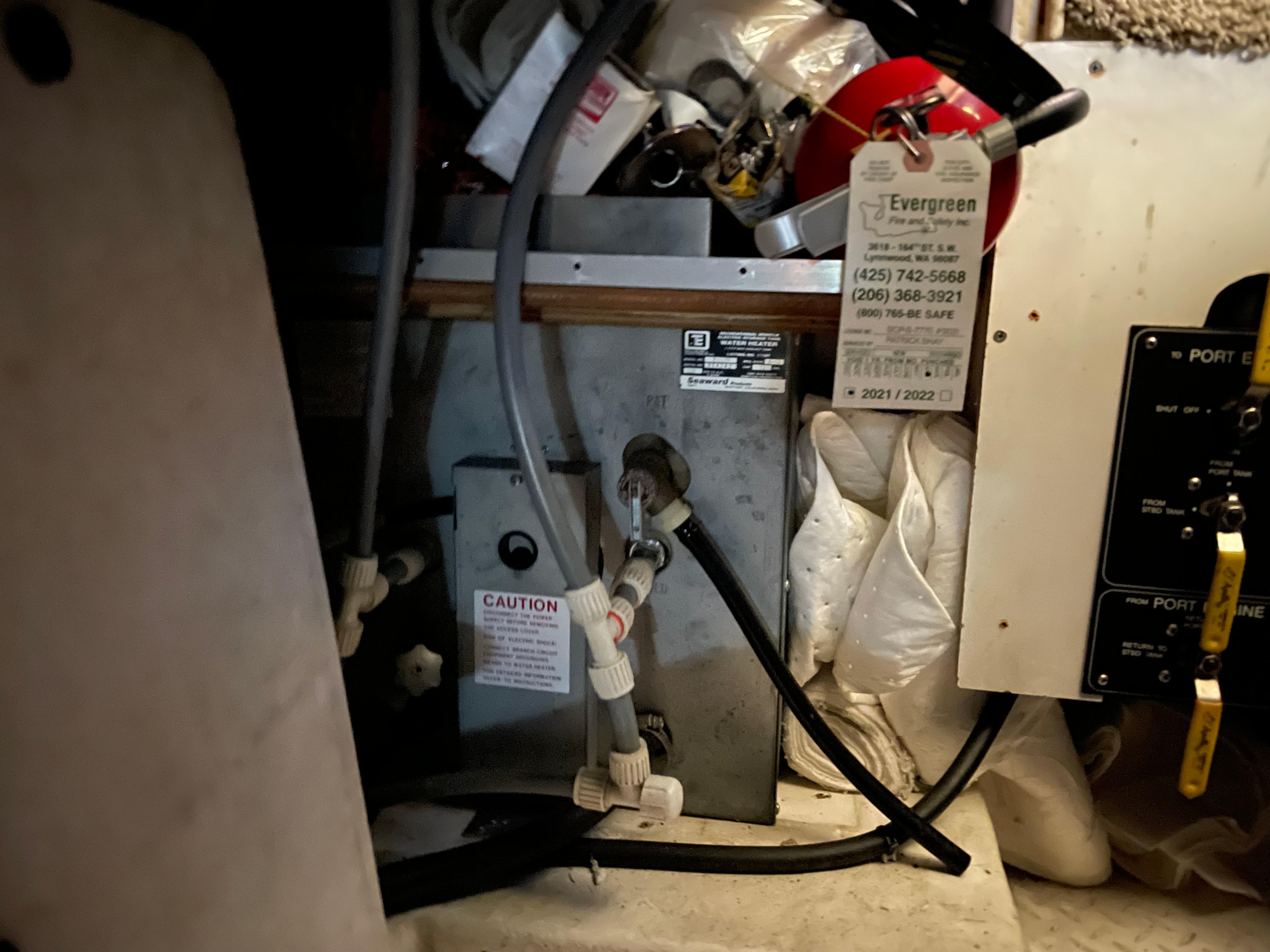

  • Hot Water Tank - Seaward

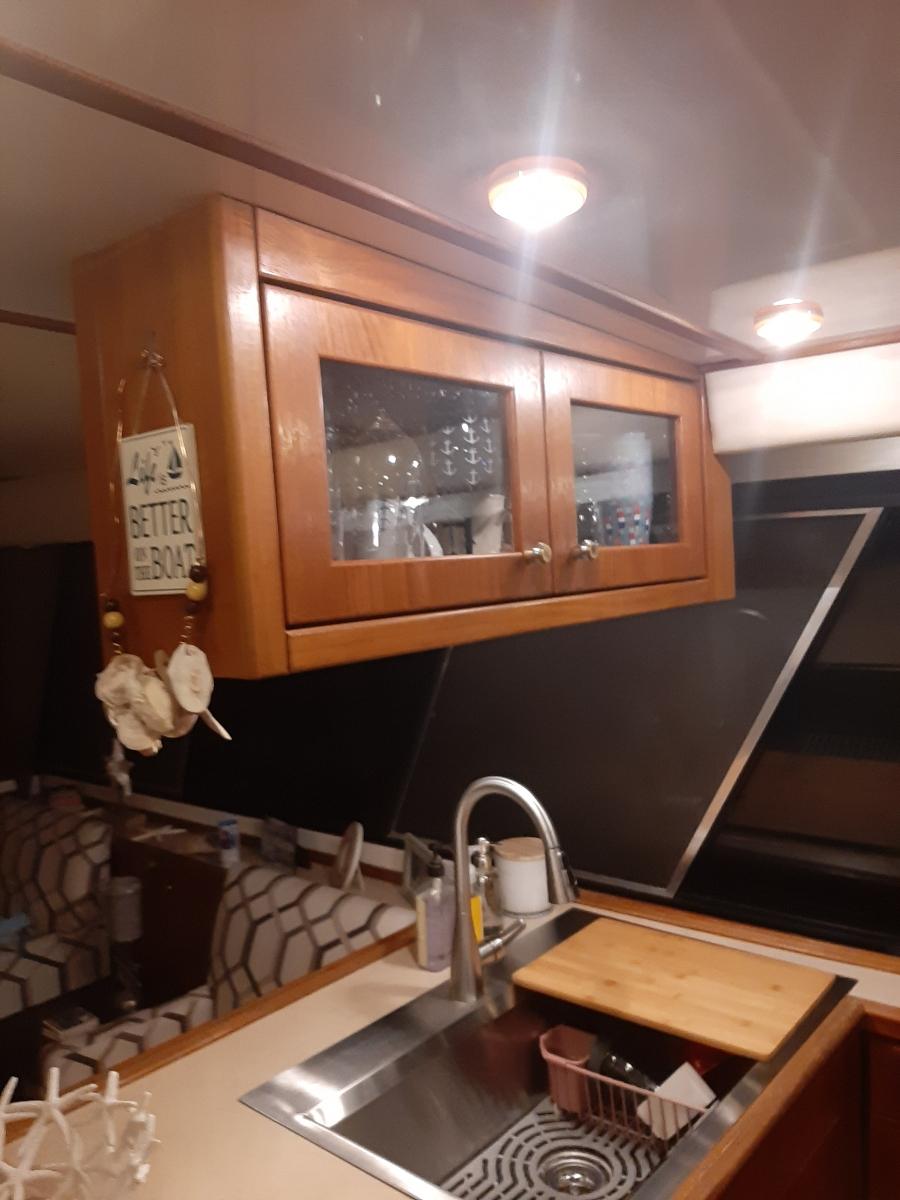

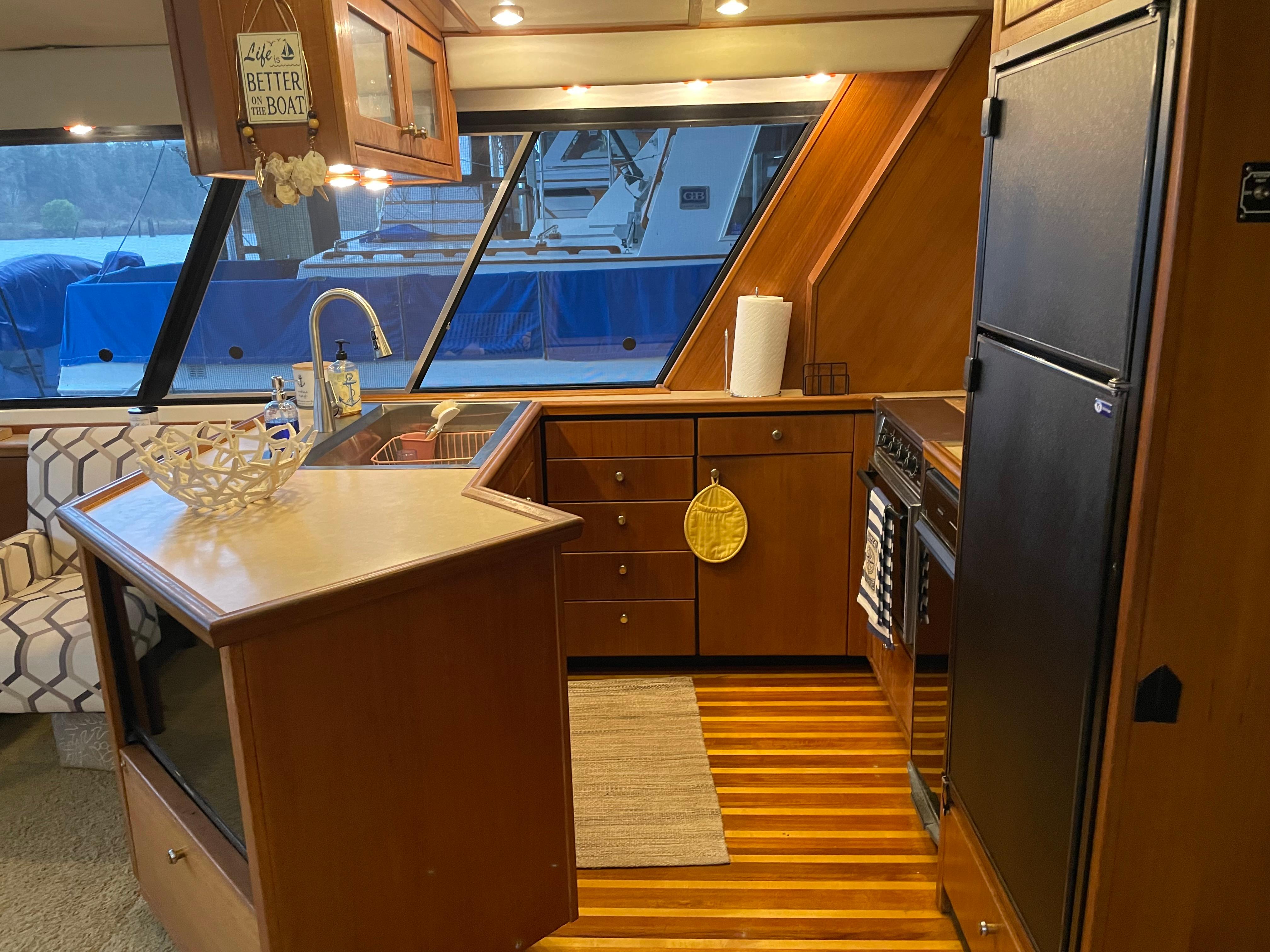

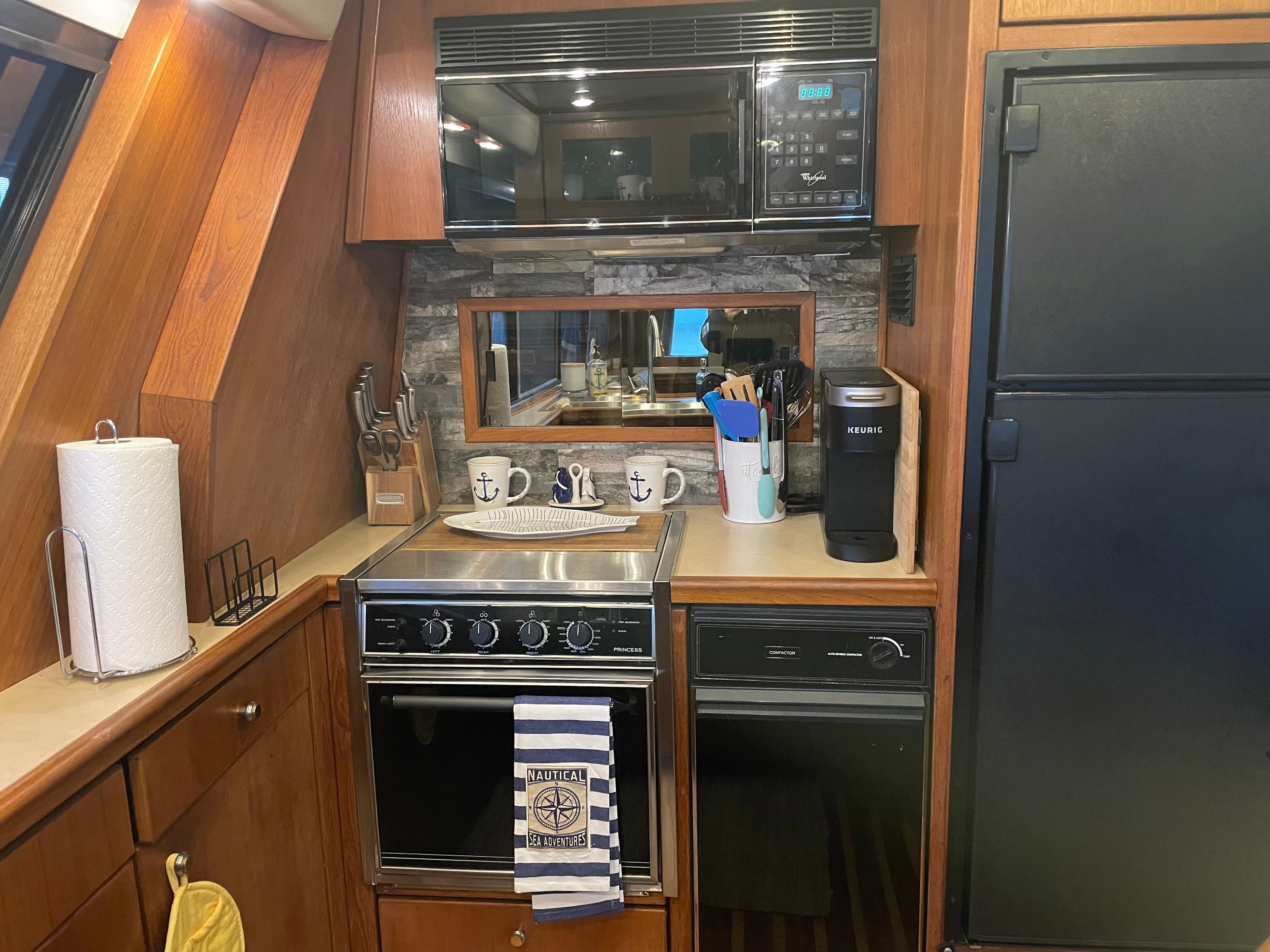

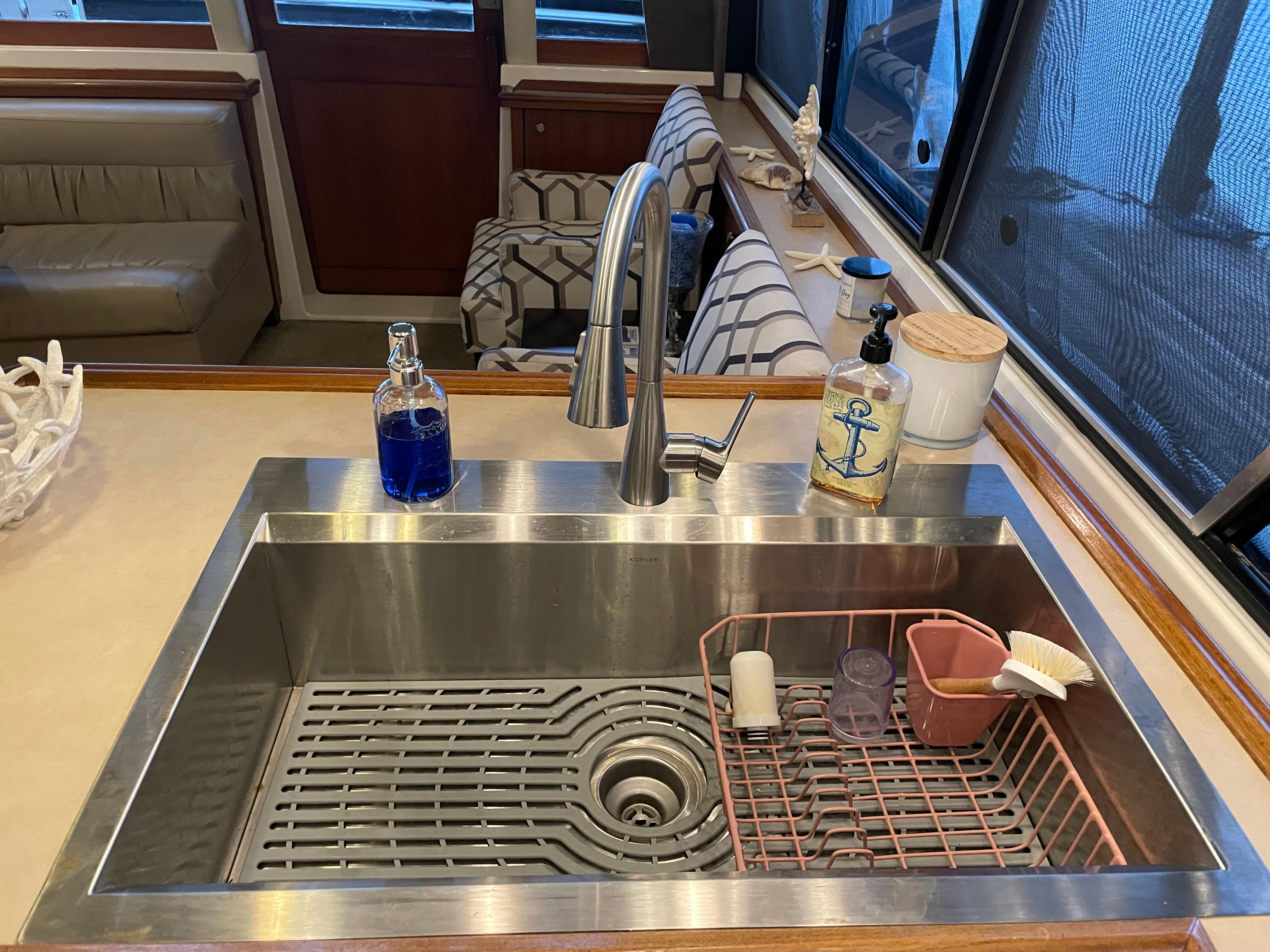

  • Galley Sink - EXTRA Large Galley Sink with Teak Cover/Cutting Board
  • Galley Back Splash - Real Slate

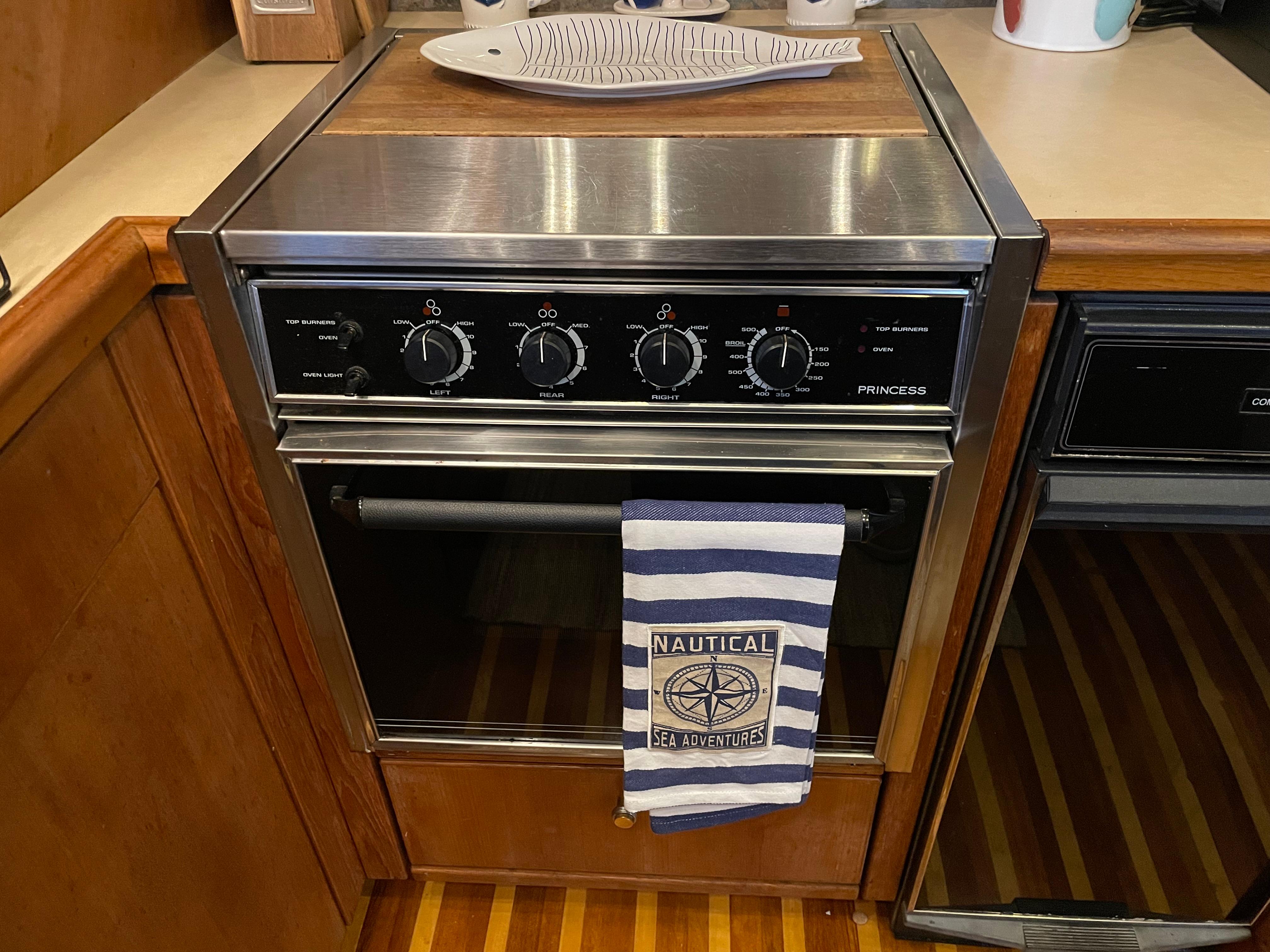

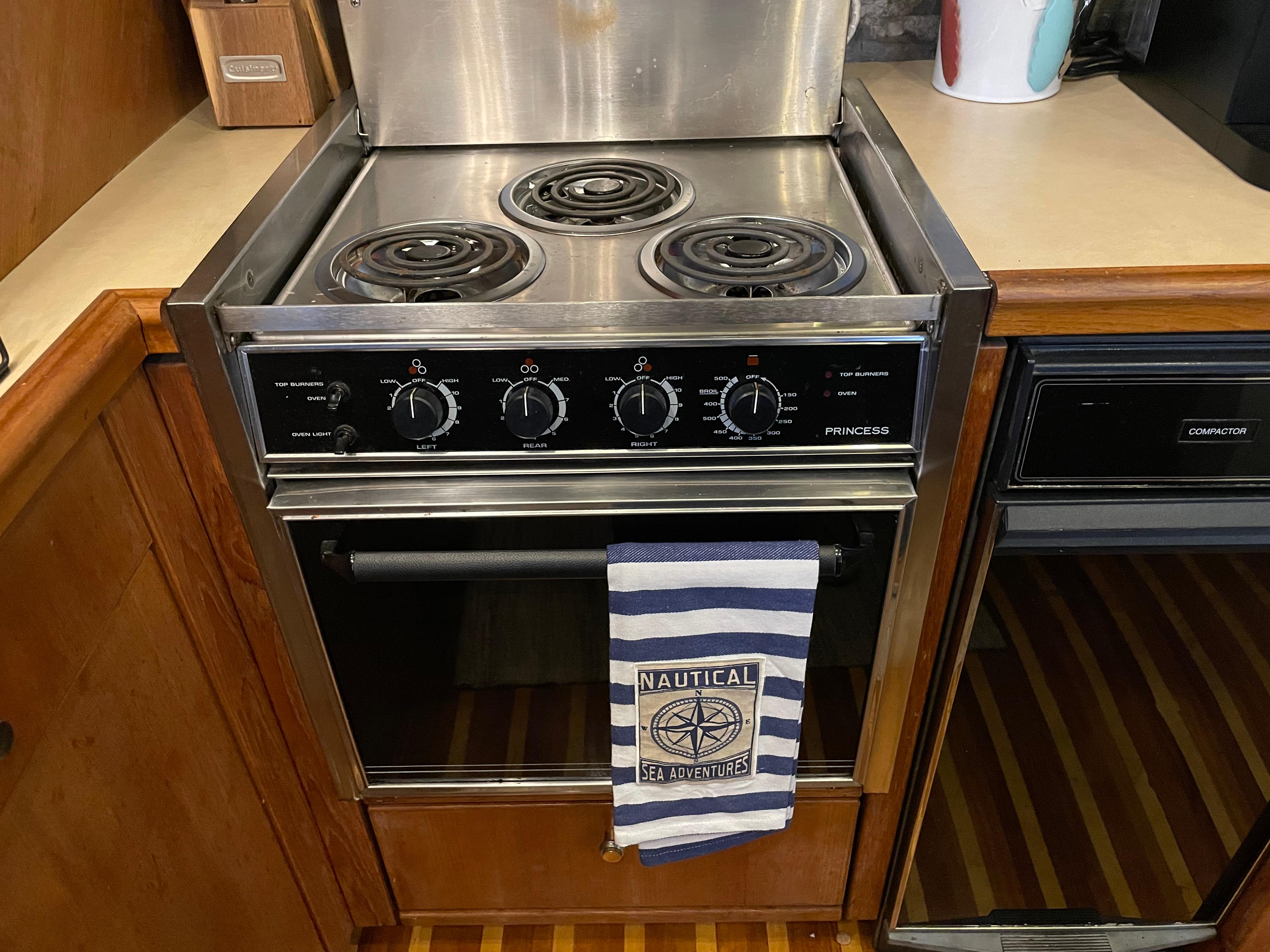

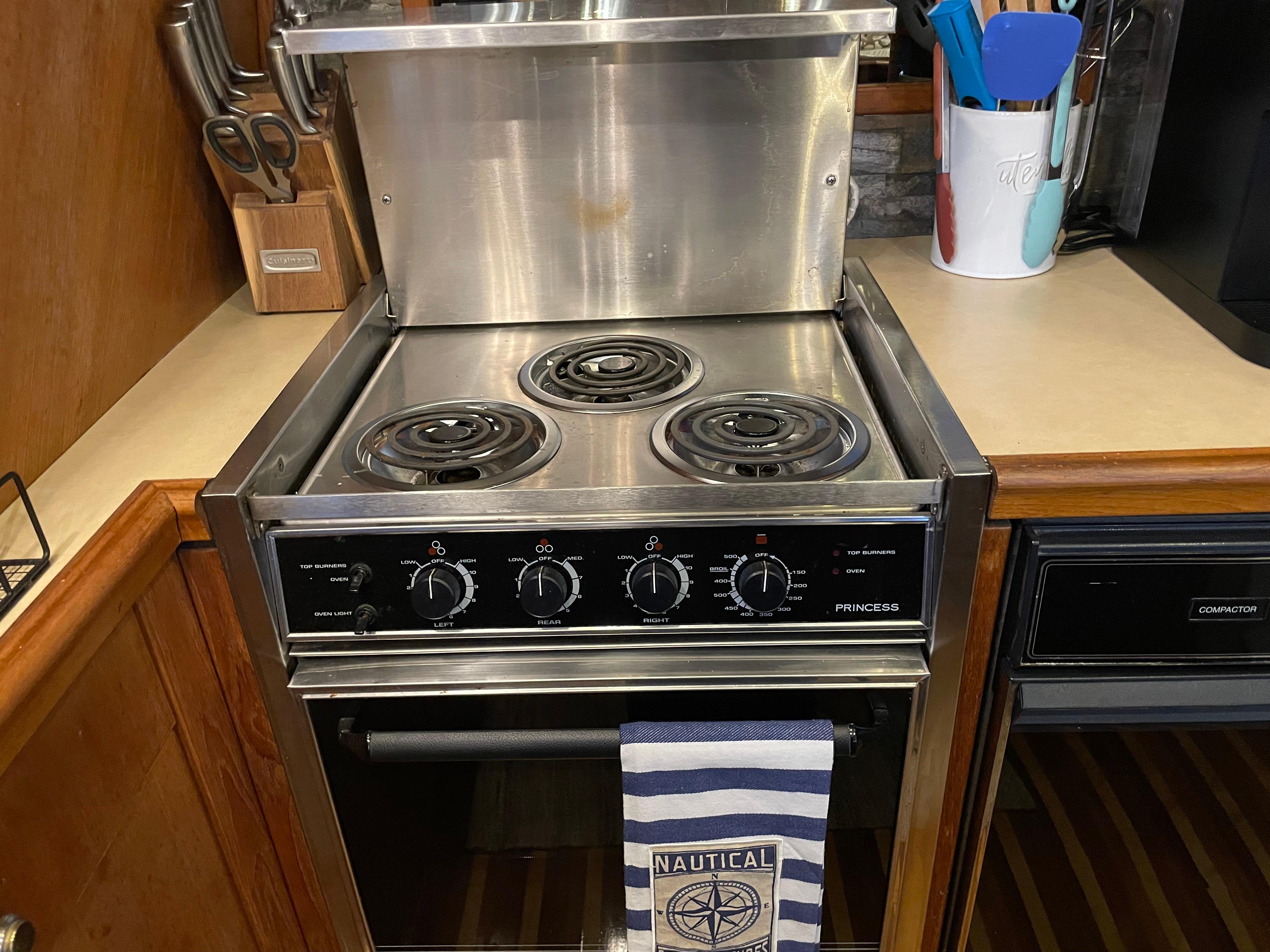

  • Stove / Oven - Princess 3-Burner Electric - Upgraded
  • Microwave - Whirlpool

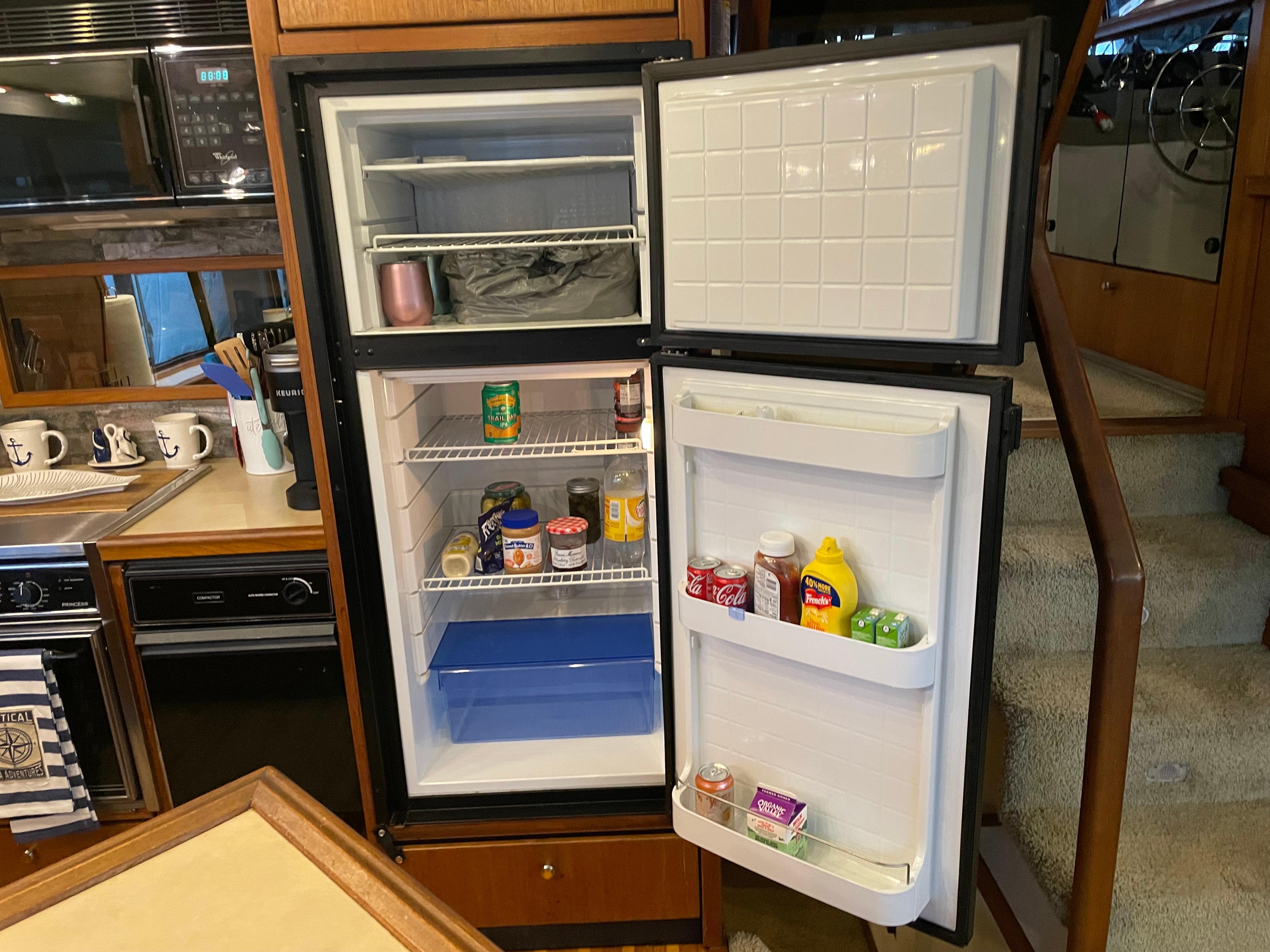

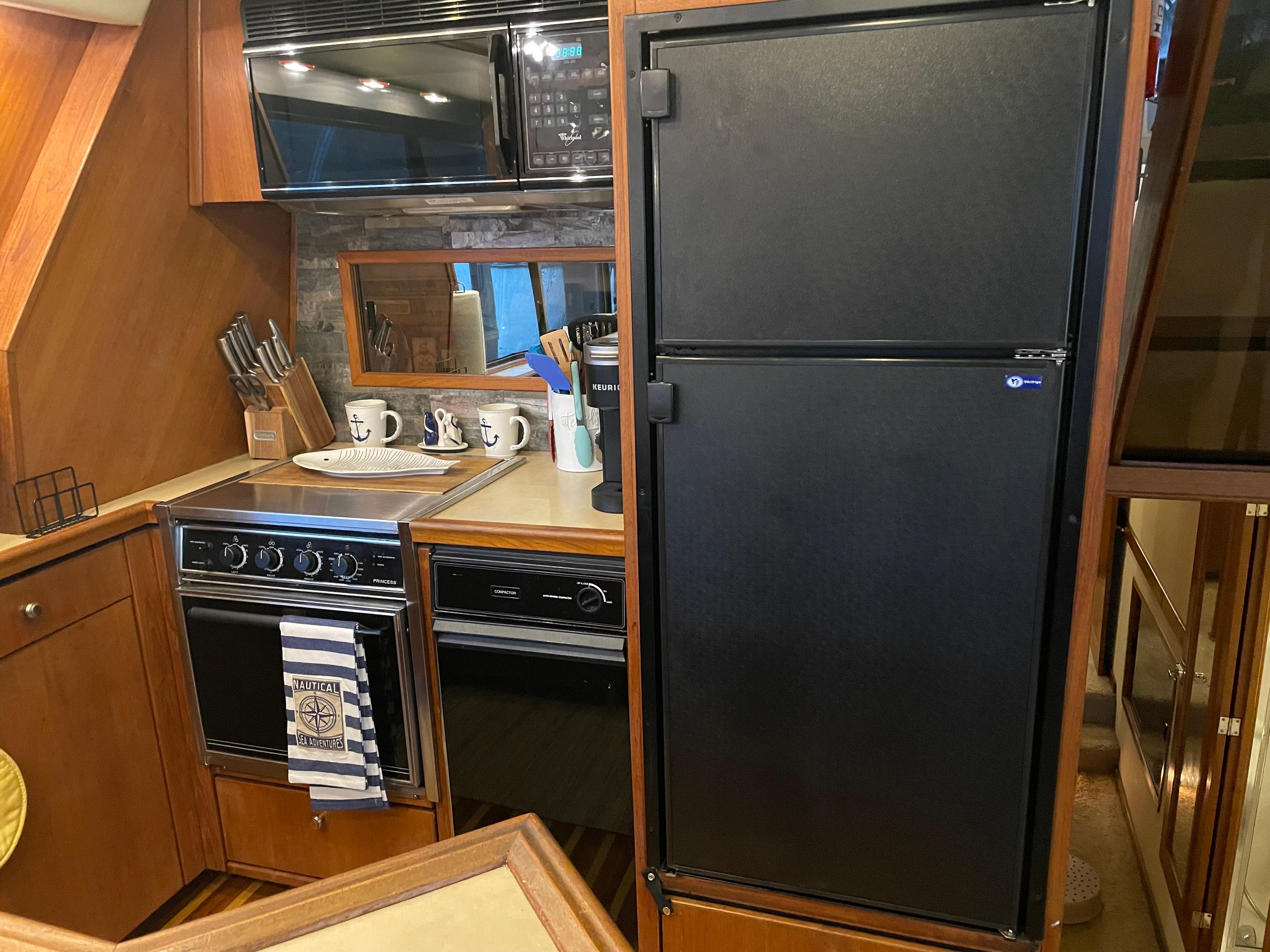

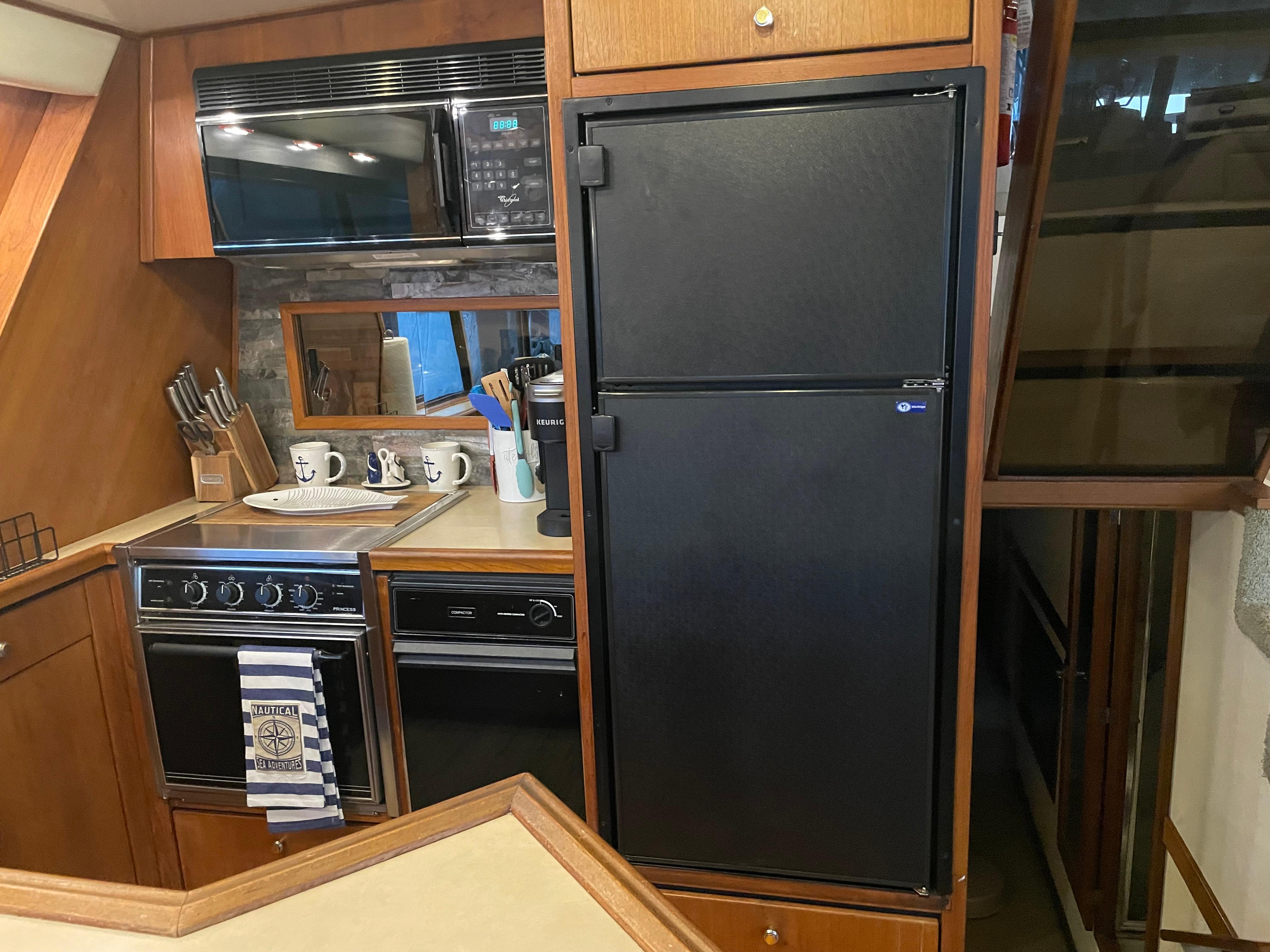

  • Refrigerator / Freezer - Vitrifrigo - NEWER

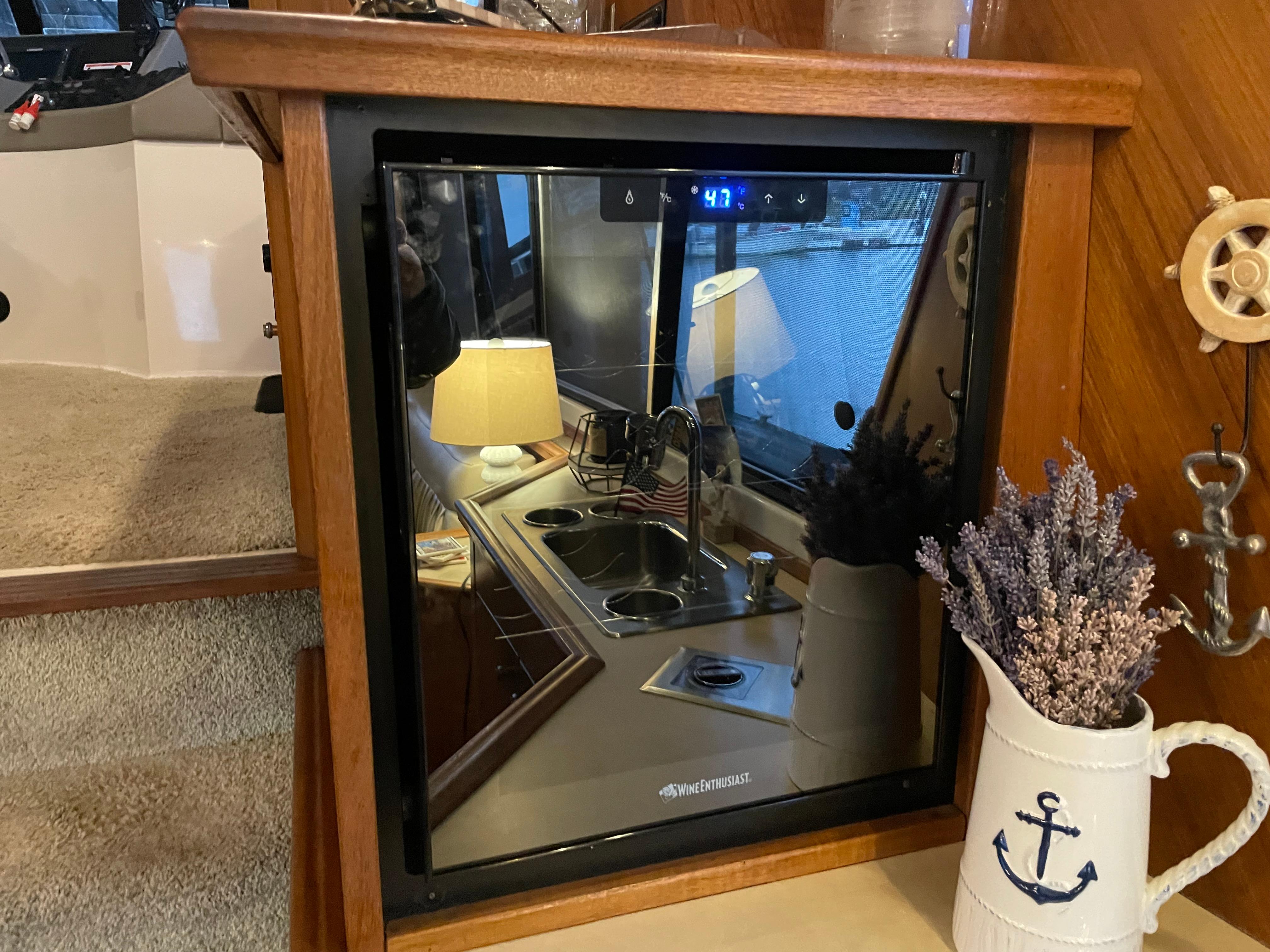

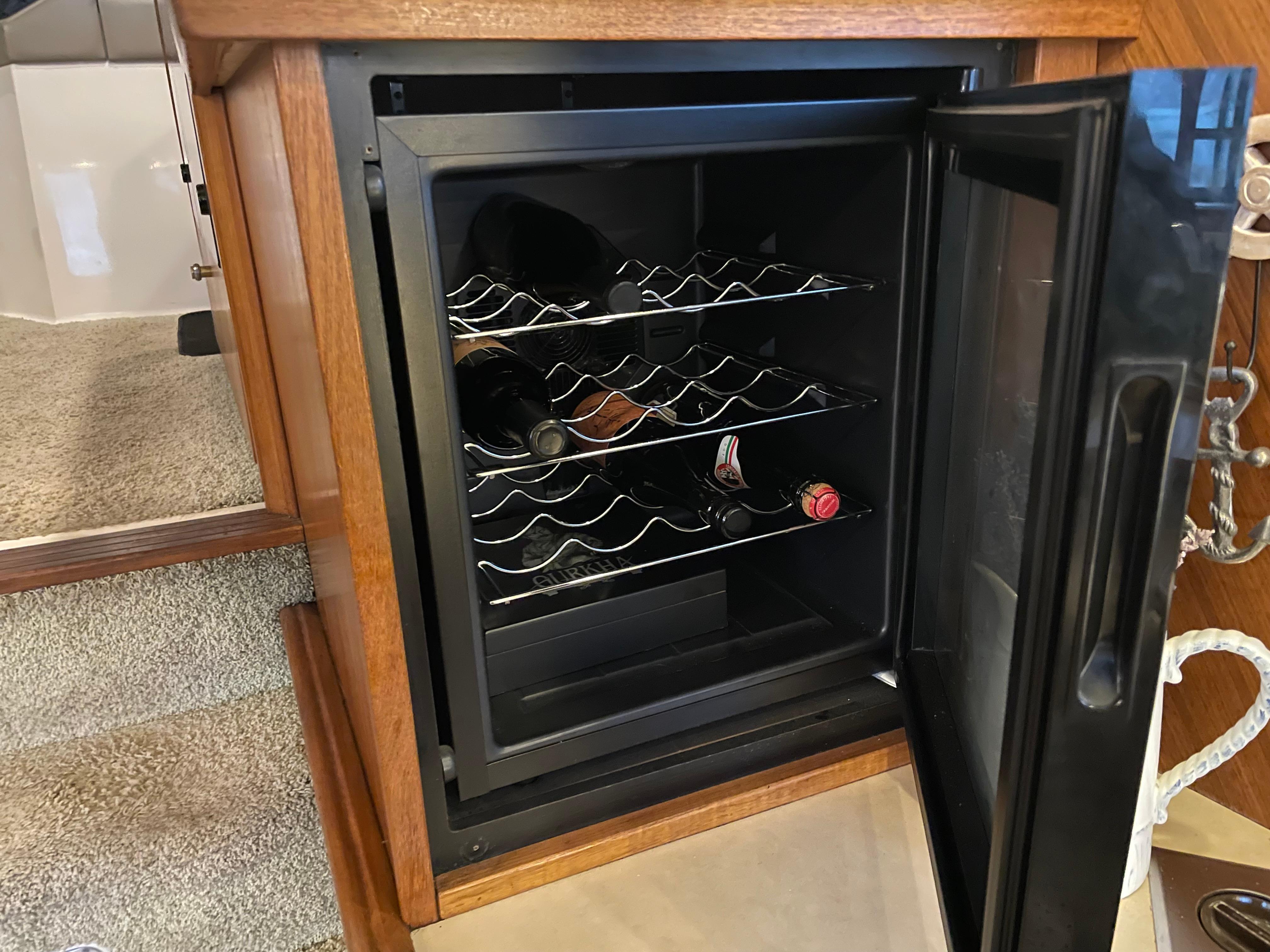

  • Wine Cooler - Wine Enthusiast
  • Microwave - U-Line
  • Trash - Compactor Auto-Reverse

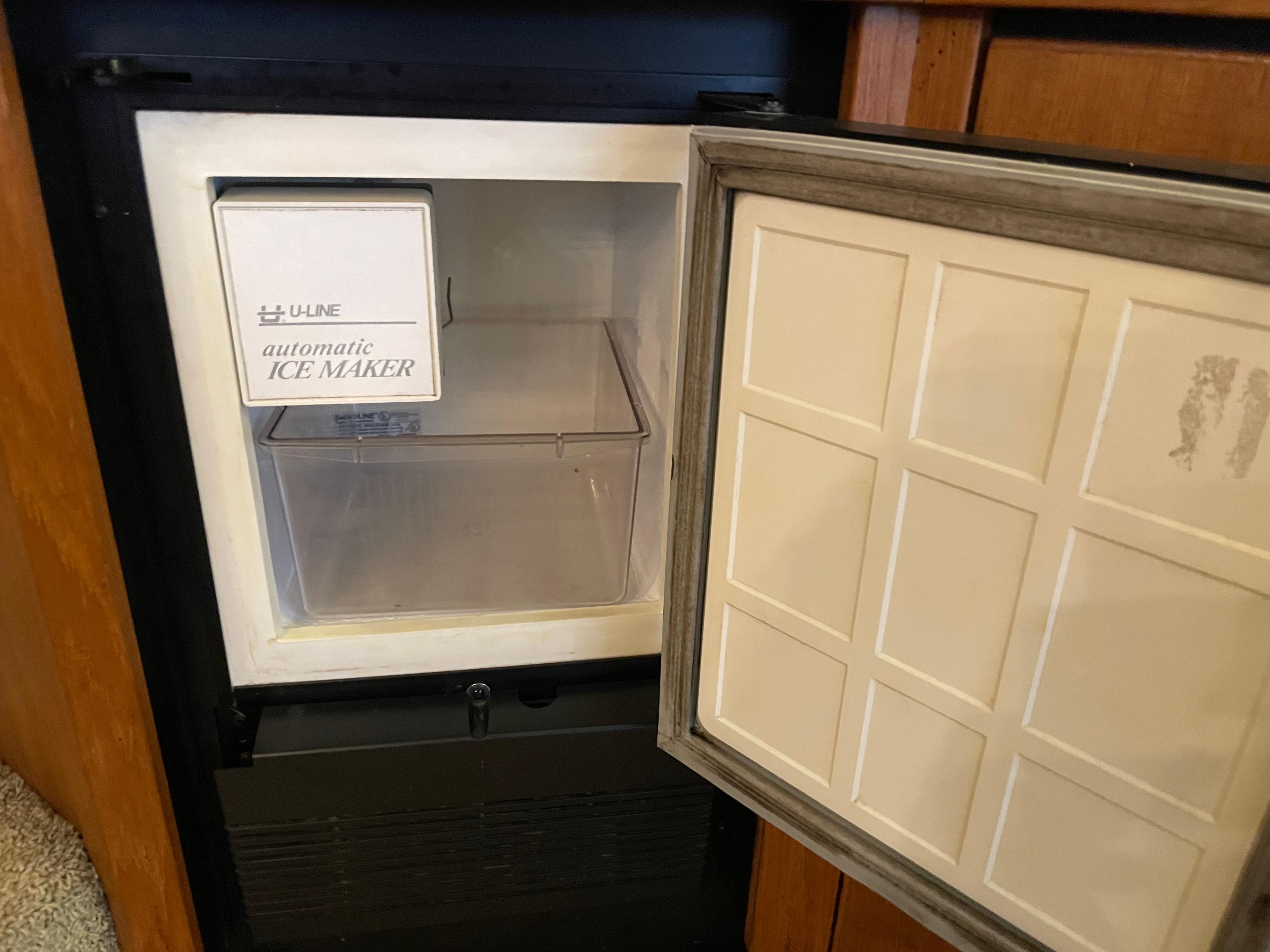

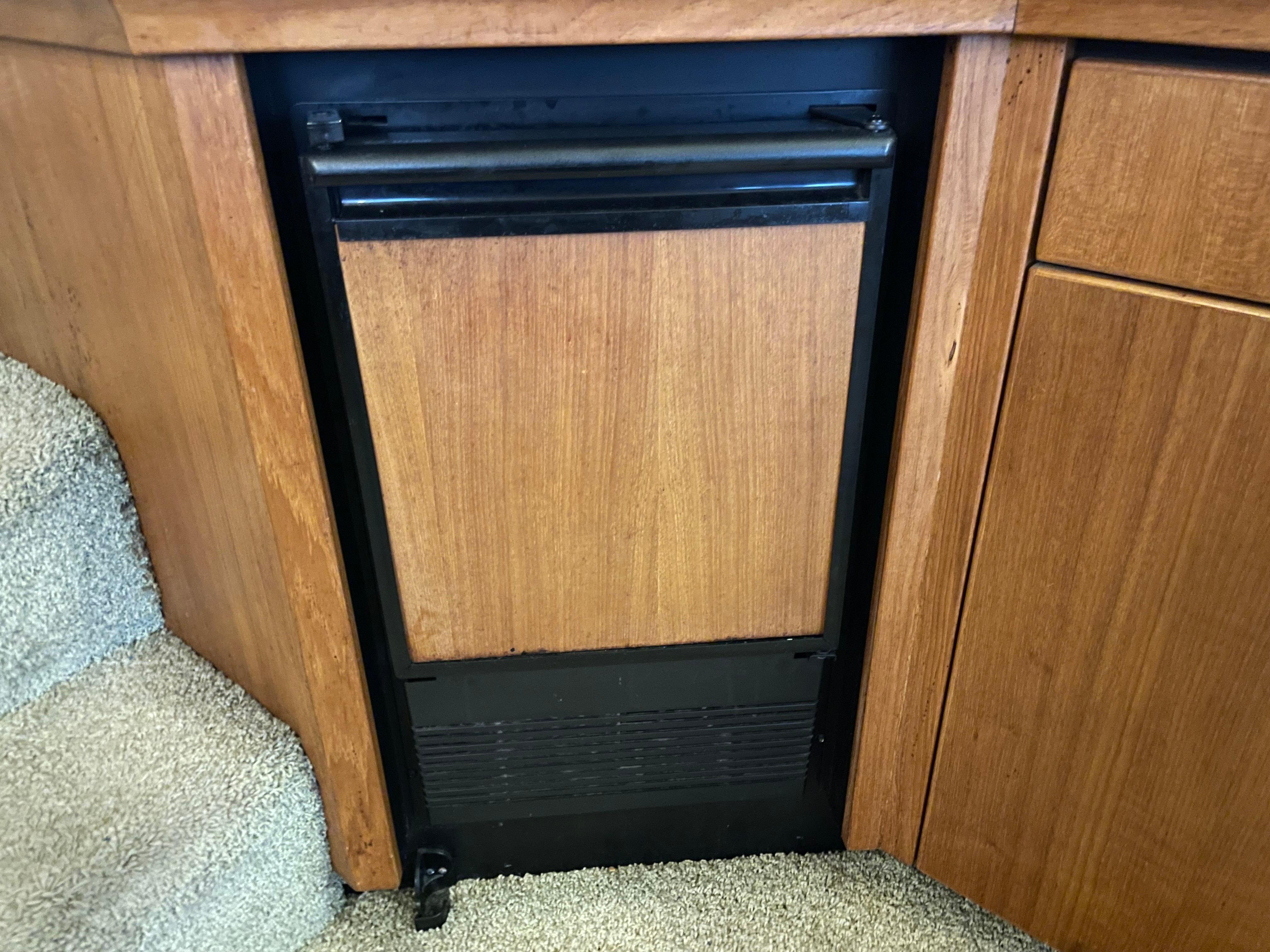

  • Ice Maker - U-Line
  • Mixer/Blender
  • Cabin Heating Systems - Webasto Diesel-Fired Heating
  •                                          Electric 110Volt AC Built-In Forced Air
  •                                          Red Dot off Engine
  • Interior Lights - LED

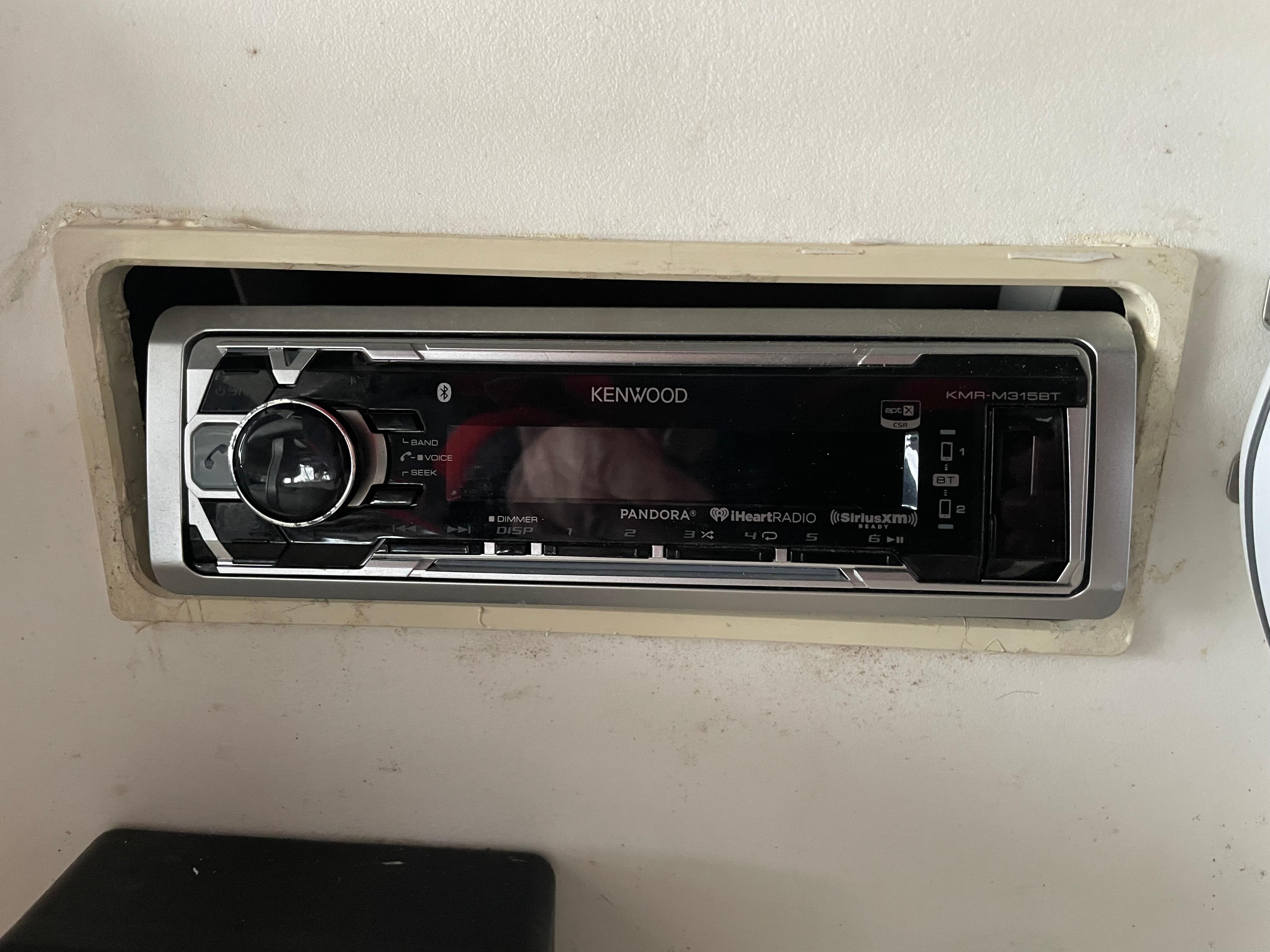

  • Stereo System - Kenwood KMR M315 BT - Pandora / Heart Radio / Sirius Radio

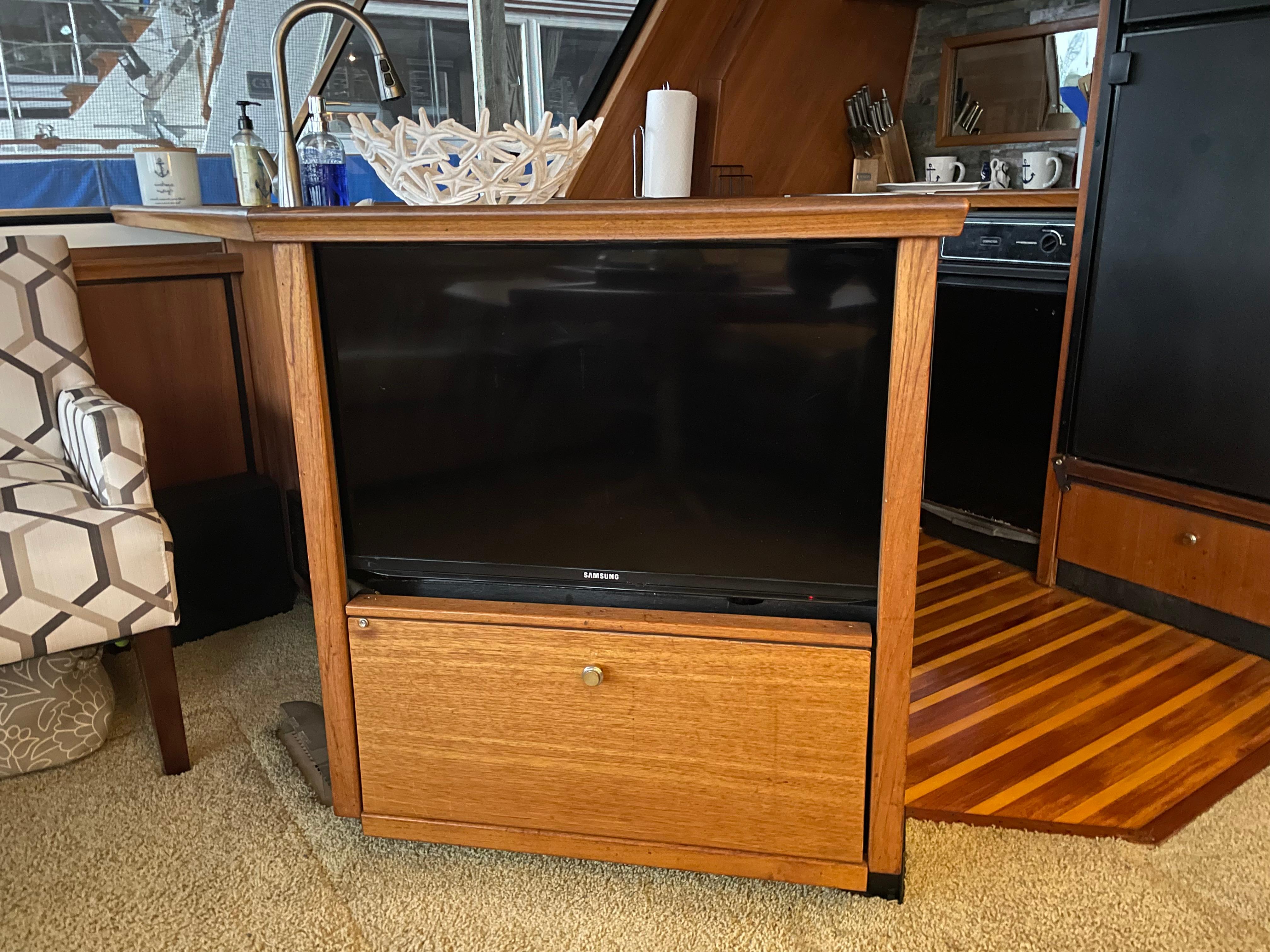

  • TV - Samsung Large Flat Screen
  •  Central Vacuum

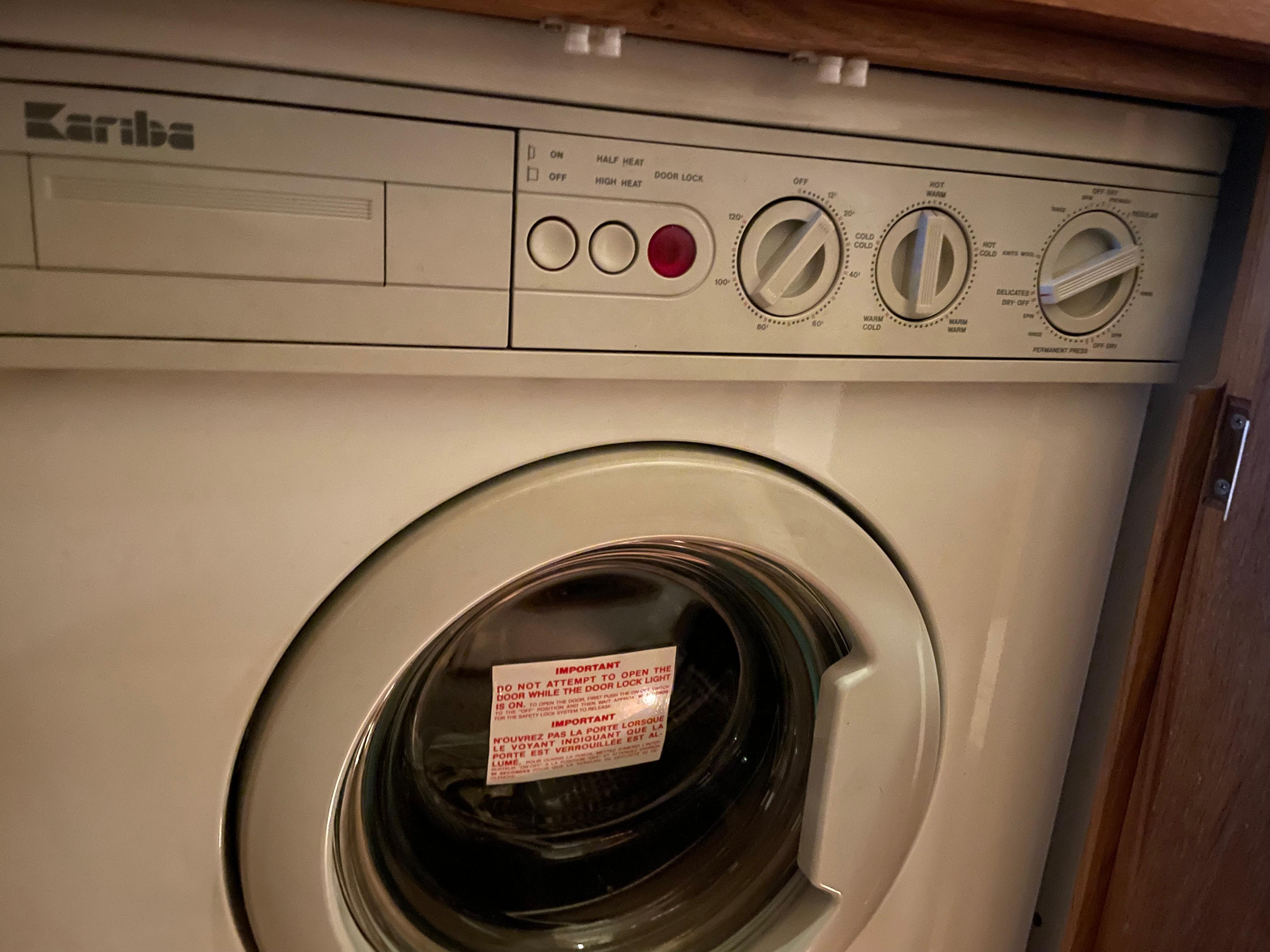

  • Kariba Washer / Dryer

MECHANICAL:

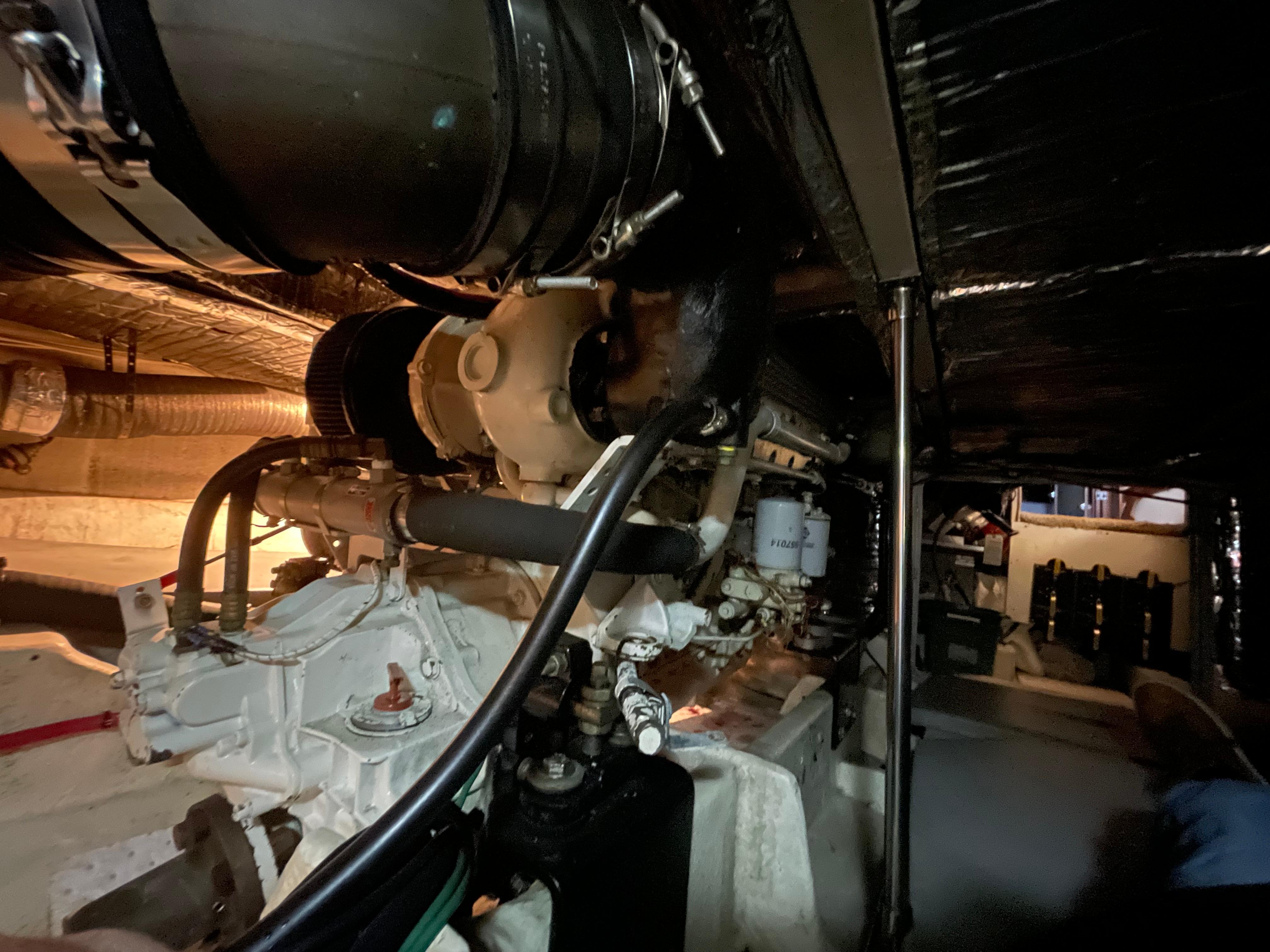

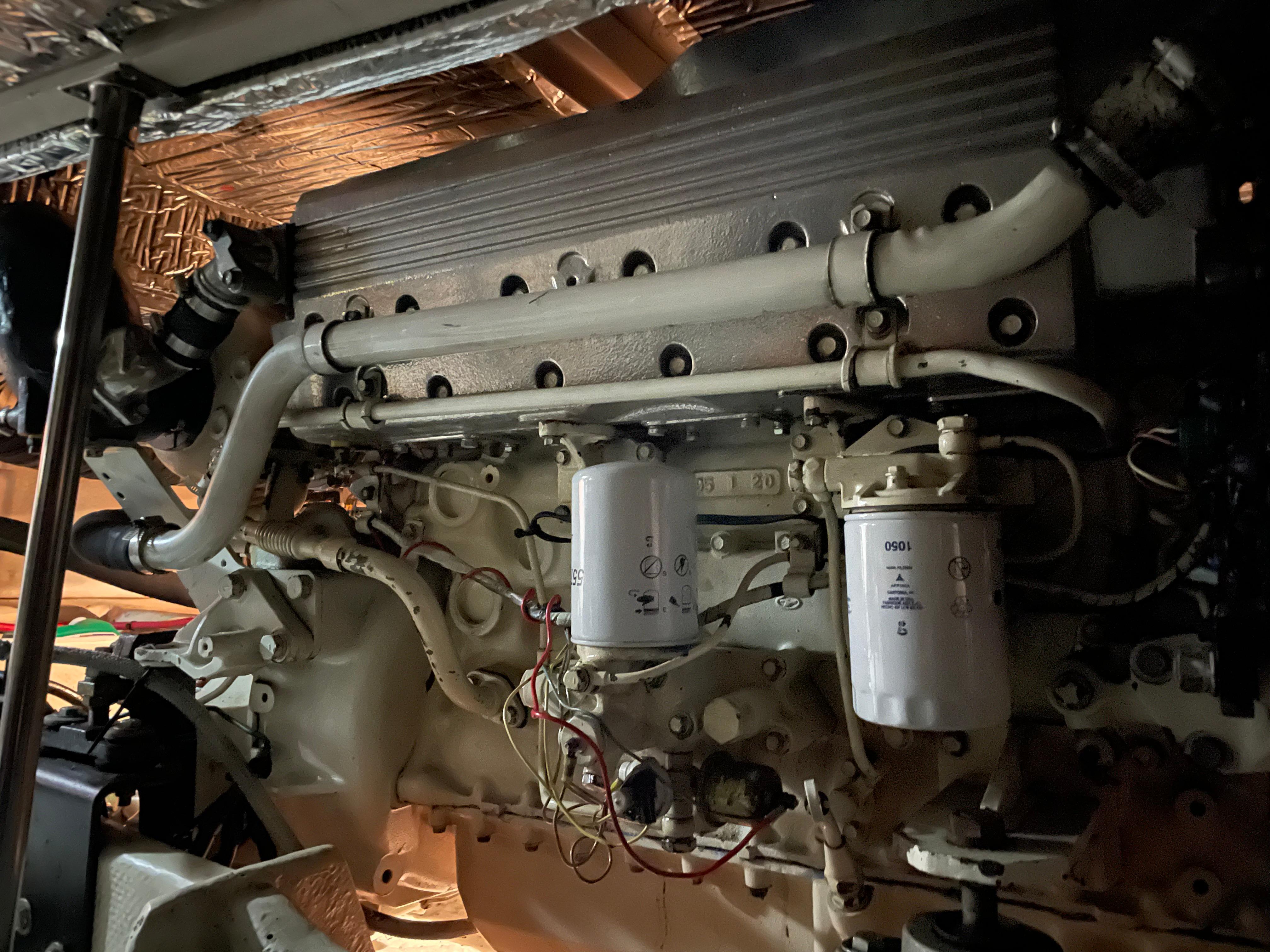

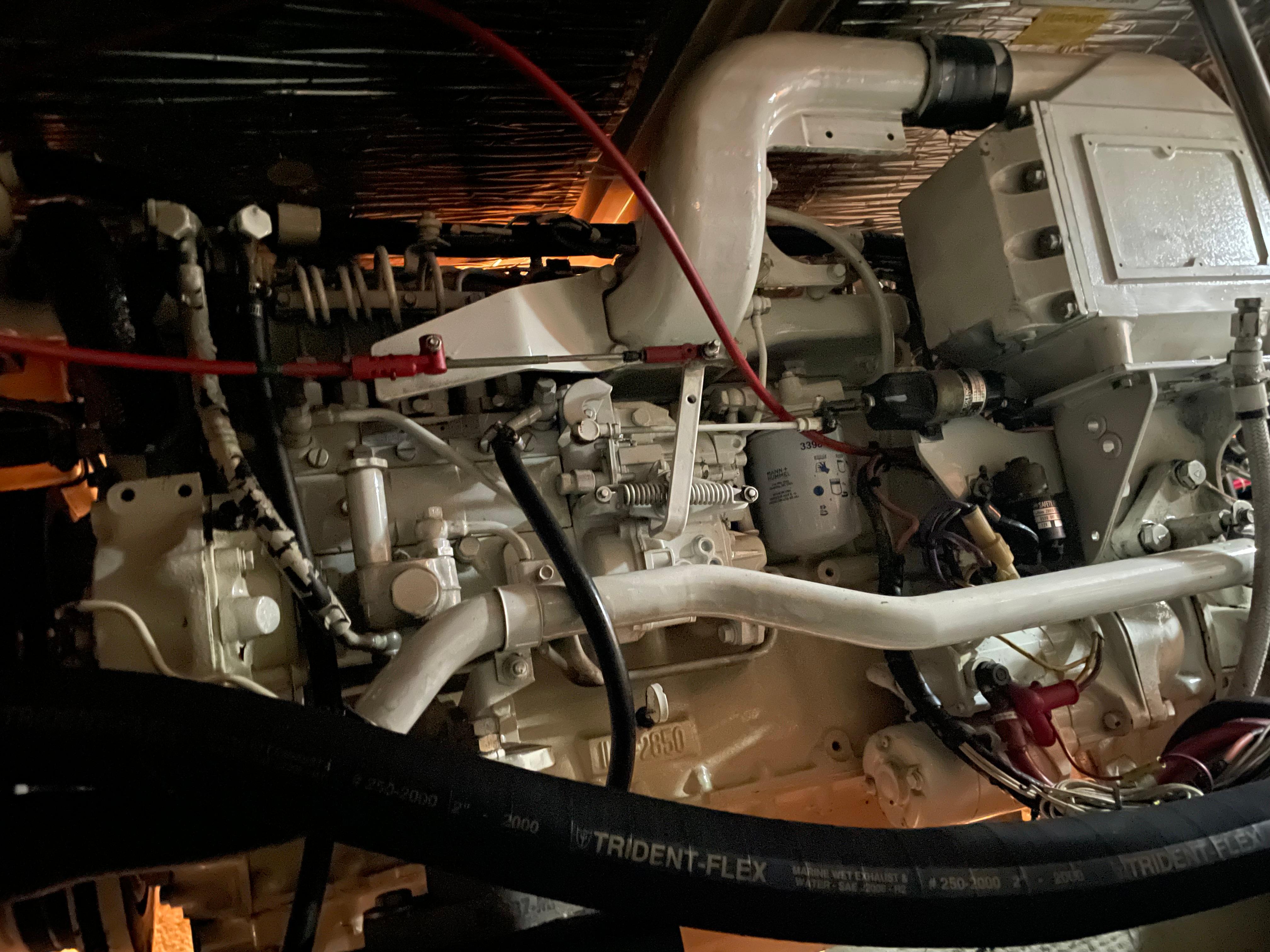

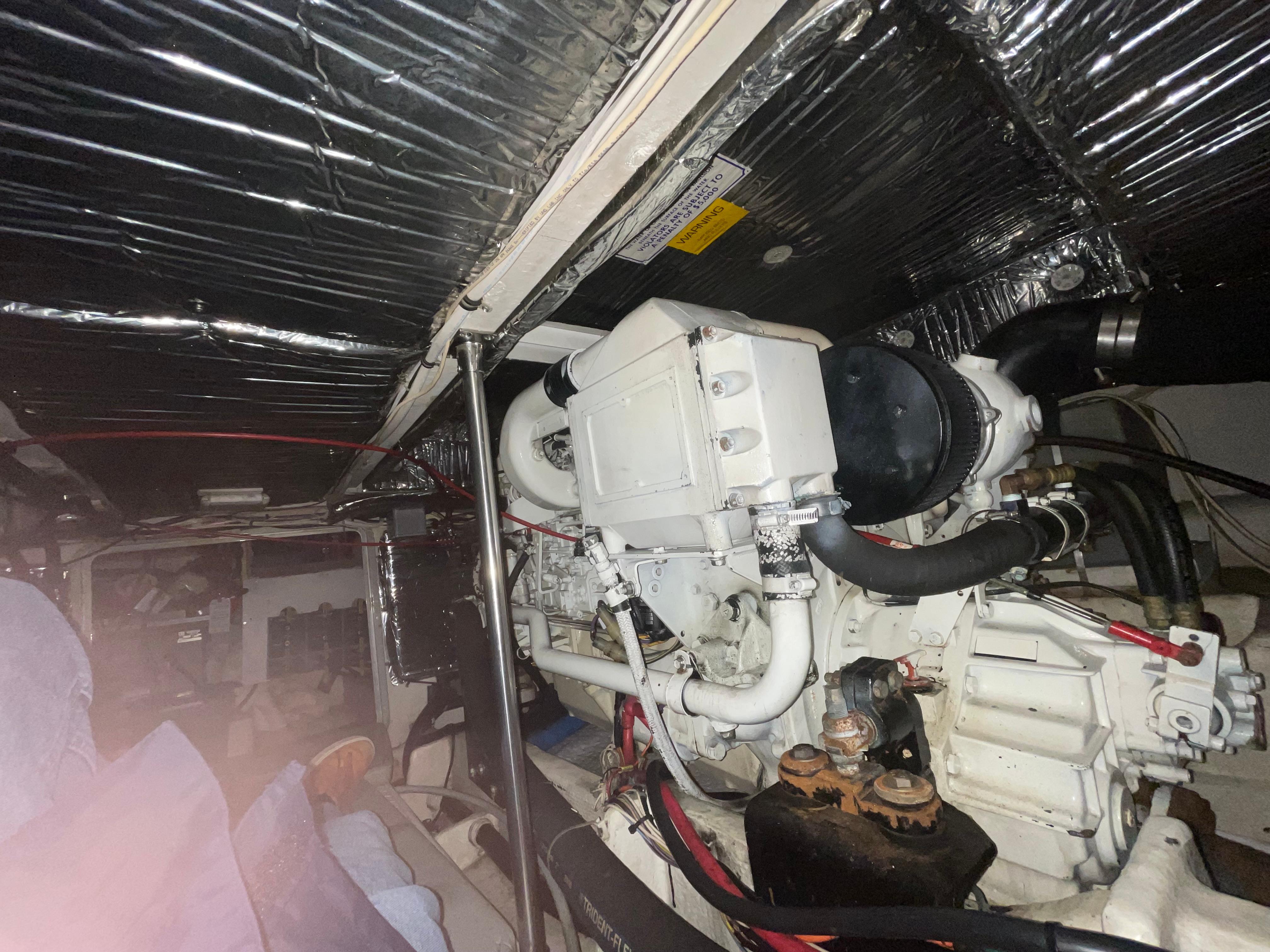

  • Engines - Twin Hino Ceramic Coated W06 CTI, 310hp x 2 = Total 620hp, 6-cylinder, Turbo Charged, After-Cooled, Freshwater-Cooled, Inboard, Direct-Drive Diesel Engines
  • Engine Hours - Port - 3018 Hours - Rebuilt at 2015 Hours
  •                          Starboard - 3017 Hours - Rebuilt at 2013 Hours
  • Engine - Serviced Sept 2024
  • Engine Controls - Dual Lever Shift & Throttle
  • Engine Exhaust - Wet
  • Engine Injectors - Serviced - Dec. 2024
  • Engine Turbos - Serviced - Dec 2024
  • Engine Heat Exchangers - Ceramic Coated
  • Engine Manicoolers (Exhaust Maniflod) - Ceramic Coated
  • Engine Raw Water Pumps - Rebuilt Dec. 2024
  • Engine Impellers - NEW - Dec. 2024
  • Engine Risers - Jeted & Serviced Dec. 2024

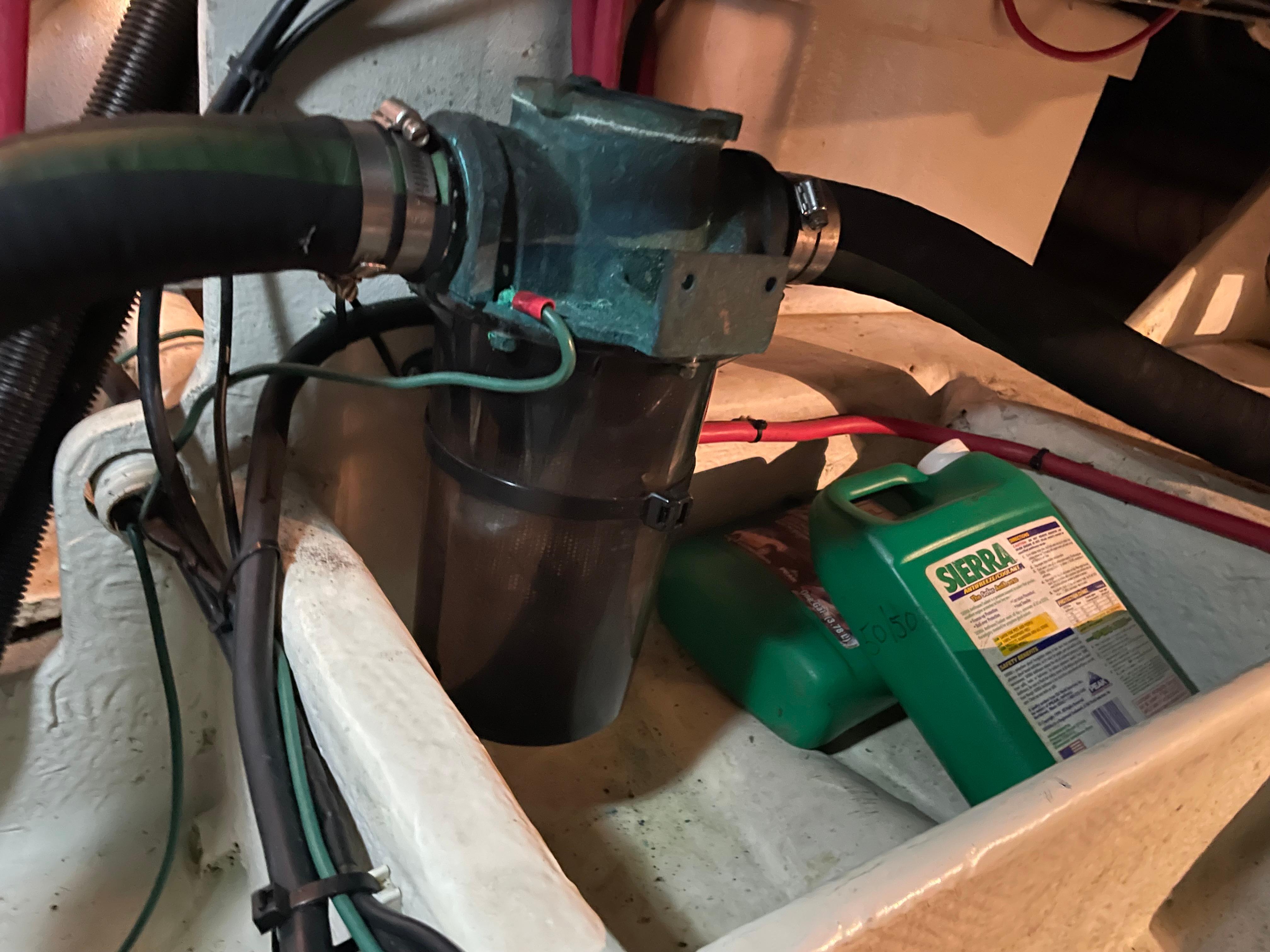

  • Engine Raw Water Intakes - Bronze Valves
  • Engine Mounts - Captive Rubber Block

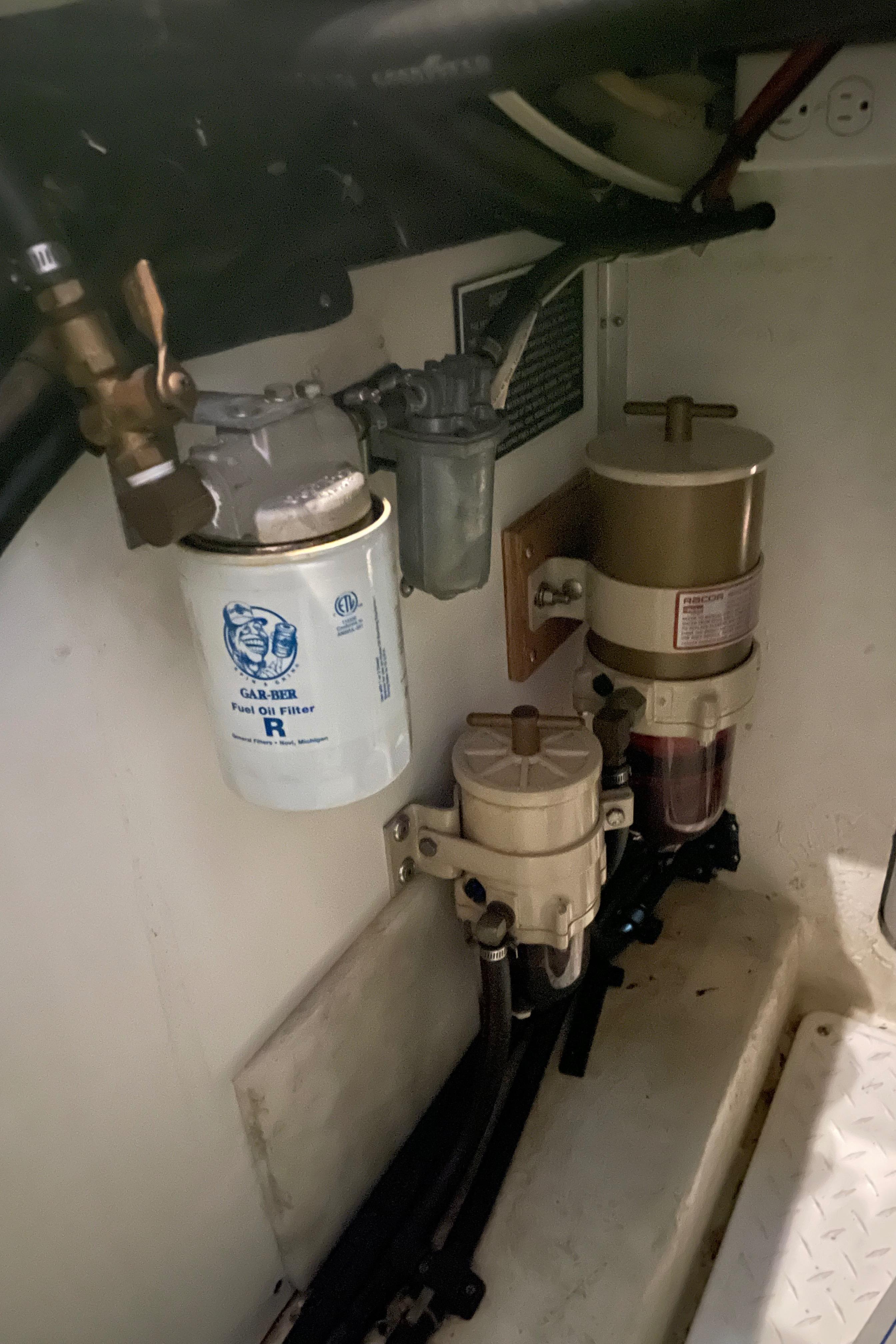

  • Engine Fuel Filters - Primary - Racor
  •                                  Secondary - OEM on Engine

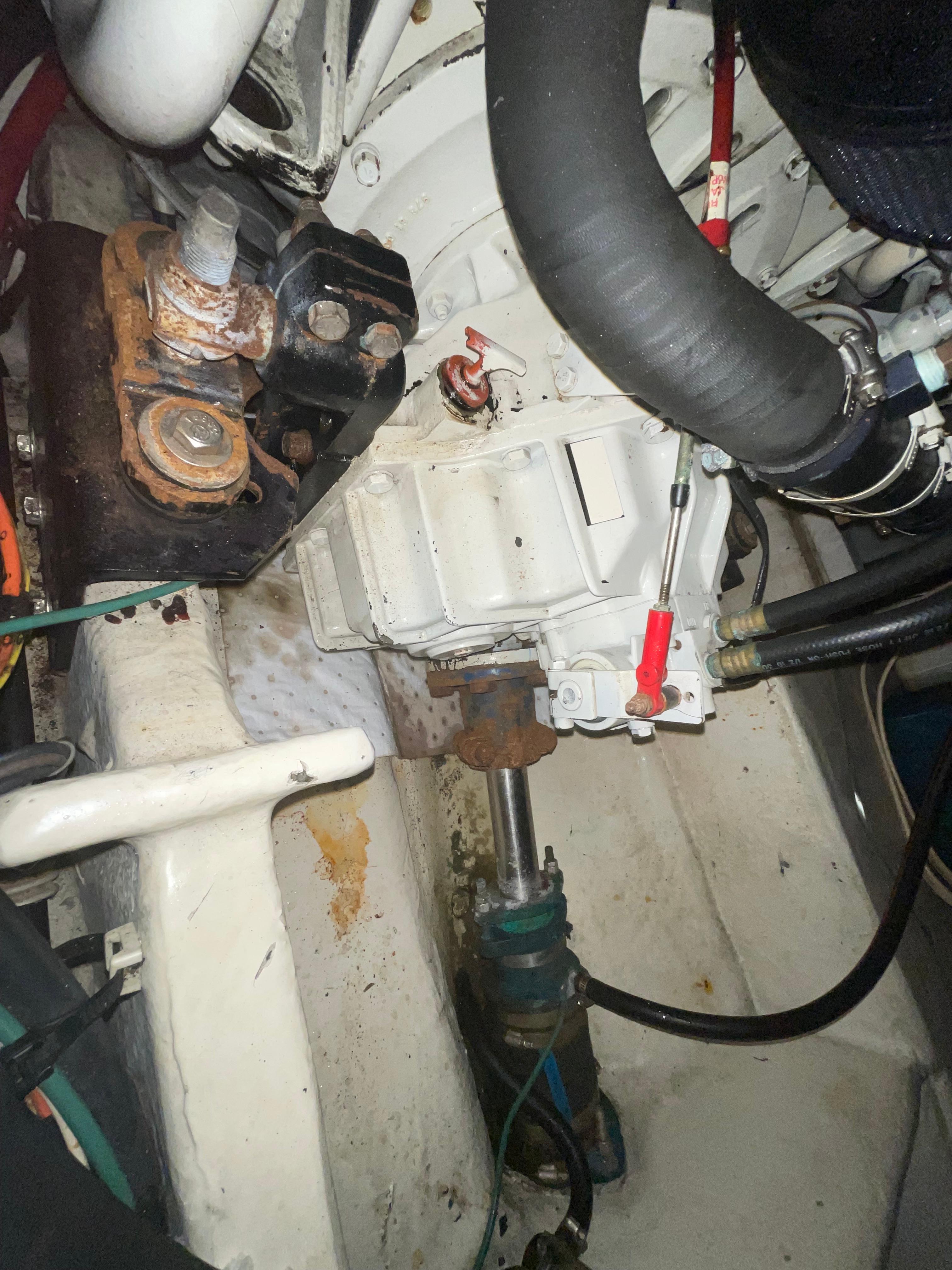

  • Transmissions - Hurth
  • Transmission - Serviced 2024

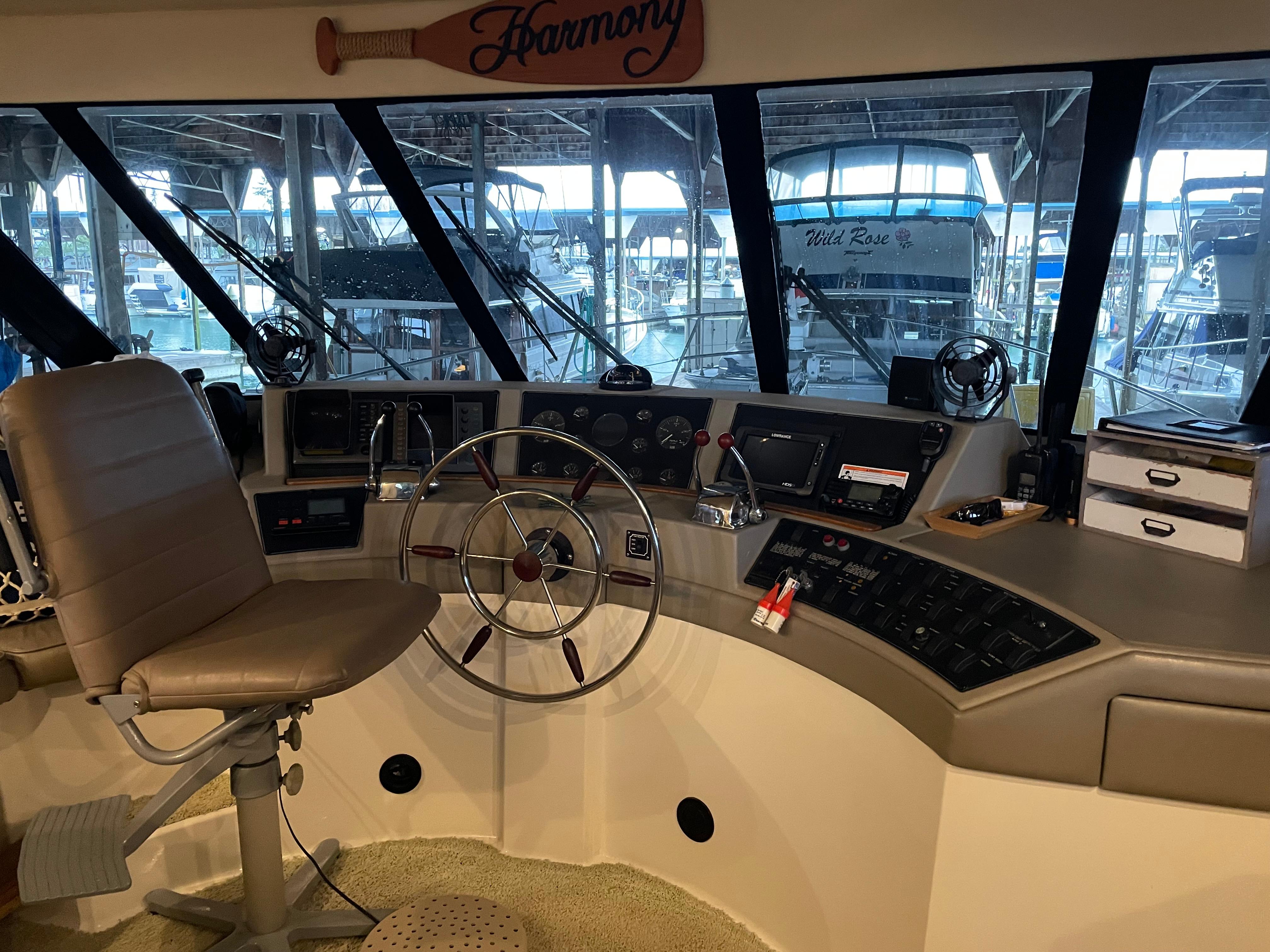

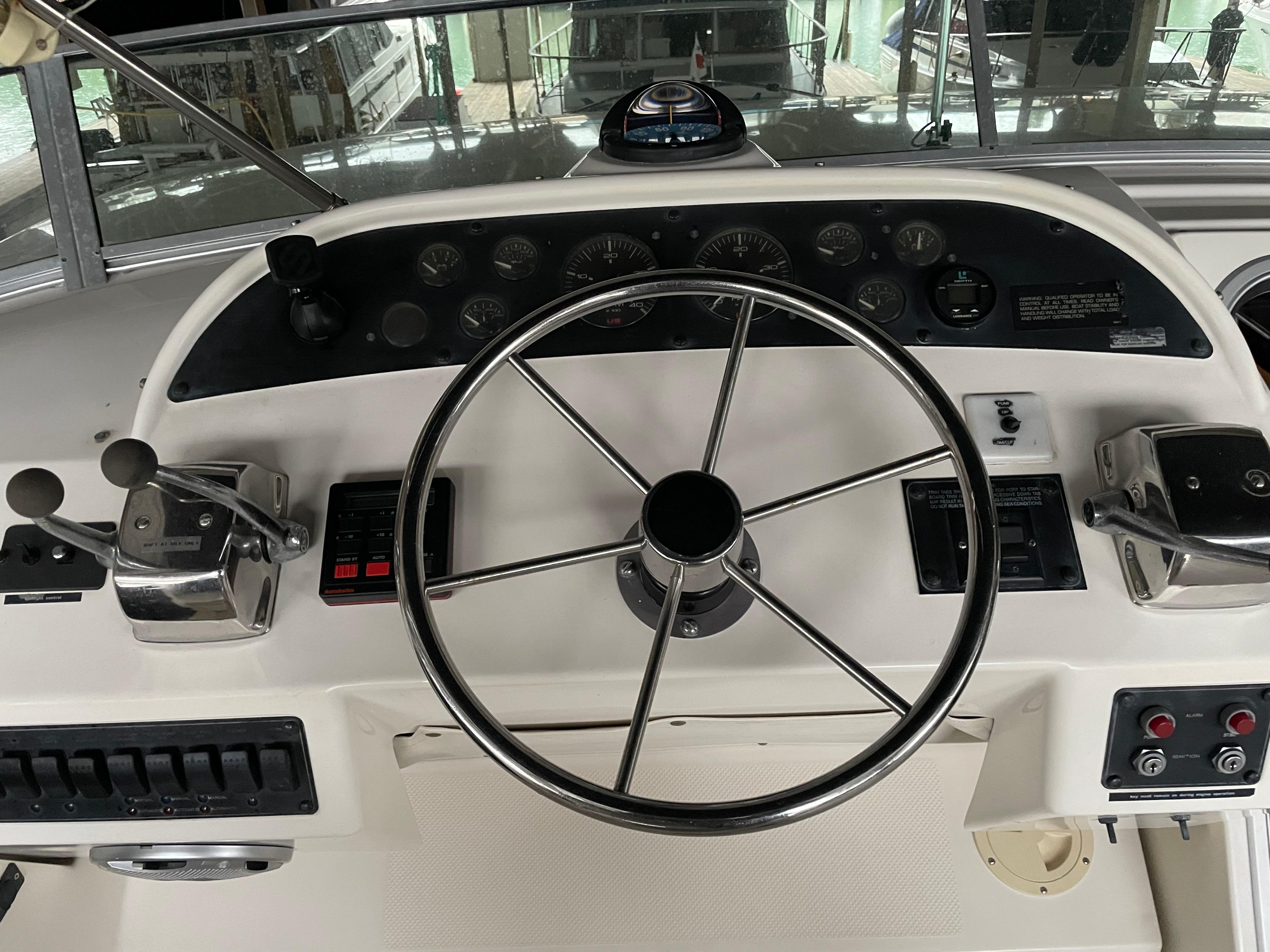

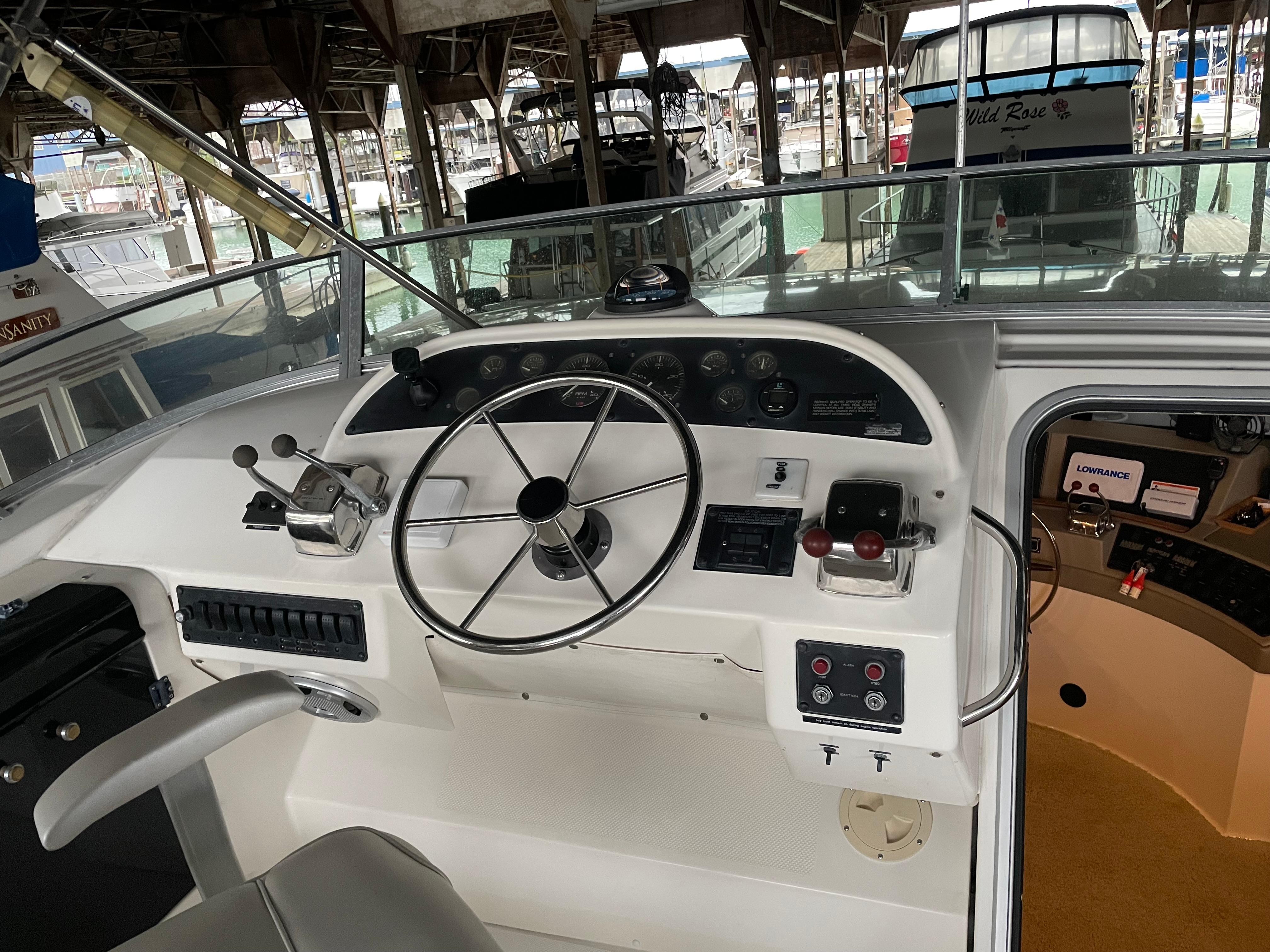

  • Steering - Hydraulic with Pilothouse Helm & Flybridge Helm

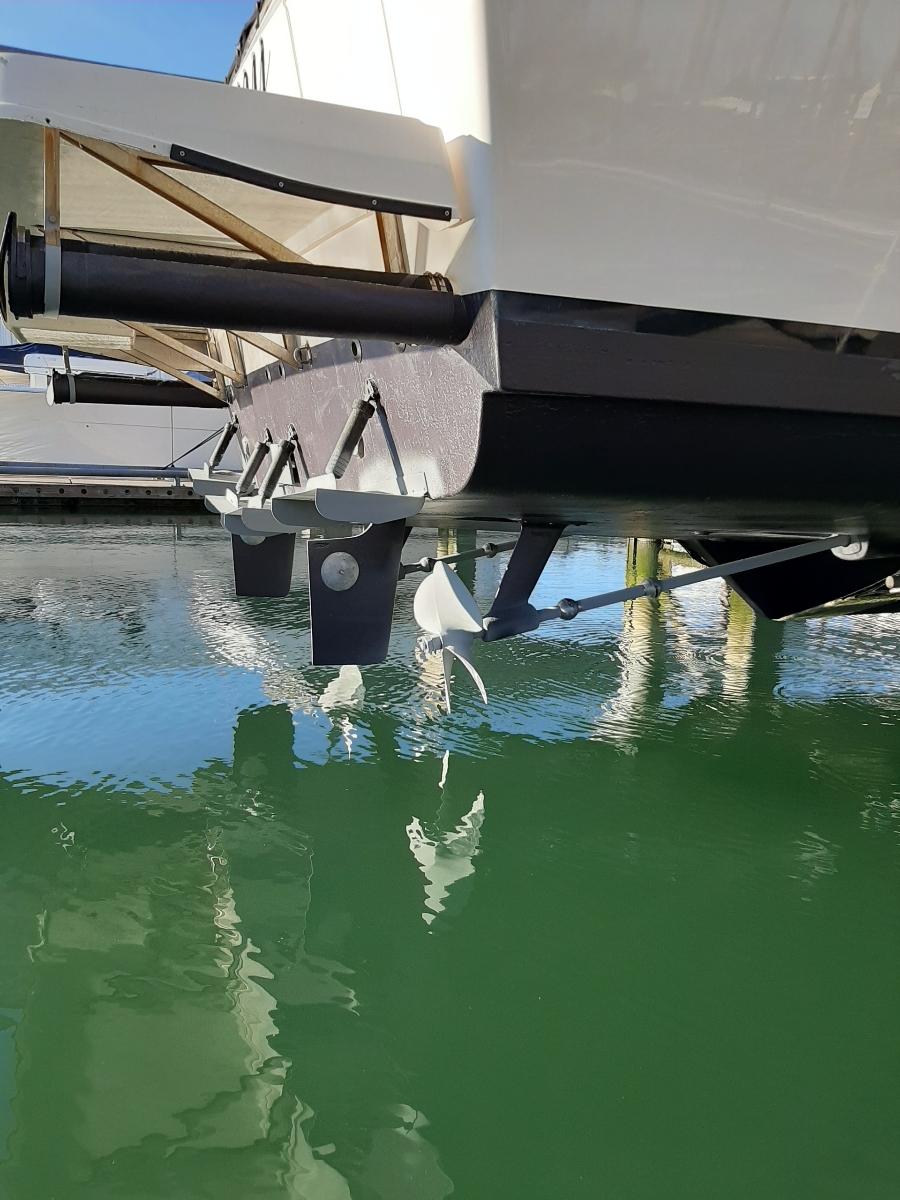

  • Rudder - Spade
  • Rudder Housing - Bronze
  • Rudder Stuffing Boxes - Traditional Flax Packing Glands

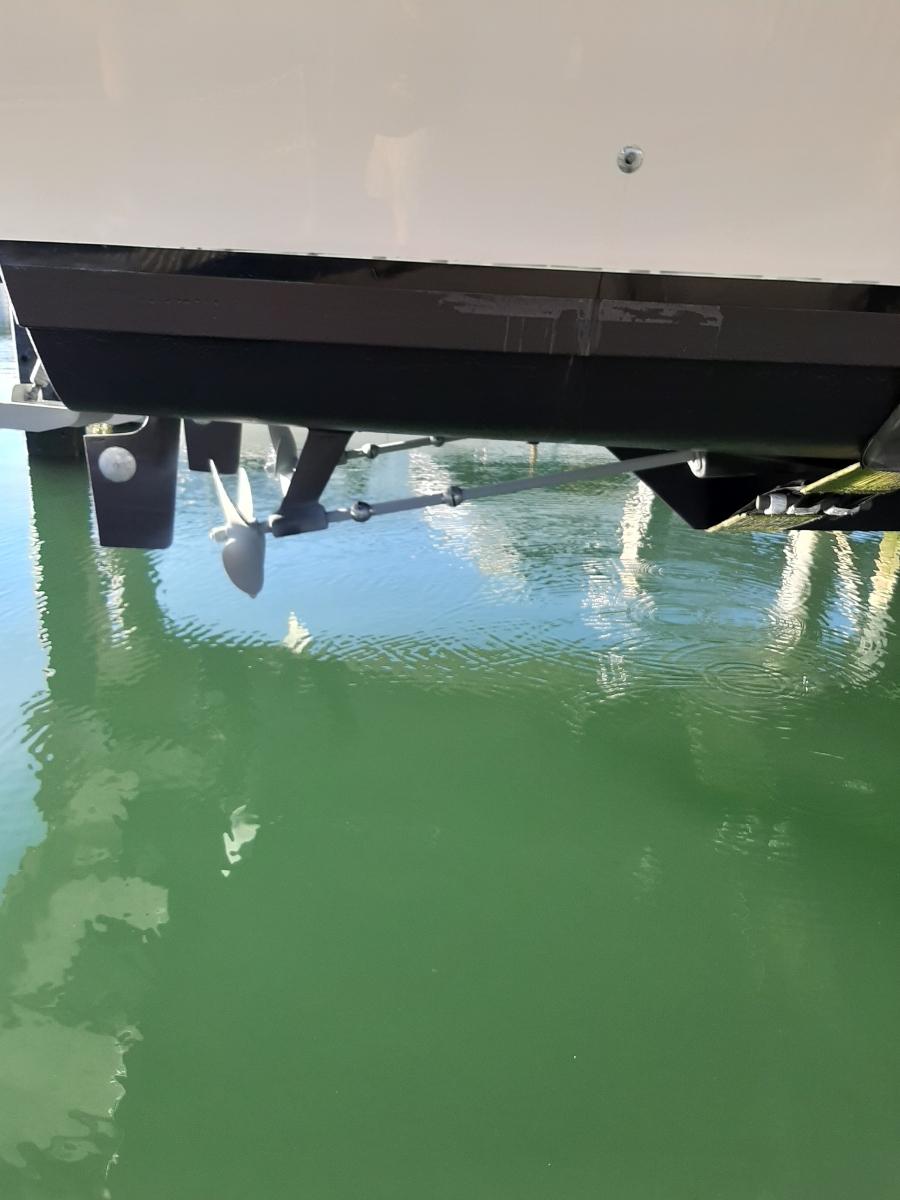

  • Propellers - Bronze - 4-Blade 24" x 21"
  • Shaft Logs - Fiberglass Log with Compression Seals
  • Bilge Pumps - Rule 1100 in Bilge Area
  •                        Hot Wired - Will work when Breakers are Off & Battery Switches are Off
  • Extra Parts

ELECTRICAL:

  • DC System - Volts 12VDC - Breakers & Fuses Circuit Protection
  • Batteries - (1) Group 24
  •                   (6) Golf Cart
  •                   (3) 8D
  •                   All located in the Lazarette
  •                   Battery Selector Switch
  •                   Battery Isolator
  • Battery Charger - Inverter & Constavolt
  • AC System - Volts 110 - Breakers Circuit Protection
  •                      Type of Wiring - Marine Grade Insulated Strand Copper

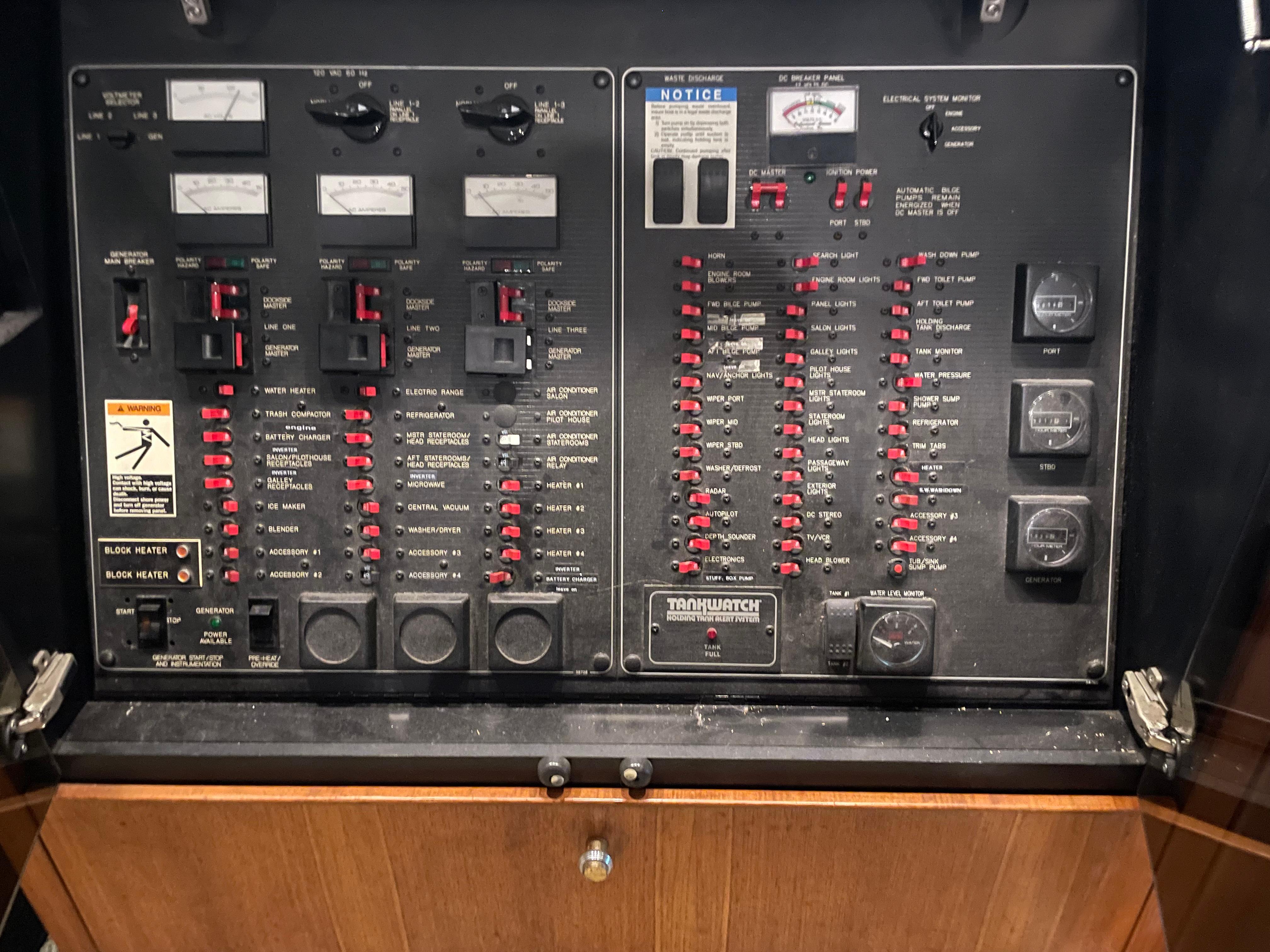

  •                       Power Distribution Panel
  •                      Receptacles - Household - Mostly GFCI Protected
  •                      AC Ground to DC Ground Connection
  • Shore Power - 30amp with 50' Cord - Double Pole Main Breaker
  •                         Galvanic Isolator
  • Inverter - Xantrex Freedom 25
  • Generator - Northern Lights 8kw
  • Generator - 1936 Hours

NAVIGATION & COMMUNICATION:

  • Compass - (2) Ritchie Power Damp Plus (Both Helms)

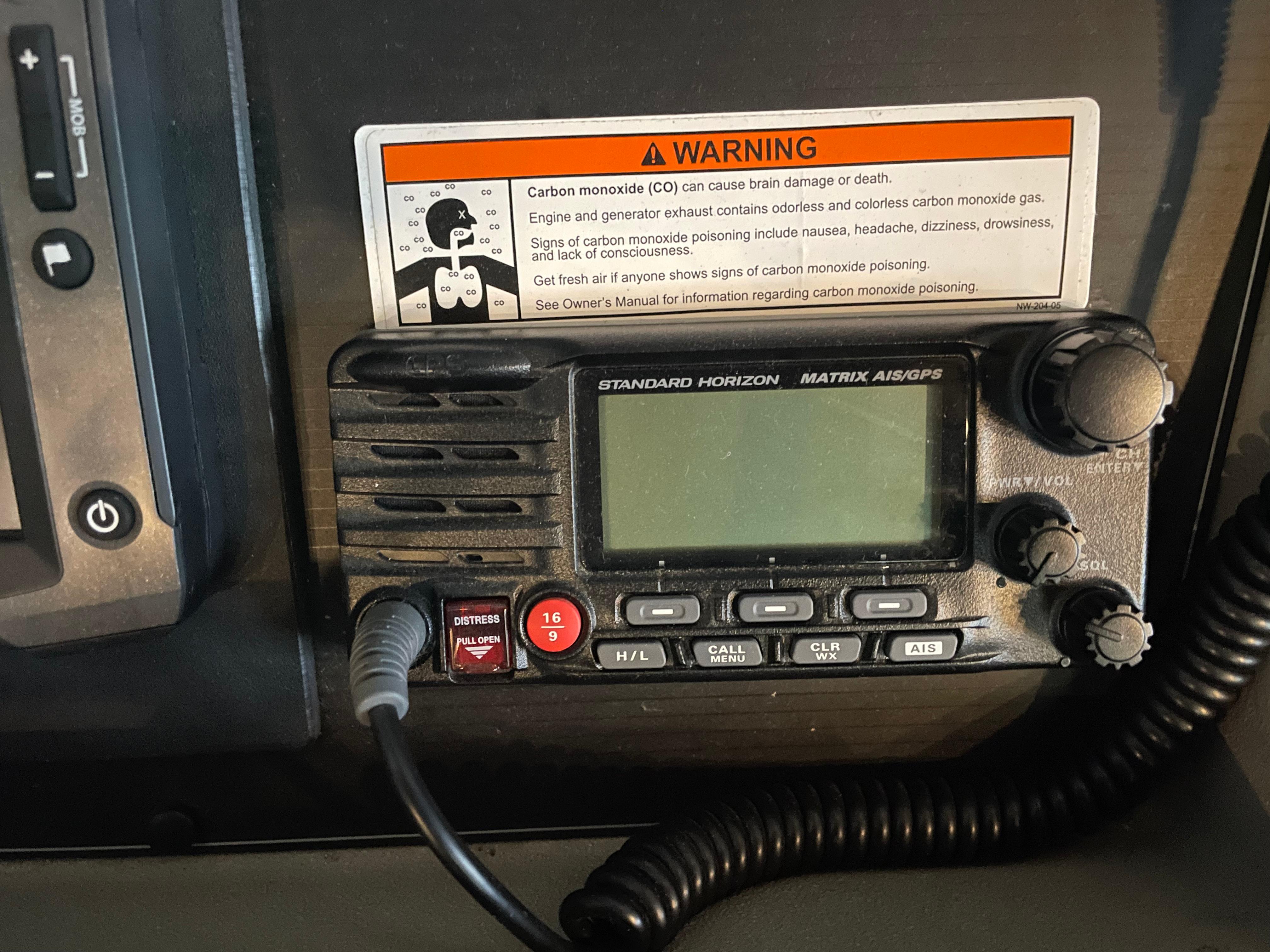

  • VHF - Standard Horizon Matrix AIS/GPS (Pilothouse Helm)

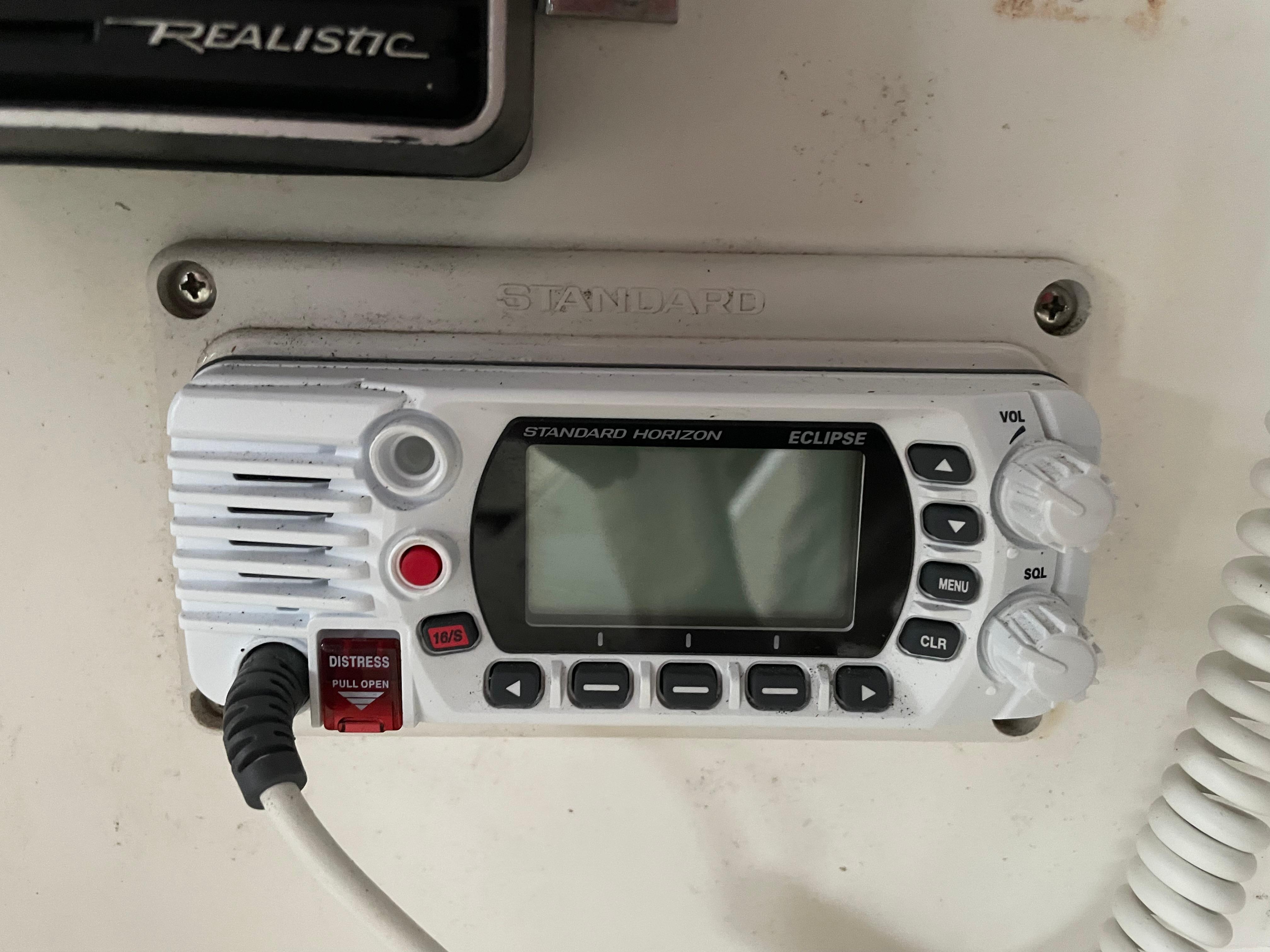

  •           Standard Horizon Eclipse (Flybridge Helm)
  • GPS / Plotter - Garmin (Flybridge Helm)
  • Radar - Furuno (Pilothouse Helm)
  • Depth Sounder - Raytheon V850 Color Echo Sounder (Pilothouse Helm)
  • Autopilot - Autohelm ST7000 (Both Helms)
  • Lowrance - HDS9 - (Pilothouse Helm) -  NEW
  • Basic Navigation & Information Charts

GROUND TACKLE:

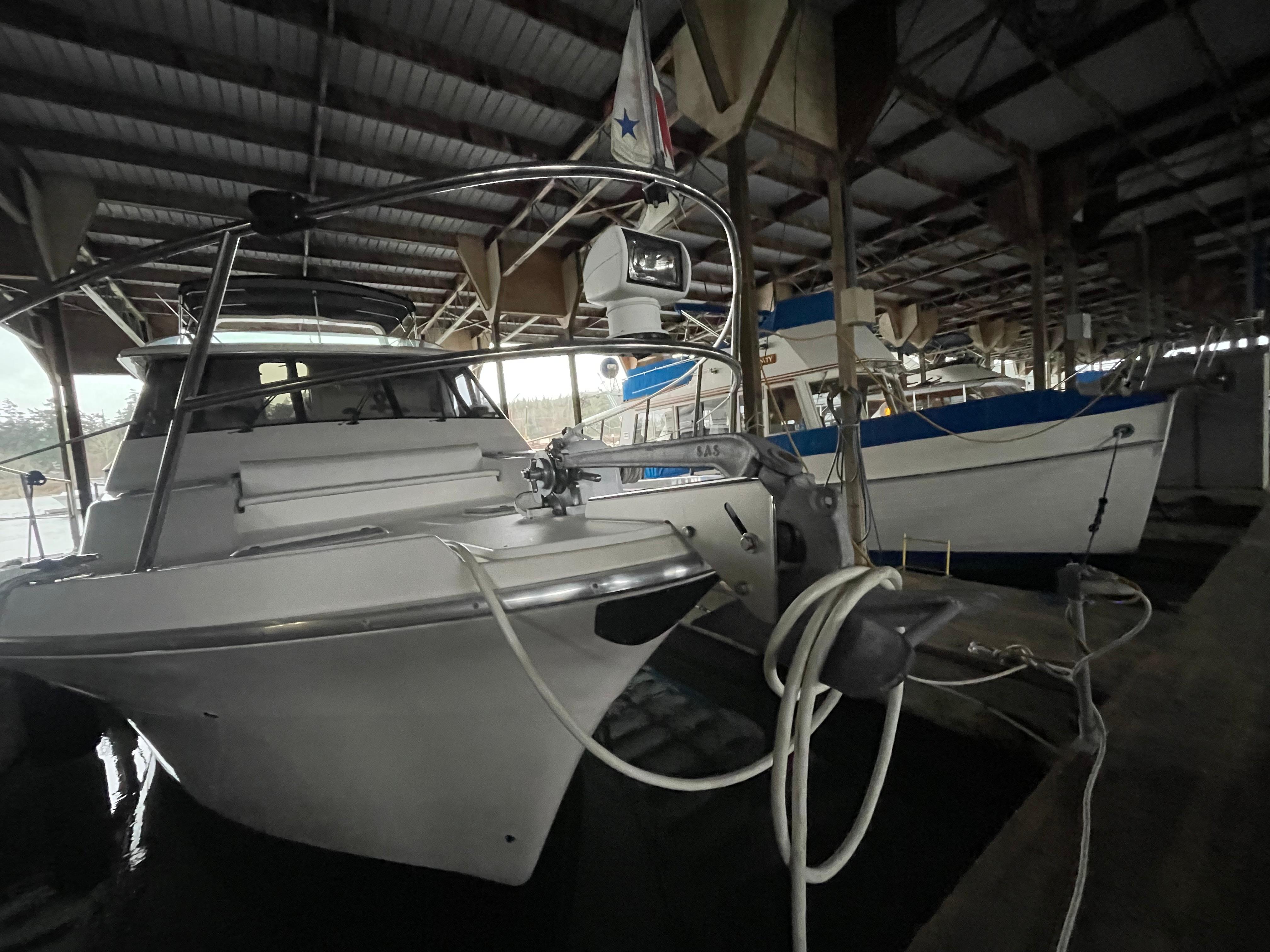

  • Bow Pulpit Removed & the Stainless Steel Bow Railing Modified / Modernized  so "Harmony" Fits in a 50' Slip.
  • Windlass - Muir
  • Anchors - Bruce 20kg
  •                 Danforth Type
  • Chain & Rode - Ample

SAFETY:

  • Navigation Lights - LED
  • Anchor Light - LED
  • Search Light
  • Deck Lights
  • Life Jackets - (16) Type II Adult
  • Throwable - 1 Ring Type IV
  • Fire Extinguishers - (8) B1
  • Flares
  • Horn
  • Railing Stanchions - Stainless Steel
  • Life Lines - Single Coated Wire
  • Grab Rails - Stainless Steel
  • Boat Hook
  • Emergency Egress - Main Salon Sliding Aft Door to Cockpit
  •                                   Foredeck Hatch - 20" x 20"
  • Emergency Re-Boarding - Swim Platform & Boarding Ladder

MISCELLANEOUS:

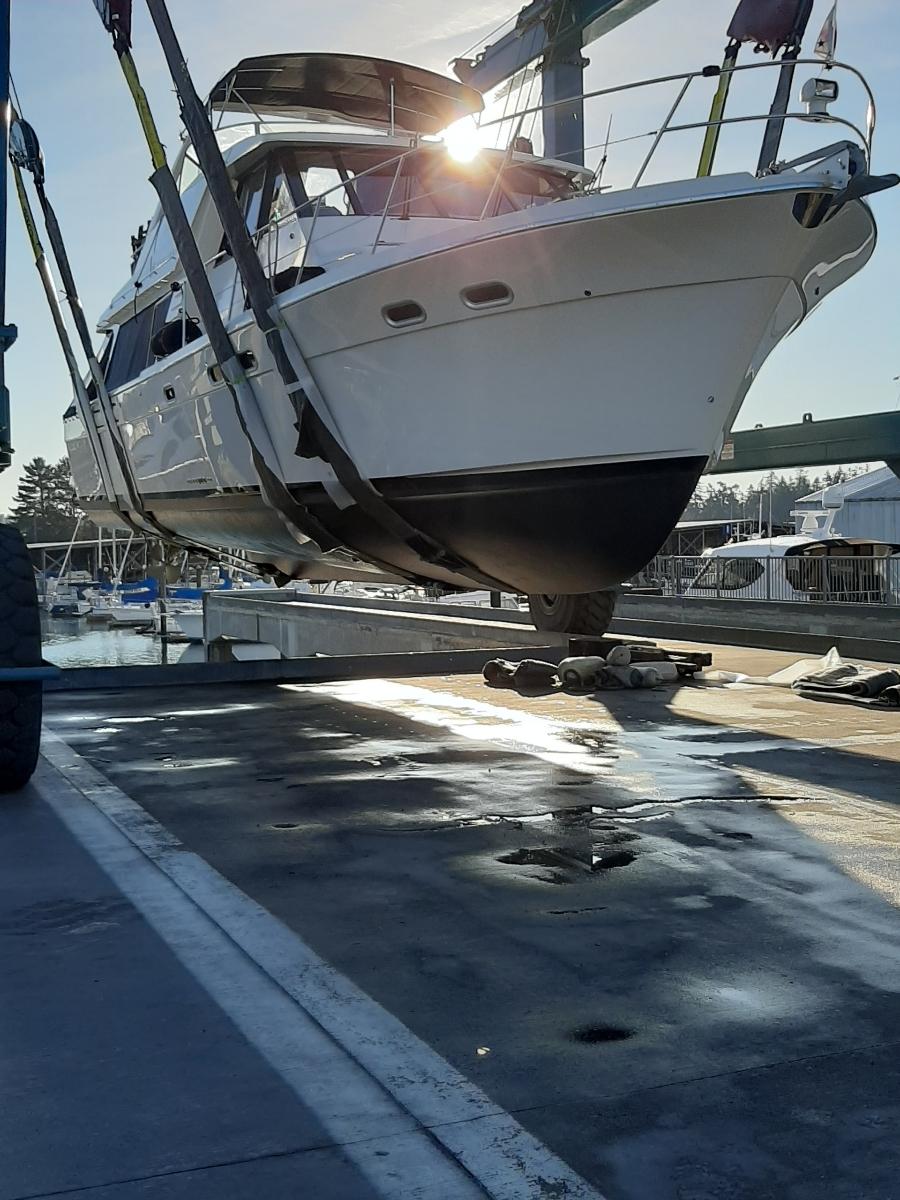

  • Bottom Paint - Dec 2020 NEW
  • Zincs - Diver 3x/Year - NEW Zincs as Needed

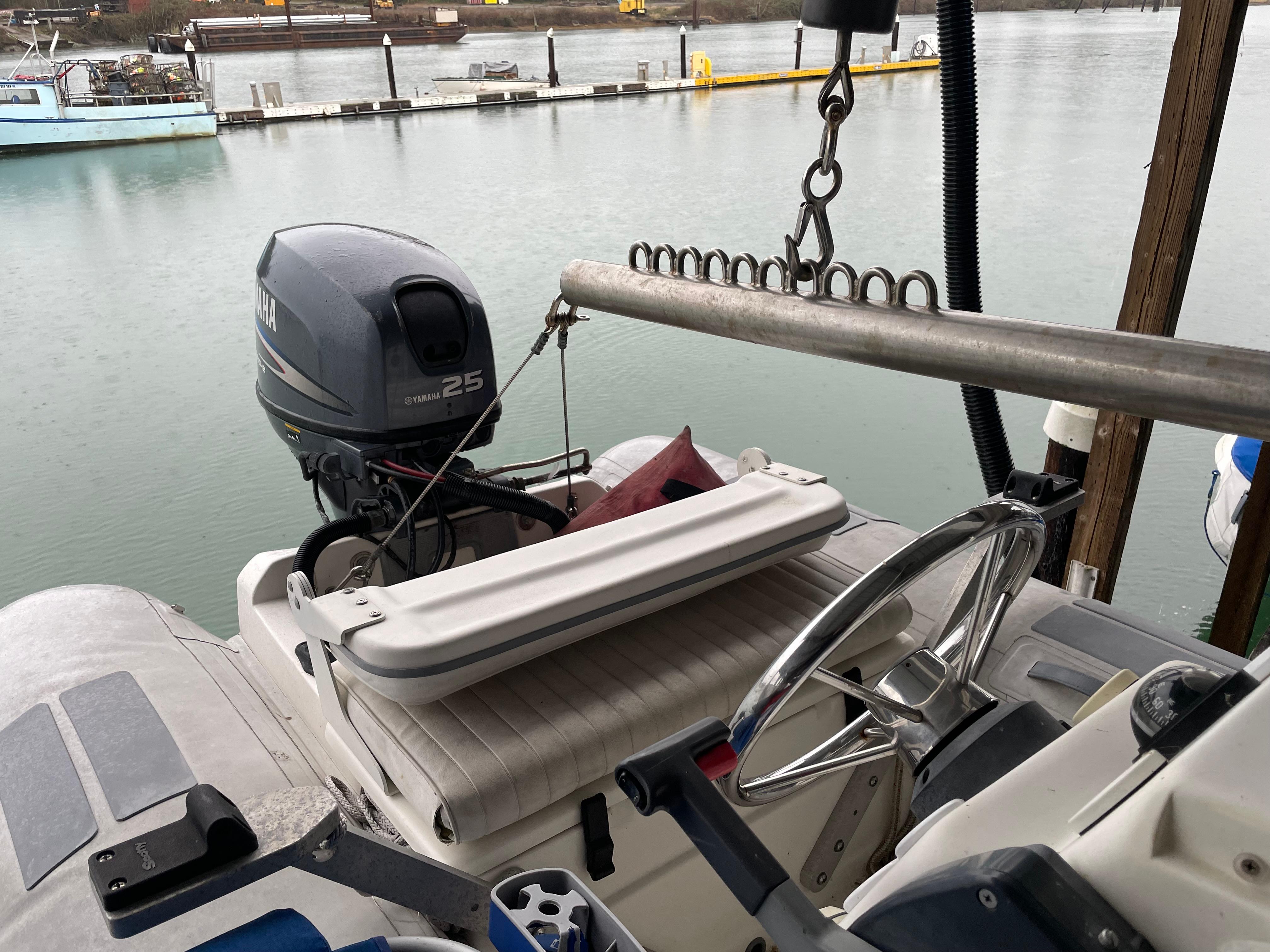

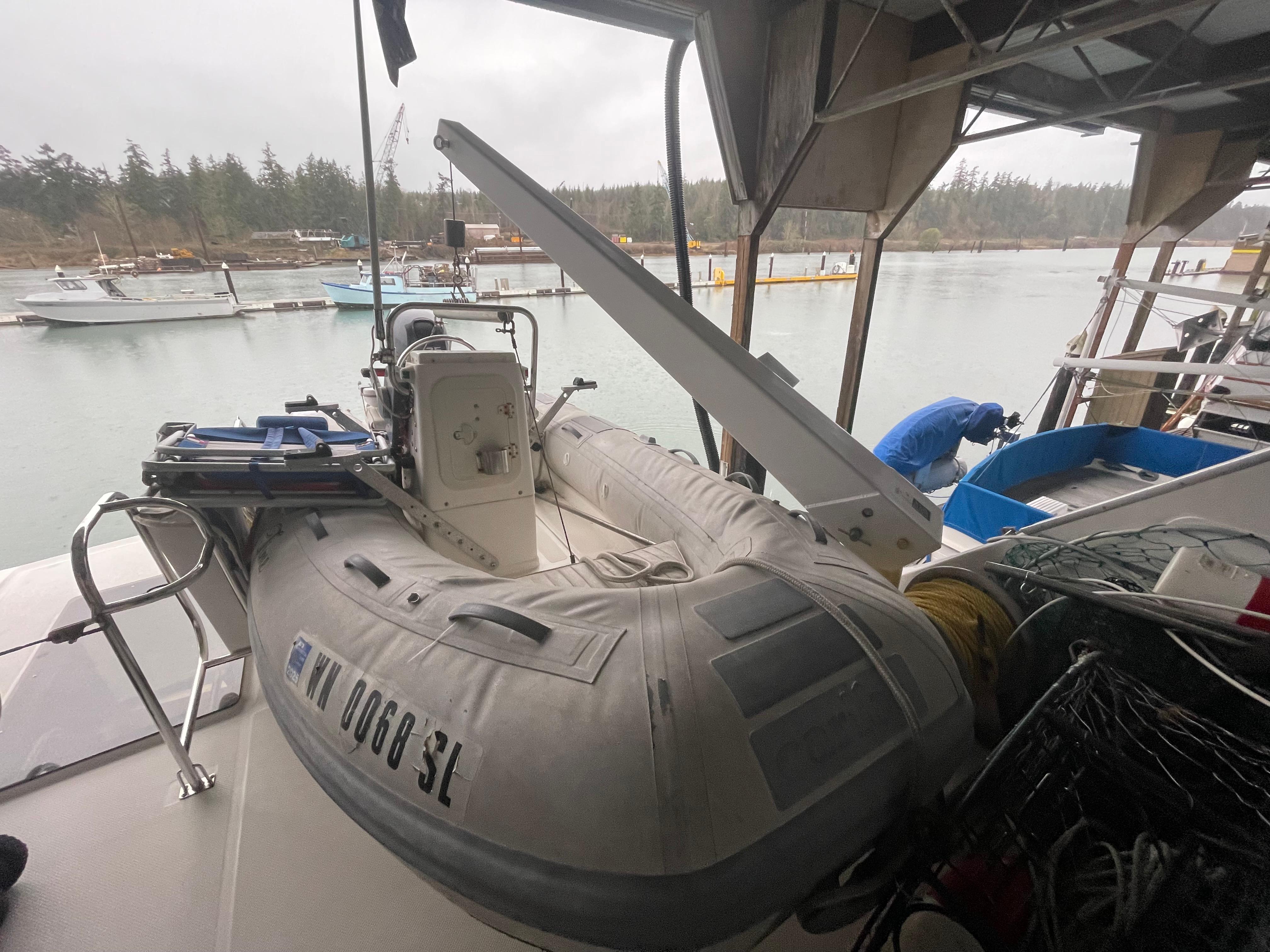

  • Tender - EMD 11' Inflatable RIB 2002 including Tender Cover
  • Tender - Set Up with Crab/Shrimp Pot Puller (Pots Stay with Boat)
  • Arch - Stainless Steel Radar Arch
  •            Fiberglass Whip Type Antennas

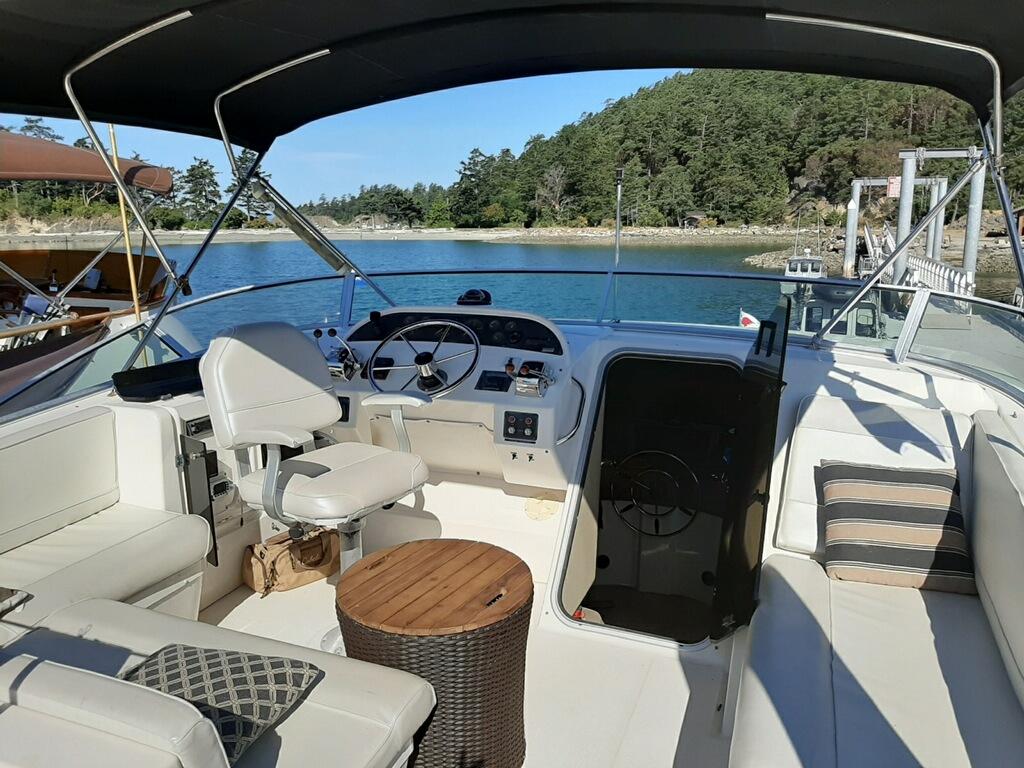

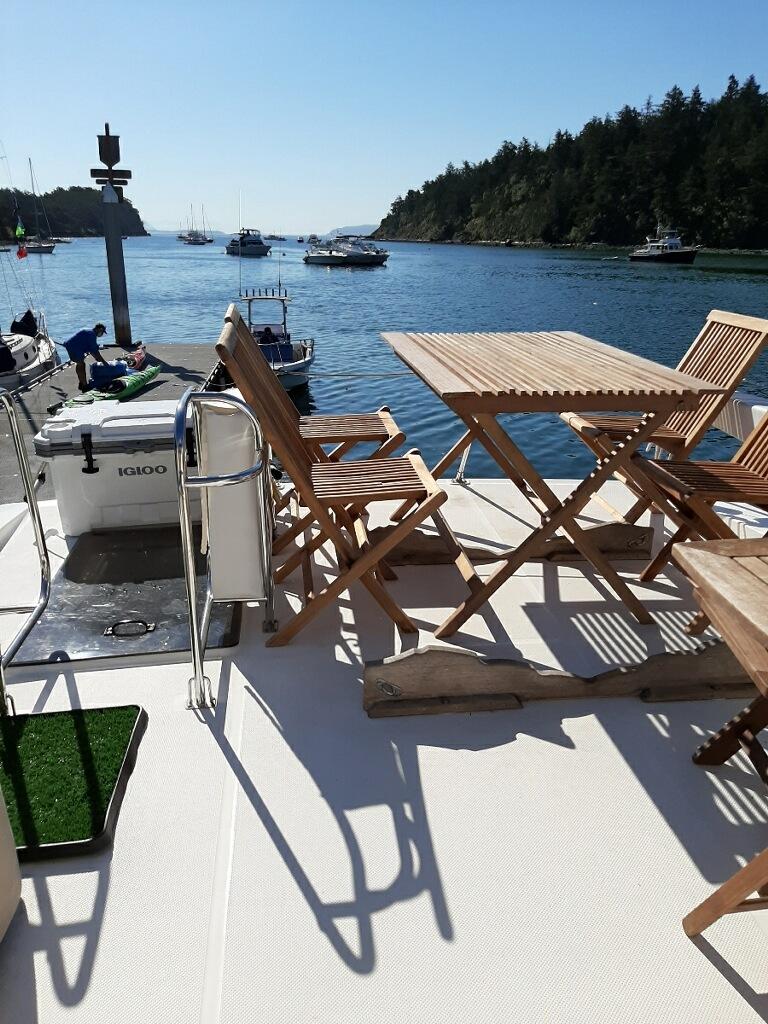

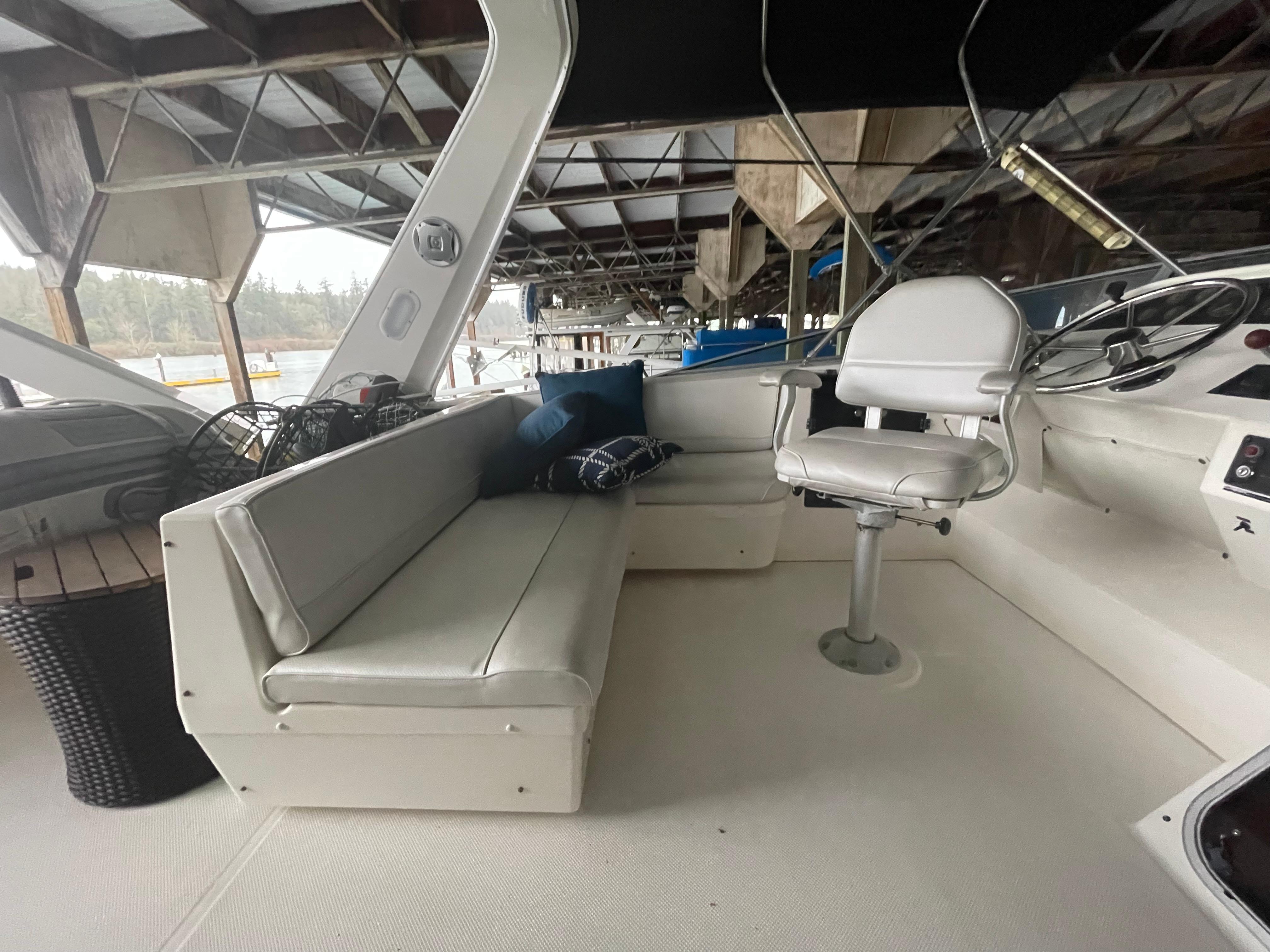

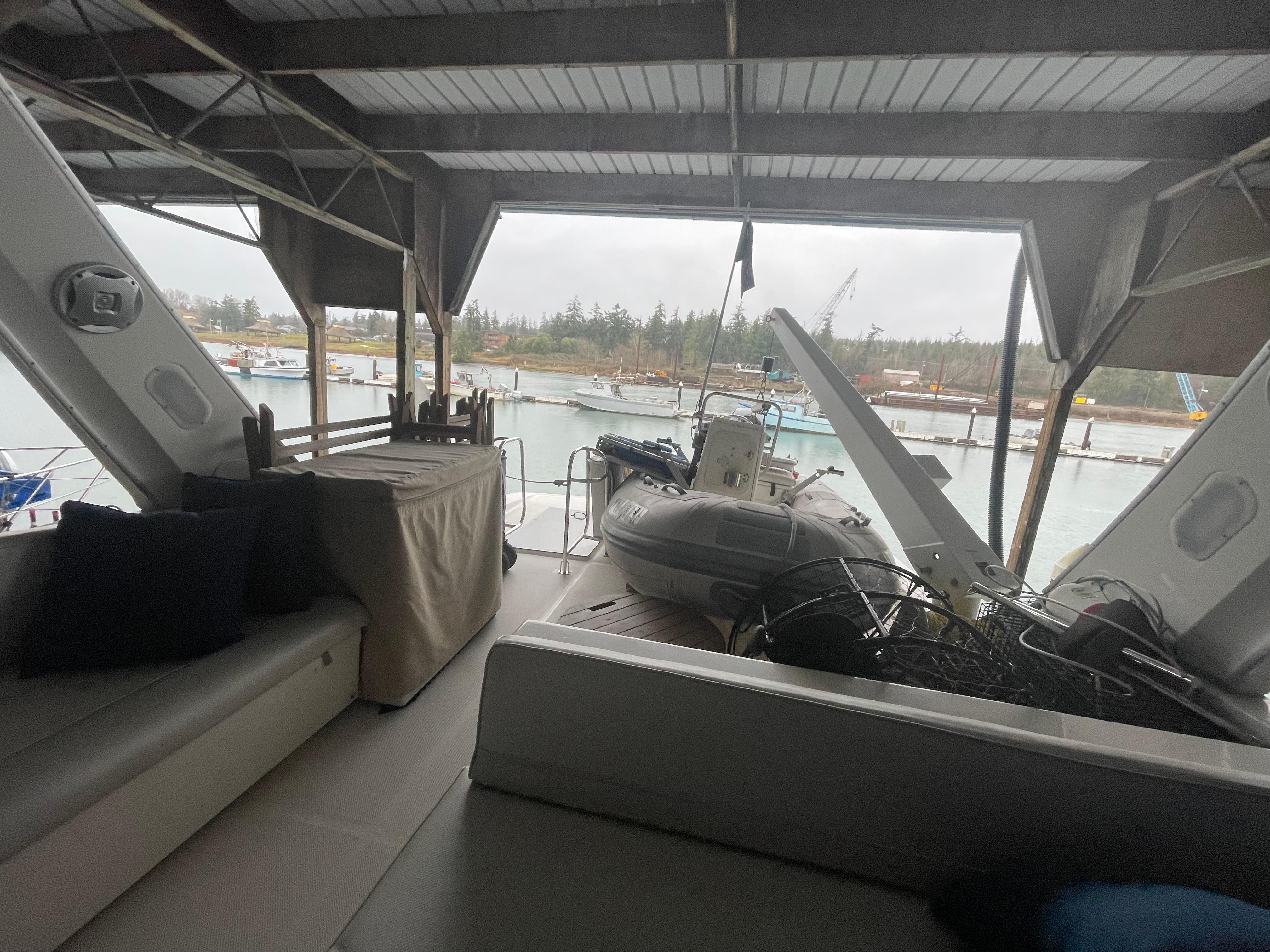

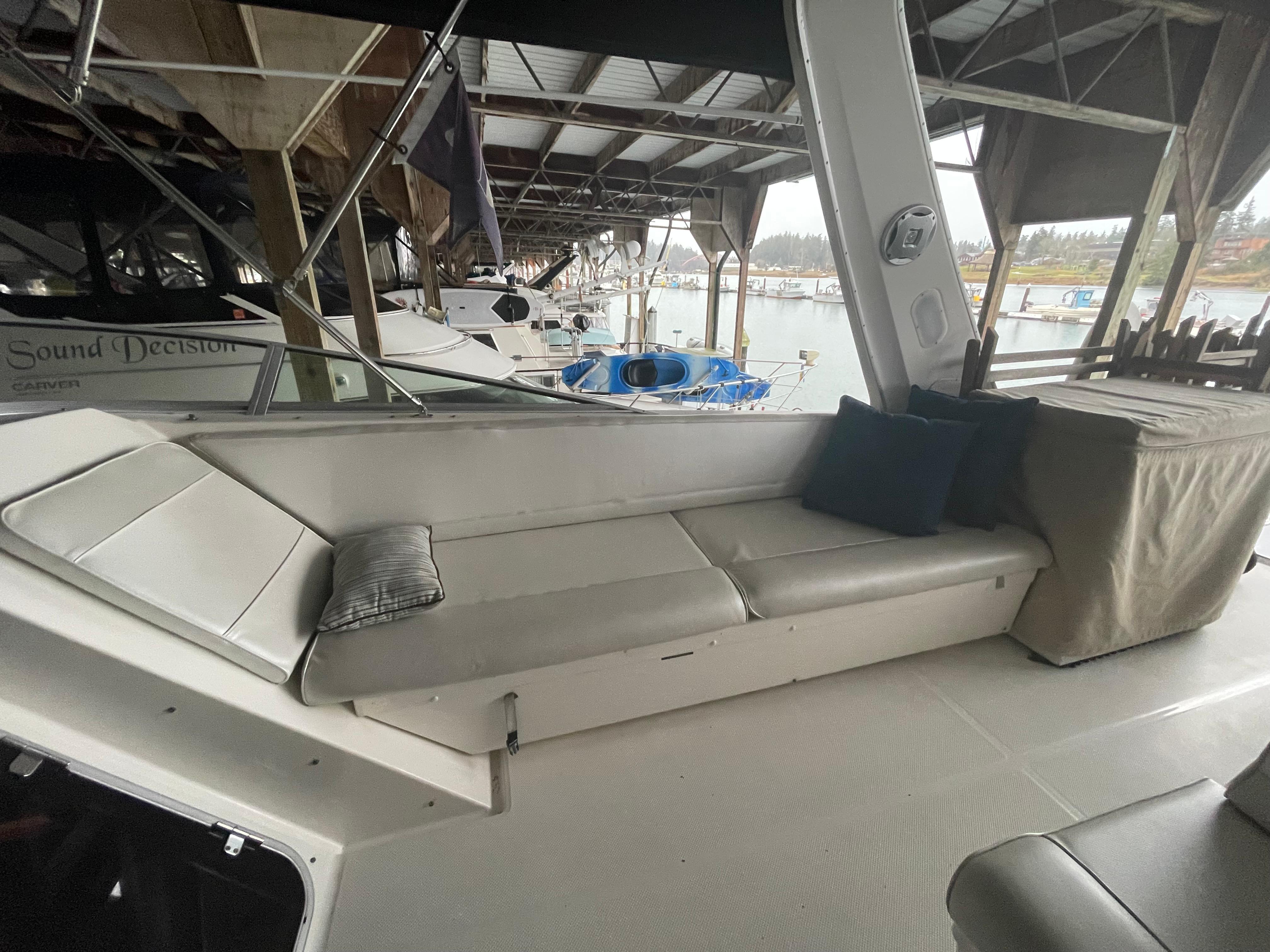

  • Flybridge - Bimini
  • Flybridge Lights - NEWER LED
  • Flybridge Cushions - LIKE NEW

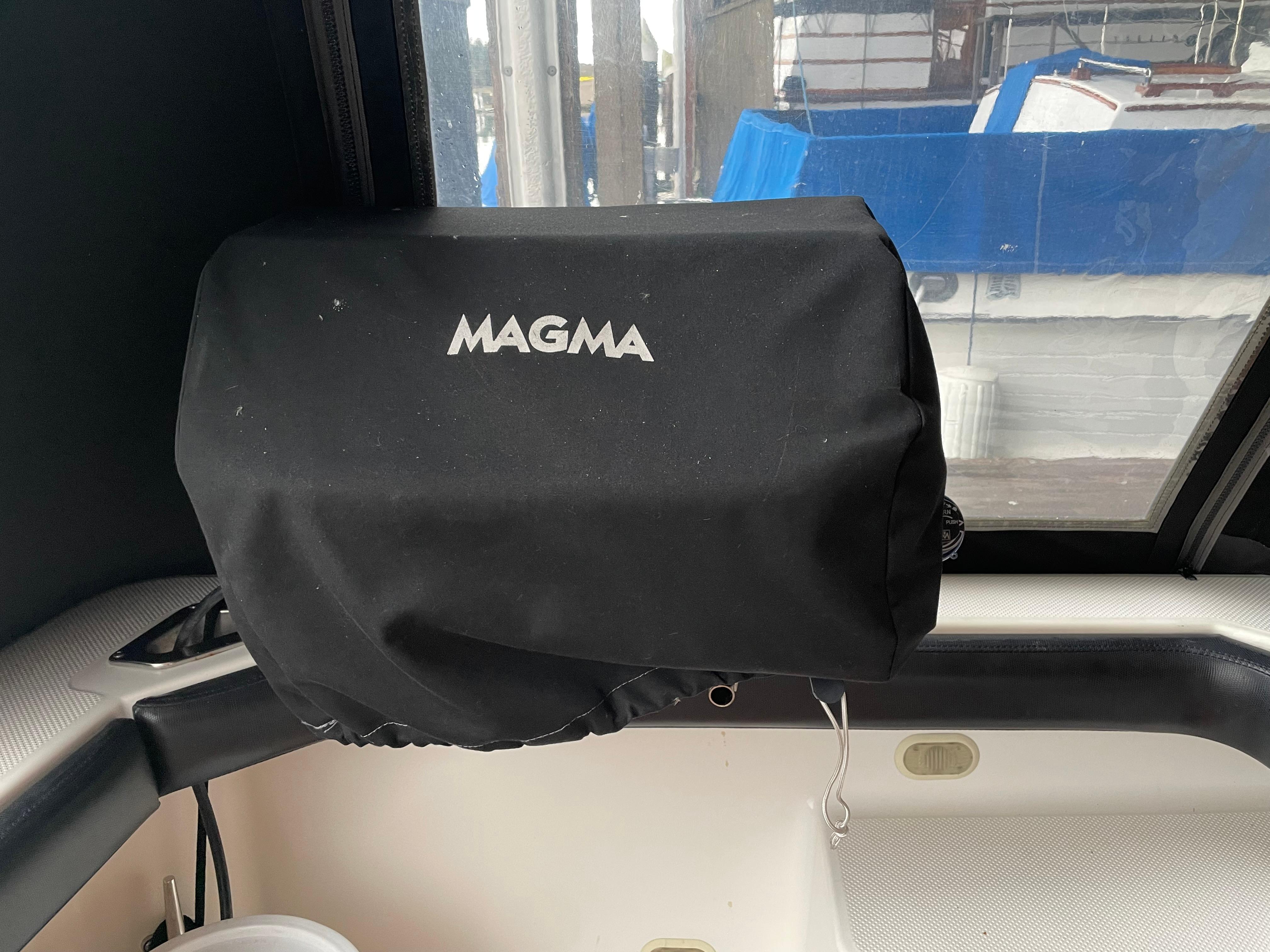

  • Flybridge Freezer - Magma

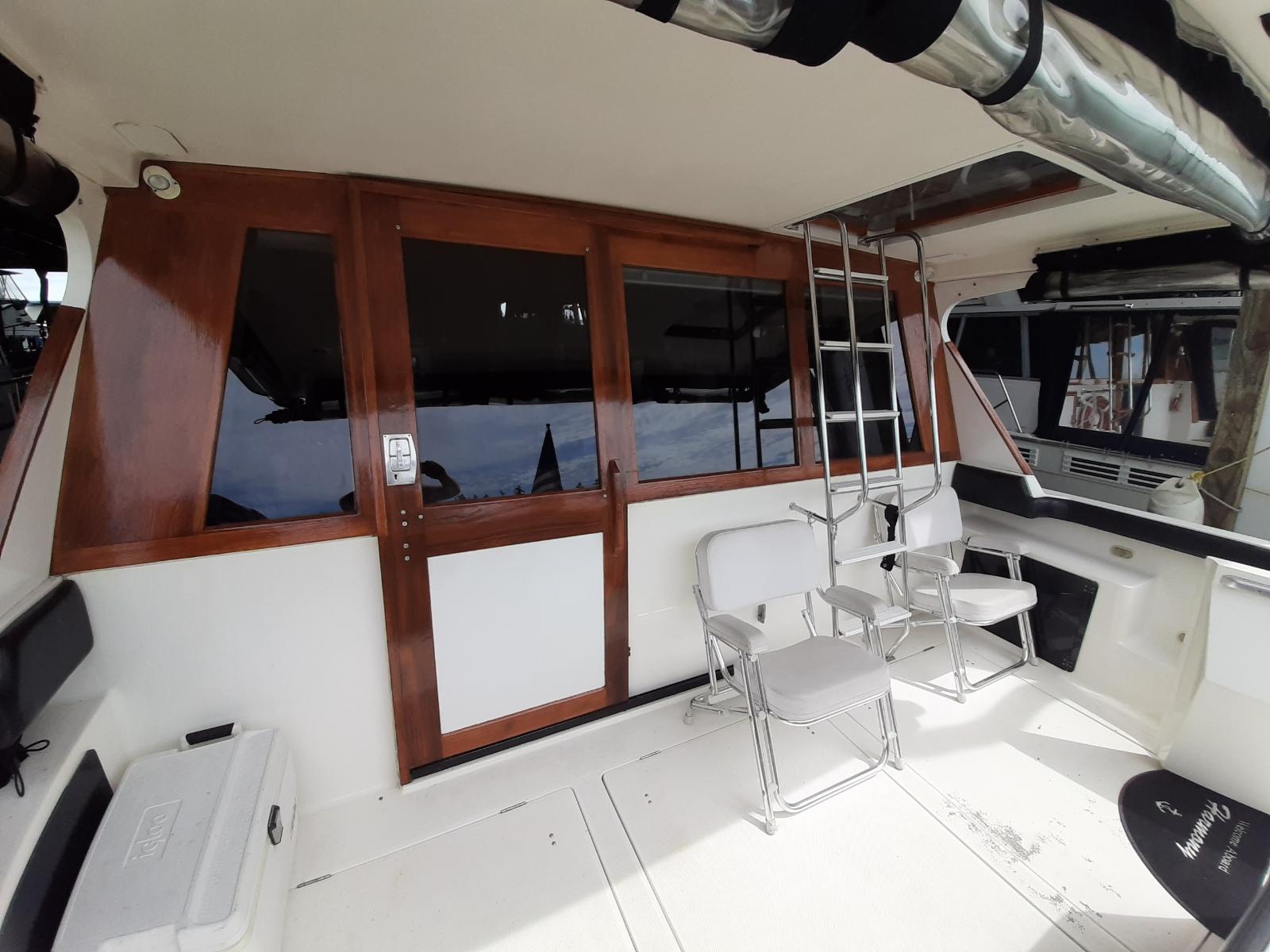

  • Cockpit Deck - NEWER
  • BBQ
  • Underwater Lights on Main Boat & Tender
  • Exterior Canvas & Window Covers - Extra Heavy Privacy Panels & Lighter Weight Privacy Panels
  •                                                           (2) Sets of Everything Except Flybridge Bimini Top
  • Staging & Personal Items Removed at Time of Sale



The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

United Yacht Sales - Florida Treasure Coast is pleased to assist you in the purchase of this vessel. This boat is centrally listed by West Yachts.
