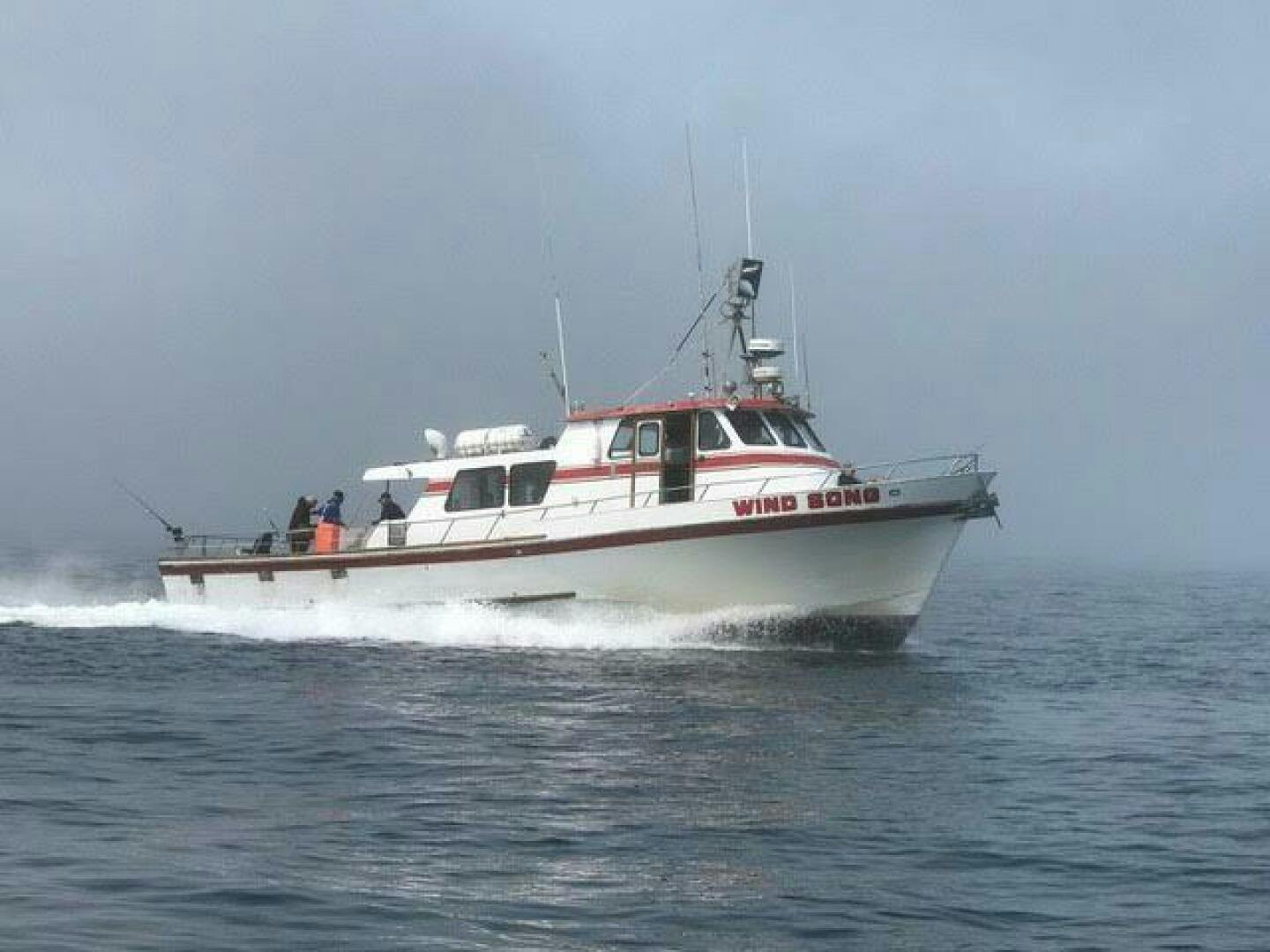

56' Westport Charter Vessel 1975

• Builder: Westport Yachts
• Length Overall (LOA): 56'5"
• Registered Length: 51'
• Beam: 15'8"
• Draft: 6'1"
• Hull Material: Fiberglass
• Documented Hailing Port: Neah Bay, WA
• Home Port: Neah Bay, WA
• Official Number: 562184
• Vessel Classification: Coastwise, Fishery, Registry, Recreation

Detailed Description and Layout: "Windsong" features a raised pilothouse design conducive to both seasoned fishermen and leisurely cruisers. The large aft deck is open, with midships seating and fishing prep areas, ideal for social gatherings or active fishing. Entering the lower cabin, one finds a small galley to starboard and a settee to port, leading up to a raised helm and larger settee. Below the pilothouse, the crew quarters can accommodate up to six passengers, though currently converted for gear storage.

Engine and Mechanical Equipment:

• Engine Model: Twin Cummins Marine 6CTA8.3-M
• Engine Horsepower: 415 HP each
• Engine Configuration: Six (6) in-line
• Engine Hours: Port: 2006, Starboard: 1945
• Propulsion System: Twin engine with stainless steel 2'' diameter shafts, 26" four-bladed propellers
• Cooling System: Closed reservoir type with raw water cooled exhaust
• Exhaust System: Raw water cooled with cast iron exhaust mixing riser and fiberglass muffler
• Fuel System Type: Diesel
• Fuel Tanks: Two (2) aluminum, total capacity 600 gallons
• Water Tanks: Two (2), roto-molded polyethylene, total capacity 150 gallons
• Generator: Onan Marine QD 7.5 KW, Diesel, 1.3 hours used

Navigation and Electronic Equipment:

• VHF Radios: Icom IC-M59, Standard Horizon Intrepid
• Loud Hailer: Standard Horizon VLH3000
• Single Sideband Radio: Uniden Pro 538 CB
• GPS/WAAS Navigators: Dual Furuno units
• Autopilot: ComNav Marine 1001
• Radar Systems: SiTex T-180, Furuno with closed array radar antennas
• Chartplotter: Lowrance HDS12, newly installed
• Compasses: Ritchie 4" Compass
• CCTV System: Stern camera

Interior Features and Accommodations: The vessel's interior maintains a high standard of upkeep, with serviceable cabinetry, trim, and glossy-finished settee table tops. The main cabin and galley feature vinyl laminate headliners, with flooring in simulated teak and holly sole. The onboard Espar forced air diesel heater provides ample warmth, enhancing comfort aboard.

Safety Equipment:

• Personal Floatation Devices: 43 Type II U.S.C.G. Approved PFDs
• Throwable Devices: Two (2) Type IV U.S.C.G. Approved
• Fire Extinguishers: Five (5) Type ABC-I 2.5 lb. Dry Chemical
• Visual Distress Signals: Includes flares and smoke signals
• Sound Producing Devices: 12 Volt DC Electric Air Horn and hand-held compressed air horn
• Navigation Lights: Fully operational
• Fixed Fire Suppression System: Two (2) CO2 tanks in the Sunday Hold

Galley Equipment:

• Refrigeration: Iglo Refrigerator/Freezer
• Microwave: General Electric
• Sink: Stainless steel with single lever faucet

Electrical Systems:

• DC Systems Voltage: 12 V system with Four (4) D8 12 volt batteries
• AC Systems Voltage: 125/250 volt system with 50 amp shore power input
• Battery Chargers: Mastervolt Chargemaster 12/100-3
• Bonding System: Compliant with ABYC E-2 & E-11 standards

Deck Equipment:

• Deck Material: Plywood cored FRP with textured coating
• Exterior Hardware: 6 stainless steel cleats, port & starboard line chocks
• Seating: Cockpit bench seating for up to 8 adults
• Doors: Teak framed, sliding deck doors with tempered glass
• Windows: Tempered glass, fixed and opening with rubber gaskets
• Windshield: Tempered glass with three (3) windshield wipers/washers

This detailed inventory underscores "Windsong's" readiness for sea and reliability as a charter or private vessel. With a comprehensive array of navigational aids, safety equipment, and mechanical robustness, she is primed to provide exceptional service to her new owner
