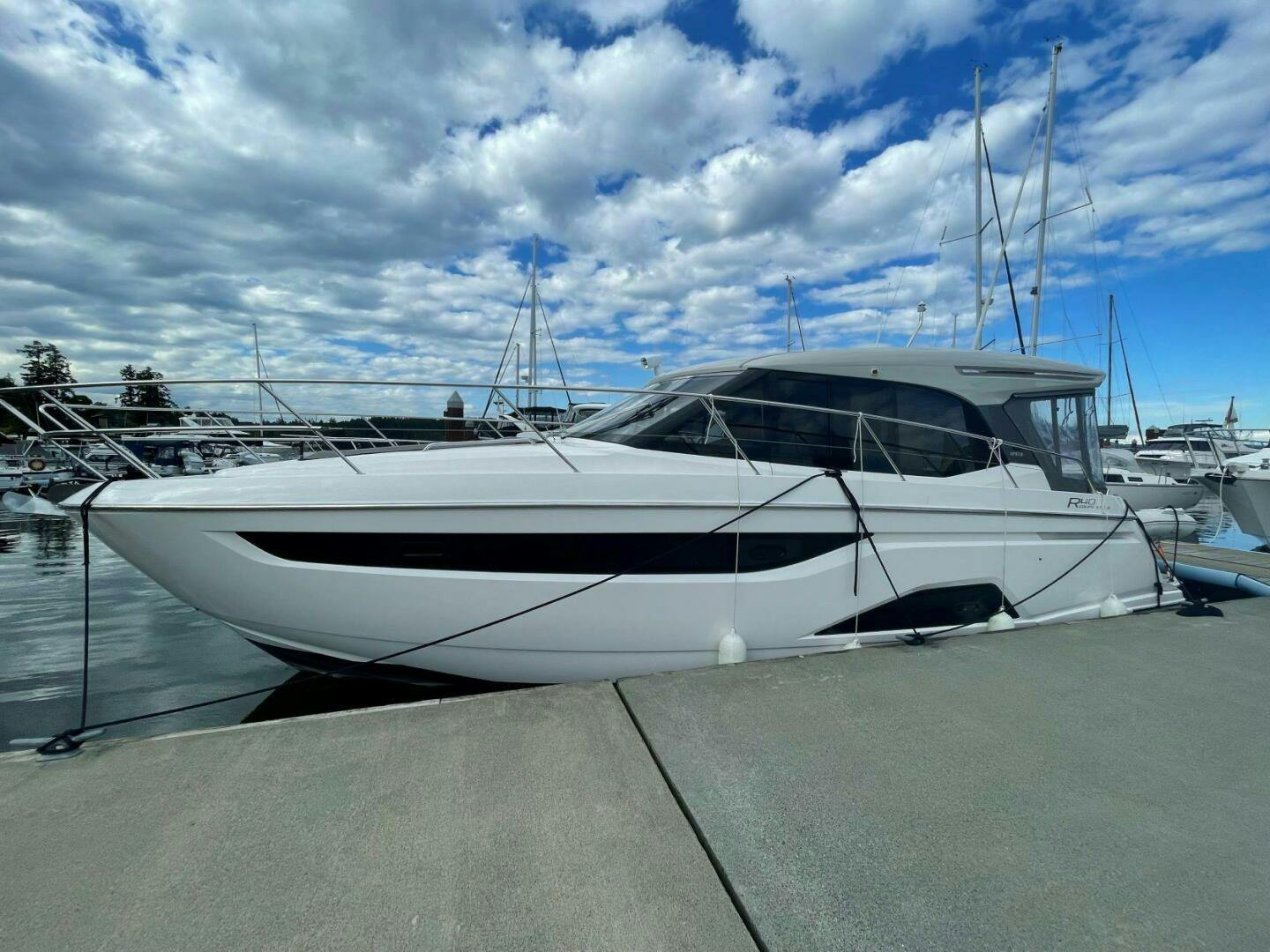

Infinity 40' Bavaria R40 2021

Bavaria R40 Coupe

Name.................................................................. Infinity

Year...................................................................... 2021

Builder............................................................... Bavaria

Designer................................................ J&J Yacht Design

LOA.......................................................... 12.65m/41’6”

Beam.......................................................... 3.99m/13’1”

Draft (motors up)........................................... 0.73m/2’3”

Draft (motors Down)....................................... 1.06m/3’6”

Displacement..................................... 9,300kg/20,502lbs

Clearance (without radar mast) .................... 3.45m/11’4”

Hull ............................................................. Fiberglass

Deck............................................................. Fiberglass

Steering................................................ Electric steering

Fuel............................................................ 900L/238gal

Water........................................................... 350L/92gal

Hot Water....................................................... 40L/11gal

Holding Tank........................................................... Yes

Heat........................................ Reverse Aircon and Heat

Headroom in Cabin........................................ 1.95m/6’5”

INTERIOR

 Deck Salon:

•  Bright with large windows, extremely airy
•  Walnut color cabinetry and Elm flooring
•  Upholstery is in leather “Ivory”
•  Additional lighting package for the interior
•  Venetian blinds in cabins, salon and heads
•  Sliding opening side window to port
•  Sliding door next to helm for side deck access
•  Climate control: 110V Airconditioning, reverse air heat
•  Galley: Linear galley to port, integrated into the saloon
•  large counter top
•  12V Fridge (140L) under counter
•  Two burner electric stove top
•  Microwave
•  Stainless steel sink with hot/cold mixer faucet
•  Overhead and below cabinet storage
•  Helm station: 2 separate bucket seats, 3rd co-pilot bucket seat to port
•  Well laid out instrument panel with 2 x 12” MFD screens
•  Height adjustable electric steering wheel
•  All instrumentation at ones fingertips
•  Throttle and joystick accessible on the right of the wheel if side door is open and standing outside
•  Large windshield with excellent visibility
•  Dinette: L-Shaped settee to starboard
•  Dinette table with foldable leaves to make into a coffee lowerable with filler cushion for bed
•  Forward cabin: Island queen bed, walk around access
•  Upgraded cold foam mattress with memory top
•  Port and starboard wardrobes with overhead lockers
•  Deep pile carpeting
•  Large side windows in the hull, opening hatch
•  Excellent lighting
•  Ensuite head: features day access door
•  Separate shower cubicle, porcelain basin in vanity
•  Electric flush toilet
•  Overhead lockers and below sink storage
•  Midship cabin: Owner’s cabin full beam
•  Large hull windows with opening ports
•  Venetian blinds on side windows
•  Full size double bed, walk-around
•  Large chase to starboard
•  Sideboard unit with storage to port
•  Port and starboard wardrobes
•  Deep pile carpeting
•  Ensuite Head: separate shower cubical, with seat
•  Fresh water electric flush toilet
•  Porcelain basin in vanity
•  Overhead lockers and under sink storage

 MECHANICAL

•  Twin Volvo Penta D4-300 EVC2, 300hp, 210hours
•  Aquamatic Joystick, includes electric steering
•  Volvo EVC throttles
•  Side Power Bow thruster
•  Bennett Trim tabs
•  Volvo Penta Z-drives
•  Duo props

 ELECTRICAL & PLUMBING

•  110V, 30 amp shorepower
•  Start Batteries; 3 x Varta 140Ah AGM
•  House Batteries: 2 x AGM
•  Bow Thruster/windlass Battery: 12V AGM
•  Generator: Kohler 11Kw diesel
•  Battery Charger: Cristec 60amp
•  1 x water tank located under fwd bed, 350L
•  1 x holding tank for both heads, deck & overboard discharge
•  Shower sump pumps
•  Electric Bilge pumps: midship and engine compartment
•  Manual bilge pump

INSTRUMENTS

•  Chartplotters: 2 x Simrad NSS evo3 9” Multifunction displays with integrated GoFree WiFi, all weather touch screen and expanded keypad
•  VHF: Simrad RS40 with built in AIS Receiver + Simrad HS40 wireless handset
•  Autopilot with heading compass
•  Fusion Marine stereo: Bluetooth, 2 speakers in salon, two speakers in the cockpit, remote control at the helm, connected to NMEA network
•  Search light
•  Aft docking camera
•  Exterior lighting package: underwater lights, step, aft docking lights, side deck lights

 CABIN HOUSE AND FORDECK

•  Electric windlass: Quick with remote up and down
•  Anchor: Delta 16kg, 50m chain
•  Fender holders (4) on the anchor locker
•  Sun pad with foldable backrest, including sun shade
•  Cup holders in S/S on the foredeck
•  Walk around side decks with hand rails

 COCKPIT

•  3 sliding doors concertina joining the cockpit with the salon
•  Bathing platform (tender lift), electrohydraulic lowerable platform with teak
•  Electric BBQ and sink with hot and cold water
•  50L refrigerator
•  Teak cockpit table, folding flaps, lowerable
•  Aft cockpit fabric electric sunroof
•  “Suntex” ice cockpit upholstery
•  Stern shower
•  Swim ladder
• Tender is a centre console aluminum hull Gala with a Yamaha 15. Custom davit mounts.

MAINTENANCE

•  Last haul-out: June 2023
•  Last anti-fouling: June 2023
•  Last zinc(s) change: June 2023
•  Last engine oil change: June 2023 (200 hour service)
