Radiant33' J Boats J 100 2006

Accommodations;

• Off-white laminated paneling with varnished teak trim oval door opening and white door.
• Teak and holly synthetic high-wear cabin sole.
• Two-tone (beige) molded nonskid floor in head area.
• Teak trimmed backrest outboard of each settee berth.
• Marine head with holding tank and "Y" valve.
• Molded sink with overboard drain in head.
• Holding tank overboard discharge manual pump.
• Teak trimmed storage bin to starboard of head.
• Choice of acrylic fabrics for settee cushions.
• Vinyl liner on main cabin & head overhead and hull.
• Foredeck ventilation hatch.
• Two fixed ports in sides of cabin trunk

__________________________________________________________________________

Head and Galley;

• Igloo cooler
• Molded sink with foot pump
• Raritan PH-2 porcelain marine head w/ holding tank and “Y” valve/ overboard discharge

__________________________________________________________________________

Electrical;

• One 95 amp battery.
• 12V DC battery switch.
• Battery isolator
• 12V DC electrical distribution panel w/ 8 circuit breakers.
• 120 vac, 30 amp shore power connection with cord
• 120 vac electrical distribution panel w/4 circuit breakers
• Battery charger
• 120 vac outlets
• Navigation & steaming lights.
• Bonding system.
• Two swiveling halogen reading lights.
• One dome light in main cabin.
• One fluorescent light in head.
• Automatic electric bilge pump and panel switch for manual operation.

___________________________________________________________________________

Navigation and Electronics;

• Raymarine i series wind speed/direction, 2017
• Raymarine i series depth sounder with alarm, 2017
• Raymarine i series knot meter with trip and timer, 2017
• Raymarine RAY210 VHF radio.
• Clarion Stereo system

___________________________________________________________________________

Hull and Deck;

• Composite hull and deck built with resin infusion molding system using biaxial and unidirectional glass fabrics with Baltek end-grained balsa core.
• Large sit-in cockpit with 9.5’ seats having comfortable 13.75” backrests, with Sunbrella cockpit cushions
• Two cockpit seat storage lockers.
• One lazarette storage locker.
• One foredeck anchor locker with overboard drain.
• Swimming and boarding platform sculpted into aft face of full height transom with integral safety ladder.
• Molded companionway seahood and dodger spray shield bosses.
• Teak foredeck toe-rails.
• GRP molded main structural bulkhead, bonded to hull and deck as support for shroud chainplates with single opening to head and forepeak.
• Longitudinal and transverse keel support beams and integral mast step.
• Lead & antimony fixed 5.75' draft, fin keel with bulb bolted to a deep molded sump.
• Balanced hi-aspect spade rudder constructed using "E" glass with stainless rudder post and self-aligning Jefa rudder bearings.
• Curved laminated wood tiller with adjustable tiller extension.
• Four SS mooring cleats (2 fwd, 2 aft)..
• Molded companionway sliding hatch and acrylic offshore dropboard with inside/outside opening hasp
• Stainless steel handrails on cabin house.
• Cockpit operated manual bilge pump.
• Custom Sunbrella Cockpit Cover

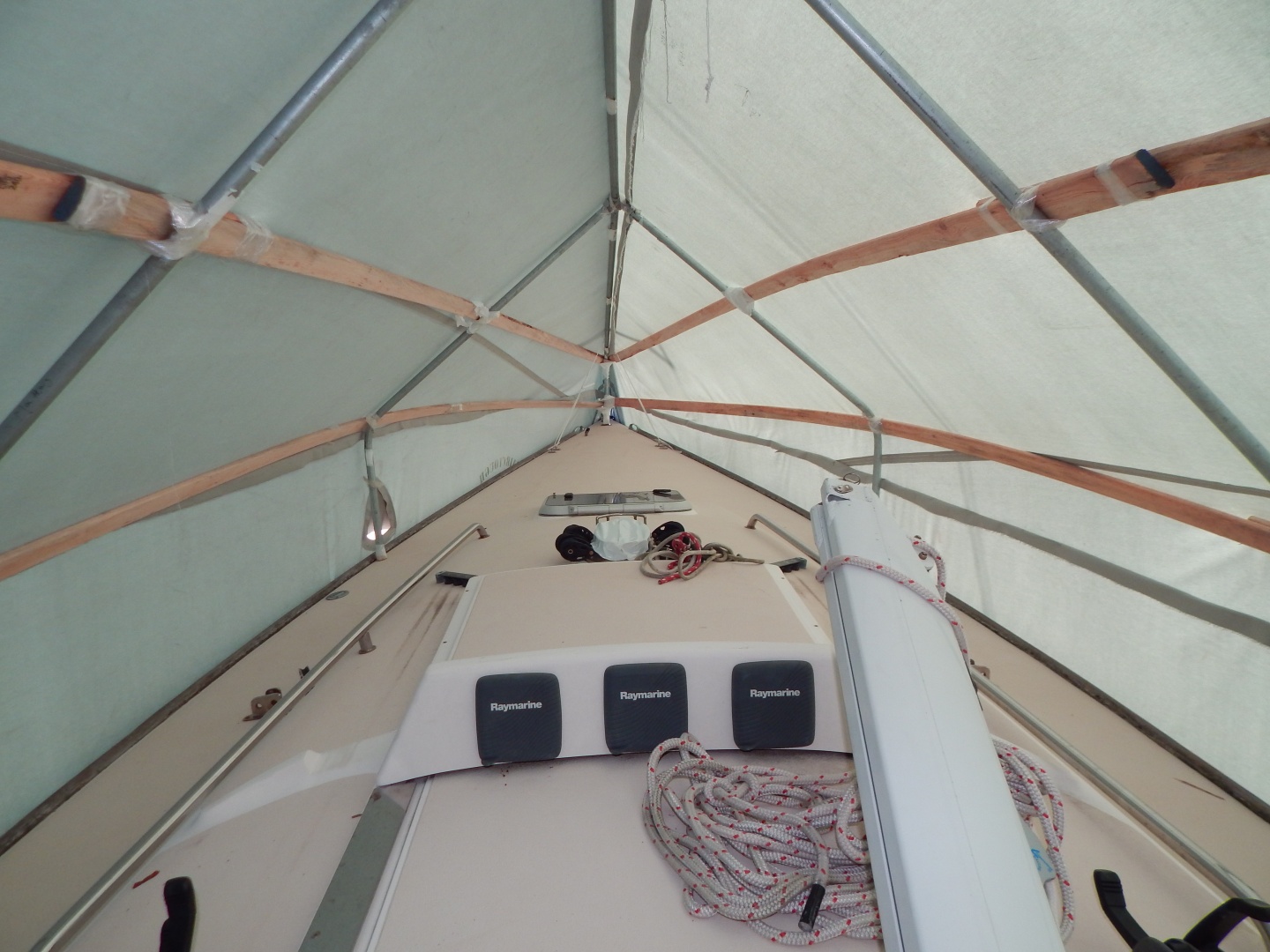

• Custom canvas winter cover with frame

________________________________________________________________________________

Sails and Rigging;

• Tapered carbon fiber mast with double airfoil aluminum spreaders, main, jib, spin halyard and topping lift sheaves, spin/whisker pole track with sliding eye on front of mast, Harken System “A” mainsail luff track; mast finished in Awlgrip off-white.
• G10 fiberglass mast step with fore/aft adjustment slots and SS padeye for through bolt securing of mast to step.
• Mast wedge kit.
• Aluminum boom with provision for 2 reefs, 6:1 internal mainsail outhaul, finished in Awlgrip off-white.
• Continuous rod rigging with turnbuckles.
• Remote panel hydraulic backstay adjuster.
• Rigid boomvang with integral cleating.
• Harken unit “0” headsail furler with control leading aft to cockpit.
• Two Harken 40:1 self-tailing primary winches mounted on cockpit coaming.
• Two Harken 32:1 secondary winches mounted on cabin trunk.
• Triple sheave deck organizers (P&S).
• Two lock-in winch handles.
• Two PVC winch handle holders.
• Custom stainless mast collar.
• Mast mounted turning blocks
• Halyard & reef line rope clutches on the cabin top.
• One single rope clutch for tack line or jib boom outhaul.
• Cam cleats on cabin top and mounted near primary winches (for lazy spin sheets).
• Two fixed jib tracks each with plunger style jib cars.
• Mainsheet traveler track recessed in cockpit seat with 4:1 traveler control system.
• 6:1/24:1 rough tune/fine tune mainsheet system leading to aluminum bracket on centerline fore and aft of traveler.
• Two 12"x 20" polypropylene mesh line bags.
• Custom SS chainplates, stemhead and backstay tang.
• Five (5) folding padeyes: one for spinnaker tack attachment on bow, and four attachment points for spinnaker blocks.
• 130 genoa, 2019
• Airforce, Bainbridge DIAX Pentex blue water tri-radial mainsail With 2 full length battens, Harken cars, single reef points and Sunbrella sail cover
• Airforce, asymmetrical reaching spinnaker constructed of Challenge .75 oz Nylon

______________________________________________________________________________________

Mechanical;

• Engine instrument panel with tachometer, engine hour gauge and water, oil pressure alarms in cockpit with acrylic cover.
• Engine throttle control with neutral safety switch
• Fresh water cooling system
• Marelon seacocks
• Racor fuel water separator primary filter
• Raw water sea strainer
• Saildrive with 15 X 11 LHS Gori folding prop

_______________________________________________________________________________________
