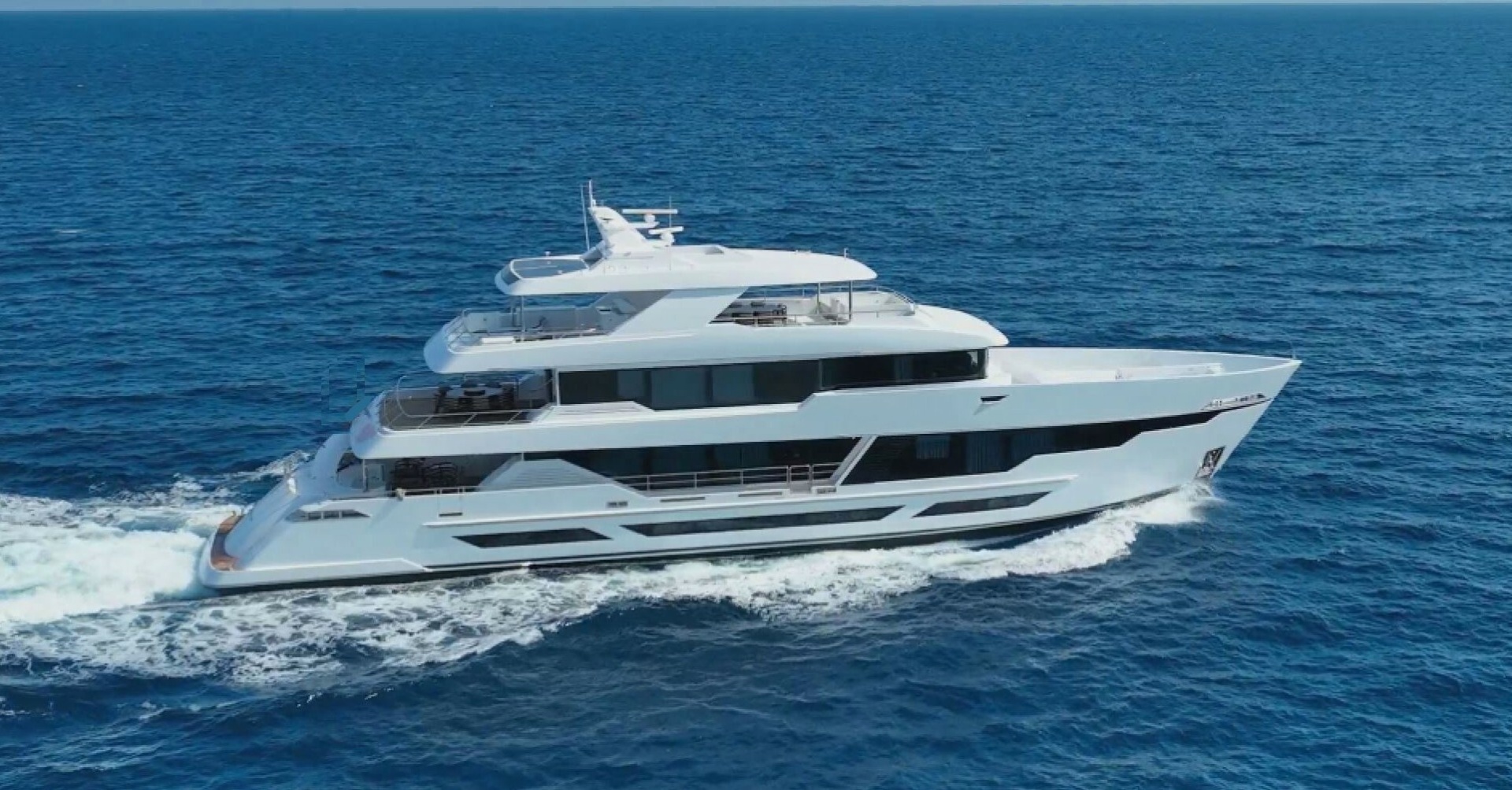

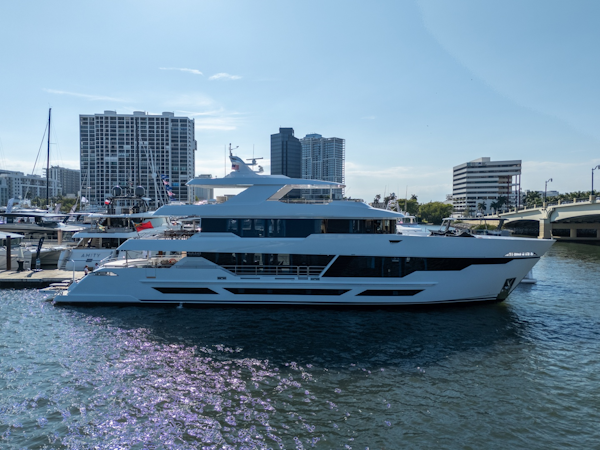

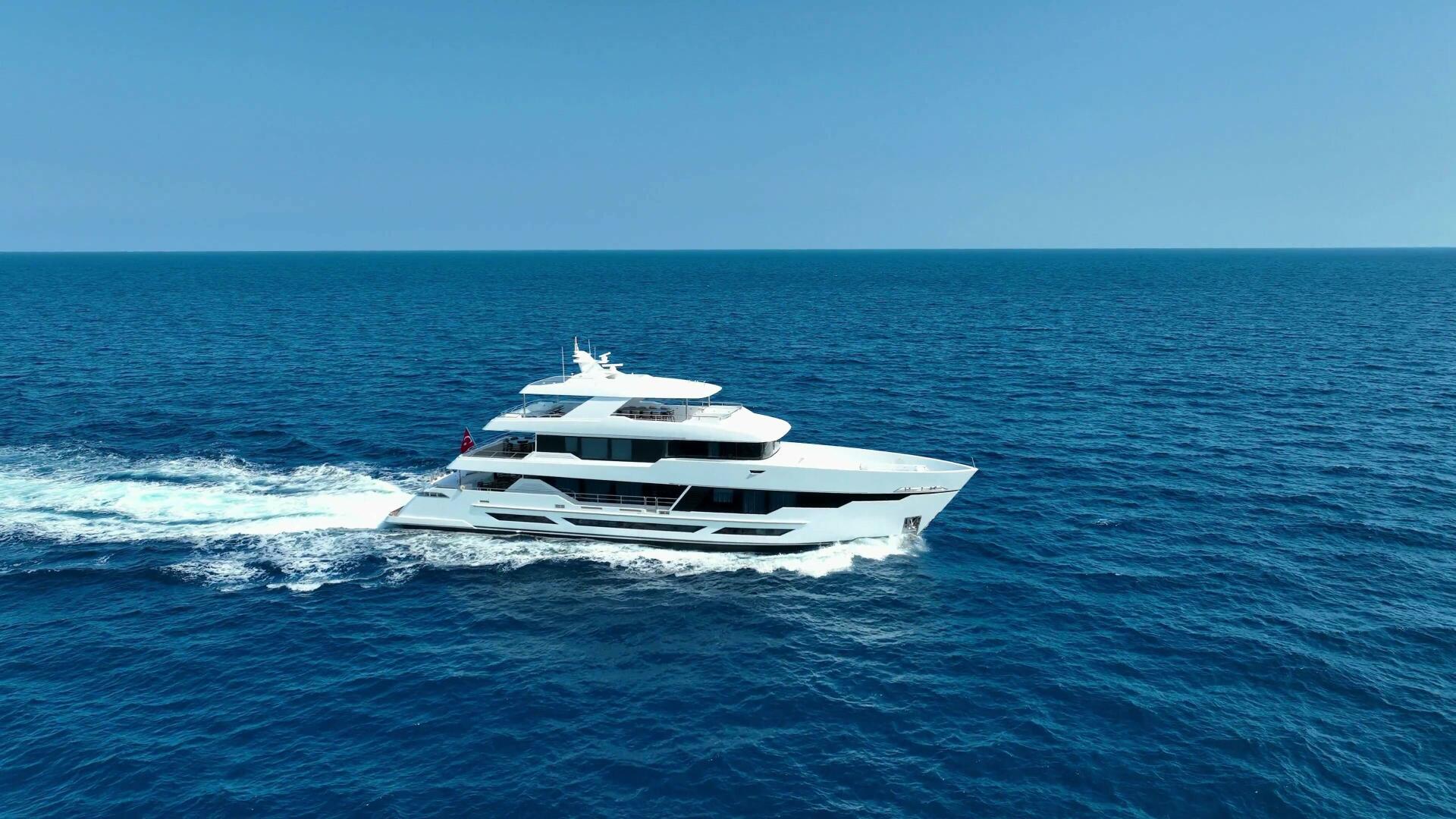

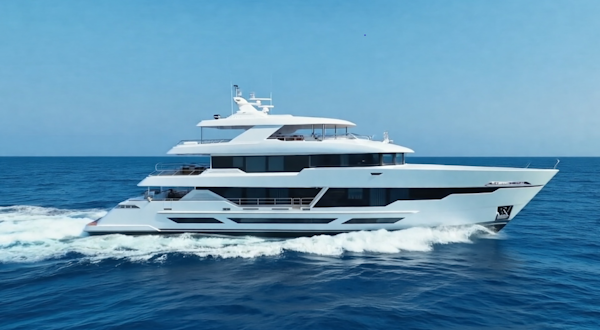

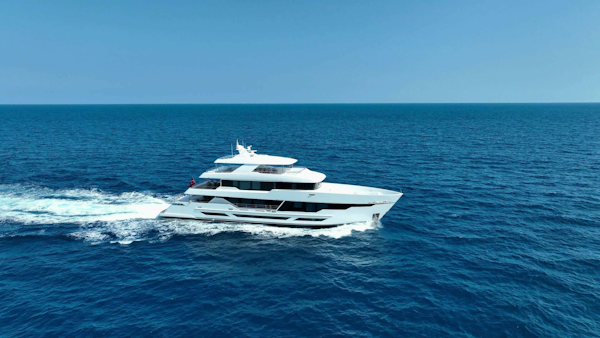

RESONANCE 125' Hargrave E Series Superyachts Division 2026

MAIN CHARACTERISTICS

ACCOMODATION:10 GUESTS + 7/8 CREW

CLASSIFICATION: RINA PLEASURE YACHTS CHULL MACH Y UNRESTRICTED NAVIGATION

(ISPP) INTERNATIONAL SEWAGE POLLUTION PREVENTION

LENGTH OVERALL: 38.25 meters / 125.5 ft

LENGTH Waterline: 33.26 meters / 109 ft

BEAM MAX: 7.80 meters /25.6 ft

DRAFT: 2 m/ 6.5 ft

DISPLACEMENT (Light Ship): 165 Tonnes

DISPLACEMENT (Fully loaded): 205 Tonnes

GROSS TONNAGE: 342 GT

SPEED: 18 Knots

PROPULSION

MAIN ENGINES: 2 x CAT C32 1900HP @ 2300 Rpm

GEARBOX: TWIN DISC MGX-6598DC   3.03:1

ENGINE CONTROL: GLENDINING ( 1 main + 2 remote station)

GENERATORS:

CAT C4.4: 75KW

CAT C4.4: 75KW

SHAFT PROPELLER: CJR (UK) 4,5” MARINEMET 25 Shaft / 5 Blades Class S Propellers

ELECTRIC SYSTEM

Main Service: 115/208 VAC 3PH 60Hz

Shore Power Converter: ASEA 75 kVA

Service and Engine Start System: 24DC

Service Batteries: 2200 Ah ( 2x 100 A Charger )

Emergency Batteries: 880 Ah ( 1x 80 A Charger )

Radio Batteries: 260 Ah ( 1x 30 A Charger )

ME & Generator Batteries: (x2) 960 Ah ( 2x 40 A Charger )

Fire Puımp Batteries: 880 Ah ( 1x 80 A Charger )

TANK CAPACITY

Diesel Oil : 30.250 Lt/ 8.000 Gallons

Fresh Water : 4.540 Lt/ 1.200 Gallons

Black Water : 2.000 Lt / 500 Gallons

Grey Water: 3.000 Lt / 800 Gallons

BUILD / CONSTRUCTION

HULL / SUPERSTRUCTURE: CARBON RAINFORCED E-GLASS - EPOXY COMPOSITE SANDWICH

OPEN DECK: HANDLAID BURMESE / MYANMAR TEAK OR NON SKID PAINT

PAINT SYSTEM: AWLGRIP

MASTER EQUIPMENT LIST

Airhorn: Kahlenberg

Anchor winch and Capstans: (x2 )Maxwell VWC6000 Hyd. Windlass, VC4000 Capstans

Windscreen Wipers: (x4) Speich

Alarm & Monitoring system: Wago

Anchor and Chain: (x2) 200kg 316L S.S. Pool Anchor, (x2) 123m (400 ft) 14mm, Grade 3 Studlink Chain

Batteries and chargers: Victron

ER Venilation: Delta T System

Bow thruster: Naiad 67 hP Bow thruster

Stabilizers: Naiad 525 At Rest Stabilizer with 22kW Power Pack

Fuel Water filters: Separ

HVAC:

TECHNICOLD Chiller assembly (x3) 120,000 BTU

STEERİNG SYSTEM:

Wills Ridley Electro Hydraulic Steering

INSULATION:

Unifrax B15 Engine room and B0 Galley insulation (Doubled for extra insulation)

Rockwool Thermal cabin insulation

PUMPS:

HeadHunter and FEIT

Sewage treatment: Headhunter TW-HMX-6001LP

Toilet system: Headhunter White Royal Flush Bravo

NAVIGATION AND COMMUNİCATİON EQUIPMENT

GARMIN & FURUNO

(x5) Surveillance Cameras & FLIR N232 Thermal Camera

(x5) 32” Pilot House Touchscreen

(x2) Garmin 215 VHF Radio

Garmin Fantom 54 Radar / Furuno 6” Radar

Furuno NV700 Autopilot

Furuno Navtex, AIS and NavNet

(x2) Starlink Antenna

DECK EQUIPMENT

SWIM LADDER: 316L Stainles Steel

CRANE: SW 1000kg (2200lbs) Telescobic Hydraulic Deck Crane

PASARELLA: 17ft Hydraulic Gangway

HANDRAILS: 316L S.Steel

PANTOGRAPH DOORS: (x4) Pantograph Door

SLIDING DOORS: Electric Operated main and upper saloon doors

WATERTIGHT DOORS AND DECK HATCHES: Watertight Deck Hatches and Engine room WT Fire Doors

AFT BEACH SHELL DOOR: Hydraulic Actuator Operated Carbon Reiforced Composite

Watertight Door

SAFETY EQUIPMENT

LIFE RAFTS: Viking 2 x 12 Persons

FIRE PROTECTION: Fireboy FM200 Engine Room Fixed Fire Extinguishing System

FIRE & GENERAL ALARM SYSTEM: HAES Conventional Fire Detection System

APPLIANCES

COOKTOP:

GE 36" Built-In Touch Control Induction Cooktop (Galley)

WASHER:

(x2) GE 4.8 cu. ft. Capacity Smart Front Load ® Washer

Crewmess(1) / Guest Corridor(1)

DRYER:

(x3) GE 7.8 cu. ft. Capacity Smart Front Load Electric Dryer

Crewmess(2) / Guest Corridor(1)

REFIGERATOR: Subzero 36" Classic French Door Refrigerator/Freezer (Galley)

Subzero 42" Classic French Door Refrigerator/Freezer (Galley)

WINE COOLER:

(x3) Schmecke 12 Bottle Freestanding 2 Shelf Wine Cooler

MD Corridor(2) / UD Salon(1)

Zephr 24" French Door Dual Zone Wine Cooler (Sundeck)

(x2) Zephr 15″ Single Zone Wine Cooler

MD Aft(1) / UD Salon(1)

MICROWAVE OVEN:

 GE 2.1 Cu. Ft. Over-the-Range Sensor Microwave Oven (Galley)

GE 0.7 Cu. Ft. Countertop Microwave Oven (Crewmess)

GRILL:

Fire Magic Deluxe Gourmet Drop In Grill (Sundeck)

DISHWASHER:

Fisher&Paykel Series 7 Contemporary Tall Double (Galley)

GARBAGE DISPOSAL:

(x2) GE 3/4 HP Continuous Feed Garbage Disposer (Galley)

RANGE HOOD:

Broan® Elite EWT1 Series Chimney 36” Range Hood (Galley)

OVEN:

(x2) GE 30"Smart Built-In Convection Single Wall Oven (Galley)

ICE MAKER:

(x4) Hoshizaki Top Hat Cuber Icemaker, Air-cooled

MD Aft(1) / UD Salon(1) / Beachclub(1) / Sundeck(1)

ENTERTAINMENT

TELEVISION

Samsung 32" Class QLED 4K Q60D (Captain Cabin)

(x6) Samsung 55" Class QLED 4K Q60D

UD Salon(1) / Guest Cabins(4) / Crewmess(1)

Samsung 65" Class QLED 4K Q60D (MD Salon)

Samsung 85" Class Neo QLED 8K Smart TV (Master Cabin)

(x9) Apple Tv 4K

(x9) Xantech DL85K/CFL-Proof Dinky Link Ir Receiver

SOUND SYSTEM

AUDIO / VIDEO: CRESTRON READY

Bose Smart Soundbar 900 Dolby Atmos (MD Salon)

Bose Smart Soundbar 700 Dolby Atmos (UD Salon)

(x2) Bose Bass Module 500, Black 10’’

MD Salon(1) / UD Salon(1)

(x6) JL Audio M6-770X-C-GWGW Speaker

MD Aft(2) / UD Aft(1) / Sundeck(3)

JL Audio M6-650X-C-GWGW Speaker (Bowdeck)

(x2) JL Audio M6-10IB-C-GWGW-4 Subwoofer

MD Aft(1) / Sundeck(1)

(x3) Fusion Apollo MS RA770 Marine Stereo

MD Aft(1) / UD Aft(1) / Sundeck(1)

Fusion Apollo SRX400Marine Stereo (Bowdeck)

(x4) Fusion® ARX Wireless Remote

MD Aft(1) / UD Aft(1) / Sundeck(1) / Bowdeck(1)

INTERNET SYSTEM

(x8) TP-LINK AX1800 Ceiling Mount WiFi 6 Access Point

(x2) TP-LINK Omada Hardware Controller

Peplink Cellular Antenna Mobility 40G 5G /LTE Ready

Peplink Max BR2 Pro/Dual 2.5 GPS Wan Ports,X62 5G
