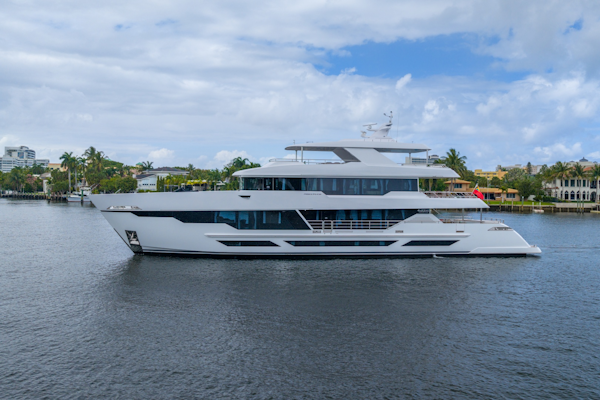

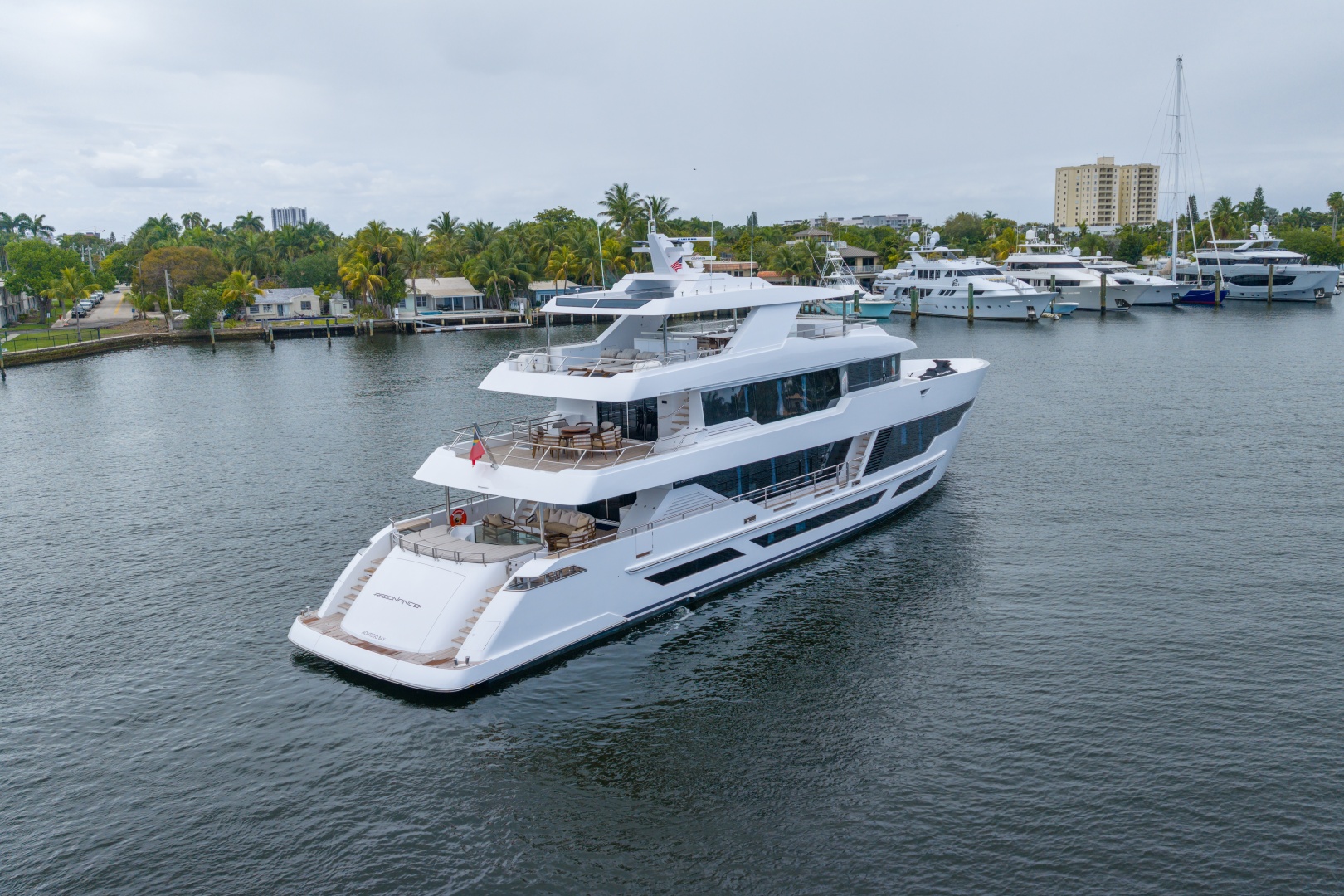

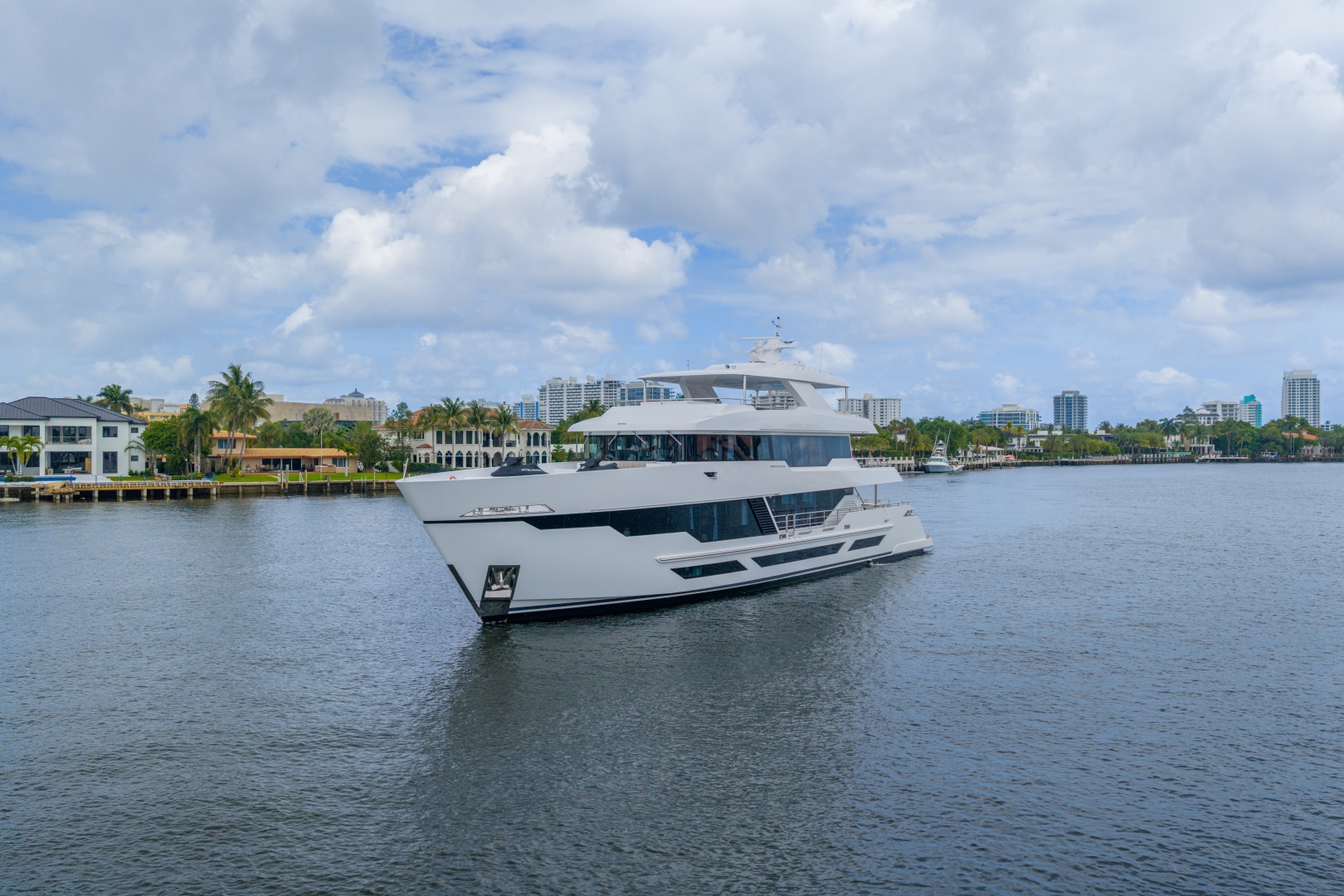

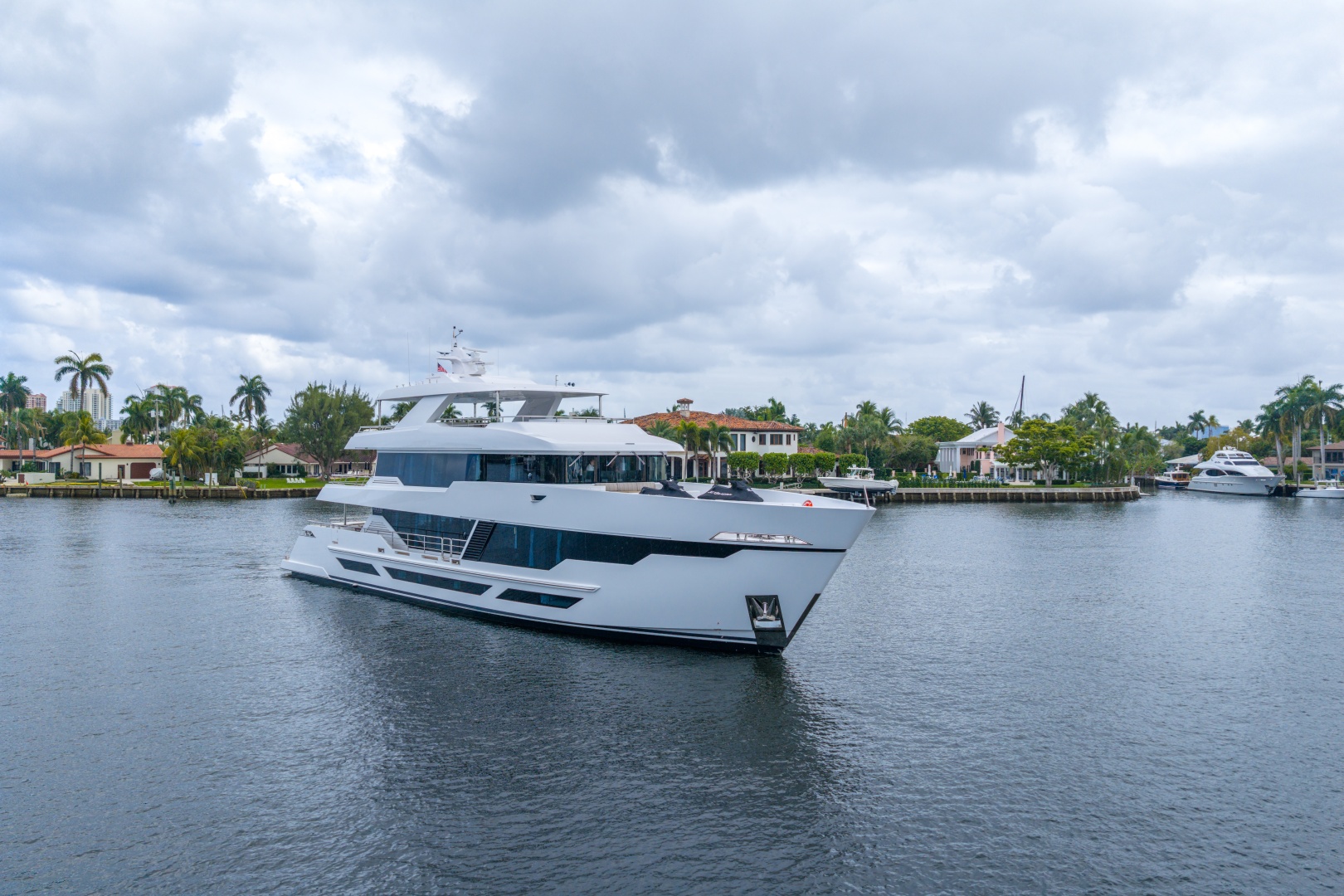

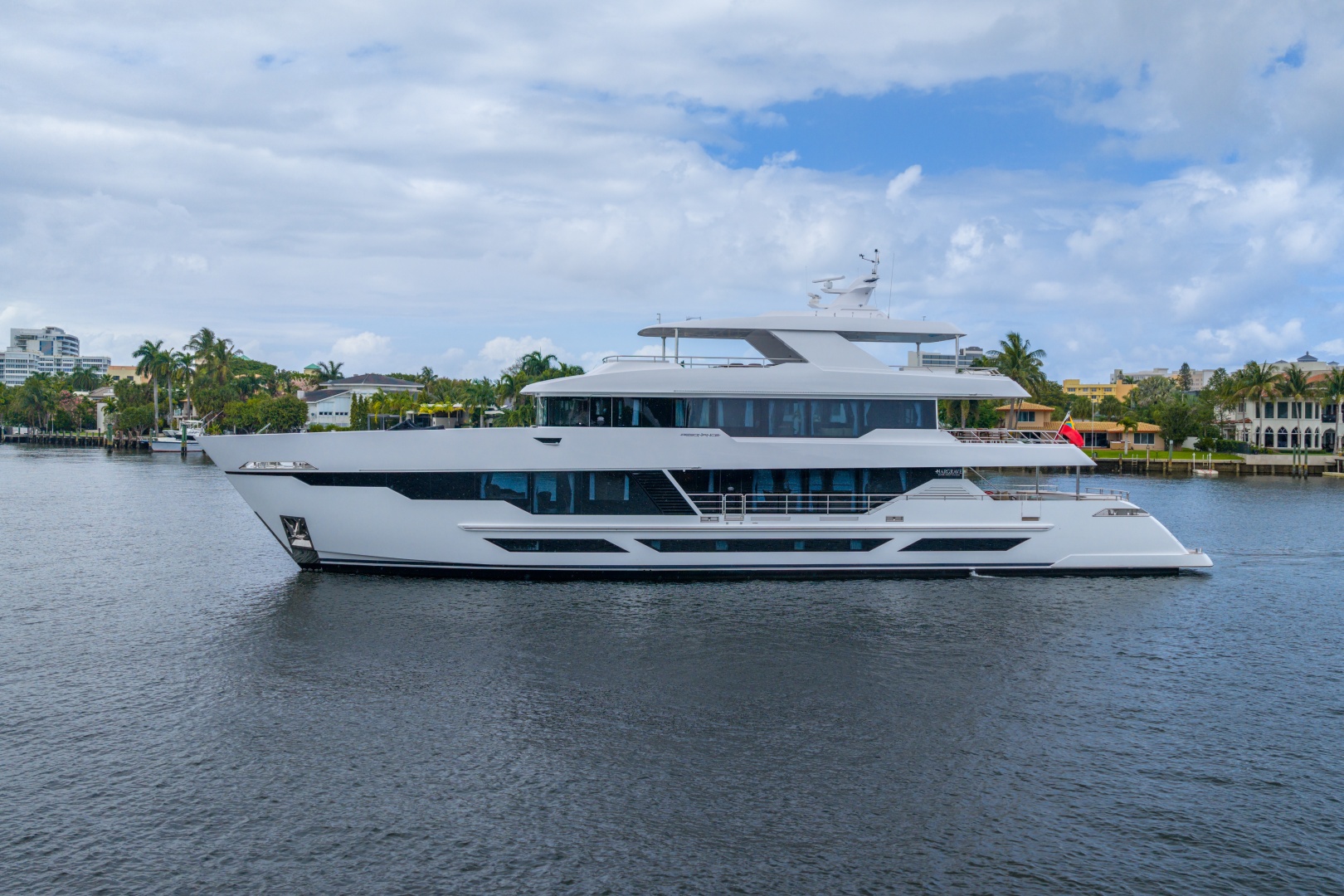

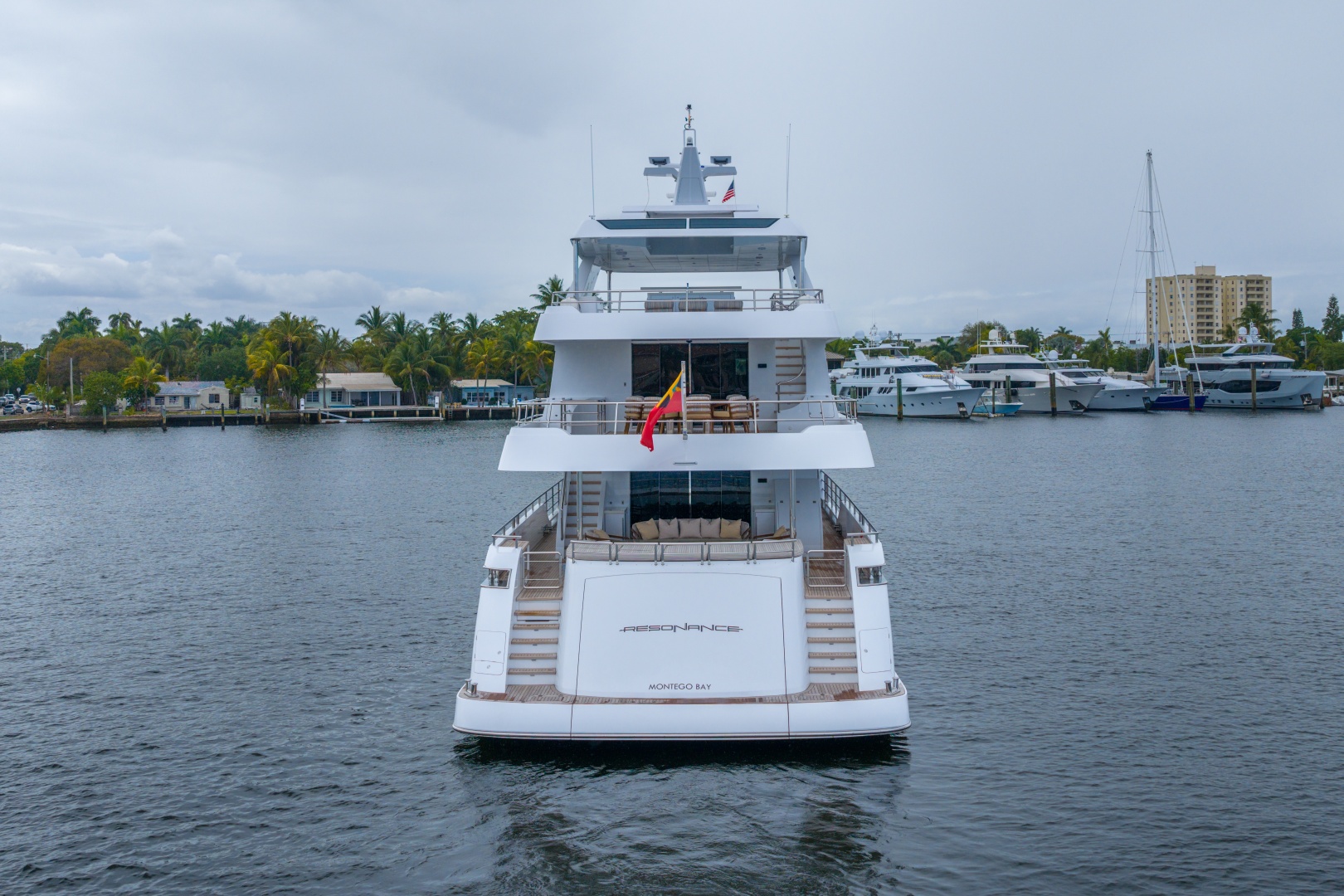

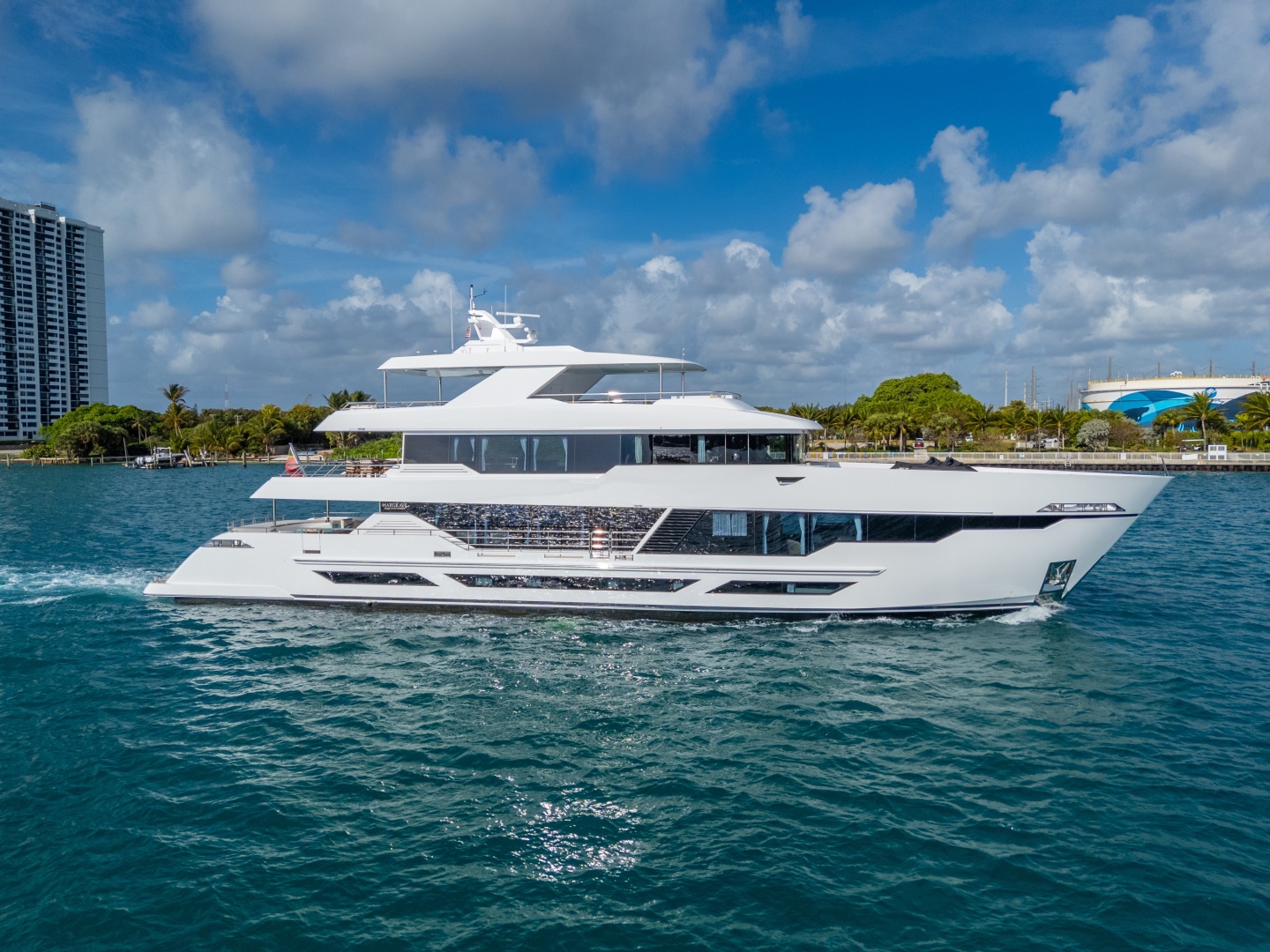

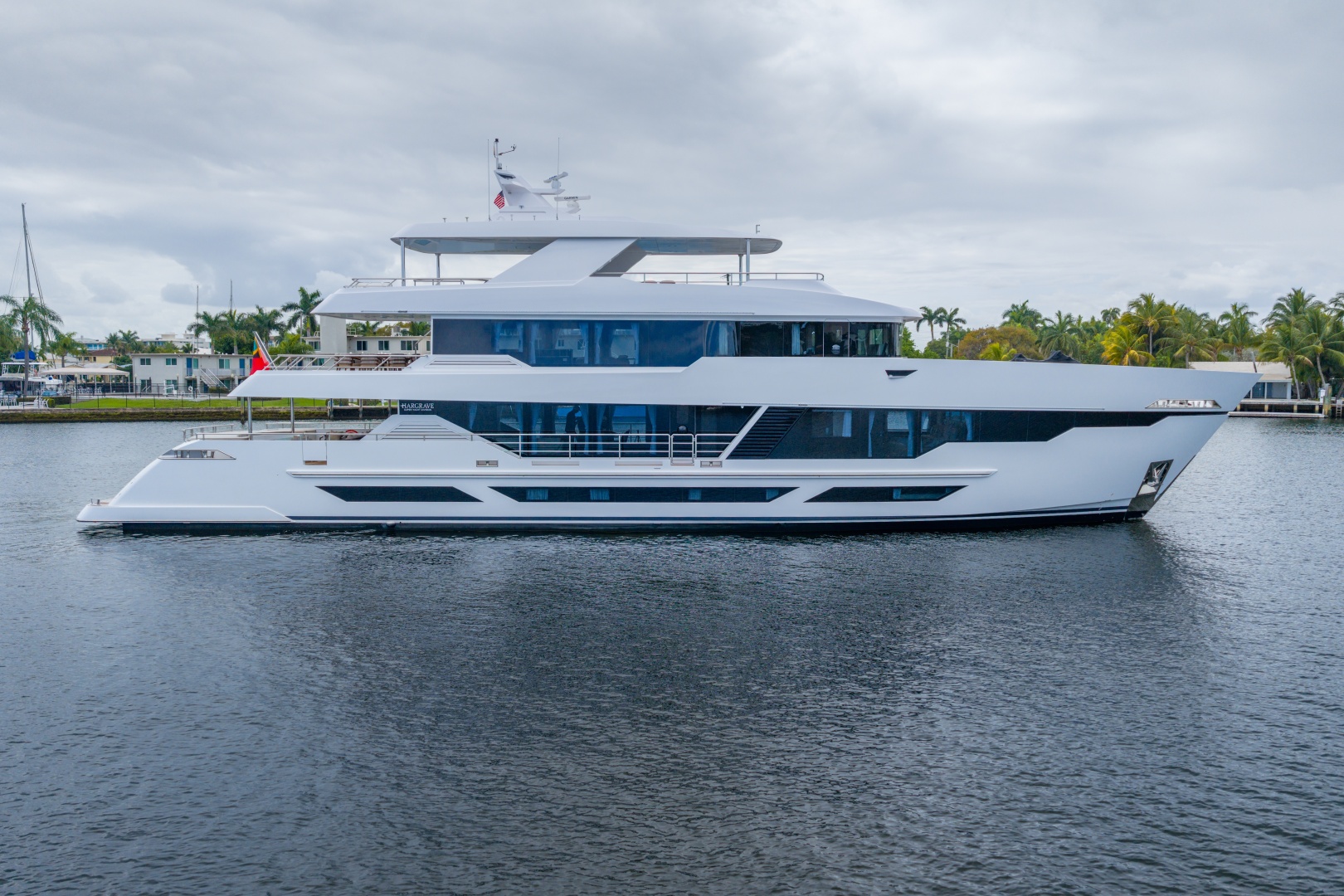

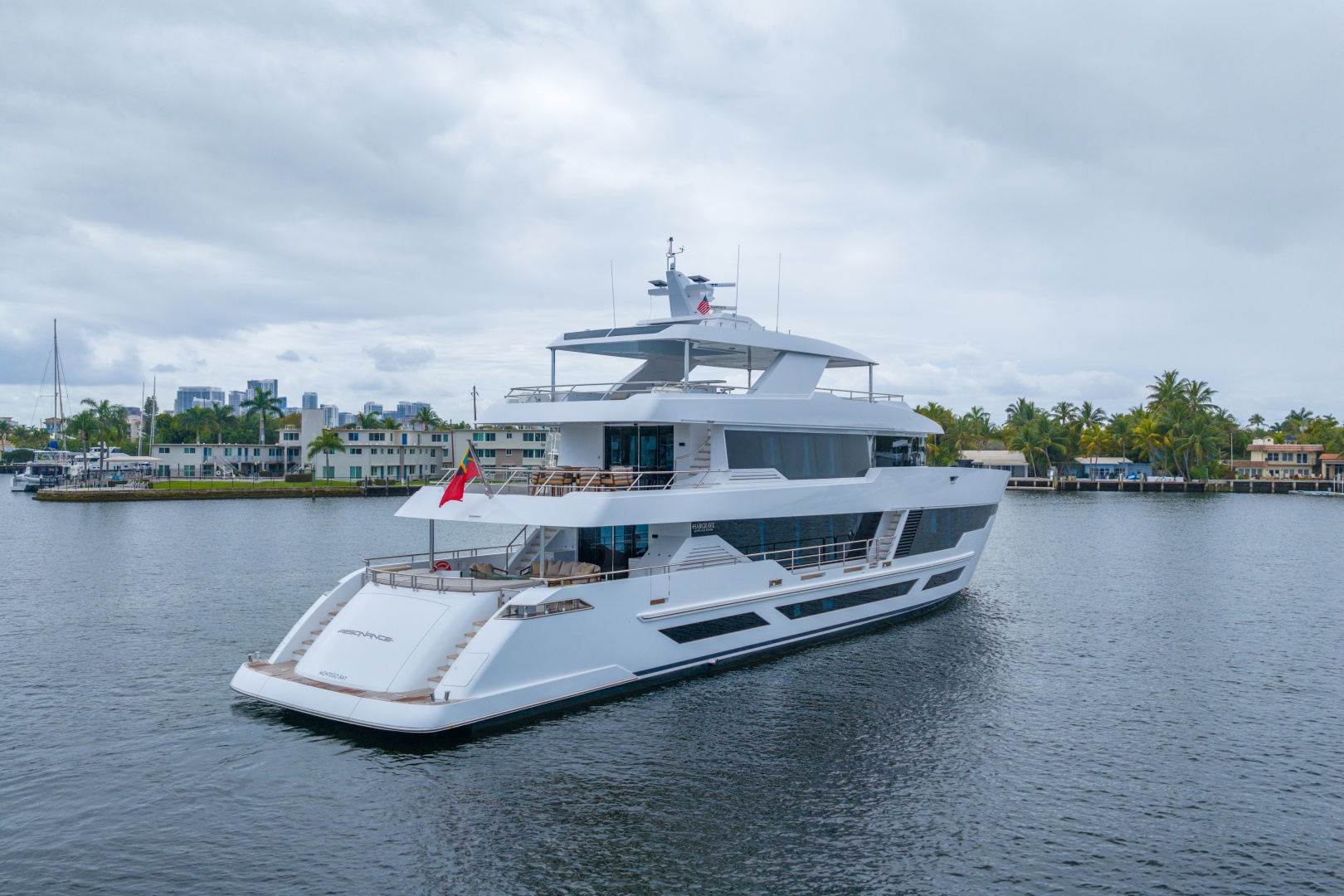

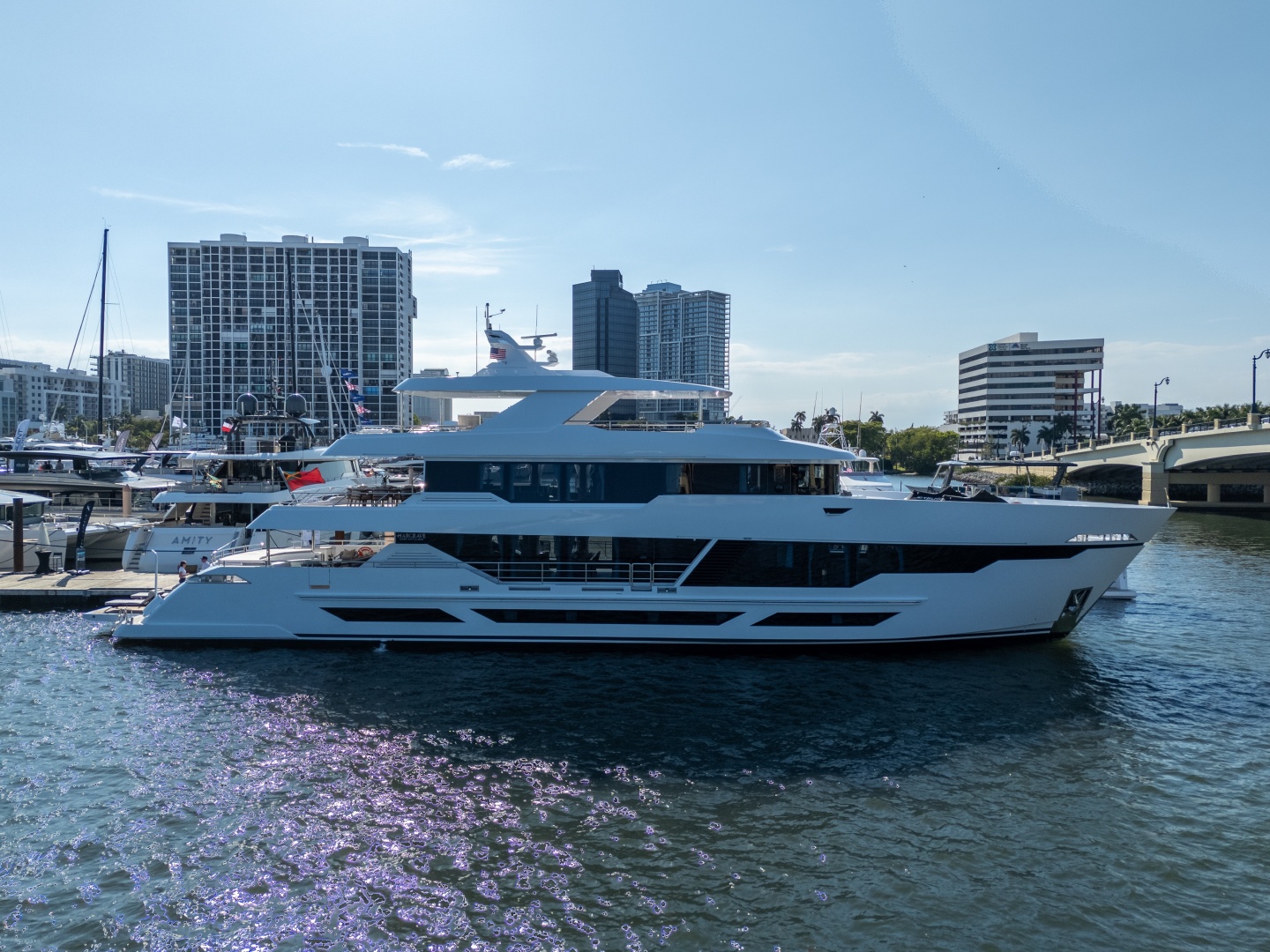

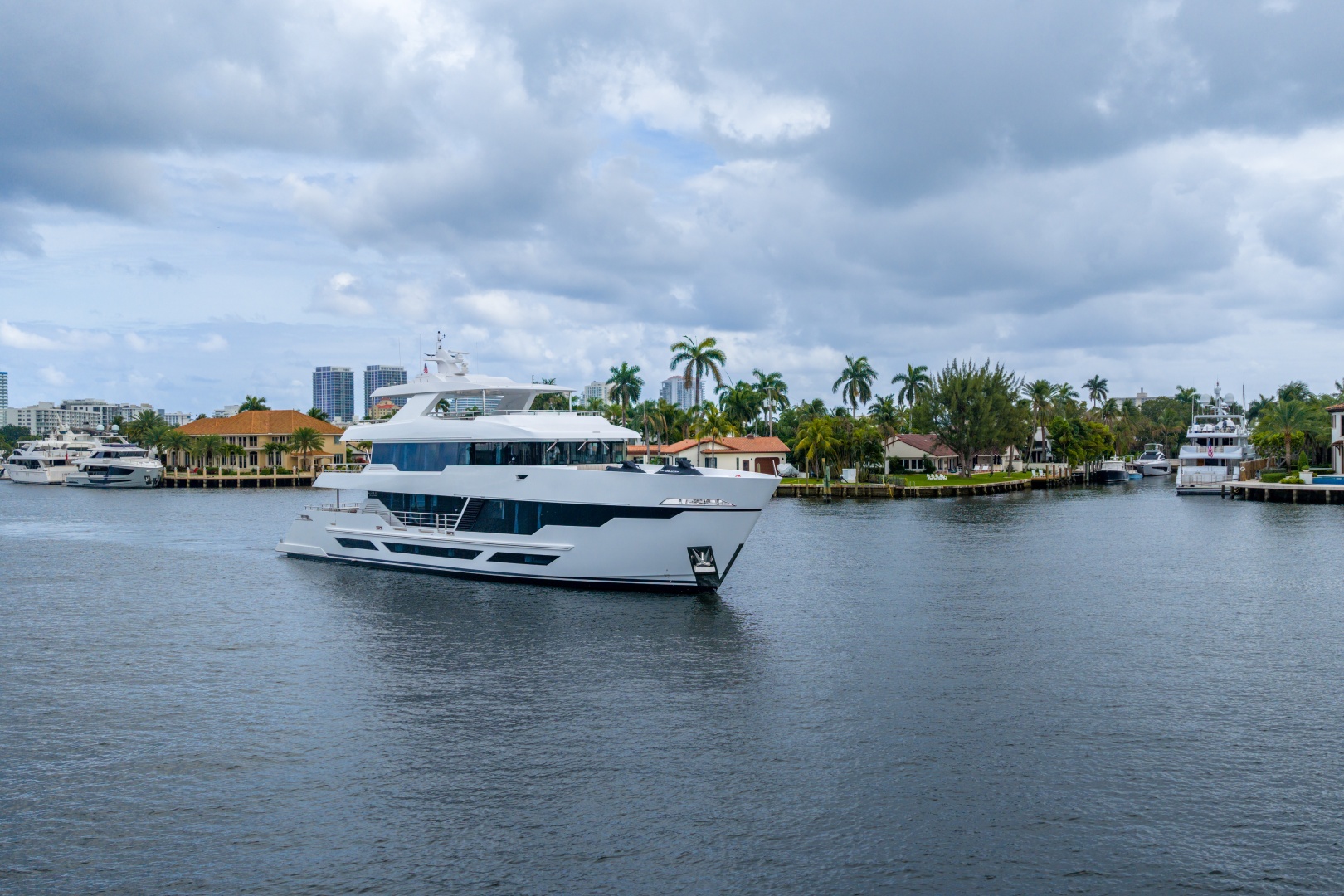

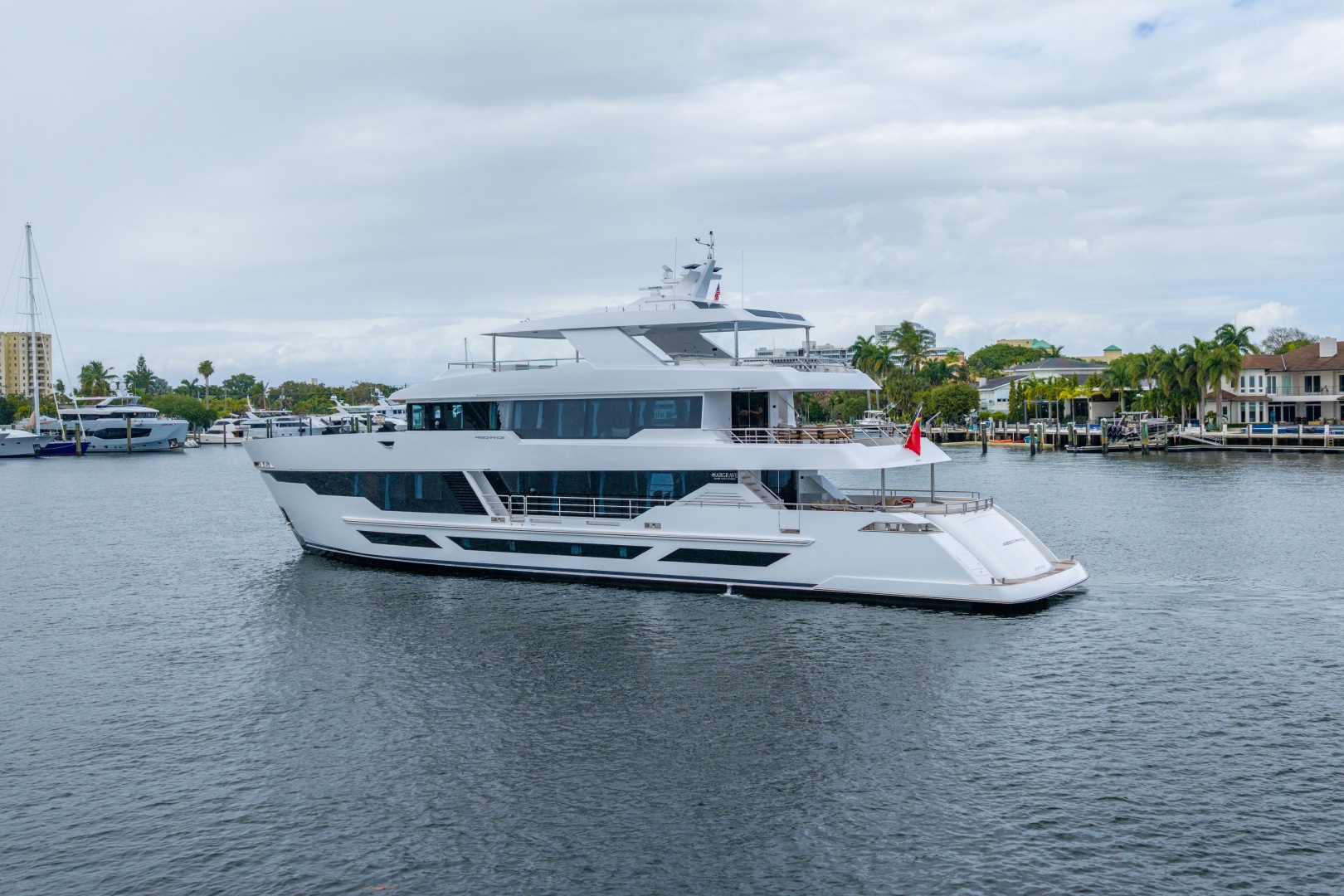

RESONANCE 125' Hargrave E Series 2026

• Accommodations: 10 Guests + 7 Crew
• Classification: RINA Pleasure Yachts
• Unrestricted Navigation
• (ISPP) International Sewage Pollution Prevention
• Length Overall: 38.25 meters ‑ 125.5 ft
• Length: 33.26 meters ‑ 109 ft
• Beam Max: 7.80 meters ‑ 25.6 ft
• Depth: 3.45 meters ‑ 11.3 ft
• Displacement (Light Ship): 165 Tonnes
• Displacement (Fully loaded): 205 Tonnes
• Gross Tonnage: 342 GT
• Speed: 18 Knots

• Main Service: 115/208 VAC 3PH 60Hz
• Shore Power Converter: ASEA 75 kVA
• Service and Engine Start System: 24DC
• Service Batteries: 2200 Ah (2x 100 A Charger)
• Emergency Batteries: 880 Ah (1x 80 A Charger)
• Radio Batteries: 260 Ah (1x 30 A Charger)
• ME & Generator Batteries: (x2) 960 Ah (2x 40 A Charger)
• Fire Puımp Batteries: 880 Ah (1x 80 A Charger)

• Diesel Oil: 30.250 Lt / 8.000 Gallons
• Fresh Water: 4.540 Lt / 1.200 Gallons
• Black Water: 2.000 Lt / 500 Gallons
• Grey Water: 3.000 Lt / 800 Gallons

• Hull/Superstructure: Carbon Reinforced E-Glass - Epoxy Composite Sandwich
• Open Deck: Handlaid Burmese/Myanmar Teak or Non Skid Paint
• Paint System: Awlgrip

• Airhorn: Kahlenberg
• Anchor winch and Capstans: (x2 )Maxwell VWC6000 Hyd. Windlass, VC4000 Capstans
• Windscreen Wipers: (x4) Speich
• Alarm & Monitoring system: Wago
• Anchor and Chain: (x2) 200kg 316L S.S. Pool Anchor, (x2) 123m (400 ft) 14mm, Grade 3 Studlink Chain
• Batteries and chargers: Victron
• ER Ventilation: Delta T System
• Bow thruster: Naiad 67 hP Bow thruster
• Stabilizers: Naiad 525 At Rest Stabilizer with 22kW Power Pack
• Fuel Water filters: Separ

• TECHNICOLD Chiller assembly (x3) 120,000 BTU

• Wills Ridley Electro Hydraulic Steering

• Unifrax B15 Engine room and B0 Galley insulation
• Rockwool Thermal cabin insulation

• HeadHunter and FEIT
• Sewage treatment: Headhunter TW‑HMX‑6001LP
• Toilet system: Headhunter White Royal Flush Bravo

• GARMIN & FURUNO
• (x5) Surveillance Cameras & FLIR N232 Thermal Camera

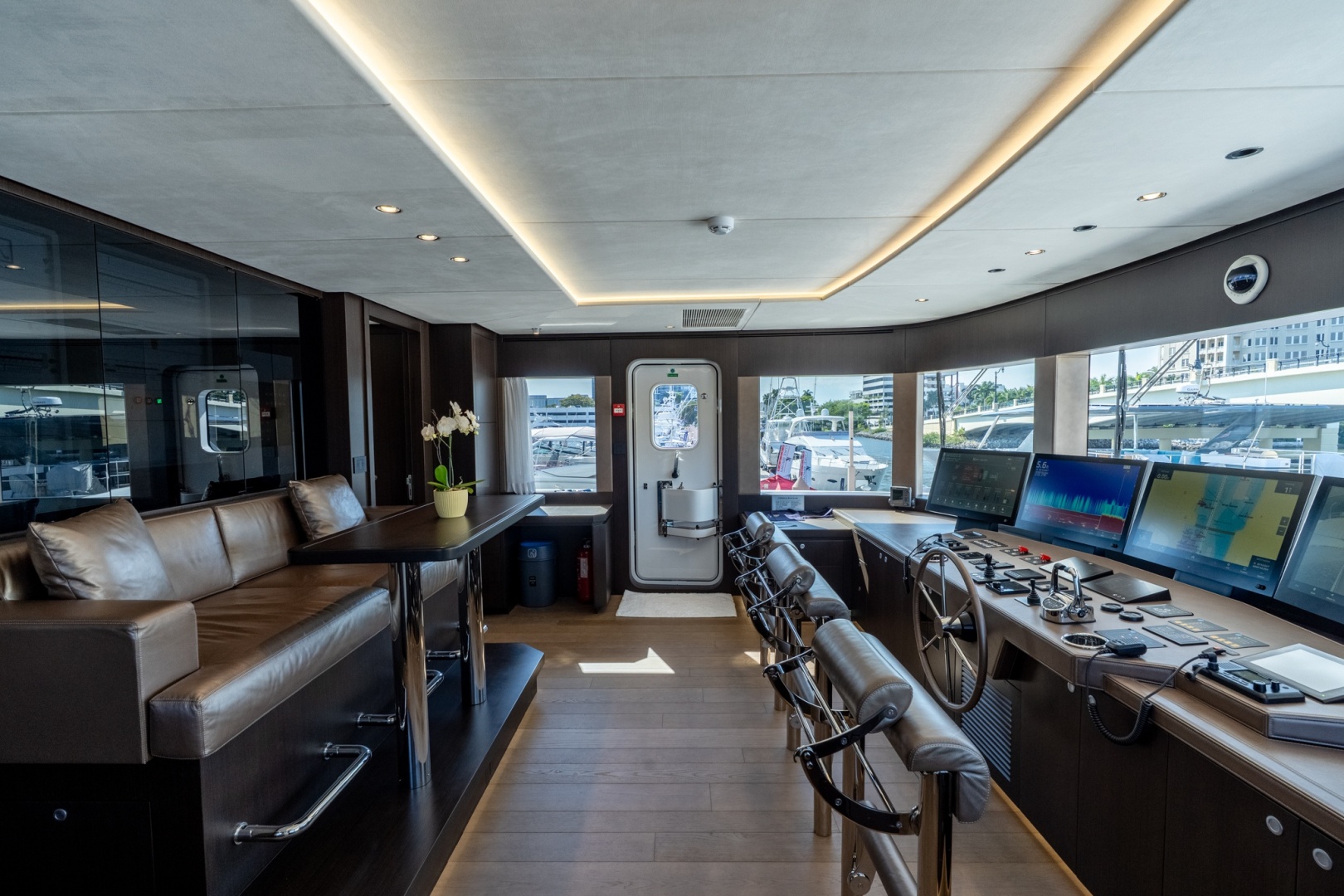

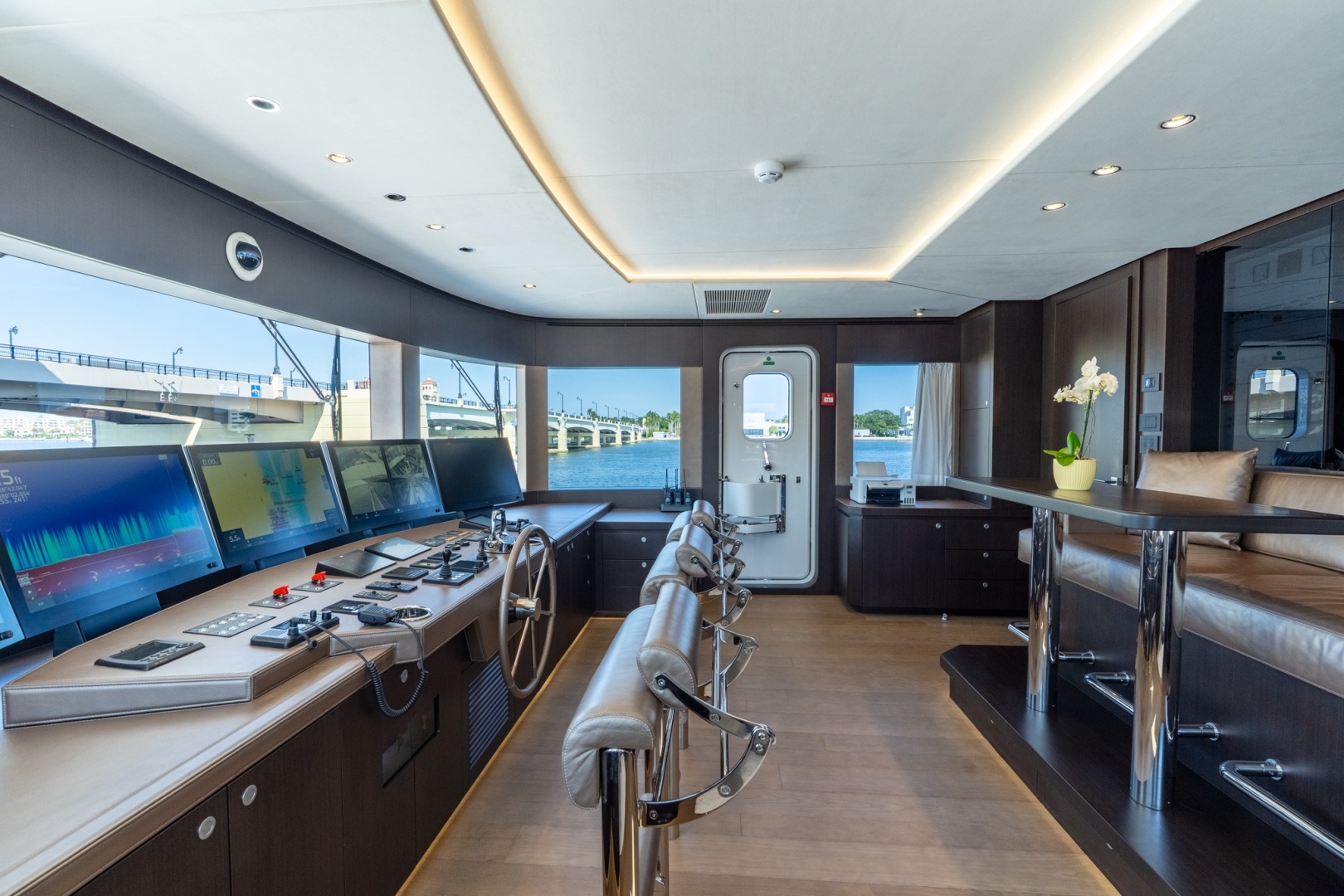

• (x5) 32” Pilot House Touchscreen
• (x2) Garmin 215 VHF Radio
• Garmin Fantom 54 Radar / Furuno 6” Radar
• Furuno NV700 Autopilot
• Furuno Navtex, AIS and NavNet
• (x2) Starlink Antenna

• Swim Ladder: 316L Stainless Steel
• Crane: SW 1000kg (2200lbs) Telescopic Hydraulic Deck Crane
• Pasarella: 17ft Hydraulic Gangway
• Handrails: 316L S.Steel
• Pantograph Doors: (x4) Pantograph Door
• Sliding Doors: Electric-operated main and upper saloon doors
• Watertight Doors and Deck Hatches: Watertight Deck Hatches and Engine Room
• WT Fire Doors
• Aft Beach Shell Door: Hydraulic Actuator Operated Carbon Reinforced Composite Watertight Door

• Life Rafts: Viking 2 x 12 Persons
• Fire Protection: Fireboy FM200 Engine Room Fixed Fire Extinguishing System
• Fire and General Alarm System: HAES Conventional Fire Detection System

• Cooktop: GE 36" Built-In Touch Control Induction Cooktop (Galley)
• Washer: (x2) GE 4.8 cu. ft. Capacity Smart Front Load ® (Washer Crew mess (1) / Guest Corridor (1))
• Dryer: (x3) GE 7.8 cu. ft. Capacity Smart Front Load Electric Dryer (Crew mess (2) / Guest Corridor (1))
• Refrigerator: Subzero 36" Classic French Door Refrigerator/Freezer (Galley), Subzero 42" Classic French Door Refrigerator/Freezer (Galley)
• Wine Cooler: (x3) Schmecke 12 Bottle Freestanding 2 Shelf Wine Cooler (MD Corridor (2) / UD Salon (1)), Zephr 24" French Door Dual Zone Wine Cooler (Sundeck). (x2) Zephr 15″ SingleZone Wine Cooler (MD Aft (1) / UD Salon (1))
• Microwave Oven: GE 2.1 Cu. Ft. Over‑the‑Range Sensor Microwave Oven (Galley)
• GE 0.7 Cu. Ft. Countertop Microwave Oven (Crewmess)
• Grill: Fire Magic Deluxe Gourmet Drop-In Grill (Sundeck)
• Dishwasher: Fisher & Paykel Series 7 Contemporary Tall Double (Galley)
• Garbage Disposal: (x2) GE 3/4 HP Continuous Feed Garbage Disposer (Galley)
• Range Hood: Broan® Elite EWT1 Series Chimney 36” Range Hood (Galley)
• Oven: (x2) GE 30"Smart Built‑In Convection Single Wall Oven (Galley)
• Ice Maker: (x4) Hoshizaki Top Hat Cuber Icemaker, Air‑cooled (MD Aft (1) / UD Salon (1) / Beachclub (1) / Sundeck (1))

Television:

• Samsung 32" Class QLED 4K Q60D (Captain Cabin)
• (x6) Samsung 55" Class QLED 4K Q60DUD (Salon(1) / Guest Cabins(4) / Crewmess(1))
• Samsung 65" Class QLED 4K Q60D (MD Salon)

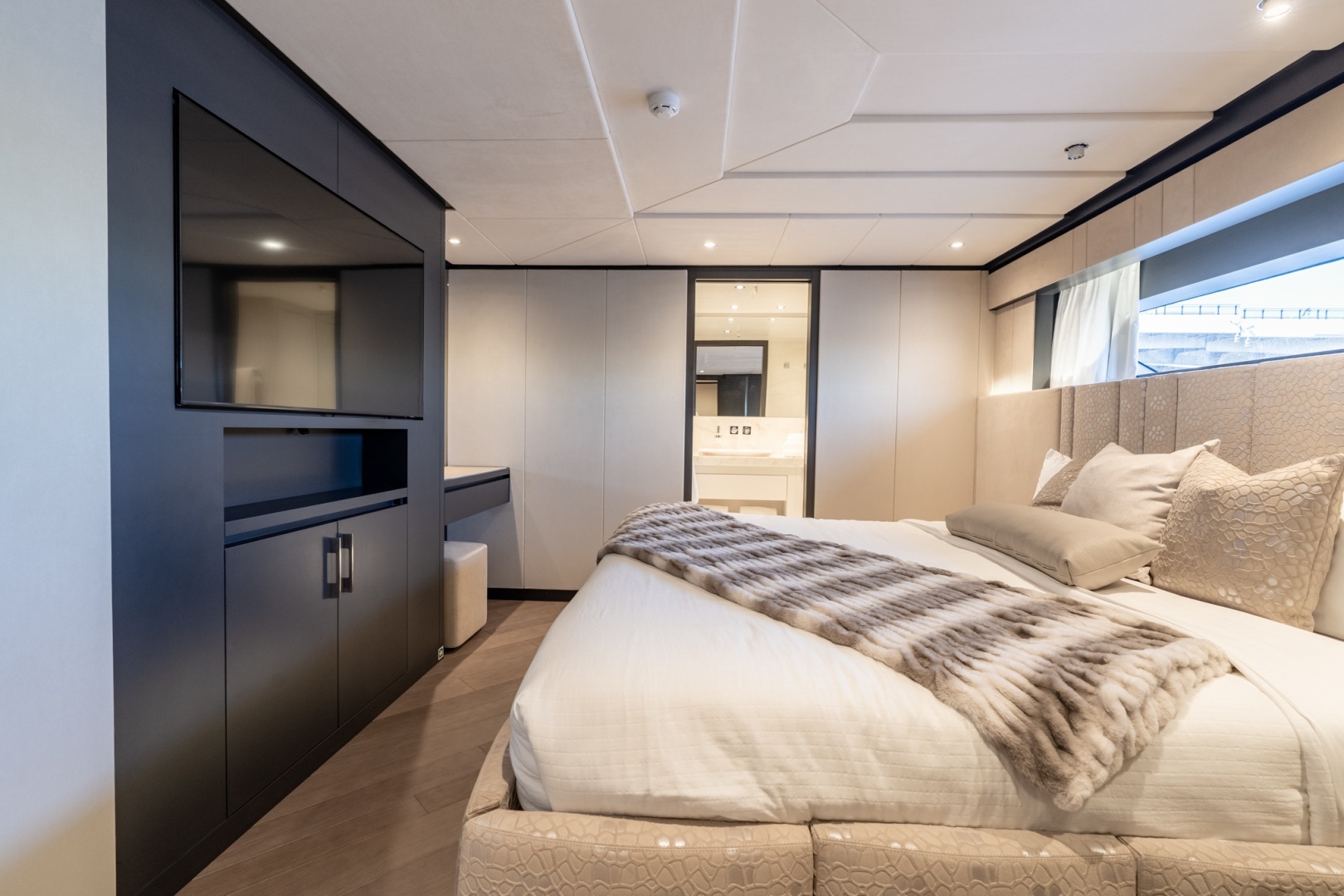

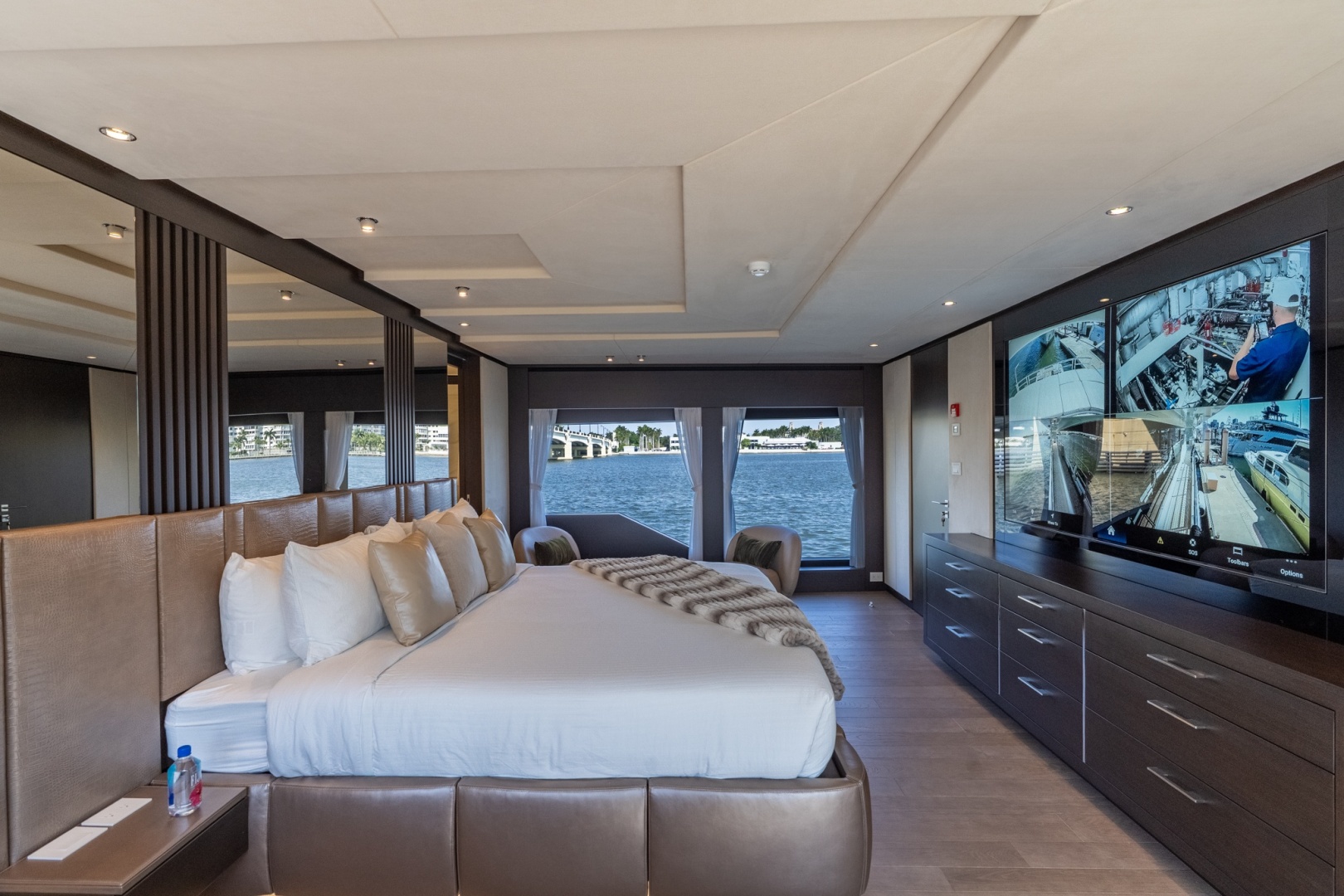

• Samsung 85"Class Neo QLED 8K Smart TV (Master Cabin)
• (x9) Apple Tv 4K
• (x9) Xantech DL85K/CFL‑Proof Dinky Link IrReceiver

• Audio/Video: Crestron Ready
• Bose Smart Soundbar 900 Dolby Atmos (MD Salon)
• Bose Smart Soundbar 700 Dolby Atmos (UD Salon)
• (x2) Bose Bass Module 500, Black 10’’, (MD Salon (1) / UD Salon (1))
• (x6) JL Audio M6‑770X‑C‑GWGW Speaker, (MD Aft (2) / UD Aft (1) / Sundeck (3))
• JL Audio M6‑650X‑C‑GWGW Speaker (Bowdeck)
• (x2) JL Audio M6‑10IB‑C‑GWGW‑4 Subwoofer, (MD Aft (1) / Sundeck (1))
• (x3) Fusion Apollo MS RA770 Marine Stereo, (MD Aft (1) / UD Aft (1) / Sundeck (1))
• Fusion Apollo SRX400Marine Stereo (Bowdeck)
• (x4) Fusion® ARX Wireless Remote, (MD Aft (1) / UD Aft (1) / Sundeck (1) / Bowdeck (1))

• (x8) TP‑LINK AX1800 Ceiling Mount WiFi 6 Access Point
• (x2) TP‑LINK Omada Hardware Controller
• Peplink Cellular Antenna Mobility 40G 5G /LTE Ready
• Peplink Max BR2 Pro/Dual 2.5 GPS Wan Ports, X62 5G
